2-82 — POWER TAKE OFF; TRANSMISSION REAR (#113128) — 140 parça

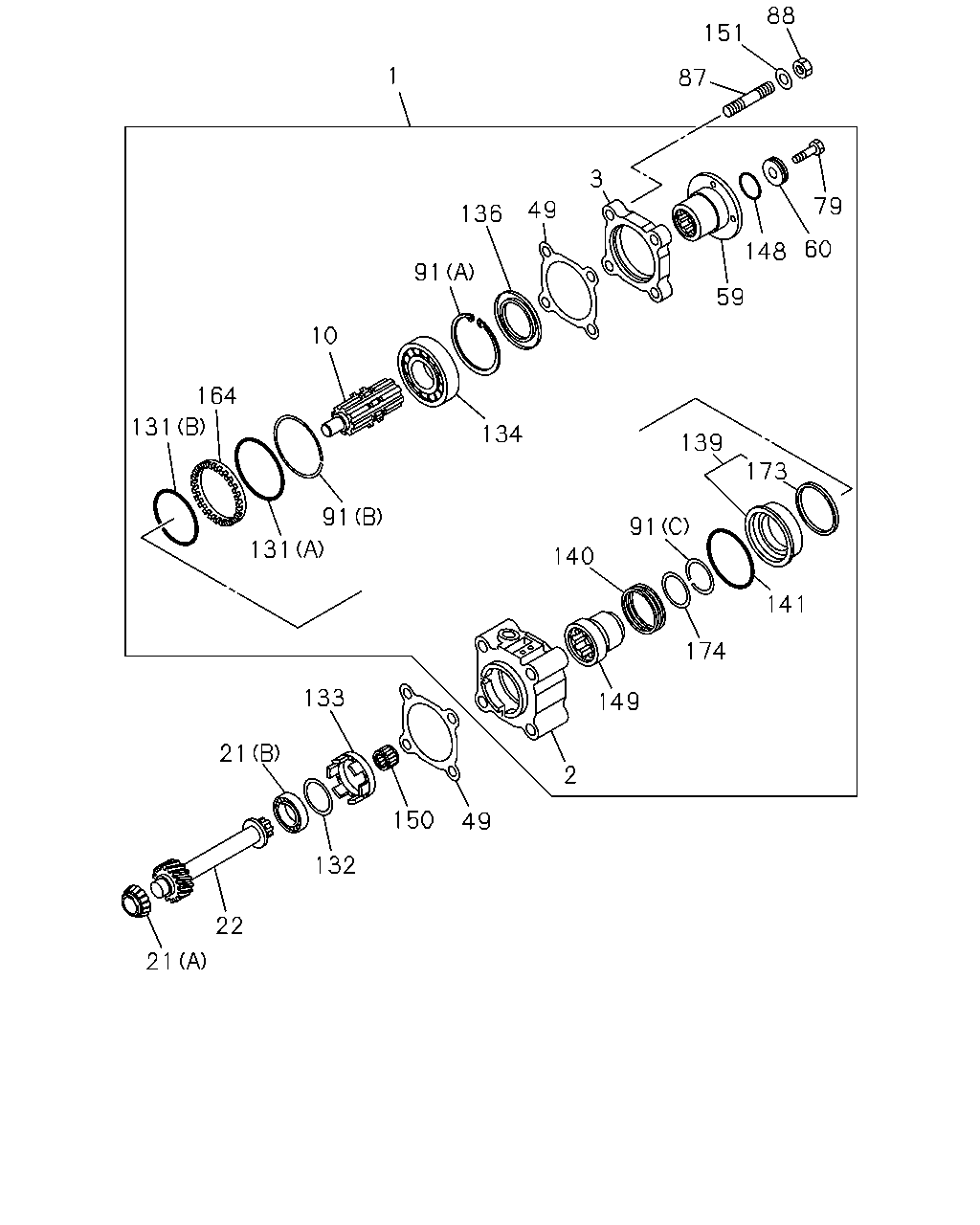

çizim 327834
1 151 88 87 79 148 60 59 3 49 136 91 10 164 131 91 131 134 139 91 141 173 174 149 140 2 49 150 132 133 21 22 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 POWER TAKE OFF ASM; TRANS RR
PTO CONTROL<SV6> 		1-38000-398-0 01 1 1302- ● ●
2 CASE; GEAR,TRANS RR PTO
PTO CONTROL<SV6> 		1-38111-116-0 01 1 1302-1305 ●
2 CASE; GEAR,TRANS RR PTO
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> 		1-38111-116-0 01 1 1302-1305 ●
2 CASE; GEAR,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38111-116-0 01 1 1306-1311 ●
2 CASE; GEAR,TRANS RR PTO
PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-38111-120-0 01 1 1302-1305 ●
2 CASE; GEAR,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38111-120-0 01 1 1306-1311 ●
2 CASE; GEAR,TRANS RR PTO
PTO CONTROL<SV6> 		1-38111-120-0 01 1 1312- ● ●
3 COVER; GEAR CASE,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38159-009-0 01 1 1306-1311 ●
3 COVER; GEAR CASE,TRANS RR PTO
PTO CONTROL<SV6> 		1-38159-009-0 01 1 1312- ● ●
3 COVER; GEAR CASE,TRANS RR PTO
PTO CONTROL<SV6> 		1-38159-008-0 01 1 1302-1305 ● ●
3 COVER; GEAR CASE,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38159-008-0 01 1 1306-1311 ●
10 SHAFT; PTO OUTPUT GEAR,TRANS RR PTO
PTO CONTROL<SV6> 		1-38221-064-0 01 1 1302- ● ●
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO ZF TRANS RR(BDM) (A) 		1-33389-090-0 01 1 1306-1311 ●
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO CONTROL<SV6> (A) 		1-33389-090-0 01 1 1312- ● ●
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO CONTROL<SV6> (A) 		1-33389-054-0 01 1 1302-1305 ● ●
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO ZF TRANS RR(BDM) (A) 		1-33389-054-0 01 1 1306-1311 ●
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO CONTROL<SV6> (B) 		1-33389-068-0 01 1 1302- ● ●
22 SHAFT; MAIN DRIVE,TRANS RR PTO
PTO CONTROL<SV6> 		1-33381-015-0 01 1 1302- ● ●
49 GASKET; PTO GEAR CASE TO TRANS
PTO CONTROL<SV6> 		1-33132-084-0 02 1 1302- ● ●
59 YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO
PTO CONTROL<SV6> 		1-38229-020-0 01 1 1302- ● ●
60 WASHER; YOKE,OUTPUT SHAFT,RR PTO
PTO CONTROL<SV6> 		1-38519-021-0 01 1 1302- ● ●
79 BOLT
PTO ZF TRANS RR(BDM) 		1-37249-216-0 01 1 1306-1311 ●
79 BOLT
PTO CONTROL<SV6> 		1-37249-216-0 01 1 1312- ● ●
79 BOLT
PTO CONTROL<SV6> 		1-37249-184-0 01 1 1302-1305 ● ●
79 BOLT
PTO ZF TRANS RR(BDM) 		1-37249-184-0 01 1 1306-1311 ●
87 STUD; GEAR CASE
PTO CONTROL<SV6> 		1-38119-093-0 04 1 1302-1305 ●
87 STUD; GEAR CASE
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> 		1-38119-093-0 04 1 1302-1305 ●
87 STUD; GEAR CASE
PTO ZF TRANS RR(BDM) 		1-38119-093-0 04 1 1306-1311 ●
87 STUD; GEAR CASE
PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98080-560-0 04 1 1302-1305 ●
87 STUD; GEAR CASE
PTO ZF TRANS RR(BDM) M12X80 		1-38119-103-0 04 1 1306-1311 ●
87 STUD; GEAR CASE
PTO CONTROL<SV6> M12X80 		1-38119-103-0 04 1 1312- ● ●
88 NUT; COVER
PTO CONTROL<SV6> 		1-38119-027-0 04 1 1302-1305 ●
88 NUT; COVER
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> 		1-38119-027-0 04 1 1302-1305 ●
88 NUT; COVER
PTO ZF TRANS RR(BDM) 		1-38119-027-0 04 1 1306-1311 ●
88 NUT; COVER
PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98080-562-0 04 1 1302-1305 ●
88 NUT; COVER
PTO ZF TRANS RR(BDM) 		1-38119-104-0 04 1 1306-1311 ●
88 NUT; COVER
PTO CONTROL<SV6> 		1-38119-104-0 04 1 1312- ● ●
91 RING; SNAP
PTO CONTROL<SV6> (A) 		1-38219-017-0 01 1 1302-1305 ● ●
91 RING; SNAP
PTO ZF TRANS RR(BDM) (A) 		1-38219-017-0 01 1 1306-1311 ●
91 RING; SNAP
PTO CONTROL<SV6> (C) 		1-38219-037-0 01 1 1302- ● ●
91 RING; SNAP
PTO CONTROL<SV6> (B) 		1-38219-038-0 01 1 1302- ● ●
131 GASKET; OUTPUT SHAFT
PTO CONTROL<SV6> (A) 		1-38129-035-0 01 1 1302- ● ●
131 GASKET; OUTPUT SHAFT
PTO CONTROL<SV6> (B) 		1-38129-036-0 01 1 1302- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.60 		1-33389-047-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33389-047-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.60 		1-33389-047-0 01 1 1306-1311 ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.50 		1-33389-049-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33389-049-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.50 		1-33389-049-0 01 1 1306-1311 ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.40 		1-33389-051-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> T=1.40 		1-33389-051-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.40 		1-33389-051-0 01 1 1306-1311 ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.25 		1-33389-055-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> T=1.25 		1-33389-055-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.25 		1-33389-055-0 01 1 1306-1311 ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.10 		1-33389-058-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> T=1.10 		1-33389-058-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.10 		1-33389-058-0 01 1 1306-1311 ●
132 SHIM; BRG
PTO CONTROL<SV6> T=0.95 		1-33389-061-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> T=0.95 		1-33389-061-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=0.95 		1-33389-061-0 01 1 1306-1311 ●
132 SHIM; BRG
PTO CONTROL<SV6> T=0.80 		1-33389-064-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> T=0.80 		1-33389-064-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=0.80 		1-33389-064-0 01 1 1306-1311 ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.55 		1-33389-048-0 01 1 1302- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.45 		1-33389-050-0 01 1 1302- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.35 		1-33389-052-0 01 1 1302- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.30 		1-33389-053-0 01 1 1302- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.20 		1-33389-056-0 01 1 1302- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.15 		1-33389-057-0 01 1 1302- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.05 		1-33389-059-0 01 1 1302- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.00 		1-33389-060-0 01 1 1302- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> T=0.90 		1-33389-062-0 01 1 1302- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> T=0.85 		1-33389-063-0 01 1 1302- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> T=0.75 		1-33389-065-0 01 1 1302- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> T=0.70 		1-33389-066-0 01 1 1302- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> T=0.65 		1-33389-067-0 01 1 1302- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> T=0.80 		8-98080-566-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=0.80 		8-98080-566-0 01 1 1306-1311 ●
132 SHIM; BRG
PTO CONTROL<SV6> T=0.80 		8-98080-566-0 01 1 1312- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> T=0.95 		8-98080-567-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=0.95 		8-98080-567-0 01 1 1306-1311 ●
132 SHIM; BRG
PTO CONTROL<SV6> T=0.95 		8-98080-567-0 01 1 1312- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.10 		8-98080-568-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.10 		8-98080-568-0 01 1 1306-1311 ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.10 		8-98080-568-0 01 1 1312- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.25 		8-98080-569-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.25 		8-98080-569-0 01 1 1306-1311 ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.25 		8-98080-569-0 01 1 1312- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.40 		8-98080-570-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.40 		8-98080-570-0 01 1 1306-1311 ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.40 		8-98080-570-0 01 1 1312- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.50 		8-98080-571-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.50 		8-98080-571-0 01 1 1306-1311 ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.50 		8-98080-571-0 01 1 1312- ● ●
132 SHIM; BRG
PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.60 		8-98080-572-0 01 1 1302-1305 ●
132 SHIM; BRG
PTO ZF TRANS RR(BDM) T=1.60 		8-98080-572-0 01 1 1306-1311 ●
132 SHIM; BRG
PTO CONTROL<SV6> T=1.60 		8-98080-572-0 01 1 1312- ● ●
133 BUSHING; SHAFT
PTO CONTROL<SV6> 		1-33389-046-0 01 1 1302- ● ●
134 BEARING; OUTPUT SHAFT
PTO CONTROL<SV6> 		1-38219-015-0 01 1 1302- ● ●
136 SEAL; SHAFT
PTO CONTROL<SV6> 		1-38519-010-0 01 1 1302-1305 ● ●
136 SEAL; SHAFT
PTO ZF TRANS RR(BDM) 		1-38519-010-0 01 1 1306-1311 ●
139 PISTON; RR PTO
PTO CONTROL<SV6> 		1-38129-033-0 01 1 1302-1305 ●
139 PISTON; RR PTO
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> 		1-38129-033-0 01 1 1302-1305 ●
139 PISTON; RR PTO
PTO ZF TRANS RR(BDM) 		1-38129-033-0 01 1 1306-1311 ●
139 PISTON; RR PTO
PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-38129-039-0 01 1 1302-1305 ●
139 PISTON; RR PTO
PTO ZF TRANS RR(BDM) 		1-38129-039-0 01 1 1306-1311 ●
139 PISTON; RR PTO
PTO CONTROL<SV6> 		1-38129-039-0 01 1 1312- ● ●
140 SPRING; PISTON,RR PTO
PTO ZF TRANS RR(BDM) 		1-38129-042-0 01 1 1306-1311 ●
140 SPRING; PISTON,RR PTO
PTO CONTROL<SV6> 		1-38129-042-0 01 1 1312- ● ●
140 SPRING; PISTON,RR PTO
PTO CONTROL<SV6> 		1-38129-032-0 01 1 1302-1305 ● ●
140 SPRING; PISTON,RR PTO
PTO ZF TRANS RR(BDM) 		1-38129-032-0 01 1 1306-1311 ●
141 GASKET; PISTON,RR PTO
PTO CONTROL<SV6> 		1-38129-035-0 01 1 1302- ● ●
148 GASKET; YOKE
PTO CONTROL<SV6> 		1-38519-014-0 01 1 1302- ● ●
149 SLEEVE; SLIDING
PTO CONTROL<SV6> 		1-38229-059-0 01 1 1302-1305 ●
149 SLEEVE; SLIDING
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> 		1-38229-059-0 01 1 1302-1305 ●
149 SLEEVE; SLIDING
PTO ZF TRANS RR(BDM) 		1-38229-059-0 01 1 1306-1311 ●
149 SLEEVE; SLIDING
PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-38229-060-0 01 1 1302-1305 ●
149 SLEEVE; SLIDING
PTO ZF TRANS RR(BDM) 		1-38229-060-0 01 1 1306-1311 ●
149 SLEEVE; SLIDING
PTO CONTROL<SV6> 		1-38229-060-0 01 1 1312- ● ●
150 BEARING; OUTPUT SHAFT
PTO CONTROL<SV6> 		1-38249-018-0 01 1 1302-1305 ●
150 BEARING; OUTPUT SHAFT
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> 		1-38249-018-0 01 1 1302-1305 ●
150 BEARING; OUTPUT SHAFT
PTO ZF TRANS RR(BDM) 		1-38249-018-0 01 1 1306-1311 ●
150 BEARING; OUTPUT SHAFT
PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98080-565-0 01 1 1302-1305 ●
150 BEARING; OUTPUT SHAFT
PTO ZF TRANS RR(BDM) 		8-98080-565-0 01 1 1306-1311 ●
150 BEARING; OUTPUT SHAFT
PTO CONTROL<SV6> 		8-98080-565-0 01 1 1312- ● ●
151 WASHER; PL,COVER
PTO CONTROL<SV6> 		1-38119-028-0 04 1 1302-1305 ●
151 WASHER; PL,COVER
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> 		1-38119-028-0 04 1 1302-1305 ●
151 WASHER; PL,COVER
PTO ZF TRANS RR(BDM) 		1-38119-028-0 04 1 1306-1311 ●
151 WASHER; PL,COVER
PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98080-563-0 04 1 1302-1305 ●
151 WASHER; PL,COVER
PTO ZF TRANS RR(BDM) 		8-98080-563-0 04 1 1306-1311 ●
151 WASHER; PL,COVER
PTO CONTROL<SV6> 		8-98080-563-0 04 1 1312- ● ●
164 RING; CENTERING,PTO
PTO CONTROL<SV6> 		1-38129-038-0 01 1 1302- ● ●
173 RING; MAGNET
PTO CONTROL<SV6> 		1-38129-034-0 01 1 1302- ● ●
174 DISK; PRESSURE
PTO CONTROL<SV6> 		1-38129-037-0 01 1 1302-1305 ●
174 DISK; PRESSURE
PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> 		1-38129-037-0 01 1 1302-1305 ●
174 DISK; PRESSURE
PTO ZF TRANS RR(BDM) 		1-38129-037-0 01 1 1306-1311 ●
174 DISK; PRESSURE
PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-38129-040-0 01 1 1302-1305 ●
174 DISK; PRESSURE
PTO ZF TRANS RR(BDM) 		1-38129-040-0 01 1 1306-1311 ●
174 DISK; PRESSURE
PTO CONTROL<SV6> 		1-38129-040-0 01 1 1312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
