Sayfa 1-45 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶

1-45 — WATER SEDIMENTER; FUEL (#113125) — 24 parça

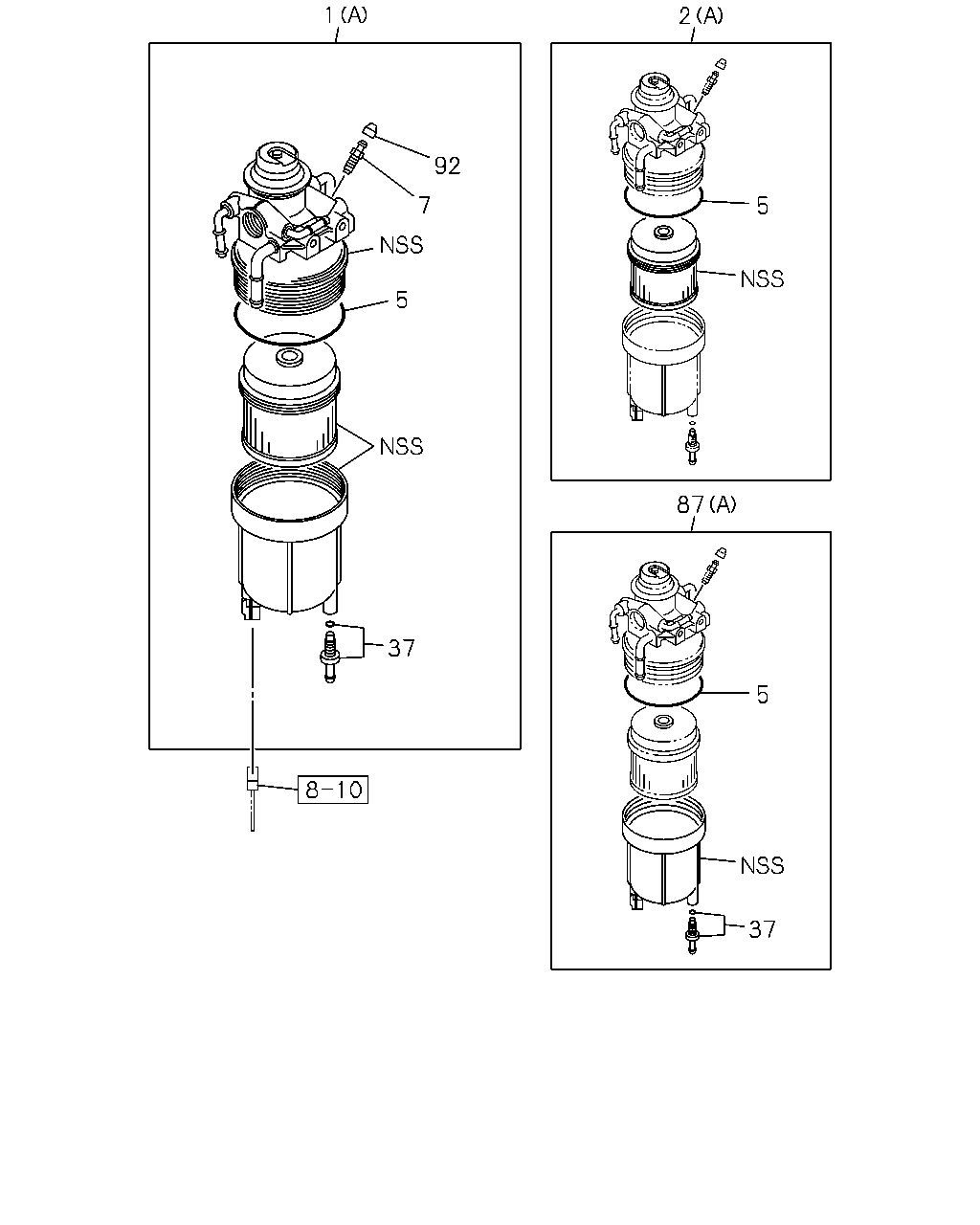

1 2 5 92 5 37 87 5 37 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SEDIMENTER; FUEL FRIGID ZONE KIT(YL3) (B)	8-98136-428-0	01	1	1302-	●
1	SEDIMENTER; FUEL EXC. FRIGID ZONE KIT(YL3) (B)	8-98086-193-1	01	1	1302-	●
1	SEDIMENTER; FUEL (B)	8-98086-193-1	01	1	1302-		●
1	SEDIMENTER; FUEL (A)	8-98162-904-4	01	1	1302-	●	●
2	ELEMENT; FUEL FILTER (A)	8-98203-599-0	01	1	1302-	●	●
2	ELEMENT; FUEL FILTER (B)	8-98092-481-1	01	1	1302-	●	●
2	ELEMENT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1302-	●	●
2	ELEMENT; FUEL FILTER (B) BEST VALUE PARTS	1-87610-094-1	01	1	1302-	●	●
5	GASKET; UPR COVER,SEDIMENTER	8-98203-600-0	01	1	1302-	●	●
7	PLUG; DRAIN,SEDIMENTER M8X10	8-98034-312-0	01	1	1302-	●	●
37	PLUG; SENSOR	8-98037-095-0	01	1	1302-	●	●
87	CASE ASM; SEDIMENTER (A)	8-98039-987-1	01	1	1302-	●	●
87	CASE ASM; SEDIMENTER (B)	8-98092-482-1	01	1	1302-	●	●
92	CAP; DRAIN	8-98034-314-0	01	1	1302-	●	●

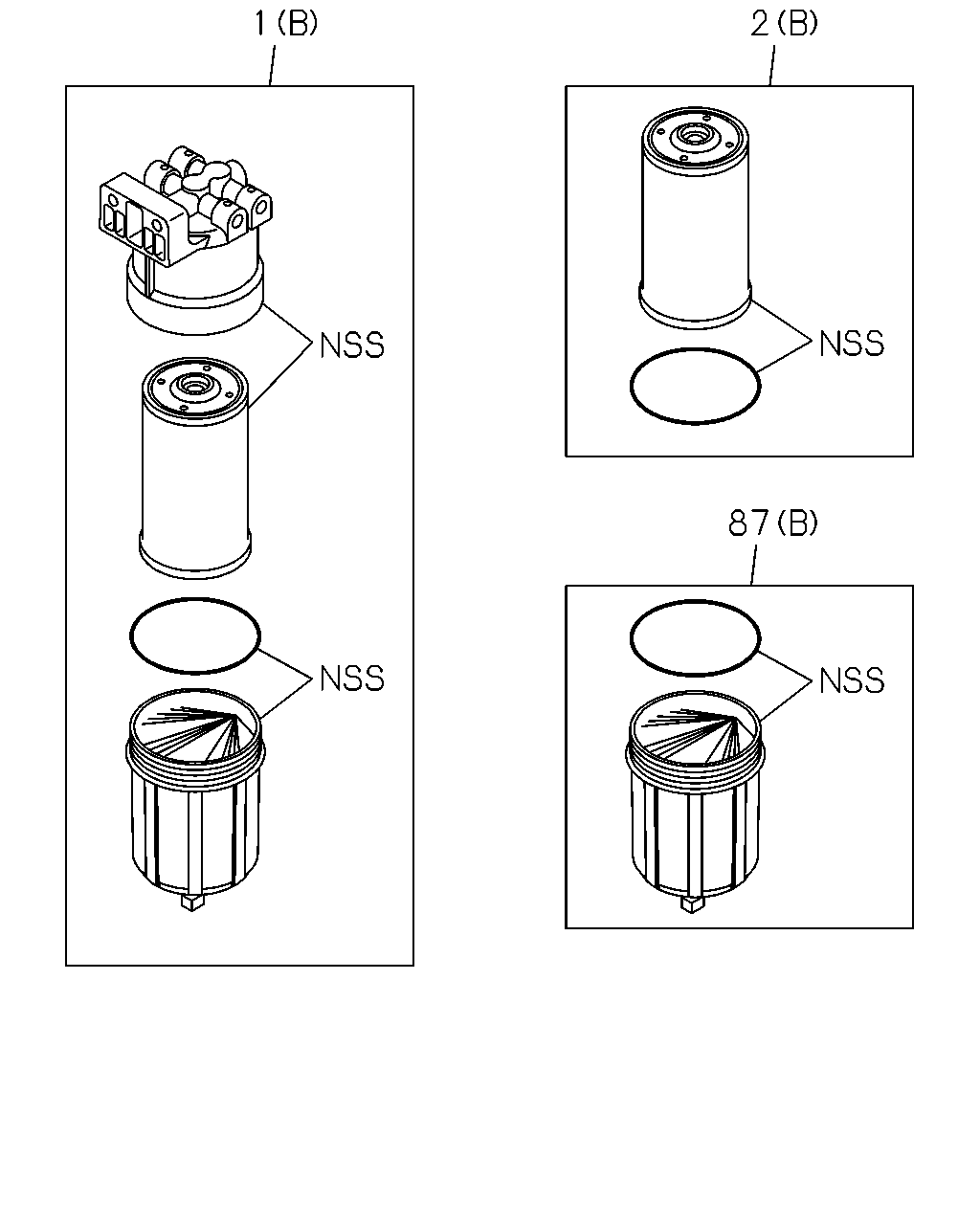

1 2 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SEDIMENTER; FUEL FRIGID ZONE KIT(YL3) (B)	8-98136-428-0	01	1	1302-	●
1	SEDIMENTER; FUEL EXC. FRIGID ZONE KIT(YL3) (B)	8-98086-193-1	01	1	1302-	●
1	SEDIMENTER; FUEL (B)	8-98086-193-1	01	1	1302-		●
1	SEDIMENTER; FUEL (A)	8-98162-904-4	01	1	1302-	●	●
2	ELEMENT; FUEL FILTER (A)	8-98203-599-0	01	1	1302-	●	●
2	ELEMENT; FUEL FILTER (B)	8-98092-481-1	01	1	1302-	●	●
2	ELEMENT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-1	01	1	1302-	●	●
2	ELEMENT; FUEL FILTER (B) BEST VALUE PARTS	1-87610-094-1	01	1	1302-	●	●
87	CASE ASM; SEDIMENTER (A)	8-98039-987-1	01	1	1302-	●	●
87	CASE ASM; SEDIMENTER (B)	8-98092-482-1	01	1	1302-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
