Sayfa 1-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11510 - FSS(RHD)EURO2 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶

1-50 — EXHAUST PIPE AND SILENCER (#113123) — 232 parça

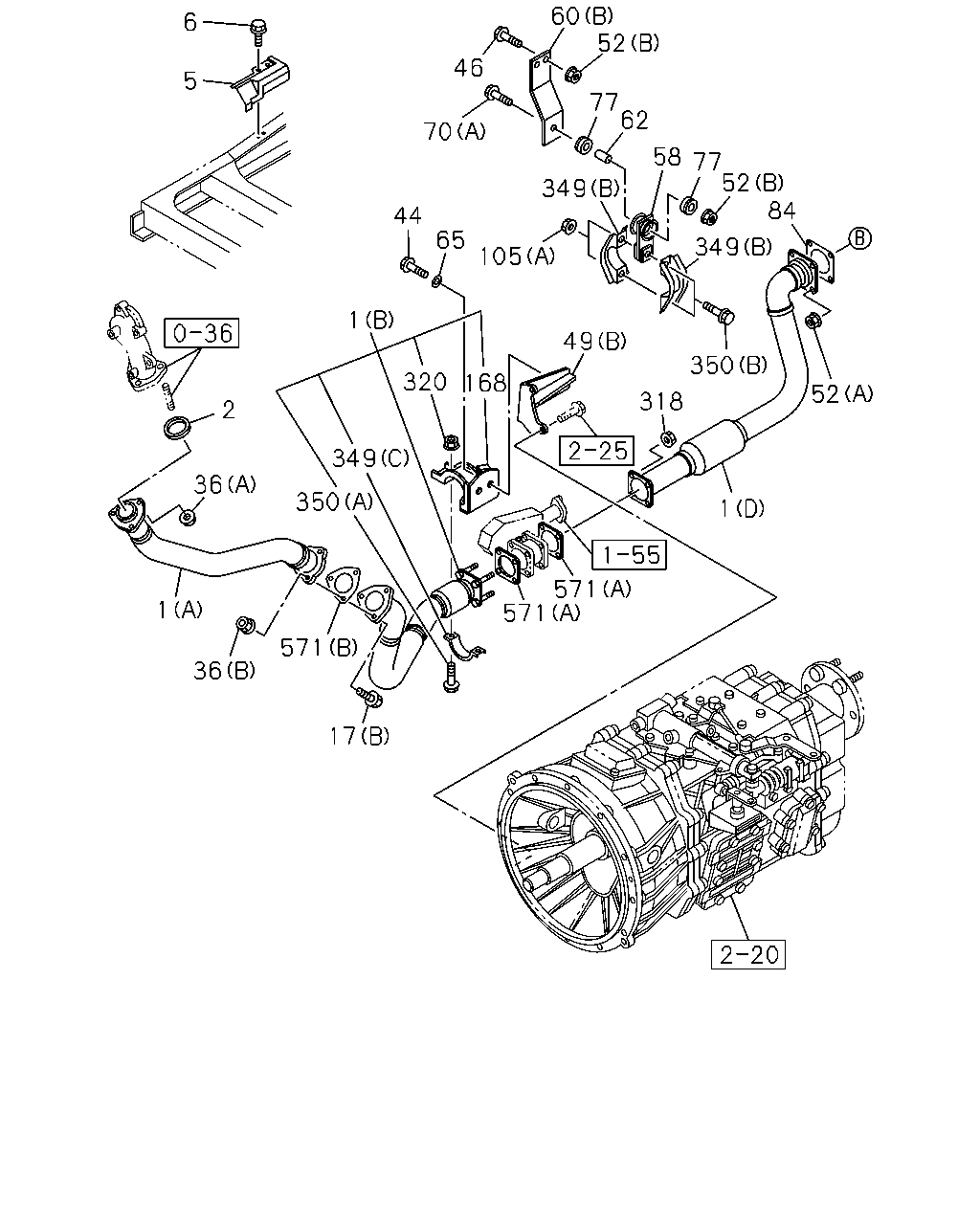

6 5 2 36 1 36 571 17 350 1 349 44 70 46 60 77 349 52 62 65 320 105 168 49 58 77 349 52 350 318 84 52 1 571 571

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (C)	8-98108-914-1	01	1	1302-	●
1	PIPE; EXH (A)	8-98110-609-0	01	1	1302-	●
1	PIPE; EXH (B)	8-98110-610-0	01	1	1302-1309	●
1	PIPE; EXH (B)	8-98246-815-0	01	1	1310-	●
1	PIPE; EXH (D)	8-98108-370-1	01	1	1302-		●
1	PIPE; EXH (A)	8-98146-777-0	01	1	1302-		●
1	PIPE; EXH (B)	8-98147-009-0	01	1	1302-		●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-97381-455-0	01	1	1302-	●	●
5	PROTECTOR; HEAT	8-98089-287-1	01	1	1302-	●	●
6	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	1302-	●	●
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28051-035-0	03	1	1302-	●	●
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE	0-28051-235-0	04	1	1302-	●	●
36	NUT; EXH PIPE (B) M10 FLANGE	0-91180-210-0	03	1	1302-	●	●
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1302-	●	●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1302-	●	●
46	BOLT; BRKT,EXH PIPE M10X35 FLANGE	0-28651-035-0	02	1	1302-	●	●
49	BRACKET; EXH PIPE TO TRANS (A)	8-97624-003-0	01	1	1302-	●
49	BRACKET; EXH PIPE TO TRANS (B)	8-98146-801-0	01	1	1302-		●
52	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1302-	●	●
52	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
52	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	04	1	1302-	●	●
58	BRACKET; EXH PIPE,RR L=94	1-22131-575-0	01	1	1302-	●	●
60	BRACKET; FRAME TO BRKT (B)	8-98319-681-0	01	1	1505-	●
60	BRACKET; FRAME TO BRKT (A)	1-22151-433-1	02	1	1302-	●
60	BRACKET; FRAME TO BRKT (B)	8-98108-603-1	01	1	1302-1504	●	●
60	BRACKET; FRAME TO BRKT (B)	8-98108-603-2	01	1	1505-		●
60	BRACKET; FRAME TO BRKT (C)	1-22131-835-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT (D)	1-22151-501-1	01	1	1302-		●
60	BRACKET; FRAME TO BRKT (E)	1-22151-847-0	01	1	1302-		●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	1302-	●	●
65	WASHER; PL ID=10.5	8-98073-091-0	02	1	1302-	●	●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	1302-	●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	01	1	1302-	●	●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	01	1	1302-		●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	01	1	1302-		●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	01	1	1302-		●
77	RUBBER; CUSHION,BRKT OD=40	1-22159-094-0	02	1	1302-	●	●
84	GASKET; EXH PIPE	8-98096-305-0	01	1	1302-	●	●
105	NUT; CLAMP (B) M10	0-91110-510-0	04	1	1302-	●
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
105	NUT; CLAMP (B) M10	0-91110-510-0	02	1	1302-		●
105	NUT; CLAMP (B) M10	0-91110-510-0	02	1	1302-		●
105	NUT; CLAMP (B) M10	0-91110-510-0	02	1	1302-		●
168	BRACKET; EXH PIPE,FRT	8-97623-998-0	01	1	1302-	●	●
318	NUT; EXH PIPE,FRT M8 W/LK WASHER	8-97581-234-0	04	1	1302-	●	●
320	NUT; CLAMP,EXH PIPE M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
349	CLAMP; EXH PIPE (A)	1-22133-295-0	01	1	1302-1309	●
349	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1310-	●
349	CLAMP; EXH PIPE (B) ID=75-78	1-22133-232-0	02	1	1302-	●	●
349	CLAMP; EXH PIPE (C)	8-97634-352-0	01	1	1302-		●
350	BOLT; CLAMP,EXH PIPE (A) M10X30 FLANGE	0-28651-030-0	02	1	1302-	●	●
350	BOLT; CLAMP,EXH PIPE (B) M10X40 FLANGE	0-28651-040-0	02	1	1302-	●	●
571	GASKET (A) ID=64	8-97373-108-0	02	1	1302-	●	●
571	GASKET (B)	8-97614-617-0	01	1	1302-	●	●

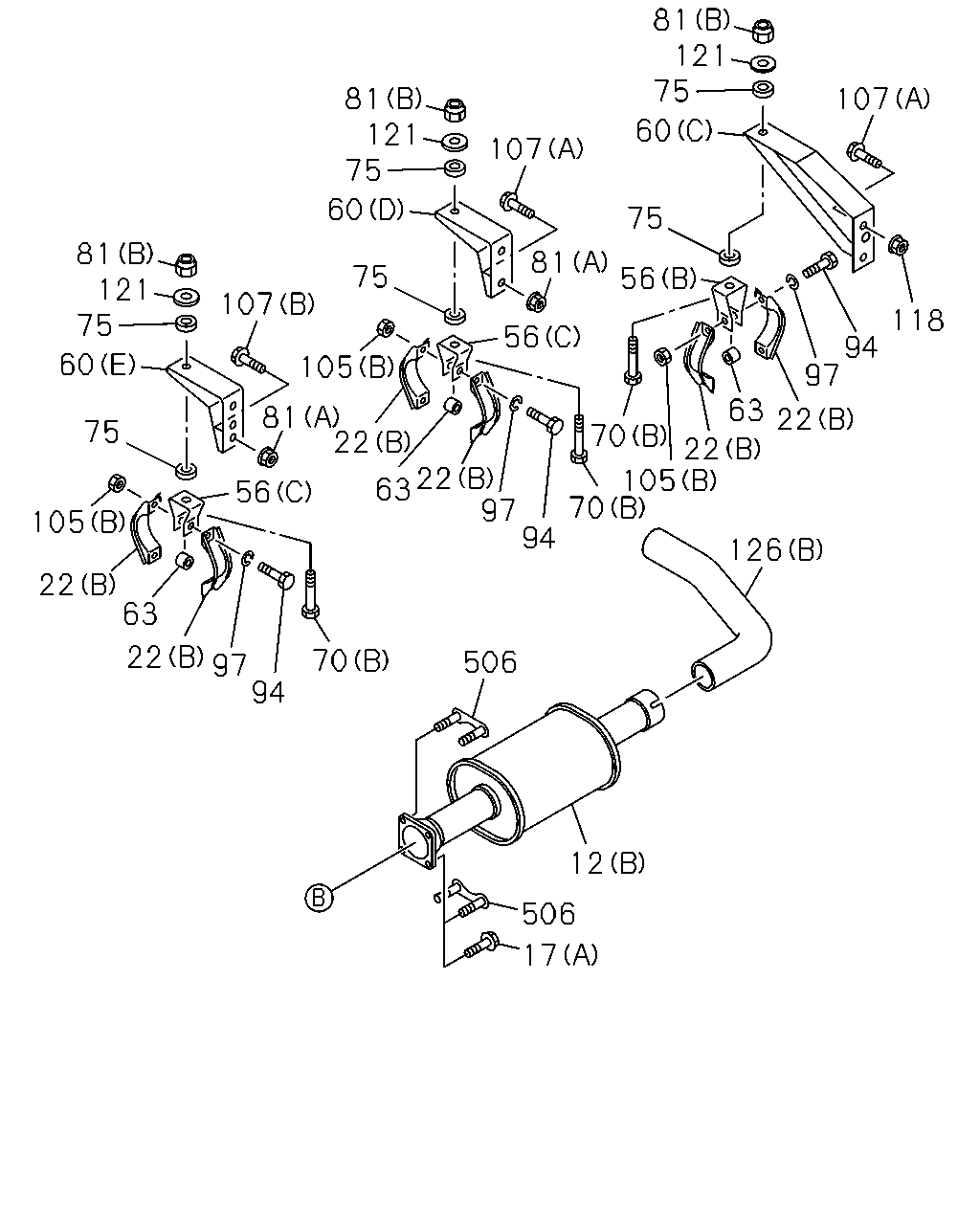

81 75 121 60 107 75 105 22 63 22 56 81 97 94 105 22 75 60 75 121 81 63 22 56 81 107 97 70 94 70 70 105 56 75 60 75 121 81 107 118 94 97 22 63 22 126 506 12 506 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH (A)	8-98202-434-0	01	1	1302-	●
12	SILENCER ASM; EXH (B)	8-98202-459-0	01	1	1302-		●
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28051-035-0	03	1	1302-	●	●
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE	0-28051-235-0	04	1	1302-	●	●
22	CLAMP; EXH PIPE (A) ID=94-98	1-22133-237-0	02	1	1302-	●
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1302-	●	●
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1302-		●
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (A) H=163	1-22139-049-0	02	1	1302-	●
56	BRACKET; CLAMP,EXH PIPE (B) H=67	1-22139-050-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22139-074-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22139-074-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT (B)	8-98319-681-0	01	1	1505-	●
60	BRACKET; FRAME TO BRKT (A)	1-22151-433-1	02	1	1302-	●
60	BRACKET; FRAME TO BRKT (B)	8-98108-603-1	01	1	1302-1504	●	●
60	BRACKET; FRAME TO BRKT (B)	8-98108-603-2	01	1	1505-		●
60	BRACKET; FRAME TO BRKT (C)	1-22131-835-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT (D)	1-22151-501-1	01	1	1302-		●
60	BRACKET; FRAME TO BRKT (E)	1-22151-847-0	01	1	1302-		●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	02	1	1302-	●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	1302-		●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	1302-		●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	1302-		●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	1302-	●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	01	1	1302-	●	●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	01	1	1302-		●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	01	1	1302-		●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	01	1	1302-		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	04	1	1302-	●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	02	1	1302-		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	02	1	1302-		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	02	1	1302-		●
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-	●
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	03	1	1302-		●
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-		●
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-		●
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	04	1	1302-	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	1302-	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	1302-		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	1302-		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	1302-		●
105	NUT; CLAMP (B) M10	0-91110-510-0	04	1	1302-	●
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
105	NUT; CLAMP (B) M10	0-91110-510-0	02	1	1302-		●
105	NUT; CLAMP (B) M10	0-91110-510-0	02	1	1302-		●
105	NUT; CLAMP (B) M10	0-91110-510-0	02	1	1302-		●
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-	●	●
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-	●	●
107	BOLT; BRKT (B) M10X40 FLANGE	0-28651-040-0	03	1	1302-		●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	02	1	1302-	●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	01	1	1302-		●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	01	1	1302-		●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	01	1	1302-		●
126	PIPE; EXH,RR (A)	8-98210-836-0	01	1	1302-	●
126	PIPE; EXH,RR (B)	8-98108-373-0	01	1	1302-		●
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> M12X35	1-22131-963-0	02	1	1302-	●	●

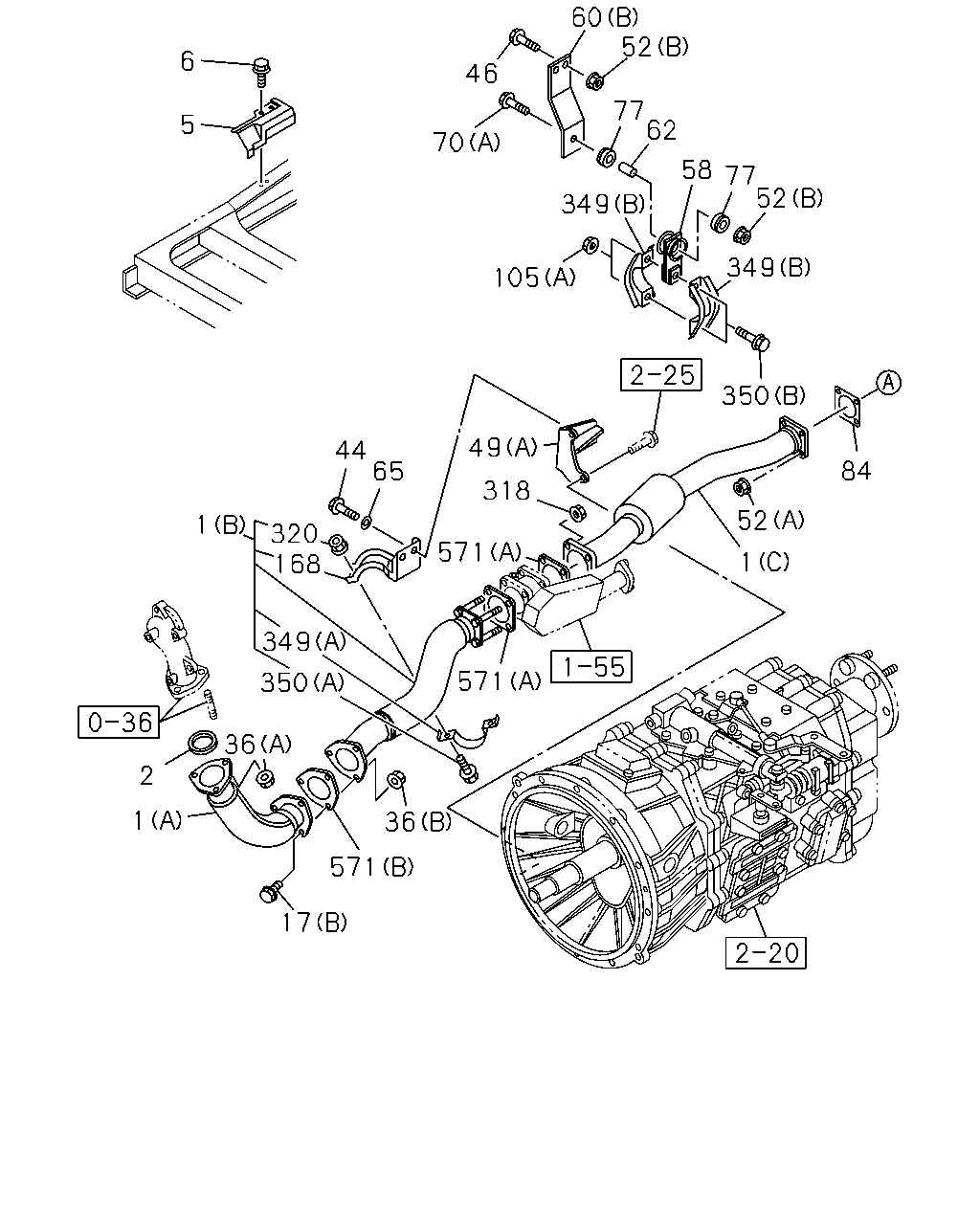

17 571 36 571 1 52 84 350 349 52 77 58 62 77 52 60 46 70 349 105 49 318 571 65 44 320 168 349 350 36 1 2 1 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (C)	8-98108-914-1	01	1	1302-	●
1	PIPE; EXH (A)	8-98110-609-0	01	1	1302-	●
1	PIPE; EXH (B)	8-98110-610-0	01	1	1302-1309	●
1	PIPE; EXH (B)	8-98246-815-0	01	1	1310-	●
1	PIPE; EXH (D)	8-98108-370-1	01	1	1302-		●
1	PIPE; EXH (A)	8-98146-777-0	01	1	1302-		●
1	PIPE; EXH (B)	8-98147-009-0	01	1	1302-		●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-97381-455-0	01	1	1302-	●	●
5	PROTECTOR; HEAT	8-98089-287-1	01	1	1302-	●	●
6	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	1302-	●	●
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28051-035-0	03	1	1302-	●	●
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE	0-28051-235-0	04	1	1302-	●	●
36	NUT; EXH PIPE (B) M10 FLANGE	0-91180-210-0	03	1	1302-	●	●
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1302-	●	●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1302-	●	●
46	BOLT; BRKT,EXH PIPE M10X35 FLANGE	0-28651-035-0	02	1	1302-	●	●
49	BRACKET; EXH PIPE TO TRANS (A)	8-97624-003-0	01	1	1302-	●
49	BRACKET; EXH PIPE TO TRANS (B)	8-98146-801-0	01	1	1302-		●
52	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1302-	●	●
52	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
52	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	04	1	1302-	●	●
58	BRACKET; EXH PIPE,RR L=94	1-22131-575-0	01	1	1302-	●	●
60	BRACKET; FRAME TO BRKT (B)	8-98319-681-0	01	1	1505-	●
60	BRACKET; FRAME TO BRKT (A)	1-22151-433-1	02	1	1302-	●
60	BRACKET; FRAME TO BRKT (B)	8-98108-603-1	01	1	1302-1504	●	●
60	BRACKET; FRAME TO BRKT (B)	8-98108-603-2	01	1	1505-		●
60	BRACKET; FRAME TO BRKT (C)	1-22131-835-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT (D)	1-22151-501-1	01	1	1302-		●
60	BRACKET; FRAME TO BRKT (E)	1-22151-847-0	01	1	1302-		●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	1302-	●	●
65	WASHER; PL ID=10.5	8-98073-091-0	02	1	1302-	●	●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	1302-	●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	01	1	1302-	●	●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	01	1	1302-		●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	01	1	1302-		●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	01	1	1302-		●
77	RUBBER; CUSHION,BRKT OD=40	1-22159-094-0	02	1	1302-	●	●
84	GASKET; EXH PIPE	8-98096-305-0	01	1	1302-	●	●
105	NUT; CLAMP (B) M10	0-91110-510-0	04	1	1302-	●
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
105	NUT; CLAMP (B) M10	0-91110-510-0	02	1	1302-		●
105	NUT; CLAMP (B) M10	0-91110-510-0	02	1	1302-		●
105	NUT; CLAMP (B) M10	0-91110-510-0	02	1	1302-		●
168	BRACKET; EXH PIPE,FRT	8-97623-998-0	01	1	1302-	●	●
318	NUT; EXH PIPE,FRT M8 W/LK WASHER	8-97581-234-0	04	1	1302-	●	●
320	NUT; CLAMP,EXH PIPE M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
349	CLAMP; EXH PIPE (A)	1-22133-295-0	01	1	1302-1309	●
349	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1310-	●
349	CLAMP; EXH PIPE (B) ID=75-78	1-22133-232-0	02	1	1302-	●	●
349	CLAMP; EXH PIPE (C)	8-97634-352-0	01	1	1302-		●
350	BOLT; CLAMP,EXH PIPE (A) M10X30 FLANGE	0-28651-030-0	02	1	1302-	●	●
350	BOLT; CLAMP,EXH PIPE (B) M10X40 FLANGE	0-28651-040-0	02	1	1302-	●	●
571	GASKET (A) ID=64	8-97373-108-0	02	1	1302-	●	●
571	GASKET (B)	8-97614-617-0	01	1	1302-	●	●

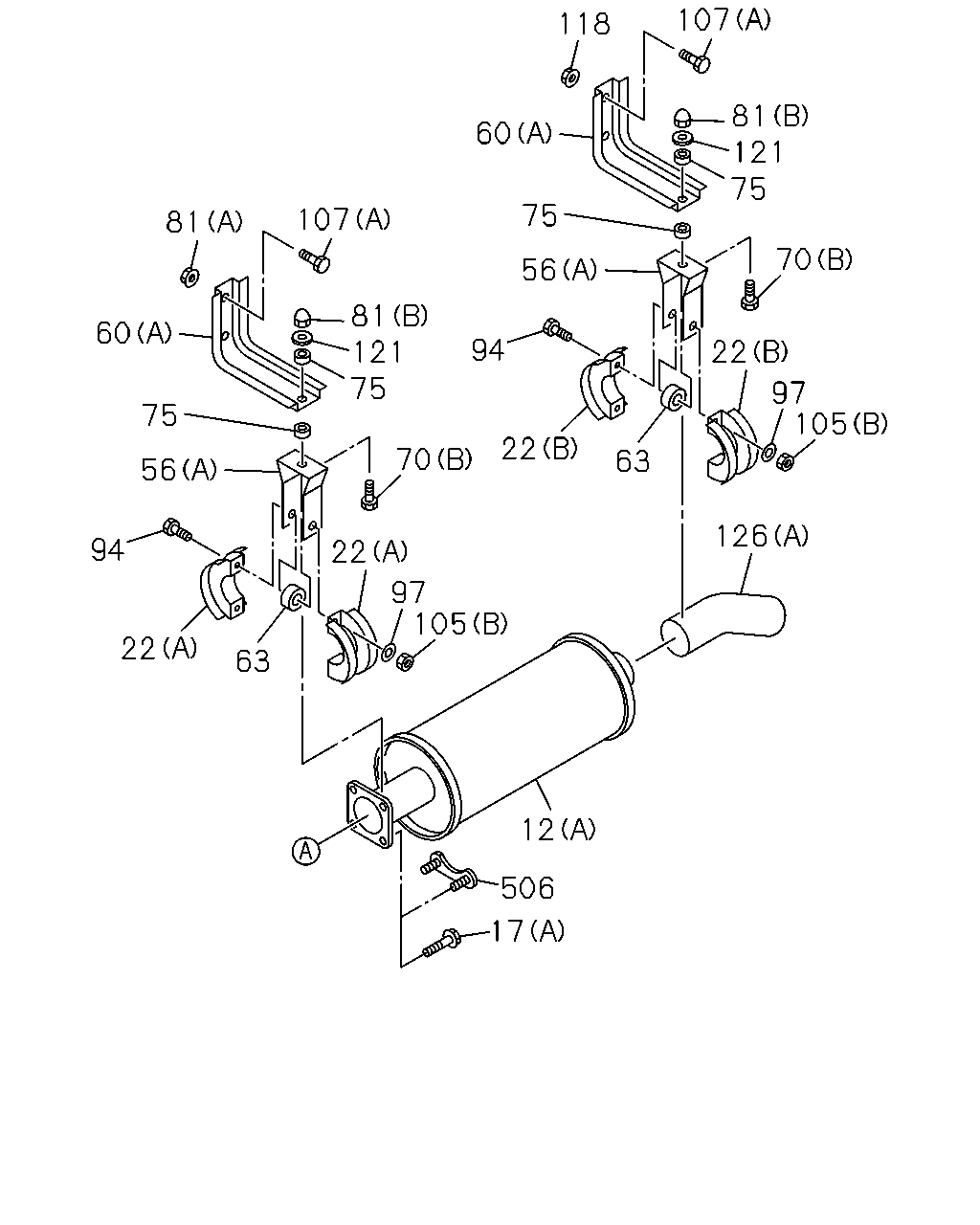

107 118 60 81 75 75 56 70 94 22 22 63 97 105 126 107 81 60 75 56 94 22 63 22 70 75 121 81 97 105 12 506 17 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH (A)	8-98202-434-0	01	1	1302-	●
12	SILENCER ASM; EXH (B)	8-98202-459-0	01	1	1302-		●
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28051-035-0	03	1	1302-	●	●
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE	0-28051-235-0	04	1	1302-	●	●
22	CLAMP; EXH PIPE (A) ID=94-98	1-22133-237-0	02	1	1302-	●
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1302-	●	●
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1302-		●
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (A) H=163	1-22139-049-0	02	1	1302-	●
56	BRACKET; CLAMP,EXH PIPE (B) H=67	1-22139-050-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22139-074-0	01	1	1302-		●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22139-074-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT (B)	8-98319-681-0	01	1	1505-	●
60	BRACKET; FRAME TO BRKT (A)	1-22151-433-1	02	1	1302-	●
60	BRACKET; FRAME TO BRKT (B)	8-98108-603-1	01	1	1302-1504	●	●
60	BRACKET; FRAME TO BRKT (B)	8-98108-603-2	01	1	1505-		●
60	BRACKET; FRAME TO BRKT (C)	1-22131-835-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT (D)	1-22151-501-1	01	1	1302-		●
60	BRACKET; FRAME TO BRKT (E)	1-22151-847-0	01	1	1302-		●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	02	1	1302-	●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	1302-		●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	1302-		●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	1302-		●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	1302-	●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	01	1	1302-	●	●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	01	1	1302-		●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	01	1	1302-		●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	01	1	1302-		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	04	1	1302-	●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	02	1	1302-		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	02	1	1302-		●
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	02	1	1302-		●
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-	●
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	03	1	1302-		●
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-		●
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-		●
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	04	1	1302-	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	1302-	●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	1302-		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	1302-		●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	1302-		●
105	NUT; CLAMP (B) M10	0-91110-510-0	04	1	1302-	●
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
105	NUT; CLAMP (B) M10	0-91110-510-0	02	1	1302-		●
105	NUT; CLAMP (B) M10	0-91110-510-0	02	1	1302-		●
105	NUT; CLAMP (B) M10	0-91110-510-0	02	1	1302-		●
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-	●	●
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-	●	●
107	BOLT; BRKT (B) M10X40 FLANGE	0-28651-040-0	03	1	1302-		●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	02	1	1302-	●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	01	1	1302-		●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	01	1	1302-		●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	01	1	1302-		●
126	PIPE; EXH,RR (A)	8-98210-836-0	01	1	1302-	●
126	PIPE; EXH,RR (B)	8-98108-373-0	01	1	1302-		●
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> M12X35	1-22131-963-0	02	1	1302-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
