Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#113116) — 327 parça

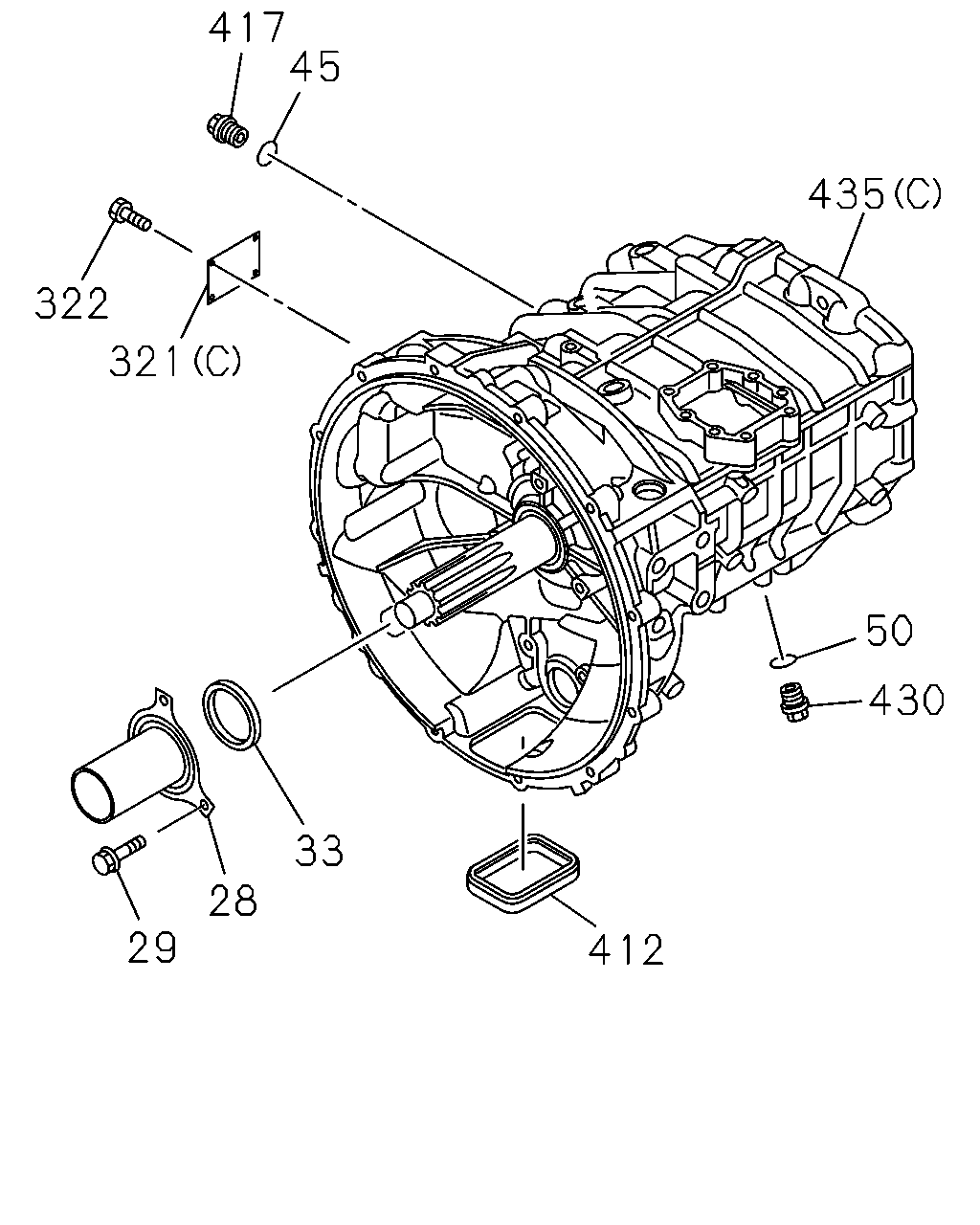

322 321 29 28 33 419 430 50 435 45 417

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	COVER; FRT,TRANS CASE	1-33219-327-0	01	1	1302-	●
28	COVER; FRT,TRANS CASE	1-33121-166-0	01	1	1302-		●
29	BOLT; FRT COVER	1-33129-003-0	03	1	1302-1311	●
29	BOLT; FRT COVER	1-34129-134-0	03	1	1312-	●
29	BOLT; FRT COVER M8X30	1-33549-172-0	06	1	1302-1305		●
29	BOLT; FRT COVER M8X30	1-33549-581-0	06	1	1306-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-328-0	01	1	1302-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-321-0	01	1	1302-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-435-0	01	1	1302-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-435-0	01	1	1302-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-293-0	01	1	1302-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33122-023-0	01	1	1302-1305		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33122-024-0	01	1	1302-1305		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-024-0	01	1	1306-		●
321	PLATE; NAME (C)	1-31119-049-0	01	1	1302-1311	●
321	PLATE; NAME (C)	1-31119-062-0	01	1	1312-	●
321	PLATE; NAME (A)	1-33119-519-0	01	1	1302-		●
321	PLATE; NAME (B)	1-33119-520-0	01	1	1302-		●
322	RIVET; NAME PLATE	1-33119-398-0	04	1	1302-1305	●
322	RIVET; NAME PLATE ASSISTOR SHIFT CONTROL<WX8>	1-33119-398-0	04	1	1302-1305		●
322	RIVET; NAME PLATE	1-33119-398-0	04	1	1306-1311	●
322	RIVET; NAME PLATE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-556-0	04	1	1302-1305		●
322	RIVET; NAME PLATE	1-33119-617-0	04	1	1306-		●
417	PLUG; OIL FILLER,TRANS	1-33119-268-0	01	1	1302-1311	●
417	PLUG; OIL FILLER,TRANS	1-33119-620-0	01	1	1312-	●
419	PLUG; RR COVER	1-34119-008-0	01	1	1302-1311	●
419	PLUG; RR COVER	1-34119-141-0	01	1	1312-	●
430	PLUG; OIL DRAIN	1-33119-376-0	01	1	1302-1311	●
430	PLUG; OIL DRAIN	1-33119-624-0	01	1	1312-	●
430	PLUG; OIL DRAIN	1-33119-156-0	01	1	1302-1305		●
430	PLUG; OIL DRAIN	1-33119-621-0	01	1	1306-		●
435	CASE; TRANS (C)	1-31111-227-0	01	1	1302-1311	●
435	CASE; TRANS (C)	1-31111-229-0	01	1	1312-	●
435	CASE; TRANS PTO CONTROL<SV6> (D)	1-31111-228-0	01	1	1302-1311	●
435	CASE; TRANS (D)	1-31111-233-0	01	1	1312-	●
435	CASE; TRANS EXC. PTO CONTROL<SV6> (D)	1-31111-229-0	01	1	1302-1311	●
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-368-0	01	1	1302-1305		●
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-371-0	01	1	1306-		●
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (B)	1-33111-369-0	01	1	1302-1305		●
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-372-0	01	1	1302-		●
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-373-0	01	1	1302-1305		●
435	CASE; TRANS (A)	1-33111-380-0	01	1	1306-		●
435	CASE; TRANS PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-371-0	01	1	1302-1305		●

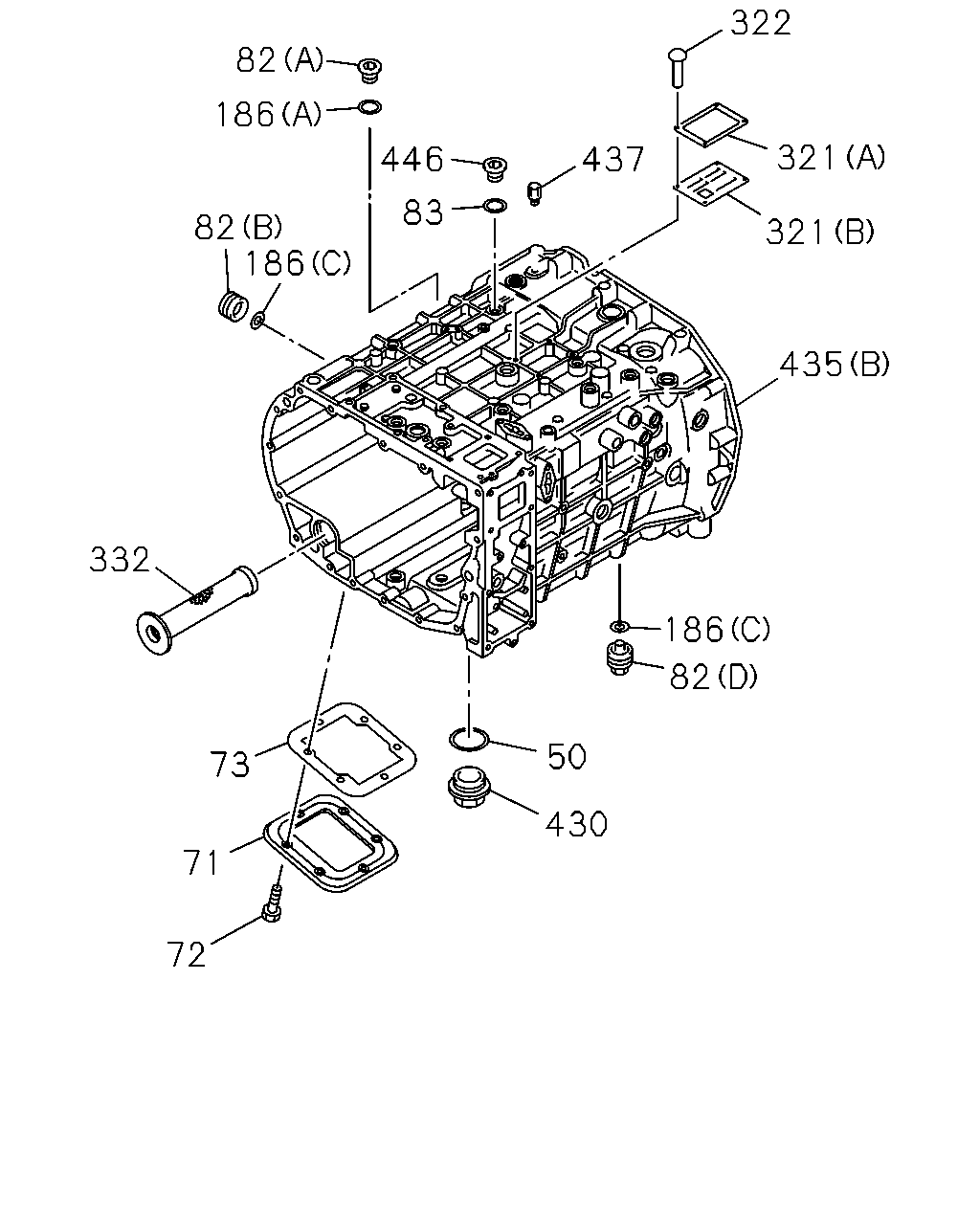

82 186 82 446 83 437 322 321 321 435 186 82 50 430 73 71 72 332 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-435-0	01	1	1302-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-293-0	01	1	1302-		●
71	COVER; SIDE,TRANS CASE	1-33119-407-0	01	1	1302-1305		●
71	COVER; SIDE,TRANS CASE	1-33119-622-0	01	1	1306-		●
72	BOLT; SIDE COVER M10X22	1-36129-014-1	06	1	1302-1305		●
72	BOLT; SIDE COVER M10X22	1-33119-592-0	06	1	1306-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33119-237-0	01	1	1302-		●
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	1302-1305		●
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1306-		●
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	1302-1305		●
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1306-		●
82	PLUG; SCREW,CASE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-268-0	01	1	1302-1305		●
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1306-		●
82	PLUG; SCREW,CASE ASSISTOR SHIFT CONTROL<WX8> (D)	1-33119-376-0	01	1	1302-1305		●
82	PLUG; SCREW,CASE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-268-0	02	1	1302-1305		●
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>	1-33119-249-0	01	1	1302-1305		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33122-023-0	01	1	1302-1305		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33122-024-0	01	1	1302-1305		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-024-0	01	1	1306-		●
186	RING; SEAL (A)	1-33119-249-0	01	1	1302-		●
186	RING; SEAL (B)	1-33119-286-0	02	1	1302-		●
186	RING; SEAL (C)	1-33119-435-0	02	1	1302-		●
321	PLATE; NAME (C)	1-31119-049-0	01	1	1302-1311	●
321	PLATE; NAME (C)	1-31119-062-0	01	1	1312-	●
321	PLATE; NAME (A)	1-33119-519-0	01	1	1302-		●
321	PLATE; NAME (B)	1-33119-520-0	01	1	1302-		●
322	RIVET; NAME PLATE	1-33119-398-0	04	1	1302-1305	●
322	RIVET; NAME PLATE ASSISTOR SHIFT CONTROL<WX8>	1-33119-398-0	04	1	1302-1305		●
322	RIVET; NAME PLATE	1-33119-398-0	04	1	1306-1311	●
322	RIVET; NAME PLATE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-556-0	04	1	1302-1305		●
322	RIVET; NAME PLATE	1-33119-617-0	04	1	1306-		●
332	FILTER; OIL	1-33119-437-0	01	1	1302-		●
430	PLUG; OIL DRAIN	1-33119-376-0	01	1	1302-1311	●
430	PLUG; OIL DRAIN	1-33119-624-0	01	1	1312-	●
430	PLUG; OIL DRAIN	1-33119-156-0	01	1	1302-1305		●
430	PLUG; OIL DRAIN	1-33119-621-0	01	1	1306-		●
435	CASE; TRANS (C)	1-31111-227-0	01	1	1302-1311	●
435	CASE; TRANS (C)	1-31111-229-0	01	1	1312-	●
435	CASE; TRANS PTO CONTROL<SV6> (D)	1-31111-228-0	01	1	1302-1311	●
435	CASE; TRANS (D)	1-31111-233-0	01	1	1312-	●
435	CASE; TRANS EXC. PTO CONTROL<SV6> (D)	1-31111-229-0	01	1	1302-1311	●
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-368-0	01	1	1302-1305		●
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-371-0	01	1	1306-		●
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (B)	1-33111-369-0	01	1	1302-1305		●
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-372-0	01	1	1302-		●
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-373-0	01	1	1302-1305		●
435	CASE; TRANS (A)	1-33111-380-0	01	1	1306-		●
435	CASE; TRANS PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-371-0	01	1	1302-1305		●
437	BREATHER; TRANS	1-36122-004-0	01	1	1302-1305		●
437	BREATHER; TRANS	1-36122-006-0	01	1	1306-		●
446	PLUG; CASE,TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>	1-33119-171-0	01	1	1302-1305		●

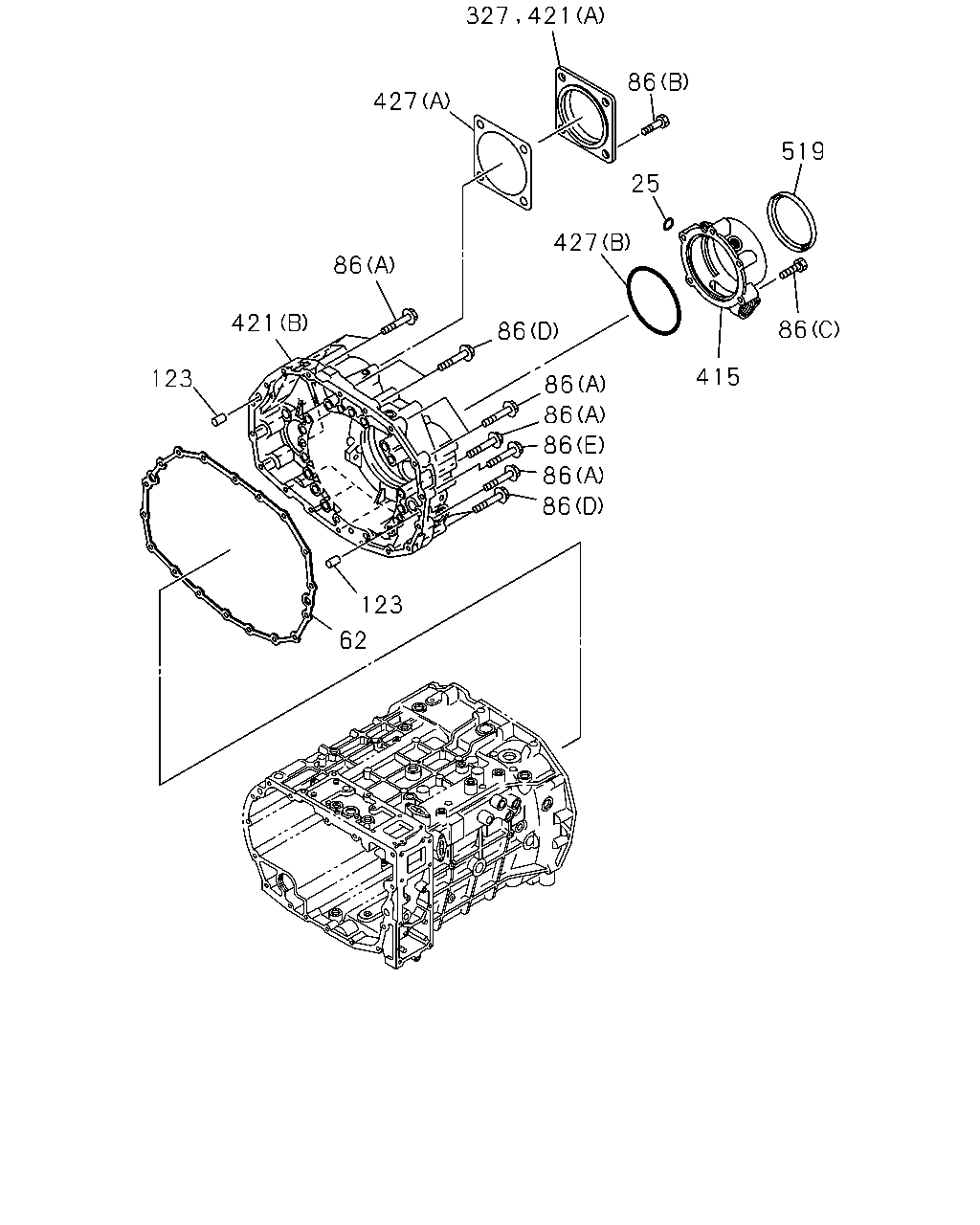

327 421 86 519 25 427 86 421 123 123 62 86 86 86 86 86 86 427 415 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33139-060-0	01	1	1302-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-087-0	01	1	1302-		●
86	BOLT; RR COVER (C) M10X60	1-33139-118-0	21	1	1302-1311	●
86	BOLT; RR COVER (C) M10X60	1-33139-237-0	21	1	1312-	●
86	BOLT; RR COVER EXC. PTO CONTROL<SV6> (B) M12X25	1-33119-400-0	04	1	1302-1305	●	●
86	BOLT; RR COVER EXC. PTO CONTROL<SV6> (B) M12X25	1-33119-400-0	04	1	1306-1311	●
86	BOLT; RR COVER PTO CONTROL<SV6> (D) M10X110	1-33139-057-0	05	1	1302-1305		●
86	BOLT; RR COVER EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8> (D) M10X110	1-33139-057-0	05	1	1302-1305		●
86	BOLT; RR COVER (D) M10X110	1-33139-235-0	05	1	1306-		●
86	BOLT; RR COVER PTO CONTROL<SV6> (E) M10X50	1-33139-058-0	01	1	1302-1305		●
86	BOLT; RR COVER EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8> (E) M10X50	1-33139-058-0	01	1	1302-1305		●
86	BOLT; RR COVER (E) M10X50	1-33139-236-0	01	1	1306-		●
86	BOLT; RR COVER (C) M10X60	1-33139-118-0	05	1	1302-1305		●
86	BOLT; RR COVER (C) M10X60	1-33139-237-0	05	1	1306-		●
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (A) M10X70	1-33119-518-0	12	1	1302-1305		●
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (B) M12X28	1-33139-051-0	04	1	1302-1305		●
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (D) M10X110	1-33139-210-0	05	1	1302-1305		●
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (E) M10X50	1-33139-211-0	01	1	1302-1305		●
86	BOLT; RR COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X70	1-33119-522-0	12	1	1302-1305		●
86	BOLT; RR COVER EXC. PTO CONTROL<SV6> (B) M12X25	1-33119-594-0	04	1	1306-1311		●
86	BOLT; RR COVER (B) M12X25	1-33119-594-0	04	1	1312-	●
86	BOLT; RR COVER EXC. PTO CONTROL<SV6> (B) M12X25	1-33119-594-0	04	1	1312-		●
86	BOLT; RR COVER PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> (A) M10X70	1-33119-522-0	07	1	1302-1305		●
86	BOLT; RR COVER (A) M10X70	1-33119-616-0	12	1	1306-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33122-023-0	01	1	1302-1305		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33122-024-0	01	1	1302-1305		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-024-0	01	1	1306-		●
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	1302-		●
327	COVER; RR,COUNTER EXC. PTO CONTROL<SV6>	1-33131-273-0	01	1	1306-1311		●
327	COVER; RR,COUNTER	1-33131-273-0	01	1	1312-	●
327	COVER; RR,COUNTER EXC. PTO CONTROL<SV6>	1-33131-273-0	01	1	1312-		●
327	COVER; RR,COUNTER EXC. PTO CONTROL<SV6>	1-33131-165-0	01	1	1302-1305	●	●
327	COVER; RR,COUNTER EXC. PTO CONTROL<SV6>	1-33131-165-0	01	1	1306-1311	●
415	COVER; BRG	1-33131-263-0	01	1	1302-	●
415	COVER; BRG ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>	1-33131-260-0	01	1	1302-1305		●
415	COVER; BRG EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33131-269-0	01	1	1302-1305		●
415	COVER; BRG	1-33131-269-0	01	1	1306-		●
415	COVER; BRG PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8>	1-33131-262-0	01	1	1302-1305		●
421	COVER; RR,TRANS PTO CONTROL<SV6> (B)	1-33131-261-0	01	1	1302-1305		●
421	COVER; RR,TRANS EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8> (B)	1-33131-261-0	01	1	1302-1305		●
421	COVER; RR,TRANS (B)	1-33131-275-0	01	1	1306-		●
421	COVER; RR,TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (A)	1-33131-165-0	01	1	1302-1305		●
421	COVER; RR,TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (B)	1-33131-214-0	01	1	1302-1305		●
427	GASKET; RR COVER (C)	1-33139-216-0	01	1	1302-	●
427	GASKET; RR COVER EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> (A)	1-33132-054-0	01	1	1302-1311	●	●
427	GASKET; RR COVER (A)	1-33132-054-0	01	1	1312-	●
427	GASKET; RR COVER EXC. PTO CONTROL<SV6> (A)	1-33132-054-0	01	1	1312-		●
427	GASKET; RR COVER (B)	1-33132-078-0	01	1	1302-1305		●
427	GASKET; RR COVER (B)	1-33132-088-0	01	1	1306-		●
519	GASKET; SHAFT	1-33139-214-0	01	1	1302-	●
519	GASKET; SHAFT	1-33139-059-0	01	1	1302-		●

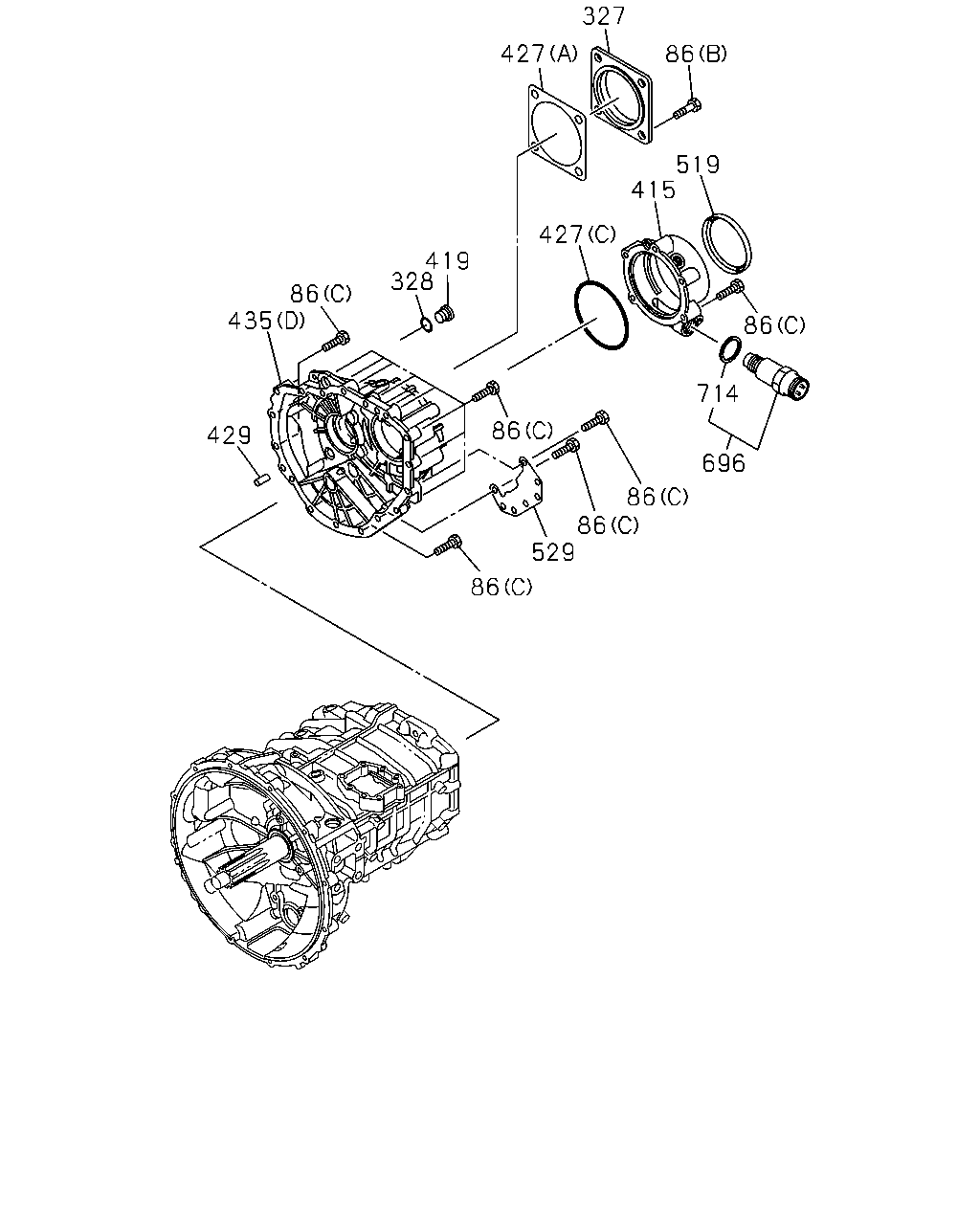

327 427 86 519 415 427 86 714 696 86 86 529 86 86 419 328 86 435 429

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
86	BOLT; RR COVER (C) M10X60	1-33139-118-0	21	1	1302-1311	●
86	BOLT; RR COVER (C) M10X60	1-33139-237-0	21	1	1312-	●
86	BOLT; RR COVER EXC. PTO CONTROL<SV6> (B) M12X25	1-33119-400-0	04	1	1302-1305	●	●
86	BOLT; RR COVER EXC. PTO CONTROL<SV6> (B) M12X25	1-33119-400-0	04	1	1306-1311	●
86	BOLT; RR COVER PTO CONTROL<SV6> (D) M10X110	1-33139-057-0	05	1	1302-1305		●
86	BOLT; RR COVER EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8> (D) M10X110	1-33139-057-0	05	1	1302-1305		●
86	BOLT; RR COVER (D) M10X110	1-33139-235-0	05	1	1306-		●
86	BOLT; RR COVER PTO CONTROL<SV6> (E) M10X50	1-33139-058-0	01	1	1302-1305		●
86	BOLT; RR COVER EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8> (E) M10X50	1-33139-058-0	01	1	1302-1305		●
86	BOLT; RR COVER (E) M10X50	1-33139-236-0	01	1	1306-		●
86	BOLT; RR COVER (C) M10X60	1-33139-118-0	05	1	1302-1305		●
86	BOLT; RR COVER (C) M10X60	1-33139-237-0	05	1	1306-		●
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (A) M10X70	1-33119-518-0	12	1	1302-1305		●
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (B) M12X28	1-33139-051-0	04	1	1302-1305		●
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (D) M10X110	1-33139-210-0	05	1	1302-1305		●
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (E) M10X50	1-33139-211-0	01	1	1302-1305		●
86	BOLT; RR COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X70	1-33119-522-0	12	1	1302-1305		●
86	BOLT; RR COVER EXC. PTO CONTROL<SV6> (B) M12X25	1-33119-594-0	04	1	1306-1311		●
86	BOLT; RR COVER (B) M12X25	1-33119-594-0	04	1	1312-	●
86	BOLT; RR COVER EXC. PTO CONTROL<SV6> (B) M12X25	1-33119-594-0	04	1	1312-		●
86	BOLT; RR COVER PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> (A) M10X70	1-33119-522-0	07	1	1302-1305		●
86	BOLT; RR COVER (A) M10X70	1-33119-616-0	12	1	1306-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33122-023-0	01	1	1302-1305		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33122-024-0	01	1	1302-1305		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-024-0	01	1	1306-		●
327	COVER; RR,COUNTER EXC. PTO CONTROL<SV6>	1-33131-273-0	01	1	1306-1311		●
327	COVER; RR,COUNTER	1-33131-273-0	01	1	1312-	●
327	COVER; RR,COUNTER EXC. PTO CONTROL<SV6>	1-33131-273-0	01	1	1312-		●
327	COVER; RR,COUNTER EXC. PTO CONTROL<SV6>	1-33131-165-0	01	1	1302-1305	●	●
327	COVER; RR,COUNTER EXC. PTO CONTROL<SV6>	1-33131-165-0	01	1	1306-1311	●
328	GASKET; PLUG	1-34119-130-0	01	1	1302-	●
415	COVER; BRG	1-33131-263-0	01	1	1302-	●
415	COVER; BRG ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>	1-33131-260-0	01	1	1302-1305		●
415	COVER; BRG EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33131-269-0	01	1	1302-1305		●
415	COVER; BRG	1-33131-269-0	01	1	1306-		●
415	COVER; BRG PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8>	1-33131-262-0	01	1	1302-1305		●
419	PLUG; RR COVER	1-34119-008-0	01	1	1302-1311	●
419	PLUG; RR COVER	1-34119-141-0	01	1	1312-	●
427	GASKET; RR COVER (C)	1-33139-216-0	01	1	1302-	●
427	GASKET; RR COVER EXC. PTO ZF TRANS RR(BDM),PTO CONTROL<SV6> (A)	1-33132-054-0	01	1	1302-1311	●	●
427	GASKET; RR COVER (A)	1-33132-054-0	01	1	1312-	●
427	GASKET; RR COVER EXC. PTO CONTROL<SV6> (A)	1-33132-054-0	01	1	1312-		●
427	GASKET; RR COVER (B)	1-33132-078-0	01	1	1302-1305		●
427	GASKET; RR COVER (B)	1-33132-088-0	01	1	1306-		●
429	PIN; STRAIGHT	1-33119-292-0	02	1	1302-	●
435	CASE; TRANS (C)	1-31111-227-0	01	1	1302-1311	●
435	CASE; TRANS (C)	1-31111-229-0	01	1	1312-	●
435	CASE; TRANS PTO CONTROL<SV6> (D)	1-31111-228-0	01	1	1302-1311	●
435	CASE; TRANS (D)	1-31111-233-0	01	1	1312-	●
435	CASE; TRANS EXC. PTO CONTROL<SV6> (D)	1-31111-229-0	01	1	1302-1311	●
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-368-0	01	1	1302-1305		●
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-371-0	01	1	1306-		●
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (B)	1-33111-369-0	01	1	1302-1305		●
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-372-0	01	1	1302-		●
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-373-0	01	1	1302-1305		●
435	CASE; TRANS (A)	1-33111-380-0	01	1	1306-		●
435	CASE; TRANS PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-371-0	01	1	1302-1305		●
519	GASKET; SHAFT	1-33139-214-0	01	1	1302-	●
519	GASKET; SHAFT	1-33139-059-0	01	1	1302-		●
529	BRACKET; MISSION CASE	1-34119-132-0	02	1	1302-1311	●
529	BRACKET; MISSION CASE	1-34119-142-0	02	1	1312-	●
696	SENSOR; PULSE	1-33139-215-0	01	1	1302-1311	●
696	SENSOR; PULSE	1-33139-241-0	01	1	1312-	●
714	GASKET; SENSOR	1-33549-563-0	01	1	1312-	●

468 329 245 82 186 435 314 315 33 11 28 29 561 478 477 27 24 561 330 463 413 561 36 36 37 343 561 412 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	1-31111-183-0	01	1	1302-		●
24	COVER; CHECK HOLE,DUST	1-31119-024-0	01	1	1302-1305		●
24	COVER; CHECK HOLE,DUST	1-31119-059-0	01	1	1306-		●
27	BOLT; COVER TO CLU HSG	1-31119-025-0	04	1	1302-1305		●
27	BOLT; COVER TO CLU HSG	1-31119-058-0	04	1	1306-		●
28	COVER; FRT,TRANS CASE	1-33219-327-0	01	1	1302-	●
28	COVER; FRT,TRANS CASE	1-33121-166-0	01	1	1302-		●
29	BOLT; FRT COVER	1-33129-003-0	03	1	1302-1311	●
29	BOLT; FRT COVER	1-34129-134-0	03	1	1312-	●
29	BOLT; FRT COVER M8X30	1-33549-172-0	06	1	1302-1305		●
29	BOLT; FRT COVER M8X30	1-33549-581-0	06	1	1306-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-328-0	01	1	1302-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-321-0	01	1	1302-		●
36	BEARING; NEEDLE,CLU HSG	1-09811-396-0	04	1	1302-		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1302-		●
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	1302-1305		●
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1306-		●
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	1302-1305		●
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1306-		●
82	PLUG; SCREW,CASE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-268-0	01	1	1302-1305		●
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1306-		●
82	PLUG; SCREW,CASE ASSISTOR SHIFT CONTROL<WX8> (D)	1-33119-376-0	01	1	1302-1305		●
82	PLUG; SCREW,CASE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-268-0	02	1	1302-1305		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33122-023-0	01	1	1302-1305		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33122-024-0	01	1	1302-1305		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-024-0	01	1	1306-		●
186	RING; SEAL (A)	1-33119-249-0	01	1	1302-		●
186	RING; SEAL (B)	1-33119-286-0	02	1	1302-		●
186	RING; SEAL (C)	1-33119-435-0	02	1	1302-		●
245	PIPE; OIL	1-33119-517-0	01	1	1302-		●
314	GASKET; CASE	1-33112-052-0	01	1	1302-		●
315	BOLT; CASE PTO CONTROL<SV6> M10X70	1-33119-522-0	17	1	1302-1305		●
315	BOLT; CASE EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	17	1	1302-1305		●
315	BOLT; CASE M10X70	1-33119-616-0	17	1	1306-		●
315	BOLT; CASE ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> M10X70	1-33119-518-0	17	1	1302-1305		●
329	PUMP ASM; OIL PTO CONTROL<SV6>	1-34150-121-0	01	1	1302-1305		●
329	PUMP ASM; OIL EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	1-34150-121-0	01	1	1302-1305		●
329	PUMP ASM; OIL	1-34150-123-0	01	1	1306-		●
329	PUMP ASM; OIL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>	1-34150-120-0	01	1	1302-1305		●
330	RING; RET	1-33129-005-0	01	1	1302-		●
343	BOLT; CLU HSG TO PLATE M10X75 FLANGE	8-94399-669-1	01	1	1302-		●
412	CAP; CLU HSG	1-31119-040-0	01	1	1302-	●
412	CAP; CLU HSG	1-31119-026-0	01	1	1302-		●
413	BALL; CLU HSG	1-31119-014-0	04	1	1302-		●
435	CASE; TRANS (C)	1-31111-227-0	01	1	1302-1311	●
435	CASE; TRANS (C)	1-31111-229-0	01	1	1312-	●
435	CASE; TRANS PTO CONTROL<SV6> (D)	1-31111-228-0	01	1	1302-1311	●
435	CASE; TRANS (D)	1-31111-233-0	01	1	1312-	●
435	CASE; TRANS EXC. PTO CONTROL<SV6> (D)	1-31111-229-0	01	1	1302-1311	●
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-368-0	01	1	1302-1305		●
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-371-0	01	1	1306-		●
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6> (B)	1-33111-369-0	01	1	1302-1305		●
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-372-0	01	1	1302-		●
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-373-0	01	1	1302-1305		●
435	CASE; TRANS (A)	1-33111-380-0	01	1	1306-		●
435	CASE; TRANS PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-371-0	01	1	1302-1305		●
463	COVER; DUST,FRT COVER	1-33129-004-0	01	1	1302-1305		●
463	COVER; DUST,FRT COVER	1-33129-018-0	01	1	1306-		●
468	GASKET; OIL PUMP ASSISTOR SHIFT CONTROL<WX8>	1-34159-063-0	01	1	1302-1305		●
468	GASKET; OIL PUMP EXC. ASSISTOR SHIFT CONTROL<WX8>	1-34159-122-0	01	1	1302-1305		●
468	GASKET; OIL PUMP	1-34159-122-0	01	1	1306-		●
477	BOLT; OIL PUMP M8X30	1-33549-172-0	08	1	1302-1305		●
477	BOLT; OIL PUMP M8X30	1-33549-581-0	08	1	1306-		●
478	WASHER; LK,OIL PUMP	1-36129-007-0	08	1	1302-1305		●
478	WASHER; LK,OIL PUMP	1-33549-583-0	08	1	1306-		●
561	PLUG (A)	1-31119-044-0	02	1	1302-1305		●
561	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-31119-044-0	02	1	1306-		●
561	PLUG (B)	1-31119-045-0	03	1	1302-1305		●
561	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-31119-045-0	03	1	1306-		●
561	PLUG (C)	1-31119-046-0	02	1	1302-1305		●
561	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-31119-046-0	02	1	1306-		●
561	PLUG (D)	1-31119-047-0	01	1	1302-1305		●
561	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-31119-047-0	01	1	1306-		●

265 353 439 399 271 406 265 353 303 265 406 271 399 439 353 511 353 439 406 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33122-023-0	01	1	1302-1305	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33122-024-0	01	1	1302-1305	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-024-0	01	1	1306-	●
265	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
265	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
265	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-	●
265	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28650-820-0	03	1	1302-	●
271	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-	●
303	TUBE; NYLON ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1302-	●
303	TUBE; NYLON EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1302-	●
353	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	02	1	1302-	●
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 L=20	0-95235-035-0	01	1	1302-	●
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 L=20	0-95235-035-0	03	1	1302-	●
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	01	1	1302-	●
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (D) L=350	1-09707-183-0	01	1	1302-	●
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-	●
399	BRACKET; CLIP ASSISTOR SHIFT CONTROL<WX8> (B)	1-47479-598-0	02	1	1302-	●
399	BRACKET; CLIP ASSISTOR SHIFT CONTROL<WX8> (A)	8-98085-674-0	01	1	1302-	●
399	BRACKET; CLIP EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-47479-598-0	01	1	1302-	●
406	NUT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	02	1	1302-	●
406	NUT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	02	1	1302-	●
406	NUT; BRKT EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	01	1	1302-	●
439	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	1302-	●
439	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE	0-28650-830-0	02	1	1302-	●
439	BOLT; BRKT EXC. ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE	0-28650-830-0	01	1	1302-	●
511	TUBE; CORRUGATE ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	1302-	●
511	TUBE; CORRUGATE EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1302-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

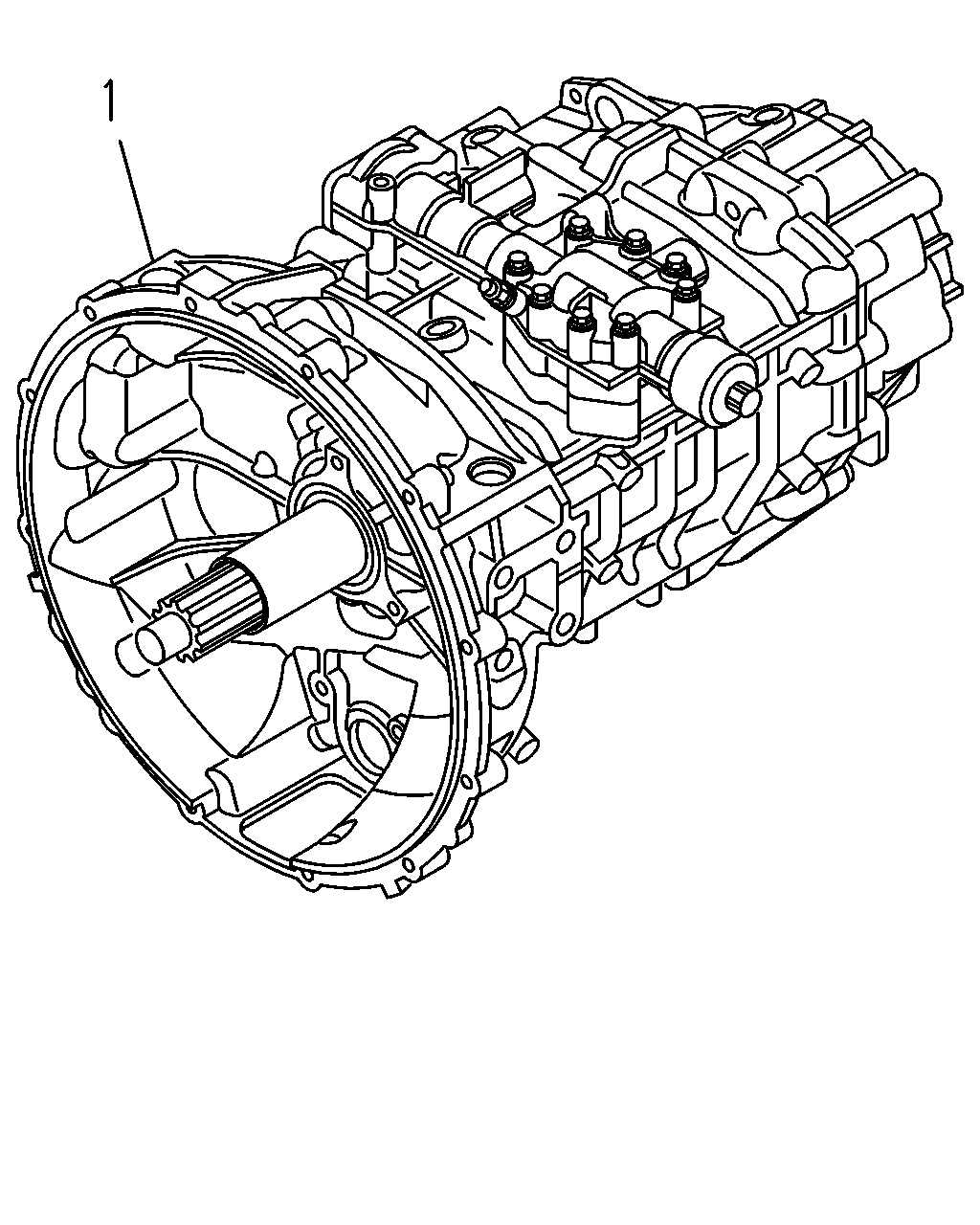

1	TRANSMISSION ASM; MANUAL PTO CONTROL<SV6>	8-98109-568-1	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL EXC. PTO CONTROL<SV6>	8-98098-909-1	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>	1-33043-933-1	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8>	1-33044-084-1	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98083-335-2	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98083-334-2	01	1	1302-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33122-023-0	01	1	1302-1305		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33122-024-0	01	1	1302-1305		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-024-0	01	1	1306-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

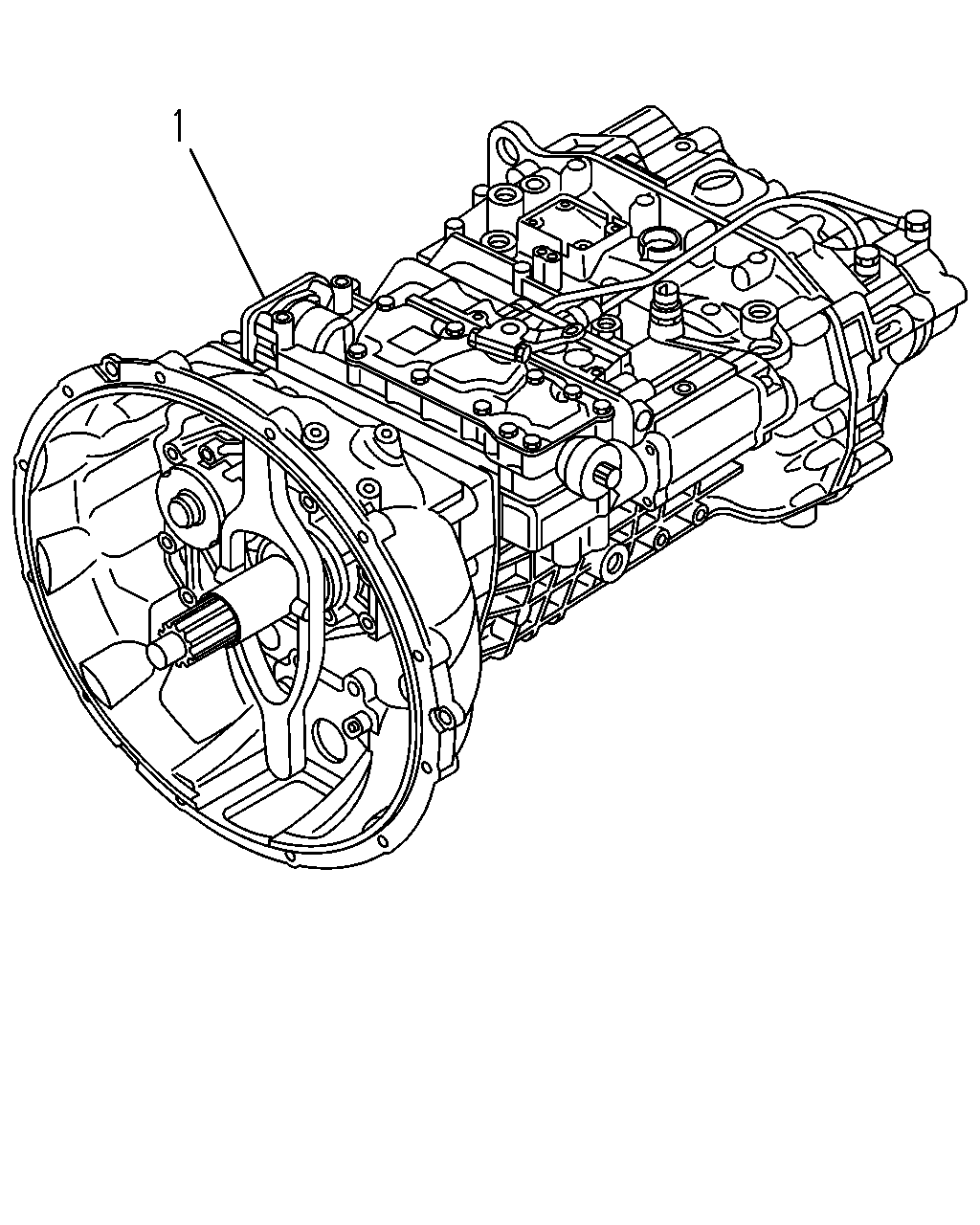

1	TRANSMISSION ASM; MANUAL PTO CONTROL<SV6>	8-98109-568-1	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL EXC. PTO CONTROL<SV6>	8-98098-909-1	01	1	1302-	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>	1-33043-933-1	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8>	1-33044-084-1	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98083-335-2	01	1	1302-		●
1	TRANSMISSION ASM; MANUAL EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98083-334-2	01	1	1302-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33122-023-0	01	1	1302-1305		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33122-024-0	01	1	1302-1305		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-024-0	01	1	1306-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
