Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#113114) — 398 parça

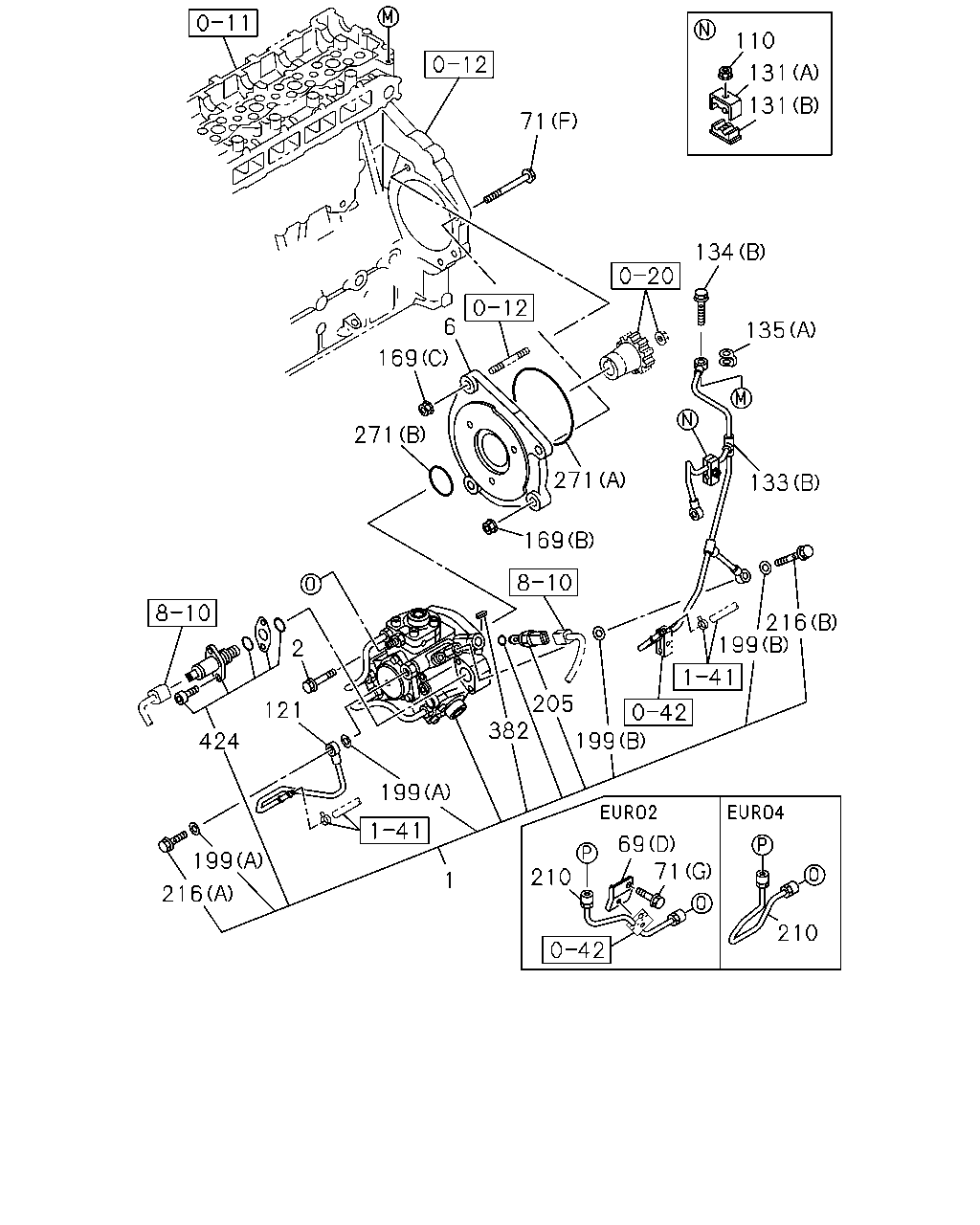

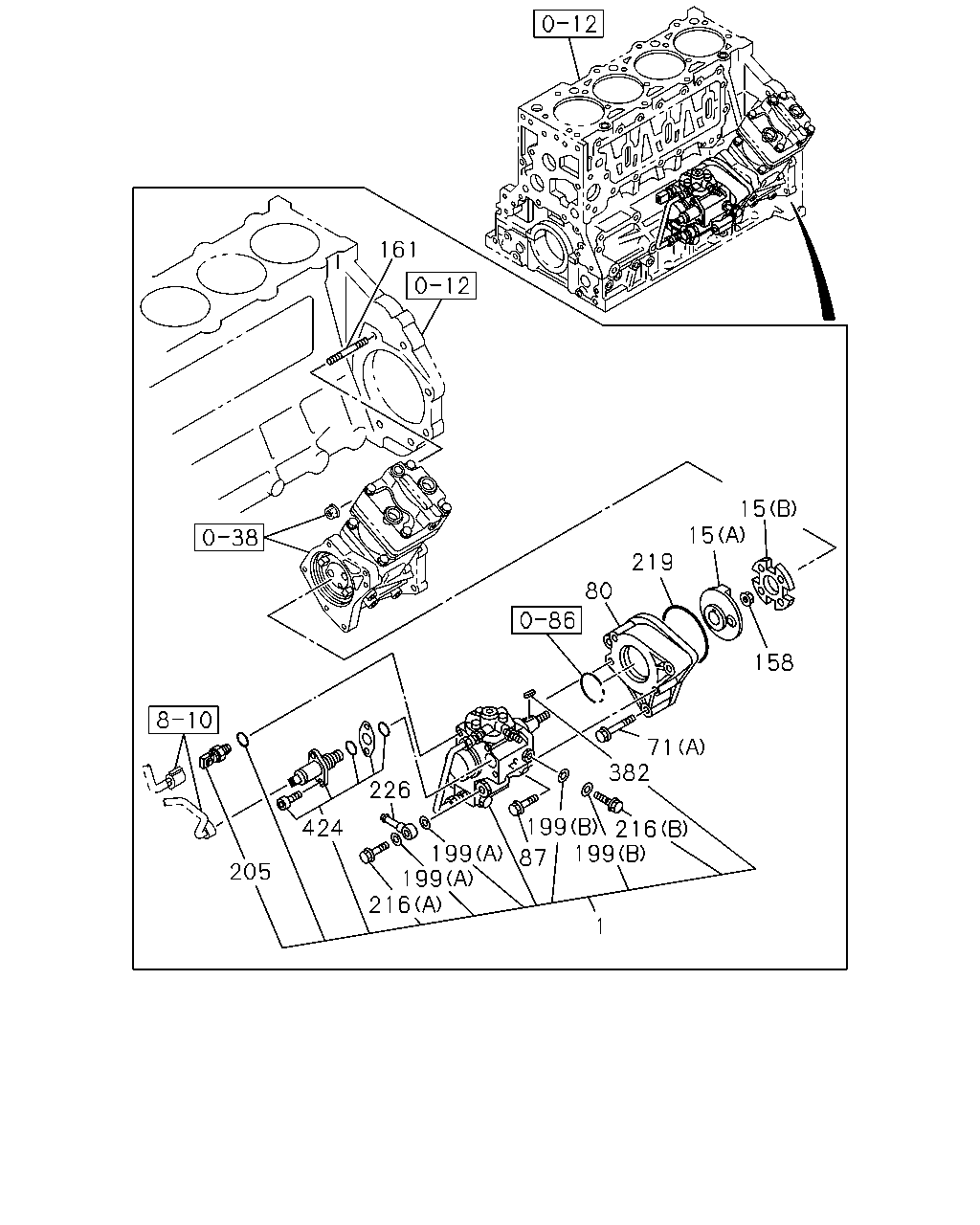

161 226 424 205 199 199 216 87 199 199 1 216 382 71 158 15 15 219 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ	8-97386-557-5	01	1	1302-	●
1	PUMP ASM; INJ	8-97605-946-7	01	1	1302-		●	●
15	COUPLING ASM; INJ PUMP (A)	8-97306-054-0	01	1	1302-	●
15	COUPLING ASM; INJ PUMP (B) SEE FIG-NO 0-87 FOR COMPONENT.	8-97306-059-1	01	1	1302-	●
71	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
71	BOLT; BRKT (D) M8X40 FLANGE	0-28050-840-0	01	1	1302-	●
71	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	03	1	1302-	●
71	BOLT; BRKT EURO4 SPECIFICATION<NT4> (E) M8X60 FLANGE	0-28050-860-0	01	1	1302-	●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X50 FLANGE	0-28050-850-0	01	1	1302-	●
71	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●	●
71	BOLT; BRKT (F) M12X100 FLANGE	0-28151-200-0	01	1	1302-		●	●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (G) M10X16 FLANGE	0-28151-016-0	01	1	1302-		●	●
80	BRACKET; PUMP	8-98061-699-0	01	1	1302-	●
87	BOLT; PUMP M8X30 FLANGE	0-28650-830-0	03	1	1302-	●
158	NUT; INJ PUMP M14 FLANGE	0-91180-114-0	01	1	1302-	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	1302-	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1302-	●	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1302-	●	●	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1302-	●	●	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1302-	●	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1302-	●	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1302-	●	●	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6	1-09623-593-0	01	1	1302-	●
226	PIPE; FUEL	8-98126-332-0	01	1	1302-	●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1302-	●	●	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1302-	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-449-1	01	1	1302-		●	●

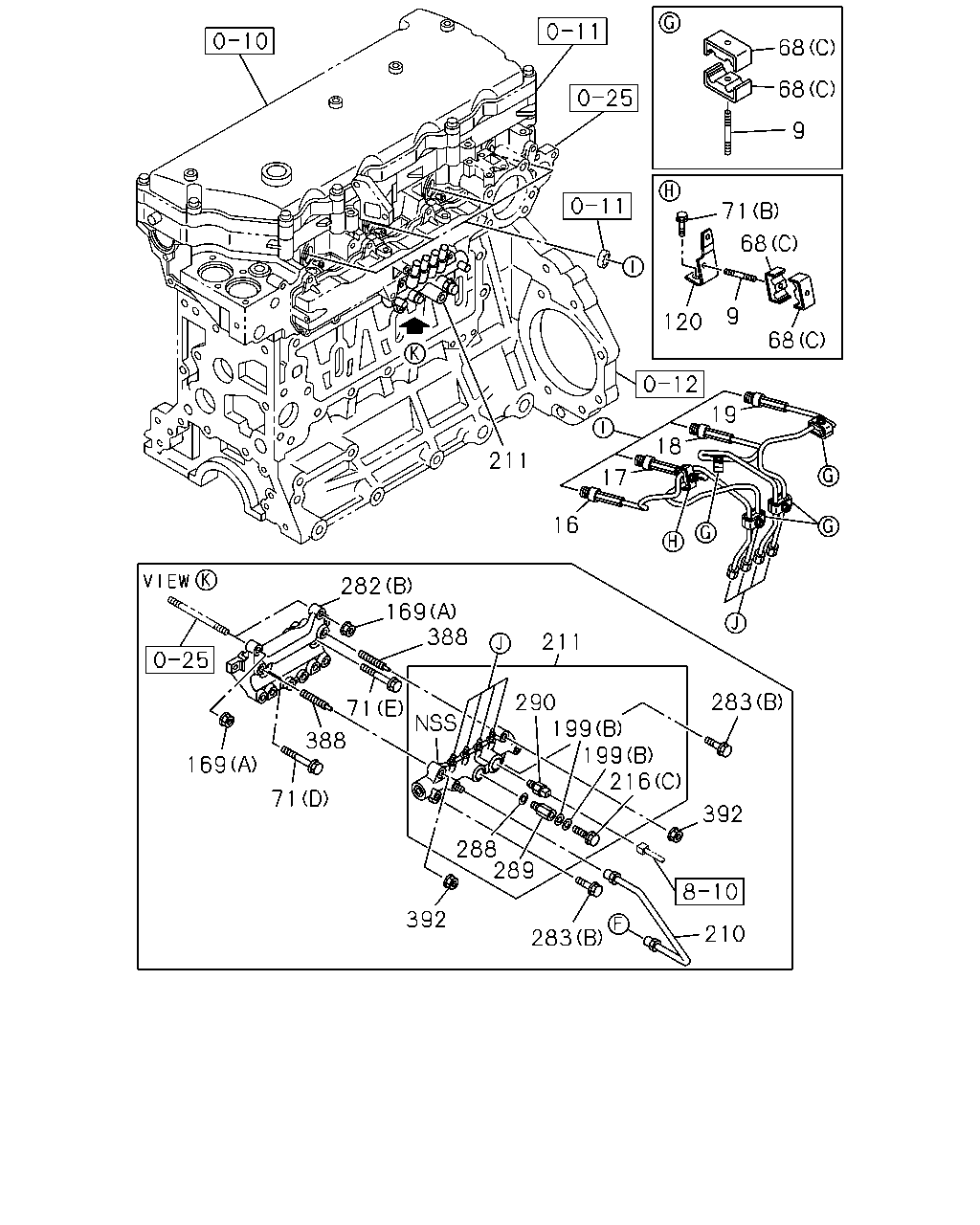

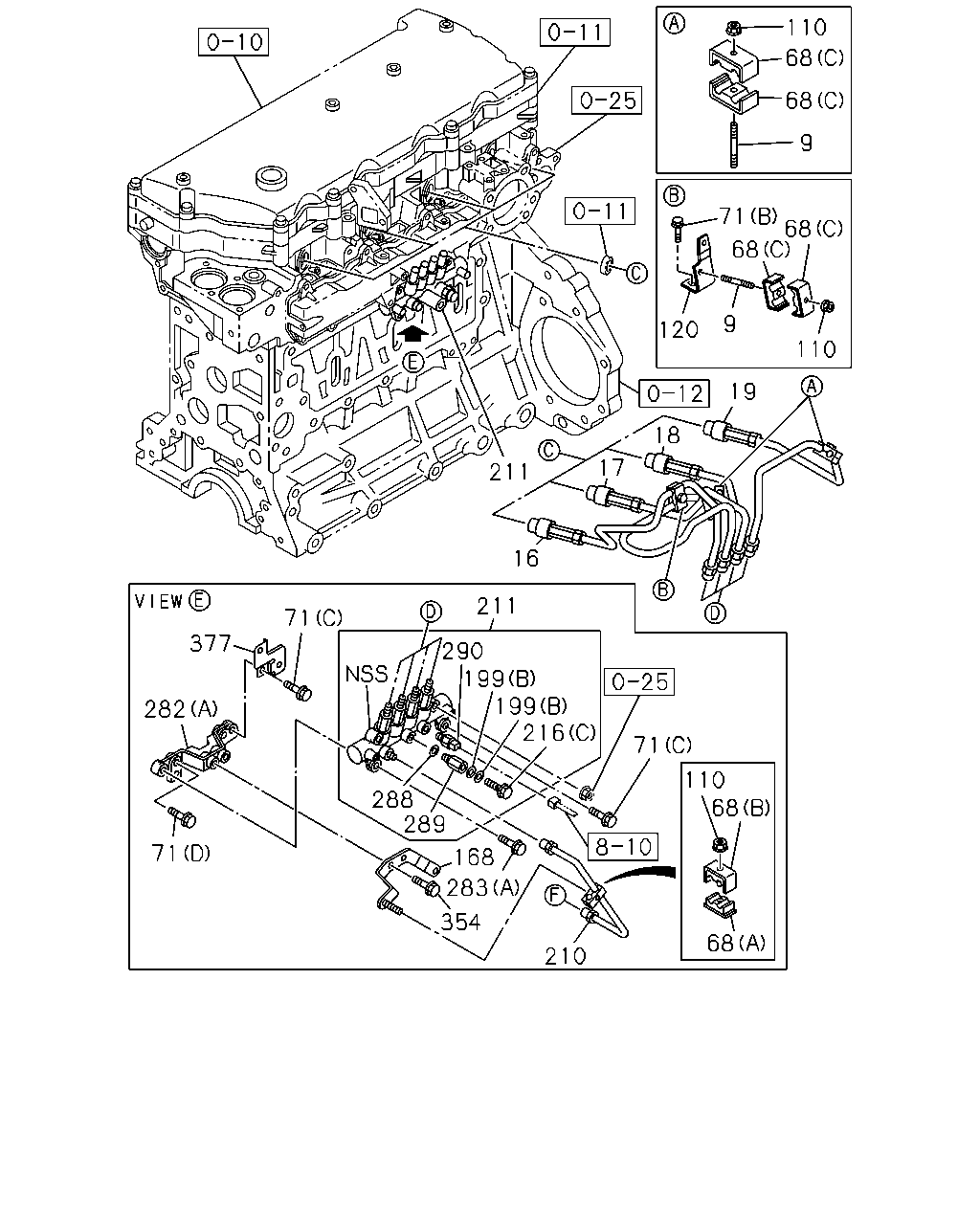

110 68 68 9 71 68 68 120 9 110 19 18 17 211 16 211 290 199 199 216 71 110 68 68 210 354 283 168 289 288 71 377 282 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	STUD; CLIP M6X35 L=43	8-97203-278-0	01	1	1302-	●
9	STUD; CLIP EURO4 SPECIFICATION<NT4> M6X30 L=38	0-41010-630-0	04	1	1302-	●
9	STUD; CLIP EURO2 SPECIFICATION<NT2> M6X30 L=38	0-41010-630-0	02	1	1302-	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98185-352-0	01	1	1302-1404	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98271-218-0	01	1	1405-1502	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98298-628-0	01	1	1503-	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98185-344-0	01	1	1302-1404	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98271-202-0	01	1	1405-1501	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98298-606-0	01	1	1502-	●
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1302-1403		●	●
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501		●	●
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-		●	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98185-353-0	01	1	1302-1404	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98271-219-0	01	1	1405-1502	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98298-629-0	01	1	1503-	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98185-345-0	01	1	1302-1404	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98271-203-0	01	1	1405-1501	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98298-607-0	01	1	1502-	●
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1302-1403		●	●
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501		●	●
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-		●	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98185-354-0	01	1	1302-1404	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98271-220-0	01	1	1405-1502	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98298-630-0	01	1	1503-	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98185-346-0	01	1	1302-1404	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98271-204-0	01	1	1405-1501	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98298-608-0	01	1	1502-	●
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1302-1403		●	●
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501		●	●
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-		●	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98185-355-0	01	1	1302-1404	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98271-221-0	01	1	1405-1502	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98298-631-0	01	1	1503-	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98185-347-0	01	1	1302-1306	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98245-980-0	01	1	1307-1404	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98271-230-0	01	1	1405-1501	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98298-609-0	01	1	1502-	●
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1302-1403		●	●
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501		●	●
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-		●	●
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19	8-98039-293-0	10	1	1302-1405	●
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19	8-98148-996-2	10	1	1406-	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (C) ID=7 & 7 L=22	8-97330-118-3	01	1	1302-	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1302-	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19	8-98039-293-0	06	1	1302-1405	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-	●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	14	1	1302-1405		●	●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98148-996-2	14	1	1406-		●	●
71	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
71	BOLT; BRKT (D) M8X40 FLANGE	0-28050-840-0	01	1	1302-	●
71	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	03	1	1302-	●
71	BOLT; BRKT EURO4 SPECIFICATION<NT4> (E) M8X60 FLANGE	0-28050-860-0	01	1	1302-	●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X50 FLANGE	0-28050-850-0	01	1	1302-	●
71	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●	●
71	BOLT; BRKT (F) M12X100 FLANGE	0-28151-200-0	01	1	1302-		●	●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (G) M10X16 FLANGE	0-28151-016-0	01	1	1302-		●	●
110	NUT; CLIP EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	04	1	1302-	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	1302-		●	●
120	BRACKET; INJ PIPE	8-98001-041-0	01	1	1302-	●
168	BRACKET; FUEL PIPE EURO2 SPECIFICATION<NT2>	8-98072-403-0	01	1	1302-	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1302-	●	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1302-	●	●	●
210	PIPE; INJ,C/R EURO4 SPECIFICATION<NT4>	8-98172-184-0	01	1	1302-	●
210	PIPE; INJ,C/R EURO2 SPECIFICATION<NT2>	8-97376-779-0	01	1	1302-	●
210	PIPE; INJ,C/R EURO4 SPECIFICATION<NT4>	8-98145-414-0	01	1	1302-		●	●
210	PIPE; INJ,C/R EURO2 SPECIFICATION<NT2>	8-98059-805-0	01	1	1302-		●	●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	1302-	●
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1302-		●	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1302-	●	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1302-	●	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1302-	●	●	●
282	BRACKET; COMMON RAIL EURO4 SPECIFICATION<NT4> (B)	8-98106-661-1	01	1	1302-	●
282	BRACKET; COMMON RAIL EURO2 SPECIFICATION<NT2> (A)	8-98157-115-0	01	1	1302-	●
283	BOLT; COMMON RAIL EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE	0-28050-820-0	02	1	1302-	●
283	BOLT; COMMON RAIL EURO2 SPECIFICATION<NT2> (A) M8X25 FLANGE	0-28050-825-0	01	1	1302-	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1302-	●	●	●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1302-	●	●	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1302-	●	●	●
354	BOLT; FUEL PIPE EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
377	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>	8-97379-783-1	01	1	1302-	●

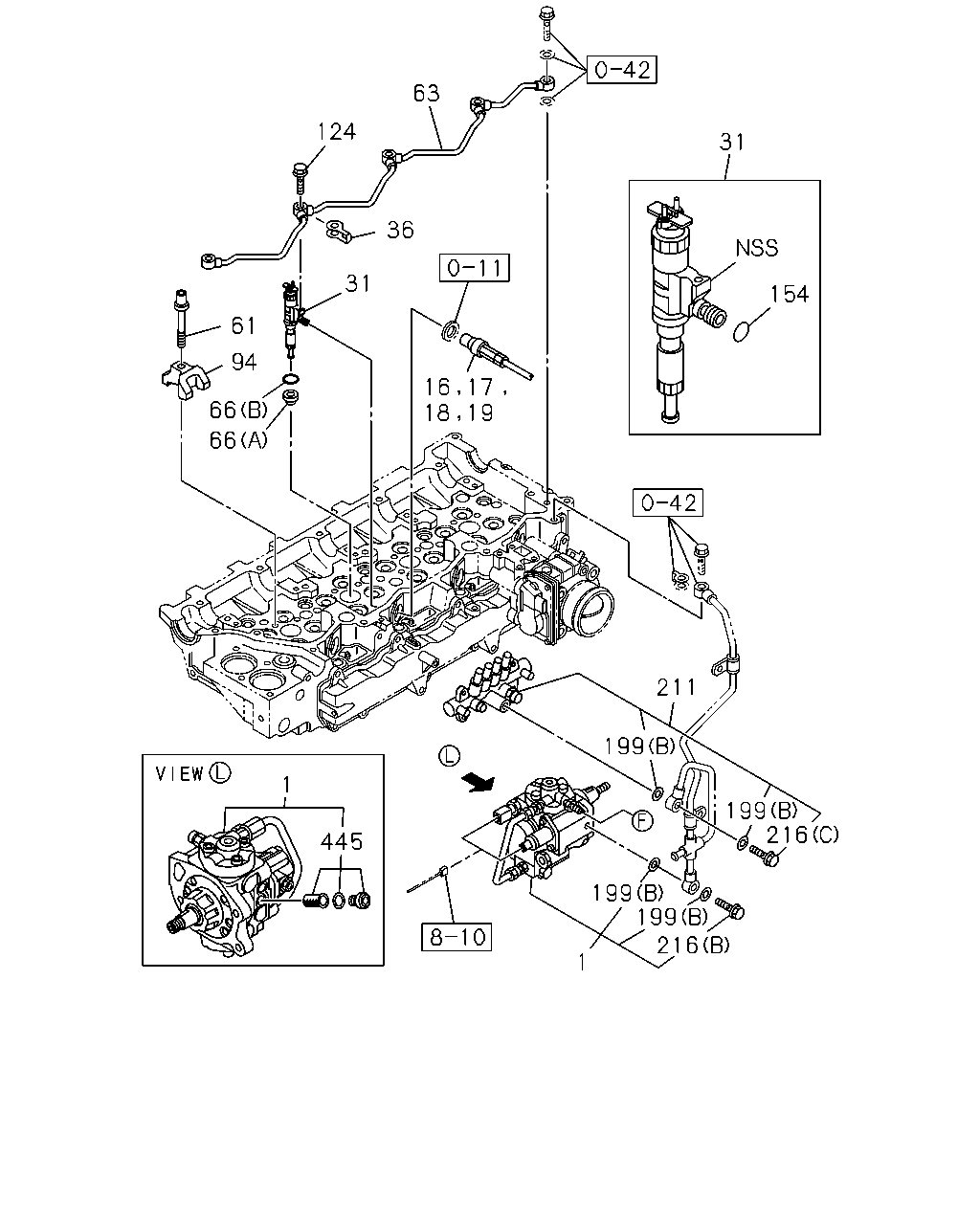

31 154 211 199 199 216 199 216 199 445 1 1 18 16 17 19 66 66 94 61 31 36 124 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ	8-97386-557-5	01	1	1302-	●
1	PUMP ASM; INJ	8-97605-946-7	01	1	1302-		●	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98185-352-0	01	1	1302-1404	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98271-218-0	01	1	1405-1502	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98298-628-0	01	1	1503-	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98185-344-0	01	1	1302-1404	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98271-202-0	01	1	1405-1501	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98298-606-0	01	1	1502-	●
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1302-1403		●	●
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501		●	●
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-		●	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98185-353-0	01	1	1302-1404	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98271-219-0	01	1	1405-1502	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98298-629-0	01	1	1503-	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98185-345-0	01	1	1302-1404	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98271-203-0	01	1	1405-1501	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98298-607-0	01	1	1502-	●
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1302-1403		●	●
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501		●	●
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-		●	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98185-354-0	01	1	1302-1404	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98271-220-0	01	1	1405-1502	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98298-630-0	01	1	1503-	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98185-346-0	01	1	1302-1404	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98271-204-0	01	1	1405-1501	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98298-608-0	01	1	1502-	●
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1302-1403		●	●
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501		●	●
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-		●	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98185-355-0	01	1	1302-1404	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98271-221-0	01	1	1405-1502	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98298-631-0	01	1	1503-	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98185-347-0	01	1	1302-1306	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98245-980-0	01	1	1307-1404	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98271-230-0	01	1	1405-1501	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98298-609-0	01	1	1502-	●
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1302-1403		●	●
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501		●	●
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-		●	●
31	NOZZLE ASM; INJ	8-98219-181-0	04	1	1302-	●
31	NOZZLE ASM; INJ EURO4 SPECIFICATION<NT4>	8-98160-061-3	06	1	1302-		●	●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION<NT2>	8-97609-789-6	06	1	1302-		●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	1302-	●
61	BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	1302-	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	1302-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3	8-94173-412-0	04	1	1302-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1302-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	06	1	1302-		●	●
94	BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1302-	●
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	1302-		●	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	1302-	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	04	1	1302-	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1302-		●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1302-	●	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1302-	●	●	●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	1302-	●
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1302-		●	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1302-	●	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1302-	●	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1302-	●	●	●
445	SCREW; FILTER,INLET	8-98204-986-0	01	1	1302-	●

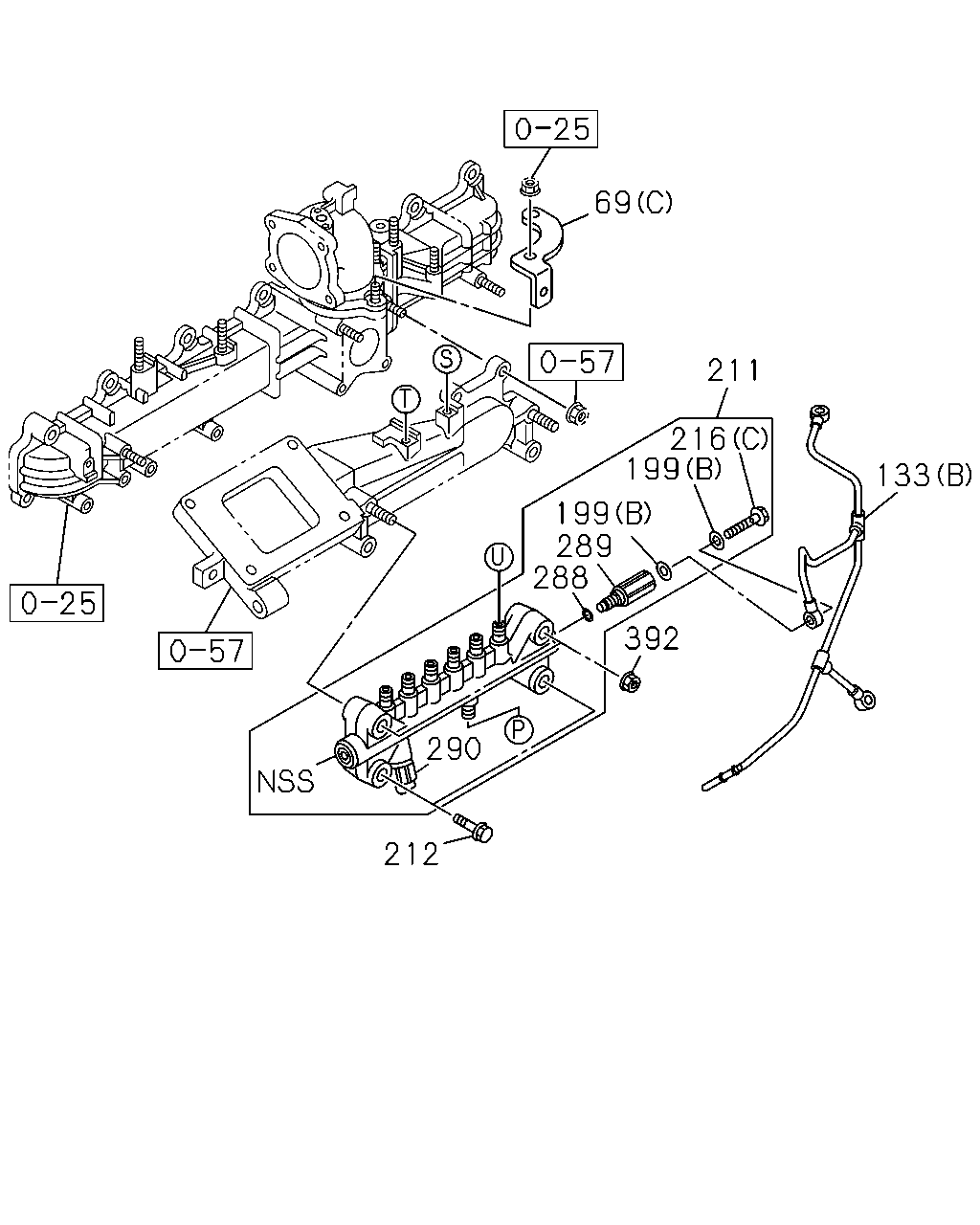

69 211 133 392 288 199 199 216 289 290 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1302-		●	●
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1302-		●	●
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1302-		●	●
69	BRACKET; INJ PIPE CLIP EURO2 SPECIFICATION<NT2> (D)	8-98059-807-0	01	1	1302-		●	●
133	PIPE; INJ NOZZLE LEAK OFF EURO4 SPECIFICATION<NT4> (B)	8-97610-504-0	01	1	1302-		●	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1302-		●	●
133	PIPE; INJ NOZZLE LEAK OFF EURO2 SPECIFICATION<NT2> (B)	8-98059-804-0	01	1	1302-		●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1302-	●	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1302-	●	●	●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	1302-	●
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1302-		●	●
212	BOLT; RAIL ASM M10X50 FLANGE	8-97372-243-0	02	1	1302-		●	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1302-	●	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1302-	●	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1302-	●	●	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1302-	●	●	●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1302-	●	●	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1302-	●	●	●
392	NUT; RAIL ASM EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-	●
392	NUT; RAIL ASM M10 FLANGE	0-91180-110-0	02	1	1302-		●	●

184 134 133 135 134 21 9 18 17 16 71 69 69 71 110 68 68 99 68 68 66 52 154 31 94 135 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	STUD; CLIP M6X35 L=43	8-97203-278-0	01	1	1302-	●
9	STUD; CLIP EURO4 SPECIFICATION<NT4> M6X30 L=38	0-41010-630-0	04	1	1302-	●
9	STUD; CLIP EURO2 SPECIFICATION<NT2> M6X30 L=38	0-41010-630-0	02	1	1302-	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98185-352-0	01	1	1302-1404	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98271-218-0	01	1	1405-1502	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98298-628-0	01	1	1503-	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98185-344-0	01	1	1302-1404	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98271-202-0	01	1	1405-1501	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98298-606-0	01	1	1502-	●
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1302-1403		●	●
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501		●	●
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-		●	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98185-353-0	01	1	1302-1404	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98271-219-0	01	1	1405-1502	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98298-629-0	01	1	1503-	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98185-345-0	01	1	1302-1404	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98271-203-0	01	1	1405-1501	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98298-607-0	01	1	1502-	●
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1302-1403		●	●
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501		●	●
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-		●	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98185-354-0	01	1	1302-1404	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98271-220-0	01	1	1405-1502	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98298-630-0	01	1	1503-	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98185-346-0	01	1	1302-1404	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98271-204-0	01	1	1405-1501	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98298-608-0	01	1	1502-	●
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1302-1403		●	●
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501		●	●
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-		●	●
20	PIPE; INJ NO.5 EURO4 SPECIFICATION<NT4>	8-98185-368-0	01	1	1302-1403		●	●
20	PIPE; INJ NO.5 EURO4 SPECIFICATION<NT4>	8-98272-050-0	01	1	1404-1501		●	●
20	PIPE; INJ NO.5 EURO4 SPECIFICATION<NT4>	8-98298-616-0	01	1	1502-		●	●
20	PIPE; INJ NO.5 EURO2 SPECIFICATION<NT2>	8-98185-366-0	01	1	1302-1403		●	●
20	PIPE; INJ NO.5 EURO2 SPECIFICATION<NT2>	8-98271-211-0	01	1	1404-1501		●	●
20	PIPE; INJ NO.5 EURO2 SPECIFICATION<NT2>	8-98298-615-0	01	1	1502-		●	●
21	PIPE; INJ NO.6	8-98185-367-0	01	1	1302-1403		●	●
21	PIPE; INJ NO.6	8-98271-212-0	01	1	1404-1501		●	●
21	PIPE; INJ NO.6	8-98298-617-0	01	1	1502-		●	●
31	NOZZLE ASM; INJ	8-98219-181-0	04	1	1302-	●
31	NOZZLE ASM; INJ EURO4 SPECIFICATION<NT4>	8-98160-061-3	06	1	1302-		●	●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION<NT2>	8-97609-789-6	06	1	1302-		●	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3	8-94173-412-0	06	1	1302-		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3	8-94173-412-0	04	1	1302-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1302-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	06	1	1302-		●	●
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19	8-98039-293-0	10	1	1302-1405	●
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19	8-98148-996-2	10	1	1406-	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (C) ID=7 & 7 L=22	8-97330-118-3	01	1	1302-	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1302-	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19	8-98039-293-0	06	1	1302-1405	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-	●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	14	1	1302-1405		●	●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98148-996-2	14	1	1406-		●	●
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1302-		●	●
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1302-		●	●
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1302-		●	●
69	BRACKET; INJ PIPE CLIP EURO2 SPECIFICATION<NT2> (D)	8-98059-807-0	01	1	1302-		●	●
71	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
71	BOLT; BRKT (D) M8X40 FLANGE	0-28050-840-0	01	1	1302-	●
71	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	03	1	1302-	●
71	BOLT; BRKT EURO4 SPECIFICATION<NT4> (E) M8X60 FLANGE	0-28050-860-0	01	1	1302-	●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X50 FLANGE	0-28050-850-0	01	1	1302-	●
71	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●	●
71	BOLT; BRKT (F) M12X100 FLANGE	0-28151-200-0	01	1	1302-		●	●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (G) M10X16 FLANGE	0-28151-016-0	01	1	1302-		●	●
94	BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1302-	●
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	1302-		●	●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28050-635-0	03	1	1302-		●	●
110	NUT; CLIP EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	04	1	1302-	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	1302-		●	●
133	PIPE; INJ NOZZLE LEAK OFF EURO4 SPECIFICATION<NT4> (B)	8-97610-504-0	01	1	1302-		●	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1302-		●	●
133	PIPE; INJ NOZZLE LEAK OFF EURO2 SPECIFICATION<NT2> (B)	8-98059-804-0	01	1	1302-		●	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1302-		●	●
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1302-		●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1302-		●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1302-		●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-		●	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	04	1	1302-	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1302-		●	●
184	BOLT; NOZZLE HOLDER M8X54	8-98008-895-0	06	1	1302-		●	●

110 131 131 134 135 133 271 271 169 2 121 424 199 216 199 382 199 210 210 69 71 205 199 216 169 6 71 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ	8-97386-557-5	01	1	1302-	●
1	PUMP ASM; INJ	8-97605-946-7	01	1	1302-		●	●
2	BOLT; INJ PUMP M8X28	8-94399-256-0	03	1	1302-		●	●
6	BRACKET; INJ PUMP TO C/BL	8-97601-154-1	01	1	1302-		●	●
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1302-		●	●
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1302-		●	●
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1302-		●	●
69	BRACKET; INJ PIPE CLIP EURO2 SPECIFICATION<NT2> (D)	8-98059-807-0	01	1	1302-		●	●
71	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
71	BOLT; BRKT (D) M8X40 FLANGE	0-28050-840-0	01	1	1302-	●
71	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	03	1	1302-	●
71	BOLT; BRKT EURO4 SPECIFICATION<NT4> (E) M8X60 FLANGE	0-28050-860-0	01	1	1302-	●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X50 FLANGE	0-28050-850-0	01	1	1302-	●
71	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●	●
71	BOLT; BRKT (F) M12X100 FLANGE	0-28151-200-0	01	1	1302-		●	●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (G) M10X16 FLANGE	0-28151-016-0	01	1	1302-		●	●
110	NUT; CLIP EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	04	1	1302-	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	1302-		●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-98126-331-0	01	1	1302-		●	●
131	CLIP; OVERFLOW LEAK OFF (A) ID=7 & 9 L=25	8-98000-010-2	01	1	1302-		●	●
131	CLIP; OVERFLOW LEAK OFF (B) ID=7 & 9 L=25	8-98000-011-2	01	1	1302-		●	●
133	PIPE; INJ NOZZLE LEAK OFF EURO4 SPECIFICATION<NT4> (B)	8-97610-504-0	01	1	1302-		●	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1302-		●	●
133	PIPE; INJ NOZZLE LEAK OFF EURO2 SPECIFICATION<NT2> (B)	8-98059-804-0	01	1	1302-		●	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1302-		●	●
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1302-		●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1302-		●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1302-		●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-		●	●
169	NUT; BRKT EURO4 SPECIFICATION<NT4> (A) M8 FLANGE	0-91180-108-0	02	1	1302-	●
169	NUT; BRKT (C) M10 FLANGE	0-91180-110-0	02	1	1302-		●	●
169	NUT; BRKT (B) M12 FLANGE	0-91180-112-0	01	1	1302-		●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1302-	●	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1302-	●	●	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1302-	●	●	●
210	PIPE; INJ,C/R EURO4 SPECIFICATION<NT4>	8-98172-184-0	01	1	1302-	●
210	PIPE; INJ,C/R EURO2 SPECIFICATION<NT2>	8-97376-779-0	01	1	1302-	●
210	PIPE; INJ,C/R EURO4 SPECIFICATION<NT4>	8-98145-414-0	01	1	1302-		●	●
210	PIPE; INJ,C/R EURO2 SPECIFICATION<NT2>	8-98059-805-0	01	1	1302-		●	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1302-	●	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1302-	●	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1302-	●	●	●
271	GASKET; INJ PUMP (A) ID=139.6	1-09623-464-0	01	1	1302-		●	●
271	GASKET; INJ PUMP (B) ID=52	8-98031-844-0	01	1	1302-		●	●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1302-	●	●	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1302-	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-449-1	01	1	1302-		●	●

283 392 216 199 199 283 392 388 288 290 211 388 169 282 71 169 211 16 19 18 17 289 120 71 68 68 68 71 9 9 210 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	STUD; CLIP M6X35 L=43	8-97203-278-0	01	1	1302-	●
9	STUD; CLIP EURO4 SPECIFICATION<NT4> M6X30 L=38	0-41010-630-0	04	1	1302-	●
9	STUD; CLIP EURO2 SPECIFICATION<NT2> M6X30 L=38	0-41010-630-0	02	1	1302-	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98185-352-0	01	1	1302-1404	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98271-218-0	01	1	1405-1502	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98298-628-0	01	1	1503-	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98185-344-0	01	1	1302-1404	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98271-202-0	01	1	1405-1501	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98298-606-0	01	1	1502-	●
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1302-1403		●	●
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501		●	●
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-		●	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98185-353-0	01	1	1302-1404	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98271-219-0	01	1	1405-1502	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98298-629-0	01	1	1503-	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98185-345-0	01	1	1302-1404	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98271-203-0	01	1	1405-1501	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98298-607-0	01	1	1502-	●
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1302-1403		●	●
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501		●	●
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-		●	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98185-354-0	01	1	1302-1404	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98271-220-0	01	1	1405-1502	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98298-630-0	01	1	1503-	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98185-346-0	01	1	1302-1404	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98271-204-0	01	1	1405-1501	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98298-608-0	01	1	1502-	●
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1302-1403		●	●
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501		●	●
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-		●	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98185-355-0	01	1	1302-1404	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98271-221-0	01	1	1405-1502	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98298-631-0	01	1	1503-	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98185-347-0	01	1	1302-1306	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98245-980-0	01	1	1307-1404	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98271-230-0	01	1	1405-1501	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98298-609-0	01	1	1502-	●
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1302-1403		●	●
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501		●	●
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-		●	●
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19	8-98039-293-0	10	1	1302-1405	●
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19	8-98148-996-2	10	1	1406-	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (C) ID=7 & 7 L=22	8-97330-118-3	01	1	1302-	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1302-	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19	8-98039-293-0	06	1	1302-1405	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-	●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	14	1	1302-1405		●	●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98148-996-2	14	1	1406-		●	●
71	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
71	BOLT; BRKT (D) M8X40 FLANGE	0-28050-840-0	01	1	1302-	●
71	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	03	1	1302-	●
71	BOLT; BRKT EURO4 SPECIFICATION<NT4> (E) M8X60 FLANGE	0-28050-860-0	01	1	1302-	●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X50 FLANGE	0-28050-850-0	01	1	1302-	●
71	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●	●
71	BOLT; BRKT (F) M12X100 FLANGE	0-28151-200-0	01	1	1302-		●	●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (G) M10X16 FLANGE	0-28151-016-0	01	1	1302-		●	●
120	BRACKET; INJ PIPE	8-98001-041-0	01	1	1302-	●
169	NUT; BRKT EURO4 SPECIFICATION<NT4> (A) M8 FLANGE	0-91180-108-0	02	1	1302-	●
169	NUT; BRKT (C) M10 FLANGE	0-91180-110-0	02	1	1302-		●	●
169	NUT; BRKT (B) M12 FLANGE	0-91180-112-0	01	1	1302-		●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1302-	●	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1302-	●	●	●
210	PIPE; INJ,C/R EURO4 SPECIFICATION<NT4>	8-98172-184-0	01	1	1302-	●
210	PIPE; INJ,C/R EURO2 SPECIFICATION<NT2>	8-97376-779-0	01	1	1302-	●
210	PIPE; INJ,C/R EURO4 SPECIFICATION<NT4>	8-98145-414-0	01	1	1302-		●	●
210	PIPE; INJ,C/R EURO2 SPECIFICATION<NT2>	8-98059-805-0	01	1	1302-		●	●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	1302-	●
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1302-		●	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1302-	●	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1302-	●	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1302-	●	●	●
282	BRACKET; COMMON RAIL EURO4 SPECIFICATION<NT4> (B)	8-98106-661-1	01	1	1302-	●
282	BRACKET; COMMON RAIL EURO2 SPECIFICATION<NT2> (A)	8-98157-115-0	01	1	1302-	●
283	BOLT; COMMON RAIL EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE	0-28050-820-0	02	1	1302-	●
283	BOLT; COMMON RAIL EURO2 SPECIFICATION<NT2> (A) M8X25 FLANGE	0-28050-825-0	01	1	1302-	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1302-	●	●	●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1302-	●	●	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1302-	●	●	●
388	STUD; RAIL EURO4 SPECIFICATION<NT4> M8X35 L=53	0-49140-835-0	02	1	1302-	●
392	NUT; RAIL ASM EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-	●
392	NUT; RAIL ASM M10 FLANGE	0-91180-110-0	02	1	1302-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
