◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11508 - FSR(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#113110) — 370 parça

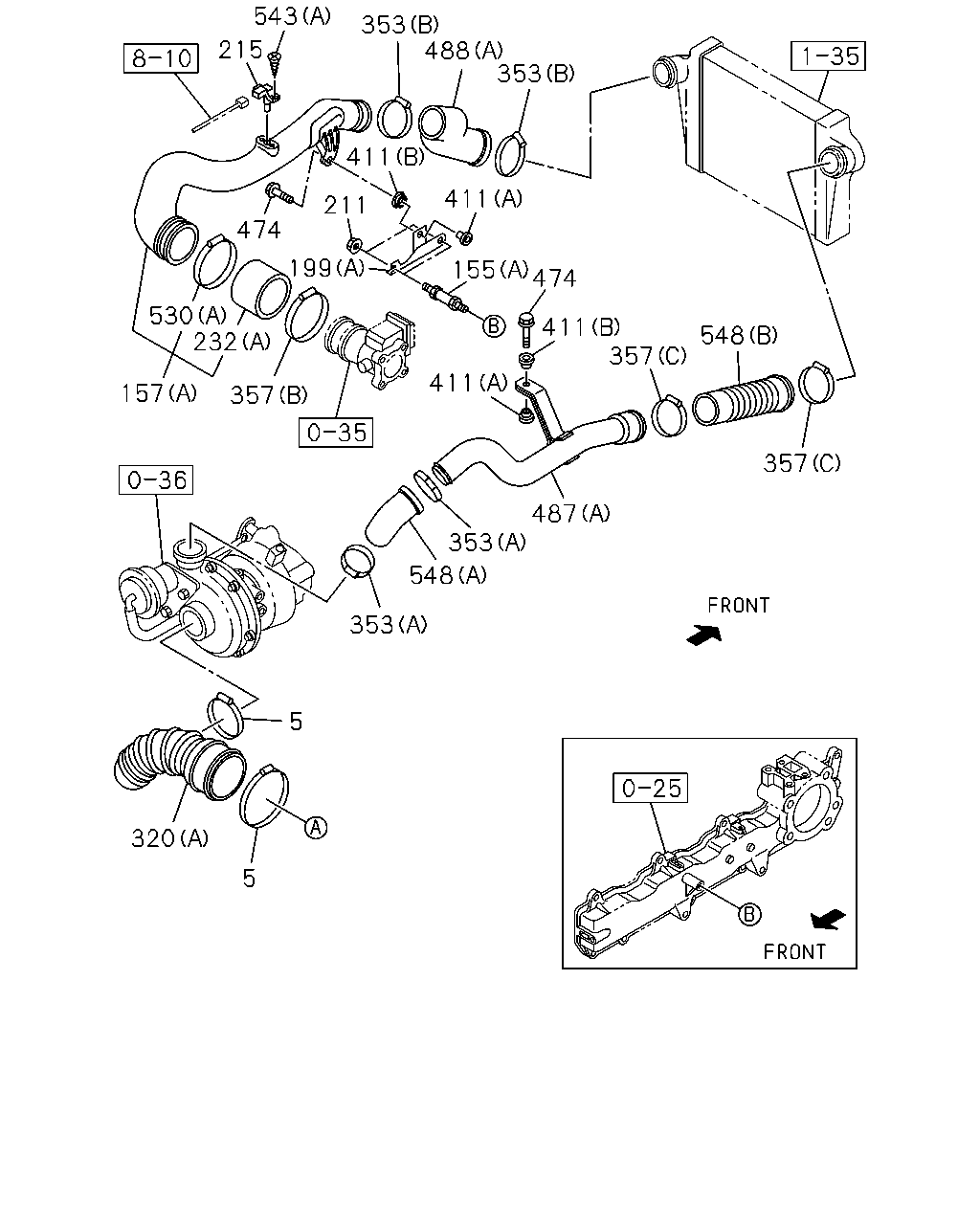

çizim 326949
215 543 474 530 357 157 5 320 5 353 353 548 487 411 155 411 548 357 357 474 411 199 211 411 353 353 488 232
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> ID=75-95 		8-98133-357-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. KD PREPARATORY PACK<6HF> ID=68-85 		8-98096-592-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,KD PREPARATORY PACK<6HF> ID=75 		8-98206-613-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> ID=65-85 		8-98133-350-0 01 1 1302- ●
5 CLIP; AIR DUCT
EXC. TURBO - CONVENTIONAL<Q5T>,KD PREPARATORY PACK<6HF> ID=77-99 		1-09707-141-0 01 1 1302- ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> ID=110-130 		8-98133-359-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> ID=104-142 		1-09707-139-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
EXC. TURBO - CONVENTIONAL<Q5T>,KD PREPARATORY PACK<6HF> ID=104-142 		1-09707-139-0 01 1 1302- ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> ID=100-120 		8-98133-366-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> ID=90-110 		8-98133-365-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> EXC. KD PREPARATORY PACK<6HF> ID=87-116 		1-09707-138-0 01 1 1302- ●
155 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10X17,M10X30 L=105 		8-97233-428-0 02 1 1302- ●
155 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X110 FLANGE 		0-28156-011-0 01 1 1302- ●
155 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M10X17,M10X30 L=105 		8-97233-428-0 01 1 1302- ●
157 PIPE; AIR
EURO2 SPECIFICATION<NT2> (A) 		8-98010-719-3 01 1 1302- ●
157 PIPE; AIR
EURO4 SPECIFICATION<NT4> (B) 		8-98166-967-0 01 1 1302- ●
199 BRACKET; PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-97385-293-1 01 1 1302- ●
199 BRACKET; PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98109-137-1 01 1 1302-1403 ●
199 BRACKET; PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98252-223-0 01 1 1404- ●
211 NUT; BRKT
EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 1302- ●
211 NUT; BRKT
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 01 1 1302- ●
215 SENSOR; MAP 8-98009-418-0 01 1 1302- ●
232 HOSE; CONN
EURO2 SPECIFICATION<NT2> (A) 		8-98067-929-0 01 1 1302- ●
232 HOSE; CONN
EURO4 SPECIFICATION<NT4> (B) 		8-98128-293-0 01 1 1302- ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) (B) 		8-98010-644-1 01 1 1406- ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-983-1 01 1 1302- ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98208-854-0 01 1 1302- ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (B) 		8-98208-906-0 01 1 1302-1308 ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (B) 		8-98010-644-1 01 1 1309-1309 ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (B) 		8-98253-477-0 01 1 1309-1405 ●
320 HOSE; CONN,ACL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<NT4> (B) 		8-98253-477-0 01 1 1406- ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> (C) 		8-98072-934-0 01 1 1302- ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (D) 		8-98077-619-1 01 1 1302- ●
353 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (A) ID=45-65 		8-98133-348-0 02 1 1405- ●
353 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (C) ID=65-85 		8-98133-350-0 02 1 1405- ●
353 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> (A) ID=60-65 		8-98096-418-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (A) ID=60-65 		8-98096-418-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79 		1-09707-136-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85 		8-98096-592-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 08 1 1302- ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79 		1-09707-136-0 08 1 1302- ●
357 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (D) ID=65-85 		8-98133-350-0 03 1 1405- ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1302- ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (C) ID=55-75 		8-98133-349-0 02 1 1302- ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79 		1-09707-136-0 02 1 1302- ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (D) ID=68-85 		8-98096-592-0 03 1 1302- ●
357 CLIP; RUBBER HOSE
(E) ID=26 		1-09707-091-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
(F) ID=29.5 		8-97354-979-0 01 1 1302- ●
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1302- ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1302- ●
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1302- ●
487 PIPE; TURBO TO CHARGE AIR COOLER
EURO2 SPECIFICATION<NT2> (A) 		8-98073-592-0 01 1 1302- ●
487 PIPE; TURBO TO CHARGE AIR COOLER
EURO4 SPECIFICATION<NT4> (B) 		8-98204-042-0 01 1 1302- ●
488 HOSE; RUBBER,PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98010-723-0 01 1 1302- ●
488 HOSE; RUBBER,PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98204-041-0 01 1 1302- ●
488 HOSE; RUBBER,PIPE
(C) 		8-98017-224-1 01 1 1302- ●
530 CLAMP; AIR DUCT
EURO2 SPECIFICATION<NT2> (A) ID=75-95 		8-98133-357-0 01 1 1302- ●
530 CLAMP; AIR DUCT
EURO4 SPECIFICATION<NT4> (B) ID=65-85 		8-98133-350-0 01 1 1302- ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1302- ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302- ●
543 SCREW; SENSOR
EURO4 SPECIFICATION<NT4> (C) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1302- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98181-971-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98181-972-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (C) 		8-98211-752-0 01 1 1302-1308 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (C) 		8-98204-039-0 01 1 1309-1511 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (C) 		8-98317-803-0 01 1 1512- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98211-753-0 01 1 1302-1308 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98204-040-0 01 1 1309-1511 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98317-804-0 01 1 1512- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (E) 		8-98181-973-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (E) 		8-98017-223-2 01 1 1302- ●

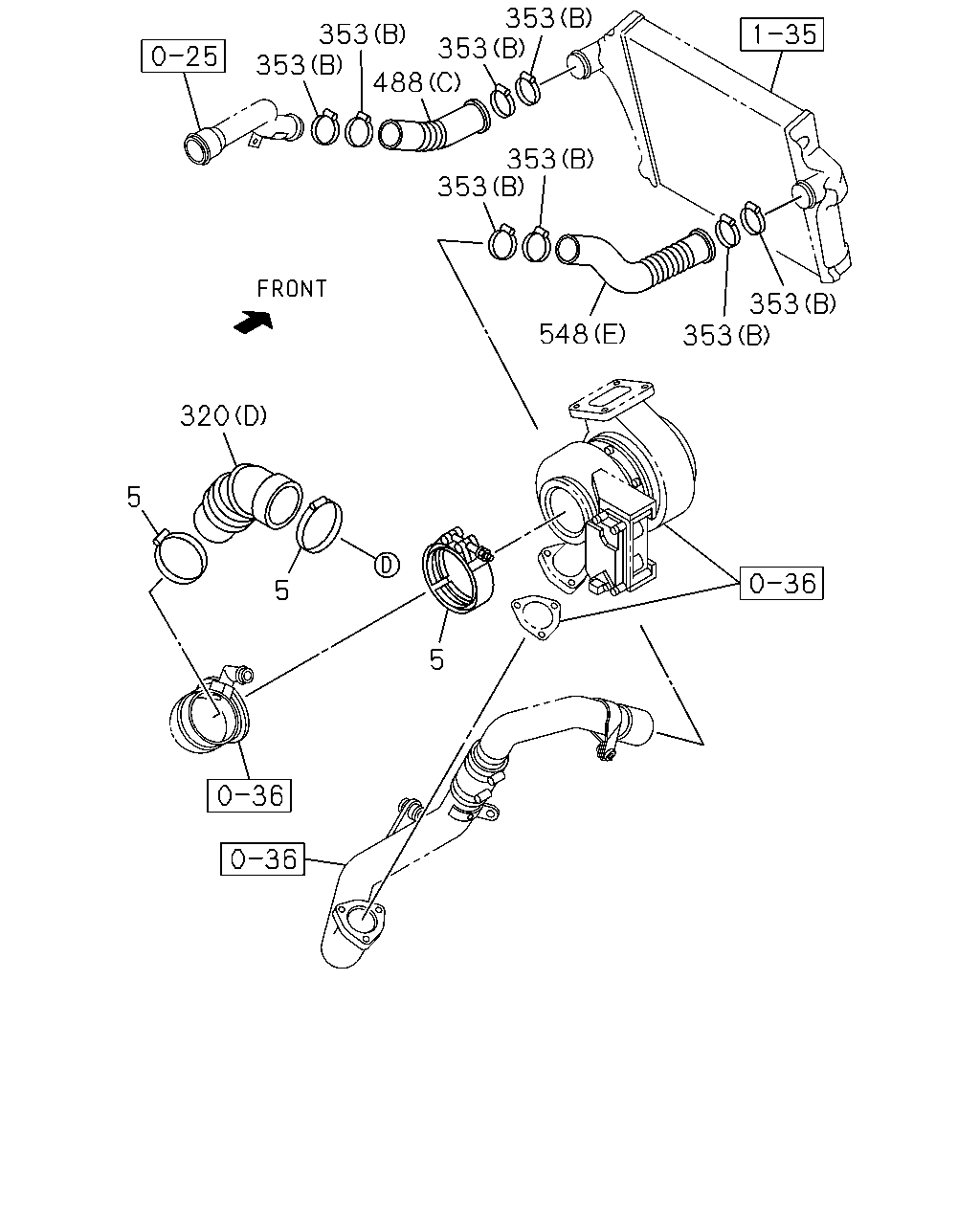

çizim 326967
353 353 488 353 353 353 353 548 353 353 320 5 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> ID=75-95 		8-98133-357-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. KD PREPARATORY PACK<6HF> ID=68-85 		8-98096-592-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,KD PREPARATORY PACK<6HF> ID=75 		8-98206-613-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> ID=65-85 		8-98133-350-0 01 1 1302- ●
5 CLIP; AIR DUCT
EXC. TURBO - CONVENTIONAL<Q5T>,KD PREPARATORY PACK<6HF> ID=77-99 		1-09707-141-0 01 1 1302- ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> ID=110-130 		8-98133-359-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> ID=104-142 		1-09707-139-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
EXC. TURBO - CONVENTIONAL<Q5T>,KD PREPARATORY PACK<6HF> ID=104-142 		1-09707-139-0 01 1 1302- ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> ID=100-120 		8-98133-366-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> ID=90-110 		8-98133-365-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> EXC. KD PREPARATORY PACK<6HF> ID=87-116 		1-09707-138-0 01 1 1302- ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) (B) 		8-98010-644-1 01 1 1406- ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-983-1 01 1 1302- ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98208-854-0 01 1 1302- ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (B) 		8-98208-906-0 01 1 1302-1308 ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (B) 		8-98010-644-1 01 1 1309-1309 ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (B) 		8-98253-477-0 01 1 1309-1405 ●
320 HOSE; CONN,ACL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<NT4> (B) 		8-98253-477-0 01 1 1406- ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> (C) 		8-98072-934-0 01 1 1302- ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (D) 		8-98077-619-1 01 1 1302- ●
353 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (A) ID=45-65 		8-98133-348-0 02 1 1405- ●
353 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (C) ID=65-85 		8-98133-350-0 02 1 1405- ●
353 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> (A) ID=60-65 		8-98096-418-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (A) ID=60-65 		8-98096-418-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79 		1-09707-136-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85 		8-98096-592-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 08 1 1302- ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79 		1-09707-136-0 08 1 1302- ●
488 HOSE; RUBBER,PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98010-723-0 01 1 1302- ●
488 HOSE; RUBBER,PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98204-041-0 01 1 1302- ●
488 HOSE; RUBBER,PIPE
(C) 		8-98017-224-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98181-971-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98181-972-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (C) 		8-98211-752-0 01 1 1302-1308 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (C) 		8-98204-039-0 01 1 1309-1511 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (C) 		8-98317-803-0 01 1 1512- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98211-753-0 01 1 1302-1308 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98204-040-0 01 1 1309-1511 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98317-804-0 01 1 1512- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (E) 		8-98181-973-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (E) 		8-98017-223-2 01 1 1302- ●

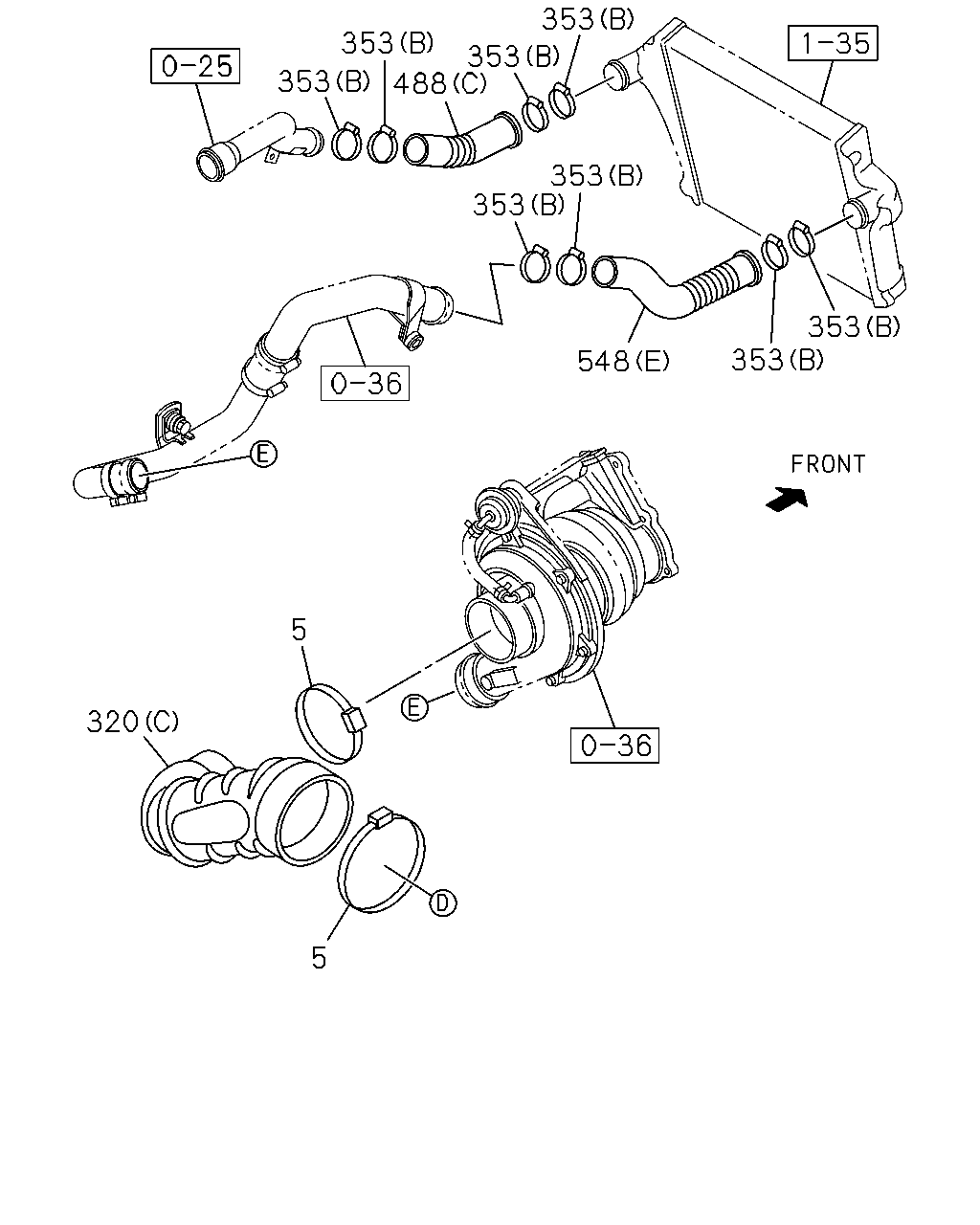

çizim 326970
353 353 488 353 353 353 353 548 353 353 320 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> ID=75-95 		8-98133-357-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. KD PREPARATORY PACK<6HF> ID=68-85 		8-98096-592-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,KD PREPARATORY PACK<6HF> ID=75 		8-98206-613-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> ID=65-85 		8-98133-350-0 01 1 1302- ●
5 CLIP; AIR DUCT
EXC. TURBO - CONVENTIONAL<Q5T>,KD PREPARATORY PACK<6HF> ID=77-99 		1-09707-141-0 01 1 1302- ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> ID=110-130 		8-98133-359-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> ID=104-142 		1-09707-139-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
EXC. TURBO - CONVENTIONAL<Q5T>,KD PREPARATORY PACK<6HF> ID=104-142 		1-09707-139-0 01 1 1302- ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> ID=100-120 		8-98133-366-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> ID=90-110 		8-98133-365-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> EXC. KD PREPARATORY PACK<6HF> ID=87-116 		1-09707-138-0 01 1 1302- ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) (B) 		8-98010-644-1 01 1 1406- ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-983-1 01 1 1302- ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98208-854-0 01 1 1302- ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (B) 		8-98208-906-0 01 1 1302-1308 ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (B) 		8-98010-644-1 01 1 1309-1309 ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (B) 		8-98253-477-0 01 1 1309-1405 ●
320 HOSE; CONN,ACL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<NT4> (B) 		8-98253-477-0 01 1 1406- ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> (C) 		8-98072-934-0 01 1 1302- ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (D) 		8-98077-619-1 01 1 1302- ●
353 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (A) ID=45-65 		8-98133-348-0 02 1 1405- ●
353 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (C) ID=65-85 		8-98133-350-0 02 1 1405- ●
353 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> (A) ID=60-65 		8-98096-418-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (A) ID=60-65 		8-98096-418-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79 		1-09707-136-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85 		8-98096-592-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 08 1 1302- ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79 		1-09707-136-0 08 1 1302- ●
488 HOSE; RUBBER,PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98010-723-0 01 1 1302- ●
488 HOSE; RUBBER,PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98204-041-0 01 1 1302- ●
488 HOSE; RUBBER,PIPE
(C) 		8-98017-224-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98181-971-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98181-972-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (C) 		8-98211-752-0 01 1 1302-1308 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (C) 		8-98204-039-0 01 1 1309-1511 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (C) 		8-98317-803-0 01 1 1512- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98211-753-0 01 1 1302-1308 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98204-040-0 01 1 1309-1511 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98317-804-0 01 1 1512- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (E) 		8-98181-973-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (E) 		8-98017-223-2 01 1 1302- ●

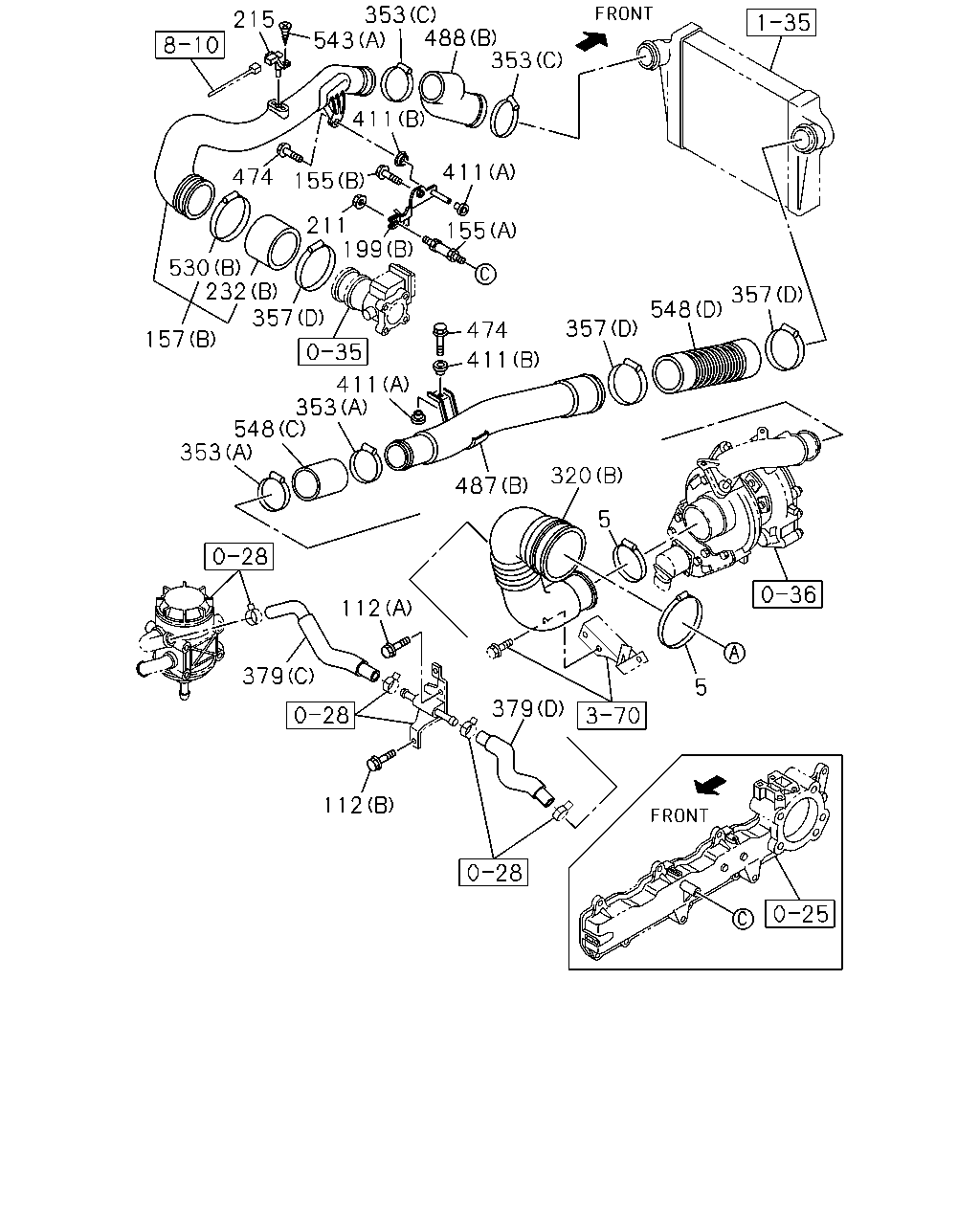

çizim 330438
215 353 543 488 353 411 474 155 411 211 530 157 232 357 199 155 474 357 411 548 357 411 353 548 353 112 379 379 112 5 320 487 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> ID=75-95 		8-98133-357-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. KD PREPARATORY PACK<6HF> ID=68-85 		8-98096-592-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,KD PREPARATORY PACK<6HF> ID=75 		8-98206-613-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> ID=65-85 		8-98133-350-0 01 1 1302- ●
5 CLIP; AIR DUCT
EXC. TURBO - CONVENTIONAL<Q5T>,KD PREPARATORY PACK<6HF> ID=77-99 		1-09707-141-0 01 1 1302- ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> ID=110-130 		8-98133-359-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> ID=104-142 		1-09707-139-0 01 1 1302- ● ●
5 CLIP; AIR DUCT
EXC. TURBO - CONVENTIONAL<Q5T>,KD PREPARATORY PACK<6HF> ID=104-142 		1-09707-139-0 01 1 1302- ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> ID=100-120 		8-98133-366-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> ID=90-110 		8-98133-365-0 01 1 1302- ●
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> EXC. KD PREPARATORY PACK<6HF> ID=87-116 		1-09707-138-0 01 1 1302- ●
112 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE 		0-28050-812-0 01 1 1309- ●
112 BOLT; CLIP
EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE 		0-28050-816-0 01 1 1309- ●
155 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10X17,M10X30 L=105 		8-97233-428-0 02 1 1302- ●
155 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X110 FLANGE 		0-28156-011-0 01 1 1302- ●
155 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M10X17,M10X30 L=105 		8-97233-428-0 01 1 1302- ●
157 PIPE; AIR
EURO2 SPECIFICATION<NT2> (A) 		8-98010-719-3 01 1 1302- ●
157 PIPE; AIR
EURO4 SPECIFICATION<NT4> (B) 		8-98166-967-0 01 1 1302- ●
199 BRACKET; PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-97385-293-1 01 1 1302- ●
199 BRACKET; PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98109-137-1 01 1 1302-1403 ●
199 BRACKET; PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98252-223-0 01 1 1404- ●
211 NUT; BRKT
EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 1302- ●
211 NUT; BRKT
EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 01 1 1302- ●
215 SENSOR; MAP 8-98009-418-0 01 1 1302- ●
232 HOSE; CONN
EURO2 SPECIFICATION<NT2> (A) 		8-98067-929-0 01 1 1302- ●
232 HOSE; CONN
EURO4 SPECIFICATION<NT4> (B) 		8-98128-293-0 01 1 1302- ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> EXC. RUSSIA EQUIPMENT(B12) (B) 		8-98010-644-1 01 1 1406- ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-983-1 01 1 1302- ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98208-854-0 01 1 1302- ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (B) 		8-98208-906-0 01 1 1302-1308 ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (B) 		8-98010-644-1 01 1 1309-1309 ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (B) 		8-98253-477-0 01 1 1309-1405 ●
320 HOSE; CONN,ACL
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<NT4> (B) 		8-98253-477-0 01 1 1406- ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> (C) 		8-98072-934-0 01 1 1302- ●
320 HOSE; CONN,ACL
EURO4 SPECIFICATION<NT4> (D) 		8-98077-619-1 01 1 1302- ●
353 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (A) ID=45-65 		8-98133-348-0 02 1 1405- ●
353 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (C) ID=65-85 		8-98133-350-0 02 1 1405- ●
353 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> (A) ID=60-65 		8-98096-418-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (A) ID=60-65 		8-98096-418-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79 		1-09707-136-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (C) ID=68-85 		8-98096-592-0 02 1 1302- ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 08 1 1302- ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79 		1-09707-136-0 08 1 1302- ●
357 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (D) ID=65-85 		8-98133-350-0 03 1 1405- ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1302- ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (C) ID=55-75 		8-98133-349-0 02 1 1302- ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79 		1-09707-136-0 02 1 1302- ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (D) ID=68-85 		8-98096-592-0 03 1 1302- ●
357 CLIP; RUBBER HOSE
(E) ID=26 		1-09707-091-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
(F) ID=29.5 		8-97354-979-0 01 1 1302- ●
379 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (C) 		8-98195-079-0 01 1 1309- ●
379 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98251-076-0 01 1 1309-1405 ●
379 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98251-076-0 01 1 1406- ●
379 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (D) 		8-98251-074-0 01 1 1309-1309 ●
379 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (D) 		8-98253-716-0 01 1 1309- ●
379 HOSE; RUBBER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=502 		8-98057-034-0 01 1 1302-1308 ●
379 HOSE; RUBBER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (A) L=502 		8-98057-034-0 01 1 1309-1405 ●
379 HOSE; RUBBER
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRIGID ZONE KIT(YL3) (A) L=502 		8-98057-034-0 01 1 1406- ●
379 HOSE; RUBBER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98214-447-1 01 1 1302- ●
379 HOSE; RUBBER
(B) 		8-98063-172-0 01 1 1302- ●
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1302- ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1302- ●
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1302- ●
487 PIPE; TURBO TO CHARGE AIR COOLER
EURO2 SPECIFICATION<NT2> (A) 		8-98073-592-0 01 1 1302- ●
487 PIPE; TURBO TO CHARGE AIR COOLER
EURO4 SPECIFICATION<NT4> (B) 		8-98204-042-0 01 1 1302- ●
488 HOSE; RUBBER,PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98010-723-0 01 1 1302- ●
488 HOSE; RUBBER,PIPE
EURO4 SPECIFICATION<NT4> (B) 		8-98204-041-0 01 1 1302- ●
488 HOSE; RUBBER,PIPE
(C) 		8-98017-224-1 01 1 1302- ●
530 CLAMP; AIR DUCT
EURO2 SPECIFICATION<NT2> (A) ID=75-95 		8-98133-357-0 01 1 1302- ●
530 CLAMP; AIR DUCT
EURO4 SPECIFICATION<NT4> (B) ID=65-85 		8-98133-350-0 01 1 1302- ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1302- ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302- ●
543 SCREW; SENSOR
EURO4 SPECIFICATION<NT4> (C) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1302- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98181-971-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98181-972-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (C) 		8-98211-752-0 01 1 1302-1308 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (C) 		8-98204-039-0 01 1 1309-1511 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (C) 		8-98317-803-0 01 1 1512- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98211-753-0 01 1 1302-1308 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98204-040-0 01 1 1309-1511 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (D) 		8-98317-804-0 01 1 1512- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (E) 		8-98181-973-1 01 1 1302- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO4 SPECIFICATION<NT4> (E) 		8-98017-223-2 01 1 1302- ●

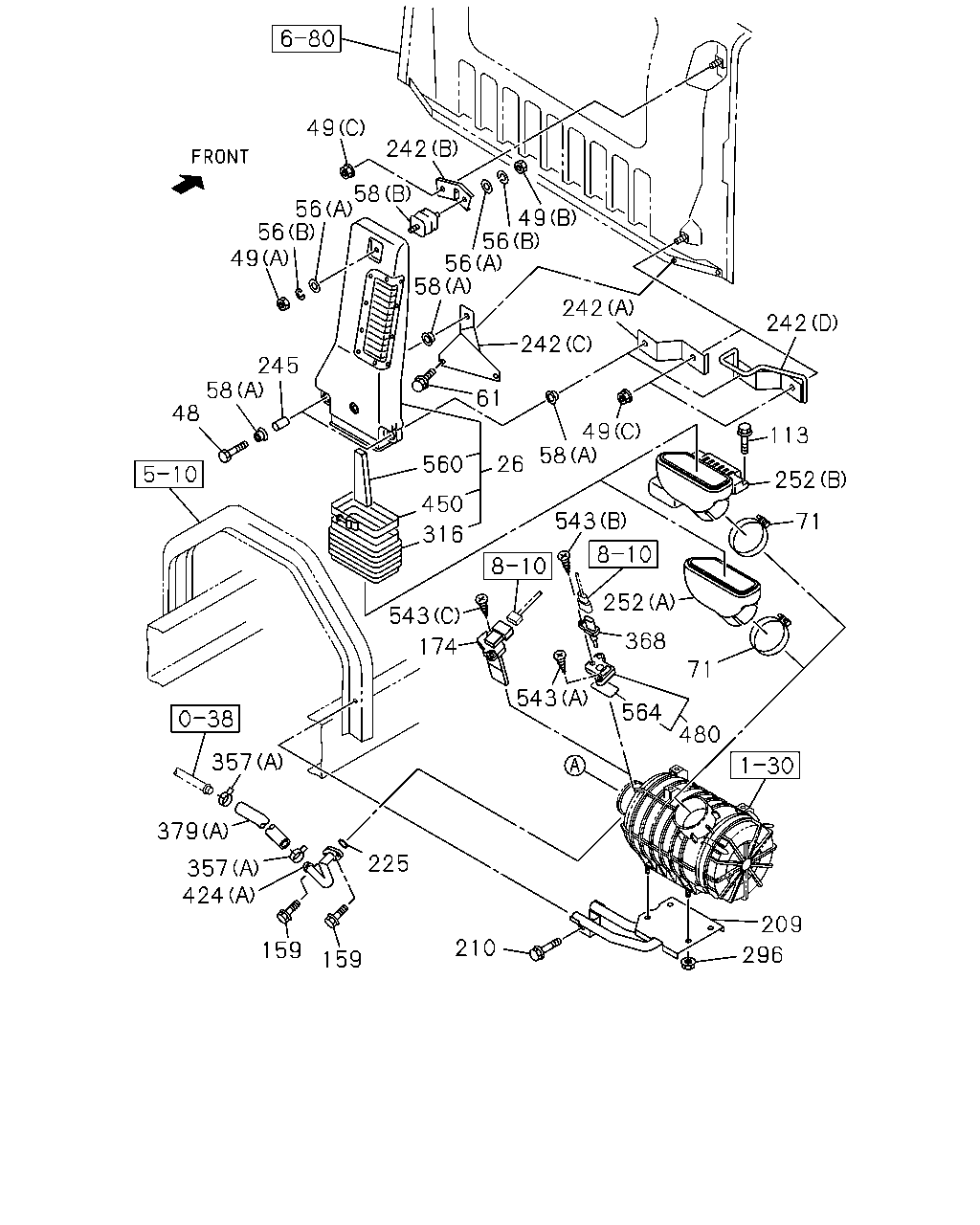

çizim 330682
49 242 58 56 56 49 245 58 48 560 450 316 543 58 26 543 174 49 242 242 113 71 252 543 49 252 564 480 209 296 210 225 159 159 357 424 379 357 56 56 58 61 368 71 242
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1302- ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1302- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1302- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1302- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1302- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1302- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1302- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1302- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1302- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1302- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1302- ● ●
113 BOLT; RESONATOR
RUSSIA EQUIPMENT(B12) M6X16 W/PL WASHER 		8-98094-071-0 03 1 1302-1408 ● ●
113 BOLT; RESONATOR
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) M6X16 W/PL WASHER 		8-98094-071-0 03 1 1409- ● ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1302- ● ●
174 SENSOR; AIR FLOW CONT
EURO4 SPECIFICATION<NT4> 		8-97601-967-0 01 1 1302- ● ●
209 BRACKET; ACL 8-98099-677-0 01 1 1302- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 03 1 1302- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1302- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1302- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1302- ● ●
242 BRACKET; AIR DUCT
RUSSIA EQUIPMENT(B12) (D) 		8-98238-917-0 01 1 1302-1405 ● ●
242 BRACKET; AIR DUCT
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (D) 		8-98238-917-0 01 1 1406- ● ●
242 BRACKET; AIR DUCT
EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98019-303-1 01 1 1302-1405 ● ●
242 BRACKET; AIR DUCT
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A) 		8-98019-303-1 01 1 1406- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1302- ● ●
252 DUCT; AIR INT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98010-640-1 01 1 1302-1405 ●
252 DUCT; AIR INT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A) 		8-98010-640-1 01 1 1406- ●
252 DUCT; AIR INT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98019-843-0 01 1 1302- ●
252 DUCT; AIR INT
(A) 		8-98019-843-0 01 1 1302- ●
252 DUCT; AIR INT
RUSSIA EQUIPMENT(B12) (B) 		8-98095-779-0 01 1 1302-1405 ● ●
252 DUCT; AIR INT
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98095-779-0 01 1 1406- ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1302- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1302- ● ●
357 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (D) ID=65-85 		8-98133-350-0 03 1 1405- ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1302- ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (C) ID=55-75 		8-98133-349-0 02 1 1302- ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79 		1-09707-136-0 02 1 1302- ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (D) ID=68-85 		8-98096-592-0 03 1 1302- ●
357 CLIP; RUBBER HOSE
(E) ID=26 		1-09707-091-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
(F) ID=29.5 		8-97354-979-0 01 1 1302- ●
368 SENSOR; TEMP
EURO2 SPECIFICATION<NT2> 		8-98065-377-0 01 1 1302- ● ●
379 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (C) 		8-98195-079-0 01 1 1309- ●
379 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98251-076-0 01 1 1309-1405 ●
379 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98251-076-0 01 1 1406- ●
379 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (D) 		8-98251-074-0 01 1 1309-1309 ●
379 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (D) 		8-98253-716-0 01 1 1309- ●
379 HOSE; RUBBER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=502 		8-98057-034-0 01 1 1302-1308 ●
379 HOSE; RUBBER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (A) L=502 		8-98057-034-0 01 1 1309-1405 ●
379 HOSE; RUBBER
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRIGID ZONE KIT(YL3) (A) L=502 		8-98057-034-0 01 1 1406- ●
379 HOSE; RUBBER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98214-447-1 01 1 1302- ●
379 HOSE; RUBBER
(B) 		8-98063-172-0 01 1 1302- ●
424 PIPE; AIR,INL
(A) 		8-98081-837-0 01 1 1302- ●
424 PIPE; AIR,INL
(B) 		8-98081-834-0 01 1 1302- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1302- ● ●
480 ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98086-417-0 01 1 1302- ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1302- ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302- ●
543 SCREW; SENSOR
EURO4 SPECIFICATION<NT4> (C) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1302- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1302- ● ●
564 GASKET; ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98071-416-0 01 1 1302- ● ●

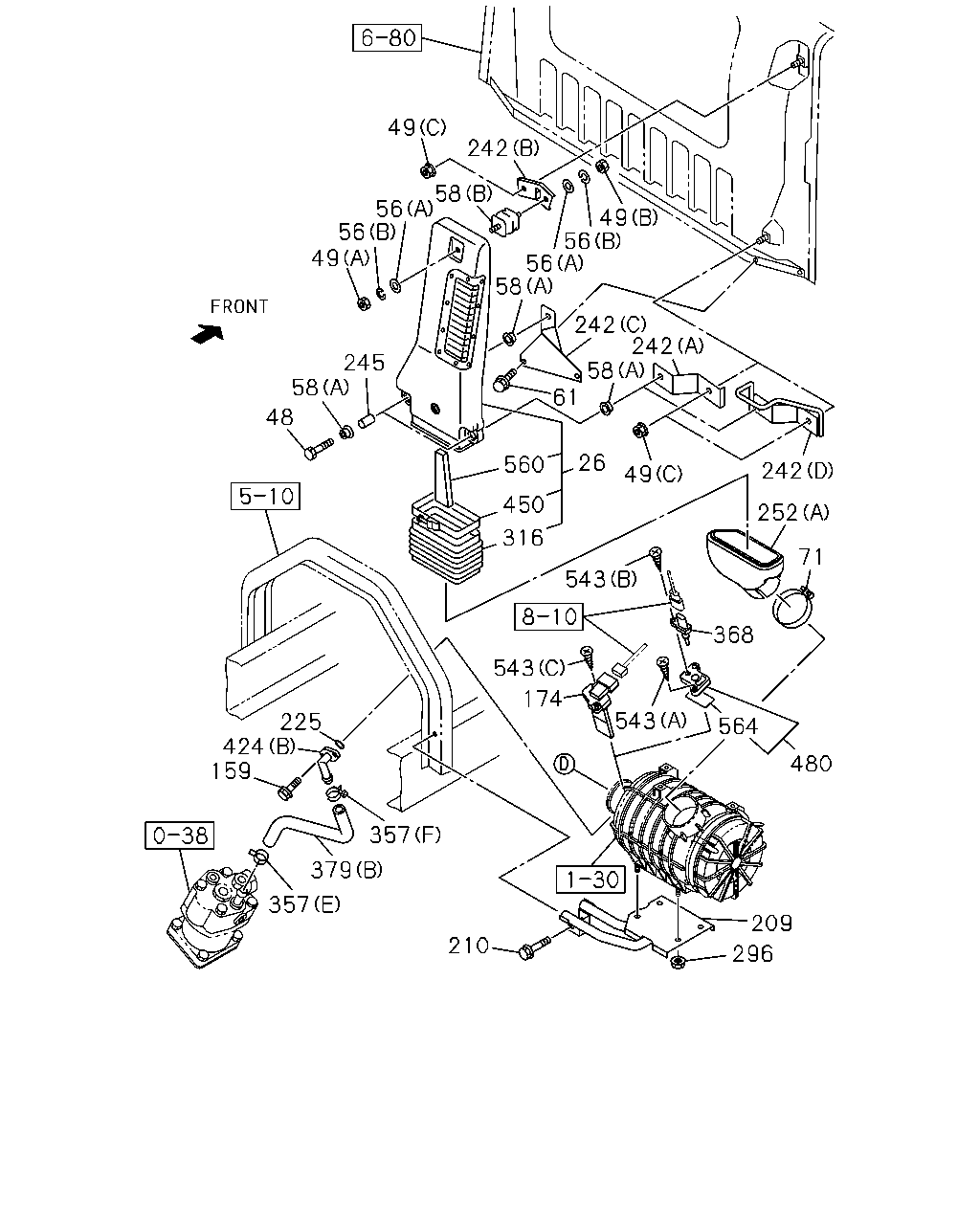

çizim 331387
49 242 49 56 56 58 49 56 56 58 245 58 48 242 242 58 61 560 26 49 242 252 450 316 543 71 368 543 174 543 564 480 225 424 159 357 379 357 210 209 296
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1302- ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1302- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1302- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1302- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1302- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1302- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1302- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1302- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1302- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1302- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1302- ● ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1302- ● ●
174 SENSOR; AIR FLOW CONT
EURO4 SPECIFICATION<NT4> 		8-97601-967-0 01 1 1302- ● ●
209 BRACKET; ACL 8-98099-677-0 01 1 1302- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 03 1 1302- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1302- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1302- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1302- ● ●
242 BRACKET; AIR DUCT
RUSSIA EQUIPMENT(B12) (D) 		8-98238-917-0 01 1 1302-1405 ● ●
242 BRACKET; AIR DUCT
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (D) 		8-98238-917-0 01 1 1406- ● ●
242 BRACKET; AIR DUCT
EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98019-303-1 01 1 1302-1405 ● ●
242 BRACKET; AIR DUCT
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A) 		8-98019-303-1 01 1 1406- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1302- ● ●
252 DUCT; AIR INT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A) 		8-98010-640-1 01 1 1302-1405 ●
252 DUCT; AIR INT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A) 		8-98010-640-1 01 1 1406- ●
252 DUCT; AIR INT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98019-843-0 01 1 1302- ●
252 DUCT; AIR INT
(A) 		8-98019-843-0 01 1 1302- ●
252 DUCT; AIR INT
RUSSIA EQUIPMENT(B12) (B) 		8-98095-779-0 01 1 1302-1405 ● ●
252 DUCT; AIR INT
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98095-779-0 01 1 1406- ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1302- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1302- ● ●
357 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (D) ID=65-85 		8-98133-350-0 03 1 1405- ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1302- ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (C) ID=55-75 		8-98133-349-0 02 1 1302- ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79 		1-09707-136-0 02 1 1302- ●
357 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (D) ID=68-85 		8-98096-592-0 03 1 1302- ●
357 CLIP; RUBBER HOSE
(E) ID=26 		1-09707-091-0 01 1 1302- ●
357 CLIP; RUBBER HOSE
(F) ID=29.5 		8-97354-979-0 01 1 1302- ●
368 SENSOR; TEMP
EURO2 SPECIFICATION<NT2> 		8-98065-377-0 01 1 1302- ● ●
379 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (C) 		8-98195-079-0 01 1 1309- ●
379 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98251-076-0 01 1 1309-1405 ●
379 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98251-076-0 01 1 1406- ●
379 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (D) 		8-98251-074-0 01 1 1309-1309 ●
379 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (D) 		8-98253-716-0 01 1 1309- ●
379 HOSE; RUBBER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=502 		8-98057-034-0 01 1 1302-1308 ●
379 HOSE; RUBBER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (A) L=502 		8-98057-034-0 01 1 1309-1405 ●
379 HOSE; RUBBER
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRIGID ZONE KIT(YL3) (A) L=502 		8-98057-034-0 01 1 1406- ●
379 HOSE; RUBBER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98214-447-1 01 1 1302- ●
379 HOSE; RUBBER
(B) 		8-98063-172-0 01 1 1302- ●
424 PIPE; AIR,INL
(A) 		8-98081-837-0 01 1 1302- ●
424 PIPE; AIR,INL
(B) 		8-98081-834-0 01 1 1302- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1302- ● ●
480 ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98086-417-0 01 1 1302- ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1302- ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1302- ●
543 SCREW; SENSOR
EURO4 SPECIFICATION<NT4> (C) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1302- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1302- ● ●
564 GASKET; ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98071-416-0 01 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
