◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11517 - FVM(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#113100) — 19 parça

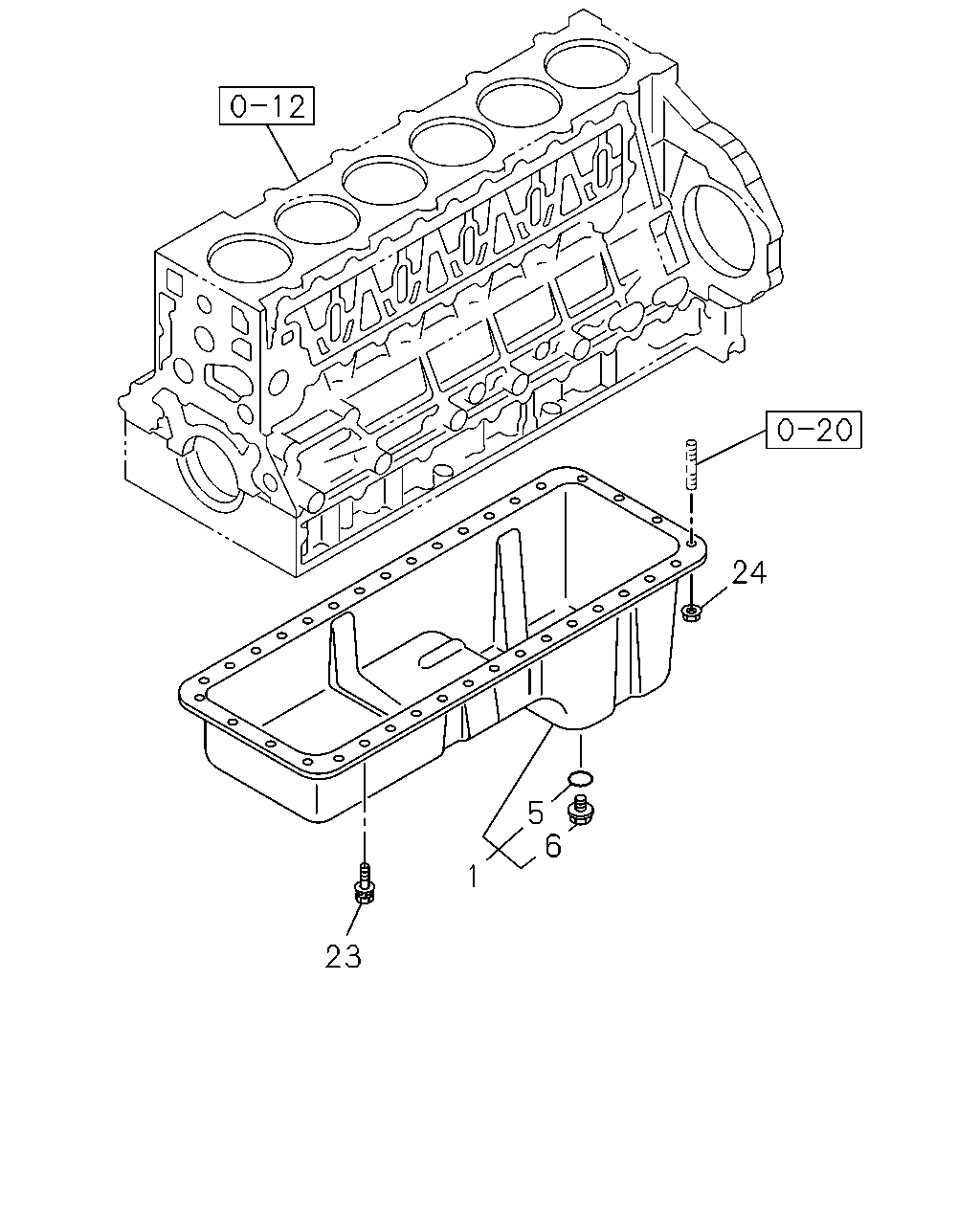

çizim 326144
23 1 5 6 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL
EURO4 SPECIFICATION<NT4> 		8-98252-601-0 01 1 1602- ● ●
1 PAN ASM; OIL 8-98179-005-0 01 1 1302-1601 ● ●
1 PAN ASM; OIL
EURO2 SPECIFICATION<NT2> 		8-98179-005-0 01 1 1602- ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ID=24.5 		8-94399-398-0 01 1 1602- ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 1302-1601 ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=24.4 		1-09623-057-0 01 1 1602- ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 1302- ● ●
23 BOLT; OIL PAN
M8X18 FLANGE 		0-28080-818-0 28 1 1302- ● ●
23 BOLT; OIL PAN
M8X28 FLANGE 		8-97329-626-0 02 1 1302- ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 1302- ● ●
çizim 326160
10 8 192 193 10 8 9 9 193 49 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GAUGE; OIL LEVEL 8-98092-600-0 01 1 1302- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-98063-554-0 01 1 1302- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-98084-773-0 01 1 1302- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 1302- ● ●
10 BOLT; GUIDE TUBE
(B) M10X35 FLANGE 		0-28151-035-0 01 1 1302- ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 01 1 1302- ● ●
192 HOSE; GUIDE TUBE
L=463 		8-98054-844-1 01 1 1302- ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
