Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#113099) — 396 parça

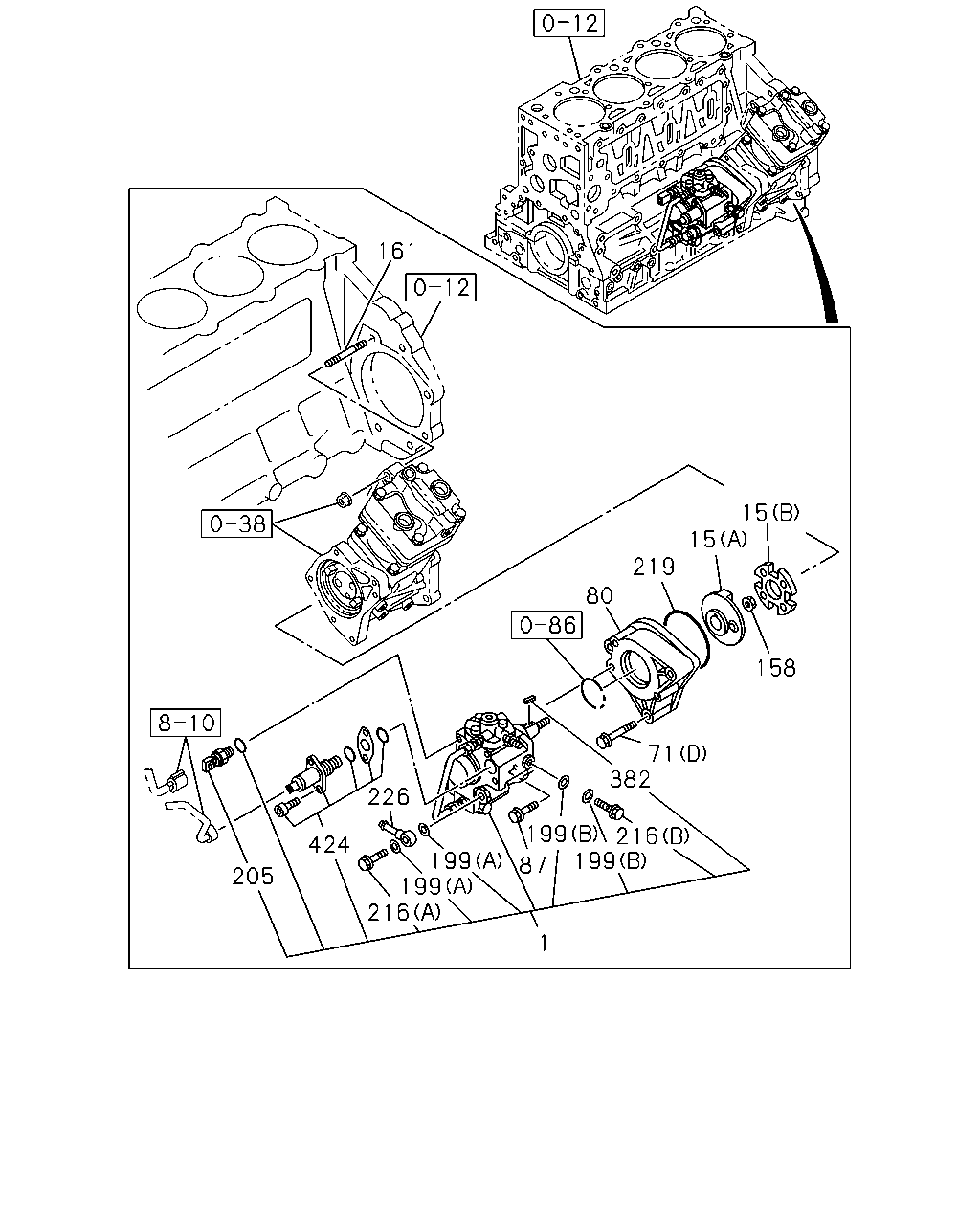

161 15 15 219 80 205 424 226 216 199 199 87 199 199 216 382 71 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ	8-97386-557-5	01	1	1302-	●
1	PUMP ASM; INJ	8-97605-946-7	01	1	1302-		●
15	COUPLING ASM; INJ PUMP (A)	8-97306-054-0	01	1	1302-	●
15	COUPLING ASM; INJ PUMP (B) SEE FIG-NO 0-87 FOR COMPONENT.	8-97306-059-1	01	1	1302-	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
71	BOLT; BRKT (E) M8X40 FLANGE	0-28050-840-0	01	1	1302-	●
71	BOLT; BRKT (D) M10X60 FLANGE	0-28051-060-0	03	1	1302-	●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (F) M8X50 FLANGE	0-28050-850-0	01	1	1302-	●
71	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X60 FLANGE	0-28050-860-0	01	1	1302-	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●
71	BOLT; BRKT (G) M10X16 FLANGE	0-28151-016-0	01	1	1302-		●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1302-		●
80	BRACKET; PUMP	8-98061-699-0	01	1	1302-	●
87	BOLT; PUMP M8X30 FLANGE	0-28650-830-0	03	1	1302-	●
158	NUT; INJ PUMP M14 FLANGE	0-91180-114-0	01	1	1302-	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	1302-	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1302-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1302-	●	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1302-	●	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1302-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1302-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1302-	●	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6	1-09623-593-0	01	1	1302-	●
226	PIPE; FUEL	8-98126-332-0	01	1	1302-	●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1302-	●	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1302-	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-449-1	01	1	1302-		●

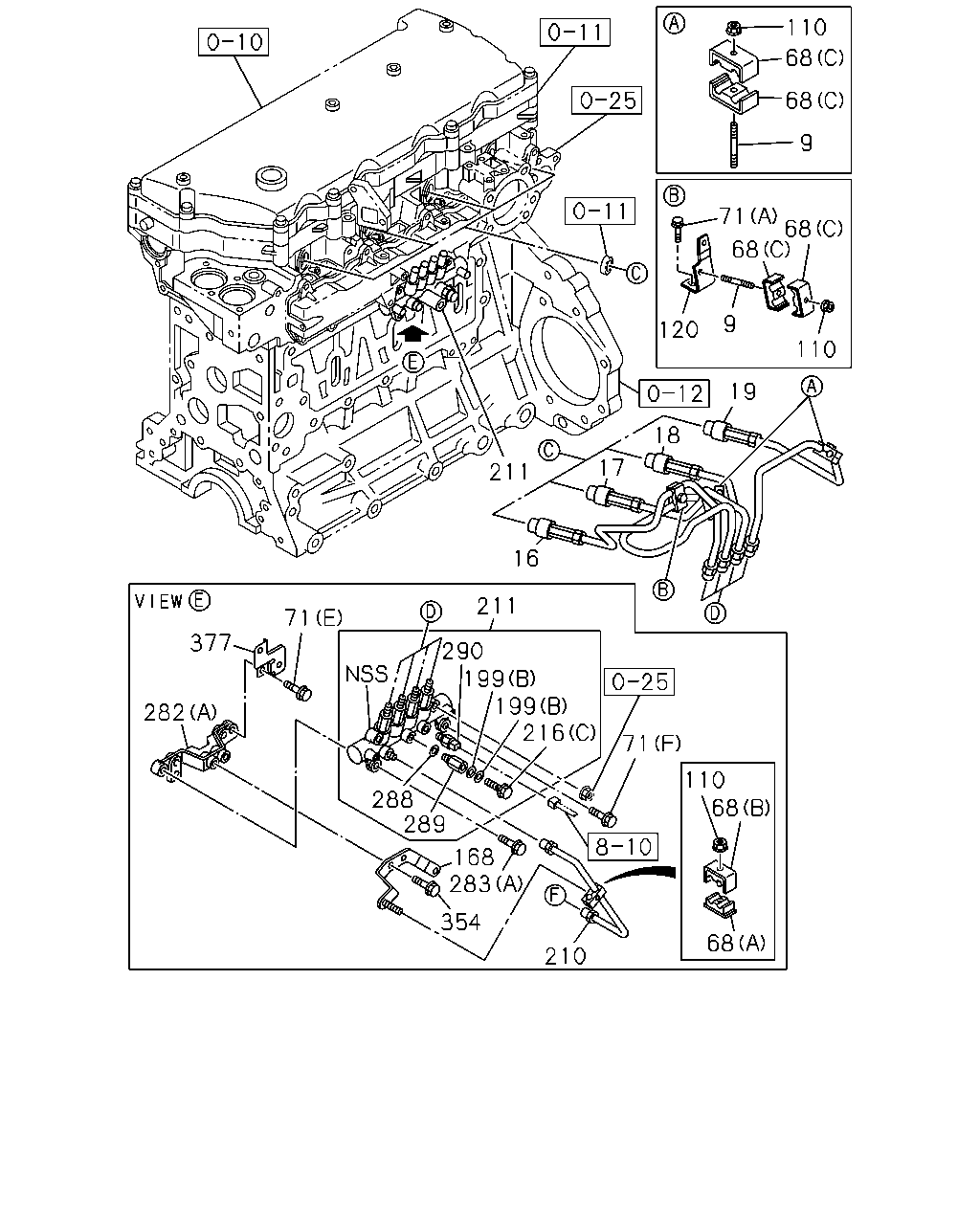

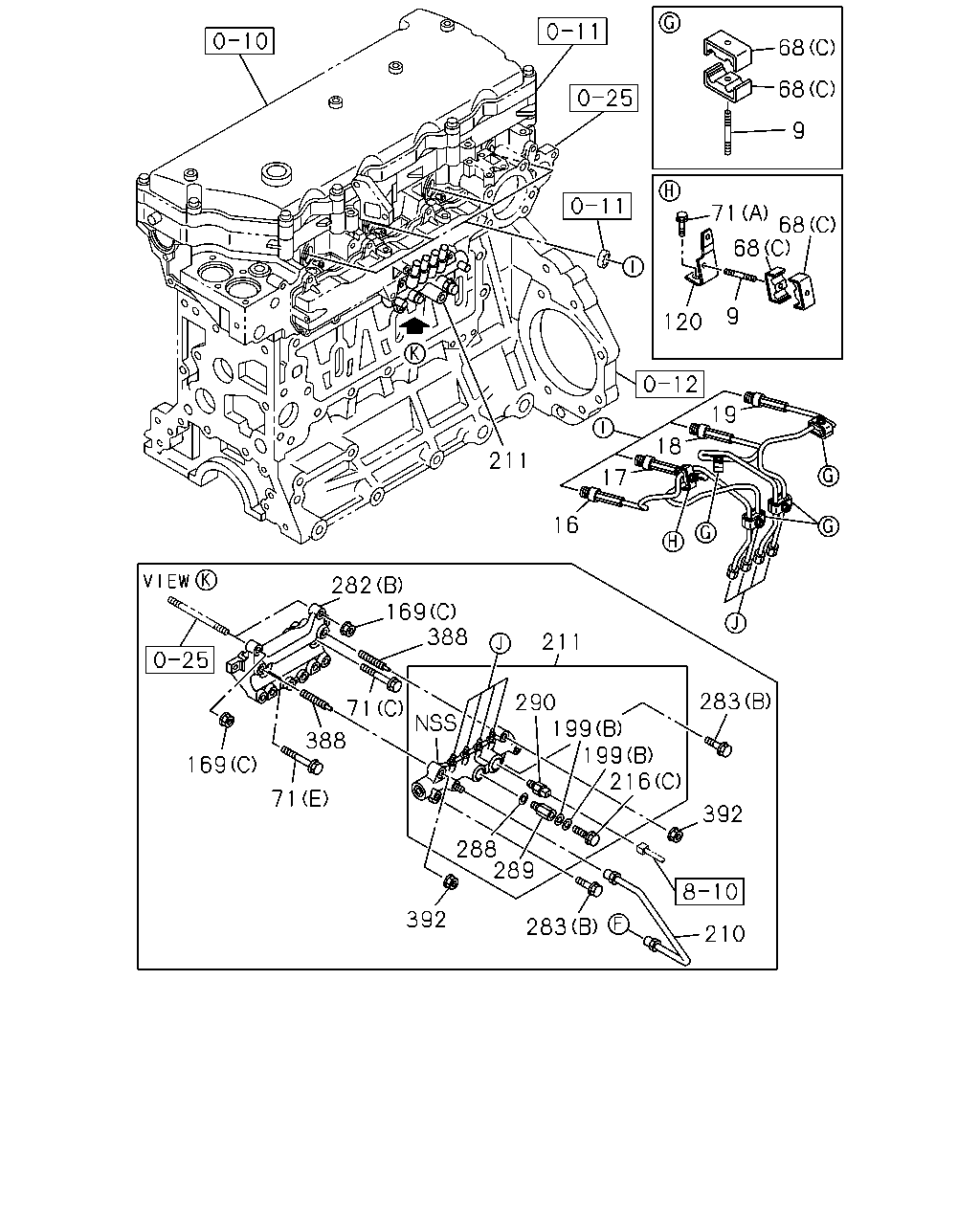

283 290 199 199 216 392 210 283 288 289 392 71 169 388 169 388 211 282 211 16 17 18 19 120 9 68 68 71 9 68 68 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	STUD; CLIP M6X35 L=43	8-97203-278-0	01	1	1302-	●
9	STUD; CLIP EURO2 SPECIFICATION<NT2> M6X30 L=38	0-41010-630-0	02	1	1302-	●
9	STUD; CLIP EURO4 SPECIFICATION<NT4> M6X30 L=38	0-41010-630-0	04	1	1302-	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98185-344-0	01	1	1302-1404	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98271-202-0	01	1	1405-1501	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98298-606-0	01	1	1502-	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98185-352-0	01	1	1302-1404	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98271-218-0	01	1	1405-1502	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98298-628-0	01	1	1503-	●
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1302-1403		●
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501		●
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-		●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98185-345-0	01	1	1302-1404	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98271-203-0	01	1	1405-1501	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98298-607-0	01	1	1502-	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98185-353-0	01	1	1302-1404	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98271-219-0	01	1	1405-1502	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98298-629-0	01	1	1503-	●
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1302-1403		●
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501		●
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-		●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98185-346-0	01	1	1302-1404	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98271-204-0	01	1	1405-1501	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98298-608-0	01	1	1502-	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98185-354-0	01	1	1302-1404	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98271-220-0	01	1	1405-1502	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98298-630-0	01	1	1503-	●
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1302-1403		●
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501		●
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-		●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98185-347-0	01	1	1302-1306	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98245-980-0	01	1	1307-1404	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98271-230-0	01	1	1405-1501	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98298-609-0	01	1	1502-	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98185-355-0	01	1	1302-1404	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98271-221-0	01	1	1405-1502	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98298-631-0	01	1	1503-	●
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1302-1403		●
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501		●
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-		●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (C) ID=7 & 7 L=22	8-97330-118-3	01	1	1302-	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1302-	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19	8-98039-293-0	06	1	1302-1405	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-	●
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19	8-98039-293-0	10	1	1302-1405	●
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19	8-98148-996-2	10	1	1406-	●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	14	1	1302-1405		●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98148-996-2	14	1	1406-		●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
71	BOLT; BRKT (E) M8X40 FLANGE	0-28050-840-0	01	1	1302-	●
71	BOLT; BRKT (D) M10X60 FLANGE	0-28051-060-0	03	1	1302-	●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (F) M8X50 FLANGE	0-28050-850-0	01	1	1302-	●
71	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X60 FLANGE	0-28050-860-0	01	1	1302-	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●
71	BOLT; BRKT (G) M10X16 FLANGE	0-28151-016-0	01	1	1302-		●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1302-		●
120	BRACKET; INJ PIPE	8-98001-041-0	01	1	1302-	●
169	NUT; BRKT EURO4 SPECIFICATION<NT4> (C) M8 FLANGE	0-91180-108-0	02	1	1302-	●
169	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	1302-		●
169	NUT; BRKT (B) M12 FLANGE	0-91180-112-0	01	1	1302-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1302-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1302-	●	●
210	PIPE; INJ,C/R EURO2 SPECIFICATION<NT2>	8-97376-779-0	01	1	1302-	●
210	PIPE; INJ,C/R EURO4 SPECIFICATION<NT4>	8-98172-184-0	01	1	1302-	●
210	PIPE; INJ,C/R	8-98059-805-0	01	1	1302-		●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	1302-	●
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1302-		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1302-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1302-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1302-	●	●
282	BRACKET; COMMON RAIL EURO2 SPECIFICATION<NT2> (A)	8-98157-115-0	01	1	1302-	●
282	BRACKET; COMMON RAIL EURO4 SPECIFICATION<NT4> (B)	8-98106-661-1	01	1	1302-	●
283	BOLT; COMMON RAIL EURO2 SPECIFICATION<NT2> (A) M8X25 FLANGE	0-28050-825-0	01	1	1302-	●
283	BOLT; COMMON RAIL EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE	0-28050-820-0	02	1	1302-	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1302-	●	●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1302-	●	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1302-	●	●
388	STUD; RAIL EURO4 SPECIFICATION<NT4> M8X35 L=53	0-49140-835-0	02	1	1302-	●
392	NUT; RAIL ASM EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-	●
392	NUT; RAIL ASM M10 FLANGE	0-91180-110-0	02	1	1302-		●

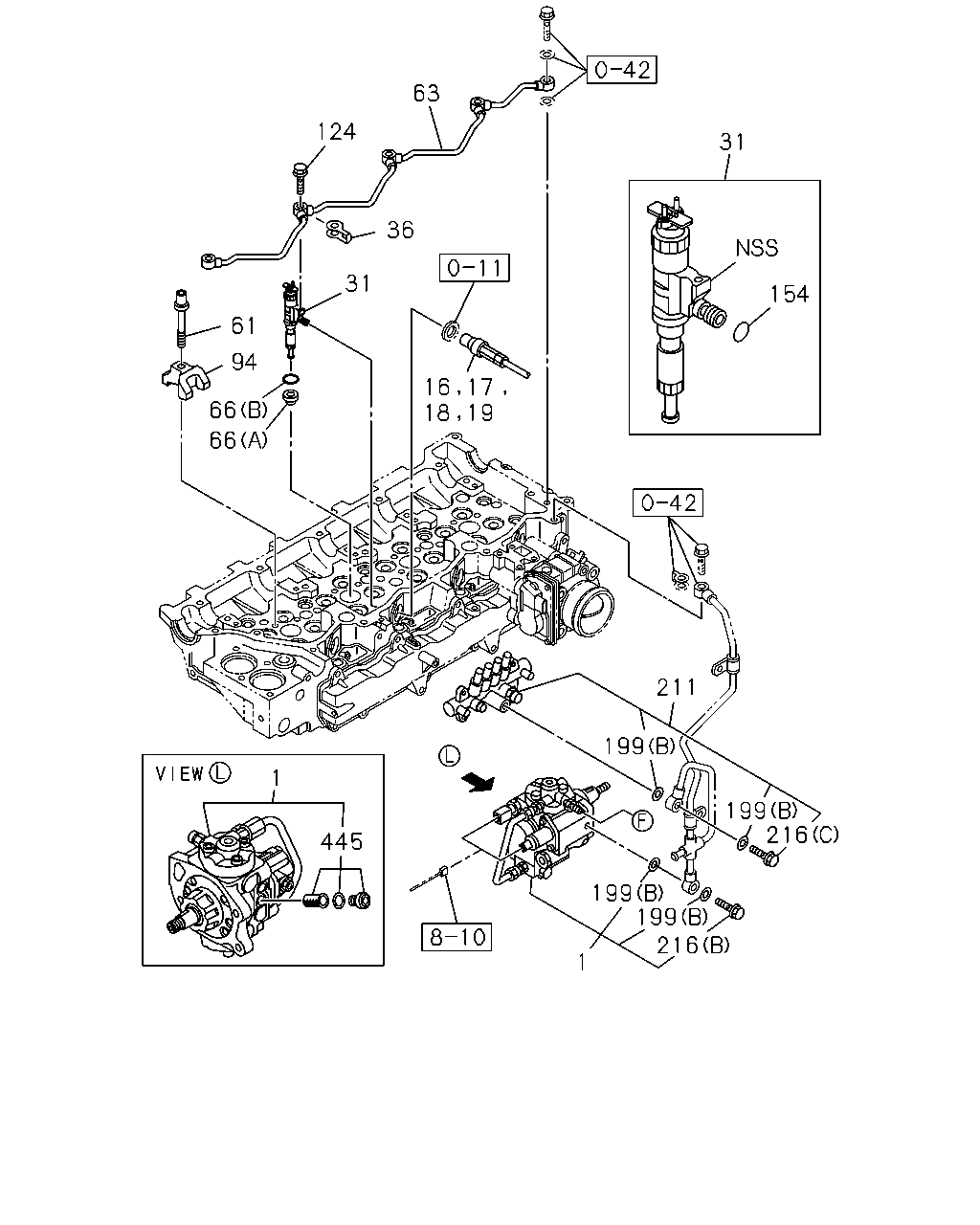

63 124 36 31 61 94 66 66 16 17 18 19 31 154 211 199 199 216 216 199 199 1 445 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ	8-97386-557-5	01	1	1302-	●
1	PUMP ASM; INJ	8-97605-946-7	01	1	1302-		●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98185-344-0	01	1	1302-1404	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98271-202-0	01	1	1405-1501	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98298-606-0	01	1	1502-	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98185-352-0	01	1	1302-1404	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98271-218-0	01	1	1405-1502	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98298-628-0	01	1	1503-	●
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1302-1403		●
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501		●
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-		●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98185-345-0	01	1	1302-1404	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98271-203-0	01	1	1405-1501	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98298-607-0	01	1	1502-	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98185-353-0	01	1	1302-1404	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98271-219-0	01	1	1405-1502	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98298-629-0	01	1	1503-	●
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1302-1403		●
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501		●
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-		●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98185-346-0	01	1	1302-1404	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98271-204-0	01	1	1405-1501	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98298-608-0	01	1	1502-	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98185-354-0	01	1	1302-1404	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98271-220-0	01	1	1405-1502	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98298-630-0	01	1	1503-	●
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1302-1403		●
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501		●
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-		●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98185-347-0	01	1	1302-1306	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98245-980-0	01	1	1307-1404	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98271-230-0	01	1	1405-1501	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98298-609-0	01	1	1502-	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98185-355-0	01	1	1302-1404	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98271-221-0	01	1	1405-1502	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98298-631-0	01	1	1503-	●
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1302-1403		●
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501		●
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-		●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION<NT2>	8-97609-788-6	04	1	1302-	●
31	NOZZLE ASM; INJ EURO4 SPECIFICATION<NT4>	8-98219-181-0	04	1	1302-	●
31	NOZZLE ASM; INJ	8-97609-789-6	06	1	1302-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	1302-	●
61	BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	1302-	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	1302-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3	8-94173-412-0	04	1	1302-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1302-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	06	1	1302-		●
94	BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1302-	●
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	1302-		●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	1302-	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	04	1	1302-	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1302-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1302-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1302-	●	●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	1302-	●
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1302-		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1302-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1302-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1302-	●	●
445	SCREW; FILTER,INLET	8-98204-986-0	01	1	1302-	●

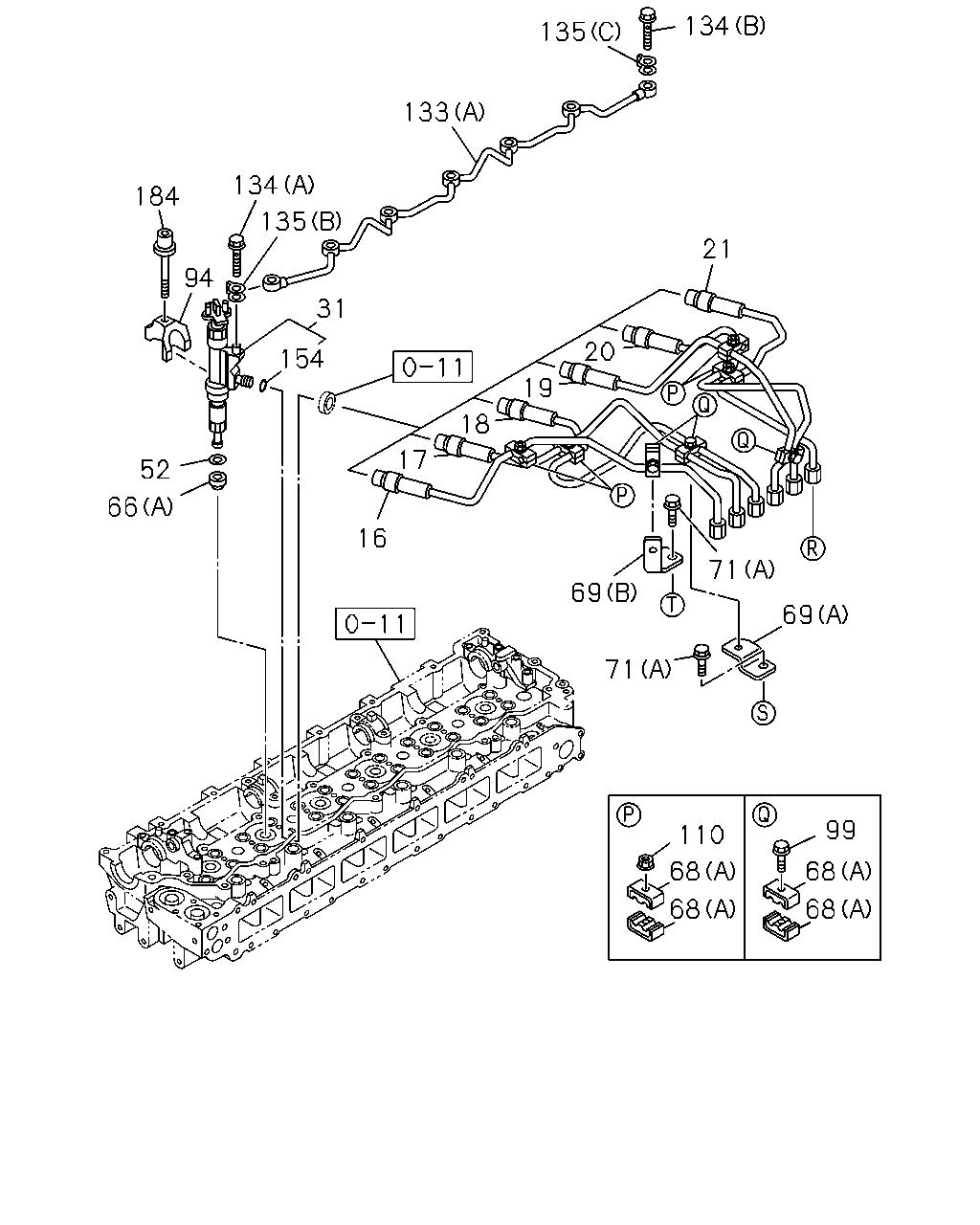

21 134 135 133 134 184 94 31 154 52 66 16 69 71 71 69 20 19 18 17 110 68 99 68 68 68 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98185-344-0	01	1	1302-1404	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98271-202-0	01	1	1405-1501	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98298-606-0	01	1	1502-	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98185-352-0	01	1	1302-1404	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98271-218-0	01	1	1405-1502	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98298-628-0	01	1	1503-	●
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1302-1403		●
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501		●
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-		●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98185-345-0	01	1	1302-1404	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98271-203-0	01	1	1405-1501	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98298-607-0	01	1	1502-	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98185-353-0	01	1	1302-1404	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98271-219-0	01	1	1405-1502	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98298-629-0	01	1	1503-	●
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1302-1403		●
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501		●
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-		●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98185-346-0	01	1	1302-1404	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98271-204-0	01	1	1405-1501	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98298-608-0	01	1	1502-	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98185-354-0	01	1	1302-1404	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98271-220-0	01	1	1405-1502	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98298-630-0	01	1	1503-	●
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1302-1403		●
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501		●
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-		●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98185-347-0	01	1	1302-1306	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98245-980-0	01	1	1307-1404	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98271-230-0	01	1	1405-1501	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98298-609-0	01	1	1502-	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98185-355-0	01	1	1302-1404	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98271-221-0	01	1	1405-1502	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98298-631-0	01	1	1503-	●
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1302-1403		●
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501		●
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-		●
20	PIPE; INJ NO.5	8-98185-366-0	01	1	1302-1403		●
20	PIPE; INJ NO.5	8-98271-211-0	01	1	1404-1501		●
20	PIPE; INJ NO.5	8-98298-615-0	01	1	1502-		●
21	PIPE; INJ NO.6	8-98185-367-0	01	1	1302-1403		●
21	PIPE; INJ NO.6	8-98271-212-0	01	1	1404-1501		●
21	PIPE; INJ NO.6	8-98298-617-0	01	1	1502-		●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION<NT2>	8-97609-788-6	04	1	1302-	●
31	NOZZLE ASM; INJ EURO4 SPECIFICATION<NT4>	8-98219-181-0	04	1	1302-	●
31	NOZZLE ASM; INJ	8-97609-789-6	06	1	1302-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3	8-94173-412-0	06	1	1302-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3	8-94173-412-0	04	1	1302-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1302-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	06	1	1302-		●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (C) ID=7 & 7 L=22	8-97330-118-3	01	1	1302-	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1302-	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19	8-98039-293-0	06	1	1302-1405	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-	●
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19	8-98039-293-0	10	1	1302-1405	●
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19	8-98148-996-2	10	1	1406-	●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	14	1	1302-1405		●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98148-996-2	14	1	1406-		●
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1302-		●
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1302-		●
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1302-		●
69	BRACKET; INJ PIPE CLIP (D)	8-98059-807-0	01	1	1302-		●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
71	BOLT; BRKT (E) M8X40 FLANGE	0-28050-840-0	01	1	1302-	●
71	BOLT; BRKT (D) M10X60 FLANGE	0-28051-060-0	03	1	1302-	●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (F) M8X50 FLANGE	0-28050-850-0	01	1	1302-	●
71	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X60 FLANGE	0-28050-860-0	01	1	1302-	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●
71	BOLT; BRKT (G) M10X16 FLANGE	0-28151-016-0	01	1	1302-		●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1302-		●
94	BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1302-	●
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	1302-		●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28050-635-0	03	1	1302-		●
110	NUT; CLIP EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	04	1	1302-	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	1302-		●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98059-804-0	01	1	1302-		●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1302-		●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1302-		●
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1302-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1302-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1302-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-		●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	04	1	1302-	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1302-		●
184	BOLT; NOZZLE HOLDER M8X54	8-98008-895-0	06	1	1302-		●

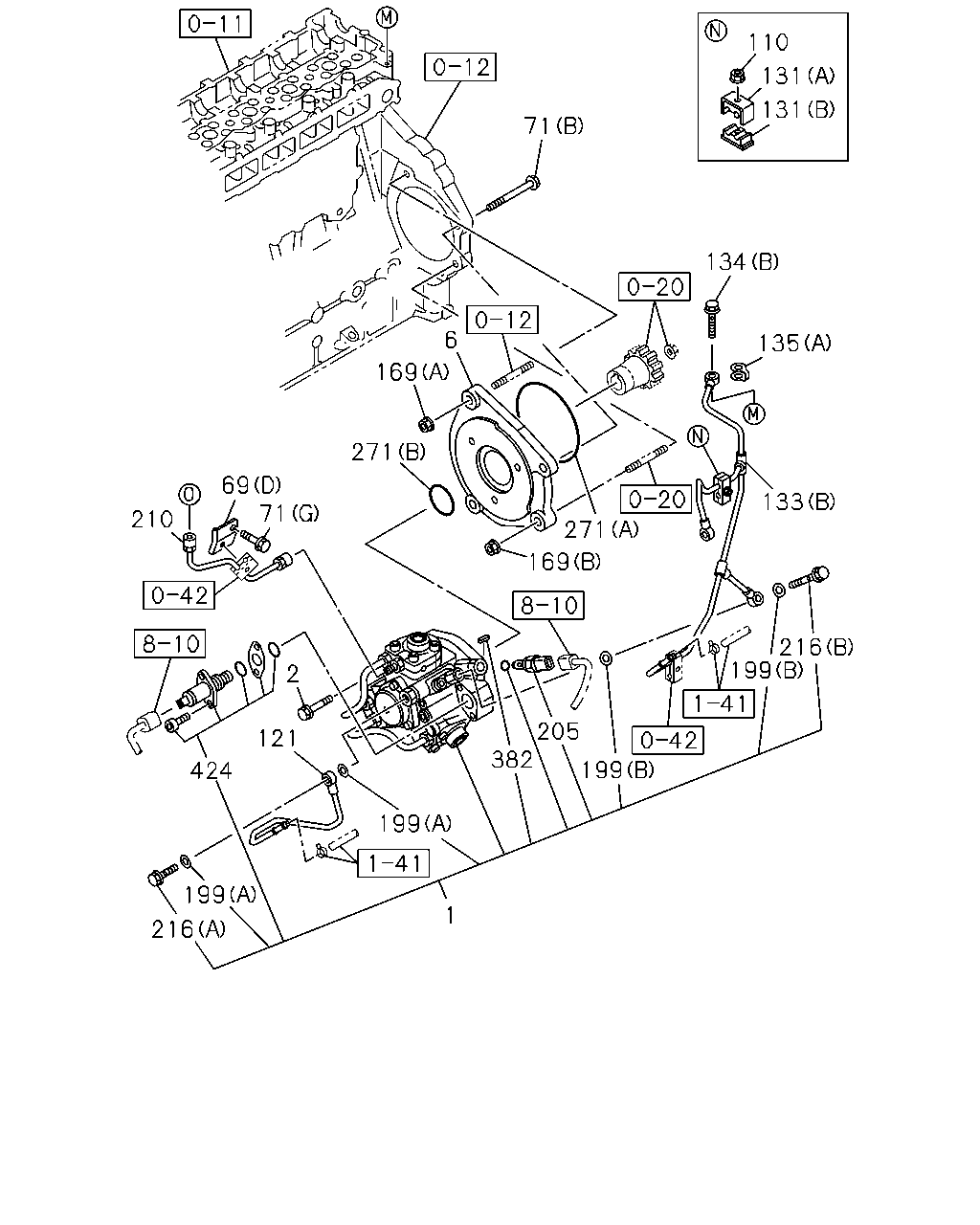

71 110 131 131 134 135 169 271 271 133 69 210 71 2 121 424 216 199 382 199 199 216 169 1 6 205 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ	8-97386-557-5	01	1	1302-	●
1	PUMP ASM; INJ	8-97605-946-7	01	1	1302-		●
2	BOLT; INJ PUMP M8X28	8-94399-256-0	03	1	1302-		●
6	BRACKET; INJ PUMP TO C/BL	8-97601-154-1	01	1	1302-		●
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1302-		●
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1302-		●
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1302-		●
69	BRACKET; INJ PIPE CLIP (D)	8-98059-807-0	01	1	1302-		●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
71	BOLT; BRKT (E) M8X40 FLANGE	0-28050-840-0	01	1	1302-	●
71	BOLT; BRKT (D) M10X60 FLANGE	0-28051-060-0	03	1	1302-	●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (F) M8X50 FLANGE	0-28050-850-0	01	1	1302-	●
71	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X60 FLANGE	0-28050-860-0	01	1	1302-	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●
71	BOLT; BRKT (G) M10X16 FLANGE	0-28151-016-0	01	1	1302-		●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1302-		●
110	NUT; CLIP EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	04	1	1302-	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	1302-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-98126-331-0	01	1	1302-		●
131	CLIP; OVERFLOW LEAK OFF (A) ID=7 & 9 L=25	8-98000-010-2	01	1	1302-		●
131	CLIP; OVERFLOW LEAK OFF (B) ID=7 & 9 L=25	8-98000-011-2	01	1	1302-		●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98059-804-0	01	1	1302-		●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1302-		●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1302-		●
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1302-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1302-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1302-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-		●
169	NUT; BRKT EURO4 SPECIFICATION<NT4> (C) M8 FLANGE	0-91180-108-0	02	1	1302-	●
169	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	1302-		●
169	NUT; BRKT (B) M12 FLANGE	0-91180-112-0	01	1	1302-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1302-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1302-	●	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1302-	●	●
210	PIPE; INJ,C/R EURO2 SPECIFICATION<NT2>	8-97376-779-0	01	1	1302-	●
210	PIPE; INJ,C/R EURO4 SPECIFICATION<NT4>	8-98172-184-0	01	1	1302-	●
210	PIPE; INJ,C/R	8-98059-805-0	01	1	1302-		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1302-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1302-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1302-	●	●
271	GASKET; INJ PUMP (A) ID=139.6	1-09623-464-0	01	1	1302-		●
271	GASKET; INJ PUMP (B) ID=52	8-98031-844-0	01	1	1302-		●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1302-	●	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1302-	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-449-1	01	1	1302-		●

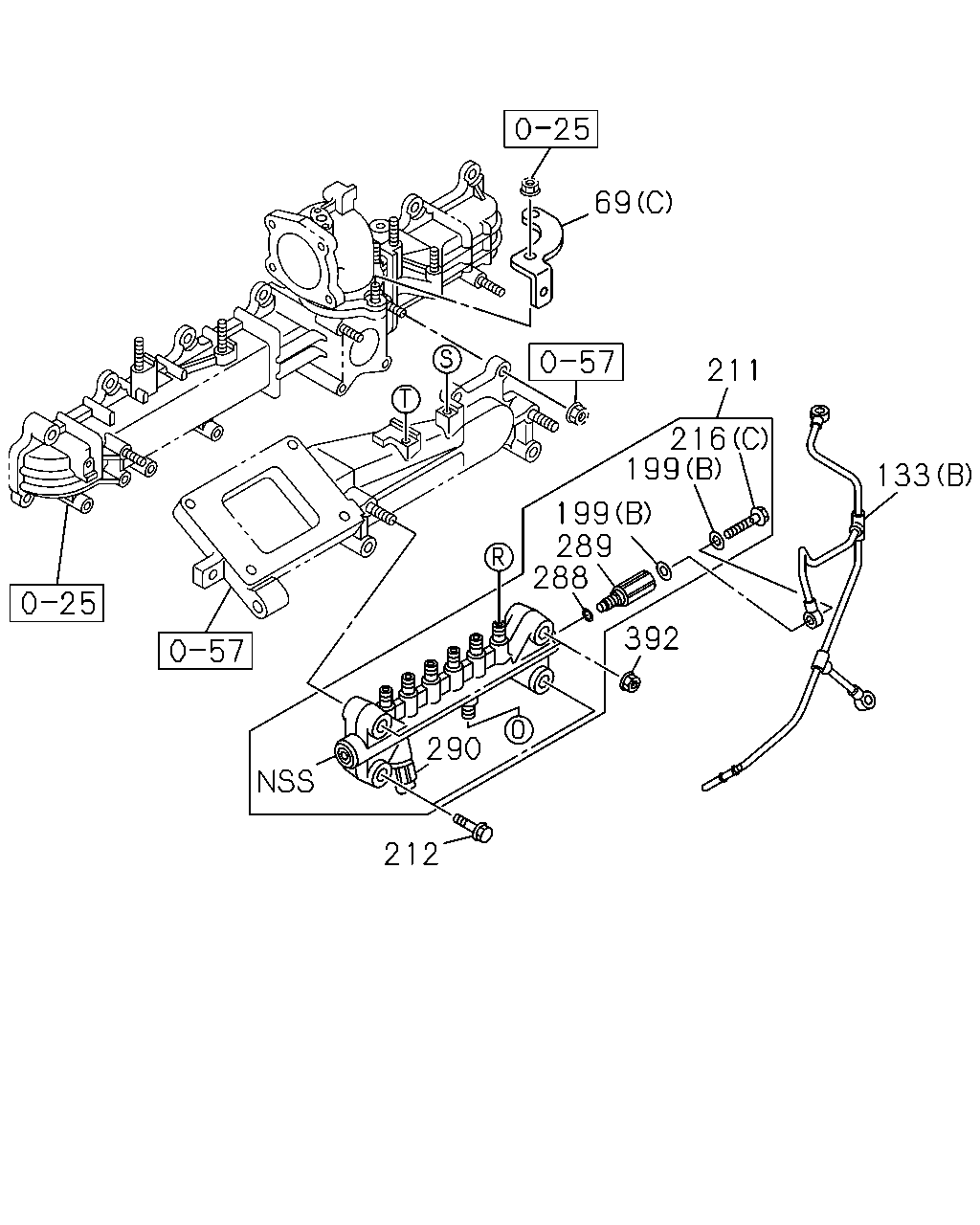

211 216 199 199 289 288 392 290 212 133 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1302-		●
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1302-		●
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1302-		●
69	BRACKET; INJ PIPE CLIP (D)	8-98059-807-0	01	1	1302-		●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98059-804-0	01	1	1302-		●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1302-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1302-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1302-	●	●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	1302-	●
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1302-		●
212	BOLT; RAIL ASM M10X50 FLANGE	8-97372-243-0	02	1	1302-		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1302-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1302-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1302-	●	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1302-	●	●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1302-	●	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1302-	●	●
392	NUT; RAIL ASM EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-	●
392	NUT; RAIL ASM M10 FLANGE	0-91180-110-0	02	1	1302-		●

211 16 17 18 19 110 9 120 68 68 71 9 68 68 110 71 377 282 211 290 199 199 216 168 288 289 283 354 210 68 68 110 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	STUD; CLIP M6X35 L=43	8-97203-278-0	01	1	1302-	●
9	STUD; CLIP EURO2 SPECIFICATION<NT2> M6X30 L=38	0-41010-630-0	02	1	1302-	●
9	STUD; CLIP EURO4 SPECIFICATION<NT4> M6X30 L=38	0-41010-630-0	04	1	1302-	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98185-344-0	01	1	1302-1404	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98271-202-0	01	1	1405-1501	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>	8-98298-606-0	01	1	1502-	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98185-352-0	01	1	1302-1404	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98271-218-0	01	1	1405-1502	●
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98298-628-0	01	1	1503-	●
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1302-1403		●
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501		●
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-		●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98185-345-0	01	1	1302-1404	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98271-203-0	01	1	1405-1501	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>	8-98298-607-0	01	1	1502-	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98185-353-0	01	1	1302-1404	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98271-219-0	01	1	1405-1502	●
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98298-629-0	01	1	1503-	●
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1302-1403		●
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501		●
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-		●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98185-346-0	01	1	1302-1404	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98271-204-0	01	1	1405-1501	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>	8-98298-608-0	01	1	1502-	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98185-354-0	01	1	1302-1404	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98271-220-0	01	1	1405-1502	●
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98298-630-0	01	1	1503-	●
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1302-1403		●
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501		●
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-		●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98185-347-0	01	1	1302-1306	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98245-980-0	01	1	1307-1404	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98271-230-0	01	1	1405-1501	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>	8-98298-609-0	01	1	1502-	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98185-355-0	01	1	1302-1404	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98271-221-0	01	1	1405-1502	●
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98298-631-0	01	1	1503-	●
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1302-1403		●
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501		●
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-		●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (C) ID=7 & 7 L=22	8-97330-118-3	01	1	1302-	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1302-	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19	8-98039-293-0	06	1	1302-1405	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-	●
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19	8-98039-293-0	10	1	1302-1405	●
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (A) ID=11 & 11 L=19	8-98148-996-2	10	1	1406-	●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	14	1	1302-1405		●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98148-996-2	14	1	1406-		●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
71	BOLT; BRKT (E) M8X40 FLANGE	0-28050-840-0	01	1	1302-	●
71	BOLT; BRKT (D) M10X60 FLANGE	0-28051-060-0	03	1	1302-	●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (F) M8X50 FLANGE	0-28050-850-0	01	1	1302-	●
71	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X60 FLANGE	0-28050-860-0	01	1	1302-	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●
71	BOLT; BRKT (G) M10X16 FLANGE	0-28151-016-0	01	1	1302-		●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1302-		●
110	NUT; CLIP EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	04	1	1302-	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	1302-		●
120	BRACKET; INJ PIPE	8-98001-041-0	01	1	1302-	●
168	BRACKET; FUEL PIPE EURO2 SPECIFICATION<NT2>	8-98072-403-0	01	1	1302-	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1302-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1302-	●	●
210	PIPE; INJ,C/R EURO2 SPECIFICATION<NT2>	8-97376-779-0	01	1	1302-	●
210	PIPE; INJ,C/R EURO4 SPECIFICATION<NT4>	8-98172-184-0	01	1	1302-	●
210	PIPE; INJ,C/R	8-98059-805-0	01	1	1302-		●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	1302-	●
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1302-		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1302-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1302-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1302-	●	●
282	BRACKET; COMMON RAIL EURO2 SPECIFICATION<NT2> (A)	8-98157-115-0	01	1	1302-	●
282	BRACKET; COMMON RAIL EURO4 SPECIFICATION<NT4> (B)	8-98106-661-1	01	1	1302-	●
283	BOLT; COMMON RAIL EURO2 SPECIFICATION<NT2> (A) M8X25 FLANGE	0-28050-825-0	01	1	1302-	●
283	BOLT; COMMON RAIL EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE	0-28050-820-0	02	1	1302-	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1302-	●	●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1302-	●	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1302-	●	●
354	BOLT; FUEL PIPE EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
377	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>	8-97379-783-1	01	1	1302-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
