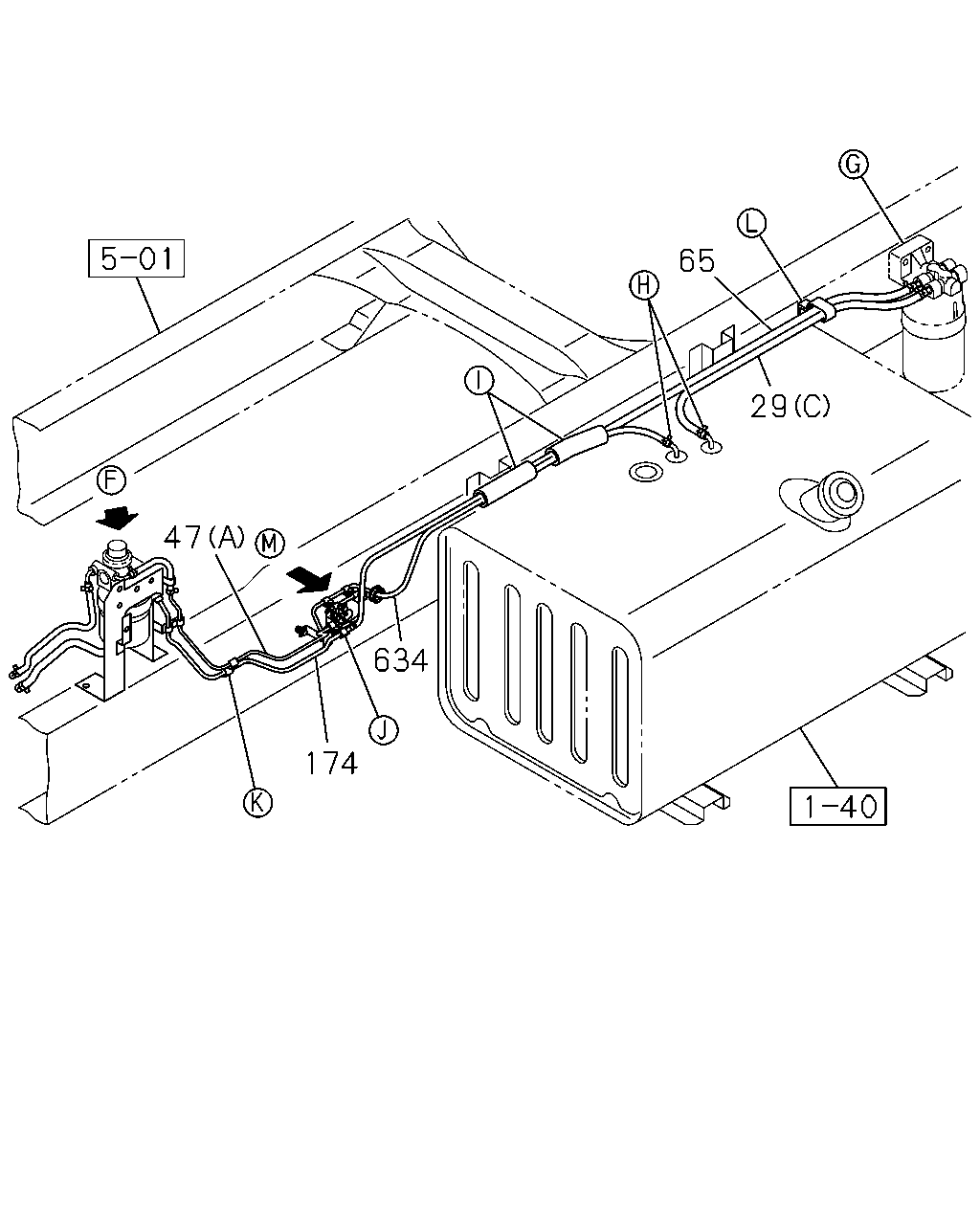

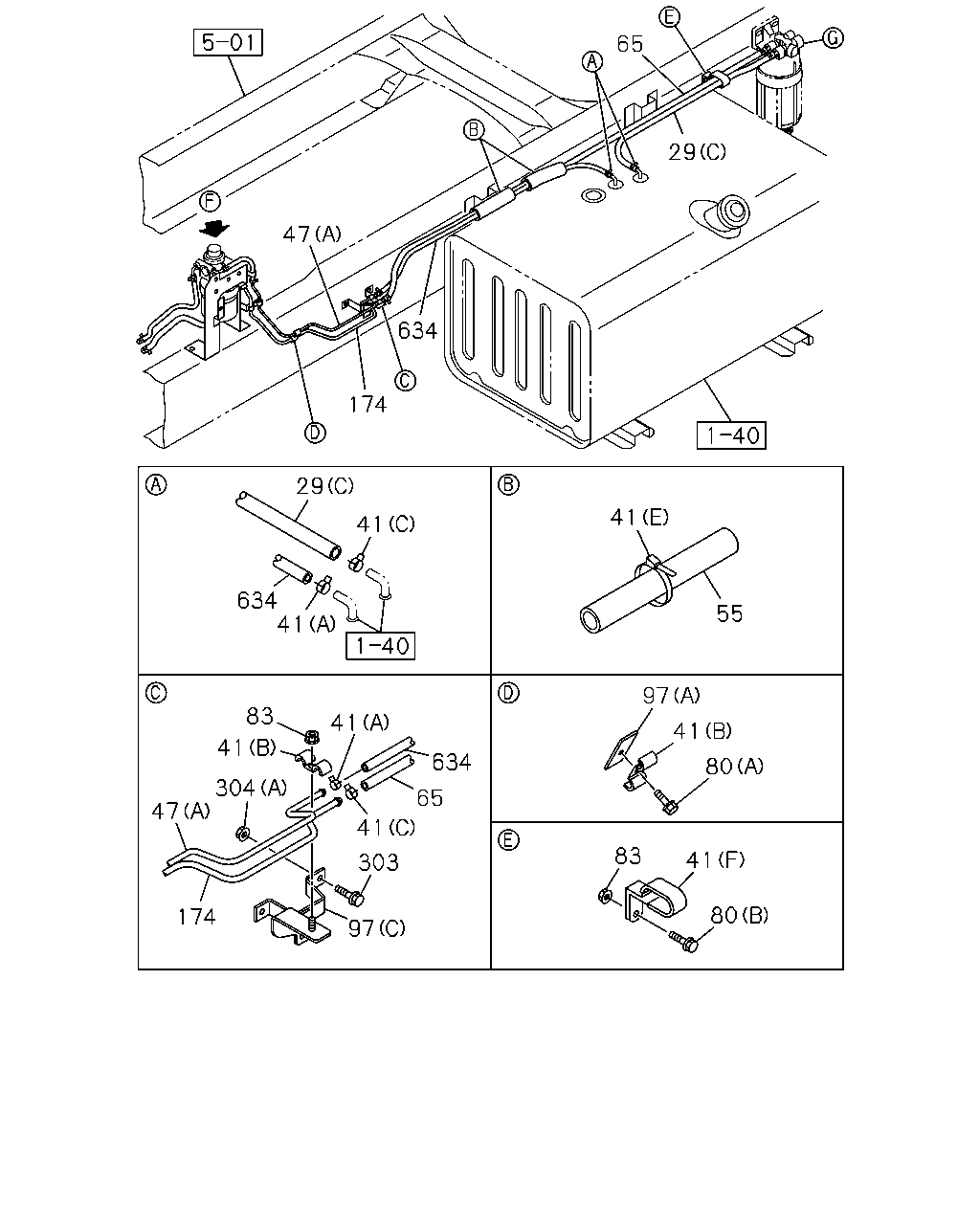

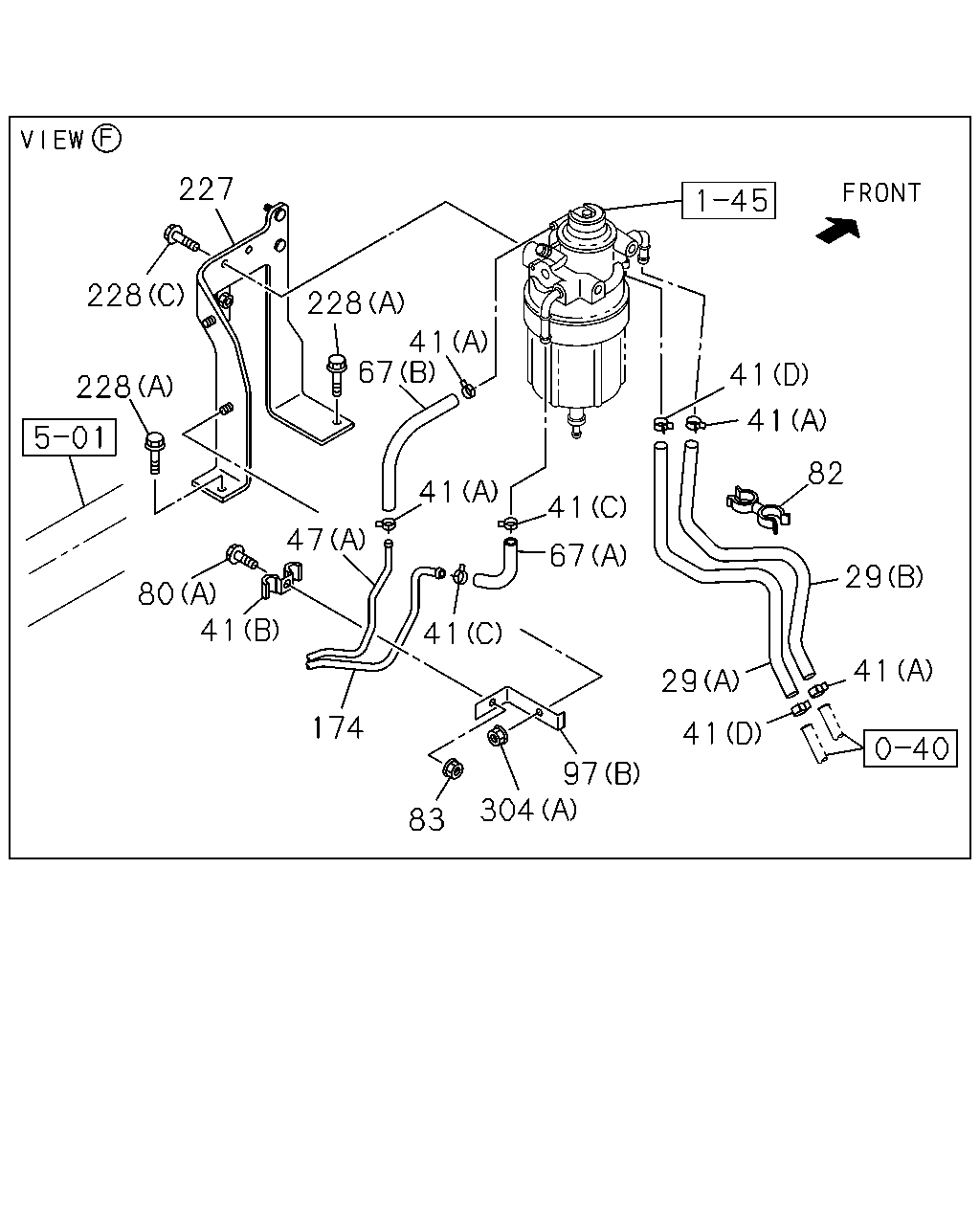

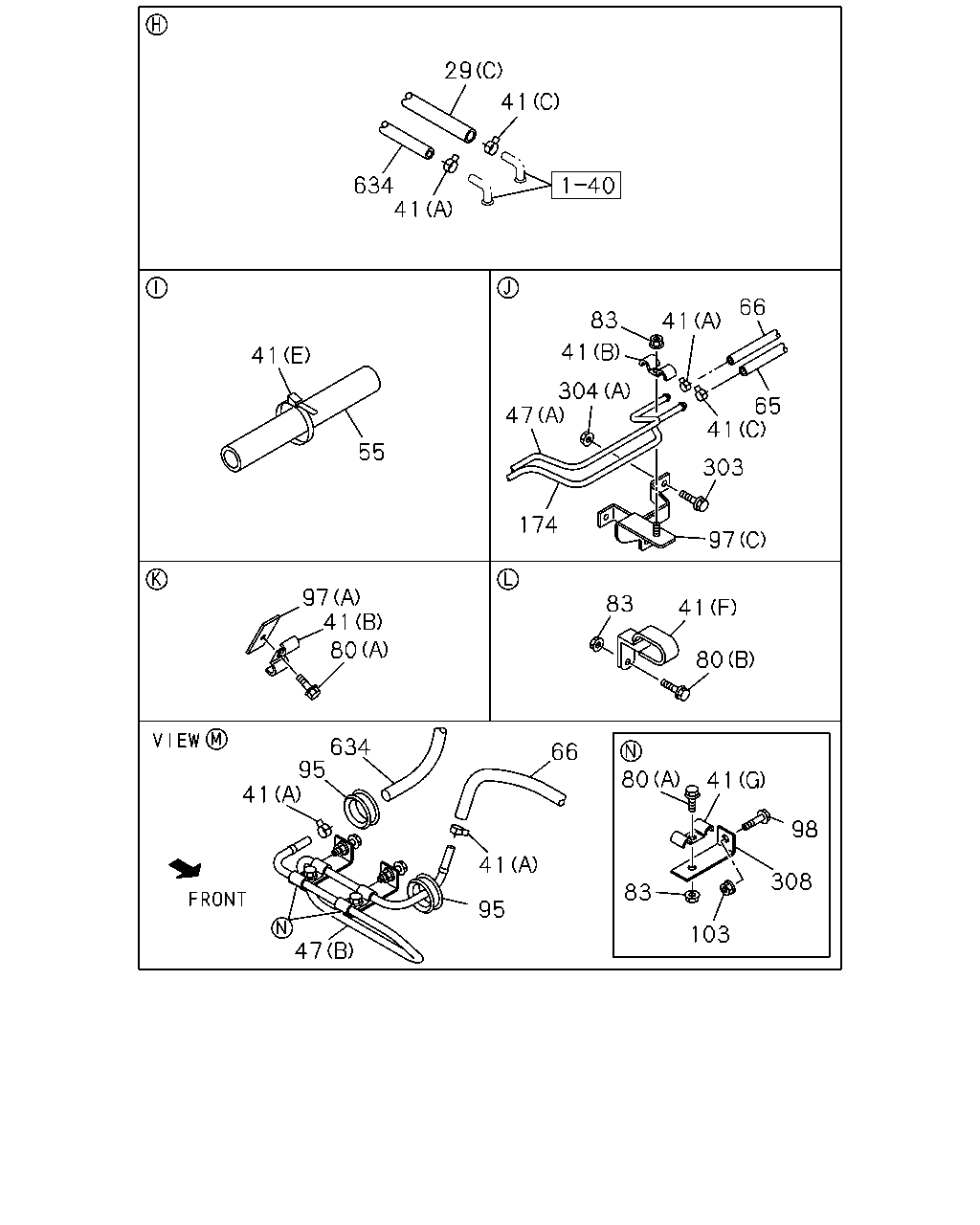

29 |
HOSE; FUEL
(C)
L=730
|
8-98205-834-0 |
01 |
1 |
1302- |
| |
29 |
HOSE; FUEL
(A)
|
8-98078-196-2 |
01 |
1 |
1302- |
| |
29 |
HOSE; FUEL
(B)
|
8-98078-197-1 |
01 |
1 |
1302- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
(G)
ID=9 & 9 L=17 & 17
|
1-09700-651-0 |
02 |
1 |
1602- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
(A)
ID=13
|
8-94238-571-0 |
08 |
1 |
1602- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
03 |
1 |
1302- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(F)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
1302- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(C)
ID=14
|
1-09704-102-0 |
06 |
1 |
1302- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(E)
L=250
|
5-09707-030-1 |
05 |
1 |
1302- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(D)
ID=16
|
8-94238-568-0 |
02 |
1 |
1302- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
1302-1601 |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCS ENG(80L)
EURO2 SPECIFICATION<NT2>
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
1602- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L)
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
1602- |
| |
47 |
PIPE; FUEL,RETURN
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
(B)
L=787
|
8-98127-647-0 |
01 |
1 |
1602- |
| |
47 |
PIPE; FUEL,RETURN
(A)
L=688
|
8-98129-921-0 |
01 |
1 |
1302- |
| |
55 |
COVER; PIPE,FUEL TANK
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
1302- |
| |
65 |
HOSE; FUEL,DELIVERY PIPE
L=1380
|
8-98186-528-0 |
01 |
1 |
1302- |
| |
66 |
HOSE; FUEL,RETURN PIPE
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
L=180
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1602- |
| |
80 |
BOLT; CLIP,FUEL TANK
(A)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1302-1601 |
| |
80 |
BOLT; CLIP,FUEL TANK
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
(A)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1602- |
| |
80 |
BOLT; CLIP,FUEL TANK
(A)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1602- |
| |
80 |
BOLT; CLIP,FUEL TANK
(B)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1302- |
| |
83 |
NUT; CLIP,FUEL TANK
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1602- |
| |
83 |
NUT; CLIP,FUEL TANK
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
1302- |
| |
95 |
BUSHING; PIPE,FUEL TANK
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
ID=28 OD=35 T=17
|
9-09956-256-2 |
02 |
1 |
1602- |
| |
97 |
BRACKET; CLIP
(A)
L=50
|
1-47475-299-2 |
01 |
1 |
1302- |
| |
97 |
BRACKET; CLIP
(B)
|
8-98053-654-0 |
01 |
1 |
1302- |
| |
97 |
BRACKET; CLIP
(C)
|
8-98129-922-0 |
01 |
1 |
1302- |
| |
98 |
BOLT; BRKT,FUEL PIPE
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
1602- |
| |
103 |
NUT; BRKT
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1602- |
| |
174 |
PIPE; FUEL,FEED,FRT
L=685
|
8-98129-920-0 |
01 |
1 |
1302- |
| |
303 |
BOLT; BRKT
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
1302- |
| |
304 |
NUT; BRKT
(A)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
1302- |
| |
304 |
NUT; BRKT
(B)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1302- |
| |
308 |
BRACKET; FUEL PIPE
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
L=75
|
1-47478-323-0 |
02 |
1 |
1602- |
| |
634 |
HOSE; RUBBER RETURN
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
|
8-98186-971-0 |
01 |
1 |
1602- |
| |
634 |
HOSE; RUBBER RETURN
L=810
|
8-98186-973-0 |
01 |
1 |
1302-1601 |
| |
634 |
HOSE; RUBBER RETURN
EURO2 SPECIFICATION<NT2>
L=810
|
8-98186-973-0 |
01 |
1 |
1602- |
| |
634 |
HOSE; RUBBER RETURN
6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
L=810
|
8-98186-973-0 |
01 |
1 |
1602- |
