◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11519 - FVR/GVR-RHD EURO2/4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#113090) — 54 parça

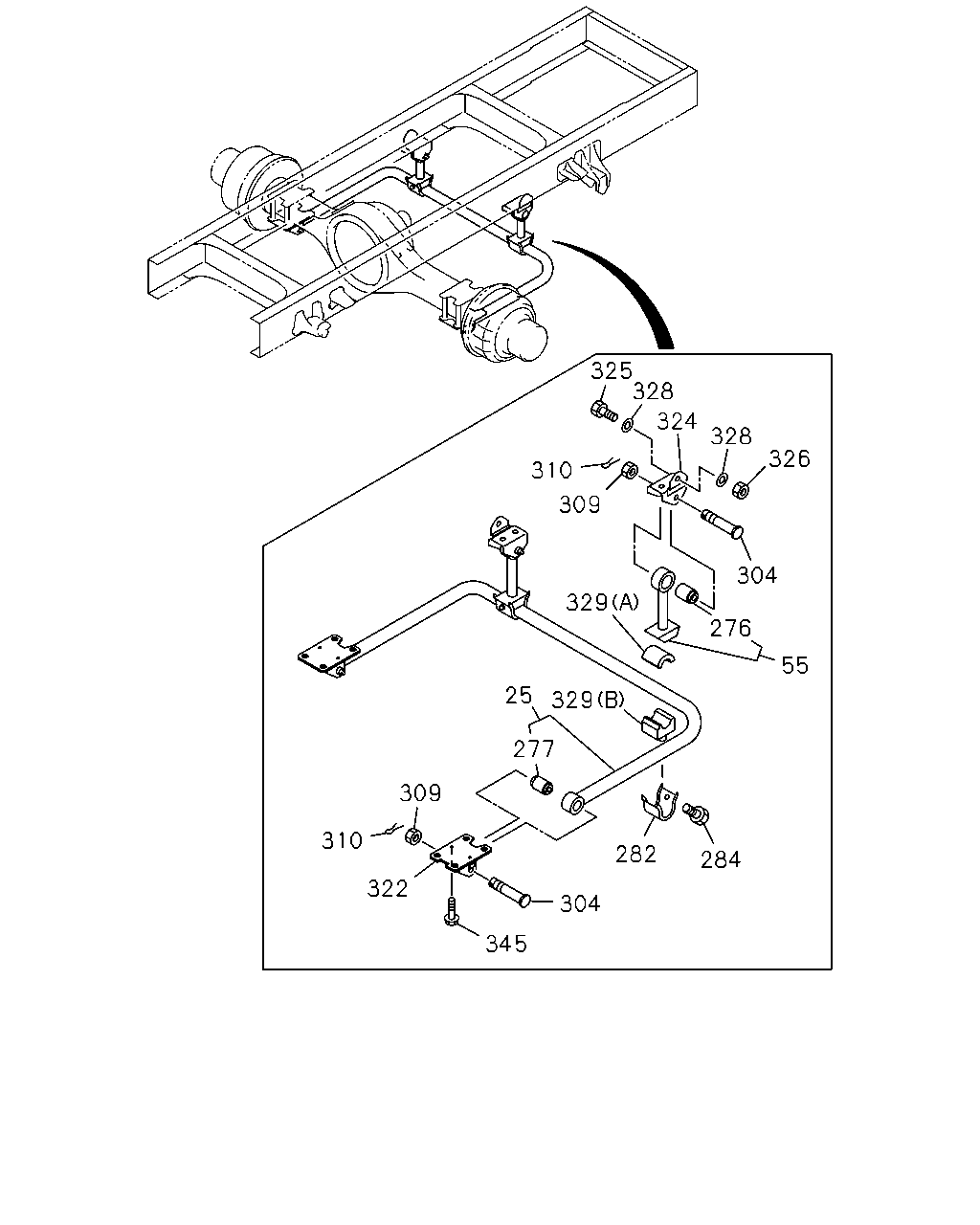

çizim 328567
325 328 324 328 326 310 309 304 276 55 329 25 329 277 282 284 304 309 310 322 345
BalonParca AdiParca NoAdetTipApplied Date
25 BAR ASM; STAB,RR SUSP
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-030-2 01 1 1302-
55 ROD; STAB
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-035-1 02 1 1302-
276 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-019-0 02 1 1302-
277 BUSHING; STAB,RR UPR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-067-0 02 1 1302-
282 RETAINER; STAB BAR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-015-2 02 1 1302-
284 BOLT; RET TO RET
STABILIZER REAR LIGHT DUTY<GN1> M10X25 		8-94463-351-0 08 1 1302-
304 PIN; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-020-2 04 1 1302-
309 NUT; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> M24 		9-99116-424-0 04 1 1302-
310 PIN; SPLIT,STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> OD=4.6 L=45 		0-81125-045-0 04 1 1302-
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-048-4 01 1 1302-
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-127-0 01 1 1302-
324 BRACKET; STAB BAR TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-059-0 02 1 1302-
325 BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14X40 		0-20951-440-0 02 1 1302-
325 BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14X45 		9-92061-445-0 04 1 1302-
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 		0-91110-514-0 06 1 1302-
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 		0-91110-514-0 04 1 1302-
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=15 		8-98010-627-1 12 1 1302-
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=15 		8-98010-627-1 10 1 1302-
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (A) 		1-51789-051-1 02 1 1302-
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (B) 		1-51789-052-0 02 1 1302-
345 BOLT; BRKT
STABILIZER REAR LIGHT DUTY<GN1> M10X16 FLANGE 		0-28051-016-0 04 1 1302-

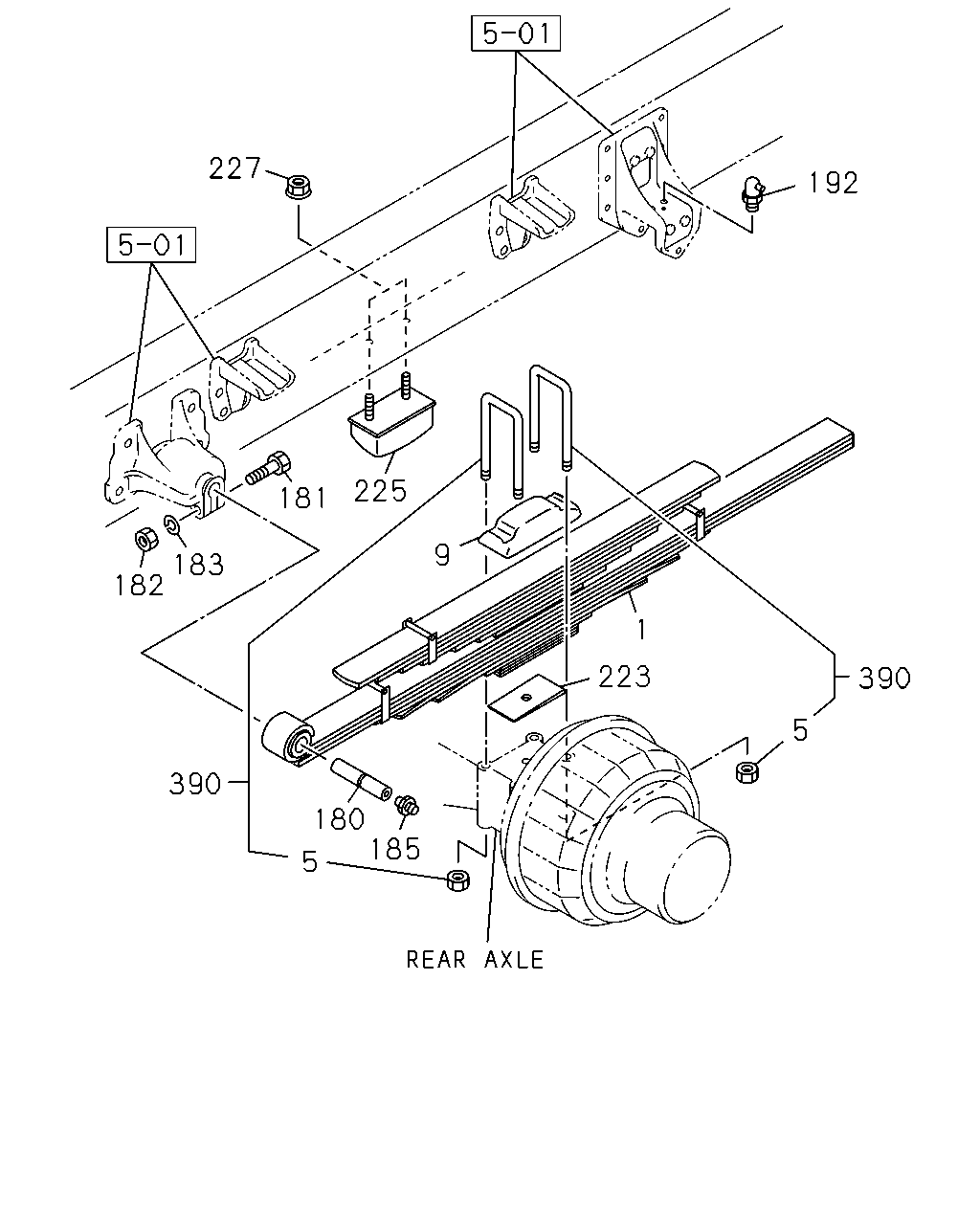

çizim 328866
227 182 183 181 225 9 223 192 390 5 180 185 5 390 1
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98017-566-1 02 1 1302-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98017-565-0 02 1 1302-
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 1302-
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 1302-
180 PIN; RR SPR 1-51361-020-0 02 1 1302-
181 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 02 1 1302-
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 1302-
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 1302-
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1302-
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1302-
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-385-0 02 1 1302-
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W) P60 PROP SHAFT(C2M) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-385-0 02 1 1302-
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-385-0 02 1 1302-
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-385-0 02 1 1302-
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-385-0 02 1 1302-
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1302-
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) P60 PROP SHAFT(C2M) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1302-
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1302-
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEELBASE 5500MM(55W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1302-
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1302-
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98091-873-0 02 1 1302-
223 SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) P60 PROP SHAFT(C2M) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98091-873-0 02 1 1302-
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98091-873-0 02 1 1302-
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4600MM(46W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98091-873-0 02 1 1302-
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4200MM(42W) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98091-873-0 02 1 1302-
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4200MM(42W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98091-873-0 02 1 1302-
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98091-873-0 02 1 1302-
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98220-149-0 02 1 1302-
223 SPACER; U BOLT,RR SPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98220-149-0 02 1 1302-
225 RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53366-045-1 02 1 1302-
225 RUBBER; CUSHION,RR SPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53366-081-1 02 1 1302-
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 1302-
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 1302-
