0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#113089) — 67 parça

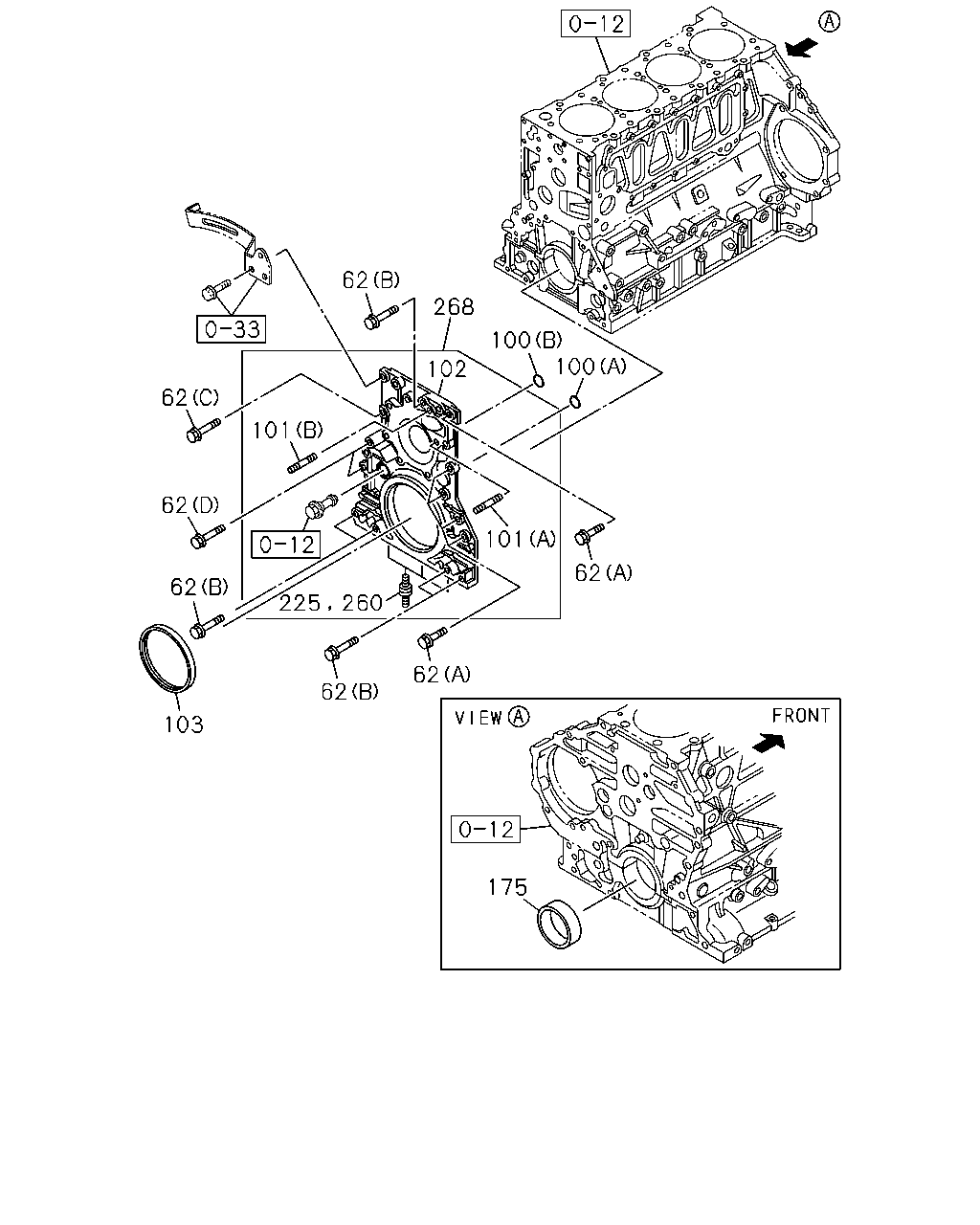

çizim 326197
62 100 102 268 100 101 62 225 260 62 103 62 62 62 101 62 175
BalonParca AdiParca NoAdetTipApplied Date A B
62 BOLT; COVER
(A) M8X25 FLANGE 		0-28650-825-0 06 1 1302- ● ●
62 BOLT; COVER
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1302- ● ●
62 BOLT; COVER
(B) M8X35 FLANGE 		0-28650-835-0 06 1 1302- ● ●
62 BOLT; COVER
(D) M8X65 FLANGE 		1-09044-072-1 02 1 1302- ● ●
62 BOLT; COVER
GENERATOR 24V90A(K44) (C) M8X30 FLANGE 		0-28650-830-0 02 1 1302- ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 1302- ● ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 1302- ● ●
101 STUD; WATER PUMP
(B) M8X18 L=30 		0-41010-818-0 01 1 1302- ● ●
101 STUD; WATER PUMP
(A) M8X18 L=29 		8-97028-541-0 01 1 1302- ● ●
102 RETAINER; FRT
EURO2 SPECIFICATION<NT2> 		8-98081-351-1 01 1 1302-1511 ● ●
102 RETAINER; FRT
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 		8-98081-351-1 01 1 1302-1511 ● ●
102 RETAINER; FRT
GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 		8-98081-351-1 01 1 1512- ●
102 RETAINER; FRT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> EXC. PHILIPPINE EQUIPMENT(B15),PERU EQUIPMENT(E07) ,CHILE EQUIPMENT(KE1) 		8-98081-351-1 01 1 1512- ●
102 RETAINER; FRT
PHILIPPINE EQUIPMENT(B15),PERU EQUIPMENT(E07), CHILE EQUIPMENT(KE1) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> 		8-98081-351-1 01 1 1512- ●
102 RETAINER; FRT
PHILIPPINE EQUIPMENT(B15),PERU EQUIPMENT(E07), CHILE EQUIPMENT(KE1) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> GLOW SYSTEM DELETE<7RK> 		8-98081-351-1 01 1 1512- ●
102 RETAINER; FRT
EURO2 SPECIFICATION<NT2> 		8-98081-351-1 01 1 1512- ●
102 RETAINER; FRT 8-98081-351-1 01 1 1512- ●
102 RETAINER; FRT
PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 		8-98039-932-2 01 1 1302-1511 ● ●
102 RETAINER; FRT
PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> 		8-98039-932-2 01 1 1512- ●
102 RETAINER; FRT
PHILIPPINE EQUIPMENT(B15),PERU EQUIPMENT(E07), CHILE EQUIPMENT(KE1) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> EXC. GLOW SYSTEM DELETE<7RK> 		8-98039-932-2 01 1 1512- ●
102 RETAINER; FRT
EURO5 SPECIFICATION<NT5> 		8-98039-932-2 01 1 1512- ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1302- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1302- ● ●
225 STUD; OIL PAN
EURO5 SPECIFICATION<NT5> M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1506- ●
260 STUD; OIL PAN
EURO2 SPECIFICATION<NT2> M8X20 L=32 		0-41010-820-0 04 1 1302-1511 ● ●
260 STUD; OIL PAN
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M8X20 L=32 		0-41010-820-0 04 1 1302-1511 ● ●
260 STUD; OIL PAN
GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M8X20 L=32 		0-41010-820-0 04 1 1512- ●
260 STUD; OIL PAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> EXC. PHILIPPINE EQUIPMENT(B15),PERU EQUIPMENT(E07) ,CHILE EQUIPMENT(KE1) M8X20 L=32 		0-41010-820-0 04 1 1512- ●
260 STUD; OIL PAN
PHILIPPINE EQUIPMENT(B15),PERU EQUIPMENT(E07), CHILE EQUIPMENT(KE1) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> M8X20 L=32 		0-41010-820-0 04 1 1512- ●
260 STUD; OIL PAN
PHILIPPINE EQUIPMENT(B15),PERU EQUIPMENT(E07), CHILE EQUIPMENT(KE1) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> GLOW SYSTEM DELETE<7RK> M8X20 L=32 		0-41010-820-0 04 1 1512- ●
260 STUD; OIL PAN
EURO2 SPECIFICATION<NT2> M8X20 L=32 		0-41010-820-0 04 1 1512- ●
260 STUD; OIL PAN
M8X20 L=32 		0-41010-820-0 04 1 1512- ●
268 COVER; FRT
EURO5 SPECIFICATION<NT5> 		8-98039-931-2 01 1 1506- ●
268 COVER; FRT
EURO2 SPECIFICATION<NT2> 		8-98096-851-1 01 1 1302-1511 ● ●
268 COVER; FRT
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 		8-98096-851-1 01 1 1302-1511 ● ●
268 COVER; FRT
GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 		8-98096-851-1 01 1 1512- ●
268 COVER; FRT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> EXC. PHILIPPINE EQUIPMENT(B15),PERU EQUIPMENT(E07) ,CHILE EQUIPMENT(KE1) 		8-98096-851-1 01 1 1512- ●
268 COVER; FRT
PHILIPPINE EQUIPMENT(B15),PERU EQUIPMENT(E07), CHILE EQUIPMENT(KE1) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> 		8-98096-851-1 01 1 1512- ●
268 COVER; FRT
PHILIPPINE EQUIPMENT(B15),PERU EQUIPMENT(E07), CHILE EQUIPMENT(KE1) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> GLOW SYSTEM DELETE<7RK> 		8-98096-851-1 01 1 1512- ●
268 COVER; FRT
EURO2 SPECIFICATION<NT2> 		8-98096-851-1 01 1 1512- ●
268 COVER; FRT 8-98096-851-1 01 1 1512- ●
268 COVER; FRT
PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-97148-937-3 01 1 1302-1511 ● ●
268 COVER; FRT
PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> 		8-97148-937-3 01 1 1512- ●
268 COVER; FRT
PHILIPPINE EQUIPMENT(B15),PERU EQUIPMENT(E07), CHILE EQUIPMENT(KE1) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> EXC. GLOW SYSTEM DELETE<7RK> 		8-97148-937-3 01 1 1512- ●

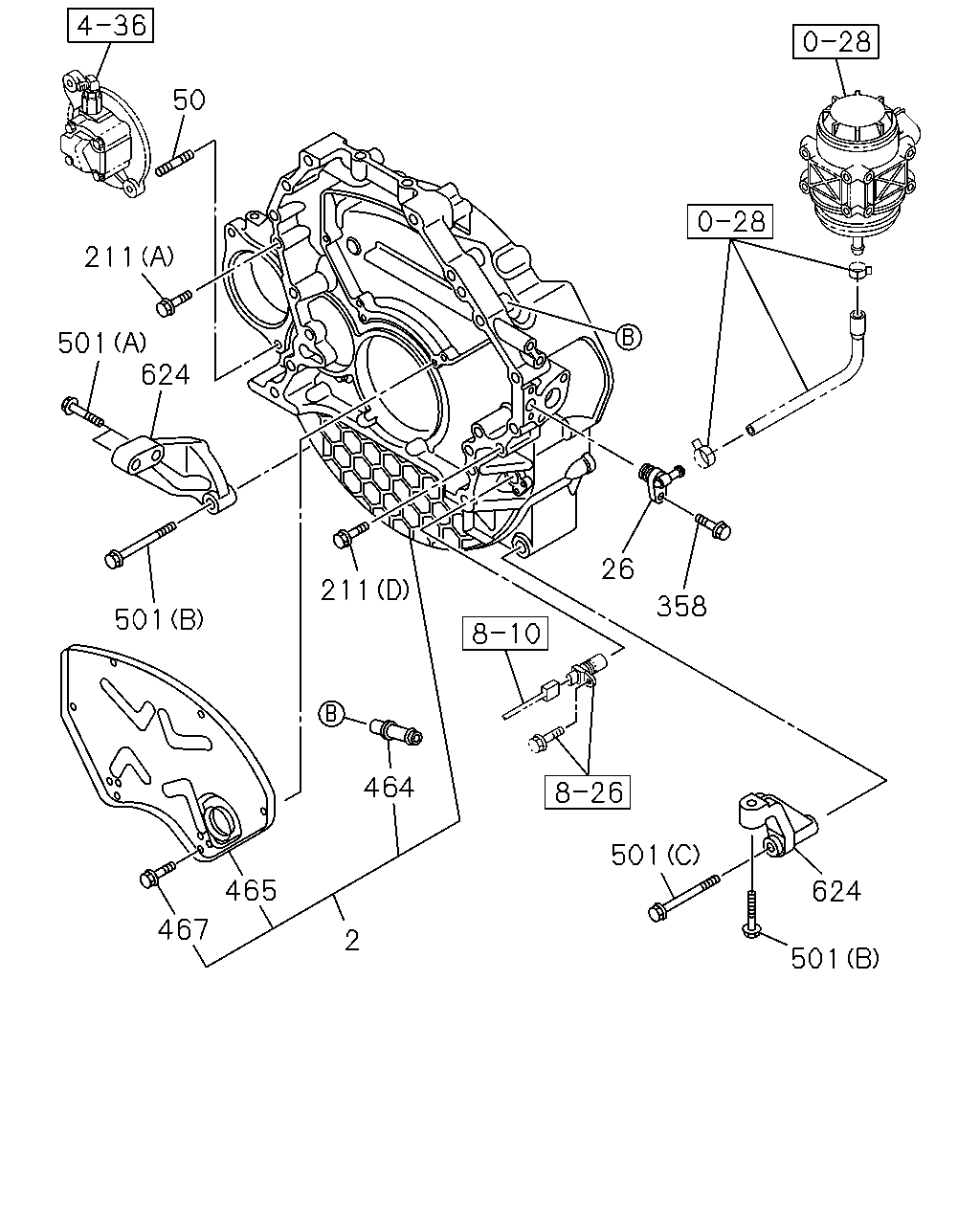

çizim 326222
50 211 501 501 211 464 465 467 2 501 624 501 358 26 624
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 8-98032-562-4 01 1 1302-1509 ● ●
2 HOUSING; FLYWHEEL 8-98328-140-0 01 1 1510- ● ●
26 ADAPTER 8-97354-819-0 01 1 1302- ● ●
50 STUD
M10X25 L=48.5 		0-49241-025-0 01 1 1302- ● ●
211 BOLT; HSG
(D) M10X50 FLANGE 		0-28151-050-0 01 1 1302- ● ●
211 BOLT; HSG
(A) M10X40 FLANGE 		0-28751-040-0 01 1 1302- ● ●
211 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 01 1 1302- ● ●
211 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1302- ● ●
358 BOLT; ADAPTER
M6X16 FLANGE 		0-28050-616-0 01 1 1302- ● ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 1302- ● ●
465 PLATE; FLYWHEEL HSG 8-97388-568-1 01 1 1302- ● ●
467 BOLT; PLATE
M6X10 		8-98030-649-0 06 1 1302- ● ●
501 BOLT; STIFFENER
EURO5 SPECIFICATION<NT5> (A) M10X40 FLANGE 		0-28151-040-0 02 1 1506- ●
501 BOLT; STIFFENER
EURO5 SPECIFICATION<NT5> (B) M12X50 FLANGE 		0-28151-250-0 02 1 1506- ●
501 BOLT; STIFFENER
EURO5 SPECIFICATION<NT5> (C) M12X90 FLANGE 		0-28151-290-0 01 1 1506- ●
624 STIFFENER
EURO5 SPECIFICATION<NT5> 		8-97380-613-1 01 1 1506- ●
624 STIFFENER
EURO5 SPECIFICATION<NT5> 		8-97380-614-1 01 1 1506- ●

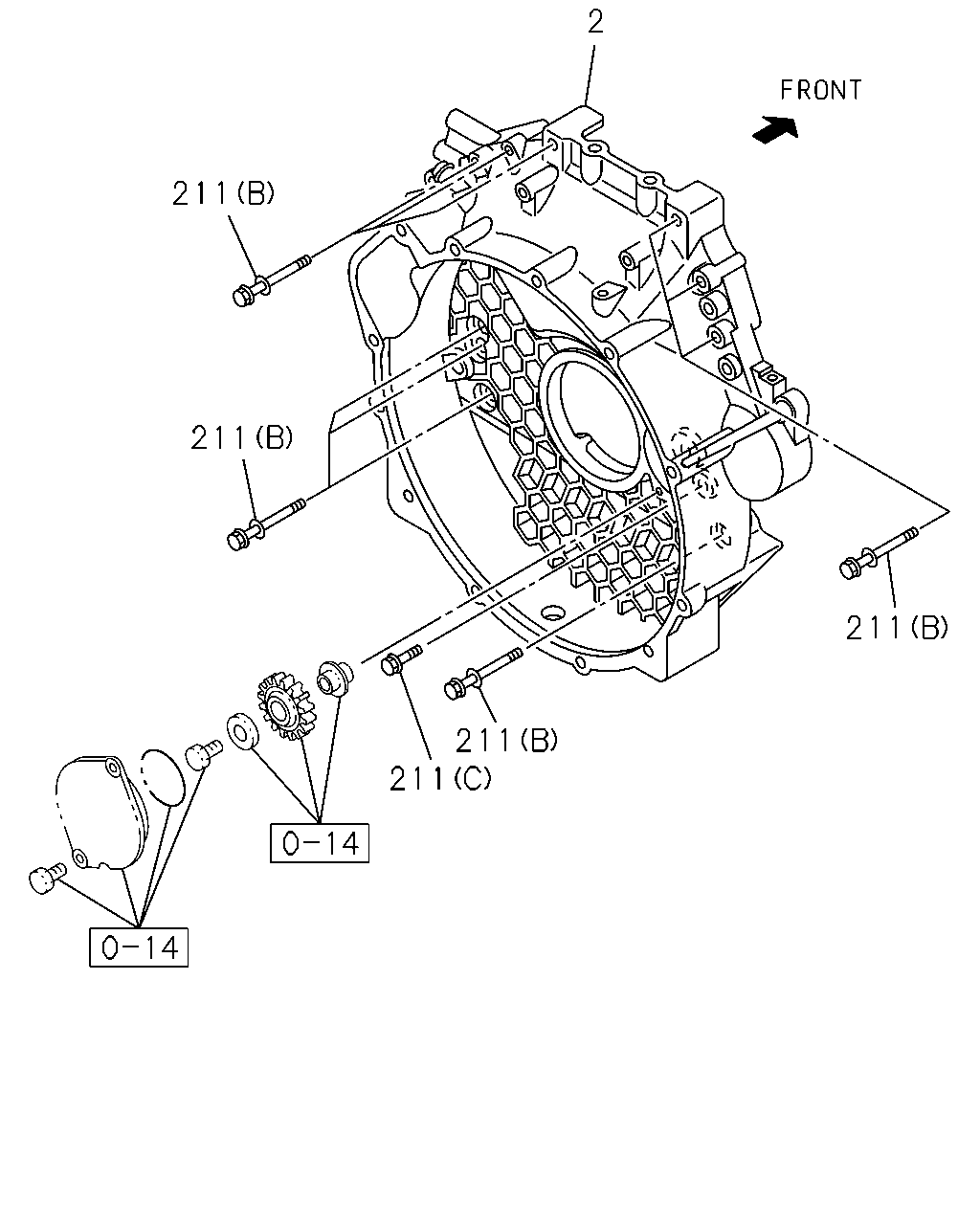

çizim 331182
2 211 211 211 211 211
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 8-98032-562-4 01 1 1302-1509 ● ●
2 HOUSING; FLYWHEEL 8-98328-140-0 01 1 1510- ● ●
211 BOLT; HSG
(D) M10X50 FLANGE 		0-28151-050-0 01 1 1302- ● ●
211 BOLT; HSG
(A) M10X40 FLANGE 		0-28751-040-0 01 1 1302- ● ●
211 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 01 1 1302- ● ●
211 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1302- ● ●
