Sayfa 3-05 - Isuzu EPC

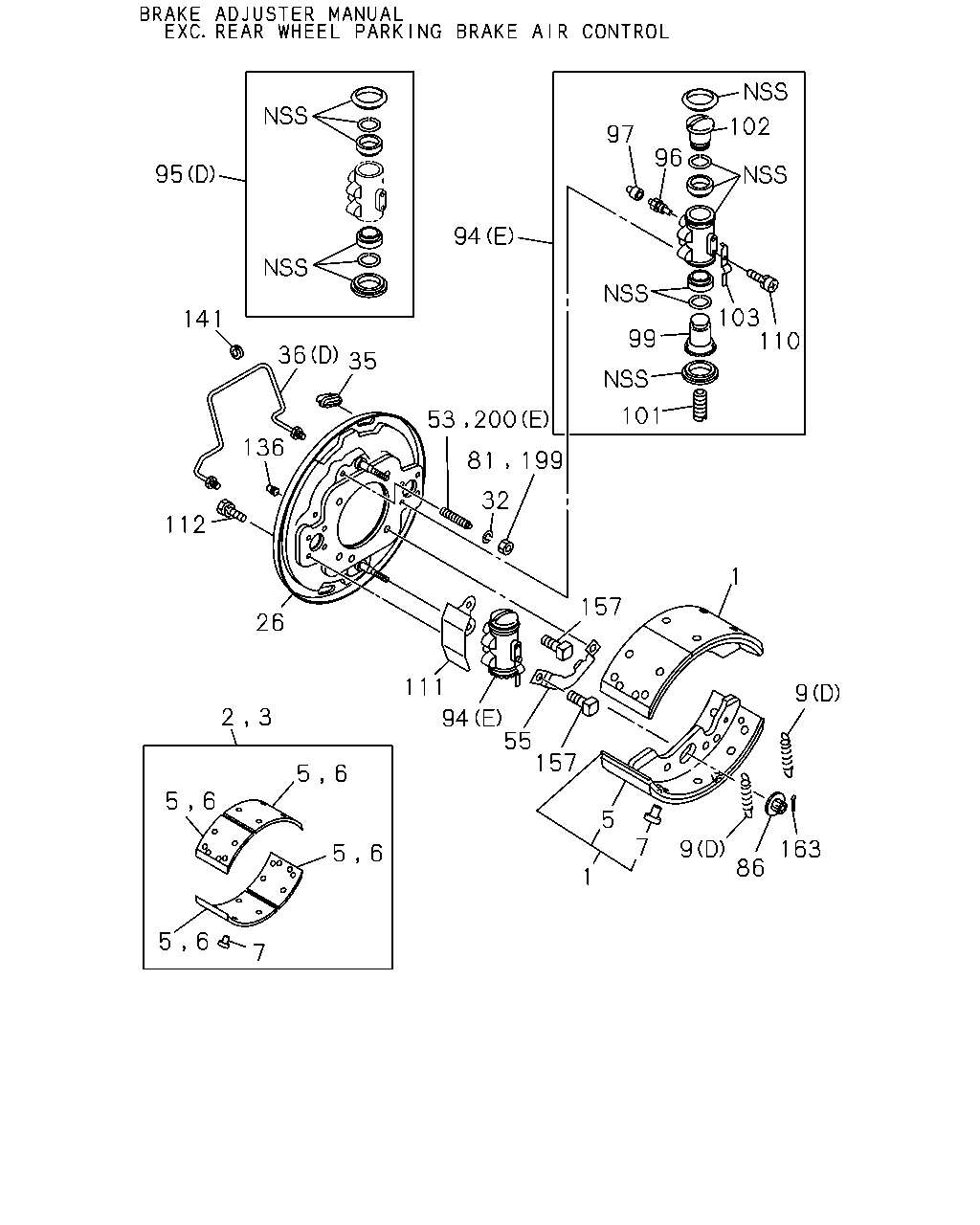

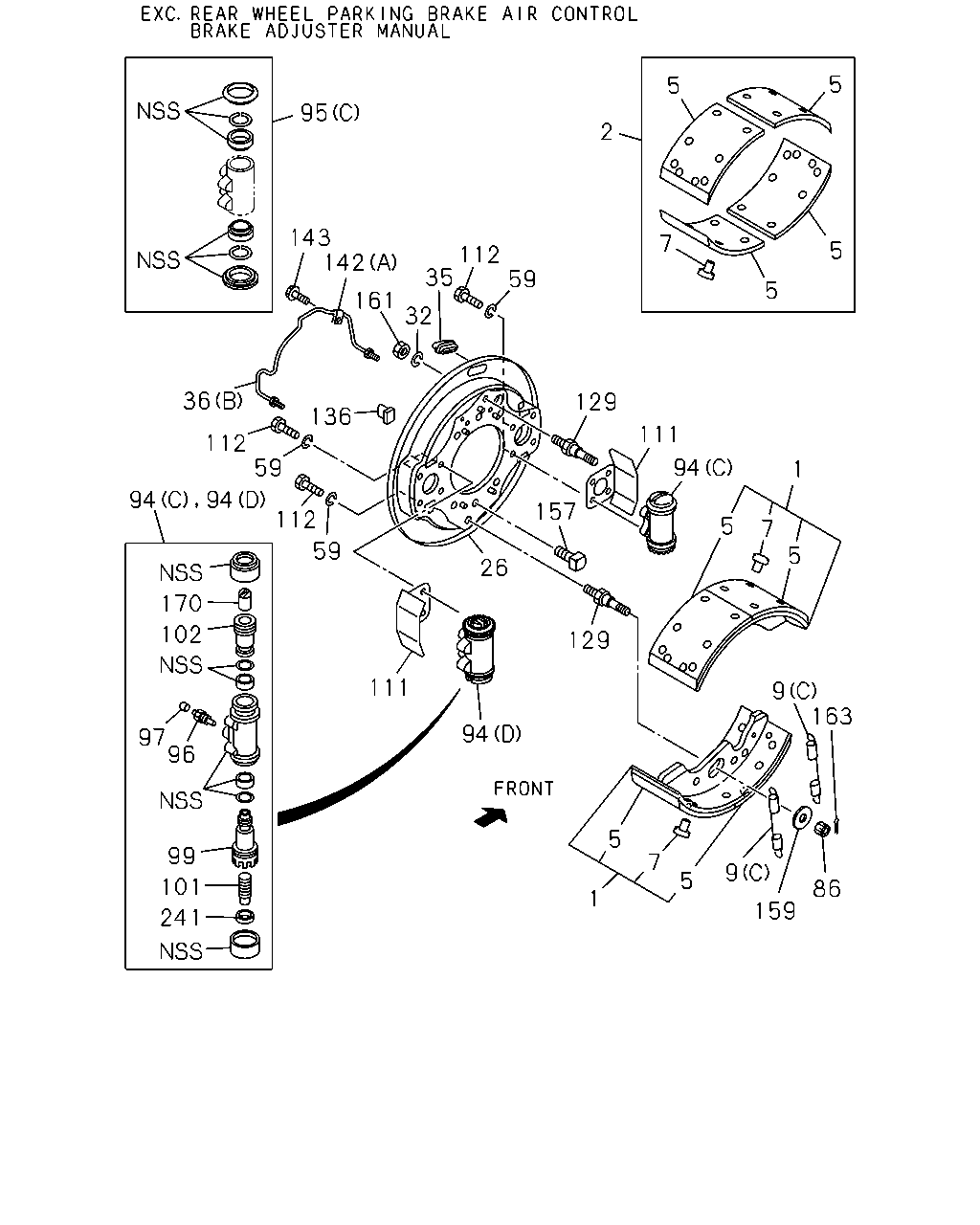

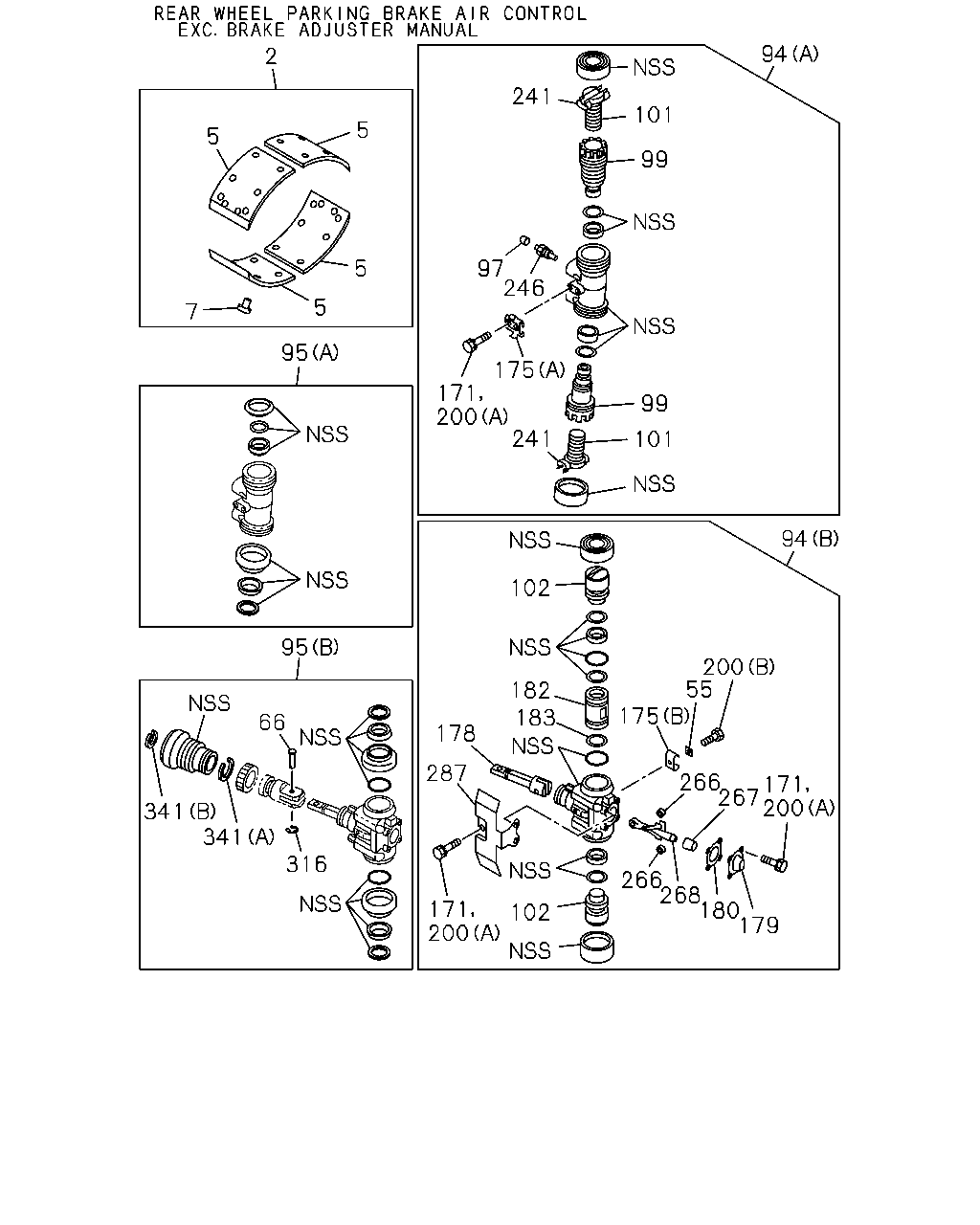

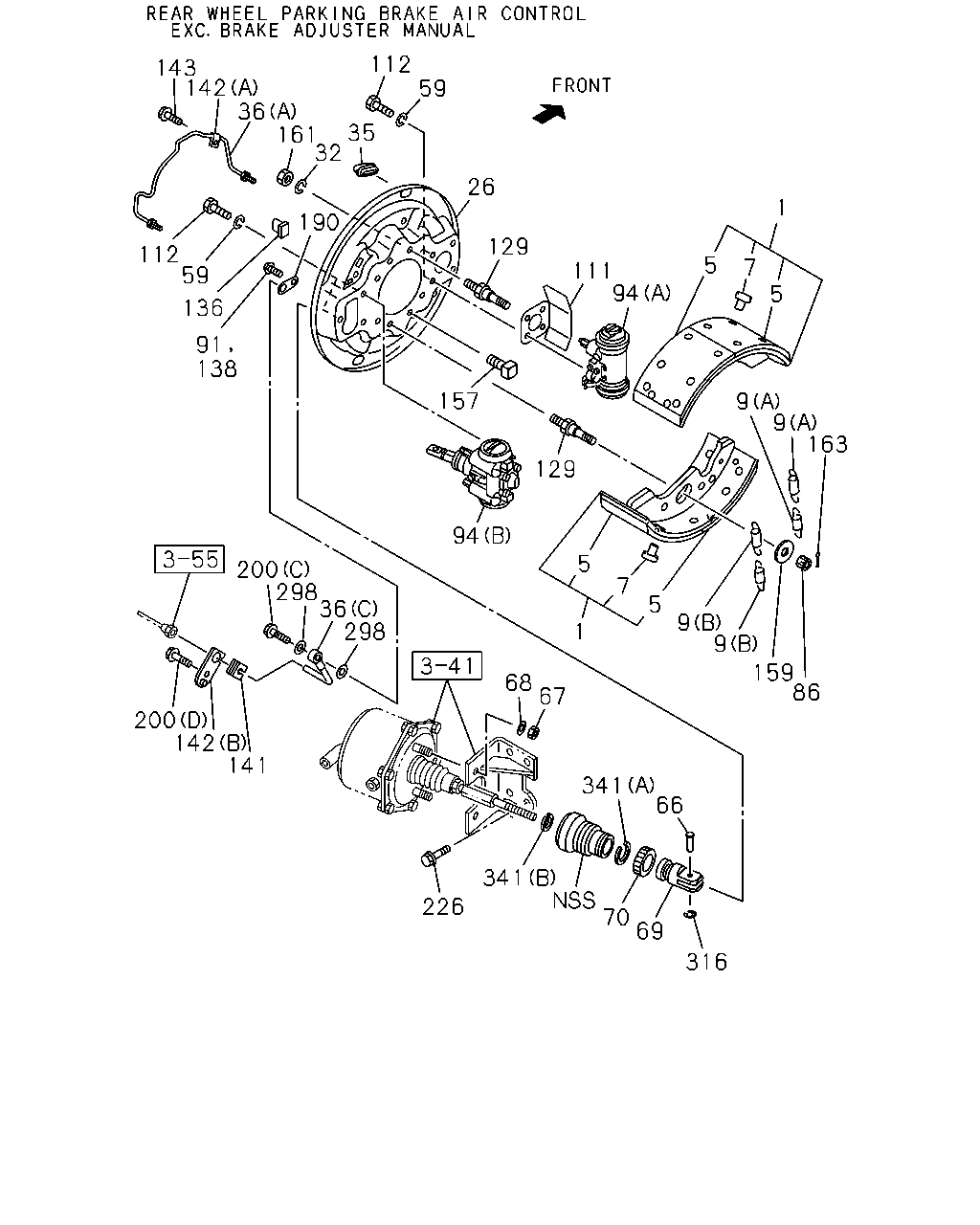

3-05 — REAR WHEEL BRAKE (#113086) — 320 parça

5 5 5 5 7 2 112 35 59 32 161 142 143 95 136 36 112 129 94 111 1 157 5 7 5 9 163 86 159 9 5 7 5 1 129 26 94 111 59 112 59 94 94 170 102 97 96 99 101 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-626-0	04	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	1302-
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47170-485-1	04	1	1302-
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-551-1	02	1	1302-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	1302-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-387-0	02	1	1302-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-803-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-802-0	08	1	1302-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-029-0	96	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	96	1	1302-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-09583-271-0	04	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-384-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-383-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-381-1	04	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-382-0	04	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-468-0	01	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-467-0	01	1	1302-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-709-2	01	1	1302-1512
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-709-2	01	1	1601-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-708-2	01	1	1302-1512
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-708-2	01	1	1601-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-715-2	01	1	1302-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-714-2	01	1	1302-
32	WASHER; LK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-512-0	04	1	1302-
32	WASHER; LK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-110-0	04	1	1302-
35	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-033-0	04	1	1302-
35	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-139-0	04	1	1302-
36	PIPE; OIL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47421-815-0	02	1	1302-
36	PIPE; OIL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-859-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-49167-905-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-49167-858-0	01	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-49167-857-0	01	1	1302-
59	WASHER; LK,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	1302-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=12.2	0-91510-612-0	14	1	1302-
86	NUT; FLANGE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-003-0	04	1	1302-
86	NUT; FLANGE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09440-101-0	04	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) FORWARD	1-47600-958-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) BACKWARD	1-47600-959-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) FORWARD	1-47600-956-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) BACKWARD	1-47600-957-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-166-1	02	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-219-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-218-0	01	1	1302-
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-87830-770-0	04	1	1302-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-87831-324-0	02	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-87831-325-0	02	1	1302-
96	SCREW; BLEEDER,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-020-0	02	1	1302-
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	1302-1406
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-009-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-310-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-309-0	02	1	1302-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-240-0	04	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 RH THREAD	1-47622-034-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 LH THREAD	1-47622-033-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-070-0	04	1	1302-
102	PISTON; REAR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-311-0	04	1	1302-
102	PISTON; REAR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	1302-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-241-0	02	1	1302-
111	COVER; WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-103-0	04	1	1302-
111	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	1302-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-230-0	02	1	1302-
112	BOLT; WHEEL CYL SETTING BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	1-47159-184-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-112-0	14	1	1302-
129	PIN; SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47162-044-0	04	1	1302-
136	GROMMET BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09956-640-0	04	1	1302-
136	GROMMET EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-138-0	04	1	1302-
142	CLAMP; OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09701-322-0	02	1	1302-
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47619-189-0	02	1	1302-
143	BOLT; CLAMP,OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR> M6X10	9-01900-610-0	02	1	1302-
157	BOLT; RR BRK SET BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X45 SQUARE HEAD	1-09060-015-0	12	1	1302-
157	BOLT; RR BRK SET EXC. BRAKE ADJUSTER MANUAL<BJR> M14X43	1-09060-003-0	12	1	1302-
159	WASHER; SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47169-037-0	04	1	1302-
161	NUT; SHOE HOLD LOCK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-111-0	04	1	1302-
163	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09874-040-0	04	1	1302-
163	PIN; SPLIT,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20	0-81122-020-0	04	1	1302-
170	PIECE; ANCHOR,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-185-0	04	1	1302-
241	HOLDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-097-0	04	1	1302-

143 142 112 59 136 91 138 200 142 141 36 161 32 190 35 112 59 26 129 111 157 129 94 94 1 5 7 5 9 9 163 5 1 7 5 9 9 159 86 200 298 36 298 68 67 341 66 341 226 70 69 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-626-0	04	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	1302-
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47170-485-1	04	1	1302-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-803-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-802-0	08	1	1302-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-029-0	96	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	96	1	1302-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-09583-271-0	04	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-384-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-383-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-381-1	04	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-382-0	04	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-468-0	01	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-467-0	01	1	1302-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-709-2	01	1	1302-1512
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-709-2	01	1	1601-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-708-2	01	1	1302-1512
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-708-2	01	1	1601-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-715-2	01	1	1302-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-714-2	01	1	1302-
32	WASHER; LK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-512-0	04	1	1302-
32	WASHER; LK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-110-0	04	1	1302-
35	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-033-0	04	1	1302-
35	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-139-0	04	1	1302-
36	PIPE; OIL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47421-815-0	02	1	1302-
36	PIPE; OIL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-859-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-49167-905-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-49167-858-0	01	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-49167-857-0	01	1	1302-
59	WASHER; LK,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	1302-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=12.2	0-91510-612-0	14	1	1302-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09744-129-0	02	1	1302-
67	NUT; POWER CHAMBER FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> M16	0-91110-516-0	04	1	1302-
68	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=16.2	0-91510-816-0	04	1	1302-
69	JOINT; JAW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09768-106-1	02	1	1302-
70	NUT; LK,JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> M18	0-91111-518-0	02	1	1302-
86	NUT; FLANGE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-003-0	04	1	1302-
86	NUT; FLANGE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09440-101-0	04	1	1302-
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> M5X10 W/LK WASHER	0-36220-510-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) FORWARD	1-47600-958-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) BACKWARD	1-47600-959-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) FORWARD	1-47600-956-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) BACKWARD	1-47600-957-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-166-1	02	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-219-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-218-0	01	1	1302-
111	COVER; WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-103-0	04	1	1302-
111	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	1302-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-230-0	02	1	1302-
112	BOLT; WHEEL CYL SETTING BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	1-47159-184-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-112-0	14	1	1302-
129	PIN; SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47162-044-0	04	1	1302-
136	GROMMET BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09956-640-0	04	1	1302-
136	GROMMET EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-138-0	04	1	1302-
138	SCREW; LOCK PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> M5X10 W/LK WASHER	0-36220-510-0	02	1	1302-
141	PROTECTOR; RR BRK PIPE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47461-158-0	02	1	1302-
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09332-133-0	02	1	1302-
142	CLAMP; OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09701-322-0	02	1	1302-
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47619-189-0	02	1	1302-
143	BOLT; CLAMP,OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR> M6X10	9-01900-610-0	02	1	1302-
157	BOLT; RR BRK SET BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X45 SQUARE HEAD	1-09060-015-0	12	1	1302-
157	BOLT; RR BRK SET EXC. BRAKE ADJUSTER MANUAL<BJR> M14X43	1-09060-003-0	12	1	1302-
159	WASHER; SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47169-037-0	04	1	1302-
161	NUT; SHOE HOLD LOCK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-111-0	04	1	1302-
163	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09874-040-0	04	1	1302-
163	PIN; SPLIT,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20	0-81122-020-0	04	1	1302-
190	PLATE; LK,CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-032-0	04	1	1302-
200	BOLT BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-47162-050-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47159-240-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D)	1-47159-241-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47622-071-0	04	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47622-072-0	02	1	1302-
226	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> M14X35 FLANGE	0-28651-435-0	08	1	1302-
298	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47616-115-0	04	1	1302-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=9	0-91805-509-0	02	1	1302-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47616-110-0	02	1	1302-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47619-184-0	02	1	1302-

2 5 5 5 7 5 95 95 66 316 341 341 171 200 102 287 178 102 182 183 175 266 267 200 171 200 55 94 266 268 180 179 101 99 99 101 94 241 97 246 175 171 200 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-551-1	02	1	1302-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	1302-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-387-0	02	1	1302-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-803-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-802-0	08	1	1302-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-029-0	96	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	96	1	1302-
55	PLATE; LK,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-064-0	04	1	1302-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-073-0	02	1	1302-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09744-129-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) FORWARD	1-47600-958-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) BACKWARD	1-47600-959-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) FORWARD	1-47600-956-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) BACKWARD	1-47600-957-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-166-1	02	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-219-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-218-0	01	1	1302-
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-87830-770-0	04	1	1302-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-87831-324-0	02	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-87831-325-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-009-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-310-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-309-0	02	1	1302-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-240-0	04	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 RH THREAD	1-47622-034-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 LH THREAD	1-47622-033-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-070-0	04	1	1302-
102	PISTON; REAR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-311-0	04	1	1302-
102	PISTON; REAR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	1302-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-241-0	02	1	1302-
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-071-0	10	1	1302-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47619-187-0	02	1	1302-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47619-188-0	02	1	1302-
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47640-013-0	02	1	1302-
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47649-045-0	02	1	1302-
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-013-0	02	1	1302-
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-280-0	04	1	1302-
183	GASKET; TAPPET,WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09623-690-0	02	1	1302-
200	BOLT BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-47162-050-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47159-240-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D)	1-47159-241-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47622-071-0	04	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47622-072-0	02	1	1302-
241	HOLDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-097-0	04	1	1302-
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-018-1	02	1	1302-1406
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-009-0	02	1	1407-
266	ROLLER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47643-003-0	04	1	1302-
267	CAGE; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47649-004-0	02	1	1302-
268	RETAINER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47649-003-0	02	1	1302-
287	COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-186-0	02	1	1302-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=9	0-91805-509-0	02	1	1302-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47616-110-0	02	1	1302-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47619-184-0	02	1	1302-

95 94 97 102 96 103 110 99 101 200 53 81 199 32 157 9 163 9 7 5 157 55 94 111 26 112 136 36 35 141 86 5 6 5 6 2 3 5 6 5 6 7 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47120-626-0	04	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	1302-
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47170-485-1	04	1	1302-
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-551-1	02	1	1302-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	1302-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-387-0	02	1	1302-
3	LINING SET; RR BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88310-552-1	02	1	1302-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-803-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-802-0	08	1	1302-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47125-804-0	08	1	1302-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-029-0	96	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	96	1	1302-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-09583-271-0	04	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-384-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-383-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-381-1	04	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-382-0	04	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-468-0	01	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-467-0	01	1	1302-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-709-2	01	1	1302-1512
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-709-2	01	1	1601-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-708-2	01	1	1302-1512
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-708-2	01	1	1601-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-715-2	01	1	1302-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-714-2	01	1	1302-
32	WASHER; LK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-512-0	04	1	1302-
32	WASHER; LK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-110-0	04	1	1302-
35	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09333-033-0	04	1	1302-
35	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-139-0	04	1	1302-
36	PIPE; OIL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-47421-815-0	02	1	1302-
36	PIPE; OIL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-859-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-49167-905-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-49167-858-0	01	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-49167-857-0	01	1	1302-
53	BOLT; LOCK PLATE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47162-050-0	02	1	1302-
55	PLATE; LK,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-064-0	04	1	1302-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-073-0	02	1	1302-
81	NUT BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-100-0	02	1	1302-
86	NUT; FLANGE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-003-0	04	1	1302-
86	NUT; FLANGE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09440-101-0	04	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) FORWARD	1-47600-958-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) BACKWARD	1-47600-959-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) FORWARD	1-47600-956-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) BACKWARD	1-47600-957-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-166-1	02	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-219-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-218-0	01	1	1302-
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-87830-770-0	04	1	1302-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-87831-324-0	02	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-87831-325-0	02	1	1302-
96	SCREW; BLEEDER,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-020-0	02	1	1302-
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	1302-1406
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-009-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-310-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-309-0	02	1	1302-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-240-0	04	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 RH THREAD	1-47622-034-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M22 LH THREAD	1-47622-033-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-070-0	04	1	1302-
102	PISTON; REAR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-311-0	04	1	1302-
102	PISTON; REAR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	1302-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-241-0	02	1	1302-
103	SPRING; LK,RR WHEEL CYL,ADJ BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-072-0	04	1	1302-
110	SCREW; LOCK SPRING,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-94128-727-0	04	1	1302-
111	COVER; WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-103-0	04	1	1302-
111	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	1302-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-230-0	02	1	1302-
112	BOLT; WHEEL CYL SETTING BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	1-47159-184-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-112-0	14	1	1302-
136	GROMMET BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09956-640-0	04	1	1302-
136	GROMMET EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-138-0	04	1	1302-
141	PROTECTOR; RR BRK PIPE BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-47461-158-0	02	1	1302-
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09332-133-0	02	1	1302-
157	BOLT; RR BRK SET BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X45 SQUARE HEAD	1-09060-015-0	12	1	1302-
157	BOLT; RR BRK SET EXC. BRAKE ADJUSTER MANUAL<BJR> M14X43	1-09060-003-0	12	1	1302-
163	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09874-040-0	04	1	1302-
163	PIN; SPLIT,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20	0-81122-020-0	04	1	1302-
199	NUT BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-100-0	02	1	1302-
200	BOLT BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-47162-050-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47159-240-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D)	1-47159-241-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47622-071-0	04	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47622-072-0	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
