22 |
CLAMP; EXH PIPE
4HK1-TCS ENG(RJS)
(B)
|
1-22133-295-0 |
01 |
1 |
1305-1309 |
● |
|
| |
22 |
CLAMP; EXH PIPE
4HK1-TCS ENG(RJS)
(B)
|
8-97646-674-0 |
01 |
1 |
1310- |
● |
|
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
(A)
ID=80-84
|
1-22133-233-0 |
04 |
1 |
1302- |
● |
|
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L)
TURBO - CONVENTIONAL<Q5T>
(A)
ID=80-84
|
1-22133-233-0 |
04 |
1 |
1302- |
|
● |
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1302-1304 |
● |
|
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1302-1304 |
● |
|
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1302-1304 |
|
● |
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L)
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1302-1304 |
|
● |
| |
22 |
CLAMP; EXH PIPE
4HK1-TCS ENG(RJS)
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1305-1505 |
● |
|
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1305-1505 |
● |
|
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1305-1505 |
● |
|
| |
22 |
CLAMP; EXH PIPE
4HK1-TCS ENG(RJS),6HK1-TCS ENG(80L),6HK1-TCN
ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1305-1505 |
● |
|
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1305-1505 |
|
● |
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L)
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1305-1505 |
|
● |
| |
22 |
CLAMP; EXH PIPE
4HK1-TCS ENG(RJS)
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1506-1511 |
● |
|
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1506-1511 |
● |
|
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1506-1511 |
● |
|
| |
22 |
CLAMP; EXH PIPE
4HK1-TCS ENG(RJS),6HK1-TCS ENG(80L),6HK1-TCN
ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1506-1511 |
● |
|
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1506-1511 |
|
● |
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L)
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1506-1511 |
|
● |
| |
22 |
CLAMP; EXH PIPE
4HK1-TCS ENG(RJS)
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1512- |
● |
|
| |
22 |
CLAMP; EXH PIPE
4HK1-TCS ENG(RJS)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1512- |
● |
|
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1512- |
● |
|
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1512- |
● |
|
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>,CATALYSIS CONTROL
WITH DPD<8JM>
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1512- |
● |
|
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE
HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT
TYPE<8JJ>,CATALYSIS CONTROL WITH DPD<8JM>
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1512- |
● |
|
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1512- |
|
● |
| |
22 |
CLAMP; EXH PIPE
6HK1-TCS ENG(80L)
(A)
ID=80-84
|
1-22133-233-0 |
02 |
1 |
1512- |
|
● |
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
CATALYSIS CONTROL WITH DPD<8JM>
(G)
|
8-98072-104-0 |
01 |
1 |
1512- |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
CATALYSIS CONTROL WITH DPD<8JM>
EXC. TURBO - CONVENTIONAL<Q5T>
(H)
|
8-98071-227-0 |
01 |
1 |
1512- |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
CATALYSIS CONTROL WITH DPD<8JM>
EXC. TURBO - CONVENTIONAL<Q5T>
(I)
|
8-98071-231-0 |
01 |
1 |
1512- |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS)
(E)
|
8-98206-303-0 |
01 |
1 |
1305- |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS)
(F)
|
8-98206-304-0 |
01 |
1 |
1305- |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(E)
|
1-22139-124-0 |
01 |
1 |
1302-1505 |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(E)
|
1-22139-124-0 |
01 |
1 |
1506- |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
|
1-22131-528-1 |
01 |
1 |
1302-1304 |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L)
(B)
|
1-22131-528-1 |
01 |
1 |
1302-1304 |
|
● |
| |
56 |
BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS),6HK1-TCS ENG(80L),6HK1-TCN
ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
|
1-22131-528-1 |
01 |
1 |
1305-1511 |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L)
(B)
|
1-22131-528-1 |
01 |
1 |
1305-1511 |
|
● |
| |
56 |
BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
|
1-22131-528-1 |
01 |
1 |
1512- |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
|
1-22131-528-1 |
01 |
1 |
1512- |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE
HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT
TYPE<8JJ>,CATALYSIS CONTROL WITH DPD<8JM>
(B)
|
1-22131-528-1 |
01 |
1 |
1512- |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L)
(B)
|
1-22131-528-1 |
01 |
1 |
1512- |
|
● |
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
(D)
L=40 B=50 H=74
|
1-22139-045-0 |
02 |
1 |
1302- |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L)
TURBO - CONVENTIONAL<Q5T>
(D)
L=40 B=50 H=74
|
1-22139-045-0 |
02 |
1 |
1302- |
|
● |
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(C)
|
1-22152-324-0 |
01 |
1 |
1302-1505 |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(C)
|
1-22152-324-0 |
01 |
1 |
1302-1505 |
|
● |
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(C)
|
1-22152-324-0 |
01 |
1 |
1506-1511 |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(C)
|
1-22152-324-0 |
01 |
1 |
1506-1511 |
|
● |
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
CATALYSIS CONTROL WITH DPD<8JM>
(C)
|
1-22152-324-0 |
01 |
1 |
1512- |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>,CATALYSIS CONTROL
WITH DPD<8JM>
(C)
|
1-22152-324-0 |
01 |
1 |
1512- |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(C)
|
1-22152-324-0 |
01 |
1 |
1512- |
|
● |
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98070-639-0 |
01 |
1 |
1302-1309 |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98070-639-0 |
01 |
1 |
1302-1309 |
|
● |
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98245-536-0 |
01 |
1 |
1310-1505 |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98245-536-0 |
01 |
1 |
1310-1505 |
|
● |
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98245-536-0 |
01 |
1 |
1506-1511 |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98245-536-0 |
01 |
1 |
1506-1511 |
|
● |
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>,CATALYSIS CONTROL
WITH DPD<8JM>
(A)
|
8-98245-536-0 |
01 |
1 |
1512- |
● |
|
| |
56 |
BRACKET; CLAMP,EXH PIPE
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98245-536-0 |
01 |
1 |
1512- |
|
● |
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
CATALYSIS CONTROL WITH DPD<8JM>
EXC. TURBO - CONVENTIONAL<Q5T>
(G)
|
8-98071-228-1 |
01 |
1 |
1512- |
● |
|
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
CATALYSIS CONTROL WITH DPD<8JM>
EXC. TURBO - CONVENTIONAL<Q5T>
(H)
|
8-98072-708-0 |
01 |
1 |
1512- |
● |
|
| |
60 |
BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS)
(E)
|
8-98206-302-0 |
02 |
1 |
1305- |
● |
|
| |
60 |
BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(F)
|
1-22131-435-1 |
01 |
1 |
1305- |
● |
|
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(E)
|
1-22151-782-1 |
01 |
1 |
1302-1505 |
● |
|
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(E)
|
1-22151-782-1 |
01 |
1 |
1506-1509 |
● |
|
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(E)
|
8-98334-990-0 |
01 |
1 |
1510- |
● |
|
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
(C)
|
8-98183-955-0 |
02 |
1 |
1302- |
● |
|
| |
60 |

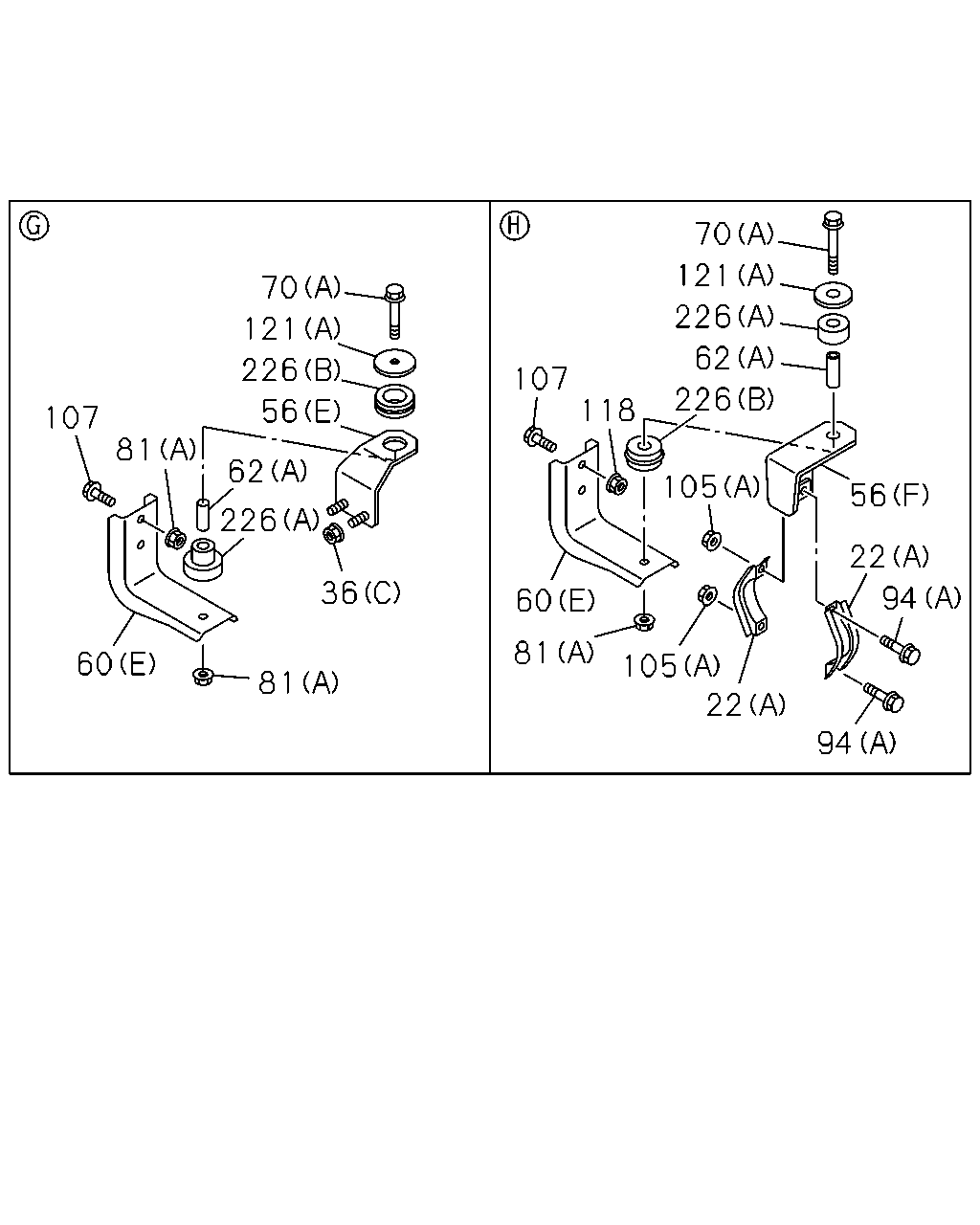

BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L)
TURBO - CONVENTIONAL<Q5T>
(C)
|
8-98183-955-0 |
02 |
1 |
1302- |
|
● |
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(D)
|
8-98212-611-0 |
01 |
1 |
1302- |
● |
|
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L)
TURBO - CONVENTIONAL<Q5T>
(D)
|
8-98212-611-0 |
01 |
1 |
1302- |
|
● |
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98070-628-0 |
02 |
1 |
1302-1309 |
● |
|
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98070-628-0 |
02 |
1 |
1302-1309 |
|
● |
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98245-532-0 |
02 |
1 |
1310-1505 |
● |
|
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98245-532-0 |
02 |
1 |
1310-1505 |
|
● |
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98245-532-0 |
02 |
1 |
1506-1511 |
● |
|
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98245-532-0 |
02 |
1 |
1506-1511 |
|
● |
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
CATALYSIS CONTROL WITH DPD<8JM>
(A)
|
8-98245-532-0 |
02 |
1 |
1512- |
● |
|
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>,CATALYSIS CONTROL
WITH DPD<8JM>
(A)
|
8-98245-532-0 |
02 |
1 |
1512- |
● |
|
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98245-532-0 |
02 |
1 |
1512- |
|
● |
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE
HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT
TYPE<8JJ>
(B)
|
8-98108-507-0 |
01 |
1 |
1302-1511 |
● |
|
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
8-98108-507-0 |
01 |
1 |
1302-1511 |
|
● |
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE
HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT
TYPE<8JJ>,CATALYSIS CONTROL WITH DPD<8JM>
(B)
|
8-98108-507-0 |
01 |
1 |
1512- |
● |
|
| |
60 |
BRACKET; FRAME TO BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
8-98108-507-0 |
01 |
1 |
1512- |
|
● |
| |
62 |
TUBE; DIST,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
L=22
|
9-22159-024-0 |
01 |
1 |
1302-1304 |
● |
|
| |
62 |
TUBE; DIST,BRKT
6HK1-TCS ENG(80L)
(B)
L=22
|
9-22159-024-0 |
01 |
1 |
1302-1304 |
|
● |
| |
62 |
TUBE; DIST,BRKT
4HK1-TCS ENG(RJS),6HK1-TCS ENG(80L),6HK1-TCN
ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
L=22
|
9-22159-024-0 |
01 |
1 |
1305-1511 |
● |
|
| |
62 |
TUBE; DIST,BRKT
6HK1-TCS ENG(80L)
(B)
L=22
|
9-22159-024-0 |
01 |
1 |
1305-1511 |
|
● |
| |
62 |
TUBE; DIST,BRKT
4HK1-TCS ENG(RJS)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
L=22
|
9-22159-024-0 |
01 |
1 |
1512- |
● |
|
| |
62 |
TUBE; DIST,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
L=22
|
9-22159-024-0 |
01 |
1 |
1512- |
● |
|
| |
62 |
TUBE; DIST,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE
HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT
TYPE<8JJ>,CATALYSIS CONTROL WITH DPD<8JM>
(B)
L=22
|
9-22159-024-0 |
01 |
1 |
1512- |
● |
|
| |
62 |
TUBE; DIST,BRKT
6HK1-TCS ENG(80L)
(B)
L=22
|
9-22159-024-0 |
01 |
1 |
1512- |
|
● |
| |
62 |
TUBE; DIST,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
L=39
|
8-98060-852-0 |
02 |
1 |
1302-1304 |
● |
|
| |
62 |
TUBE; DIST,BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
L=39
|
8-98060-852-0 |
02 |
1 |
1302-1304 |
|
● |
| |
62 |
TUBE; DIST,BRKT
4HK1-TCS ENG(RJS)
(A)
L=39
|
8-98060-852-0 |
02 |
1 |
1305-1505 |
● |
|
| |
62 |
TUBE; DIST,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
L=39
|
8-98060-852-0 |
02 |
1 |
1305-1505 |
● |
|
| |
62 |
TUBE; DIST,BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
L=39
|
8-98060-852-0 |
02 |
1 |
1305-1505 |
|
● |
| |
62 |
TUBE; DIST,BRKT
4HK1-TCS ENG(RJS)
(A)
L=39
|
8-98060-852-0 |
02 |
1 |
1506-1511 |
● |
|
| |
62 |
TUBE; DIST,BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
L=39
|
8-98060-852-0 |
02 |
1 |
1506-1511 |
● |
|
| |
62 |
TUBE; DIST,BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
L=39
|
8-98060-852-0 |
02 |
1 |
1506-1511 |
|
● |
| |
62 |
TUBE; DIST,BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
CATALYSIS CONTROL WITH DPD<8JM>
(A)
L=39
|
8-98060-852-0 |
02 |
1 |
1512- |
● |
|
| |
62 |
TUBE; DIST,BRKT
4HK1-TCS ENG(RJS)
(A)
L=39
|
8-98060-852-0 |
02 |
1 |
1512- |
● |
|
| |
62 |
TUBE; DIST,BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
L=39
|
8-98060-852-0 |
02 |
1 |
1512- |
● |
|
| |
62 |
TUBE; DIST,BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
L=39
|
8-98060-852-0 |
02 |
1 |
1512- |
|
● |
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(C)
M10X50
|
0-10856-050-0 |
01 |
1 |
1302-1304 |
● |
|
| |
70 |
BOLT; BRKT
4HK1-TCS ENG(RJS)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(C)
M10X50
|
0-10856-050-0 |
01 |
1 |
1305-1505 |
● |
|
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(C)
M10X50
|
0-10856-050-0 |
01 |
1 |
1305-1505 |
● |
|
| |
70 |
BOLT; BRKT
4HK1-TCS ENG(RJS)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(C)
M10X50
|
0-10856-050-0 |
01 |
1 |
1506- |
● |
|
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(C)
M10X50
|
0-10856-050-0 |
01 |
1 |
1506- |
● |
|
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
M10X50 FLANGE
|
0-28051-050-0 |
01 |
1 |
1302-1511 |
● |
|
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L)
(B)
M10X50 FLANGE
|
0-28051-050-0 |
01 |
1 |
1302-1511 |
|
● |
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
M10X50 FLANGE
|
0-28051-050-0 |
01 |
1 |
1512- |
● |
|
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE
HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT
TYPE<8JJ>,CATALYSIS CONTROL WITH DPD<8JM>
(B)
M10X50 FLANGE
|
0-28051-050-0 |
01 |
1 |
1512- |
● |
|
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L)
(B)
M10X50 FLANGE
|
0-28051-050-0 |
01 |
1 |
1512- |
|
● |
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
(C)
M10X50
|
0-10856-050-0 |
02 |
1 |
1302- |
● |
|
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L)
TURBO - CONVENTIONAL<Q5T>
(C)
M10X50
|
0-10856-050-0 |
02 |
1 |
1302- |
|
● |
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10X70 FLANGE
|
0-28051-070-0 |
02 |
1 |
1302-1304 |
● |
|
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10X70 FLANGE
|
0-28051-070-0 |
02 |
1 |
1302-1304 |
|
● |
| |
70 |
BOLT; BRKT
4HK1-TCS ENG(RJS)
(A)
M10X70 FLANGE
|
0-28051-070-0 |
02 |
1 |
1305-1505 |
● |
|
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10X70 FLANGE
|
0-28051-070-0 |
02 |
1 |
1305-1505 |
● |
|
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10X70 FLANGE
|
0-28051-070-0 |
02 |
1 |
1305-1505 |
|
● |
| |
70 |
BOLT; BRKT
4HK1-TCS ENG(RJS)
(A)
M10X70 FLANGE
|
0-28051-070-0 |
02 |
1 |
1506-1511 |
● |
|
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10X70 FLANGE
|
0-28051-070-0 |
02 |
1 |
1506-1511 |
● |
|
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10X70 FLANGE
|
0-28051-070-0 |
02 |
1 |
1506-1511 |
|
● |
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
CATALYSIS CONTROL WITH DPD<8JM>
(A)
M10X70 FLANGE
|
0-28051-070-0 |
02 |
1 |
1512- |
● |
|
| |
70 |
BOLT; BRKT
4HK1-TCS ENG(RJS)
(A)
M10X70 FLANGE
|
0-28051-070-0 |
02 |
1 |
1512- |
● |
|
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10X70 FLANGE
|
0-28051-070-0 |
02 |
1 |
1512- |
● |
|
| |
70 |
BOLT; BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10X70 FLANGE
|
0-28051-070-0 |
02 |
1 |
1512- |
|
● |
| |
75 |
RUBBER; SUPPORT,BRKT
4HK1-TCS ENG(RJS)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(C)
OD=40
|
1-22159-094-0 |
02 |
1 |
1305- |
● |
|
| |
75 |
RUBBER; SUPPORT,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(B)
OD=30
|
1-22159-106-1 |
02 |
1 |
1302-1505 |
● |
|
| |
75 |
RUBBER; SUPPORT,BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(B)
OD=30
|
1-22159-106-1 |
02 |
1 |
1506- |
● |
|
| |
75 |
RUBBER; SUPPORT,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
OD=40
|
1-22159-193-0 |
02 |
1 |
1302-1511 |
● |
|
| |
75 |

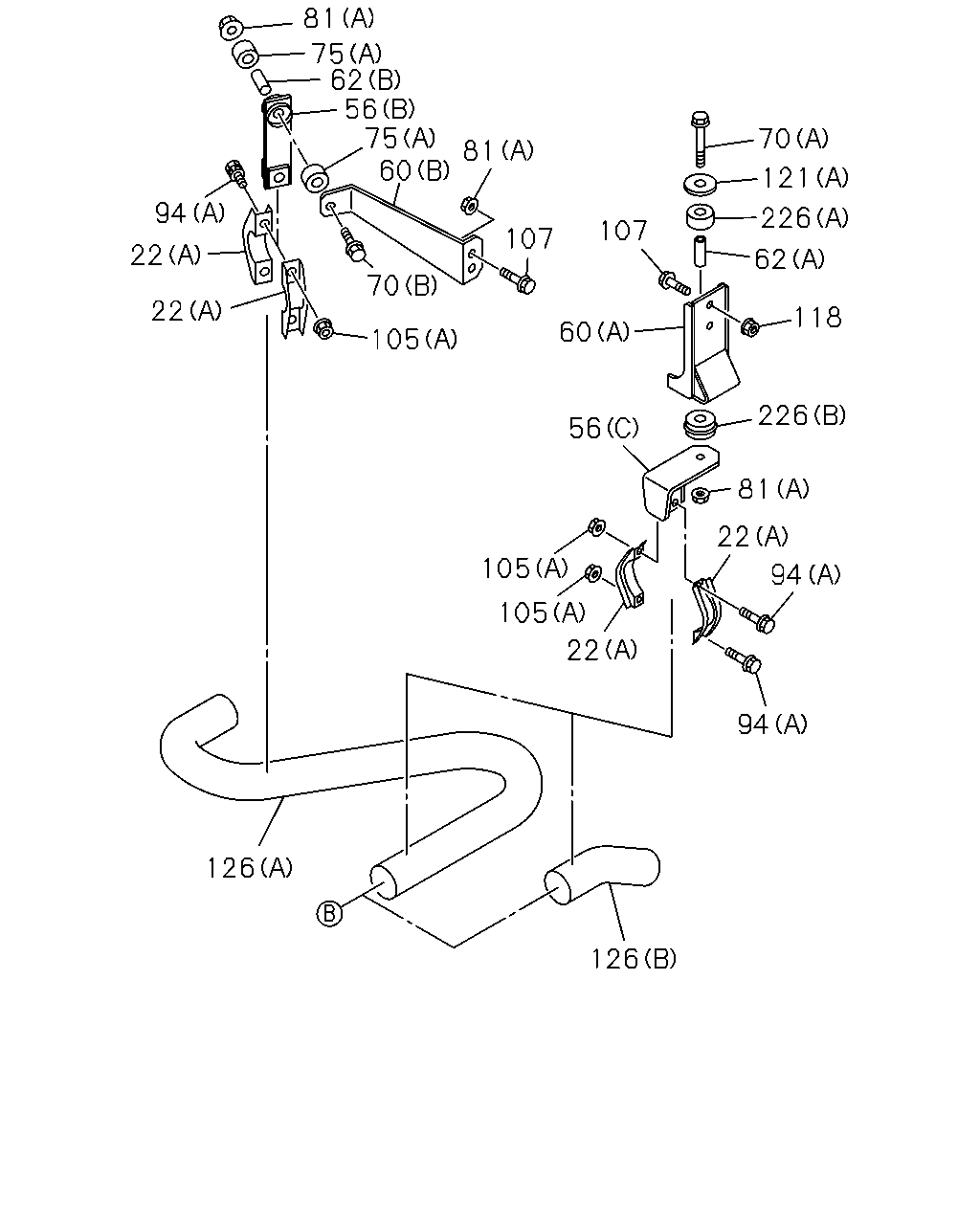

RUBBER; SUPPORT,BRKT
6HK1-TCS ENG(80L)
(A)
OD=40
|
1-22159-193-0 |
02 |
1 |
1302-1511 |
|
● |
| |
75 |
RUBBER; SUPPORT,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
OD=40
|
1-22159-193-0 |
02 |
1 |
1512- |
● |
|
| |
75 |
RUBBER; SUPPORT,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE
HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT
TYPE<8JJ>,CATALYSIS CONTROL WITH DPD<8JM>
(A)
OD=40
|
1-22159-193-0 |
02 |
1 |
1512- |
● |
|
| |
75 |
RUBBER; SUPPORT,BRKT
6HK1-TCS ENG(80L)
(A)
OD=40
|
1-22159-193-0 |
02 |
1 |
1512- |
|
● |
| |
75 |
RUBBER; SUPPORT,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
(B)
OD=30
|
1-22159-106-1 |
04 |
1 |
1302- |
● |
|
| |
75 |
RUBBER; SUPPORT,BRKT
6HK1-TCS ENG(80L)
TURBO - CONVENTIONAL<Q5T>
(B)
OD=30
|
1-22159-106-1 |
04 |
1 |
1302- |
|
● |
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(B)
M10 LOCK NUT
|
0-91370-010-0 |
01 |
1 |
1302-1505 |
● |
|
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(B)
M10 LOCK NUT
|
0-91370-010-0 |
01 |
1 |
1506- |
● |
|
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1302-1304 |
● |
|
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L)
(A)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1302-1304 |
|
● |
| |
81 |
NUT; BRKT
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1305-1511 |
● |
● |
| |
81 |
NUT; BRKT
4HK1-TCS ENG(RJS)
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1305-1511 |
● |
|
| |
81 |
NUT; BRKT
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1305-1511 |
● |
|
| |
81 |
NUT; BRKT
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1305-1511 |
|
● |
| |
81 |
NUT; BRKT
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1512- |
● |
● |
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
CATALYSIS CONTROL WITH DPD<8JM>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1512- |
● |
|
| |
81 |
NUT; BRKT
4HK1-TCS ENG(RJS)
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1512- |
● |
|
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1512- |
● |
|
| |
81 |
NUT; BRKT
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>,CATALYSIS
CONTROL WITH DPD<8JM>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1512- |
● |
|
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1512- |
● |
|
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1512- |
|
● |
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1512- |
|
● |
| |
81 |
NUT; BRKT
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1512- |
|
● |
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
(B)
M10 LOCK NUT
|
0-91370-010-0 |
02 |
1 |
1302- |
● |
|
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L)
TURBO - CONVENTIONAL<Q5T>
(B)
M10 LOCK NUT
|
0-91370-010-0 |
02 |
1 |
1302- |
|
● |
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1302-1505 |
● |
|
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1302-1505 |
|
● |
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1506-1511 |
● |
|
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1506-1511 |
|
● |
| |
81 |
NUT; BRKT
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1302-1304 |
● |
● |
| |
81 |
NUT; BRKT
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1302-1304 |
● |
|
| |
81 |
NUT; BRKT
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1302-1304 |
|
● |
| |
81 |
NUT; BRKT
4HK1-TCS ENG(RJS),6HK1-TCS ENG(80L),6HK1-TCN
ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1305-1511 |
● |
|
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L)
(A)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1305-1511 |
|
● |
| |
81 |
NUT; BRKT
4HK1-TCS ENG(RJS)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1512- |
● |
|
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1512- |
● |
|
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE
HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT
TYPE<8JJ>,CATALYSIS CONTROL WITH DPD<8JM>
(A)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1512- |
● |
|
| |
81 |
NUT; BRKT
6HK1-TCS ENG(80L)
(A)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1512- |
|
● |
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(B)
M10X45 W/LK&PL WASHER
|
8-98055-085-0 |
02 |
1 |
1302-1304 |
● |
|
| |
94 |
BOLT; CLAMP
4HK1-TCS ENG(RJS)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
M10X45 W/LK&PL WASHER
|
8-98055-085-0 |
02 |
1 |
1305-1505 |
● |
|
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(B)
M10X45 W/LK&PL WASHER
|
8-98055-085-0 |
02 |
1 |
1305-1505 |
● |
|
| |
94 |
BOLT; CLAMP
4HK1-TCS ENG(RJS)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
M10X45 W/LK&PL WASHER
|
8-98055-085-0 |
02 |
1 |
1506- |
● |
|
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(B)
M10X45 W/LK&PL WASHER
|
8-98055-085-0 |
02 |
1 |
1506- |
● |
|
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
(A)
M10X40 FLANGE
|
0-28651-040-0 |
04 |
1 |
1302- |
● |
|
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L)
TURBO - CONVENTIONAL<Q5T>
(A)
M10X40 FLANGE
|
0-28651-040-0 |
04 |
1 |
1302- |
|
● |
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1302-1304 |
● |
|
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1302-1304 |
● |
|
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1302-1304 |
|
● |
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L)
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1302-1304 |
|
● |
| |
94 |
BOLT; CLAMP
4HK1-TCS ENG(RJS)
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1305-1505 |
● |
|
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1305-1505 |
● |
|
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1305-1505 |
● |
|
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1305-1505 |
|
● |
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L)
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1305-1505 |
|
● |
| |
94 |
BOLT; CLAMP
4HK1-TCS ENG(RJS)
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1506-1511 |
● |
|
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1506-1511 |
● |
|
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1506-1511 |
● |
|
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1506-1511 |
|
● |
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L)
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1506-1511 |
|
● |
| |
94 |
BOLT; CLAMP
4HK1-TCS ENG(RJS)
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1512- |
● |
|
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1512- |
● |
|
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>,CATALYSIS CONTROL
WITH DPD<8JM>
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1512- |
● |
|
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE
HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT
TYPE<8JJ>,CATALYSIS CONTROL WITH DPD<8JM>
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1512- |
● |
|
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1512- |
|
● |
| |
94 |
BOLT; CLAMP
6HK1-TCS ENG(80L)
(A)
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
1512- |
|
● |
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(B)
M10
|
0-91110-510-0 |
02 |
1 |
1302-1304 |
● |
|
| |
105 |
NUT; CLAMP
4HK1-TCS ENG(RJS)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
M10
|
0-91110-510-0 |
02 |
1 |
1305-1505 |
● |
|
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(B)
M10
|
0-91110-510-0 |
02 |
1 |
1305-1505 |
● |
|
| |
105 |
NUT; CLAMP
4HK1-TCS ENG(RJS)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
M10
|
0-91110-510-0 |
02 |
1 |
1506- |
● |
|
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(B)
M10
|
0-91110-510-0 |
02 |
1 |
1506- |
● |
|
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
(A)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1302- |
● |
|
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L)
TURBO - CONVENTIONAL<Q5T>
(A)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1302- |
|
● |
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1302-1304 |
● |
|
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1302-1304 |
● |
|
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1302-1304 |
|
● |
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L)
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1302-1304 |
|
● |
| |
105 |
NUT; CLAMP
4HK1-TCS ENG(RJS)
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1305-1505 |
● |
|
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1305-1505 |
● |
|
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1305-1505 |
● |
|
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1305-1505 |
|
● |
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L)
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1305-1505 |
|
● |
| |
105 |
NUT; CLAMP
4HK1-TCS ENG(RJS)
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1506-1511 |
● |
|
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1506-1511 |
● |
|
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1506-1511 |
● |
|
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1506-1511 |
|
● |
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L)
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1506-1511 |
|
● |
| |
105 |
NUT; CLAMP
4HK1-TCS ENG(RJS)
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1512- |
● |
|
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1512- |
● |
|
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>,CATALYSIS CONTROL
WITH DPD<8JM>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1512- |
● |
|
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE
HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT
TYPE<8JJ>,CATALYSIS CONTROL WITH DPD<8JM>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1512- |
● |
|
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1512- |
|
● |
| |
105 |
NUT; CLAMP
6HK1-TCS ENG(80L)
(A)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1512- |
|
● |
| |

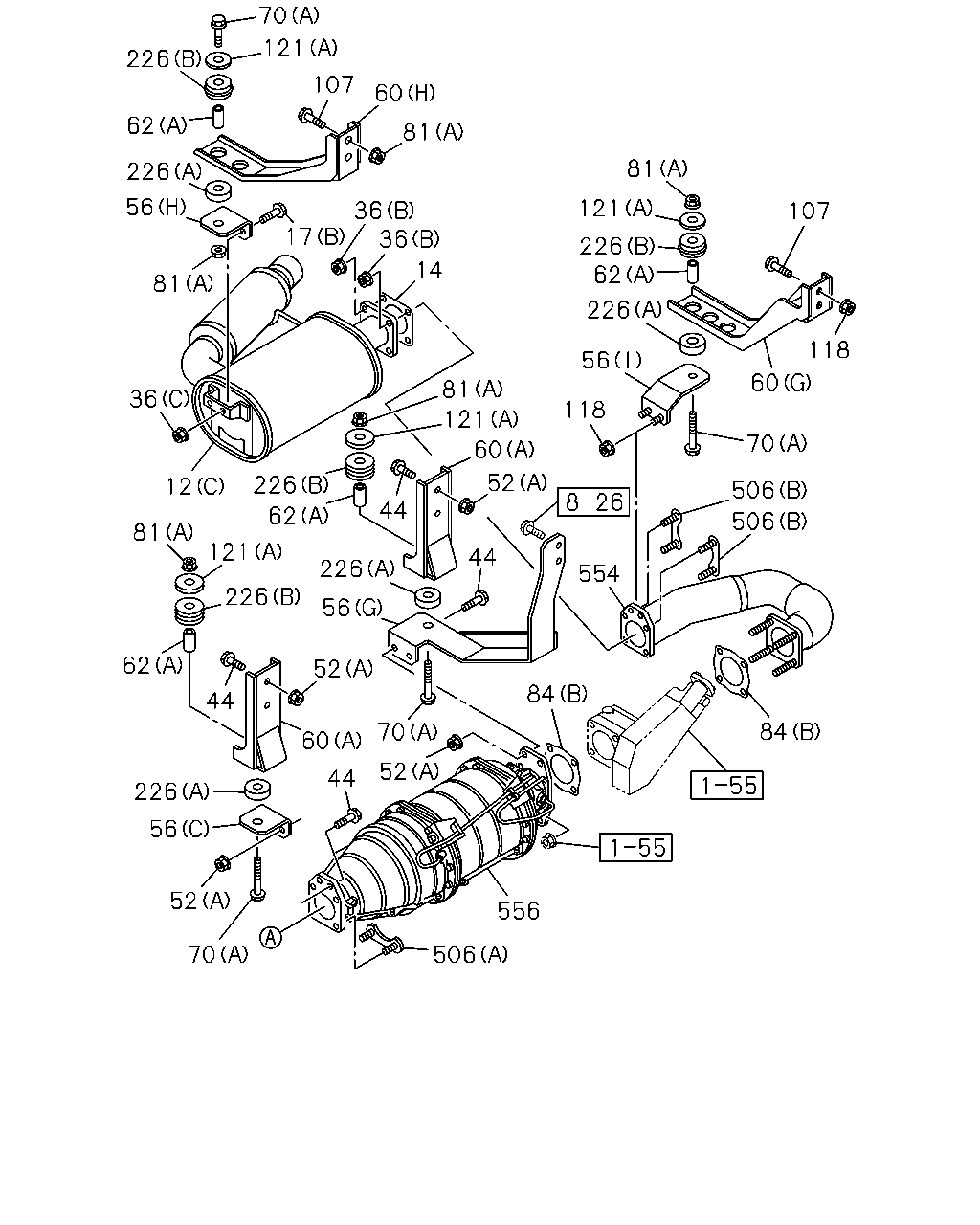

107 |
BOLT; BRKT
CATALYSIS CONTROL WITH DPD<8JM>
M10X40 FLANGE
|
0-28651-040-0 |
04 |
1 |
1512- |
● |
|
| |
107 |
BOLT; BRKT
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1302-1511 |
● |
|
| |
107 |
BOLT; BRKT
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1302-1511 |
|
● |
| |
107 |
BOLT; BRKT
EXC. CATALYSIS CONTROL WITH DPD<8JM>
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1512- |
● |
|
| |
107 |
BOLT; BRKT
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1512- |
|
● |
| |
107 |
BOLT; BRKT
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1302-1511 |
● |
● |
| |
107 |
BOLT; BRKT
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>,CATALYSIS
CONTROL WITH DPD<8JM>
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1512- |
● |
|
| |
107 |
BOLT; BRKT
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1512- |
|
● |
| |
118 |
NUT; SILENCER MTG BRKT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1302-1511 |
● |
● |
| |
118 |
NUT; SILENCER MTG BRKT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1512- |
● |
● |
| |
118 |
NUT; SILENCER MTG BRKT
CATALYSIS CONTROL WITH DPD<8JM>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1512- |
● |
|
| |
121 |
WASHER; PL,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(B)
ID=10.5 OD=32
|
0-91614-810-0 |
01 |
1 |
1302-1505 |
● |
|
| |
121 |
WASHER; PL,BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(B)
ID=10.5 OD=32
|
0-91614-810-0 |
01 |
1 |
1506- |
● |
|
| |
121 |
WASHER; PL,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TURBO - CONVENTIONAL<Q5T>
(B)
ID=10.5 OD=32
|
0-91614-810-0 |
02 |
1 |
1302- |
● |
|
| |
121 |
WASHER; PL,BRKT
6HK1-TCS ENG(80L)
TURBO - CONVENTIONAL<Q5T>
(B)
ID=10.5 OD=32
|
0-91614-810-0 |
02 |
1 |
1302- |
|
● |
| |
121 |
WASHER; PL,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=11 OD=54
|
1-09503-154-2 |
02 |
1 |
1302-1304 |
● |
|
| |
121 |
WASHER; PL,BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=11 OD=54
|
1-09503-154-2 |
02 |
1 |
1302-1304 |
|
● |
| |
121 |
WASHER; PL,BRKT
4HK1-TCS ENG(RJS)
(A)
ID=11 OD=54
|
1-09503-154-2 |
02 |
1 |
1305-1505 |
● |
|
| |
121 |
WASHER; PL,BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=11 OD=54
|
1-09503-154-2 |
02 |
1 |
1305-1505 |
● |
|
| |
121 |
WASHER; PL,BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=11 OD=54
|
1-09503-154-2 |
02 |
1 |
1305-1505 |
|
● |
| |
121 |
WASHER; PL,BRKT
4HK1-TCS ENG(RJS)
(A)
ID=11 OD=54
|
1-09503-154-2 |
02 |
1 |
1506-1511 |
● |
|
| |
121 |
WASHER; PL,BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=11 OD=54
|
1-09503-154-2 |
02 |
1 |
1506-1511 |
● |
|
| |
121 |
WASHER; PL,BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=11 OD=54
|
1-09503-154-2 |
02 |
1 |
1506-1511 |
|
● |
| |
121 |
WASHER; PL,BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
CATALYSIS CONTROL WITH DPD<8JM>
(A)
ID=11 OD=54
|
1-09503-154-2 |
02 |
1 |
1512- |
● |
|
| |
121 |
WASHER; PL,BRKT
4HK1-TCS ENG(RJS)
(A)
ID=11 OD=54
|
1-09503-154-2 |
02 |
1 |
1512- |
● |
|
| |
121 |
WASHER; PL,BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=11 OD=54
|
1-09503-154-2 |
02 |
1 |
1512- |
● |
|
| |
121 |
WASHER; PL,BRKT
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=11 OD=54
|
1-09503-154-2 |
02 |
1 |
1512- |
|
● |
| |
126 |
PIPE; EXH,RR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
WHEEL BASE 3900MM(39W)
MOROCCO EQUIPMENT(CGA)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
EXC. TURBO - CONVENTIONAL<Q5T>
(E)
|
8-98270-405-0 |
01 |
1 |
1406- |
● |
|
| |
126 |
PIPE; EXH,RR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
MOROCCO EQUIPMENT(CGA)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
EXC. TURBO - CONVENTIONAL<Q5T>
(F)
|
8-98270-406-0 |
01 |
1 |
1406- |
● |
|
| |
126 |
PIPE; EXH,RR
TAILPIPE SINGLE SHORT TYPE<8JJ>
(B)
|
8-98210-836-0 |
01 |
1 |
1302- |
● |
|
| |
126 |
PIPE; EXH,RR
4HK1-TCS ENG(RJS)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(D)
|
8-98206-305-0 |
01 |
1 |
1305- |
● |
|
| |
126 |
PIPE; EXH,RR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
RUSSIA EQUIPMENT(B12)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
EXC. TURBO - CONVENTIONAL<Q5T>
(C)
|
8-98212-609-1 |
01 |
1 |
1302- |
● |
|
| |
126 |
PIPE; EXH,RR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
EXC. RUSSIA EQUIPMENT(B12),TURBO -
CONVENTIONAL<Q5T>
(C)
|
8-98212-606-0 |
01 |
1 |
1302-1405 |
● |
|
| |
126 |
PIPE; EXH,RR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
(C)
|
8-98212-606-0 |
01 |
1 |
1406-1505 |
● |
|
| |
126 |
PIPE; EXH,RR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
TURBO - CONVENTIONAL<Q5T>
(C)
|
8-98212-606-0 |
01 |
1 |
1506-1511 |
● |
|
| |

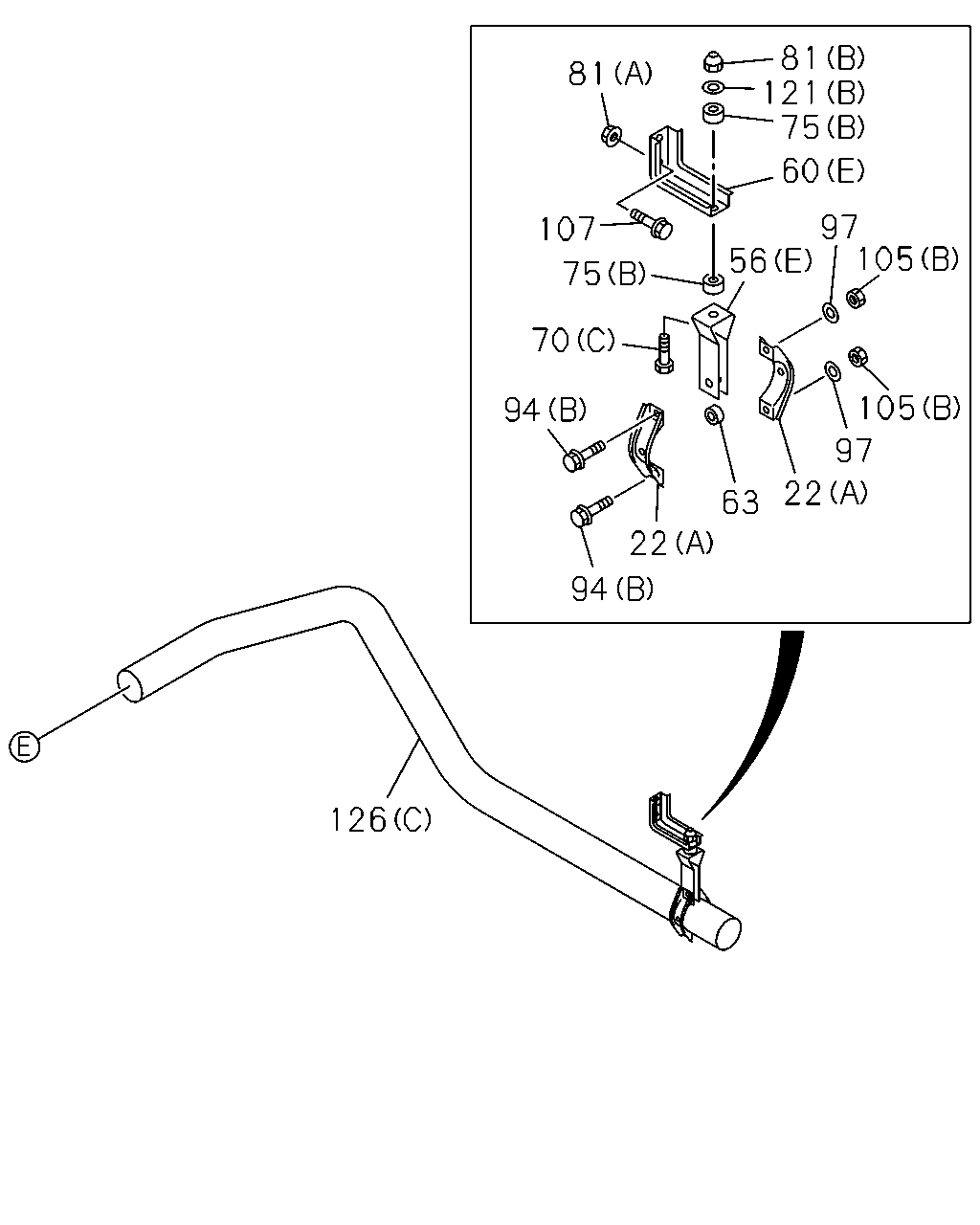

126 |
PIPE; EXH,RR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W)
PERU EQUIPMENT(E07)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
EXC. TURBO - CONVENTIONAL<Q5T>
(C)
|
8-98212-606-0 |
01 |
1 |
1512- |
● |
|
| |
126 |
PIPE; EXH,RR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),
PERU EQUIPMENT(E07),TURBO - CONVENTIONAL<Q5T>
(C)
|
8-98212-606-0 |
01 |
1 |
1512- |
● |
|
| |
126 |
PIPE; EXH,RR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>
(A)
|
8-98069-920-0 |
01 |
1 |
1302-1511 |
● |
|
| |
126 |
PIPE; EXH,RR
6HK1-TCS ENG(80L)
(A)
|
8-98069-920-0 |
01 |
1 |
1302-1511 |
|
● |
| |
126 |
PIPE; EXH,RR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,
TAILPIPE SINGLE SHORT TYPE<8JJ>,CATALYSIS CONTROL
WITH DPD<8JM>
(A)
|
8-98069-920-0 |
01 |
1 |
1512- |
● |
|
| |
126 |
PIPE; EXH,RR
6HK1-TCS ENG(80L)
(A)
|
8-98069-920-0 |
01 |
1 |
1512- |
|
● |
| |
126 |
PIPE; EXH,RR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W)
TURBO - CONVENTIONAL<Q5T>
TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>
(C)
|
8-98212-607-0 |
01 |
1 |
1302- |
● |
|
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-94457-277-1 |
02 |
1 |
1302-1304 |
● |
|
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-94457-277-1 |
02 |
1 |
1302-1304 |
|
● |
| |
226 |
RUBBER; CUSHION
4HK1-TCS ENG(RJS)
(A)
|
8-94457-277-1 |
02 |
1 |
1305-1505 |
● |
|
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-94457-277-1 |
02 |
1 |
1305-1505 |
● |
|
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-94457-277-1 |
02 |
1 |
1305-1505 |
|
● |
| |
226 |
RUBBER; CUSHION
4HK1-TCS ENG(RJS)
(A)
|
8-94457-277-1 |
02 |
1 |
1506-1511 |
● |
|
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-94457-277-1 |
02 |
1 |
1506-1511 |
● |
|
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-94457-277-1 |
02 |
1 |
1506-1511 |
|
● |
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
CATALYSIS CONTROL WITH DPD<8JM>
(A)
|
8-94457-277-1 |
02 |
1 |
1512- |
● |
|
| |
226 |
RUBBER; CUSHION
4HK1-TCS ENG(RJS)
(A)
|
8-94457-277-1 |
02 |
1 |
1512- |
● |
|
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-94457-277-1 |
02 |
1 |
1512- |
● |
|
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-94457-277-1 |
02 |
1 |
1512- |
|
● |
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
8-94457-278-1 |
02 |
1 |
1302-1304 |
● |
|
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
8-94457-278-1 |
02 |
1 |
1302-1304 |
|
● |
| |
226 |
RUBBER; CUSHION
4HK1-TCS ENG(RJS)
(B)
|
8-94457-278-1 |
02 |
1 |
1305-1505 |
● |
|
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
8-94457-278-1 |
02 |
1 |
1305-1505 |
● |
|
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
8-94457-278-1 |
02 |
1 |
1305-1505 |
|
● |
| |
226 |
RUBBER; CUSHION
4HK1-TCS ENG(RJS)
(B)
|
8-94457-278-1 |
02 |
1 |
1506-1511 |
● |
|
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
8-94457-278-1 |
02 |
1 |
1506-1511 |
● |
|
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
8-94457-278-1 |
02 |
1 |
1506-1511 |
|
● |
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
CATALYSIS CONTROL WITH DPD<8JM>
(B)
|
8-94457-278-1 |
02 |
1 |
1512- |
● |
|
| |
226 |
RUBBER; CUSHION
4HK1-TCS ENG(RJS)
(B)
|
8-94457-278-1 |
02 |
1 |
1512- |
● |
|
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN
ENG(82L)
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
8-94457-278-1 |
02 |
1 |
1512- |
● |
|
| |
226 |
RUBBER; CUSHION
6HK1-TCS ENG(80L)
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
8-94457-278-1 |
02 |
1 |
1512- |
|
● |
