Isuzu WW
▶
TRUCKS
▶
FSS
▶
11511 - FSS(LHD)
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

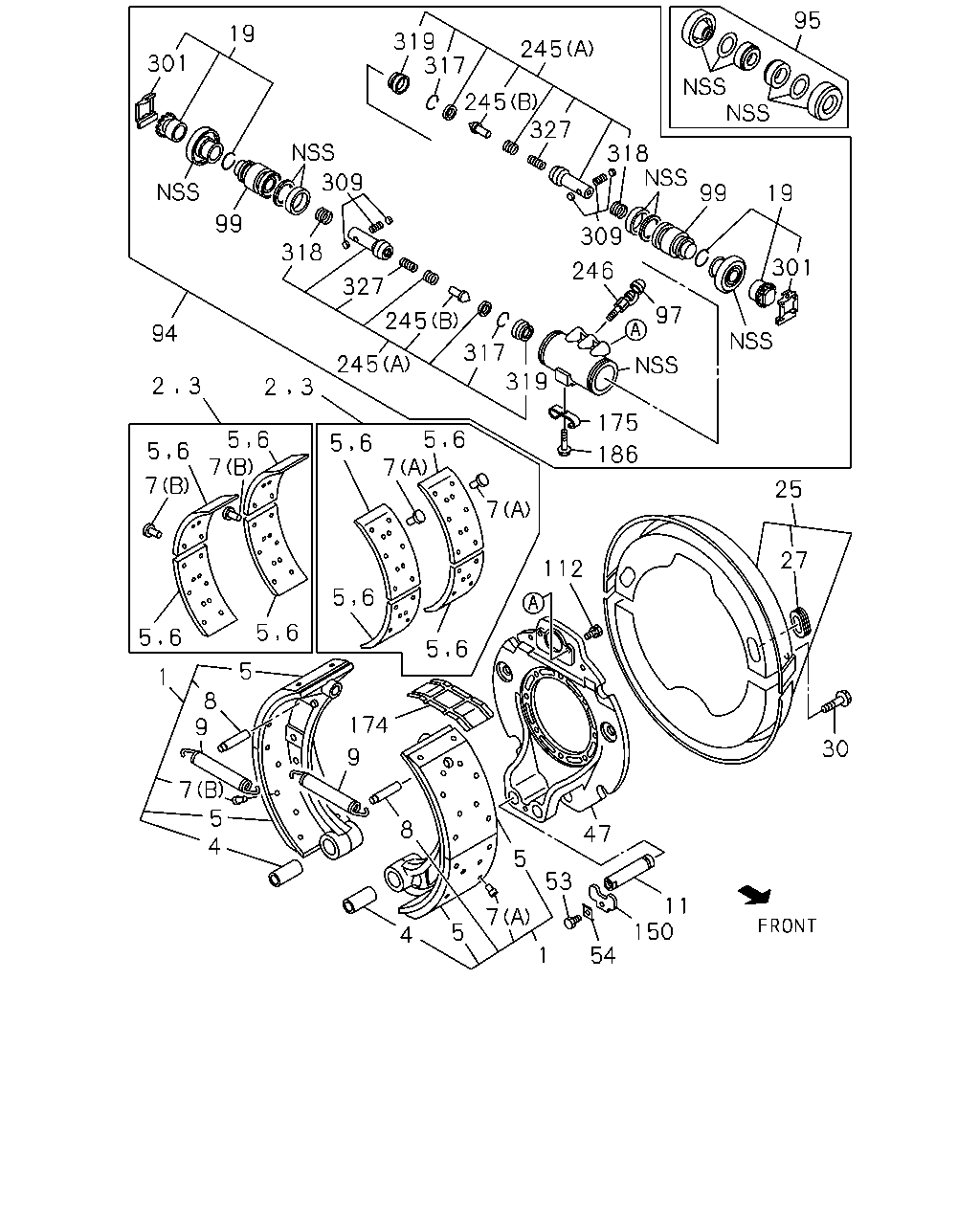

3-05 — REAR WHEEL BRAKE
(#113076) — 41 parça
95
19
99
318
327
245
245
317
319
301
309
97
246
19
301
309
99
327
318
245
245
3
2
3
2
94
317
175
319
186
25
27
30
112
7
6
5
7
6
5
6
5
7
6
5
6
5
6
5
6
5
6
5
174
9
5
1
8
9
7
5
4
8
4
5
11
47
53
7
5
150
54
1
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
LEADING
1-47170-498-0
01
1
1302-
1
SHOE; BRK,RR
TRAILING
1-47170-499-0
01
1
1302-
1
SHOE; BRK,RR
LEADING
1-47170-496-0
01
1
1302-
1
SHOE; BRK,RR
TRAILING
1-47170-497-0
01
1
1302-
2
LINING SET; RR BRK,STANDARD
LEADING
1-88311-390-0
01
1
1302-
2
LINING SET; RR BRK,STANDARD
TRAILING
1-88311-394-0
01
1
1302-
3
LINING SET; RR BRK,OVER SIZE
LEADING
1-88311-391-0
01
1
1302-
3
LINING SET; RR BRK,OVER SIZE
TRAILING
1-88311-395-0
01
1
1302-
4
BUSHING; BRK SHOE,RR WHEEL
1-47112-011-0
04
1
1302-
5
LINING; RR BRK SHOE,STANDARD
1-47126-812-0
08
1
1302-
6
LINING; RR BRK SHOE,OVER SIZE
1-47126-813-0
08
1
1302-
7
RIVET; LINING,RR BRK
(B) TRAILING L=18.5
1-09732-034-0
40
1
1302-
7
RIVET; LINING,RR BRK
(A) LEADING L=15.5
1-09732-053-0
40
1
1302-
8
PIN; RETURN SPRING,RR BRK SHOE
1-47119-134-0
04
1
1302-
9
SPRING; RETURN,BRK SHOE
1-09583-359-0
04
1
1302-
11
PIN; ANCHOR,RR WHEEL BRK
L=106.5
1-47131-038-0
04
1
1302-
19
ADJUSTER; RR BRK
1-47621-015-0
04
1
1302-
25
COVER SET; RR BRK DRUM
1-47151-458-1
02
1
1302-
27
COVER; CHECK HOLE,DRUM COVER
1-09333-151-0
04
1
1302-
30
BOLT; DRUM COVER
M10X12
1-47159-187-0
12
1
1302-
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
1-47137-577-0
02
1
1302-
53
BOLT; LOCK PLATE
M10X16
0-20851-016-0
02
1
1302-
54
WASHER; LK,ANCHOR PIN,RR BRK
1-47133-011-0
02
1
1302-
94
CYLINDER; WHEEL,RR BRK
8-98166-405-0
02
1
1302-
95
CUP SET; RR WHEEL CYL
1-87830-922-0
02
1
1302-
97
CAP; BLEEDER,RR WHEEL CYL
OD=12
1-47619-011-0
02
1
1302-
99
PISTON; RR WHEEL CYL
1-47624-357-0
04
1
1302-
112
BOLT; WHEEL CYL SETTING
M12X32 W/LK WASHER
0-50551-232-0
04
1
1302-
150
PLATE; LK,ANCHOR PIN
1-47133-005-0
02
1
1302-
174
COVER; CYL,RR WHEEL CYL
1-47159-197-0
02
1
1302-
175
HANGER; RR WHEEL BRK
1-47619-145-0
02
1
1302-
186
BOLT; HANGER
M8X16 W/LK WASHER
0-50540-816-0
02
1
1302-
245
SHAFT
(A)
1-47623-027-1
04
1
1302-
245
SHAFT
(B)
1-47629-121-0
04
1
1302-
246
BLEEDER
1-47615-002-0
02
1
1302-
301
CLIP; ANTI LOTATION
1-47621-016-0
04
1
1302-
309
SPRING; ADJUSTER SHAFT
1-09580-544-0
04
1
1302-
317
RING; RETAINER
1-47629-119-0
04
1
1302-
318
SPRING; ADJ
1-09580-542-0
04
1
1302-
319
RING; DRIVE
1-47629-120-0
04
1
1302-
327
SPRING; ADJ
1-09580-543-0
04
1
1302-
