Sayfa 1-50 - Isuzu EPC

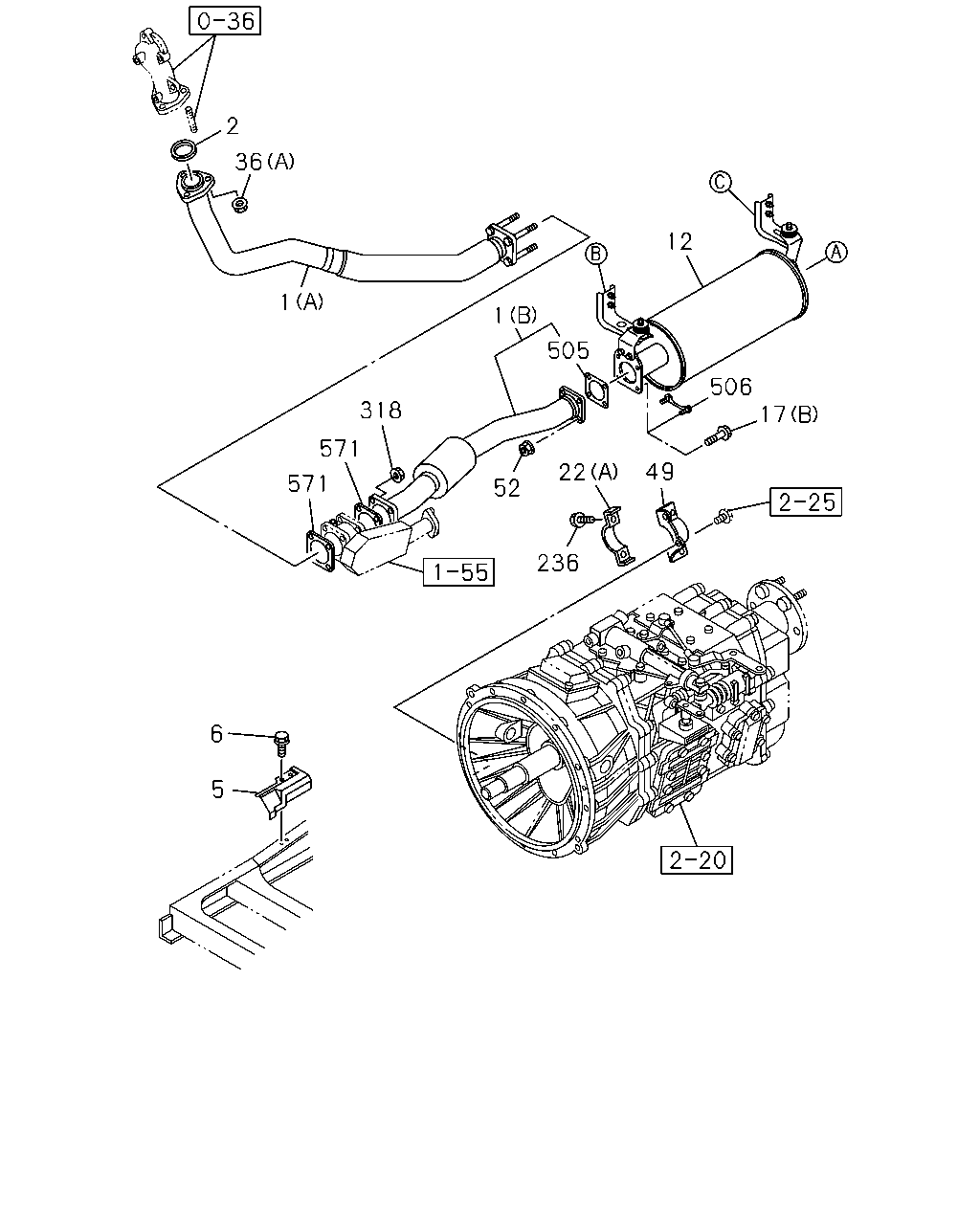

1-50 — EXHAUST PIPE AND SILENCER (#113072) — 226 parça

5 6 571 571 318 52 236 49 22 506 12 17 505 1 1 36 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EURO5 SPECIFICATION<NT5> (A)	8-98242-032-0	01	1	1506-
1	PIPE; EXH (B)	8-98096-347-0	01	1	1302-
1	PIPE; EXH EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98082-498-0	01	1	1302-1511
1	PIPE; EXH EURO2 SPECIFICATION<NT2>	8-98082-498-0	01	1	1512-
1	PIPE; EXH EURO4 SPECIFICATION<NT4> (A)	8-98208-160-0	01	1	1302-1303
1	PIPE; EXH EURO4 SPECIFICATION<NT4> (A)	8-98243-546-0	01	1	1304-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-97381-455-0	01	1	1302-
5	PROTECTOR; HEAT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98089-287-1	01	1	1302-1511
5	PROTECTOR; HEAT EURO2 SPECIFICATION<NT2>	8-98089-287-1	01	1	1512-
5	PROTECTOR; HEAT EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98044-122-0	01	1	1302-1511
5	PROTECTOR; HEAT EXC. EURO2 SPECIFICATION<NT2>	8-98044-122-0	01	1	1512-
6	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	1302-
12	SILENCER ASM; EXH EURO5 SPECIFICATION<NT5>	8-98236-535-0	01	1	1506-
12	SILENCER ASM; EXH EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98090-389-2	01	1	1302-1511
12	SILENCER ASM; EXH EURO2 SPECIFICATION<NT2>	8-98090-389-2	01	1	1512-
12	SILENCER ASM; EXH EURO4 SPECIFICATION<NT4>	8-98175-970-3	01	1	1302-1505
12	SILENCER ASM; EXH EURO4 SPECIFICATION<NT4>	8-98175-970-3	01	1	1506-
17	BOLT; EXH PIPE (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE	0-28051-235-0	04	1	1302-
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1302-1405
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1302-1405
22	CLAMP; EXH PIPE (A)	1-22133-295-0	01	1	1302-1309
22	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=80-84	1-22133-233-0	04	1	1302-1405
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1406-1408
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1406-1408
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=80-84	1-22133-233-0	02	1	1409-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1409-
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1409-
36	NUT; EXH PIPE (B) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1302-
49	BRACKET; EXH PIPE TO TRANS	8-98234-530-0	01	1	1302-
52	NUT; BRKT M12 FLANGE	0-91180-212-0	04	1	1302-
236	BOLT; PIPE CLAMP TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	1302-
318	NUT; EXH PIPE,FRT M8 W/LK WASHER	8-97581-234-0	04	1	1302-
505	GASKET; CONV TO EXH PIPE	8-98096-305-0	01	1	1302-
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> M12X35	1-22131-963-0	02	1	1302-
571	GASKET ID=64	8-97373-108-0	02	1	1302-

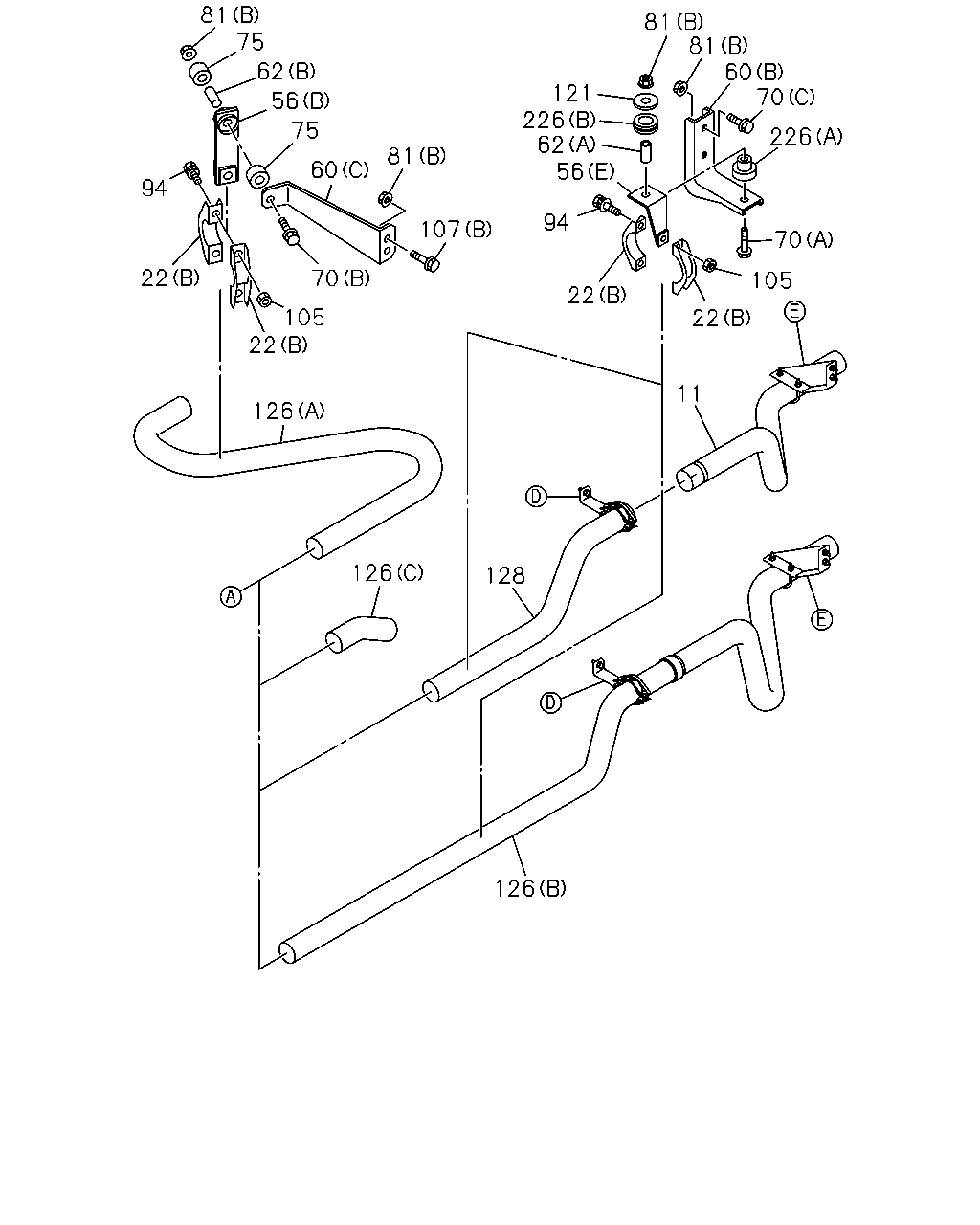

126 128 126 126 22 105 70 22 94 81 75 62 56 75 60 81 107 121 226 62 56 94 22 11 22 105 70 226 70 60 81 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	PIPE; EXH,RR CHILE EQUIPMENT(KE1) TAIL PIPE SINGLE HORIZONTAL<NC2>	8-98214-654-0	01	1	1302-
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1302-1405
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1302-1405
22	CLAMP; EXH PIPE (A)	1-22133-295-0	01	1	1302-1309
22	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=80-84	1-22133-233-0	04	1	1302-1405
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1406-1408
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1406-1408
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=80-84	1-22133-233-0	02	1	1409-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1409-
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1409-
56	BRACKET; CLAMP,EXH PIPE (D)	8-98074-824-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98086-352-0	01	1	1302-1405
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	8-98086-352-0	01	1	1406-1408
56	BRACKET; CLAMP,EXH PIPE (C)	8-98086-352-0	01	1	1409-
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	8-98059-756-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	8-98245-534-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	8-98085-168-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-584-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98245-522-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	1302-
60	BRACKET; FRAME TO BRKT (B)	8-98059-753-1	01	1	1302-1309
60	BRACKET; FRAME TO BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-98059-753-1	01	1	1302-1309
60	BRACKET; FRAME TO BRKT (B)	8-98245-530-0	01	1	1310-1405
60	BRACKET; FRAME TO BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-98245-530-0	01	1	1310-1405
60	BRACKET; FRAME TO BRKT (B)	8-98245-530-0	01	1	1406-1408
60	BRACKET; FRAME TO BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-98245-530-0	01	1	1409-
60	BRACKET; FRAME TO BRKT (B)	8-98245-530-0	01	1	1409-
60	BRACKET; FRAME TO BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98090-167-0	01	1	1302-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1302-1405
62	TUBE; DIST,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) L=39	8-98060-852-0	01	1	1302-1405
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1406-1408
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1409-
62	TUBE; DIST,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) L=39	8-98060-852-0	01	1	1409-
62	TUBE; DIST,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-1405
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1406-1408
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1409-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X70 FLANGE	0-28051-070-0	01	1	1409-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X70 FLANGE	0-28051-070-0	01	1	1302-1405
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M10X35 FLANGE	0-28651-035-0	02	1	1406-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M10X35 FLANGE	0-28651-035-0	03	1	1302-1405
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M10X35 FLANGE	0-28651-035-0	01	1	1406-
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
75	RUBBER; SUPPORT,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> OD=40	1-22159-193-0	02	1	1302-
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-1405
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-1405
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1406-1408
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1409-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10 FLANGE	0-91180-210-0	01	1	1409-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10 FLANGE	0-91180-210-0	04	1	1302-1405
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1406-
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE	0-91180-210-0	03	1	1302-1405
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE	0-91180-210-0	03	1	1406-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1302-1405
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> M10X40 FLANGE	0-28651-040-0	02	1	1302-1405
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 FLANGE	0-28651-040-0	04	1	1302-1405
94	BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X40 FLANGE	0-28651-040-0	02	1	1406-1408
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1406-1408
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 FLANGE	0-28651-040-0	02	1	1409-
94	BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X40 FLANGE	0-28651-040-0	02	1	1409-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1409-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1302-1405
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1302-1405
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91180-210-0	04	1	1302-1405
105	NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1406-1408
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1406-1408
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91180-210-0	02	1	1409-
105	NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1409-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1409-
107	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X30 FLANGE	0-28650-830-0	02	1	1302-
107	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1302-1405
121	WASHER; PL,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=11 OD=54	1-09503-154-2	01	1	1302-1405
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1406-1408
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1409-
121	WASHER; PL,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=11 OD=54	1-09503-154-2	01	1	1409-
126	PIPE; EXH,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98073-427-0	01	1	1302-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98210-836-0	01	1	1302-
126	PIPE; EXH,RR WHEEL BASE 4600MM(46W) PERU EQUIPMENT(E07) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-98205-008-0	01	1	1302-
128	PIPE; EXH,RR WHEEL BASE 4600MM(46W) CHILE EQUIPMENT(KE1) TAIL PIPE SINGLE HORIZONTAL<NC2>	8-98114-833-0	01	1	1302-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1302-1405
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1302-1405
226	RUBBER; CUSHION TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	8-94457-277-1	01	1	1302-1405
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1406-1408
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1409-
226	RUBBER; CUSHION TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	8-94457-277-1	01	1	1409-
226	RUBBER; CUSHION TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-94457-278-1	01	1	1302-1405
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1406-1408
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1409-
226	RUBBER; CUSHION TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-94457-278-1	01	1	1409-

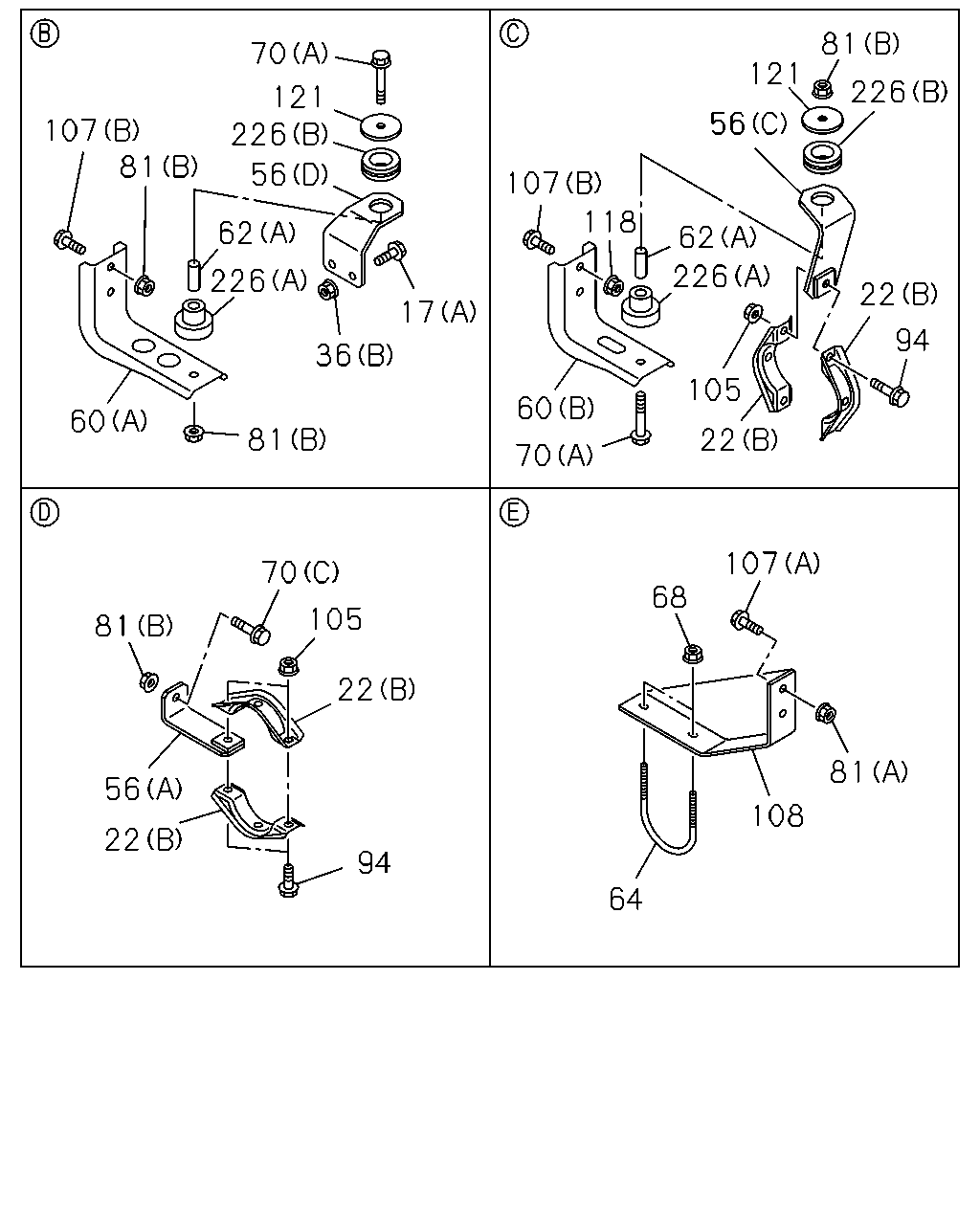

226 62 56 70 107 121 81 226 17 36 81 60 81 121 56 226 107 62 118 22 226 60 105 94 22 70 70 105 22 81 56 22 94 68 81 108 64 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; EXH PIPE (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE	0-28051-235-0	04	1	1302-
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1302-1405
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1302-1405
22	CLAMP; EXH PIPE (A)	1-22133-295-0	01	1	1302-1309
22	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=80-84	1-22133-233-0	04	1	1302-1405
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1406-1408
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1406-1408
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=80-84	1-22133-233-0	02	1	1409-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1409-
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1409-
36	NUT; EXH PIPE (B) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1302-
56	BRACKET; CLAMP,EXH PIPE (D)	8-98074-824-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98086-352-0	01	1	1302-1405
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	8-98086-352-0	01	1	1406-1408
56	BRACKET; CLAMP,EXH PIPE (C)	8-98086-352-0	01	1	1409-
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	8-98059-756-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	8-98245-534-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	8-98085-168-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-584-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98245-522-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	1302-
60	BRACKET; FRAME TO BRKT (B)	8-98059-753-1	01	1	1302-1309
60	BRACKET; FRAME TO BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-98059-753-1	01	1	1302-1309
60	BRACKET; FRAME TO BRKT (B)	8-98245-530-0	01	1	1310-1405
60	BRACKET; FRAME TO BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-98245-530-0	01	1	1310-1405
60	BRACKET; FRAME TO BRKT (B)	8-98245-530-0	01	1	1406-1408
60	BRACKET; FRAME TO BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-98245-530-0	01	1	1409-
60	BRACKET; FRAME TO BRKT (B)	8-98245-530-0	01	1	1409-
60	BRACKET; FRAME TO BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98090-167-0	01	1	1302-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1302-1405
62	TUBE; DIST,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) L=39	8-98060-852-0	01	1	1302-1405
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1406-1408
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1409-
62	TUBE; DIST,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) L=39	8-98060-852-0	01	1	1409-
62	TUBE; DIST,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-101-0	01	1	1302-
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91180-108-0	02	1	1302-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-1405
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1406-1408
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1409-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X70 FLANGE	0-28051-070-0	01	1	1409-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X70 FLANGE	0-28051-070-0	01	1	1302-1405
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M10X35 FLANGE	0-28651-035-0	02	1	1406-
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M10X35 FLANGE	0-28651-035-0	03	1	1302-1405
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M10X35 FLANGE	0-28651-035-0	01	1	1406-
70	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-1405
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-1405
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1406-1408
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1409-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10 FLANGE	0-91180-210-0	01	1	1409-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10 FLANGE	0-91180-210-0	04	1	1302-1405
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1406-
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE	0-91180-210-0	03	1	1302-1405
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE	0-91180-210-0	03	1	1406-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1302-1405
94	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> M10X40 FLANGE	0-28651-040-0	02	1	1302-1405
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 FLANGE	0-28651-040-0	04	1	1302-1405
94	BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X40 FLANGE	0-28651-040-0	02	1	1406-1408
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1406-1408
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 FLANGE	0-28651-040-0	02	1	1409-
94	BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X40 FLANGE	0-28651-040-0	02	1	1409-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1409-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1302-1405
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1302-1405
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91180-210-0	04	1	1302-1405
105	NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1406-1408
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1406-1408
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE	0-91180-210-0	02	1	1409-
105	NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1409-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1409-
107	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X30 FLANGE	0-28650-830-0	02	1	1302-
107	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2>	8-98056-460-0	01	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1302-1405
121	WASHER; PL,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=11 OD=54	1-09503-154-2	01	1	1302-1405
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1406-1408
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1409-
121	WASHER; PL,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=11 OD=54	1-09503-154-2	01	1	1409-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1302-1405
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1302-1405
226	RUBBER; CUSHION TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	8-94457-277-1	01	1	1302-1405
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1406-1408
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1409-
226	RUBBER; CUSHION TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	8-94457-277-1	01	1	1409-
226	RUBBER; CUSHION TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-94457-278-1	01	1	1302-1405
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1406-1408
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1409-
226	RUBBER; CUSHION TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	8-94457-278-1	01	1	1409-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
