◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11517 - FVM(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#113063) — 110 parça

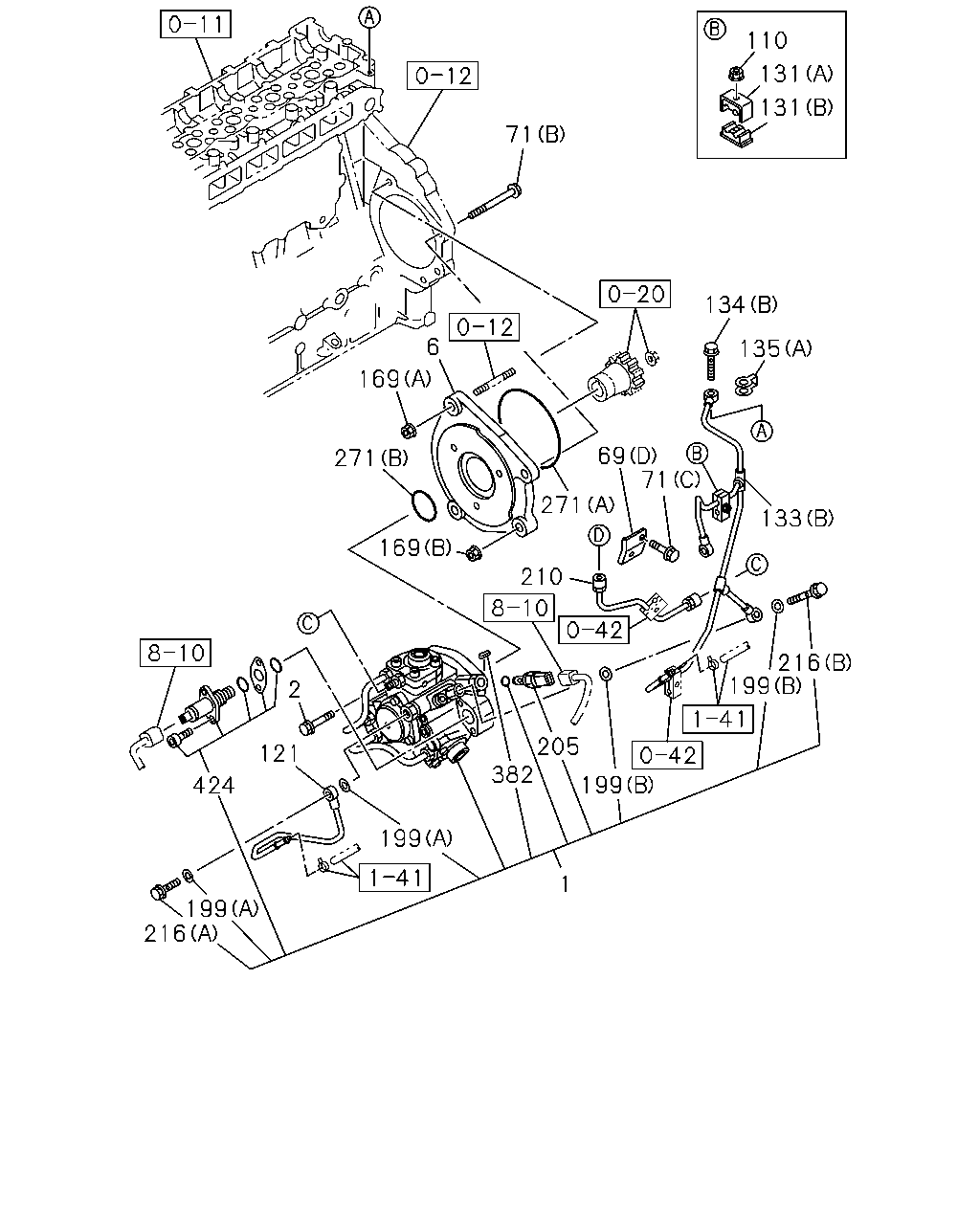

çizim 326549
1 71 134 6 169 69 135 110 131 131 71 133 271 271 169 210 216 199 199 205 382 199 2 121 424 199 216
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 8-97605-946-7 01 1 1302- ● ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 1302- ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 1302- ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1302- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 1302- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 1302- ● ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98059-807-0 01 1 1302-1601 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2> (D) 		8-98059-807-0 01 1 1602- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1302- ● ●
71 BOLT; BRKT
(C) M10X16 FLANGE 		0-28151-016-0 01 1 1302-1601 ● ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10X16 FLANGE 		0-28151-016-0 01 1 1602- ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1302- ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 1302- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-98126-331-0 01 1 1302- ● ●
131 CLIP; OVERFLOW LEAK OFF
(A) ID=7 & 9 L=25 		8-98000-010-2 01 1 1302- ● ●
131 CLIP; OVERFLOW LEAK OFF
(B) ID=7 & 9 L=25 		8-98000-011-2 01 1 1302- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO4 SPECIFICATION<NT4> (B) 		8-97610-504-0 01 1 1602- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98059-804-0 01 1 1302-1601 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO2 SPECIFICATION<NT2> (B) 		8-98059-804-0 01 1 1602- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1302- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1302- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 1302- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1302- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1302- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1302- ● ●
169 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 1302- ● ●
169 NUT; BRKT
(B) M12 FLANGE 		0-91180-112-0 01 1 1302- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1302- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1302- ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1302- ● ●
210 PIPE; INJ,C/R
EURO4 SPECIFICATION<NT4> 		8-98145-414-0 01 1 1602- ● ●
210 PIPE; INJ,C/R 8-98059-805-0 01 1 1302-1601 ● ●
210 PIPE; INJ,C/R
EURO2 SPECIFICATION<NT2> 		8-98059-805-0 01 1 1602- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1302- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1302- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1302- ● ●
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 1302- ● ●
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 1302- ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1302- ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 1302- ● ●

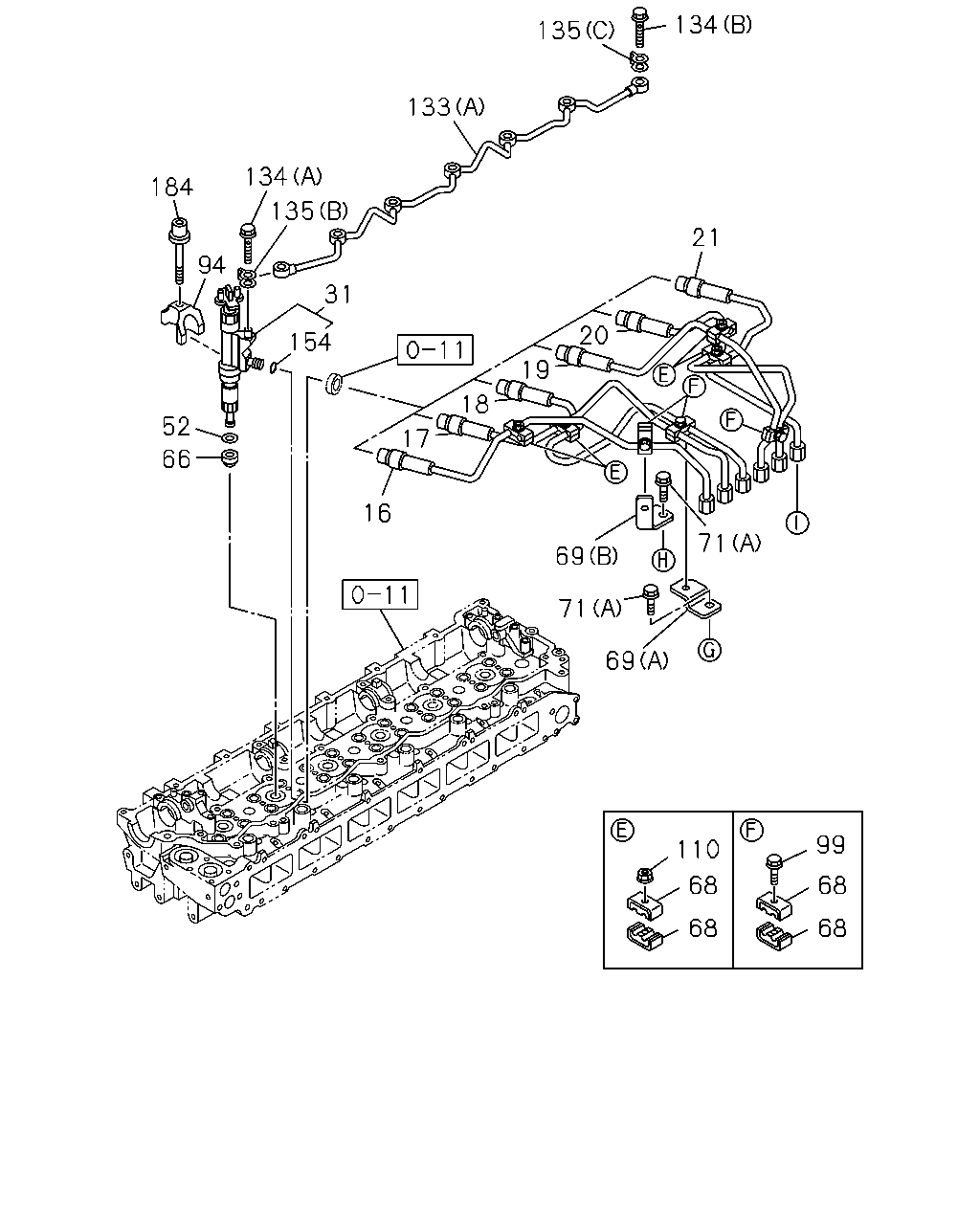

çizim 326560
134 135 133 135 134 184 94 31 154 52 66 16 21 20 19 18 17 69 71 71 69 110 68 68 99 68 68
BalonParca AdiParca NoAdetTipApplied Date A B
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1302-1403 ● ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-1501 ● ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1302-1403 ● ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-1501 ● ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1302-1403 ● ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-1501 ● ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1302-1403 ● ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-1501 ● ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502- ● ●
20 PIPE; INJ NO.5
EURO4 SPECIFICATION<NT4> 		8-98298-616-0 01 1 1602- ● ●
20 PIPE; INJ NO.5 8-98185-366-0 01 1 1302-1403 ● ●
20 PIPE; INJ NO.5 8-98271-211-0 01 1 1404-1501 ● ●
20 PIPE; INJ NO.5 8-98298-615-0 01 1 1502-1601 ● ●
20 PIPE; INJ NO.5
EURO2 SPECIFICATION<NT2> 		8-98298-615-0 01 1 1602- ● ●
21 PIPE; INJ NO.6 8-98185-367-0 01 1 1302-1403 ● ●
21 PIPE; INJ NO.6 8-98271-212-0 01 1 1404-1501 ● ●
21 PIPE; INJ NO.6 8-98298-617-0 01 1 1502- ● ●
31 NOZZLE ASM; INJ
EURO4 SPECIFICATION<NT4> 		8-98160-061-3 06 1 1602- ● ●
31 NOZZLE ASM; INJ 8-97609-789-6 06 1 1302-1601 ● ●
31 NOZZLE ASM; INJ
EURO2 SPECIFICATION<NT2> 		8-97609-789-6 06 1 1602- ● ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 1302- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 1302- ● ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98039-293-0 14 1 1302-1405 ● ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 14 1 1406- ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1302- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 1302- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 1302- ● ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98059-807-0 01 1 1302-1601 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2> (D) 		8-98059-807-0 01 1 1602- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1302- ● ●
71 BOLT; BRKT
(C) M10X16 FLANGE 		0-28151-016-0 01 1 1302-1601 ● ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10X16 FLANGE 		0-28151-016-0 01 1 1602- ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1302- ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 1302- ● ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 1302- ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 1302- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO4 SPECIFICATION<NT4> (B) 		8-97610-504-0 01 1 1602- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98059-804-0 01 1 1302-1601 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO2 SPECIFICATION<NT2> (B) 		8-98059-804-0 01 1 1602- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1302- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1302- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 1302- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1302- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1302- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1302- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1302- ● ●
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 1302- ● ●

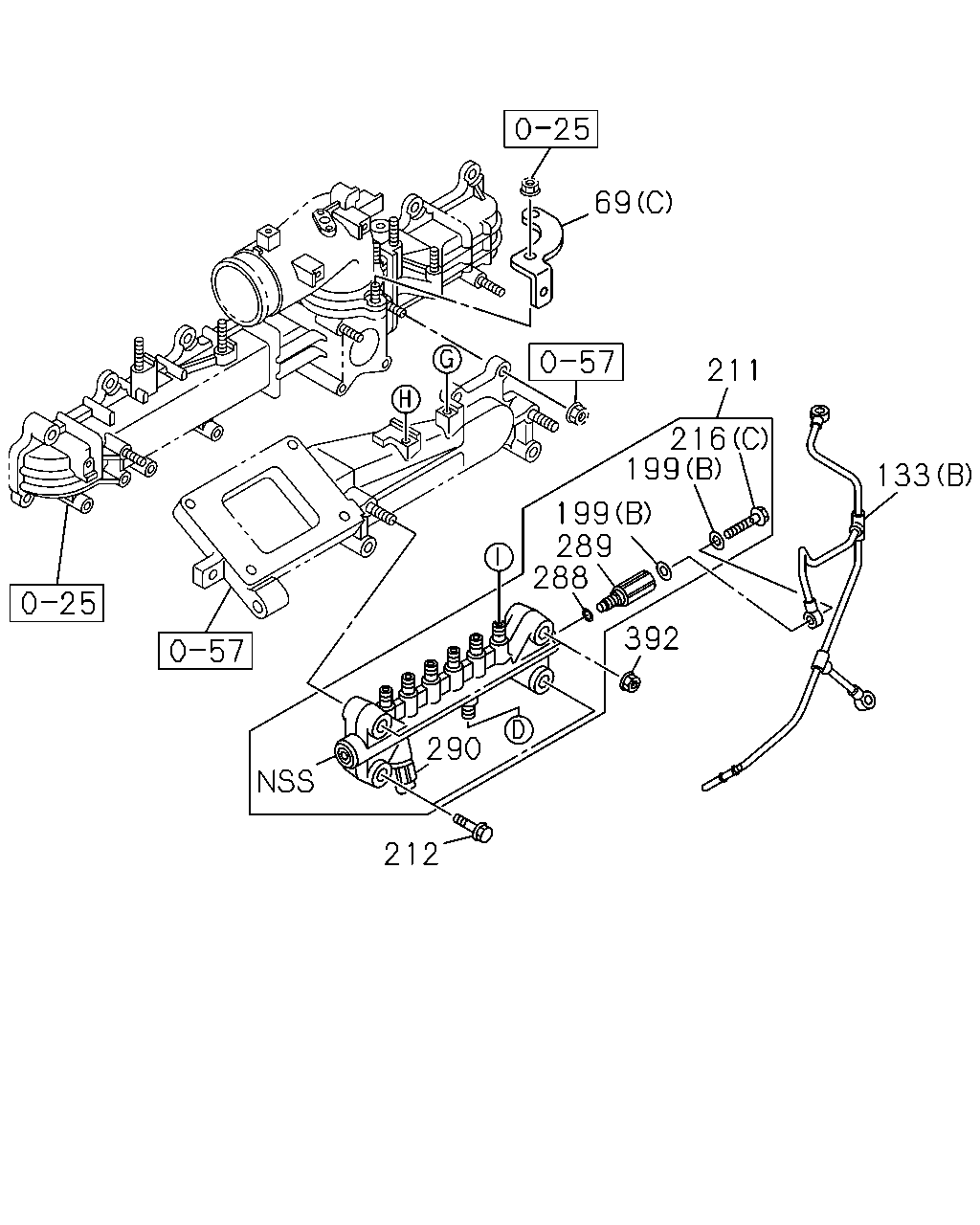

çizim 326577
69 211 288 289 199 199 216 133 290 212 392
BalonParca AdiParca NoAdetTipApplied Date A B
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1302- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 1302- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 1302- ● ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98059-807-0 01 1 1302-1601 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2> (D) 		8-98059-807-0 01 1 1602- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO4 SPECIFICATION<NT4> (B) 		8-97610-504-0 01 1 1602- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98059-804-0 01 1 1302-1601 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO2 SPECIFICATION<NT2> (B) 		8-98059-804-0 01 1 1602- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1302- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1302- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1302- ● ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1302- ● ●
212 BOLT; RAIL ASM
M10X50 FLANGE 		8-97372-243-0 02 1 1302- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1302- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1302- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1302- ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1302- ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1302- ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1302- ● ●
392 NUT; RAIL ASM
M10 FLANGE 		0-91180-110-0 02 1 1302- ● ●
