◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#11306) — 42 parça

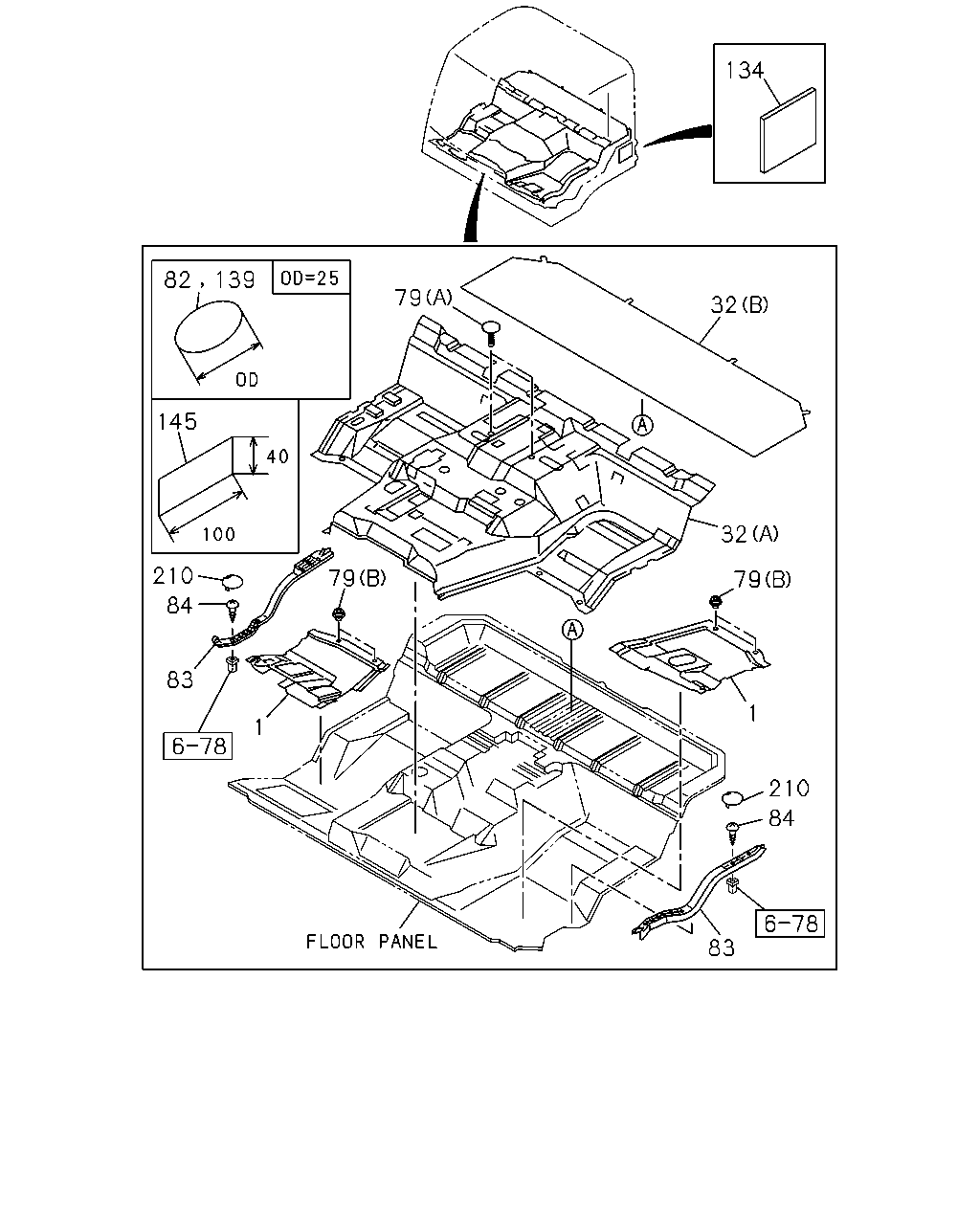

çizim 73115
83 84 210 1 79 32 32 210 84 83 1 79 145 139 82 79 134
BalonParca AdiParca NoAdetTipApplied Date
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-716-0 01 1 0106-0404
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-866-1 01 1 0405-
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-715-0 01 1 0106-0404
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-865-1 01 1 0405-
32 CARPET; FLOOR
DELUXE CARPET<BF2> (A) 		1-73237-725-2 01 1 0106-0404
32 CARPET; FLOOR
DELUXE CARPET<BF2> (A) 		1-73237-860-4 01 1 0405-
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-720-0 01 1 0106-0404
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-867-1 01 1 0405-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0106-0207
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 01 1 0208-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0106-
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 03 1 0106-0312
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 01 1 0401-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0106-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0106-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0106-
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-0 01 1 0106-0402
134 SILENCER; RR FLOOR,SIDE
EXC. CHINA GB VAR1<JAC>,BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-2 01 1 0403-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 0106-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 0106-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0106-

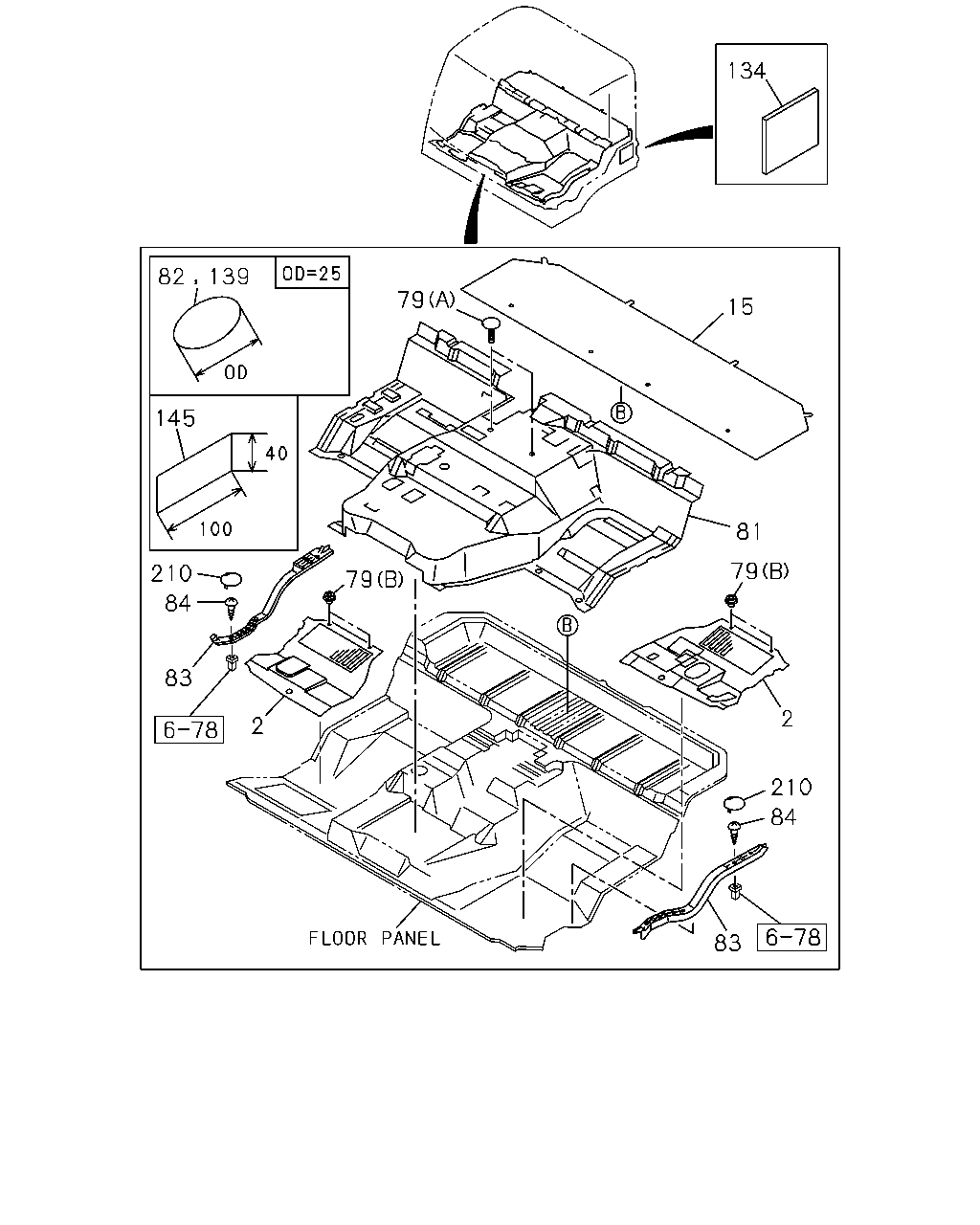

çizim 74966
83 84 210 2 79 81 15 134 79 82 139 145 210 84 83 2 79
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-655-0 01 1 0106-0112
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-787-1 01 1 0201-
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-654-0 01 1 0106-0112
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-785-1 01 1 0201-
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-757-1 01 1 0106-0112
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-783-1 01 1 0201-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0106-0207
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 01 1 0208-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0106-
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-733-1 01 1 0106-0112
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-813-3 01 1 0201-
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 03 1 0106-0312
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 01 1 0401-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0106-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0106-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0106-
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-0 01 1 0106-0402
134 SILENCER; RR FLOOR,SIDE
EXC. CHINA GB VAR1<JAC>,BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-2 01 1 0403-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 0106-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 0106-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0106-
