◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11519 - FVR/GVR-RHD EURO2/4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#113058) — 62 parça
çizim 329886
378 71 378 201
BalonParca AdiParca NoAdetTipApplied Date
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		8-98017-234-1 01 1 1302-
201 CLIP; HOSE,CMPR TO EVAP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94423-042-0 01 1 1302-
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98041-428-0 01 1 1302-
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98204-846-0 01 1 1302-

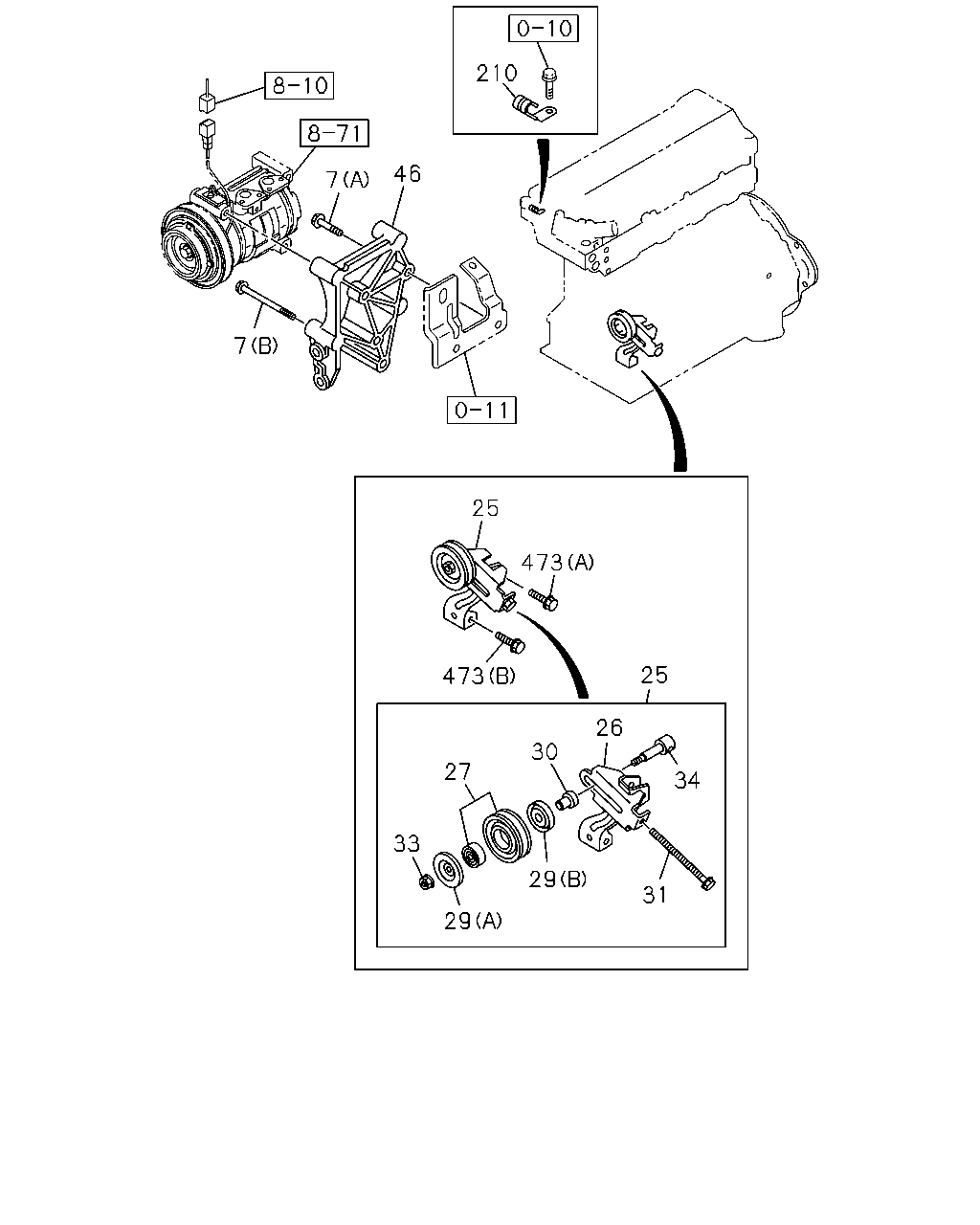

çizim 330143
210 7 46 7 25 473 473 25 26 30 27 33 29 31 29 34
BalonParca AdiParca NoAdetTipApplied Date
7 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M10X45 FLANGE 		0-28151-045-0 02 1 1302-
7 BOLT; BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) M10X80 FLANGE 		0-28151-080-0 01 1 1302-
7 BOLT; BRKT
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) M10X130 FLANGE 		0-28156-013-0 01 1 1302-
7 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B) M10X80 FLANGE 		0-28151-080-0 02 1 1302-
25 PULLEY ASM; IDLER,CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 1-GROOVE 		8-97161-198-1 01 1 1302-
25 PULLEY ASM; IDLER,CMPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-079-0 01 1 1302-
26 BRACKET; IDLE PULLEY,A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97161-031-1 01 1 1302-
27 PULLEY; IDLE,A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97386-869-0 01 1 1302-
27 PULLEY; IDLE,A/C
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-323-0 01 1 1302-
29 COVER; DUST,IDLE PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97384-114-0 01 1 1302-
29 COVER; DUST,IDLE PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97384-115-0 01 1 1302-
29 COVER; DUST,IDLE PULLEY
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97605-329-0 01 1 1302-
29 COVER; DUST,IDLE PULLEY
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97605-330-0 01 1 1302-
30 COLLAR; IDLE PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-117-0 01 1 1302-
30 COLLAR; IDLE PULLEY
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-328-0 01 1 1302-
31 BOLT; ADJ,IDLE PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-113-0 01 1 1302-
31 BOLT; ADJ,IDLE PULLEY
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-325-0 01 1 1302-
33 NUT; IDLER PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-118-0 01 1 1302-
33 NUT; IDLER PULLEY
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-326-0 01 1 1302-
34 SHAFT; IDLE PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-116-0 01 1 1302-
34 SHAFT; IDLE PULLEY
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-327-0 01 1 1302-
46 BRACKET; CMPR
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) 		8-98101-365-0 01 1 1302-
46 BRACKET; CMPR
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) 		8-98101-364-0 01 1 1302-
210 CLIP; HARNESS
4HK1-TCS ENG(RJS) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1302-
473 BOLT; TENSIONER
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X50 FLANGE 		0-28050-850-0 01 1 1302-
473 BOLT; TENSIONER
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X65 FLANGE 		8-94344-540-1 01 1 1302-

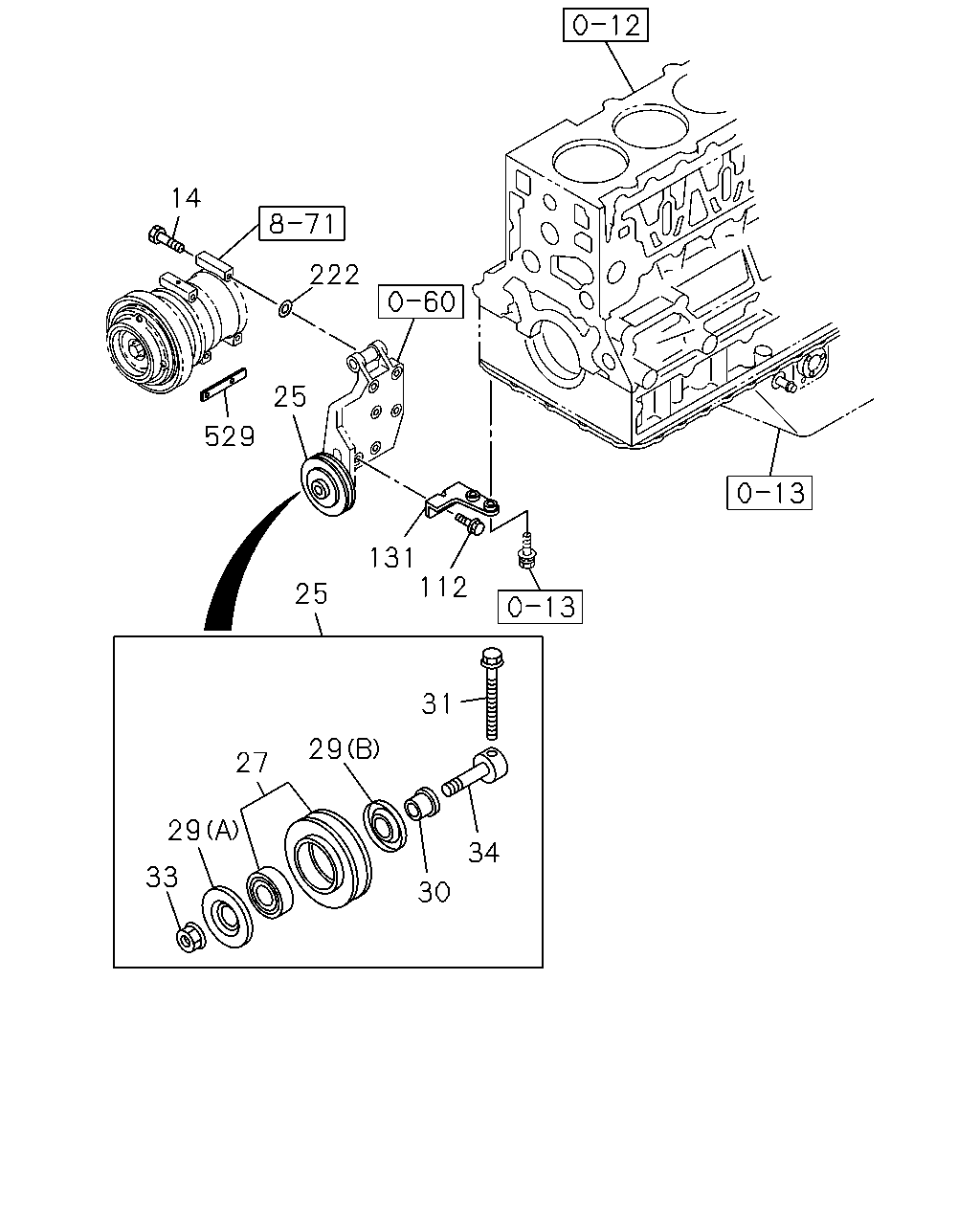

çizim 330409
34 30 29 27 29 33 31 112 131 25 25 529 14 222
BalonParca AdiParca NoAdetTipApplied Date
14 BOLT; CMPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) M8X78 W/LK WASHER 		5-09000-228-1 04 1 1302-
25 PULLEY ASM; IDLER,CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 1-GROOVE 		8-97161-198-1 01 1 1302-
25 PULLEY ASM; IDLER,CMPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-079-0 01 1 1302-
27 PULLEY; IDLE,A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97386-869-0 01 1 1302-
27 PULLEY; IDLE,A/C
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-323-0 01 1 1302-
29 COVER; DUST,IDLE PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97384-114-0 01 1 1302-
29 COVER; DUST,IDLE PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97384-115-0 01 1 1302-
29 COVER; DUST,IDLE PULLEY
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97605-329-0 01 1 1302-
29 COVER; DUST,IDLE PULLEY
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97605-330-0 01 1 1302-
30 COLLAR; IDLE PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-117-0 01 1 1302-
30 COLLAR; IDLE PULLEY
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-328-0 01 1 1302-
31 BOLT; ADJ,IDLE PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-113-0 01 1 1302-
31 BOLT; ADJ,IDLE PULLEY
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-325-0 01 1 1302-
33 NUT; IDLER PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-118-0 01 1 1302-
33 NUT; IDLER PULLEY
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-326-0 01 1 1302-
34 SHAFT; IDLE PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-116-0 01 1 1302-
34 SHAFT; IDLE PULLEY
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-327-0 01 1 1302-
112 BOLT; STAY
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X16 FLANGE 		0-28050-816-0 02 1 1302-
131 STAY; CMPR BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) 		8-94393-451-0 01 1 1302-
222 GASKET; CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2 		8-94312-733-0 02 1 1302-
529 SPACER
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-271-0 01 1 1302-

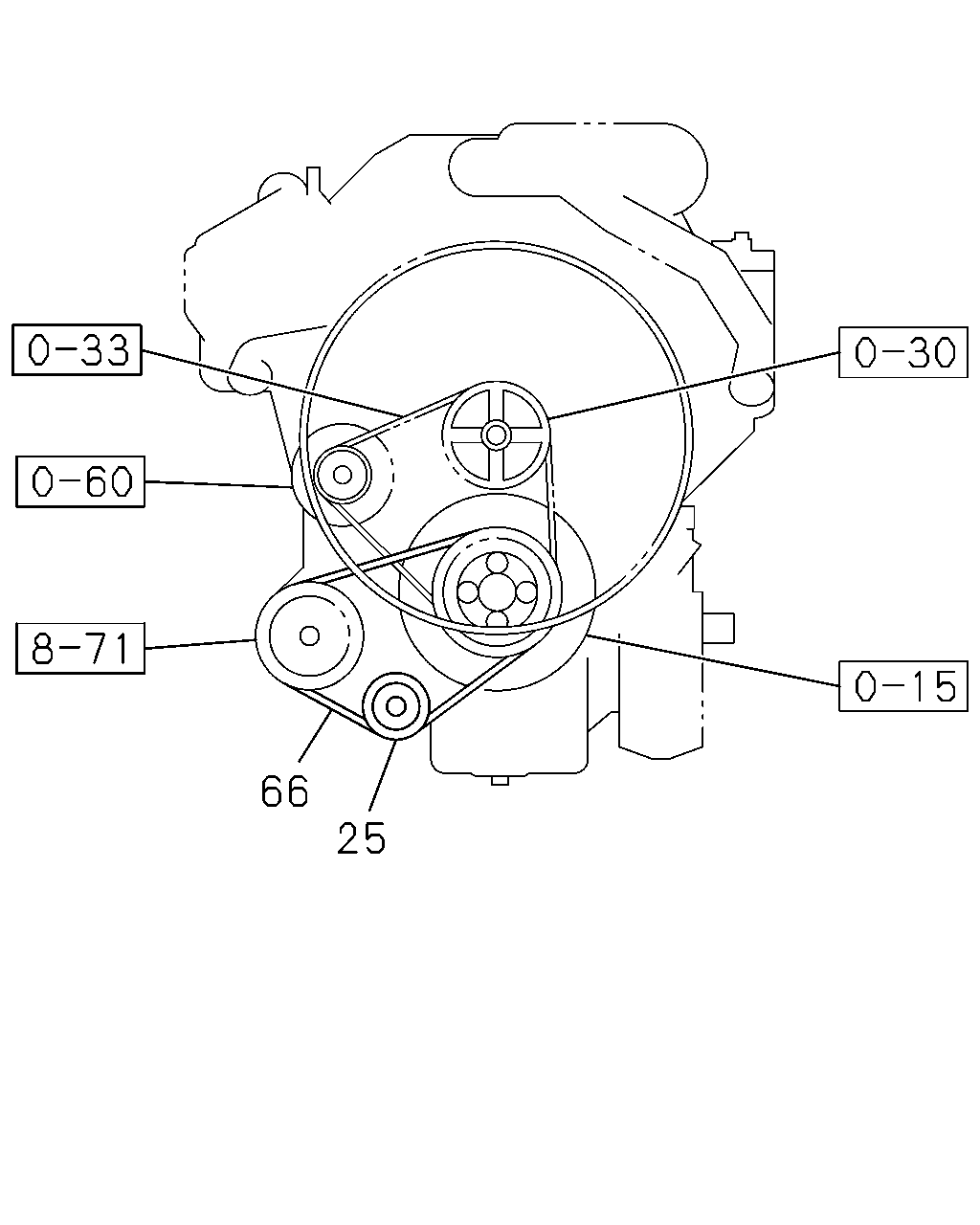

çizim 332573
25 66
BalonParca AdiParca NoAdetTipApplied Date
25 PULLEY ASM; IDLER,CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 1-GROOVE 		8-97161-198-1 01 1 1302-
25 PULLEY ASM; IDLER,CMPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-079-0 01 1 1302-
66 BELT; A/C CMPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS 		1-87610-104-0 01 1 1302-
66 BELT; A/C CMPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) L=1114 		8-97605-102-0 01 1 1302-
çizim 332580
32 25
BalonParca AdiParca NoAdetTipApplied Date
25 PULLEY ASM; IDLER,CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 1-GROOVE 		8-97161-198-1 01 1 1302-
25 PULLEY ASM; IDLER,CMPR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-079-0 01 1 1302-
32 BELT; A/C CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS 		1-87610-100-0 01 1 1302-
32 BELT; A/C CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) L=1594 		8-97383-577-1 01 1 1302-
çizim 332586
378 378 71
BalonParca AdiParca NoAdetTipApplied Date
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		8-98017-234-1 01 1 1302-
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98041-428-0 01 1 1302-
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98204-846-0 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
