◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#11305) — 22 parça

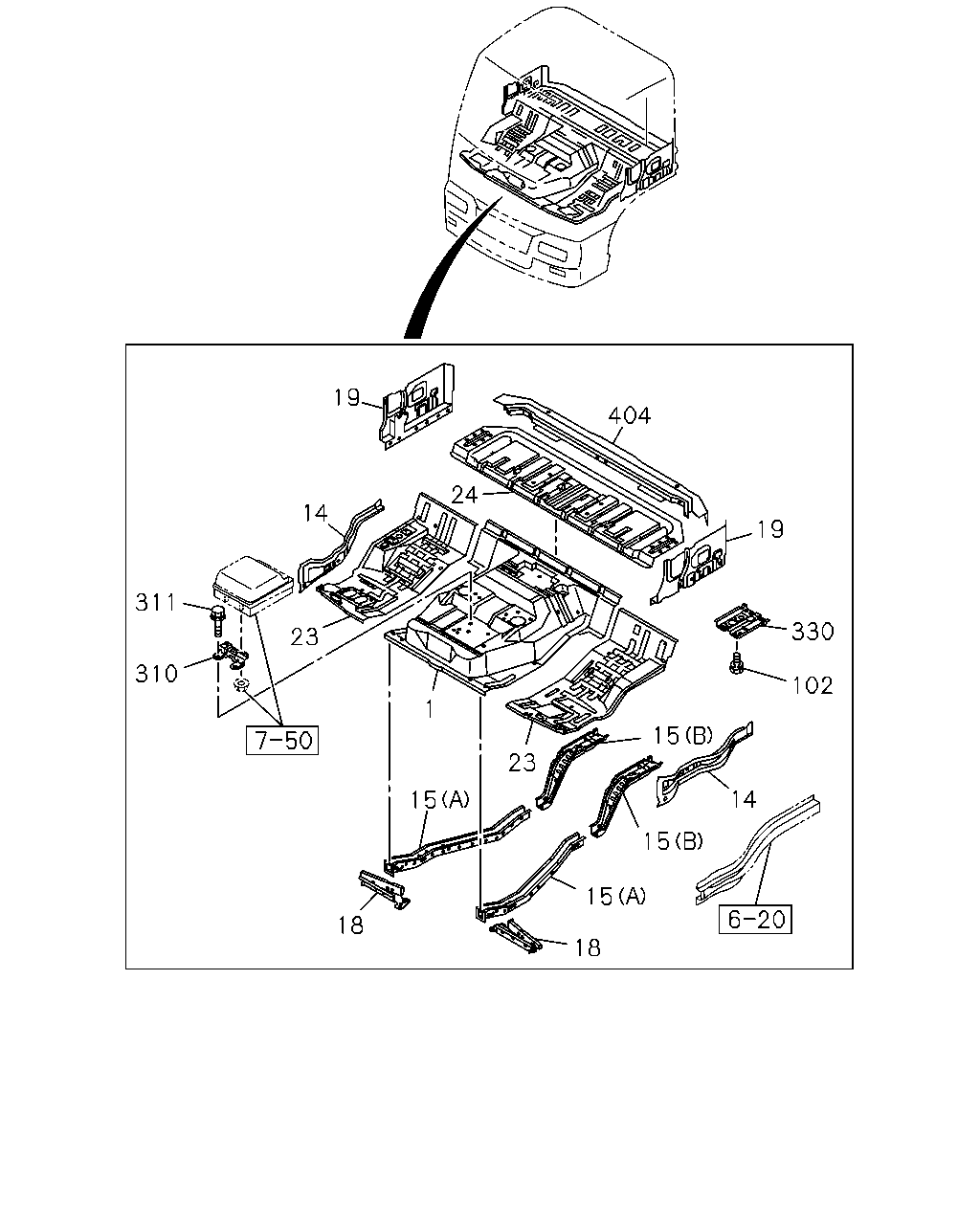

çizim 74654
19 14 23 1 15 18 18 15 15 14 15 102 330 19 404 24 23 310 311
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
ISUZU M/T<X9A> 		1-62172-614-5 01 1 0106-
1 PANEL; FLOOR
ZF M/T<X9E> 		1-62172-627-5 01 1 0106-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0106-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0106-
15 FRAME; UNDER
(A) 		1-62472-670-3 01 1 0106-
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 0106-
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 0106-
15 FRAME; UNDER
(A) 		1-62472-669-3 01 1 0106-
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-5 01 1 0106-
18 FRAME; FLOOR,CENTER SIDE 1-62472-671-3 01 1 0106-
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 0106-
19 PANEL; FLOOR SIDE,REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 0106-
19 PANEL; FLOOR SIDE,REAR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 0106-
23 PANEL; FLOOR,SIDE 1-62172-800-0 01 1 0106-
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 0106-
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4> 		1-62172-805-0 01 1 0106-
24 PANEL; BED PAN 1-62172-540-9 01 1 0106-
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0106-
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 0106-
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0106-
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 0106-
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 0106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
