Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#113047) — 239 parça

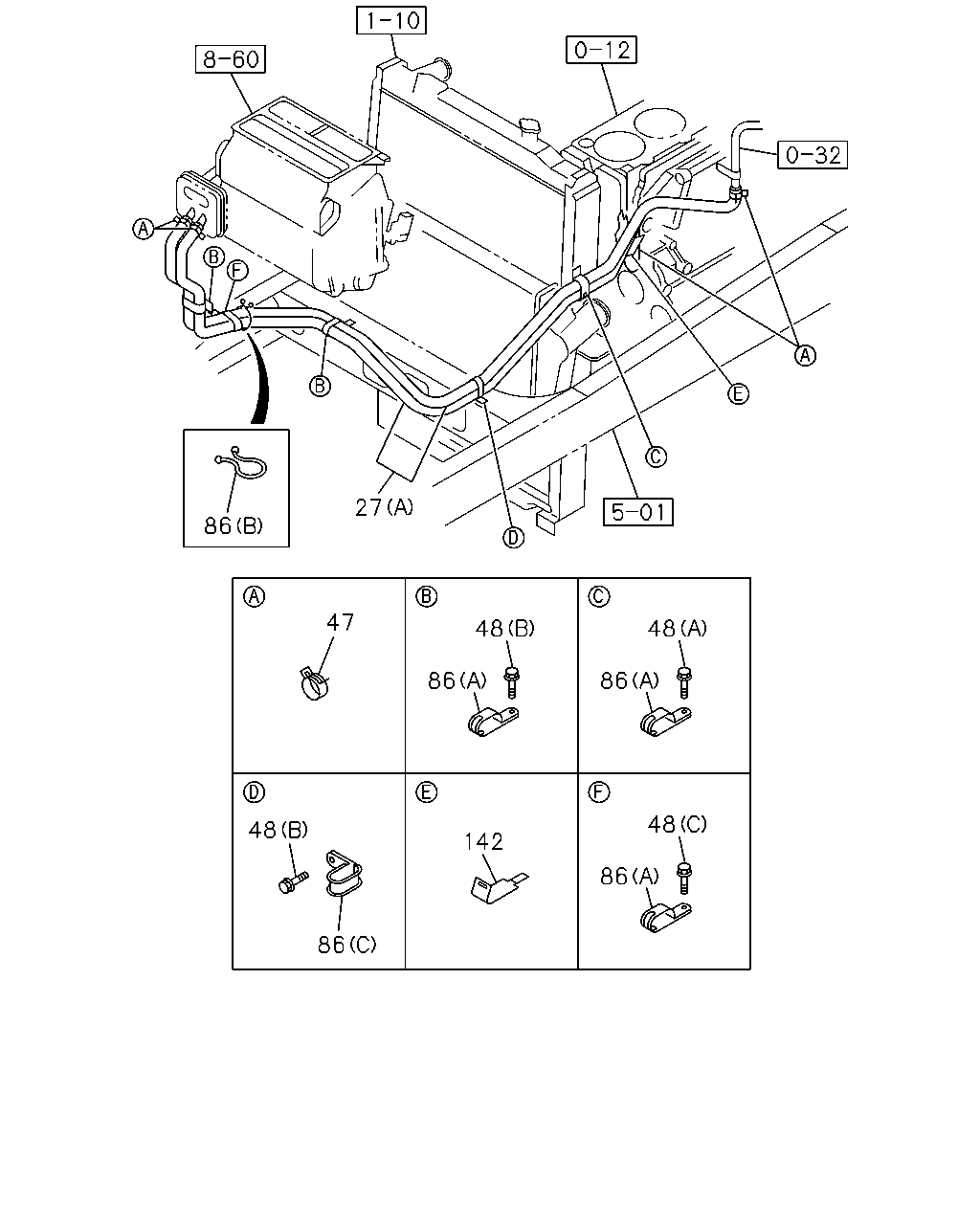

86 27 47 86 48 48 86 48 86 142 48 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98202-970-1	01	1	1305-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98085-572-2	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1302-1505		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98085-572-2	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1506-1511		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1512-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1512-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-489-0	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1302-1505		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-489-0	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98226-489-0	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1506-1511		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98226-489-0	01	1	1512-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1512-		●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1302-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB SUSPENSION FULL FLOATING<W16> (C) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE	0-28050-816-0	01	1	1302-		●
48	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1305-	●
48	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1302-1505	●
48	BOLT; CLIP FIX 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1302-1505		●
48	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1506-	●
48	BOLT; CLIP FIX 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1506-		●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28650-825-0	03	1	1302-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) ID=24X2 L=25	1-09700-710-0	02	1	1302-	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	02	1	1302-		●
86	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=44	8-94463-508-0	01	1	1302-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	01	1	1302-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	01	1	1302-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB SUSPENSION FULL FLOATING<W16> (A) ID=24X2 L=25	1-09700-710-0	01	1	1302-	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) B=14	8-98029-678-0	01	1	1302-	●	●
142	CLIP; BAND 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1302-1505	●
142	CLIP; BAND 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1302-1505		●
142	CLIP; BAND 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1506-	●
142	CLIP; BAND 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1506-		●

27 63 56 103 56 63 56 103 56 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98202-970-1	01	1	1305-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98085-572-2	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1302-1505		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98085-572-2	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1506-1511		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1512-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1512-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-489-0	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1302-1505		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-489-0	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98226-489-0	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1506-1511		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98226-489-0	01	1	1512-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1512-		●
56	CLAMP; HTR HOSE 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=25	8-94233-115-0	02	1	1305-	●
56	CLAMP; HTR HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1302-1505	●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1302-1505		●
56	CLAMP; HTR HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1506-	●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1506-		●
63	HOSE; WATER 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-94134-250-1	01	1	1305-	●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98112-655-0	01	1	1302-1505	●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98112-655-0	01	1	1302-1505	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98112-655-0	01	1	1302-1505		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98112-655-0	01	1	1506-1511	●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98112-655-0	01	1	1506-1511	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98112-655-0	01	1	1506-1511		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98112-655-0	01	1	1512-	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98112-655-0	01	1	1512-		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1302-1505	●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-98113-089-0	01	1	1302-1505	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1302-1505		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1506-1511	●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-98113-089-0	01	1	1506-1511	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1506-1511		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1512-	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1512-		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98113-087-0	01	1	1302-1505	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98113-087-0	01	1	1302-1505		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98113-087-0	01	1	1506-	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98113-087-0	01	1	1506-		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98113-088-0	01	1	1302-1505	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98113-088-0	01	1	1302-1505		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98113-088-0	01	1	1506-	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98113-088-0	01	1	1506-		●
103	CONNECTOR; HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-09703-048-0	02	1	1302-1505	●
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-09703-048-0	02	1	1302-1505		●
103	CONNECTOR; HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-09703-048-0	02	1	1506-	●
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-09703-048-0	02	1	1506-		●

86 27 47 48 48 86 48 86 142 86 48 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98202-970-1	01	1	1305-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98085-572-2	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1302-1505		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98085-572-2	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1506-1511		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1512-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1512-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-489-0	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1302-1505		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-489-0	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98226-489-0	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1506-1511		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98226-489-0	01	1	1512-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1512-		●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1302-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB SUSPENSION FULL FLOATING<W16> (C) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE	0-28050-816-0	01	1	1302-		●
48	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1305-	●
48	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1302-1505	●
48	BOLT; CLIP FIX 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1302-1505		●
48	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1506-	●
48	BOLT; CLIP FIX 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1506-		●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28650-825-0	03	1	1302-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) ID=24X2 L=25	1-09700-710-0	02	1	1302-	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	02	1	1302-		●
86	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=44	8-94463-508-0	01	1	1302-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	01	1	1302-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	01	1	1302-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB SUSPENSION FULL FLOATING<W16> (A) ID=24X2 L=25	1-09700-710-0	01	1	1302-	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) B=14	8-98029-678-0	01	1	1302-	●	●
142	CLIP; BAND 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1302-1505	●
142	CLIP; BAND 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1302-1505		●
142	CLIP; BAND 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1506-	●
142	CLIP; BAND 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1506-		●

27 56 103 56 56 103 56 63 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98202-970-1	01	1	1305-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98085-572-2	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1302-1505		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98085-572-2	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1506-1511		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1512-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1512-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-489-0	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1302-1505		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-489-0	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98226-489-0	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1506-1511		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98226-489-0	01	1	1512-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1512-		●
56	CLAMP; HTR HOSE 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=25	8-94233-115-0	02	1	1305-	●
56	CLAMP; HTR HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1302-1505	●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1302-1505		●
56	CLAMP; HTR HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1506-	●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1506-		●
63	HOSE; WATER 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-94134-250-1	01	1	1305-	●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98112-655-0	01	1	1302-1505	●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98112-655-0	01	1	1302-1505	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98112-655-0	01	1	1302-1505		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98112-655-0	01	1	1506-1511	●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98112-655-0	01	1	1506-1511	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98112-655-0	01	1	1506-1511		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98112-655-0	01	1	1512-	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98112-655-0	01	1	1512-		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1302-1505	●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-98113-089-0	01	1	1302-1505	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1302-1505		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1506-1511	●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-98113-089-0	01	1	1506-1511	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1506-1511		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1512-	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1512-		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98113-087-0	01	1	1302-1505	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98113-087-0	01	1	1302-1505		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98113-087-0	01	1	1506-	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98113-087-0	01	1	1506-		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98113-088-0	01	1	1302-1505	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98113-088-0	01	1	1302-1505		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98113-088-0	01	1	1506-	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98113-088-0	01	1	1506-		●
103	CONNECTOR; HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-09703-048-0	02	1	1302-1505	●
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-09703-048-0	02	1	1302-1505		●
103	CONNECTOR; HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-09703-048-0	02	1	1506-	●
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-09703-048-0	02	1	1506-		●

86 27 47 48 86 48 86 48 86 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98202-970-1	01	1	1305-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98085-572-2	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1302-1505		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98085-572-2	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1506-1511		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1512-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-572-2	01	1	1512-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-489-0	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1302-1505	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1302-1505		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98226-489-0	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98226-489-0	01	1	1506-1511	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1506-1511		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98226-489-0	01	1	1512-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98226-489-0	01	1	1512-		●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1302-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB SUSPENSION FULL FLOATING<W16> (C) M8X16 FLANGE	0-28050-816-0	01	1	1302-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE	0-28050-816-0	01	1	1302-		●
48	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1305-	●
48	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1302-1505	●
48	BOLT; CLIP FIX 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1302-1505		●
48	BOLT; CLIP FIX 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1506-	●
48	BOLT; CLIP FIX 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1506-		●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28650-825-0	03	1	1302-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) ID=24X2 L=25	1-09700-710-0	02	1	1302-	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	02	1	1302-		●
86	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=44	8-94463-508-0	01	1	1302-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	01	1	1302-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	01	1	1302-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB SUSPENSION FULL FLOATING<W16> (A) ID=24X2 L=25	1-09700-710-0	01	1	1302-	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) B=14	8-98029-678-0	01	1	1302-	●	●

56 63 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	CLAMP; HTR HOSE 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=25	8-94233-115-0	02	1	1305-	●
56	CLAMP; HTR HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1302-1505	●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1302-1505		●
56	CLAMP; HTR HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1506-	●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1506-		●
63	HOSE; WATER 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-94134-250-1	01	1	1305-	●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98112-655-0	01	1	1302-1505	●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98112-655-0	01	1	1302-1505	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98112-655-0	01	1	1302-1505		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98112-655-0	01	1	1506-1511	●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98112-655-0	01	1	1506-1511	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98112-655-0	01	1	1506-1511		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98112-655-0	01	1	1512-	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98112-655-0	01	1	1512-		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1302-1505	●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-98113-089-0	01	1	1302-1505	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1302-1505		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1506-1511	●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-98113-089-0	01	1	1506-1511	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1506-1511		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1512-	●
63	HOSE; WATER 6HK1-TCS ENG(80L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)	8-98113-089-0	01	1	1512-		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98113-087-0	01	1	1302-1505	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98113-087-0	01	1	1302-1505		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98113-087-0	01	1	1506-	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98113-087-0	01	1	1506-		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98113-088-0	01	1	1302-1505	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98113-088-0	01	1	1302-1505		●
63	HOSE; WATER 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98113-088-0	01	1	1506-	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98113-088-0	01	1	1506-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
