Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11521 - FVZ(LHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#113045) — 26 parça
◀

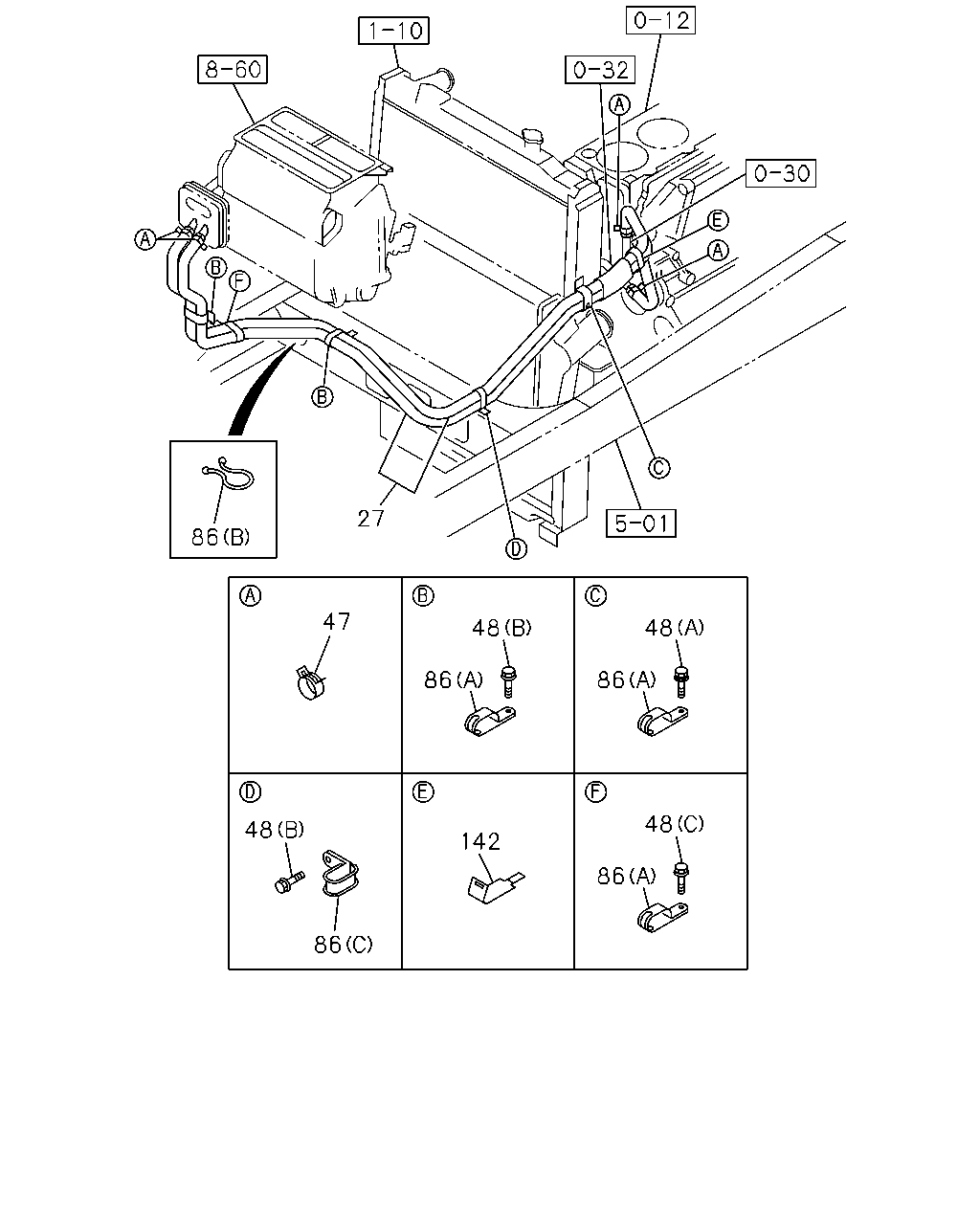

[845A] FIXING (14 parça)
[845A] COMPONENT (12 parça)
▶
86
27
47
48
86
48
86
48
86
142
86
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2>
8-98085-572-2
01
1
1302-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>
8-98085-572-2
01
1
1302-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>
8-98226-489-0
01
1
1302-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>
8-98226-489-0
01
1
1302-
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-97359-141-0
04
1
1302-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE
0-28050-816-0
01
1
1302-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE
0-28650-825-0
03
1
1302-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
1302-
86
CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-94463-508-0
01
1
1302-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
02
1
1302-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
01
1
1302-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
01
1
1302-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-98029-678-0
01
1
1302-
142
CLIP; BAND
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170
8-98166-021-0
01
1
1302-
27
56
56
56
56
103
103
63
63
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2>
8-98085-572-2
01
1
1302-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>
8-98085-572-2
01
1
1302-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>
8-98226-489-0
01
1
1302-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4>
8-98226-489-0
01
1
1302-
56
CLAMP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-97359-141-0
04
1
1302-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (C)
8-98113-089-0
01
1
1302-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)
8-98113-089-0
01
1
1302-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C)
8-98112-655-0
01
1
1302-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (C)
8-98112-655-0
01
1
1302-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98113-087-0
01
1
1302-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98113-088-0
01
1
1302-
103
CONNECTOR; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
9-09703-048-0
02
1
1302-
