Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#113042) — 155 parça

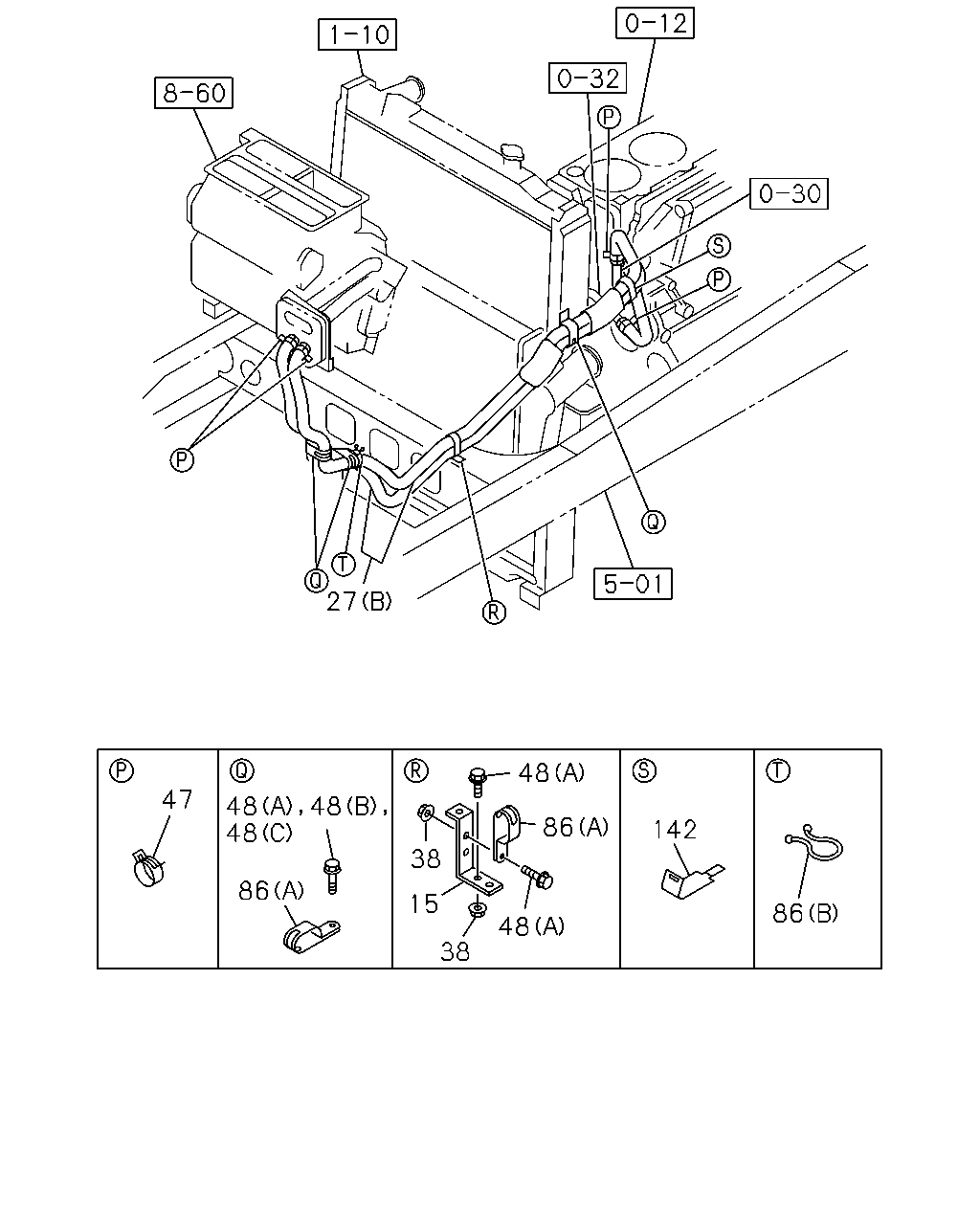

27 86 142 48 86 48 48 48 48 86 38 15 47 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	BRACKET; WATER HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-927-1	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (C)	8-98010-678-3	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98204-960-1	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98207-259-0	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-573-0	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98163-393-0	01	1	1302-
38	NUT; BRKT 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	1302-
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1302-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE	0-28050-816-0	01	1	1302-
48	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1302-
48	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4> (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1302-
48	BOLT; CLIP FIX 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1302-
48	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
48	BOLT; CLIP FIX 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	05	1	1302-1310
48	BOLT; CLIP FIX 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	04	1	1311-
86	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94463-508-0	01	1	1302-
86	CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A) ID=24X2 L=25	1-09700-710-0	02	1	1302-
86	CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4> (A) ID=24X2 L=25	1-09700-710-0	03	1	1302-
86	CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98029-677-0	01	1	1302-
86	CLIP; HTR HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	04	1	1302-
142	CLIP; BAND 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4> L=170	8-98166-021-0	01	1	1302-
142	CLIP; BAND 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1302-

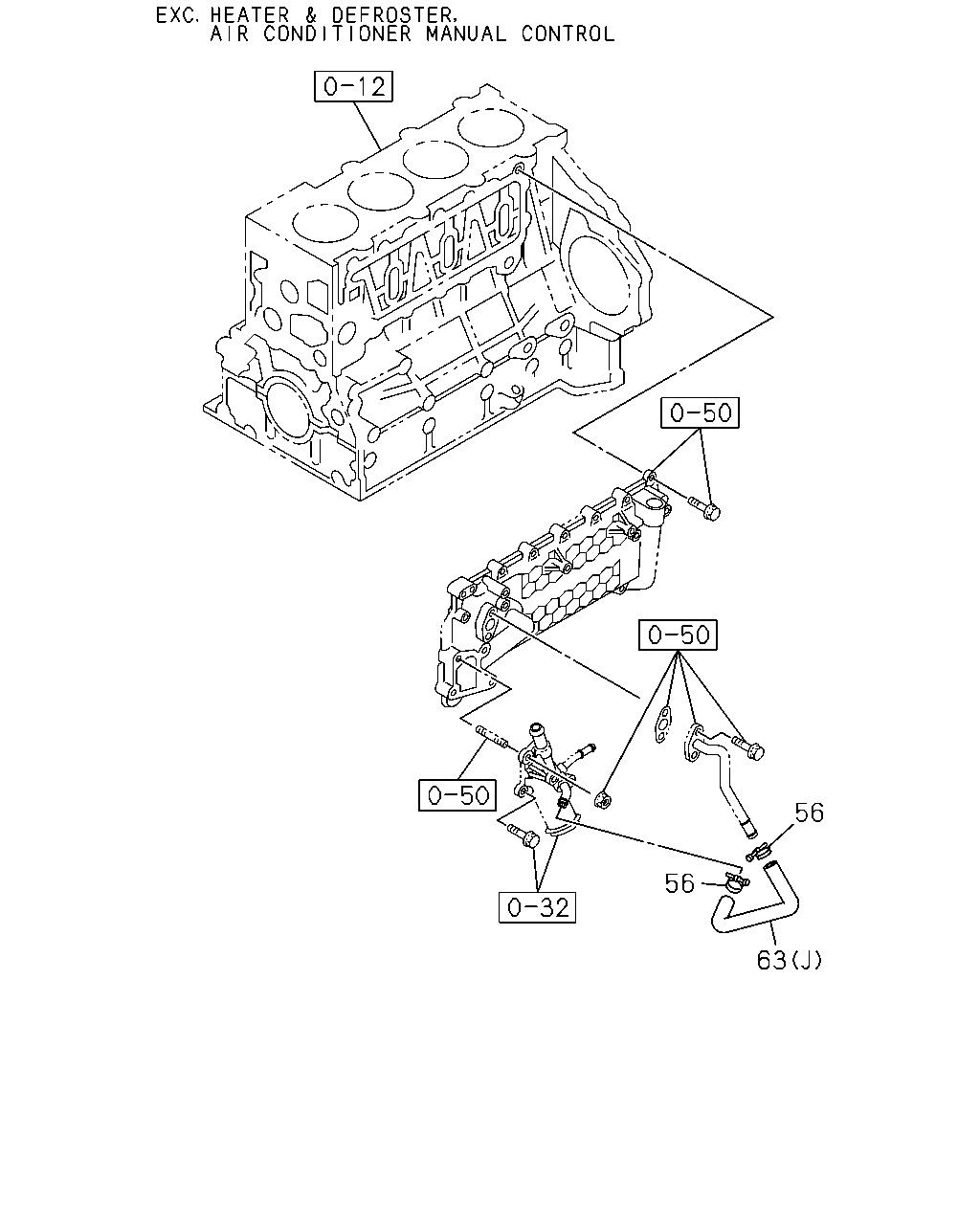

56 56 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
56	CLAMP; HTR HOSE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=25	8-94233-115-0	02	1	1302-
56	CLAMP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> ID=22	8-97359-141-0	04	1	1302-
56	CLAMP; HTR HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=22	8-97359-141-0	04	1	1302-
63	HOSE; WATER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (J)	8-94134-250-1	01	1	1302-
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (G)	8-98117-220-0	01	1	1302-
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (H)	8-98117-221-0	01	1	1302-
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (I)	8-98117-222-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (D)	8-98113-054-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (E)	8-98113-055-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (F)	8-98113-056-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98117-223-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98117-224-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (C)	8-98117-225-0	01	1	1302-

27 63 56 56 56 56 103 103 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (C)	8-98010-678-3	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98204-960-1	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98207-259-0	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-573-0	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98163-393-0	01	1	1302-
56	CLAMP; HTR HOSE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=25	8-94233-115-0	02	1	1302-
56	CLAMP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> ID=22	8-97359-141-0	04	1	1302-
56	CLAMP; HTR HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=22	8-97359-141-0	04	1	1302-
63	HOSE; WATER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (J)	8-94134-250-1	01	1	1302-
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (G)	8-98117-220-0	01	1	1302-
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (H)	8-98117-221-0	01	1	1302-
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (I)	8-98117-222-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (D)	8-98113-054-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (E)	8-98113-055-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (F)	8-98113-056-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98117-223-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98117-224-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (C)	8-98117-225-0	01	1	1302-
103	CONNECTOR; HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4>	9-09703-048-0	02	1	1302-
103	CONNECTOR; HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	9-09703-048-0	02	1	1302-

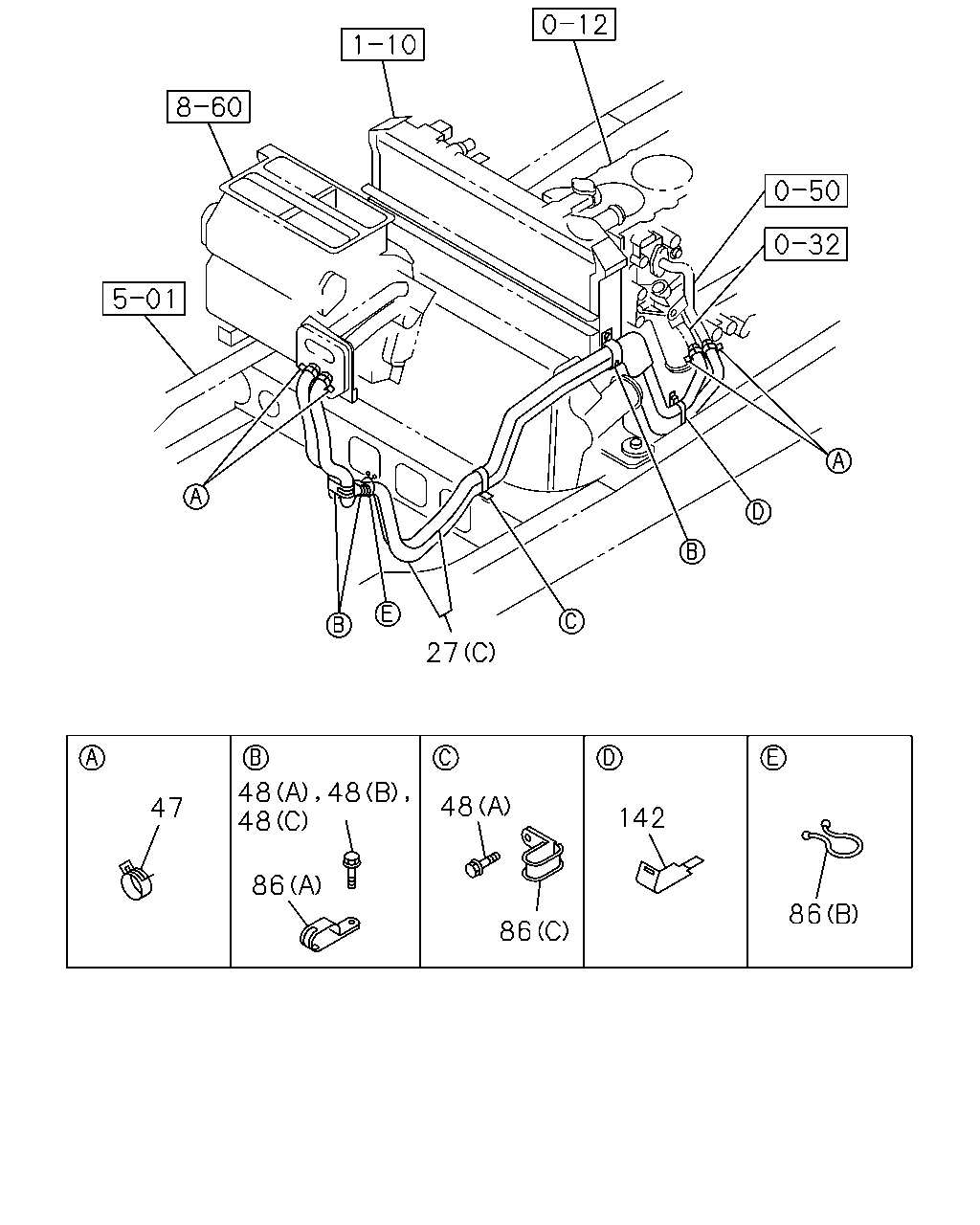

27 86 142 86 48 48 48 48 86 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (C)	8-98010-678-3	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98204-960-1	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98207-259-0	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-573-0	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98163-393-0	01	1	1302-
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1302-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE	0-28050-816-0	01	1	1302-
48	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1302-
48	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4> (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1302-
48	BOLT; CLIP FIX 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1302-
48	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
48	BOLT; CLIP FIX 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	05	1	1302-1310
48	BOLT; CLIP FIX 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	04	1	1311-
86	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94463-508-0	01	1	1302-
86	CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A) ID=24X2 L=25	1-09700-710-0	02	1	1302-
86	CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4> (A) ID=24X2 L=25	1-09700-710-0	03	1	1302-
86	CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98029-677-0	01	1	1302-
86	CLIP; HTR HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	04	1	1302-
142	CLIP; BAND 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4> L=170	8-98166-021-0	01	1	1302-
142	CLIP; BAND 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1302-

27 63 56 56 56 56 103 103 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (C)	8-98010-678-3	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98204-960-1	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98207-259-0	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-573-0	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98163-393-0	01	1	1302-
56	CLAMP; HTR HOSE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=25	8-94233-115-0	02	1	1302-
56	CLAMP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> ID=22	8-97359-141-0	04	1	1302-
56	CLAMP; HTR HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=22	8-97359-141-0	04	1	1302-
63	HOSE; WATER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (J)	8-94134-250-1	01	1	1302-
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (G)	8-98117-220-0	01	1	1302-
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (H)	8-98117-221-0	01	1	1302-
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (I)	8-98117-222-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (D)	8-98113-054-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (E)	8-98113-055-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (F)	8-98113-056-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98117-223-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98117-224-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (C)	8-98117-225-0	01	1	1302-
103	CONNECTOR; HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4>	9-09703-048-0	02	1	1302-
103	CONNECTOR; HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	9-09703-048-0	02	1	1302-

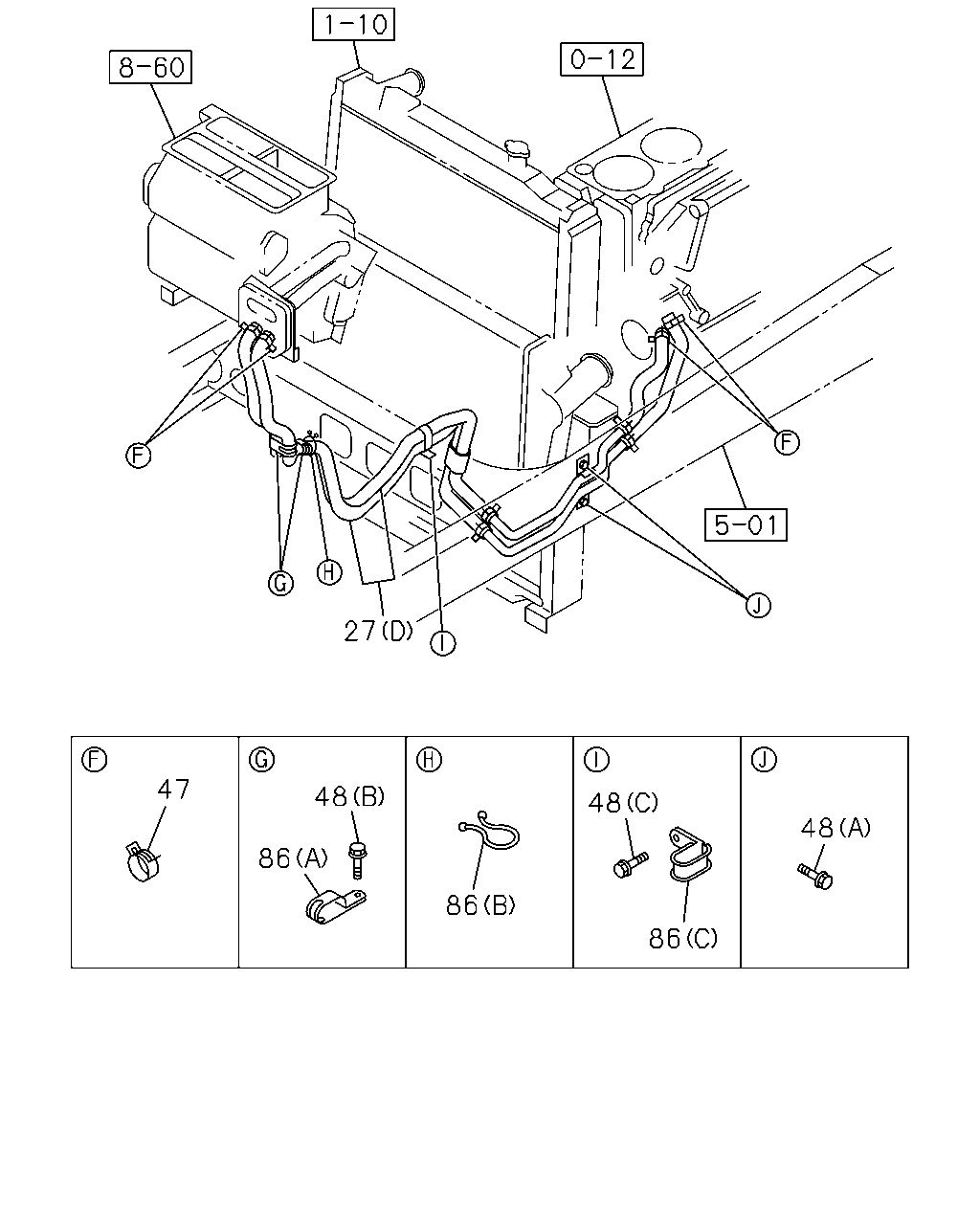

48 86 48 86 48 86 47 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (C)	8-98010-678-3	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98204-960-1	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98207-259-0	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-573-0	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98163-393-0	01	1	1302-
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1302-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE	0-28050-816-0	01	1	1302-
48	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1302-
48	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4> (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1302-
48	BOLT; CLIP FIX 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1302-
48	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
48	BOLT; CLIP FIX 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	05	1	1302-1310
48	BOLT; CLIP FIX 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	04	1	1311-
86	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94463-508-0	01	1	1302-
86	CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A) ID=24X2 L=25	1-09700-710-0	02	1	1302-
86	CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4> (A) ID=24X2 L=25	1-09700-710-0	03	1	1302-
86	CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98029-677-0	01	1	1302-
86	CLIP; HTR HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	04	1	1302-

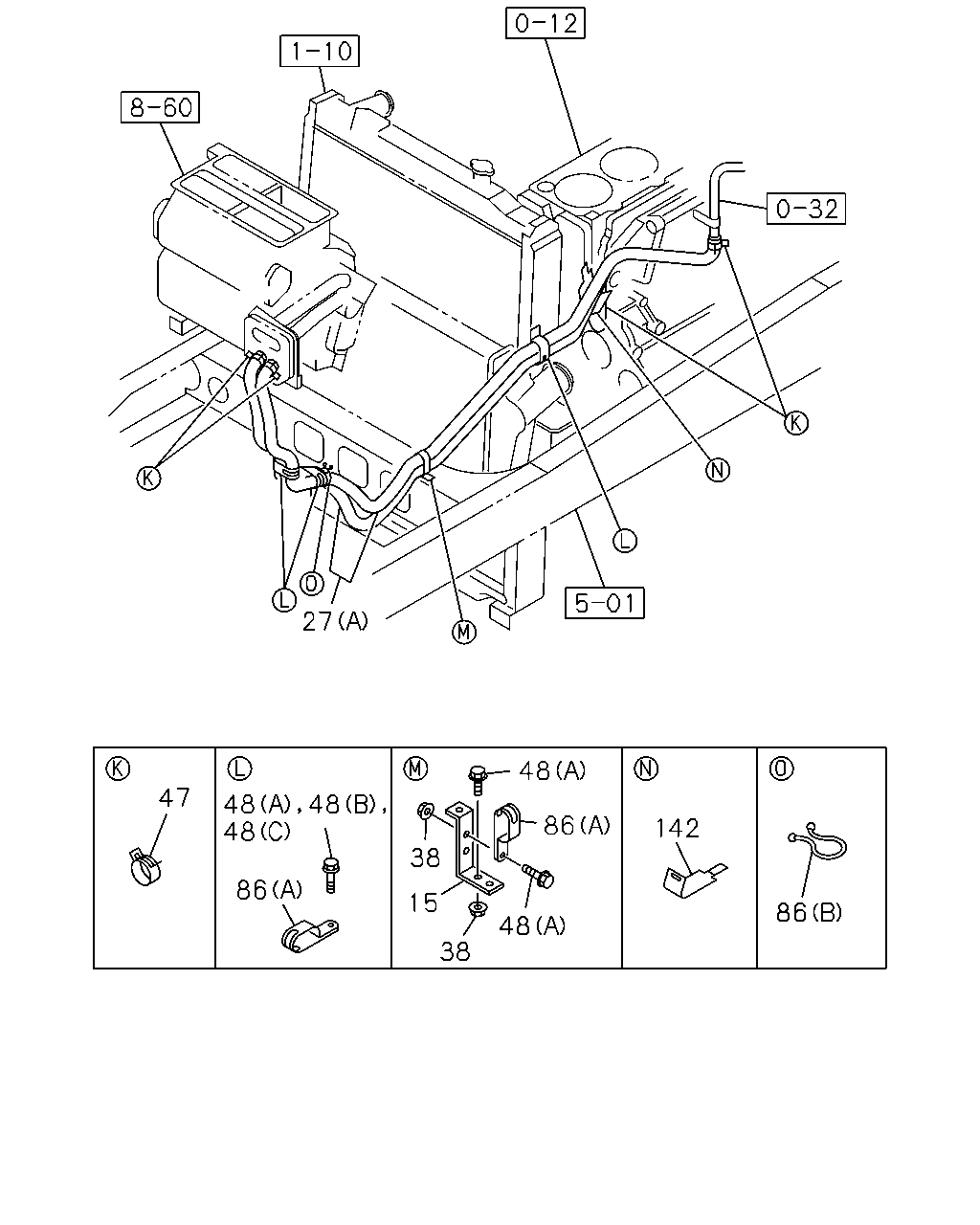

27 86 142 48 86 48 38 15 48 48 47 48 86 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	BRACKET; WATER HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-927-1	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (C)	8-98010-678-3	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98204-960-1	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98207-259-0	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-573-0	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98163-393-0	01	1	1302-
38	NUT; BRKT 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	1302-
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	1302-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE	0-28050-816-0	01	1	1302-
48	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1302-
48	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4> (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1302-
48	BOLT; CLIP FIX 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	1302-
48	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
48	BOLT; CLIP FIX 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	05	1	1302-1310
48	BOLT; CLIP FIX 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	04	1	1311-
86	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94463-508-0	01	1	1302-
86	CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A) ID=24X2 L=25	1-09700-710-0	02	1	1302-
86	CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4> (A) ID=24X2 L=25	1-09700-710-0	03	1	1302-
86	CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98029-677-0	01	1	1302-
86	CLIP; HTR HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	04	1	1302-
142	CLIP; BAND 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4> L=170	8-98166-021-0	01	1	1302-
142	CLIP; BAND 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1302-

27 63 56 56 103 103 56 56 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (C)	8-98010-678-3	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98204-960-1	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO4 SPECIFICATION<NT4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98207-259-0	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)	8-98085-573-0	01	1	1302-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98163-393-0	01	1	1302-
56	CLAMP; HTR HOSE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=25	8-94233-115-0	02	1	1302-
56	CLAMP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> ID=22	8-97359-141-0	04	1	1302-
56	CLAMP; HTR HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=22	8-97359-141-0	04	1	1302-
63	HOSE; WATER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (J)	8-94134-250-1	01	1	1302-
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (G)	8-98117-220-0	01	1	1302-
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (H)	8-98117-221-0	01	1	1302-
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4> (I)	8-98117-222-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (D)	8-98113-054-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (E)	8-98113-055-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (F)	8-98113-056-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)	8-98117-223-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)	8-98117-224-0	01	1	1302-
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (C)	8-98117-225-0	01	1	1302-
103	CONNECTOR; HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. EURO4 SPECIFICATION<NT4>	9-09703-048-0	02	1	1302-
103	CONNECTOR; HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	9-09703-048-0	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
