8-28 — CHASSIS ELECTRICAL (#113021) — 56 parça
çizim 329955
531
BalonParca AdiParca NoAdetTipApplied Date
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1302-1402
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403-
çizim 330224
88 88 88 450 40 79
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98174-365-0 01 1 1302-
79 BOLT; MAG VLV
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 02 1 1302-
88 CONNECTOR; MAG VLV
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1302-
450 VALVE; MAG
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-82563-871-2 01 1 1302-

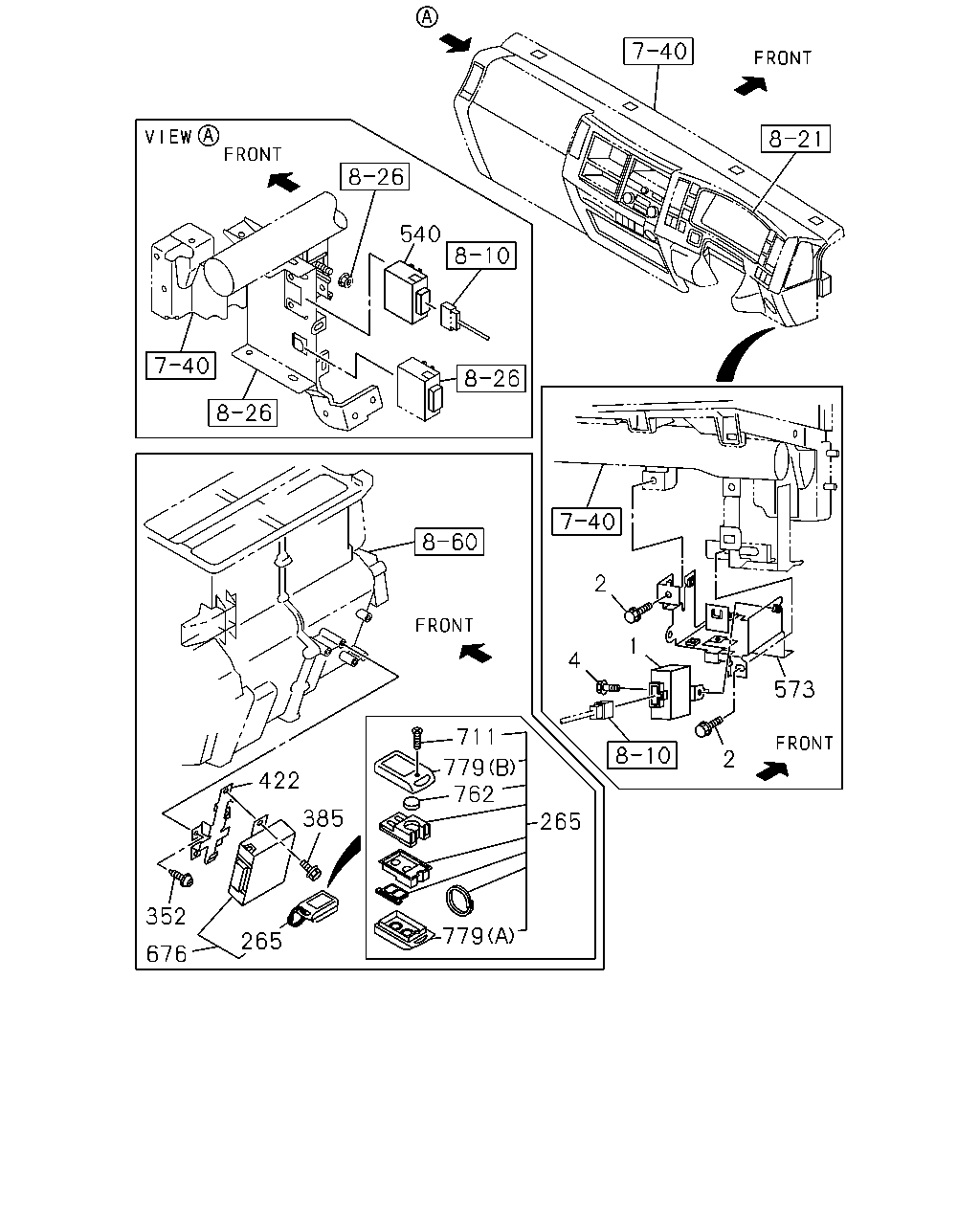

çizim 330280
540 422 385 352 676 265 779 265 762 711 779 2 4 2 1 573
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 8-98025-533-1 01 1 1302-
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1302-
4 SCREW; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 01 1 1302-
265 TRANSMITTER ASM; AUTO DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98218-236-0 02 1 1302-
352 SCREW; BRKT
REMOTE CONT DOOR LOCK<6NF> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1302-
385 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1302-
422 BRACKET; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 		8-98055-281-1 01 1 1302-
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 1302-1308
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98233-976-0 01 1 1309-
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 1302-
676 CONTROL UNIT; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> 		8-98218-231-0 01 1 1302-
711 SCREW; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98218-239-0 02 1 1302-
762 BATTERY
REMOTE CONT DOOR LOCK<6NF> 		8-98078-061-0 02 1 1302-
779 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> (A) 		8-98218-240-0 02 1 1302-
779 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> (B) 		8-98218-243-0 02 1 1302-
çizim 330317
36 35 33 34 41 34 39 424 34 34 261 34 34 34
BalonParca AdiParca NoAdetTipApplied Date
33 VALVE; MAG,PTO CONT
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> 		1-82563-871-2 01 1 1302-
33 VALVE; MAG,PTO CONT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) 		1-82563-871-2 01 1 1302-
33 VALVE; MAG,PTO CONT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 1302-
34 CONNECTOR; MAG VLV,INL PORT
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (E) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1302-
34 CONNECTOR; MAG VLV,INL PORT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1302-
34 CONNECTOR; MAG VLV,INL PORT
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1302-
34 CONNECTOR; MAG VLV,INL PORT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1302-
34 CONNECTOR; MAG VLV,INL PORT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1302-
34 CONNECTOR; MAG VLV,INL PORT
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1302-
34 CONNECTOR; MAG VLV,INL PORT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1302-
34 CONNECTOR; MAG VLV,INL PORT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1302-
34 CONNECTOR; MAG VLV,INL PORT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1302-
34 CONNECTOR; MAG VLV,INL PORT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
34 CONNECTOR; MAG VLV,INL PORT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
35 BRACKET; MAG VLV,PTO CONT
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> 		8-98154-633-0 01 1 1302-
35 BRACKET; MAG VLV,PTO CONT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) 		8-98154-633-0 01 1 1302-
35 BRACKET; MAG VLV,PTO CONT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98154-633-0 01 1 1302-
36 BOLT; MAG VLV,PTO CONT
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 1302-
36 BOLT; MAG VLV,PTO CONT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M8X20 FLANGE 		0-28650-820-0 02 1 1302-
36 BOLT; MAG VLV,PTO CONT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 02 1 1302-
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 1302-
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 1302-
261 PLUG; MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4 		9-99204-513-0 01 1 1302-
261 PLUG; MAG VLV
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1302-
424 ADAPTER
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1302-
424 ADAPTER
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1302-

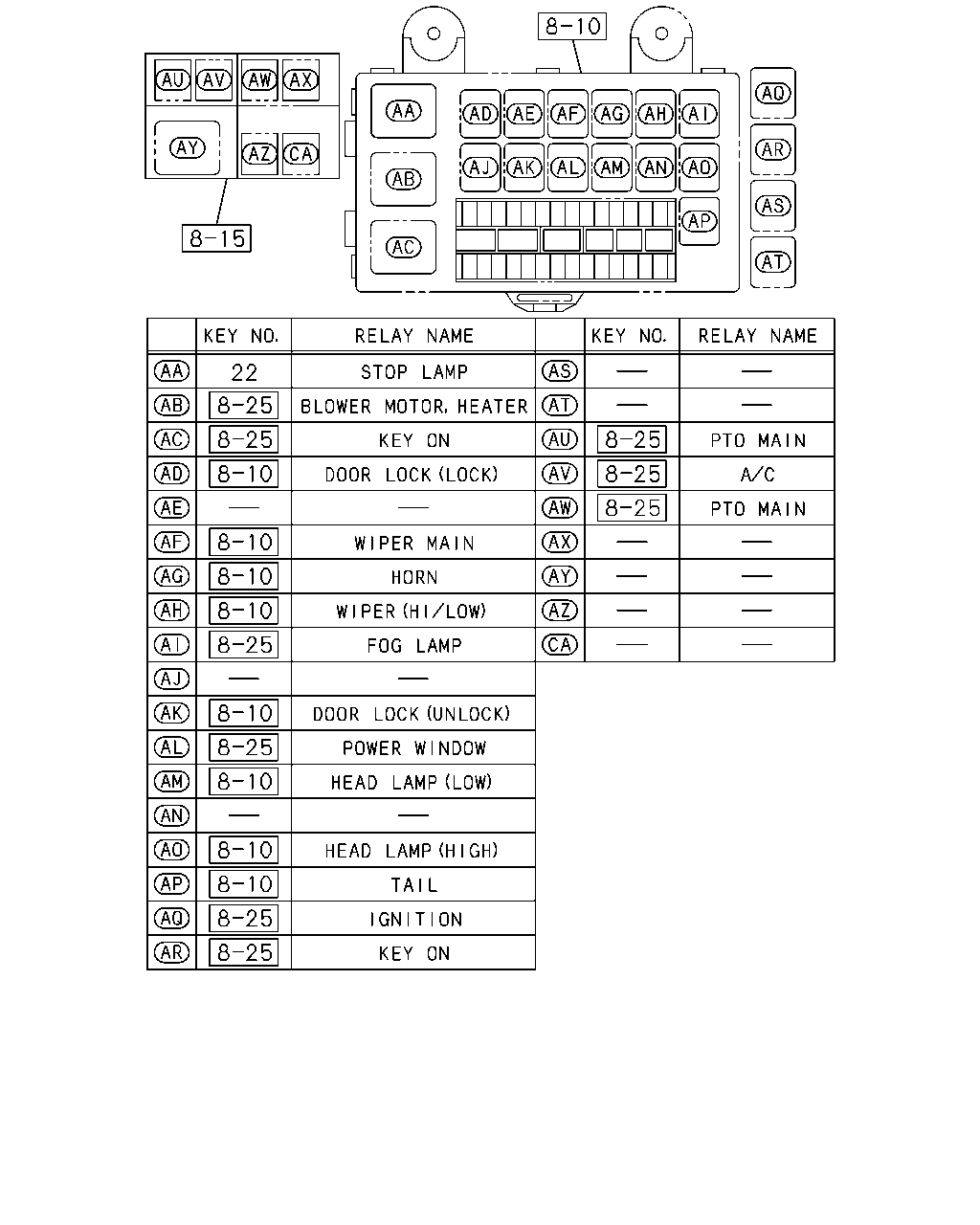

çizim 332527
22
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302-
çizim 332529
584 744 449
BalonParca AdiParca NoAdetTipApplied Date
449 SWITCH; OIL PRESS,CLUTCH
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> 		1-82410-143-1 01 1 1302-
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1302-
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1302-
çizim 332533
51 50 44 51 45 51
BalonParca AdiParca NoAdetTipApplied Date
44 HORN; HIGH NOTE 8-98022-022-0 01 1 1302-
45 HORN; LOW NOTE 8-98022-023-0 01 1 1302-
50 BRACKET; HORN 8-97613-300-2 01 1 1302-
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1302-
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1302-
