Sayfa 8-28 - Isuzu EPC

531

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	531	RELAY; MAIN 24V 30A MITUBA	8-97238-540-0	01	1	1302-1402
	531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-

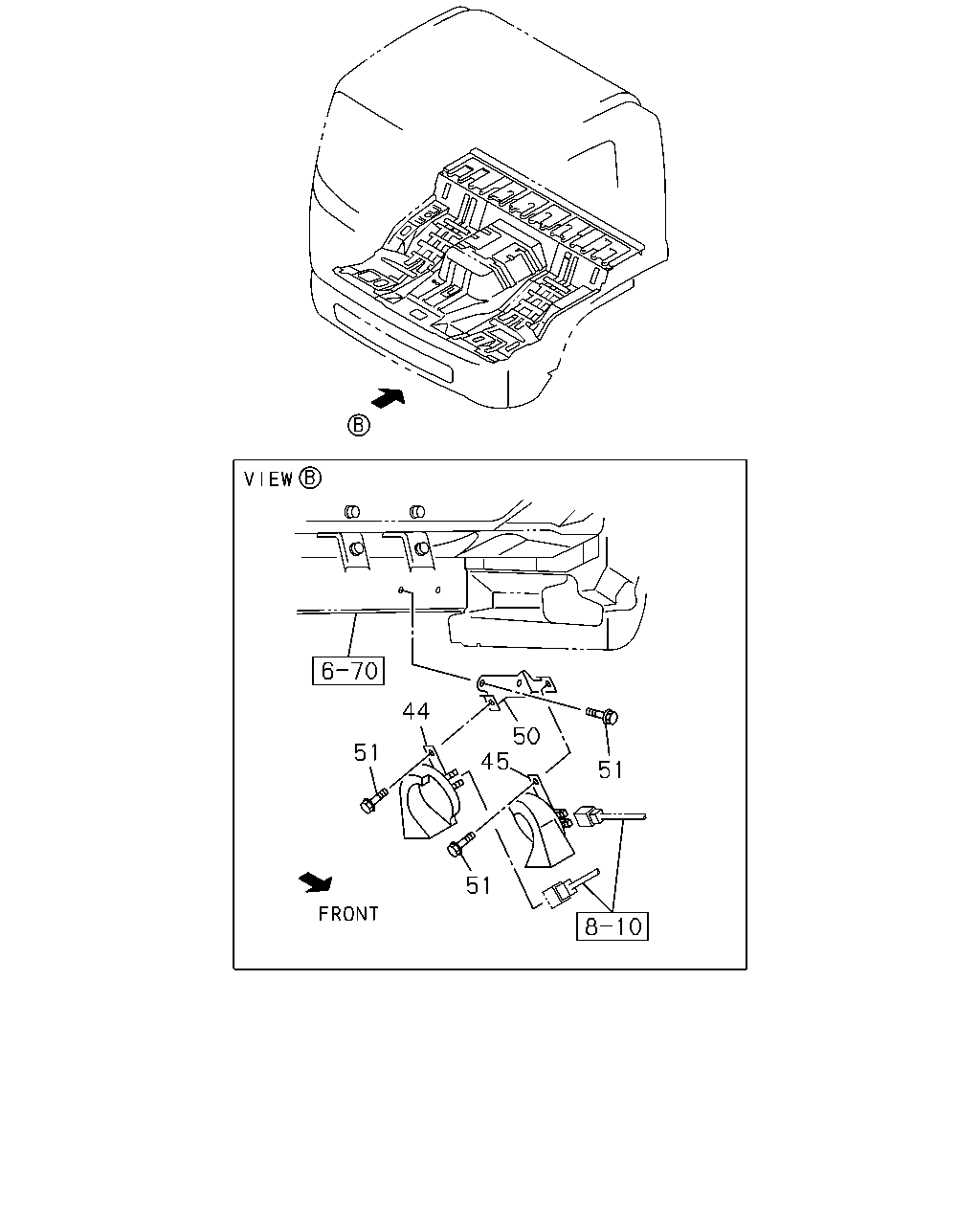

44 51 50 45 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-98022-022-0	01	1	1302-
45	HORN; LOW NOTE	8-98022-023-0	01	1	1302-
50	BRACKET; HORN	8-97616-529-2	01	1	1302-
51	BOLT; HORN TO BRKT DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1302-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1302-
51	BOLT; HORN TO BRKT EXC. DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1302-

40 88 450 88 88 79 89 34 34 90 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) EXC. BRAKE REGULATION ADR(TDU) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-1308
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-1308
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1309-
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1309-
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) BRAKE REGULATION ADR(TDU) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1302-1308
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1309-
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. BRAKE REGULATION ADR(TDU) (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1308
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) EXC. BRAKE REGULATION ADR(TDU) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1308
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1308
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1309-
40	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98174-365-0	01	1	1302-
79	BOLT; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	1302-
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1302-
89	VALVE; MAG,DIFF LOCK	8-97641-594-0	01	1	1302-
90	BOLT; MAG VLV M8X30 FLANGE	0-28650-830-0	02	1	1302-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1302-
450	VALVE; MAG ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-82563-871-2	01	1	1302-

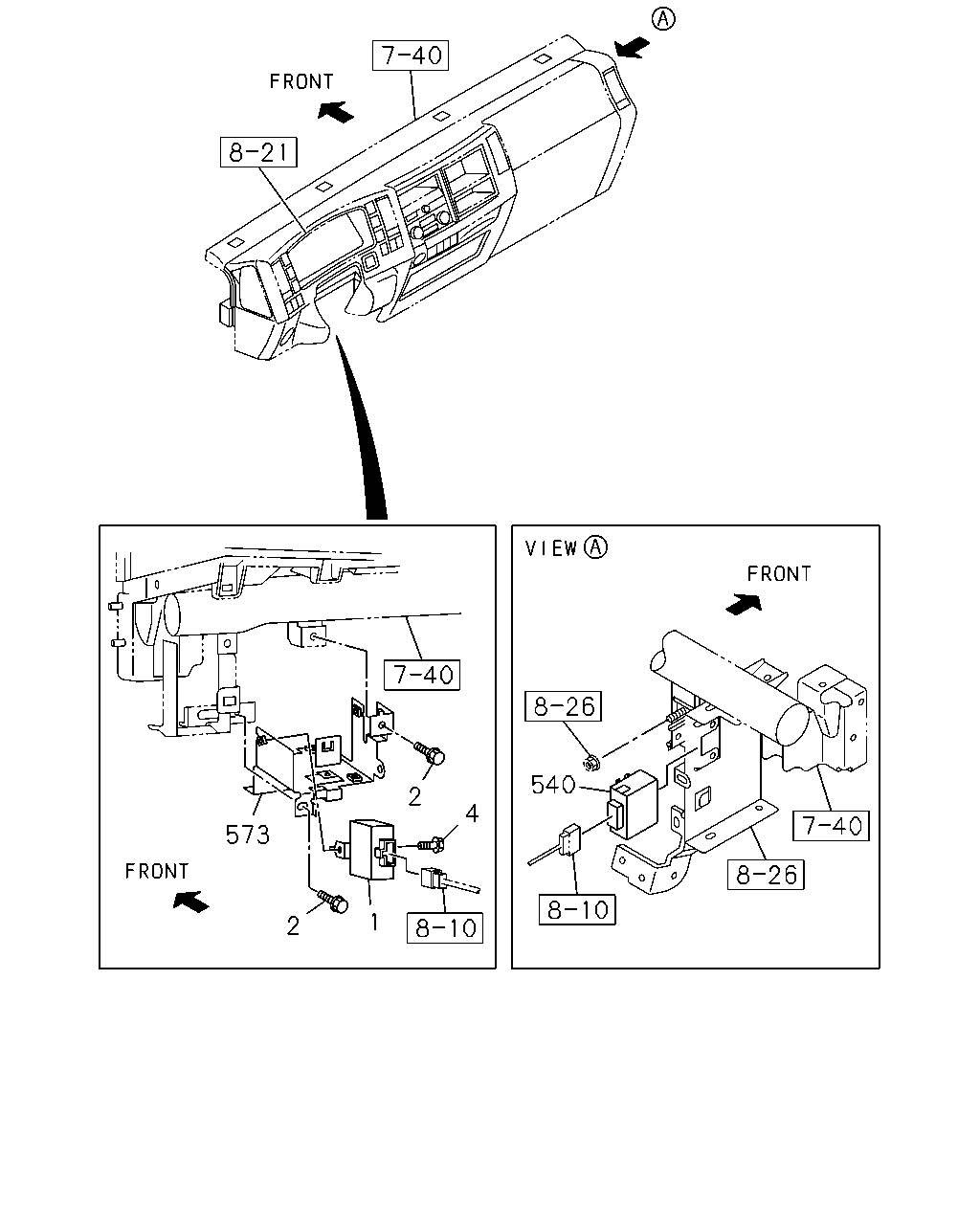

573 2 1 2 4 540

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-98025-533-1	01	1	1302-
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1302-
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	1302-
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	1302-1308
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-
573	BRACKET; FLASHER UNIT	8-97616-351-3	01	1	1302-

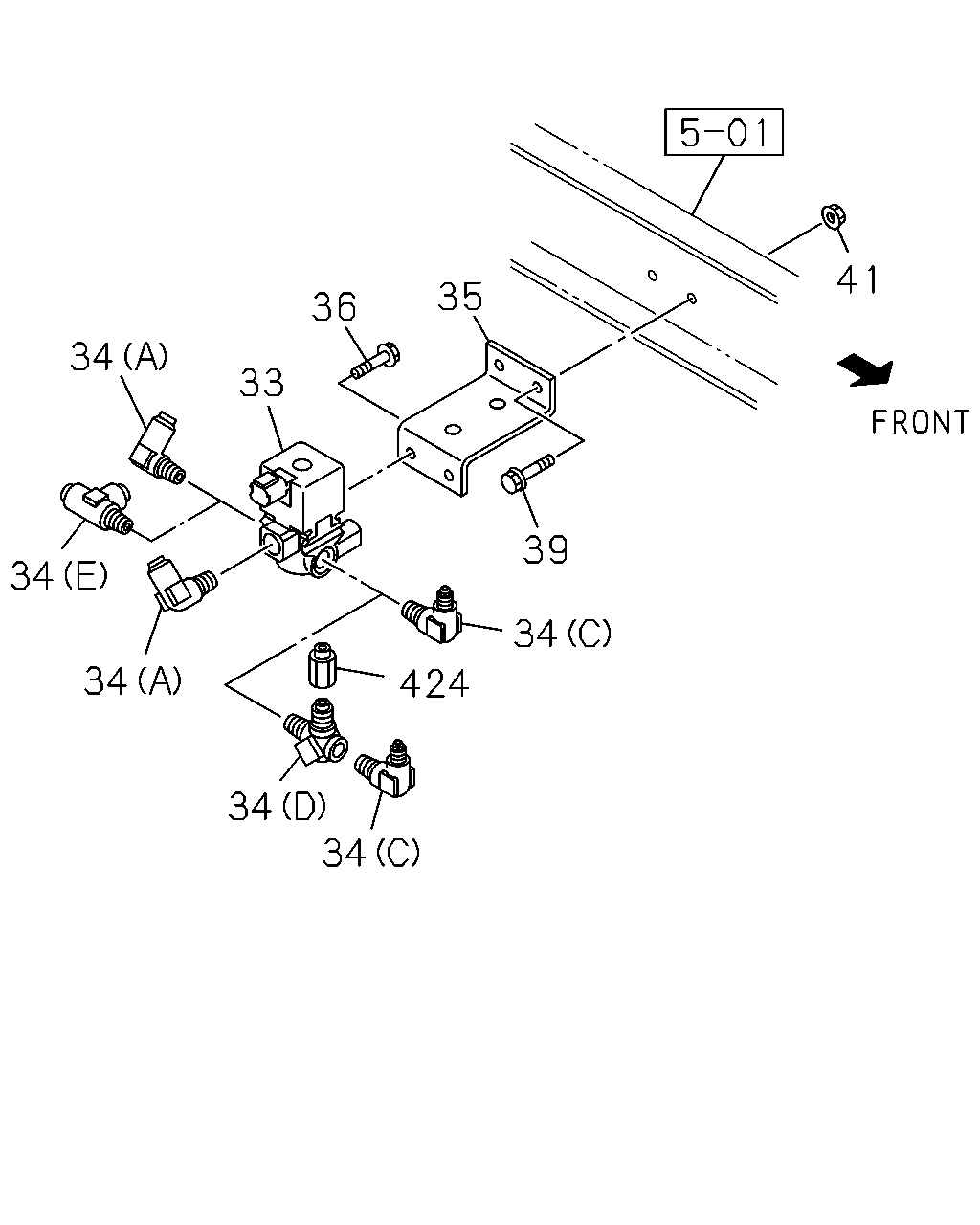

41 35 36 33 34 34 34 34 34 424 39 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>	1-82563-871-2	01	1	1302-1308
33	VALVE; MAG,PTO CONT ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) EXC. BRAKE REGULATION ADR(TDU)	1-82563-871-2	01	1	1302-1308
33	VALVE; MAG,PTO CONT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP>	1-82563-871-2	01	1	1302-1308
33	VALVE; MAG,PTO CONT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM)	1-82563-871-2	01	1	1309-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) EXC. BRAKE REGULATION ADR(TDU) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-1308
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-1308
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1309-
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1309-
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) BRAKE REGULATION ADR(TDU) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1302-1308
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) BRAKE REGULATION ADR(TDU) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1309-
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. BRAKE REGULATION ADR(TDU) (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1308
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) EXC. BRAKE REGULATION ADR(TDU) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1308
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1308
34	CONNECTOR; MAG VLV,INL PORT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1309-
35	BRACKET; MAG VLV,PTO CONT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP>	8-98154-633-0	01	1	1302-1308
35	BRACKET; MAG VLV,PTO CONT ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) EXC. BRAKE REGULATION ADR(TDU)	8-98154-633-0	01	1	1302-1308
35	BRACKET; MAG VLV,PTO CONT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP>	8-98154-633-0	01	1	1302-1308
35	BRACKET; MAG VLV,PTO CONT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM)	8-98154-633-0	01	1	1309-
36	BOLT; MAG VLV,PTO CONT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	02	1	1302-1308
36	BOLT; MAG VLV,PTO CONT ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) EXC. BRAKE REGULATION ADR(TDU) M8X20 FLANGE	0-28650-820-0	02	1	1302-1308
36	BOLT; MAG VLV,PTO CONT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	02	1	1302-1308
36	BOLT; MAG VLV,PTO CONT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M8X20 FLANGE	0-28650-820-0	02	1	1309-
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	1302-
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	1302-
424	ADAPTER ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) EXC. BRAKE REGULATION ADR(TDU) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1302-1308
424	ADAPTER ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1302-1308
424	ADAPTER ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1309-
424	ADAPTER ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1309-

449 744 584

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
449	SWITCH; OIL PRESS,CLUTCH H.S.A SYSTEM<6EP>	1-82410-143-1	01	1	1302-
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1302-
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1302-

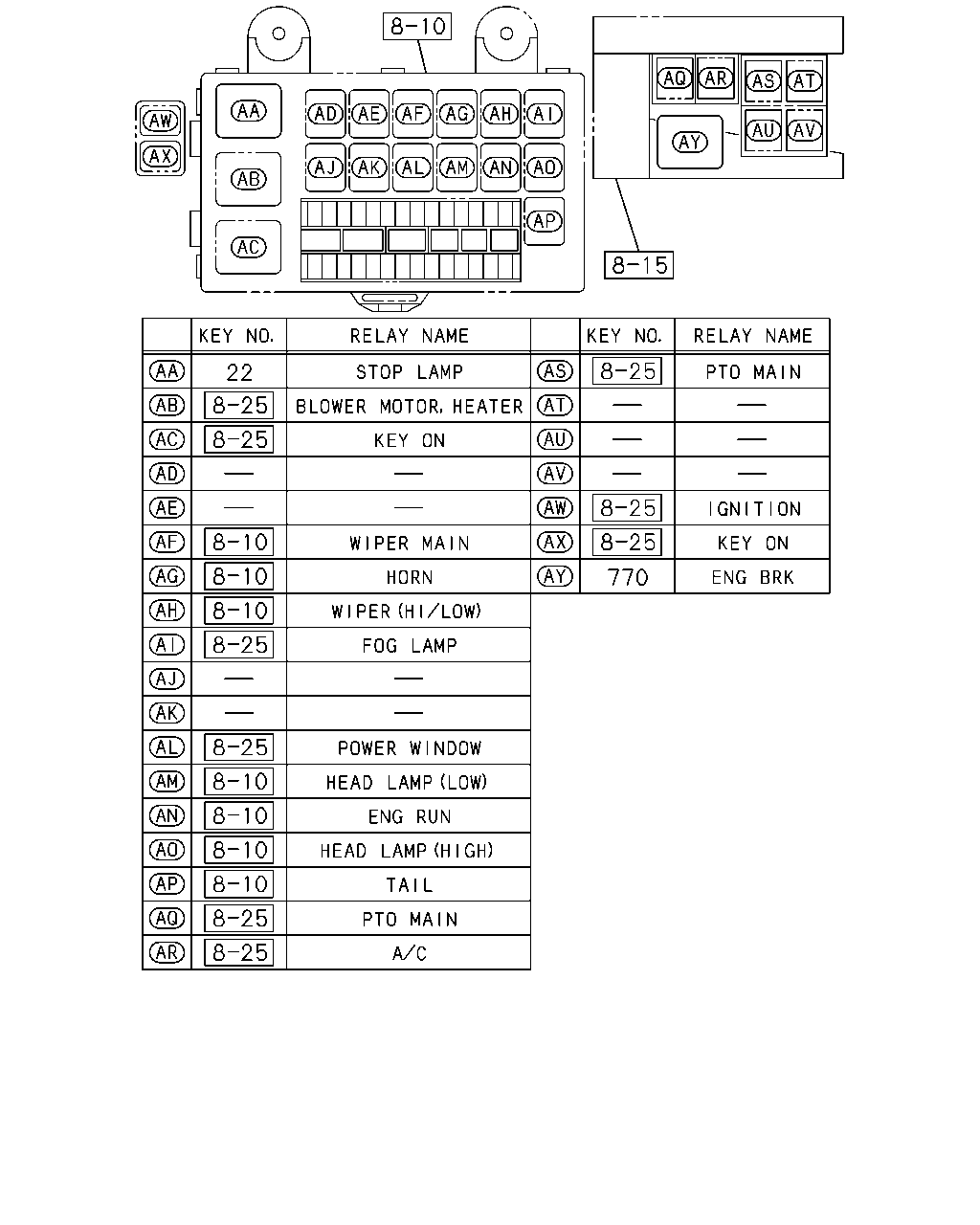

22 770

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1302-
	770	RELAY; ENG BRK ANTI LOCK BRAKE<JE5> 24V 10A PANASONIC	8-97173-035-1	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
