◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#11302) — 272 parça

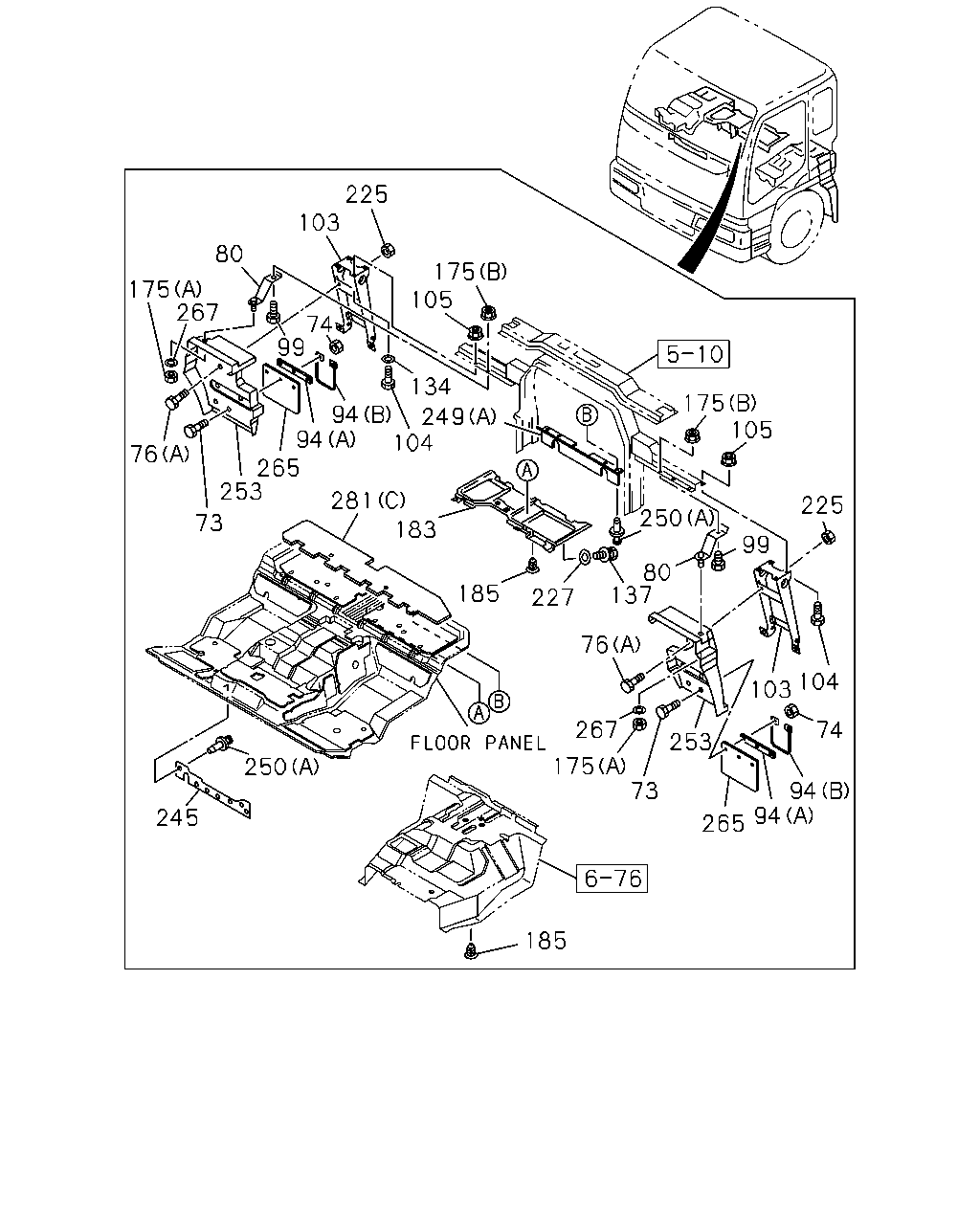

çizim 20060
265 94 94 74 104 225 99 80 137 76 267 175 73 253 103 185 245 250 185 227 183 281 265 253 73 76 94 94 99 74 267 175 80 103 225 175 105 134 249 104 175 105 250
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0106-
73 BOLT; MUD COVER BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 05 1 0106-0512
73 BOLT; MUD COVER BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28250-816-0 03 1 0601-
73 BOLT; MUD COVER BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 03 1 0106-0512
73 BOLT; MUD COVER BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28250-816-0 05 1 0601-
73 BOLT; MUD COVER BRKT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 08 1 0106-0512
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 08 1 0106-0512
73 BOLT; MUD COVER BRKT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28250-816-0 08 1 0601-
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28250-816-0 08 1 0601-
74 NUT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 0106-0602
74 NUT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 01 1 0603-
74 NUT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 0106-0602
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 0106-0602
74 NUT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 02 1 0603-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 02 1 0603-
74 NUT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 0106-0602
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0106-0602
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0106-0602
74 NUT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 03 1 0603-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0106-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0106-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0106-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0106-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0106-
94 RETAINER; FLAP RUBBER
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-79931-194-0 01 1 0106-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 0106-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 01 1 0106-0512
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 01 1 0601-
103 BRACKET ASM; RR MUD FLAP 1-79931-347-1 01 1 0106-
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 01 1 0106-
104 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 06 1 0106-0512
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 06 1 0601-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 06 1 0106-0602
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0603-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0106-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0106-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0106-0602
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0106-0602
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 01 1 0603-
183 INSULATOR; HEAT,BED PAN 1-71907-539-4 01 1 0106-
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-0402
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 19 1 0304-0402
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 12 1 0106-0303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0304-0402
185 CLIP; HEAT INSULATOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 08 1 0304-0402
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 16 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 26 1 0106-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 27 1 0203-0303
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 06 1 0304-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0304-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0401-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0106-0602
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0603-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0106-
245 RUBBER; SHUTTER,RAD 1-79947-023-0 01 1 0106-0301
245 RUBBER; SHUTTER,RAD 1-79937-949-1 01 1 0302-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0106-
249 RUBBER; SHUTTER
(C) 		1-79937-979-1 01 1 0106-
249 RUBBER; SHUTTER
(B) 		1-79937-981-1 01 1 0106-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0106-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0106-
249 RUBBER; SHUTTER
(F) 		1-79937-989-1 01 1 0106-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 12 1 0106-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0106-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0106-
253 GUARD; MUD 1-79931-067-7 01 1 0106-
253 GUARD; MUD 1-79931-065-7 01 1 0106-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0106-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0106-0605
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0606-
281 INSULATOR; NOISE
(A) 		1-71907-167-0 01 1 0106-0303
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-71907-167-0 01 1 0304-0402
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0106-0303
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-71907-171-2 01 1 0304-0402
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0106-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0106-

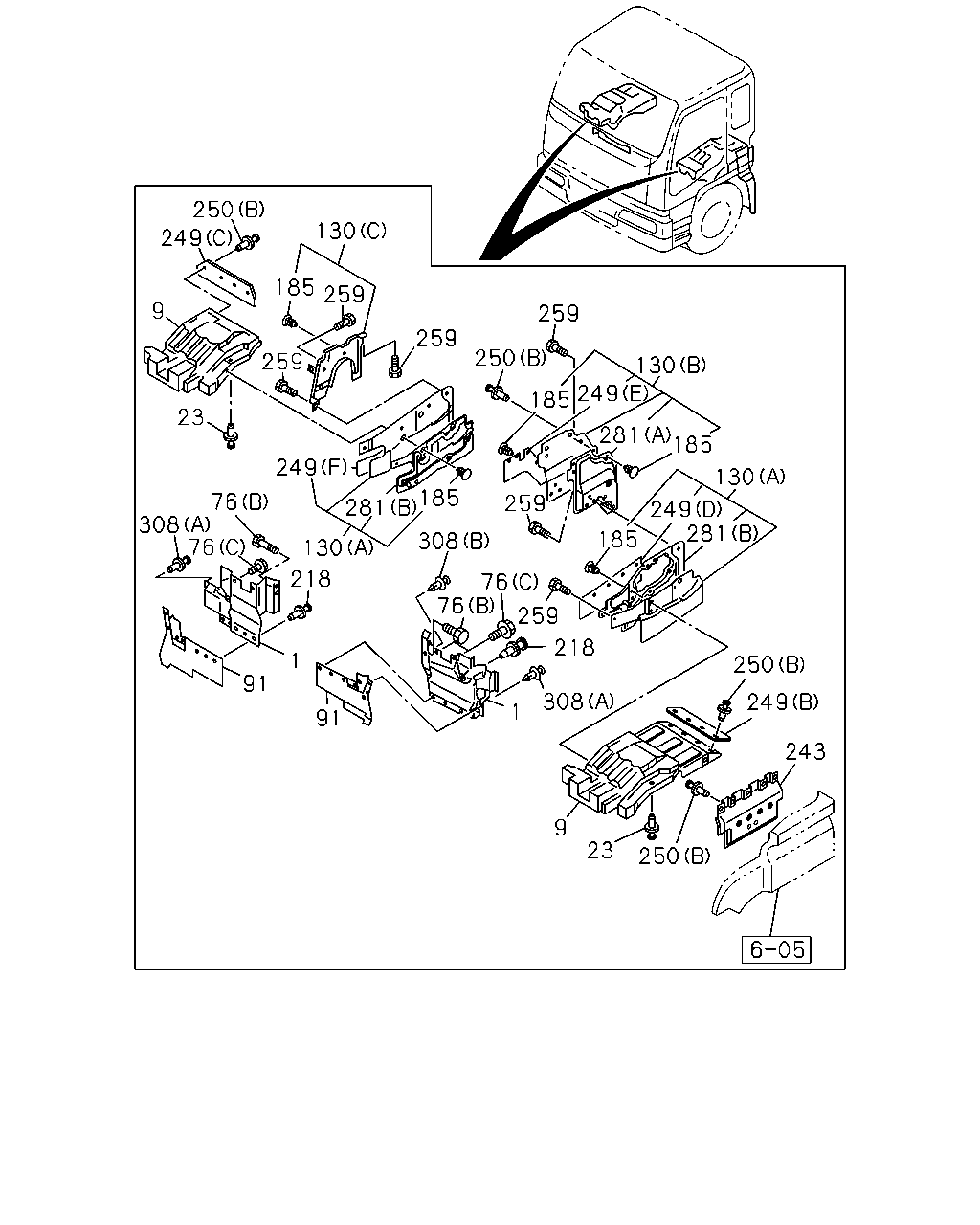

çizim 20129
250 23 9 1 308 218 259 76 76 185 249 281 130 250 249 243 91 1 91 218 130 308 185 281 249 76 308 76 9 23 259 259 130 185 250 249 259 250 259 185 249 259 281 130 185
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0106-
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0106-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0106-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0106-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0106-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0106-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0106-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0106-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0106-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0106-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 		1-79937-943-1 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(C) 		1-79937-943-1 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-79947-028-0 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(A) 		1-79947-028-2 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-79947-029-0 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(B) 		1-79947-029-2 01 1 0403-
130 PANEL; SHUTTER NOISE
(A) 		1-79937-960-2 01 1 0106-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-79937-960-2 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(B) 		1-79937-993-1 01 1 0106-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-79937-993-1 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(C) 		1-79937-945-1 01 1 0106-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 		1-79937-945-1 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(A) 		1-79937-990-3 01 1 0106-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (E) 		1-53192-790-5 01 1 0106-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (E) 		1-53192-782-7 01 1 0106-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (E) 		1-53193-200-3 01 1 0106-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (E) 		1-53193-207-4 01 1 0106-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-332-2 01 1 0106-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9>,RADIATOR HEAVY DUTY<V05> (D) 		1-53193-333-2 01 1 0106-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) RADIATOR HEAVY DUTY<V05> EXC. ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-686-0 01 1 0106-
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-329-1 01 1 0106-
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-328-1 01 1 0106-
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-0402
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 19 1 0304-0402
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 12 1 0106-0303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0304-0402
185 CLIP; HEAT INSULATOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 08 1 0304-0402
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 16 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 26 1 0106-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 27 1 0203-0303
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 06 1 0304-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0304-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0401-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0106-0511
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0512-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0106-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0106-
249 RUBBER; SHUTTER
(C) 		1-79937-979-1 01 1 0106-
249 RUBBER; SHUTTER
(B) 		1-79937-981-1 01 1 0106-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0106-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0106-
249 RUBBER; SHUTTER
(F) 		1-79937-989-1 01 1 0106-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 12 1 0106-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0106-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0106-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0106-
281 INSULATOR; NOISE
(A) 		1-71907-167-0 01 1 0106-0303
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-71907-167-0 01 1 0304-0402
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0106-0303
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-71907-171-2 01 1 0304-0402
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0106-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0106-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0106-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0106-

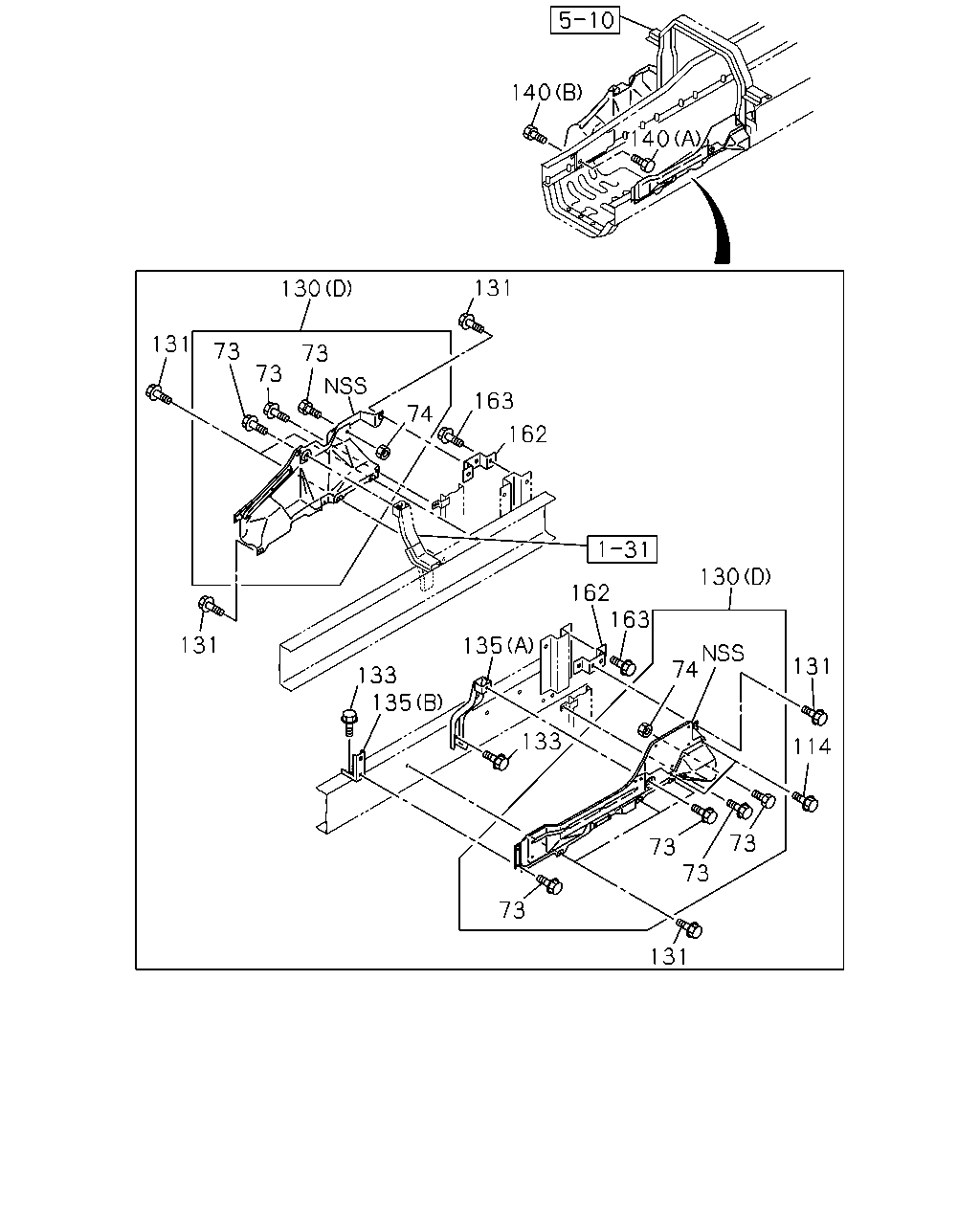

çizim 74605
131 73 73 73 74 163 162 131 130 140 140 130 131 114 73 73 73 131 73 133 163 74 162 135 135 133 131
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0106-
73 BOLT; MUD COVER BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 05 1 0106-0512
73 BOLT; MUD COVER BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28250-816-0 03 1 0601-
73 BOLT; MUD COVER BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 03 1 0106-0512
73 BOLT; MUD COVER BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28250-816-0 05 1 0601-
73 BOLT; MUD COVER BRKT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 08 1 0106-0512
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 08 1 0106-0512
73 BOLT; MUD COVER BRKT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28250-816-0 08 1 0601-
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28250-816-0 08 1 0601-
74 NUT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 0106-0602
74 NUT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 01 1 0603-
74 NUT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 0106-0602
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 0106-0602
74 NUT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 02 1 0603-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 02 1 0603-
74 NUT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 0106-0602
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0106-0602
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0106-0602
74 NUT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 03 1 0603-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
114 BOLT
M8X20 FLANGE 		0-28680-820-0 05 1 0106-0512
114 BOLT
M8X20 FLANGE 		0-28650-820-0 05 1 0601-
114 BOLT
RADIATOR HEAVY DUTY<V05> M8X22 W/LK&PL WASHER 		1-09030-042-0 04 1 0106-
114 BOLT
EXC. RADIATOR HEAVY DUTY<V05> M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0106-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 		1-79937-943-1 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(C) 		1-79937-943-1 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-79947-028-0 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(A) 		1-79947-028-2 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-79947-029-0 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(B) 		1-79947-029-2 01 1 0403-
130 PANEL; SHUTTER NOISE
(A) 		1-79937-960-2 01 1 0106-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-79937-960-2 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(B) 		1-79937-993-1 01 1 0106-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-79937-993-1 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(C) 		1-79937-945-1 01 1 0106-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 		1-79937-945-1 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(A) 		1-79937-990-3 01 1 0106-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (E) 		1-53192-790-5 01 1 0106-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (E) 		1-53192-782-7 01 1 0106-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (E) 		1-53193-200-3 01 1 0106-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (E) 		1-53193-207-4 01 1 0106-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-332-2 01 1 0106-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9>,RADIATOR HEAVY DUTY<V05> (D) 		1-53193-333-2 01 1 0106-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) RADIATOR HEAVY DUTY<V05> EXC. ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-686-0 01 1 0106-
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-329-1 01 1 0106-
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-328-1 01 1 0106-
131 BOLT; PANEL
RADIATOR HEAVY DUTY<V05> M8X25 W/LK&PL WASHER 		1-09030-074-0 07 1 0106-
131 BOLT; PANEL
EXC. RADIATOR HEAVY DUTY<V05> M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0106-
133 BOLT; FRAME
RADIATOR HEAVY DUTY<V05> M8X25 FLANGE 		0-28680-825-0 02 1 0106-0512
133 BOLT; FRAME
RADIATOR HEAVY DUTY<V05> M8X25 FLANGE 		0-28650-825-0 02 1 0601-
133 BOLT; FRAME
EXC. RADIATOR HEAVY DUTY<V05> M8X25 FLANGE 		0-28680-825-0 04 1 0106-0512
133 BOLT; FRAME
EXC. RADIATOR HEAVY DUTY<V05> M8X25 FLANGE 		0-28650-825-0 04 1 0601-
135 BRACKET; SIDE PANEL
ELECTRONIC GOV RED3(KG5) (A) 		1-53441-598-0 01 1 0106-0410
135 BRACKET; SIDE PANEL
(A) 		1-53441-598-1 01 1 0411-
135 BRACKET; SIDE PANEL
EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-53441-508-0 01 1 0106-0410
135 BRACKET; SIDE PANEL
EXC. RADIATOR HEAVY DUTY<V05> (B) 		1-53441-507-0 01 1 0106-
140 BOLT; SIDE PANEL
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0512
140 BOLT; SIDE PANEL
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
140 BOLT; SIDE PANEL
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
140 BOLT; SIDE PANEL
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
162 BRACKET 1-53441-520-0 02 1 0106-
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0106-0512
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601-

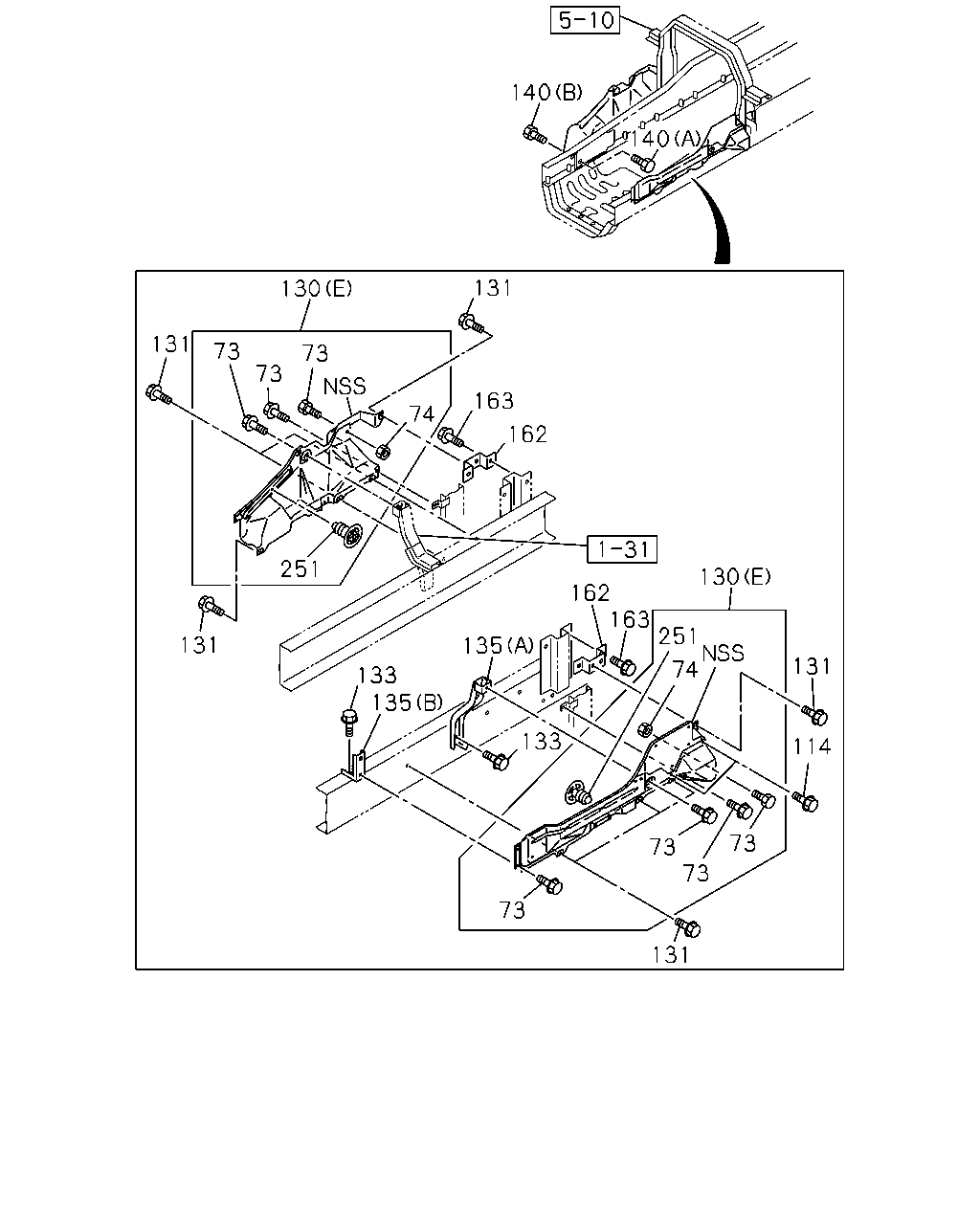

çizim 74692
131 73 73 114 131 130 251 74 163 162 133 73 73 135 135 133 251 131 73 130 73 73 131 131 163 162 74 140 140
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0106-
73 BOLT; MUD COVER BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 05 1 0106-0512
73 BOLT; MUD COVER BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28250-816-0 03 1 0601-
73 BOLT; MUD COVER BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 03 1 0106-0512
73 BOLT; MUD COVER BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28250-816-0 05 1 0601-
73 BOLT; MUD COVER BRKT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 08 1 0106-0512
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 08 1 0106-0512
73 BOLT; MUD COVER BRKT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28250-816-0 08 1 0601-
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28250-816-0 08 1 0601-
74 NUT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 0106-0602
74 NUT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 01 1 0603-
74 NUT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 0106-0602
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 0106-0602
74 NUT
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 02 1 0603-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 02 1 0603-
74 NUT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 0106-0602
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0106-0602
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0106-0602
74 NUT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 03 1 0603-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
114 BOLT
M8X20 FLANGE 		0-28680-820-0 05 1 0106-0512
114 BOLT
M8X20 FLANGE 		0-28650-820-0 05 1 0601-
114 BOLT
RADIATOR HEAVY DUTY<V05> M8X22 W/LK&PL WASHER 		1-09030-042-0 04 1 0106-
114 BOLT
EXC. RADIATOR HEAVY DUTY<V05> M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0106-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 		1-79937-943-1 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(C) 		1-79937-943-1 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-79947-028-0 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(A) 		1-79947-028-2 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-79947-029-0 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(B) 		1-79947-029-2 01 1 0403-
130 PANEL; SHUTTER NOISE
(A) 		1-79937-960-2 01 1 0106-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-79937-960-2 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(B) 		1-79937-993-1 01 1 0106-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-79937-993-1 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(C) 		1-79937-945-1 01 1 0106-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 		1-79937-945-1 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(A) 		1-79937-990-3 01 1 0106-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (E) 		1-53192-790-5 01 1 0106-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (E) 		1-53192-782-7 01 1 0106-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (E) 		1-53193-200-3 01 1 0106-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (E) 		1-53193-207-4 01 1 0106-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-332-2 01 1 0106-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9>,RADIATOR HEAVY DUTY<V05> (D) 		1-53193-333-2 01 1 0106-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) RADIATOR HEAVY DUTY<V05> EXC. ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-686-0 01 1 0106-
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-329-1 01 1 0106-
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-328-1 01 1 0106-
131 BOLT; PANEL
RADIATOR HEAVY DUTY<V05> M8X25 W/LK&PL WASHER 		1-09030-074-0 07 1 0106-
131 BOLT; PANEL
EXC. RADIATOR HEAVY DUTY<V05> M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0106-
133 BOLT; FRAME
RADIATOR HEAVY DUTY<V05> M8X25 FLANGE 		0-28680-825-0 02 1 0106-0512
133 BOLT; FRAME
RADIATOR HEAVY DUTY<V05> M8X25 FLANGE 		0-28650-825-0 02 1 0601-
133 BOLT; FRAME
EXC. RADIATOR HEAVY DUTY<V05> M8X25 FLANGE 		0-28680-825-0 04 1 0106-0512
133 BOLT; FRAME
EXC. RADIATOR HEAVY DUTY<V05> M8X25 FLANGE 		0-28650-825-0 04 1 0601-
135 BRACKET; SIDE PANEL
ELECTRONIC GOV RED3(KG5) (A) 		1-53441-598-0 01 1 0106-0410
135 BRACKET; SIDE PANEL
(A) 		1-53441-598-1 01 1 0411-
135 BRACKET; SIDE PANEL
EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-53441-508-0 01 1 0106-0410
135 BRACKET; SIDE PANEL
EXC. RADIATOR HEAVY DUTY<V05> (B) 		1-53441-507-0 01 1 0106-
140 BOLT; SIDE PANEL
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0512
140 BOLT; SIDE PANEL
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
140 BOLT; SIDE PANEL
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
140 BOLT; SIDE PANEL
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
162 BRACKET 1-53441-520-0 02 1 0106-
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0106-0512
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 14 1 0106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
