8-28 — CHASSIS ELECTRICAL (#113018) — 49 parça

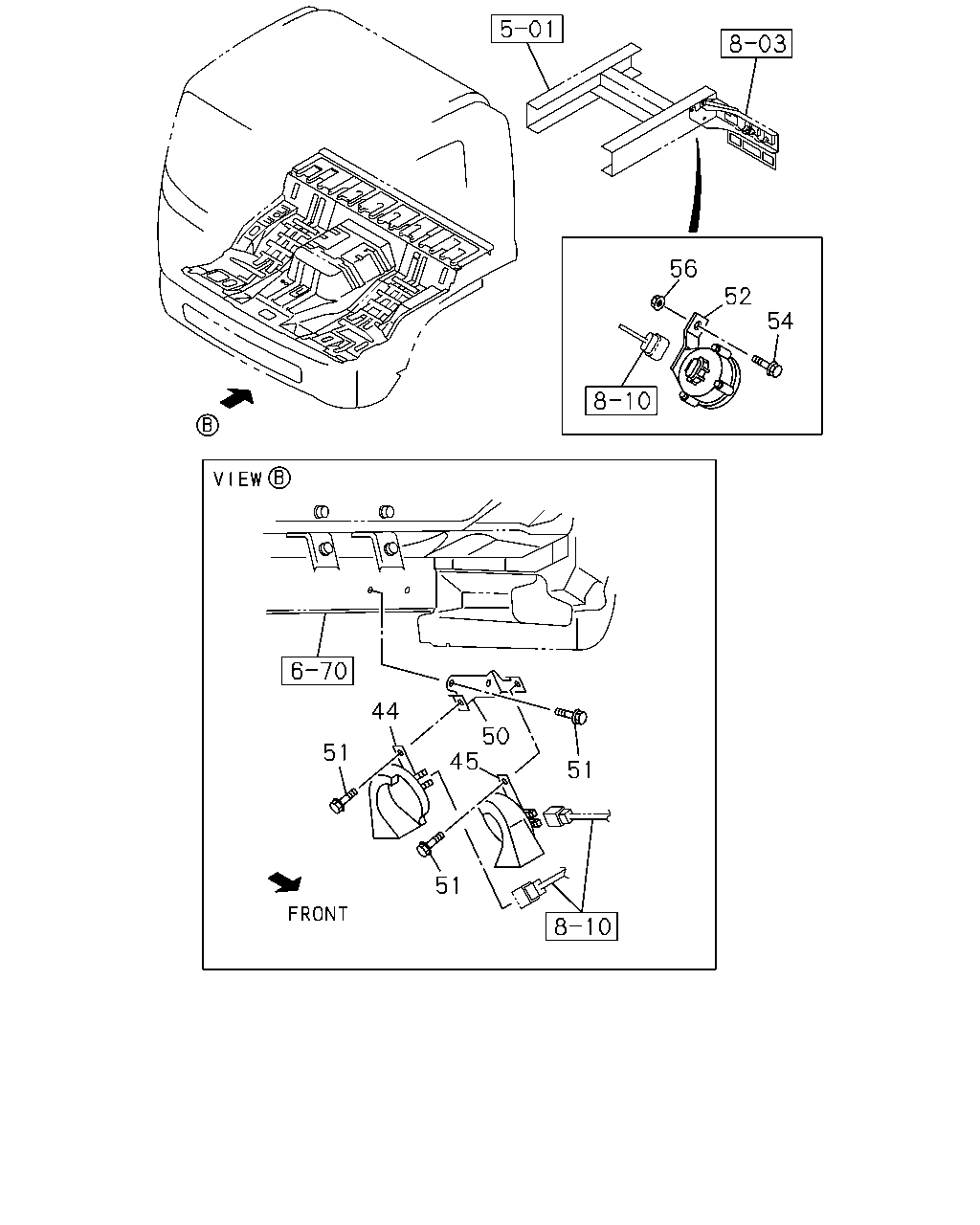

56 52 54 44 50 51 45 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE ELECTRICAL HORN<WB7>	8-97611-677-2	01	1	1402-
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-98022-022-0	01	1	1302-
45	HORN; LOW NOTE ELECTRICAL HORN<WB7>	8-97611-676-2	01	1	1402-
45	HORN; LOW NOTE	8-98022-023-0	01	1	1302-1401
45	HORN; LOW NOTE EXC. ELECTRICAL HORN<WB7>	8-98022-023-0	01	1	1402-
50	BRACKET; HORN	8-97616-529-2	01	1	1302-
51	BOLT; HORN TO BRKT DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1302-1401
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1302-1401
51	BOLT; HORN TO BRKT ELECTRICAL HORN<WB7>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1402-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1402-
51	BOLT; HORN TO BRKT EXC. DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1302-1401
51	BOLT; HORN TO BRKT EXC. ELECTRICAL HORN<WB7>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1402-
52	BUZZER; BACK MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> REVERSING WARNING BUZZER<YM9>	8-97617-027-0	01	1	1406-
54	BOLT; BACK BUZZER MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> REVERSING WARNING BUZZER<YM9> M10X30 FLANGE	0-28651-030-0	01	1	1406-
56	NUT; BACK BUZZER MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> REVERSING WARNING BUZZER<YM9> M10 FLANGE	0-91180-210-0	01	1	1406-

34 261 34 34 35 36 33 39 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	1302-1304
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	1305-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-1304
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1305-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1302-1304
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1305-
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1302-1304
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1302-1304
34	CONNECTOR; MAG VLV,INL PORT 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1305-
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1305-
34	CONNECTOR; MAG VLV,INL PORT 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1305-
35	BRACKET; MAG VLV,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98154-633-0	01	1	1302-1304
35	BRACKET; MAG VLV,PTO CONT TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98154-633-0	01	1	1305-
36	BOLT; MAG VLV,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	02	1	1302-1304
36	BOLT; MAG VLV,PTO CONT TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	02	1	1305-
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	1302-
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	1302-
261	PLUG; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-1304
261	PLUG; MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	1305-
261	PLUG; MAG VLV 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1305-

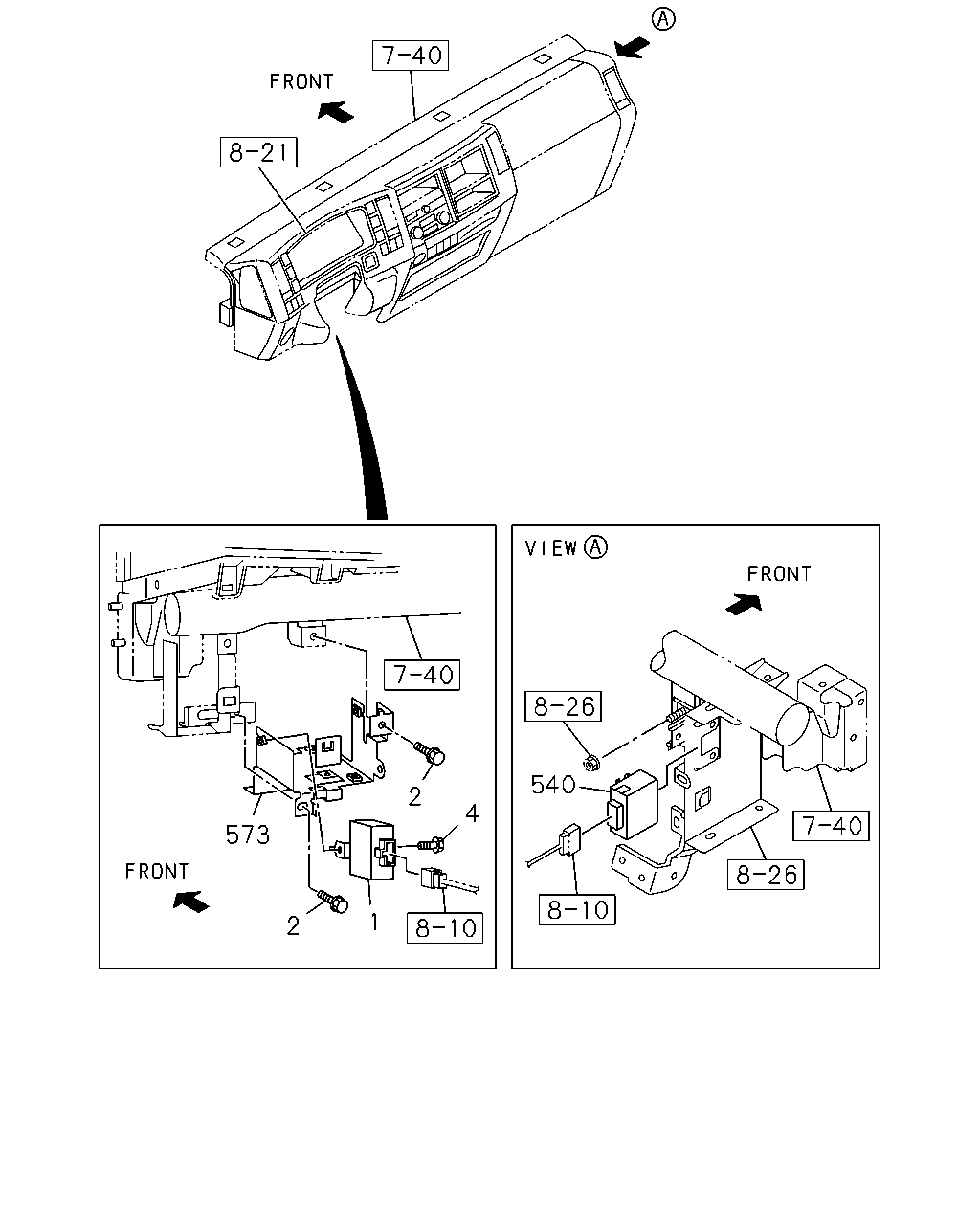

573 2 1 4 2 540

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-98025-533-1	01	1	1302-
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1302-
4	SCREW; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	01	1	1302-
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	1302-1308
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-
573	BRACKET; FLASHER UNIT	8-97616-351-3	01	1	1302-

584 744 449

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
449	SWITCH; OIL PRESS,CLUTCH 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP>	1-82410-143-1	01	1	1302-
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1302-
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1302-

531

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1302-1402
	531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-

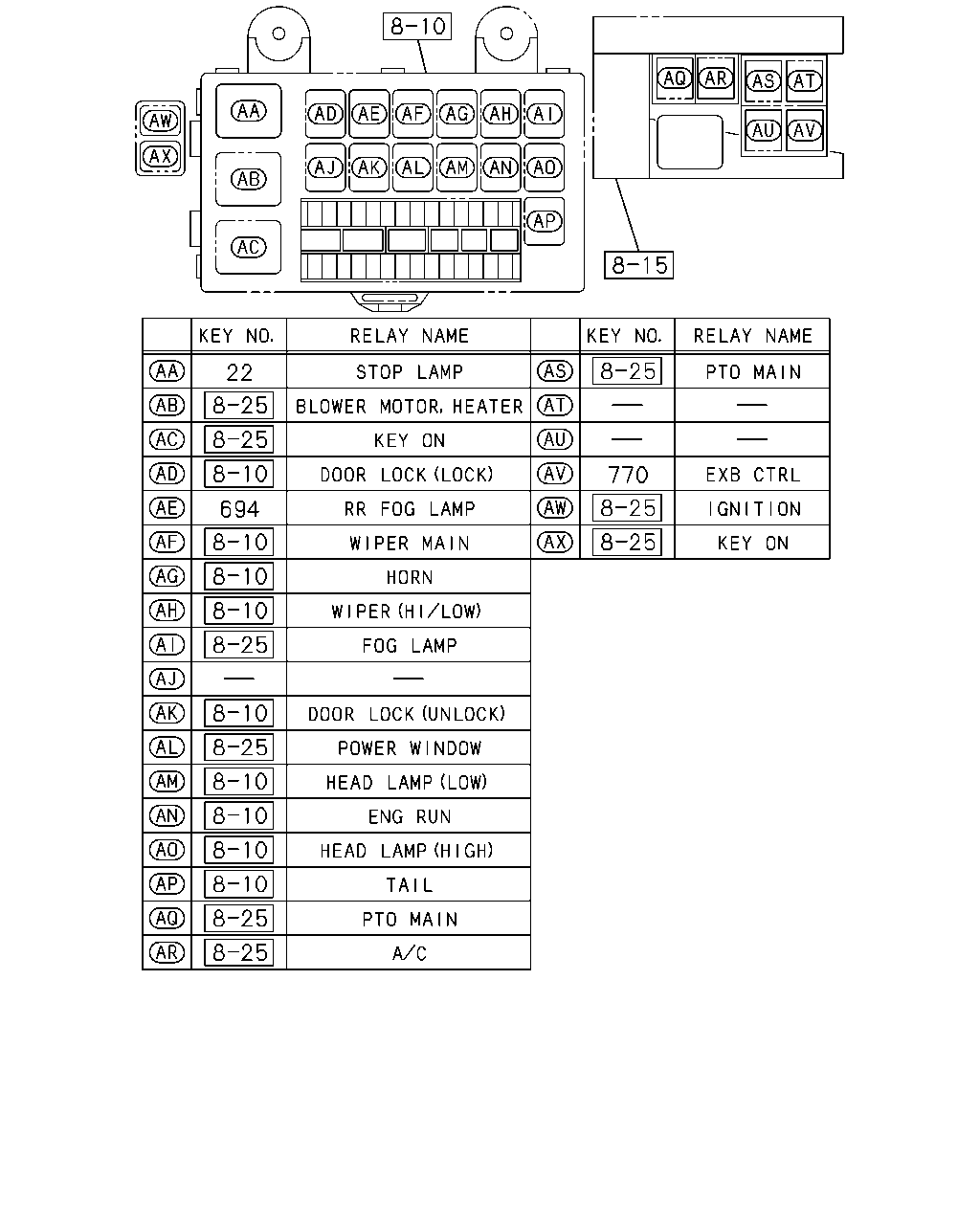

22 694 770

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1302-
694	RELAY; RR FOG LAMP RR FOG LAMP<T79> 24V 10A PANASONIC	8-97173-035-1	01	1	1402-
770	RELAY; ENG BRK ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 24V 10A PANASONIC	8-97173-035-1	01	1	1302-
