Sayfa 8-28 - Isuzu EPC

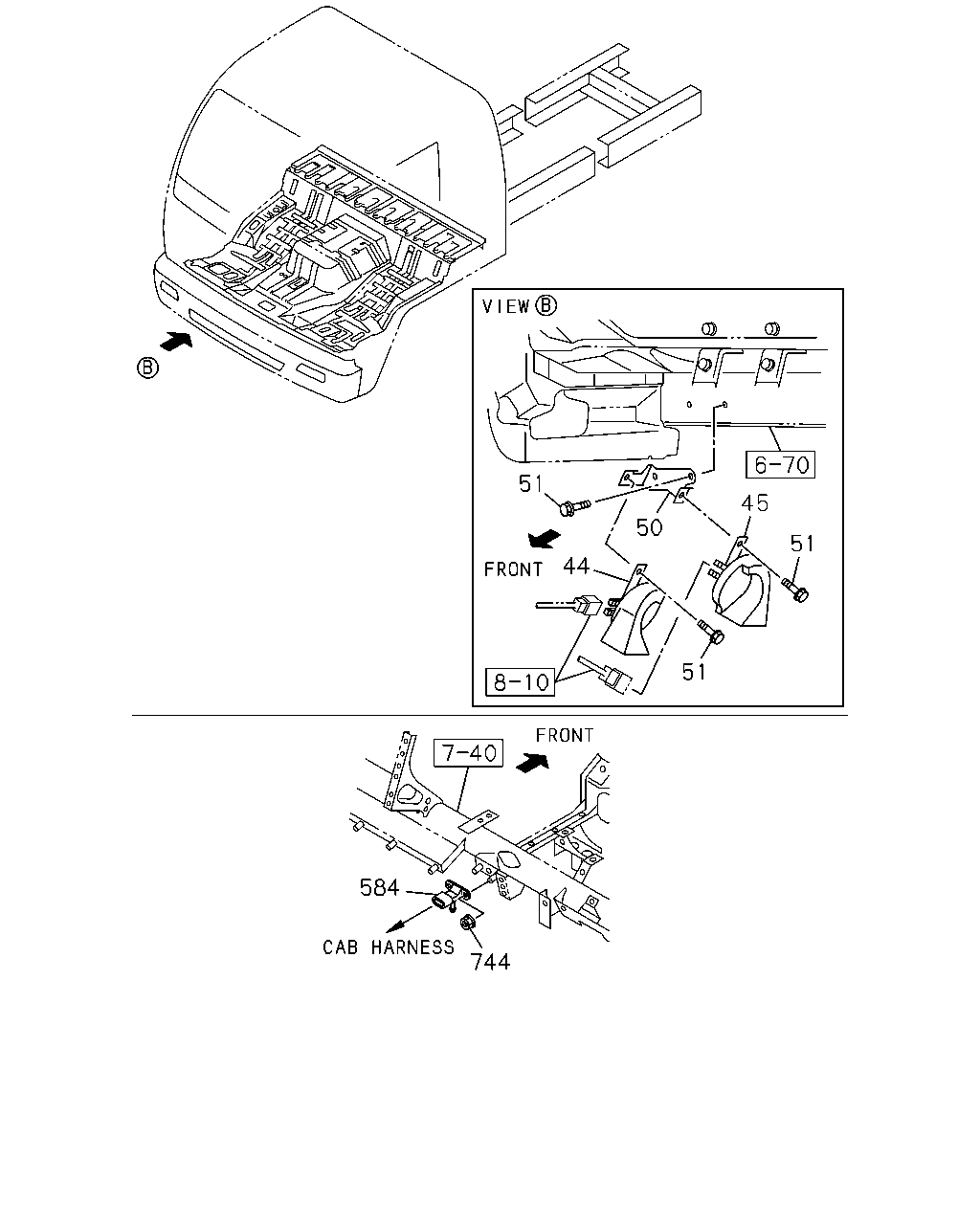

50 44 51 51 45 51 584 744

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	8-98022-022-0	01	1	1302-
45	HORN; LOW NOTE	8-98022-023-0	01	1	1302-
50	BRACKET; HORN	8-97613-300-2	01	1	1302-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1302-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1302-
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1302-
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1302-

531

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1302-1402
	531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-

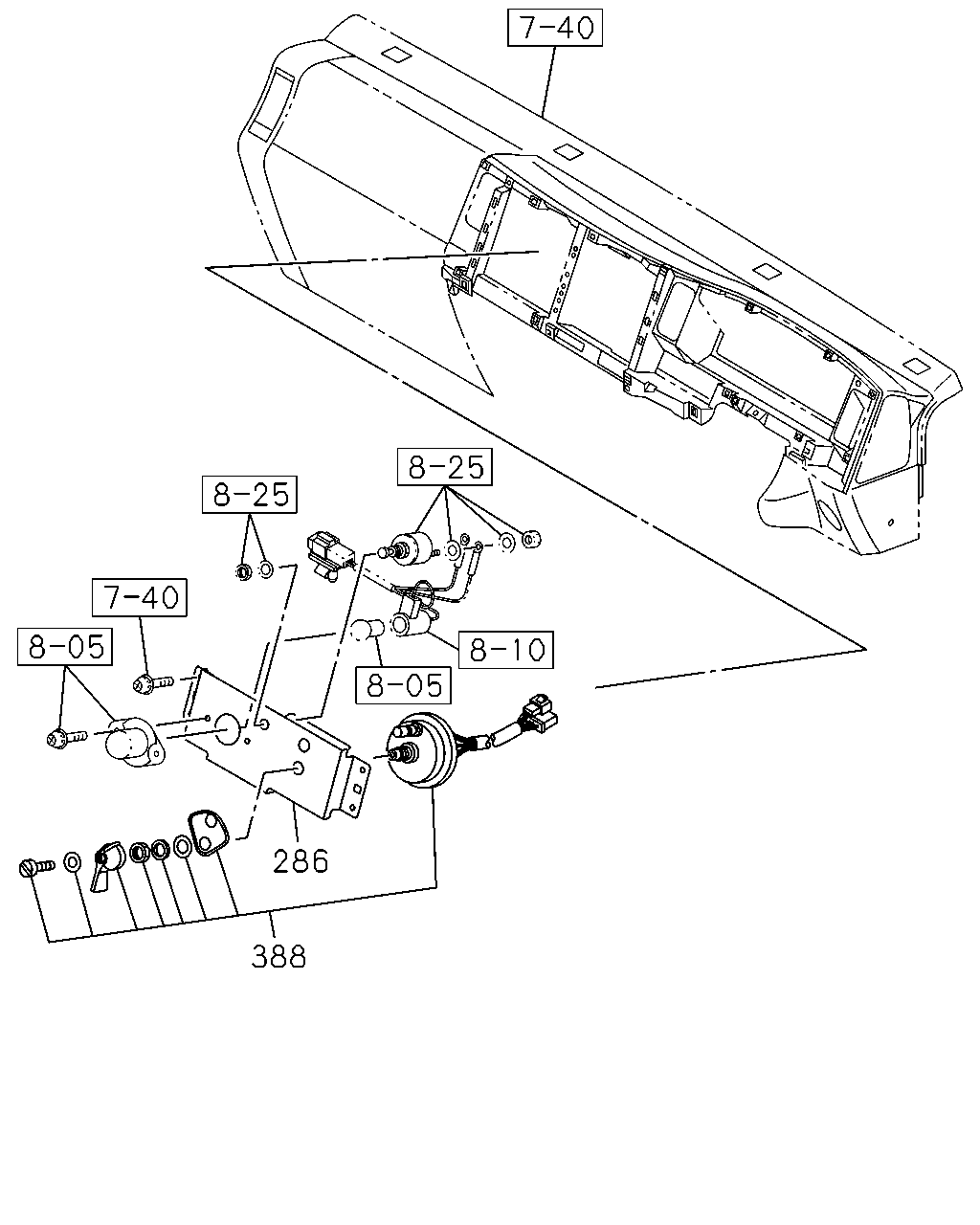

388 286

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	286	BRACKET LAMPS EXP PACKAGE<WL5>	8-97623-460-2	01	1	1302-
	388	SWITCH; ROTARY LAMPS EXP PACKAGE<WL5>	1-82430-003-0	01	1	1302-

34 34 33 36 35 39 34 261 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>	1-82563-871-2	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1302-1503
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1302-
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4100MM(41W) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1302-
35	BRACKET; MAG VLV,PTO CONT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>	8-98034-702-0	01	1	1302-
36	BOLT; MAG VLV,PTO CONT M8X25 FLANGE	0-28650-825-0	02	1	1302-
36	BOLT; MAG VLV,PTO CONT REARWARD INNER SINGLE TIRE<YK3> M8X20 FLANGE	0-28650-820-0	02	1	1302-
36	BOLT; MAG VLV,PTO CONT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> M8X20 FLANGE	0-28650-820-0	02	1	1302-
39	BOLT; BRKT,MAG VLV REARWARD INNER SINGLE TIRE<YK3> M10X30 FLANGE	0-28651-030-0	02	1	1302-
39	BOLT; BRKT,MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> M10X30 FLANGE	0-28651-030-0	02	1	1302-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1302-
261	PLUG; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1302-
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1302-
261	PLUG; MAG VLV REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1302-

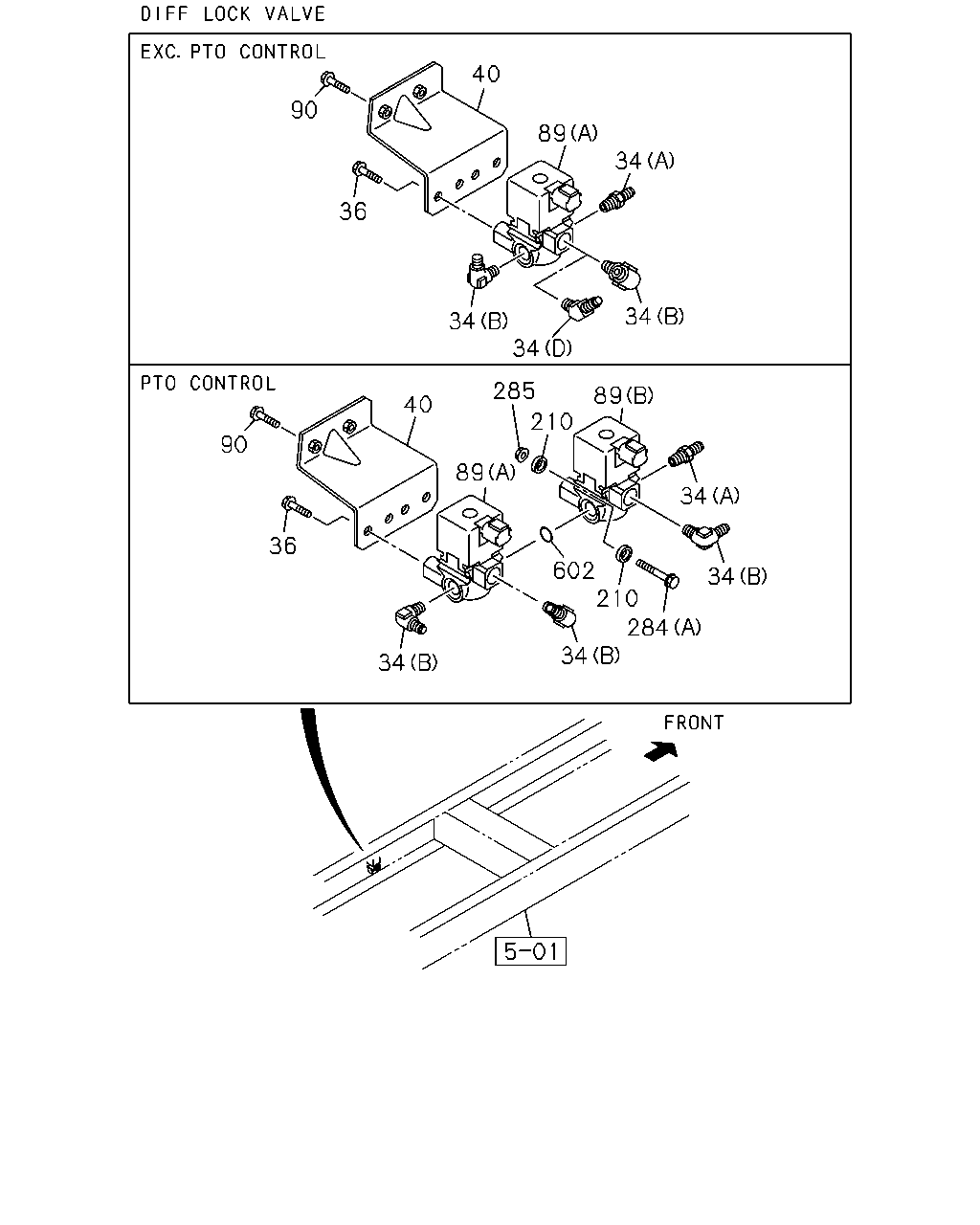

90 36 40 89 34 34 34 34 90 40 36 89 34 285 89 602 210 34 34 210 284 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1302-1503
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1302-
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4100MM(41W) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1302-
36	BOLT; MAG VLV,PTO CONT M8X25 FLANGE	0-28650-825-0	02	1	1302-
36	BOLT; MAG VLV,PTO CONT REARWARD INNER SINGLE TIRE<YK3> M8X20 FLANGE	0-28650-820-0	02	1	1302-
36	BOLT; MAG VLV,PTO CONT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> M8X20 FLANGE	0-28650-820-0	02	1	1302-
40	BRACKET; MAG VLV REARWARD INNER SINGLE TIRE<YK3>	8-98034-702-0	01	1	1302-
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1302-
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A)	8-97641-594-0	01	1	1302-
89	VALVE; MAG,DIFF LOCK REARWARD INNER SINGLE TIRE<YK3> (A)	8-97641-594-0	01	1	1302-
89	VALVE; MAG,DIFF LOCK PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (B)	1-82563-871-2	01	1	1302-
90	BOLT; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8X25 FLANGE	0-28650-825-0	02	1	1302-
210	WASHER; PL,BRKT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1302-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1302-
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-
284	BOLT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1302-
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1302-
285	NUT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1302-
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	1302-
602	GASKET; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1302-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1302-

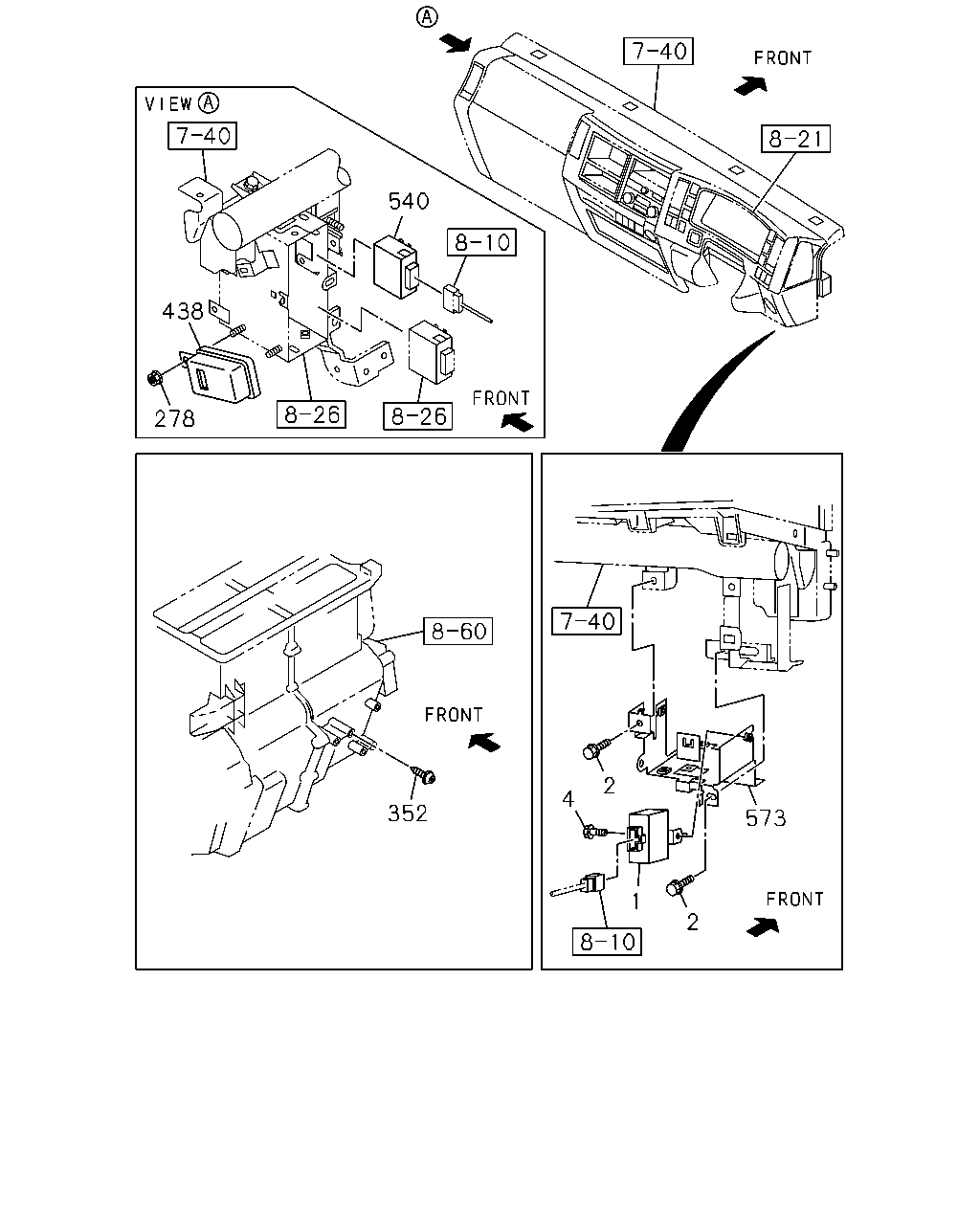

438 278 352 4 2 1 2 573 540

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-98025-533-1	01	1	1302-
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1302-
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	1302-
278	NUT; CONT UNIT M6 FLANGE	0-91180-106-0	01	1	1302-
352	SCREW; BRKT ACCESSORY SOCKET<KC5> M3X10	9-93490-310-0	01	1	1302-
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	1302-
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	1302-1308
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1302-

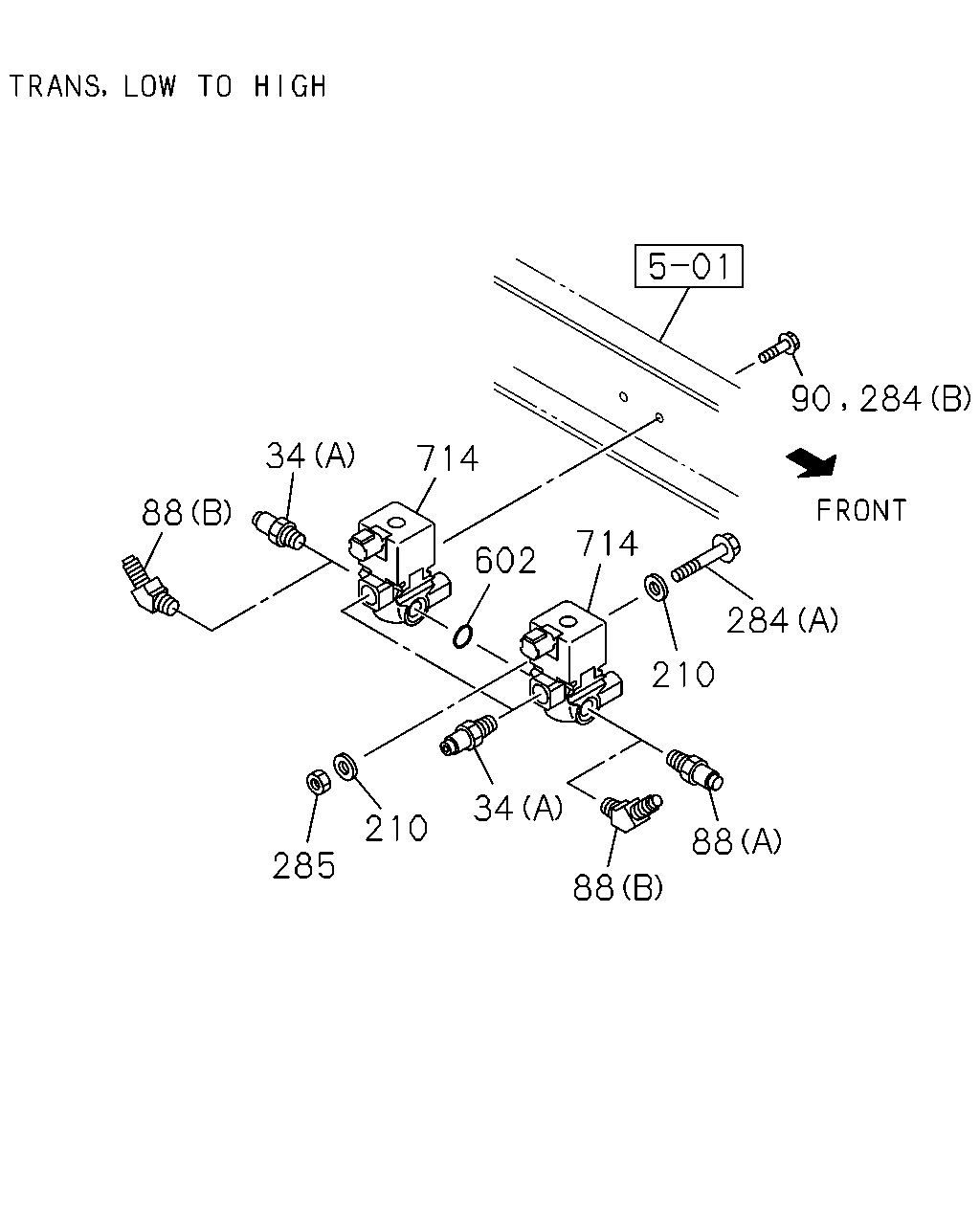

88 34 714 602 714 90 284 284 210 34 210 285 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1302-1503
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1302-
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4100MM(41W) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1302-
88	CONNECTOR; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (B) M12 & PT1/4 ELBOW	1-48629-258-0	02	1	1302-1503
88	CONNECTOR; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (B) M12 & PT1/4 ELBOW	8-98299-777-0	02	1	1504-
88	CONNECTOR; MAG VLV WHEEL BASE 4100MM(41W) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
90	BOLT; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8X25 FLANGE	0-28650-825-0	02	1	1302-
210	WASHER; PL,BRKT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1302-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1302-
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-
284	BOLT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1302-
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1302-
285	NUT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1302-
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	1302-
602	GASKET; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1302-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1302-
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	02	1	1302-

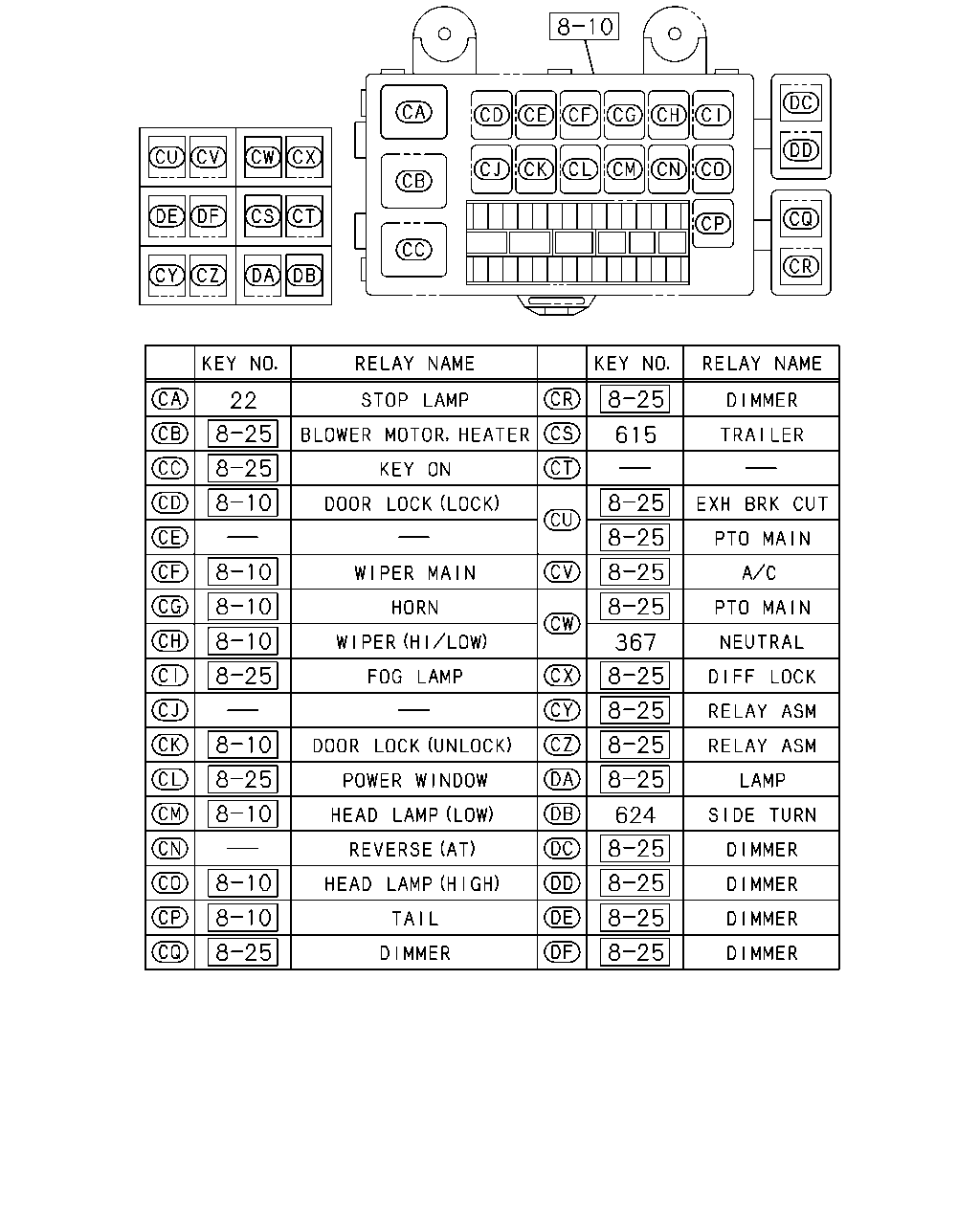

22 615 367 624

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1302-
22	RELAY; STOP LAMP LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC	8-97173-035-1	01	1	1302-
367	RELAY; NEUTRAL A/T<X9D> 24V 10A PANASONIC	8-97173-035-1	01	1	1302-
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	1302-
624	RELAY; SIDE TURN LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC	8-97173-035-1	01	1	1302-

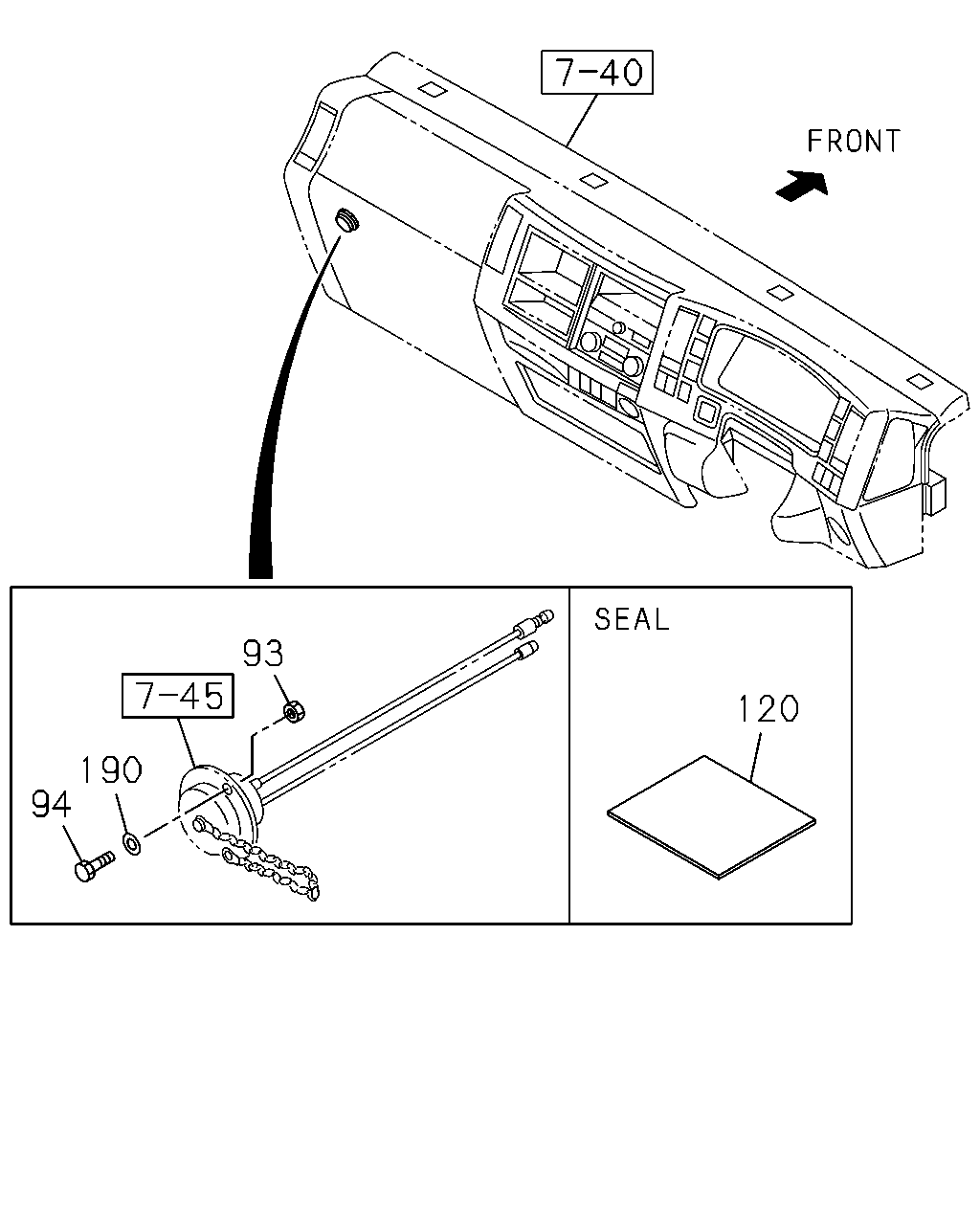

120 93 190 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
93	NUT; CONSENT TO BLIND PNL ACCESSORY SOCKET<KC5> M3	9-99110-403-0	03	1	1302-
94	SCREW; CONSENT TO BLIND PNL ACCESSORY SOCKET<KC5> M3X10 CK-HEAD	9-93090-310-0	02	1	1302-
120	SEAL ACCESSORY SOCKET<KC5> 100X40	1-72498-022-1	01	1	1302-
190	WASHER ACCESSORY SOCKET<KC5> ID=3.1	0-91510-503-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
