◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11521 - FVZ(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#113008) — 58 parça

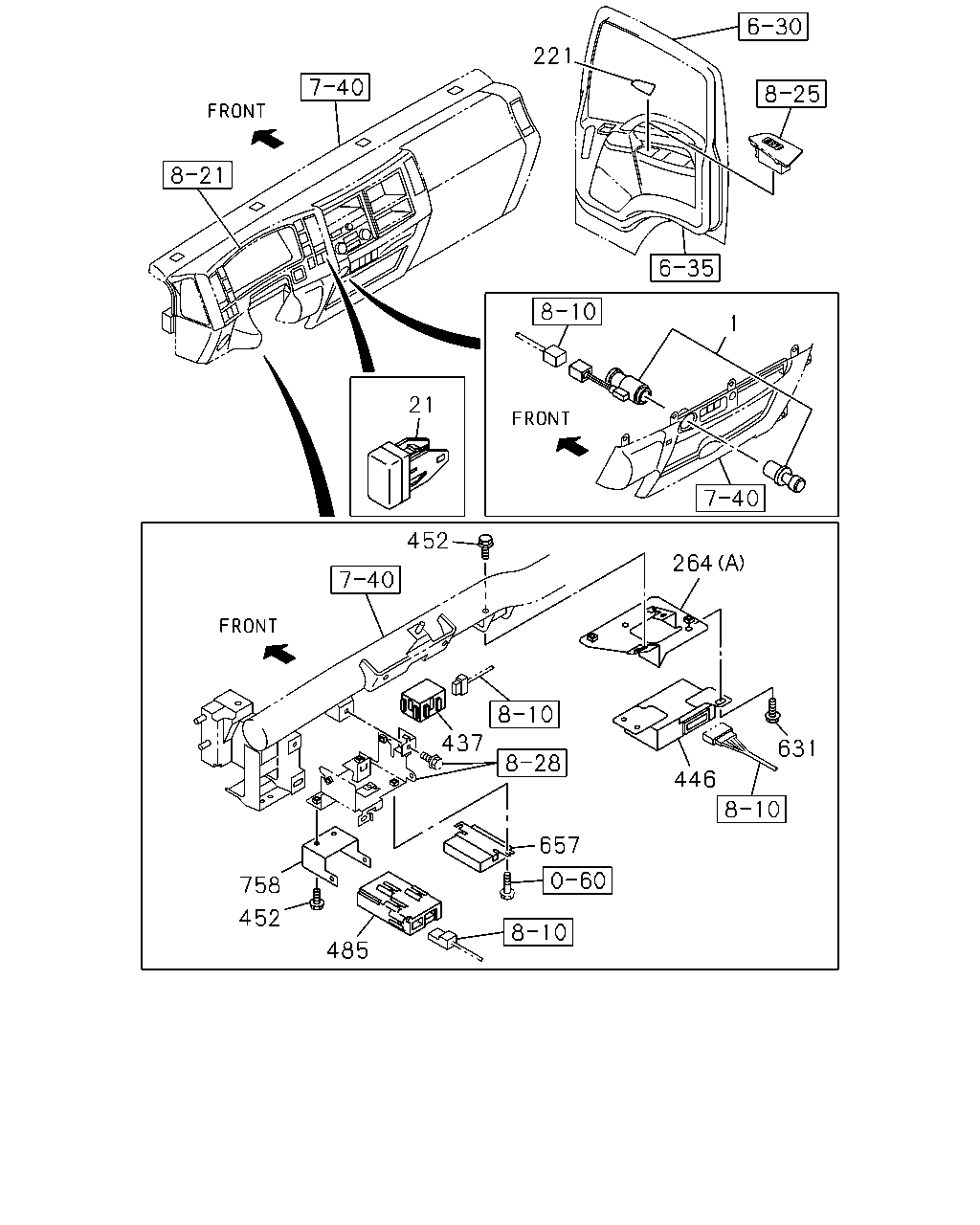

çizim 330023
221 21 452 437 657 485 758 452 446 631 264 1
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1302-
21 COVER; HOLE 8-98025-954-1 01 1 1302-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1302-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1302-
264 BRACKET; CONT UNIT
ECE R29<EFE> (B) 		8-98180-454-0 01 1 1411-
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 1302-1410
264 BRACKET; CONT UNIT
EXC. ECE R29<EFE> (B) 		8-97616-354-5 01 1 1411-
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98088-654-0 01 1 1302-
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1302-
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		1-80111-116-2 01 1 1302-
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 1302-
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1302-
485 CONTROL UNIT; SPEED SENSOR
ZF9S1110 M/T(Y5E) 		1-80190-063-0 01 1 1302-
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1302-
657 CONTROL UNIT; MIMAMORI 8-98013-144-8 01 1 1302-1401
657 CONTROL UNIT; MIMAMORI 8-98260-912-0 01 1 1402-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 1302-

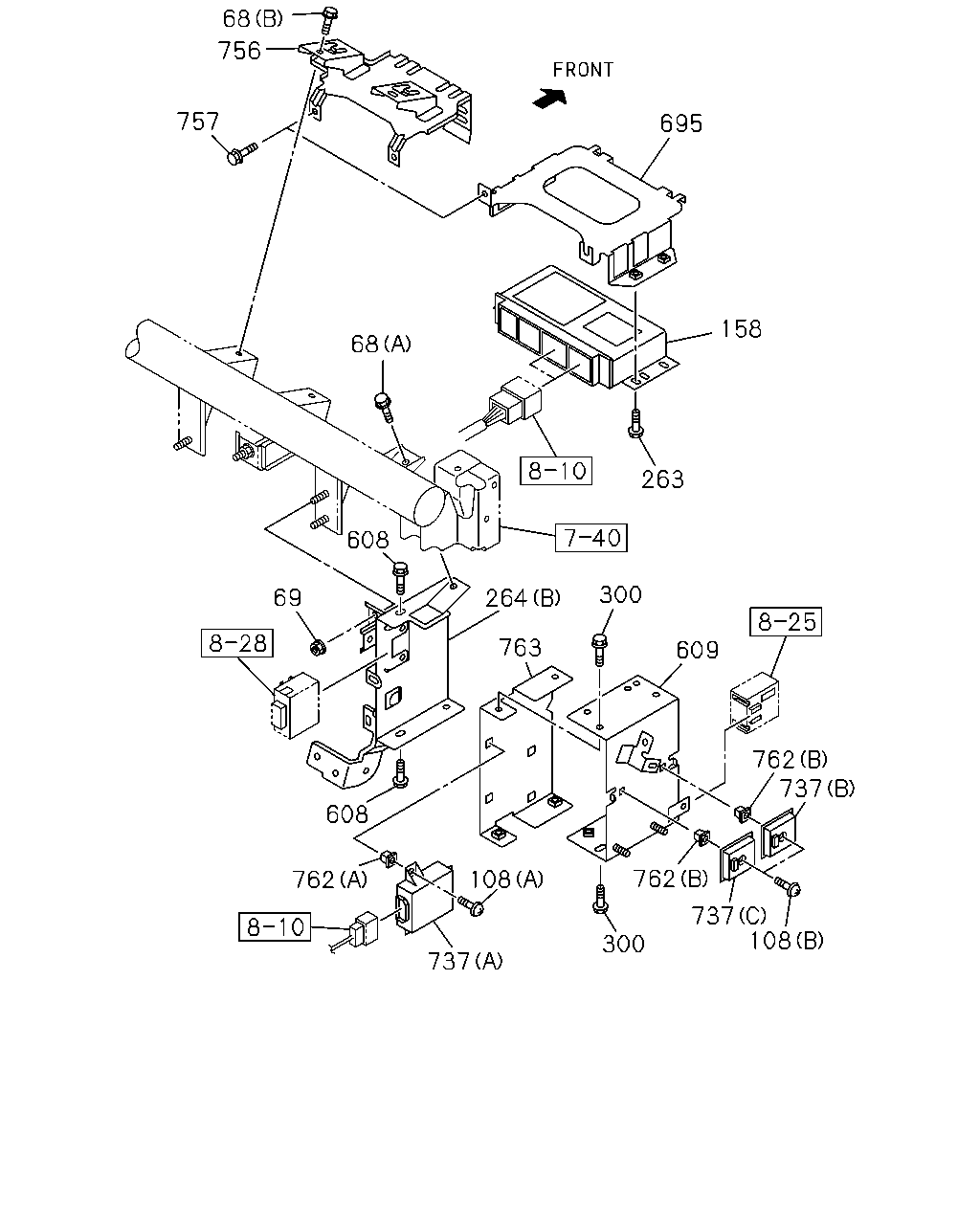

çizim 330251
68 756 757 68 608 69 608 762 737 108 300 762 737 108 737 762 609 763 264 300 263 158 695
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1302-
68 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1302-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1302-
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1302-
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) M4X25 TAPPING 		0-74160-425-0 02 1 1302-
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> 		8-98222-314-0 01 1 1302-
263 BOLT; CONT UNIT
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 04 1 1302-
264 BRACKET; CONT UNIT
ECE R29<EFE> (B) 		8-98180-454-0 01 1 1411-
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 1302-1410
264 BRACKET; CONT UNIT
EXC. ECE R29<EFE> (B) 		8-97616-354-5 01 1 1411-
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98088-654-0 01 1 1302-
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 04 1 1302-
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28650-616-0 05 1 1302-
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28650-616-0 05 1 1302-
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> 		8-98095-336-0 01 1 1302-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4> 		8-98095-336-0 01 1 1302-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> 		8-98226-231-1 01 1 1309-
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4> 		8-98226-231-1 01 1 1309-
695 BRACKET; CONT UNIT,ABS
ANTI LOCK BRAKE<JE5> 		8-98045-016-1 01 1 1302-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-80111-271-0 01 1 1302-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98095-040-0 01 1 1302-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98095-041-0 01 1 1302-
756 BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5> 		8-98052-797-3 01 1 1302-
757 BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 02 1 1302-
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 1302-
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1302-
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-587-0 01 1 1302-
çizim 332394
507
BalonParca AdiParca NoAdetTipApplied Date
507 CONNECTOR
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1302-1410
507 CONNECTOR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1302-1410
507 CONNECTOR
FULLER ES11109 DD M/T(Y5N) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1411-
507 CONNECTOR
ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1411-

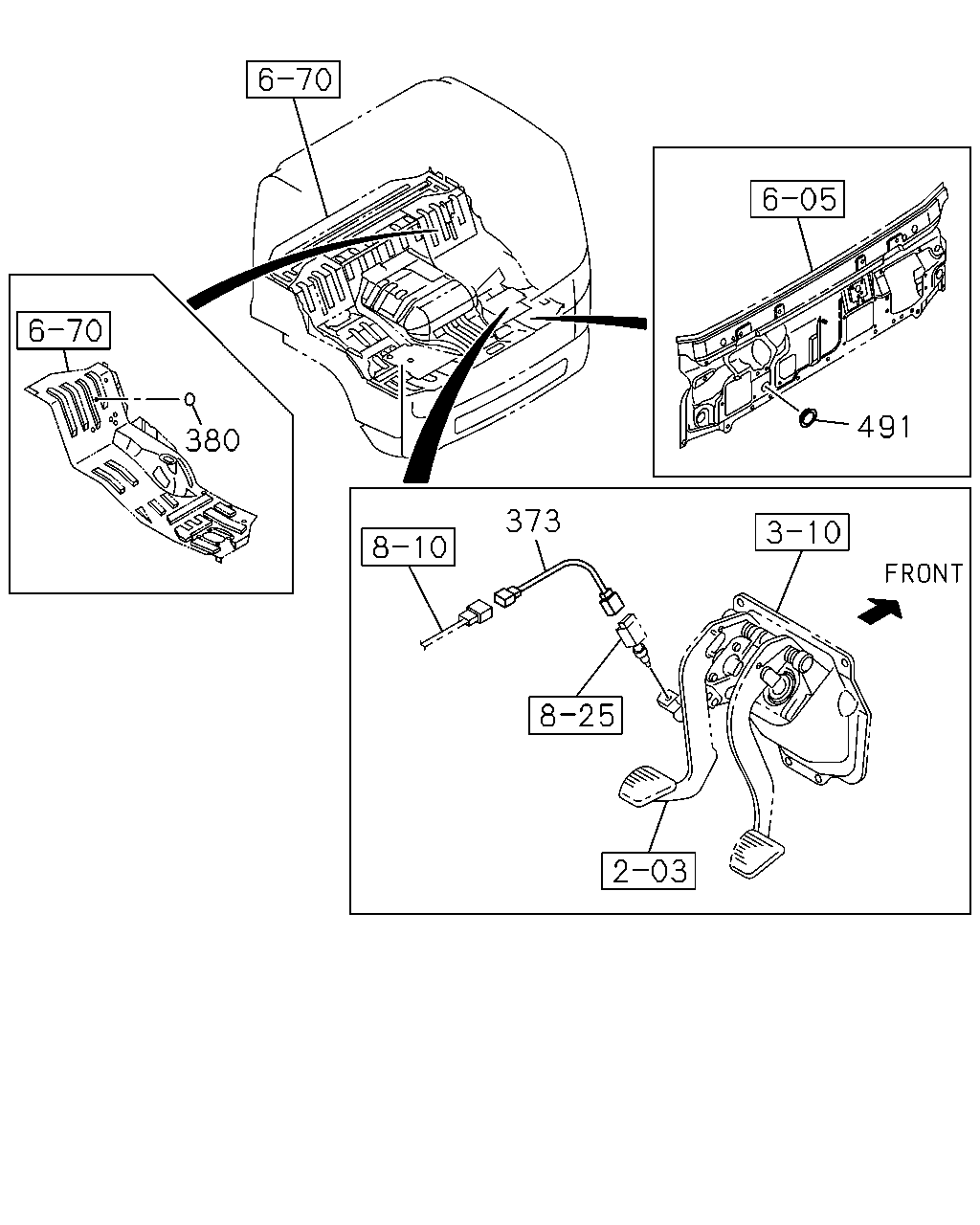

çizim 332487
491 373 380
BalonParca AdiParca NoAdetTipApplied Date
373 HARNESS; CLU SWITCH
EXC. ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 1302-
373 HARNESS; CLU SWITCH
FULLER ES11109 DD M/T(Y5N) ASSISTOR SHIFT CONTROL<WX8> EXC. H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 1302-
373 HARNESS; CLU SWITCH
H.S.A SYSTEM<6EP> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98110-719-0 01 1 1302-
373 HARNESS; CLU SWITCH
FULLER ES11109 DD M/T(Y5N) H.S.A SYSTEM<6EP> ASSISTOR SHIFT CONTROL<WX8> 		8-98110-719-0 01 1 1302-
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. H.S.A SYSTEM<6EP> 		8-98110-722-0 01 1 1302-
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> ASSISTOR SHIFT CONTROL<WX8> 		8-98110-721-0 01 1 1302-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1302-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1302-

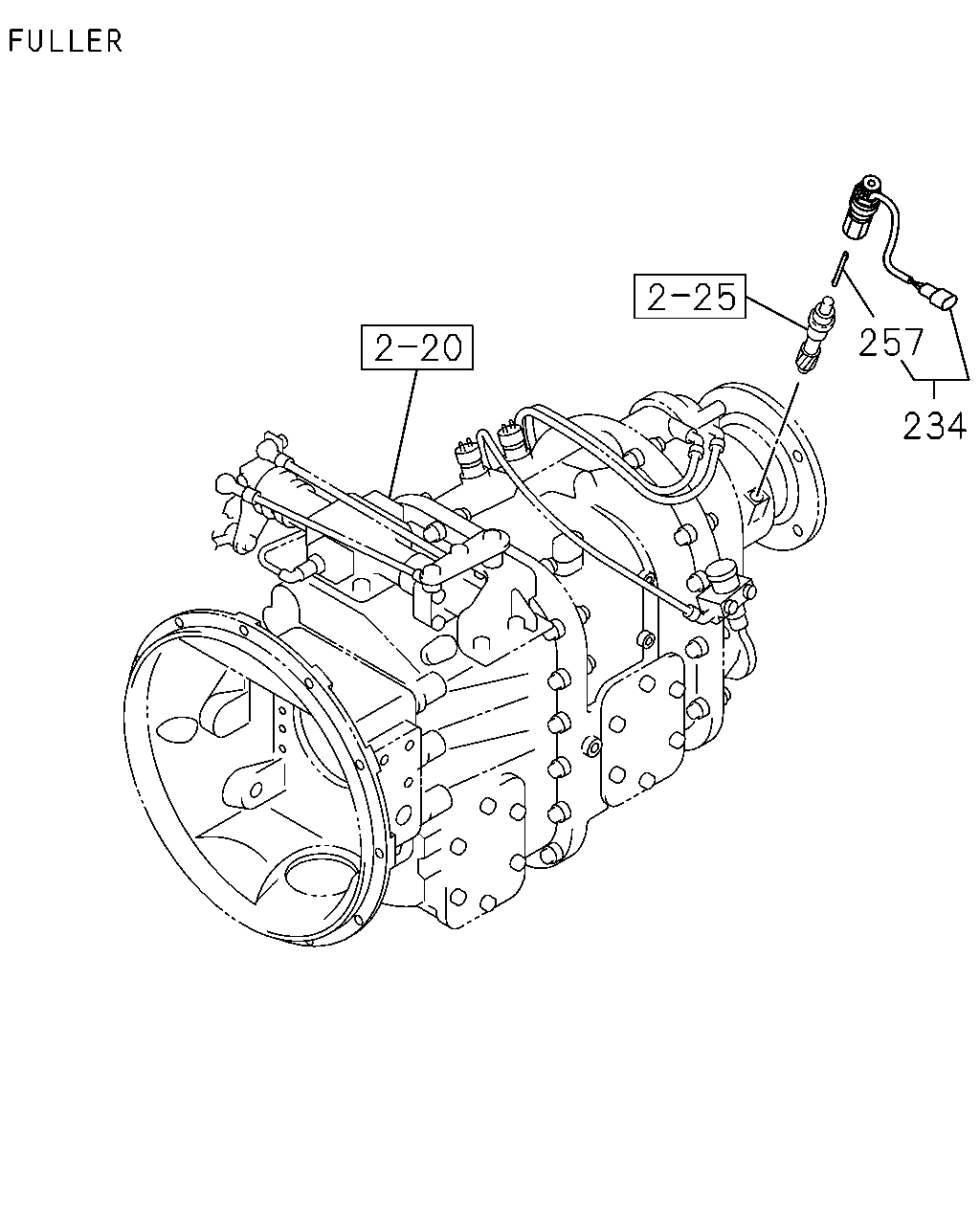

çizim 332488
257 234
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
FULLER ES11109 DD M/T(Y5N) 25 PULSE 		1-83127-414-1 01 1 1302-
257 KEY; SPEED SENSOR
FULLER ES11109 DD M/T(Y5N) 		1-83129-073-0 01 1 1302-
