◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#113004) — 172 parça
çizim 329953
507 497 726 726 497
BalonParca AdiParca NoAdetTipApplied Date A B
497 SWITCH; CAB TILT
AUTO CAB TILT<WV2> STAMP NO 		1-82380-172-1 02 1 1302- ●
507 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1302-1410 ●
507 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1302-1410 ●
507 CONNECTOR
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1302-1410 ●
507 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1411-1505 ●
507 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1411-1505 ●
507 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1411-1505 ●
507 CONNECTOR
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EURO2 SPECIFICATION<NT2> EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1411-1505 ●
507 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1506-1511 ●
507 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1506-1511 ●
507 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1506-1511 ●
507 CONNECTOR
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EURO2 SPECIFICATION<NT2> EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1506-1511 ●
507 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1512- ●
507 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1512- ●
507 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1512- ●
507 CONNECTOR
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EURO2 SPECIFICATION<NT2> EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1512- ●
726 BOLT; SW,CAB TILT
AUTO CAB TILT<WV2> M6X25 FLANGE 		0-28050-625-0 04 1 1302- ●

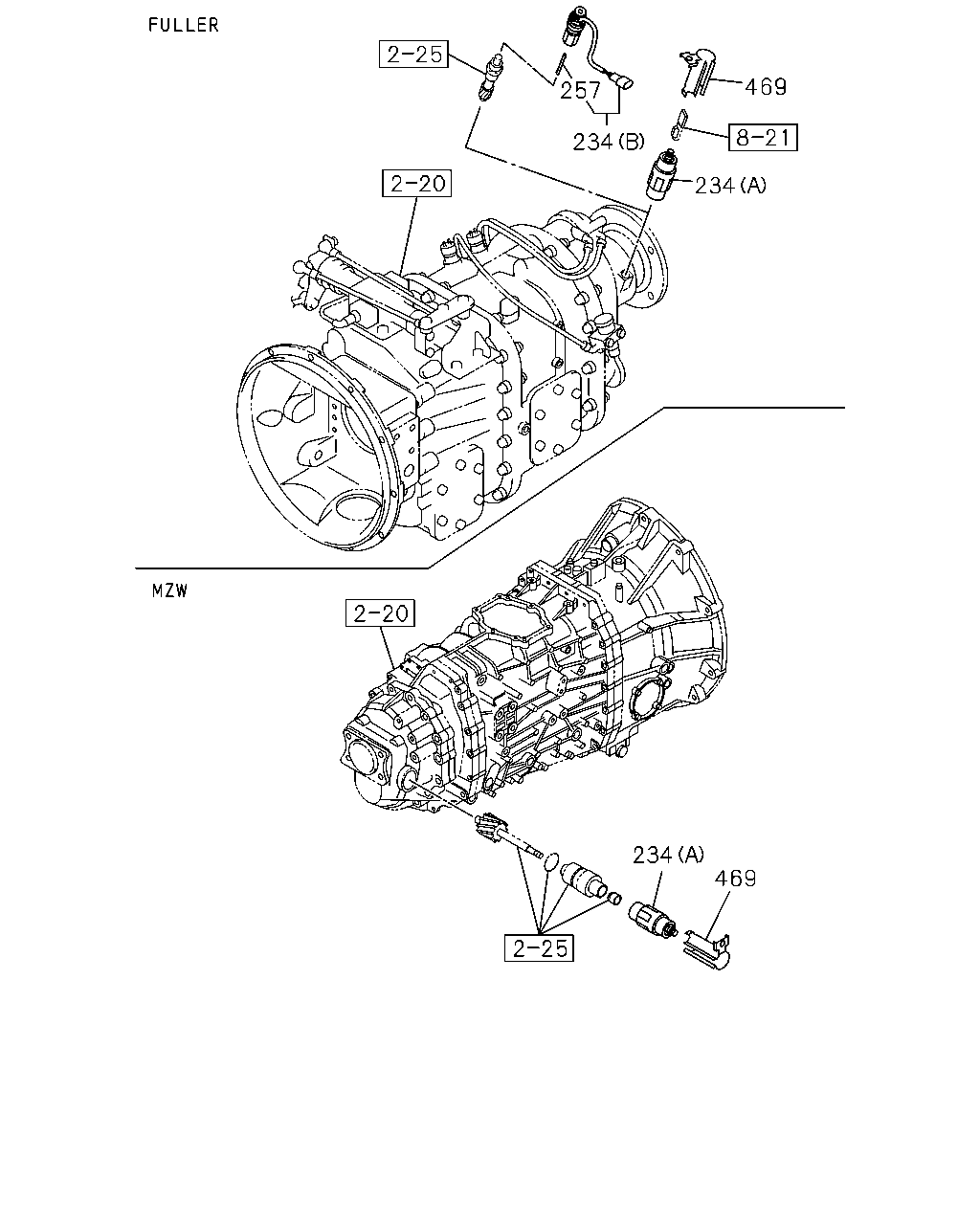

çizim 330027
257 234 234 469 234 469
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
FULLER ES11109 DD M/T(Y5N) (B) 25 PULSE 		1-83127-414-1 01 1 1302- ●
234 SENSOR; VEHICLE SPD
FULLER FS8209HD DD M/T(Y3A) (B) 25 PULSE 		1-83127-414-1 01 1 1302- ●
234 SENSOR; VEHICLE SPD
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1302- ●
257 KEY; SPEED SENSOR
FULLER ES11109 DD M/T(Y5N) 		1-83129-073-0 01 1 1302- ●
257 KEY; SPEED SENSOR
FULLER FS8209HD DD M/T(Y3A) 		1-83129-073-0 01 1 1302- ●
469 PROTECTOR; SPEED SENSOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 		8-98119-901-0 01 1 1302- ●

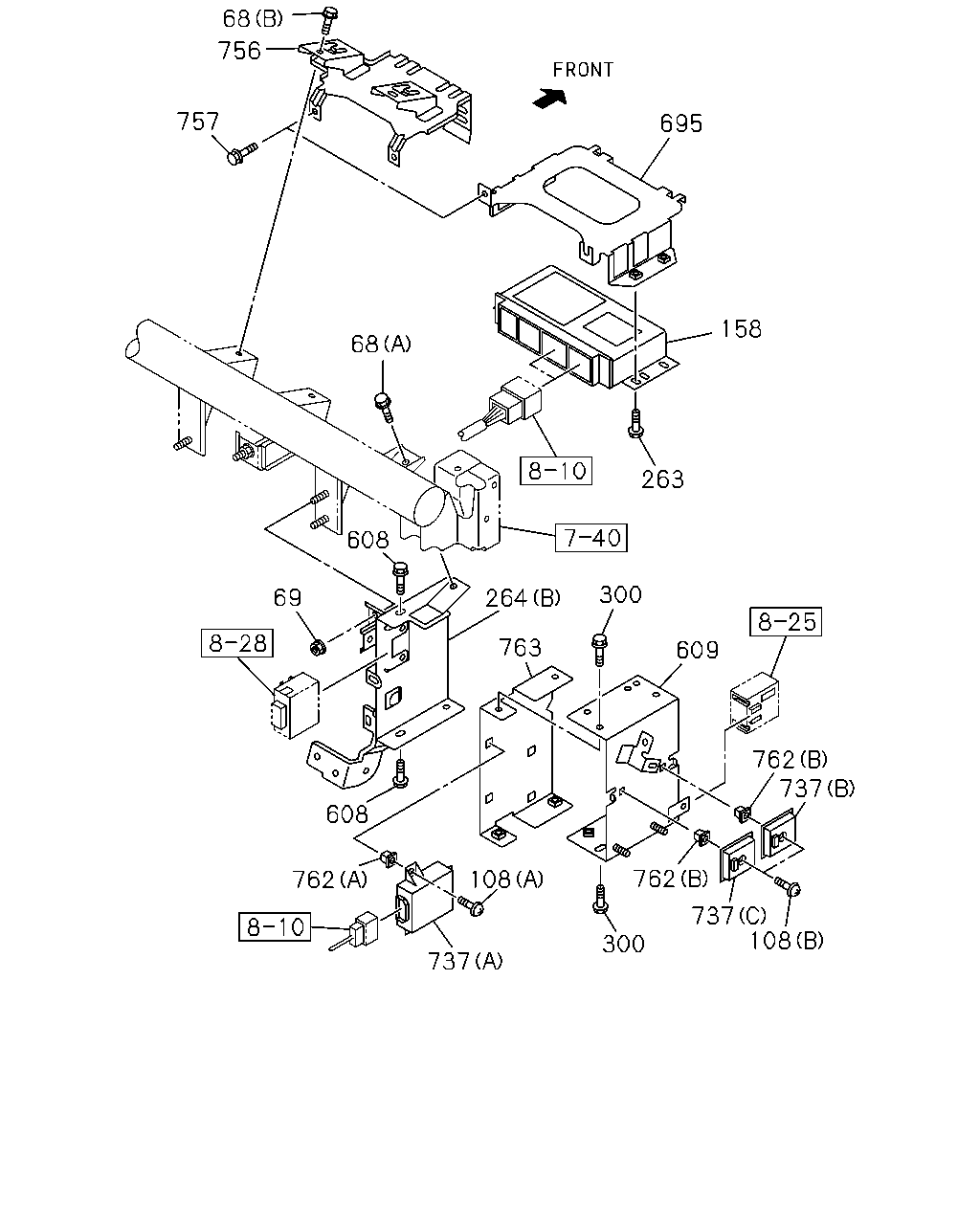

çizim 330194
68 756 757 695 158 68 608 69 264 300 609 763 762 737 108 737 762 608 300 762 737 108 263
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1302- ● ●
68 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1302- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1302- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1302- ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) M4X25 TAPPING 		0-74160-425-0 02 1 1302- ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9), TIRE295/80R22.5-152/148J RIB CHINA(5E0),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9),TIRE 11.00R-22.5-16 RIB(55N),TIRE 295/80R22.5-152/148M RIB EEC(55P),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16 RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) 		8-98222-314-0 01 1 1302-1408 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) 		8-98222-314-0 01 1 1302-1408 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R) ,TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9), TIRE295/80R22.5-152/148J RIB CHINA(5E0),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9),TIRE 11.00R-22.5-16 RIB(55N),TIRE 295/80R22.5-152/148M RIB EEC(55P),TIRE 10.00R20-16 RIB(55R),TIRE 12R22.5-16 RIB(75N),TIRE 11.00R20-16 RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) 		8-98222-314-0 01 1 1409- ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) 		8-98222-314-0 01 1 1409- ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) 		8-98222-313-0 01 1 1302- ● ●
263 BOLT; CONT UNIT
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 04 1 1302- ● ●
264 BRACKET; CONT UNIT
ECE R29<EFE> (B) 		8-98180-454-0 01 1 1302- ●
264 BRACKET; CONT UNIT
EXC. ECE R29<EFE> (B) 		8-97616-354-5 01 1 1302- ●
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 1302- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> (A) 		8-98088-654-0 01 1 1302- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98088-654-0 01 1 1302- ●
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 04 1 1302- ●
608 BOLT; CONT UNIT,AIR SUS
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 1302- ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 1302- ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 1302- ●
608 BOLT; CONT UNIT,AIR SUS
FULLER FS8209HD DD M/T(Y3A) AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28650-616-0 05 1 1302- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98095-336-0 01 1 1302-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> 		8-98095-336-0 01 1 1302-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> 		8-98095-336-0 01 1 1302-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
FULLER FS8209HD DD M/T(Y3A) AUTO DOOR LOCK<AU4> 		8-98095-336-0 01 1 1302-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98226-231-1 01 1 1309- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK<6NF> 		8-98226-231-1 01 1 1309- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> REMOTE CONT DOOR LOCK<6NF> 		8-98226-231-1 01 1 1309- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
FULLER FS8209HD DD M/T(Y3A) AUTO DOOR LOCK<AU4> 		8-98226-231-1 01 1 1309- ●
695 BRACKET; CONT UNIT,ABS
ANTI LOCK BRAKE<JE5> 		8-98045-016-1 01 1 1302- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-80111-271-0 01 1 1302- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98095-040-0 01 1 1302- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98095-041-0 01 1 1302- ●
756 BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5> 		8-98052-797-3 01 1 1302- ● ●
757 BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 02 1 1302- ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 1302- ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1302- ●
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-587-0 01 1 1302- ●

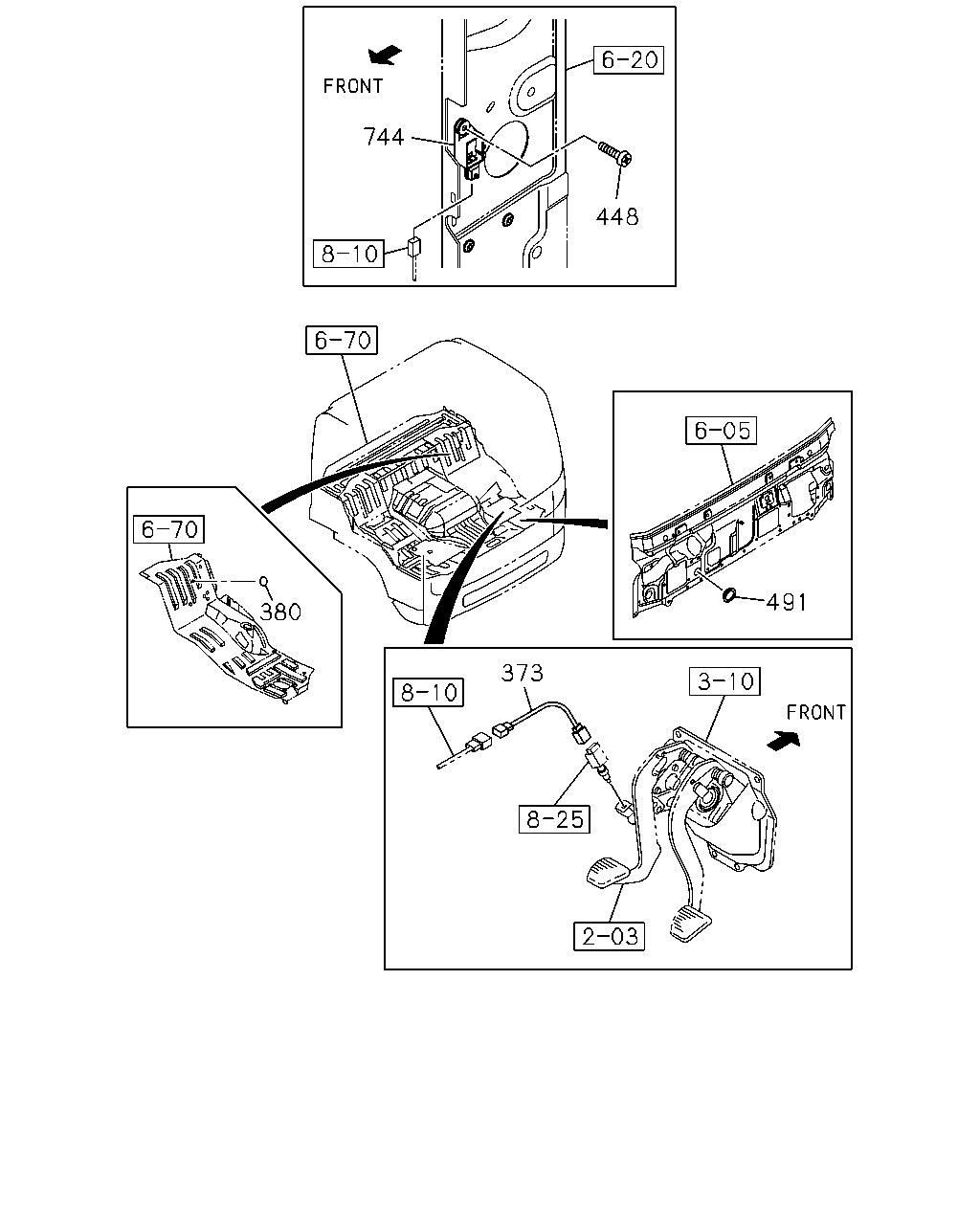

çizim 330391
744 448 380 373 491
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) H.S.A SYSTEM<6EP> EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98110-719-0 01 1 1302- ●
373 HARNESS; CLU SWITCH
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) H.S.A SYSTEM<6EP> ASSISTOR SHIFT CONTROL<WX8> 		8-98110-719-0 01 1 1302- ●
373 HARNESS; CLU SWITCH
FULLER FS8209HD DD M/T(Y3A) H.S.A SYSTEM<6EP> 		8-98110-719-0 01 1 1302- ●
373 HARNESS; CLU SWITCH
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) EXC. ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 1302- ●
373 HARNESS; CLU SWITCH
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) ASSISTOR SHIFT CONTROL<WX8> EXC. H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 1302- ●
373 HARNESS; CLU SWITCH
FULLER FS8209HD DD M/T(Y3A) EXC. H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 1302- ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. H.S.A SYSTEM<6EP> 		8-98110-722-0 01 1 1302- ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> ASSISTOR SHIFT CONTROL<WX8> 		8-98110-721-0 01 1 1302- ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1302- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1302- ●
448 BOLT; SENSOR
4HK1-TCS ENG(RJS) M6X16 FLANGE 		0-28050-616-0 01 1 1305- ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1302- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 1302- ●

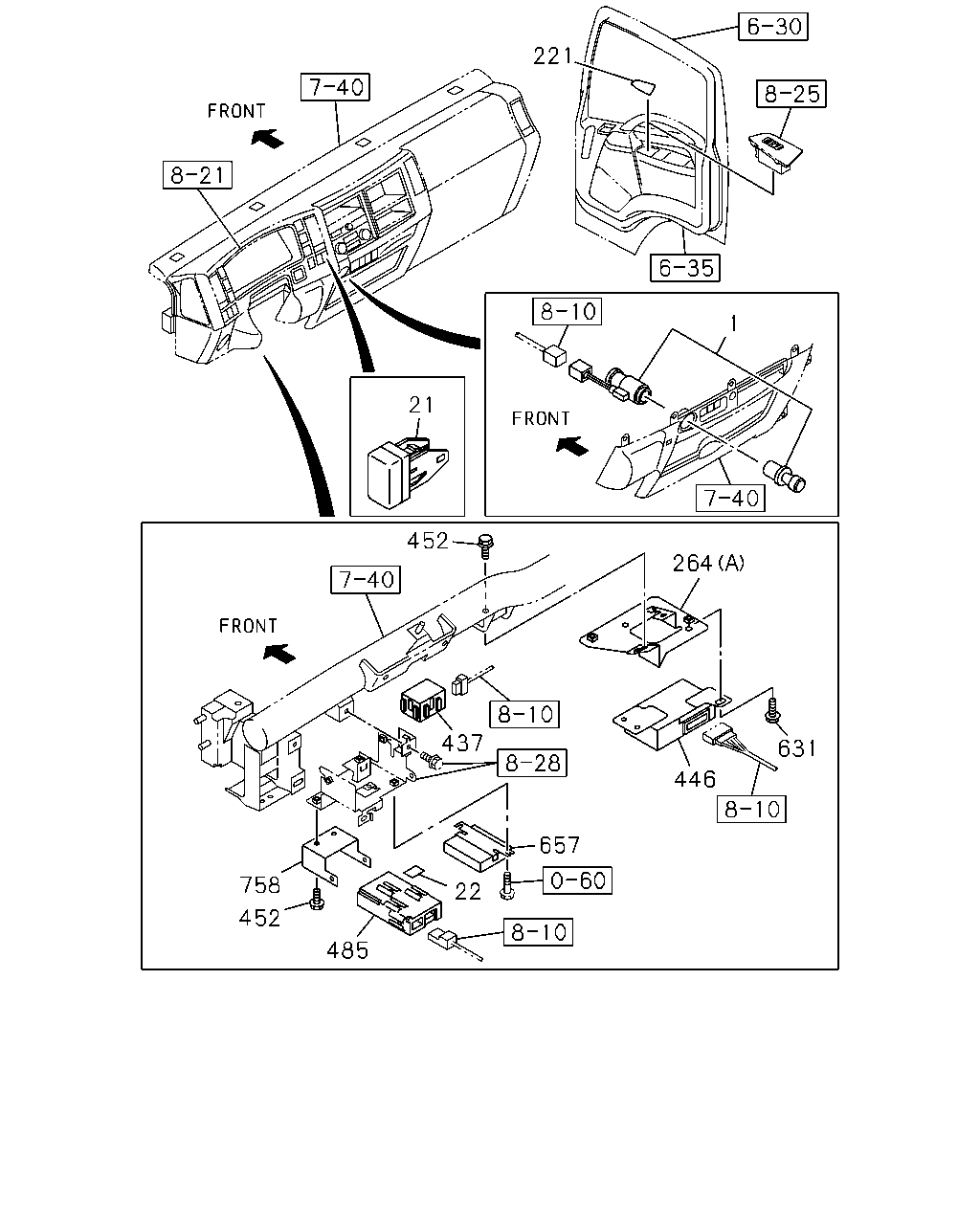

çizim 332386
221 1 264 631 446 657 22 485 452 758 437 452 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1302- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1302- ● ●
22 SEAL; TAPE
SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE> 		8-98166-639-0 02 1 1406-1409 ●
22 SEAL; TAPE
SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98166-639-0 02 1 1410-1507 ●
22 SEAL; TAPE
SPEED LIMITER 90KM(NMJ) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98166-639-0 02 1 1410-1507 ●
22 SEAL; TAPE
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98166-639-0 02 1 1508-1510 ●
22 SEAL; TAPE
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) SPEED LIMITER 90KM(NMJ) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98166-639-0 02 1 1508-1510 ●
22 SEAL; TAPE
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98166-639-0 02 1 1511- ●
22 SEAL; TAPE
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) SPEED LIMITER 90KM(NMJ) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98166-639-0 02 1 1511- ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1302- ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1302- ● ●
264 BRACKET; CONT UNIT
ECE R29<EFE> (B) 		8-98180-454-0 01 1 1302- ●
264 BRACKET; CONT UNIT
EXC. ECE R29<EFE> (B) 		8-97616-354-5 01 1 1302- ●
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 1302- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> (A) 		8-98088-654-0 01 1 1302- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98088-654-0 01 1 1302- ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1302- ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		1-80111-116-2 01 1 1302- ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-98136-318-1 01 1 1302- ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 1302-1405 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> M6X16 FLANGE 		0-28650-616-0 02 1 1302-1405 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1302-1405 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1406-1408 ● ●
452 BOLT; BRKT
SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE> M6X16 FLANGE 		0-28650-616-0 02 1 1406-1408 ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) EXC. SPEED LIMITER 85KM(EDX) M6X16 FLANGE 		0-28650-616-0 02 1 1406-1408 ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) SPEED LIMITER 85KM(EDX) EXC. VIN MODEL YEAR 2014<VZE> M6X16 FLANGE 		0-28650-616-0 02 1 1406-1408 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1409-1409 ● ●
452 BOLT; BRKT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE> M6X16 FLANGE 		0-28650-616-0 02 1 1409-1409 ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 1409-1409 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1410-1507 ● ●
452 BOLT; BRKT
SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M6X16 FLANGE 		0-28650-616-0 02 1 1410-1507 ●
452 BOLT; BRKT
SPEED LIMITER 90KM(NMJ) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M6X16 FLANGE 		0-28650-616-0 02 1 1410-1507 ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) EXC. SPEED LIMITER 90KM(NMJ),VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M6X16 FLANGE 		0-28650-616-0 02 1 1410-1507 ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) M6X16 FLANGE 		0-28650-616-0 02 1 1410-1507 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> M6X16 FLANGE 		0-28650-616-0 02 1 1508-1510 ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) M6X16 FLANGE 		0-28650-616-0 02 1 1508-1510 ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) SPEED LIMITER 90KM(NMJ) EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M6X16 FLANGE 		0-28650-616-0 02 1 1508-1510 ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) EXC. SPEED LIMITER 90KM(NMJ),VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M6X16 FLANGE 		0-28650-616-0 02 1 1508-1510 ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) M6X16 FLANGE 		0-28650-616-0 02 1 1508-1510 ●
452 BOLT; BRKT
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M6X16 FLANGE 		0-28650-616-0 02 1 1508-1510 ●
452 BOLT; BRKT
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) SPEED LIMITER 90KM(NMJ) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M6X16 FLANGE 		0-28650-616-0 02 1 1508-1510 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1508-1510 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> M6X16 FLANGE 		0-28650-616-0 02 1 1511- ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) M6X16 FLANGE 		0-28650-616-0 02 1 1511- ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) SPEED LIMITER 90KM(NMJ) EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>, ALGERIA EQUIPMENT(WN1) M6X16 FLANGE 		0-28650-616-0 02 1 1511- ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) EXC. SPEED LIMITER 90KM(NMJ),VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M6X16 FLANGE 		0-28650-616-0 02 1 1511- ●
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) M6X16 FLANGE 		0-28650-616-0 02 1 1511- ●
452 BOLT; BRKT
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M6X16 FLANGE 		0-28650-616-0 02 1 1511- ●
452 BOLT; BRKT
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) SPEED LIMITER 90KM(NMJ) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M6X16 FLANGE 		0-28650-616-0 02 1 1511- ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1511- ●
485 CONTROL UNIT; SPEED SENSOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE> 		1-80190-059-1 01 1 1406-1409 ●
485 CONTROL UNIT; SPEED SENSOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		1-80190-059-1 01 1 1410-1507 ●
485 CONTROL UNIT; SPEED SENSOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) SPEED LIMITER 90KM(NMJ) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		1-80190-059-1 01 1 1410-1507 ●
485 CONTROL UNIT; SPEED SENSOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		1-80190-059-1 01 1 1508-1510 ●
485 CONTROL UNIT; SPEED SENSOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) SPEED LIMITER 90KM(NMJ) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		1-80190-059-1 01 1 1508-1510 ●
485 CONTROL UNIT; SPEED SENSOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		1-80190-059-1 01 1 1511- ●
485 CONTROL UNIT; SPEED SENSOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) SPEED LIMITER 90KM(NMJ) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		1-80190-059-1 01 1 1511- ●
485 CONTROL UNIT; SPEED SENSOR
ZF9S1110 M/T(Y5E) 		1-80190-063-0 01 1 1302- ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1302- ● ●
657 CONTROL UNIT; MIMAMORI 8-98013-144-8 01 1 1302-1401 ● ●
657 CONTROL UNIT; MIMAMORI 8-98260-912-1 01 1 1402- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 1302-1405 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE> 		8-98048-743-1 01 1 1406-1408 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) EXC. SPEED LIMITER 85KM(EDX) 		8-98048-743-1 01 1 1406-1408 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) SPEED LIMITER 85KM(EDX) EXC. VIN MODEL YEAR 2014<VZE> 		8-98048-743-1 01 1 1406-1408 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE> 		8-98048-743-1 01 1 1409-1409 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2014<VZE> 		8-98048-743-1 01 1 1409-1409 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2014<VZE> EXC. SPEED LIMITER 85KM(EDX) 		8-98048-743-1 01 1 1409-1409 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98048-743-1 01 1 1410-1505 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) SPEED LIMITER 90KM(NMJ) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98048-743-1 01 1 1410-1505 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) EXC. SPEED LIMITER 90KM(NMJ),VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98048-743-1 01 1 1410-1505 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) 		8-98048-743-1 01 1 1410-1505 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) EXC. SPEED LIMITER 90KM(NMJ),VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98048-743-1 01 1 1506-1507 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) 		8-98048-743-1 01 1 1506-1507 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98048-743-1 01 1 1506-1507 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
SPEED LIMITER 90KM(NMJ) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98048-743-1 01 1 1506-1507 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) 		8-98048-743-1 01 1 1508-1510 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) SPEED LIMITER 90KM(NMJ) EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98048-743-1 01 1 1508-1510 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) EXC. SPEED LIMITER 90KM(NMJ),VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98048-743-1 01 1 1508-1510 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) 		8-98048-743-1 01 1 1508-1510 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98048-743-1 01 1 1508-1510 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) SPEED LIMITER 90KM(NMJ) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98048-743-1 01 1 1508-1510 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) 		8-98048-743-1 01 1 1511- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) SPEED LIMITER 90KM(NMJ) EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>, ALGERIA EQUIPMENT(WN1) 		8-98048-743-1 01 1 1511- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) EXC. SPEED LIMITER 90KM(NMJ),VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98048-743-1 01 1 1511- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) 		8-98048-743-1 01 1 1511- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98048-743-1 01 1 1511- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) SPEED LIMITER 90KM(NMJ) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98048-743-1 01 1 1511- ●

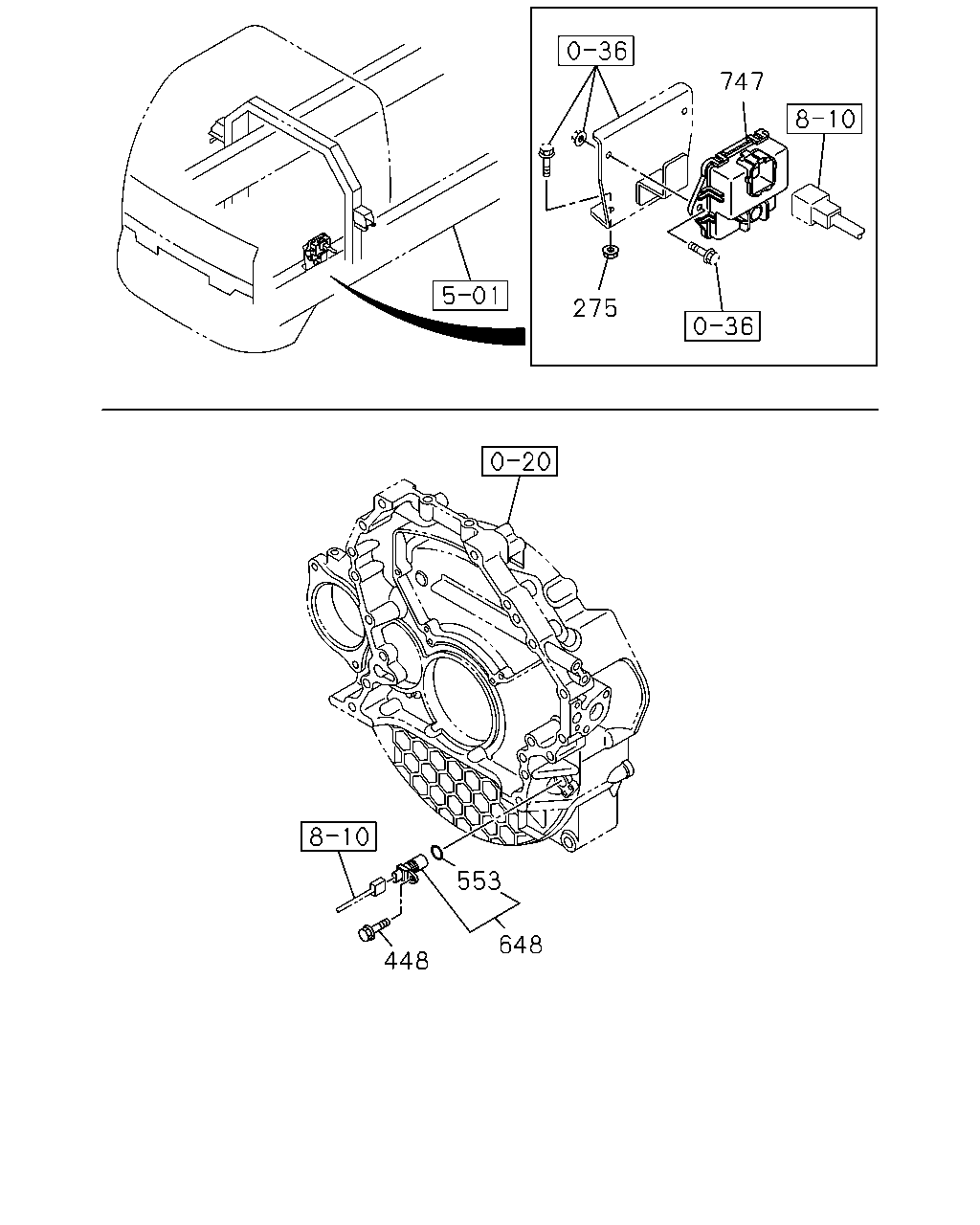

çizim 352462
275 747 553 448 648
BalonParca AdiParca NoAdetTipApplied Date A B
275 NUT; BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 02 1 1305- ●
448 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1302- ●
448 BOLT; SENSOR
4HK1-TCS ENG(RJS) M6X16 FLANGE 		0-28050-616-0 01 1 1305- ●
553 GASKET
4HK1-TCS ENG(RJS) ID=14.2 OD=18.8 		8-97369-404-0 01 1 1305- ●
648 SENSOR; CRANK ANGLE
4HK1-TCS ENG(RJS) 		8-97606-943-0 01 1 1305- ●
747 CONTROL UNIT; TURBOCHARGER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> 		8-98162-807-0 01 1 1305- ●

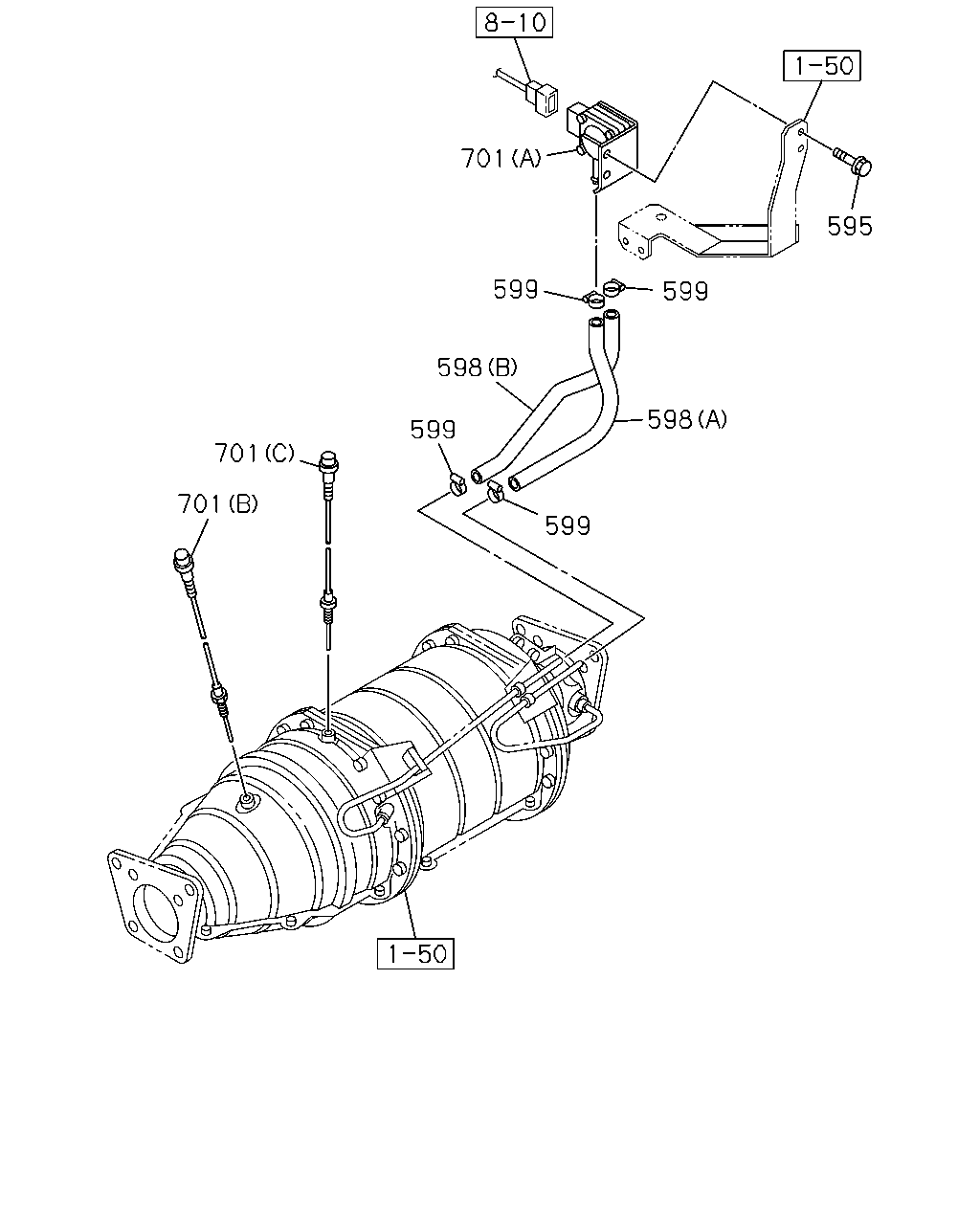

çizim 503394
599 599 599 599 598 598 701 701 701 595
BalonParca AdiParca NoAdetTipApplied Date A B
595 BOLT; SENSOR
CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE 		0-28650-820-0 02 1 1512- ●
598 HOSE; RUBBER,SENSOR
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-98088-940-0 01 1 1512- ●
598 HOSE; RUBBER,SENSOR
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98088-941-0 01 1 1512- ●
599 CLIP; HOSE
CATALYSIS CONTROL WITH DPD<8JM> ID=13 		8-97329-627-0 04 1 1512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
