◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11512 - FTR(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#113002) — 66 parça

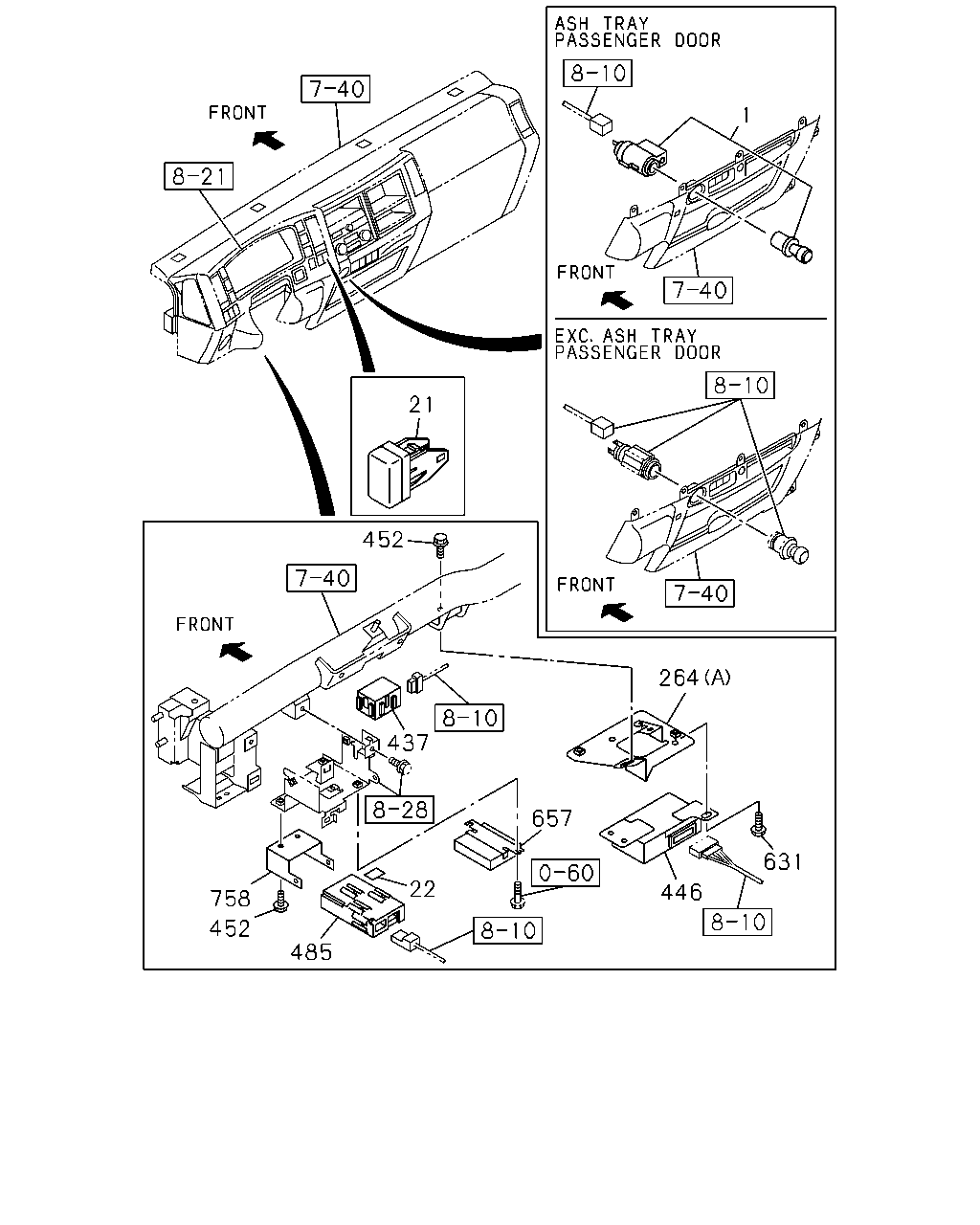

çizim 329947
21 452 437 758 452 22 485 657 446 631 264 1
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1302-
21 COVER; HOLE 8-98025-954-1 01 1 1302-
22 SEAL; TAPE
SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE> 		8-98166-639-0 02 1 1406-1409
22 SEAL; TAPE
SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98166-639-0 02 1 1410-1507
22 SEAL; TAPE
MOROCCO EQUIPMENT(CGA) SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98166-639-0 02 1 1508-1510
22 SEAL; TAPE
MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98166-639-0 02 1 1511-
22 SEAL; TAPE
MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) SPEED LIMITER 90KM(NMJ) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98166-639-0 02 1 1511-
264 BRACKET; CONT UNIT
ECE R29<EFE> (B) 		8-98180-454-0 01 1 1411-
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 1302-1410
264 BRACKET; CONT UNIT
EXC. ECE R29<EFE> (B) 		8-97616-354-5 01 1 1411-
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98088-654-0 01 1 1302-
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1302-
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		1-80111-116-2 01 1 1302-
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1302-1405
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1406-1409
452 BOLT; BRKT
SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE> M6X16 FLANGE 		0-28650-616-0 02 1 1406-1409
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1410-1507
452 BOLT; BRKT
SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M6X16 FLANGE 		0-28650-616-0 02 1 1410-1507
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1508-1510
452 BOLT; BRKT
MOROCCO EQUIPMENT(CGA) SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M6X16 FLANGE 		0-28650-616-0 02 1 1508-1510
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1511-
452 BOLT; BRKT
MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M6X16 FLANGE 		0-28650-616-0 02 1 1511-
452 BOLT; BRKT
MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) SPEED LIMITER 90KM(NMJ) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M6X16 FLANGE 		0-28650-616-0 02 1 1511-
485 CONTROL UNIT; SPEED SENSOR
SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE> 		1-80190-059-1 01 1 1406-1409
485 CONTROL UNIT; SPEED SENSOR
SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		1-80190-059-1 01 1 1410-1507
485 CONTROL UNIT; SPEED SENSOR
MOROCCO EQUIPMENT(CGA) SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		1-80190-059-1 01 1 1508-1510
485 CONTROL UNIT; SPEED SENSOR
MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		1-80190-059-1 01 1 1511-
485 CONTROL UNIT; SPEED SENSOR
MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) SPEED LIMITER 90KM(NMJ) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		1-80190-059-1 01 1 1511-
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1302-
657 CONTROL UNIT; MIMAMORI 8-98013-144-8 01 1 1302-1401
657 CONTROL UNIT; MIMAMORI 8-98260-912-1 01 1 1402-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE> 		8-98048-743-1 01 1 1406-1409
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98048-743-1 01 1 1410-1507
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
MOROCCO EQUIPMENT(CGA) SPEED LIMITER 85KM(EDX) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98048-743-1 01 1 1508-1510
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98048-743-1 01 1 1511-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) SPEED LIMITER 90KM(NMJ) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98048-743-1 01 1 1511-

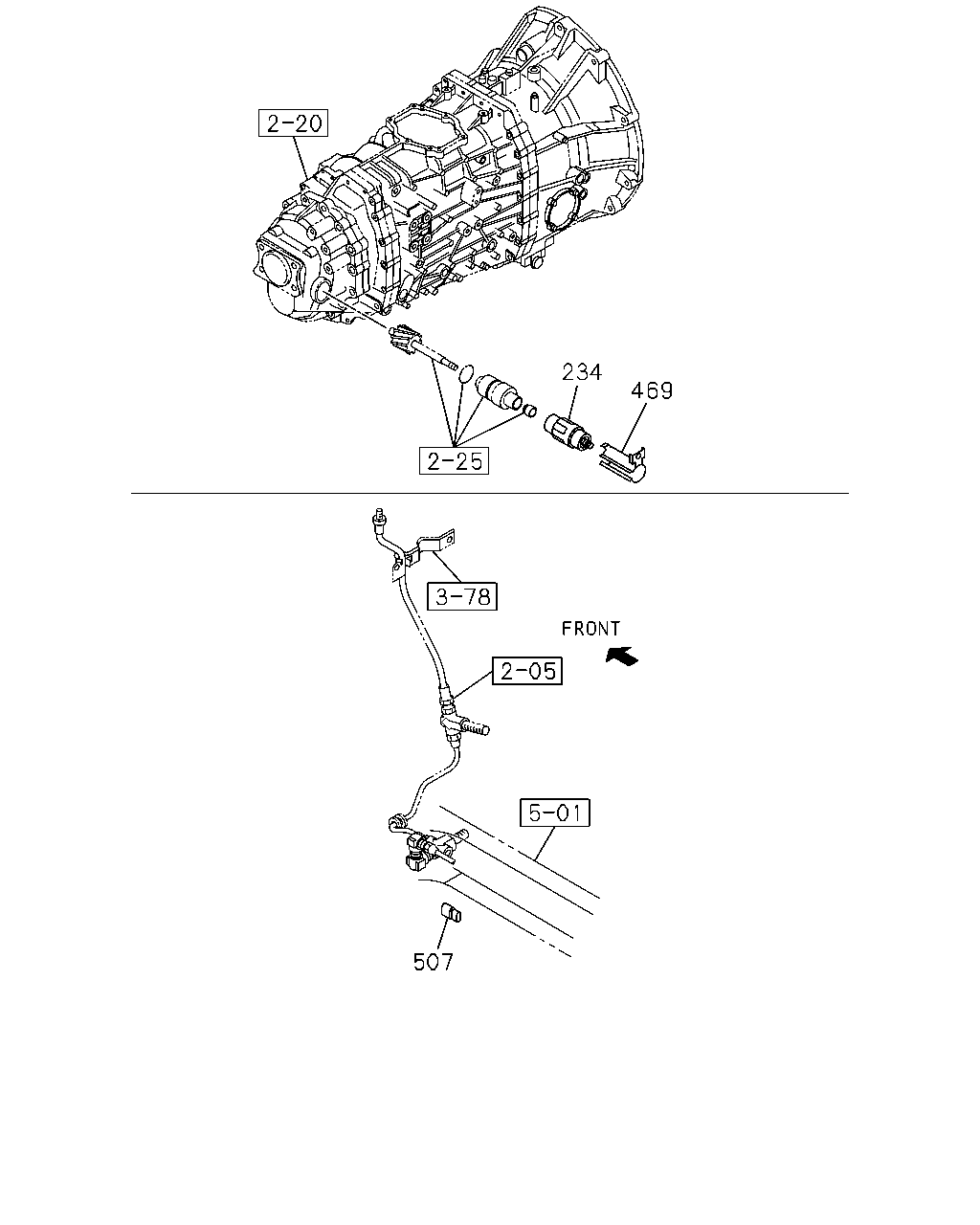

çizim 329949
234 507 469
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1302-
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 1302-
507 CONNECTOR
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1302-

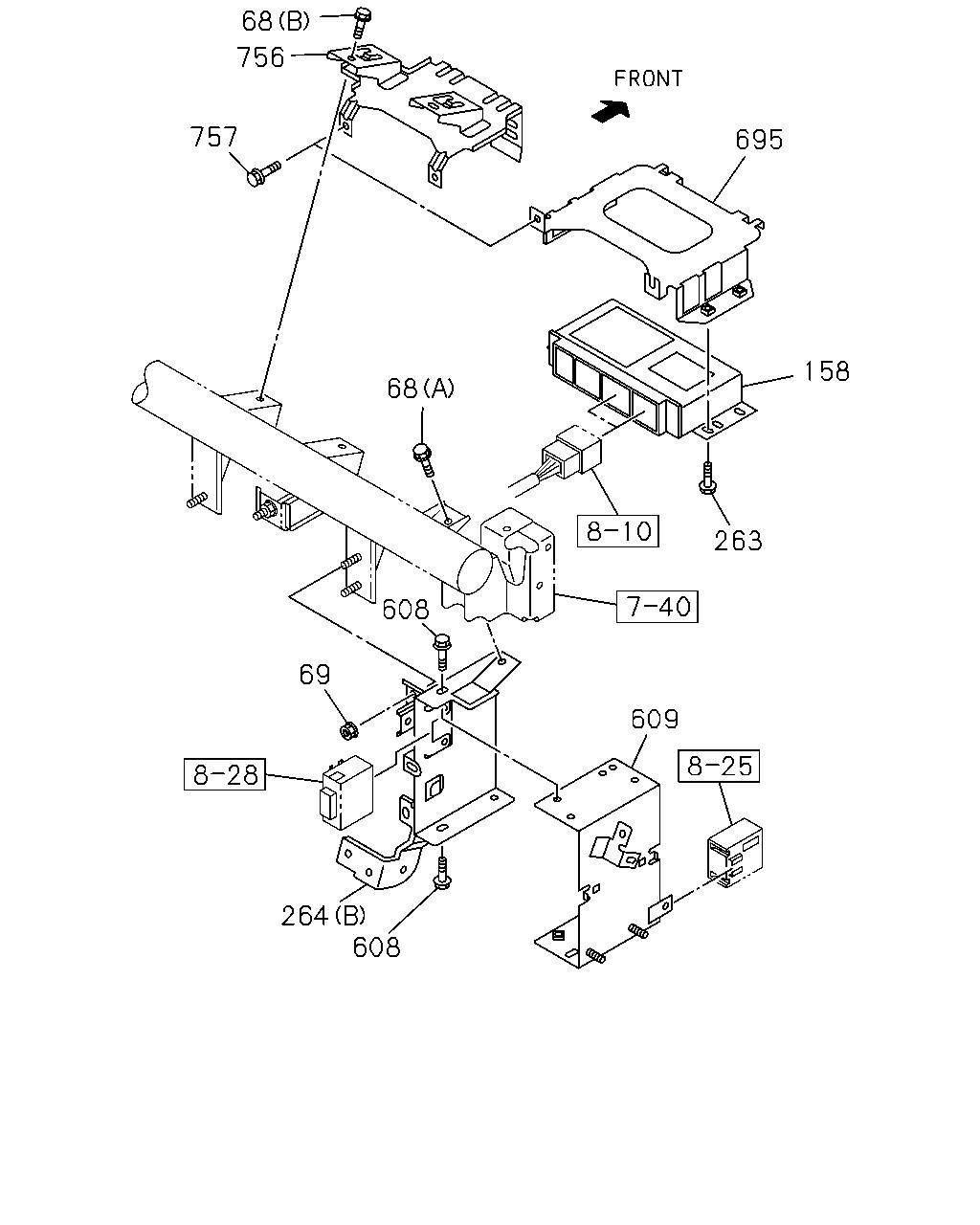

çizim 330132
68 695 158 263 609 608 264 69 608 68 757 756
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1302-
68 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1302-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1302-
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R), TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) 		8-98222-314-0 01 1 1302-
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) 		8-98222-313-0 01 1 1302-
263 BOLT; CONT UNIT
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 04 1 1302-
264 BRACKET; CONT UNIT
ECE R29<EFE> (B) 		8-98180-454-0 01 1 1411-
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 1302-1410
264 BRACKET; CONT UNIT
EXC. ECE R29<EFE> (B) 		8-97616-354-5 01 1 1411-
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98088-654-0 01 1 1302-
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28650-616-0 05 1 1302-
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> 		8-98095-336-0 01 1 1302-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> 		8-98226-231-1 01 1 1309-
695 BRACKET; CONT UNIT,ABS
ANTI LOCK BRAKE<JE5> 		8-98045-016-1 01 1 1302-
756 BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5> 		8-98052-797-3 01 1 1302-
757 BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 02 1 1302-

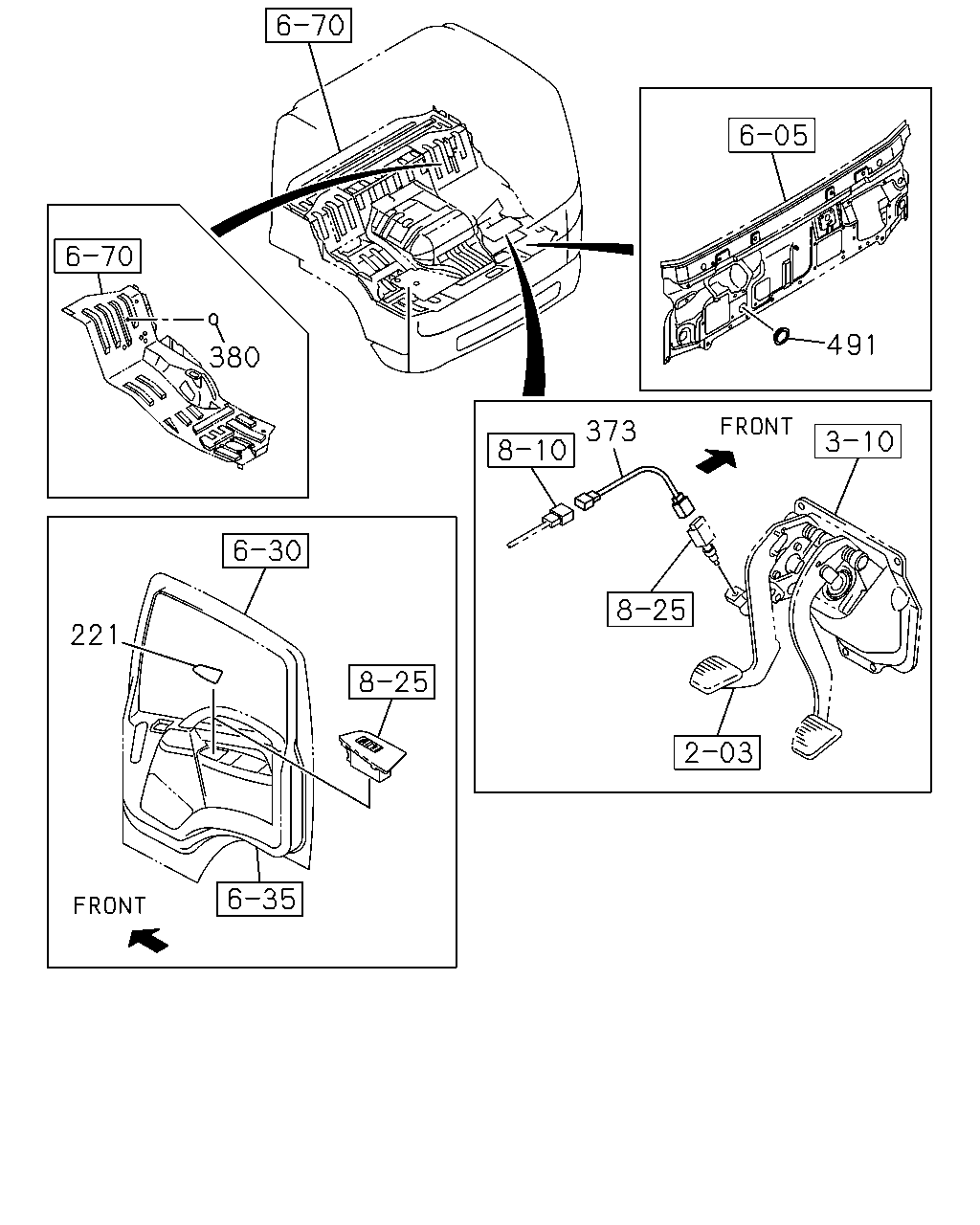

çizim 330350
380 221 373 491
BalonParca AdiParca NoAdetTipApplied Date
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1302-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1302-
373 HARNESS; CLU SWITCH
H.S.A SYSTEM<6EP> 		8-98110-719-0 01 1 1302-
373 HARNESS; CLU SWITCH
EXC. H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 1302-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1302-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1302-

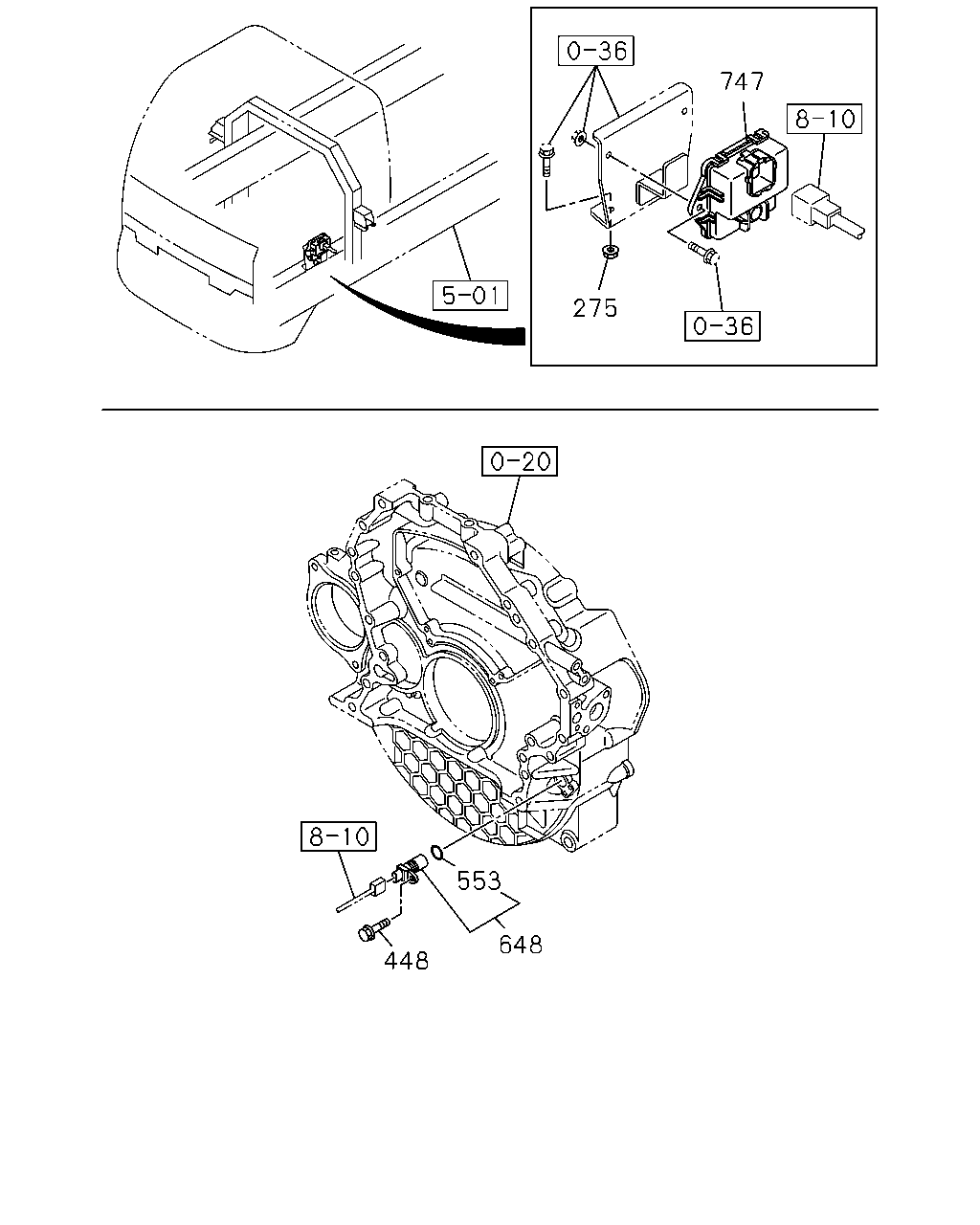

çizim 352129
275 747 448 553 648
BalonParca AdiParca NoAdetTipApplied Date
275 NUT; BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-108-0 02 1 1305-
448 BOLT; SENSOR
4HK1-TCS ENG(RJS) M6X16 FLANGE 		0-28050-616-0 01 1 1305-
553 GASKET
4HK1-TCS ENG(RJS) ID=14.2 OD=18.8 		8-97369-404-0 01 1 1305-
648 SENSOR; CRANK ANGLE
4HK1-TCS ENG(RJS) 		8-97606-943-0 01 1 1305-
747 CONTROL UNIT; TURBOCHARGER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> 		8-98162-807-0 01 1 1305-
