Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#1130) — 397 parça

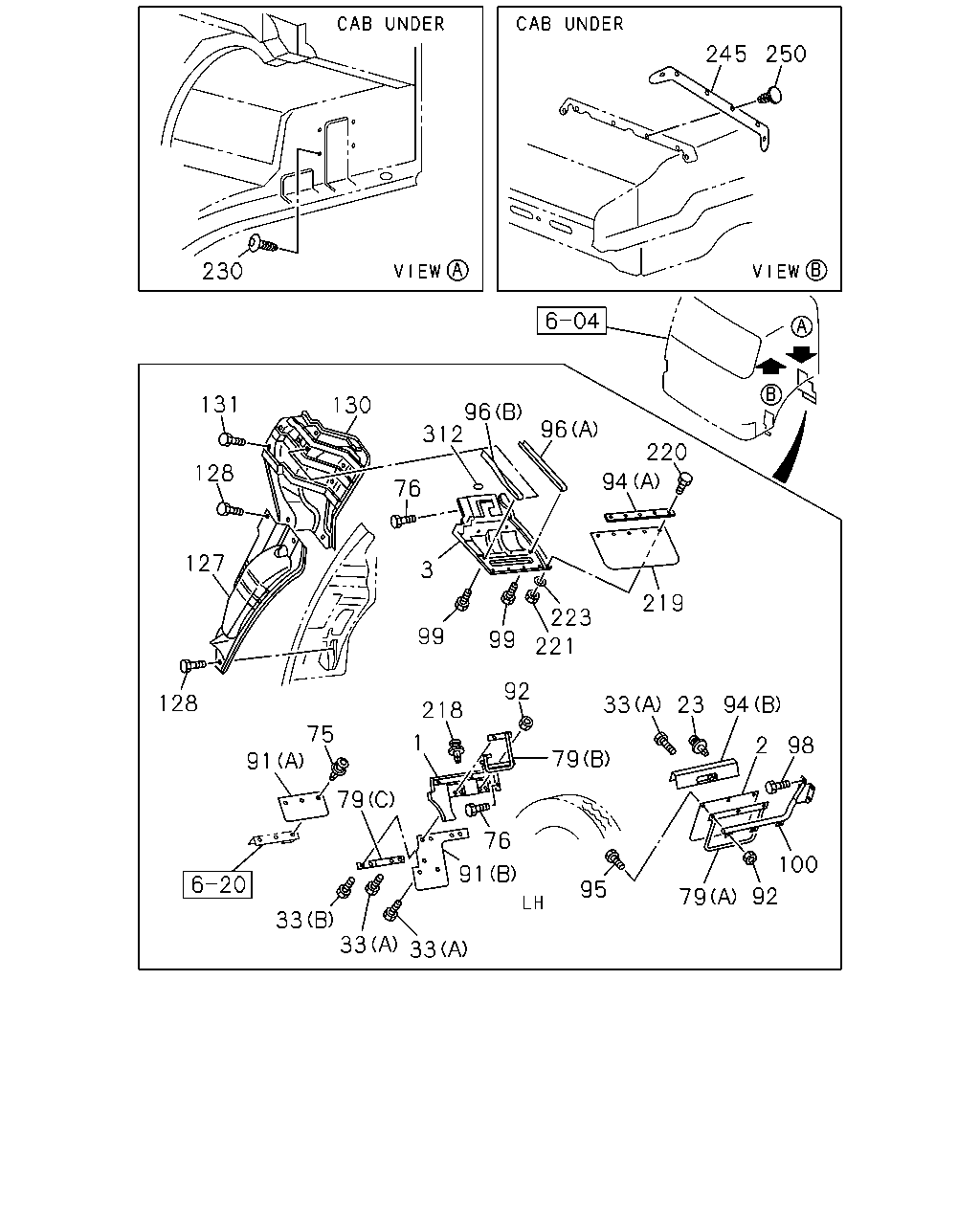

245 250 230 131 130 96 312 96 220 128 94 76 127 3 219 223 99 99 221 92 128 33 23 94 218 75 1 98 2 79 91 79 76 100 91 95 92 79 33 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-731-0	01	1	9202-	●	●
1	GUARD; MUD,FRT	1-79938-730-0	01	1	9202-	●	●
2	COVER; MUD,TIRE RR	1-79930-530-2	01	1	9202-	●	●
2	COVER; MUD,TIRE RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79930-584-2	01	1	9202-	●	●
2	COVER; MUD,TIRE RR 6HE1 STD ENG(46L)	1-79930-825-0	01	1	9202-9307		●
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9202-	●	●
3	GUARD; MUD,RR 6HE1 STD ENG(46L) EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9202-		●
3	GUARD; MUD,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-707-3	01	1	9202-	●	●
3	GUARD; MUD,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-714-0	01	1	9202-	●	●
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-775-0	01	1	9202-		●
23	FASTENER; MUD COVER	1-09470-001-0	02	1	9308-9401	●	●
33	BOLT; MUD COVER (B) M6X16 W/LK WASHER	0-50040-616-0	04	1	9202-	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	16	1	9202-9310	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9311-	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9402-	●	●
33	BOLT; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9202-9209	●	●
33	BOLT; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9210-	●	●
75	RIVET; MUD COVER D6X16 PUSH RIVET	1-09983-105-0	06	1	9202-	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9202-	●	●
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
76	BOLT; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9202-	●	●
79	RETAINER; MUD COVER (C)	1-79930-656-0	02	1	9202-	●	●
79	RETAINER; MUD COVER (B)	1-79930-654-2	01	1	9202-9310	●	●
79	RETAINER; MUD COVER (B)	1-79930-984-0	01	1	9311-	●	●
79	RETAINER; MUD COVER (A)	1-79930-521-0	01	1	9202-9307	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79930-986-0	01	1	9308-9401		●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79931-131-0	01	1	9402-		●
79	RETAINER; MUD COVER (B)	1-79930-655-2	01	1	9202-9310	●	●
79	RETAINER; MUD COVER (B)	1-79930-985-0	01	1	9311-	●	●
79	RETAINER; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-651-1	01	1	9202-	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79930-824-0	01	1	9202-9307		●
91	COVER; MUD,FRT (A)	1-79930-653-1	02	1	9202-	●	●
91	COVER; MUD,FRT (B)	1-79930-658-2	02	1	9202-	●	●
92	NUT; MUD COVER M6	9-09110-406-0	05	1	9202-	●	●
92	NUT; MUD COVER 6HE1 STD ENG(46L) M6	9-09110-406-0	05	1	9202-		●
92	NUT; MUD COVER M6	9-09110-406-0	04	1	9202-9310	●	●
94	RETAINER; FLAP RUBBER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-586-0	01	1	9202-	●	●
94	RETAINER; FLAP RUBBER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B)	1-79930-649-1	01	1	9202-	●	●
95	BOLT; STAY TO RET 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X16 W/LK&PL WASHER	1-09980-492-0	03	1	9202-	●	●
96	STAY; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79938-643-1	01	1	9202-	●	●
96	STAY; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B)	1-79938-645-1	01	1	9202-	●	●
98	BOLT; STAY TO BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X30 FLANGE	0-28010-830-0	04	1	9202-9204	●	●
98	BOLT; STAY TO BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X30 FLANGE	0-28080-830-0	04	1	9205-	●	●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9205-		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) M8X30 FLANGE	0-28010-830-0	01	1	9202-9204		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) M8X30 FLANGE	0-28080-830-0	01	1	9205-		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L)	0-28011-025-0	04	1	9202-9204		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) M10X25 FLANGE	0-28081-025-0	04	1	9205-		●
99	BOLT; STAY TO MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X20 W/LK&PL WASHER	1-09980-495-0	04	1	9202-	●	●
100	STAY; UPR,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-53497-407-0	01	1	9202-	●	●
100	STAY; UPR,MUD GUARD 6HE1 STD ENG(46L)	1-53497-332-1	01	1	9202-		●
127	APRON; FRT ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-417-0	01	1	9202-	●	●
127	APRON; FRT ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-104-0	01	1	9202-	●	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-623-3	01	1	9202-	●	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-621-3	01	1	9202-	●	●
128	BOLT; APRON,FRT ANTI NOISE EQUIPMENT VAR E<SLK> M8X18 W/LK&PL WASHER	1-09030-003-1	10	1	9202-9202	●	●
128	BOLT; APRON,FRT EXC. ANTI NOISE EQUIPMENT VAR E<SLK> M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-9202	●	●
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9203-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK> EXC. AUSTRALIA EQUIPMENT(RR3)	1-53192-857-0	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> EXC. AUSTRALIA EQUIPMENT(RR3)	1-53192-857-0	01	1	9411-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-418-0	01	1	9202-9410	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-418-0	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-418-0	01	1	9411-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-108-0	01	1	9202-9410	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-108-0	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-108-0	01	1	9411-		●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-627-5	01	1	9202-9410	●	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-627-5	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-627-5	01	1	9411-		●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-625-5	01	1	9202-9410	●	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-625-5	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-625-5	01	1	9411-		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-734-1	01	1	9202-9410		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-734-1	01	1	9411-		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-740-1	01	1	9202-9410		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-740-1	01	1	9411-		●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9202-	●	●
218	FASTENER; RUBBER	1-09470-001-0	10	1	9311-	●	●
219	FLAP; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79930-650-0	01	1	9202-	●	●
220	BOLT; RET,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X16 W/LK WASHER	0-50000-616-0	05	1	9202-9204	●	●
220	BOLT; RET,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X16 W/LK WASHER	0-50080-616-0	05	1	9205-	●	●
221	NUT; COVER,MUD GUARD RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	8-94238-948-0	05	1	9202-	●	●
223	WASHER; PL,RET 6SA1 STD ENG(06L),6SA1TC ENG(28L)	8-94238-949-0	05	1	9202-	●	●
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	04	1	9202-	●	●
230	PLUG; MUD GUARD 6HE1 STD ENG(46L) D4.7X11	1-76378-154-0	04	1	9202-		●
230	PLUG; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) D4.7X11	1-76378-154-0	05	1	9202-	●	●
245	RUBBER; SHUTTER,RAD 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-79938-858-0	01	1	9202-	●	●
250	FASTENER; SHUTTER 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-09987-189-0	06	1	9202-	●	●
312	SEAL; DUMMY HOLE 6SA1 STD ENG(06L),6SA1TC ENG(28L) OD=36 WHITE	1-76778-007-0	02	1	9202-	●	●

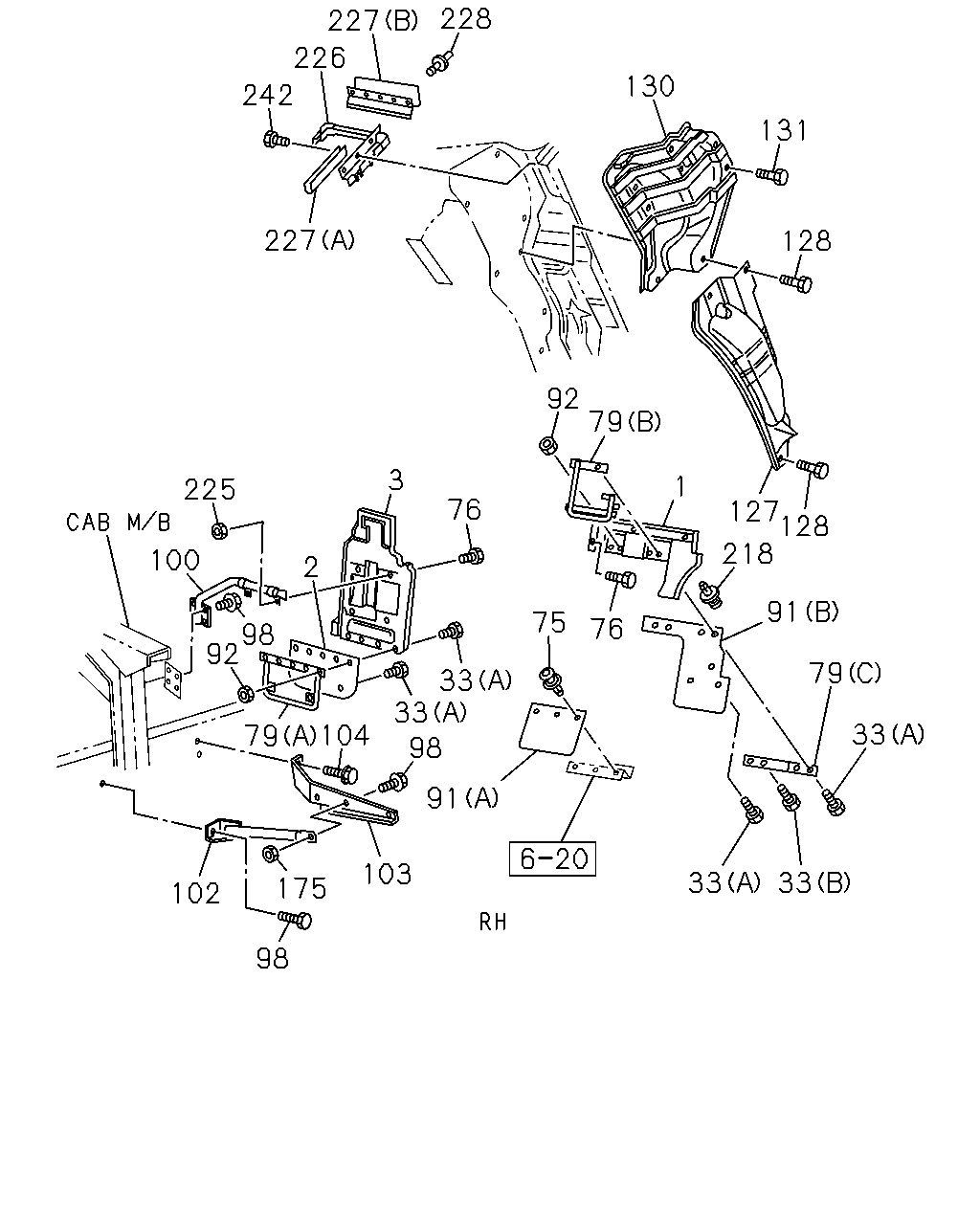

228 227 226 130 242 131 227 128 92 79 3 1 225 76 127 128 218 100 2 91 75 76 98 92 79 33 33 98 33 79 91 103 33 33 175 102 98 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-731-0	01	1	9202-	●	●
1	GUARD; MUD,FRT	1-79938-730-0	01	1	9202-	●	●
2	COVER; MUD,TIRE RR	1-79930-530-2	01	1	9202-	●	●
2	COVER; MUD,TIRE RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79930-584-2	01	1	9202-	●	●
2	COVER; MUD,TIRE RR 6HE1 STD ENG(46L)	1-79930-825-0	01	1	9202-9307		●
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9202-	●	●
3	GUARD; MUD,RR 6HE1 STD ENG(46L) EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9202-		●
3	GUARD; MUD,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-707-3	01	1	9202-	●	●
3	GUARD; MUD,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-714-0	01	1	9202-	●	●
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-775-0	01	1	9202-		●
33	BOLT; MUD COVER (B) M6X16 W/LK WASHER	0-50040-616-0	04	1	9202-	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	16	1	9202-9310	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9311-	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9402-	●	●
33	BOLT; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9202-9209	●	●
33	BOLT; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9210-	●	●
75	RIVET; MUD COVER D6X16 PUSH RIVET	1-09983-105-0	06	1	9202-	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9202-	●	●
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
76	BOLT; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9202-	●	●
79	RETAINER; MUD COVER (C)	1-79930-656-0	02	1	9202-	●	●
79	RETAINER; MUD COVER (B)	1-79930-654-2	01	1	9202-9310	●	●
79	RETAINER; MUD COVER (B)	1-79930-984-0	01	1	9311-	●	●
79	RETAINER; MUD COVER (A)	1-79930-521-0	01	1	9202-9307	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79930-986-0	01	1	9308-9401		●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79931-131-0	01	1	9402-		●
79	RETAINER; MUD COVER (B)	1-79930-655-2	01	1	9202-9310	●	●
79	RETAINER; MUD COVER (B)	1-79930-985-0	01	1	9311-	●	●
79	RETAINER; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-651-1	01	1	9202-	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79930-824-0	01	1	9202-9307		●
91	COVER; MUD,FRT (A)	1-79930-653-1	02	1	9202-	●	●
91	COVER; MUD,FRT (B)	1-79930-658-2	02	1	9202-	●	●
92	NUT; MUD COVER M6	9-09110-406-0	05	1	9202-	●	●
92	NUT; MUD COVER 6HE1 STD ENG(46L) M6	9-09110-406-0	05	1	9202-		●
92	NUT; MUD COVER M6	9-09110-406-0	04	1	9202-9310	●	●
98	BOLT; STAY TO BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X30 FLANGE	0-28010-830-0	04	1	9202-9204	●	●
98	BOLT; STAY TO BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X30 FLANGE	0-28080-830-0	04	1	9205-	●	●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9205-		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) M8X30 FLANGE	0-28010-830-0	01	1	9202-9204		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) M8X30 FLANGE	0-28080-830-0	01	1	9205-		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L)	0-28011-025-0	04	1	9202-9204		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) M10X25 FLANGE	0-28081-025-0	04	1	9205-		●
100	STAY; UPR,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-53497-407-0	01	1	9202-	●	●
100	STAY; UPR,MUD GUARD 6HE1 STD ENG(46L)	1-53497-332-1	01	1	9202-		●
102	STAY; LWR,MUD GUARD 6HE1 STD ENG(46L)	1-53497-360-1	01	1	9202-		●
103	BRACKET ASM; RR MUD FLAP 6HE1 STD ENG(46L)	1-53497-380-1	01	1	9202-		●
104	BOLT; BRKT 6HE1 STD ENG(46L)	0-28011-025-0	02	1	9202-9204		●
104	BOLT; BRKT 6HE1 STD ENG(46L) M10X25 FLANGE	0-28081-025-0	02	1	9205-		●
127	APRON; FRT ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-417-0	01	1	9202-	●	●
127	APRON; FRT ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-104-0	01	1	9202-	●	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-623-3	01	1	9202-	●	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-621-3	01	1	9202-	●	●
128	BOLT; APRON,FRT ANTI NOISE EQUIPMENT VAR E<SLK> M8X18 W/LK&PL WASHER	1-09030-003-1	10	1	9202-9202	●	●
128	BOLT; APRON,FRT EXC. ANTI NOISE EQUIPMENT VAR E<SLK> M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-9202	●	●
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9203-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK> EXC. AUSTRALIA EQUIPMENT(RR3)	1-53192-857-0	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> EXC. AUSTRALIA EQUIPMENT(RR3)	1-53192-857-0	01	1	9411-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-418-0	01	1	9202-9410	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-418-0	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-418-0	01	1	9411-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-108-0	01	1	9202-9410	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-108-0	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-108-0	01	1	9411-		●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-627-5	01	1	9202-9410	●	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-627-5	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-627-5	01	1	9411-		●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-625-5	01	1	9202-9410	●	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-625-5	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-625-5	01	1	9411-		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-734-1	01	1	9202-9410		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-734-1	01	1	9411-		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-740-1	01	1	9202-9410		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-740-1	01	1	9411-		●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9202-	●	●
175	NUT; STAY FIX 6HE1 STD ENG(46L) M8	9-09110-408-0	01	1	9202-		●
218	FASTENER; RUBBER	1-09470-001-0	10	1	9311-	●	●
225	NUT; MUD GUARD M8	9-09110-408-0	02	1	9202-9209	●	●
225	NUT; MUD GUARD 6SA1TC ENG(28L),6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9210-9304		●
225	NUT; MUD GUARD 6SA1TC ENG(28L) M8	9-09110-408-0	02	1	9305-		●
225	NUT; MUD GUARD 6HE1 STD ENG(46L) M8	9-09110-408-0	04	1	9305-		●
226	SUPPORT; SEAL,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-772-1	01	1	9202-	●	●
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-733-1	01	1	9202-		●
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-768-1	01	1	9202-		●
227	SEAL; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) L=342	1-79938-765-0	01	1	9202-	●	●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (A) L=342	1-79938-765-0	02	1	9202-		●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-739-0	01	1	9202-		●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-675-1	01	1	9202-		●
228	FASTENER; MUD GUARD SEAL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	5-09989-002-0	04	1	9202-	●	●
228	FASTENER; MUD GUARD SEAL 6HE1 STD ENG(46L)	5-09989-002-0	14	1	9202-		●
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9202-	●	●

126 277 281 74 126 277 18 71 71 277 281 18 126 277 62 63 282 281 282 113 148 148 147 148 159 140 140 113 140 140 140 140 148 148 148 154 140 147 146 151 71 148 146 112 140 109 59 140 139 126 277 277 126 277 126 277 277 71 126 18 277 74 71 282 18 74 126 282 126 277 71 71 126 282 173 18 18 282 277 282 282

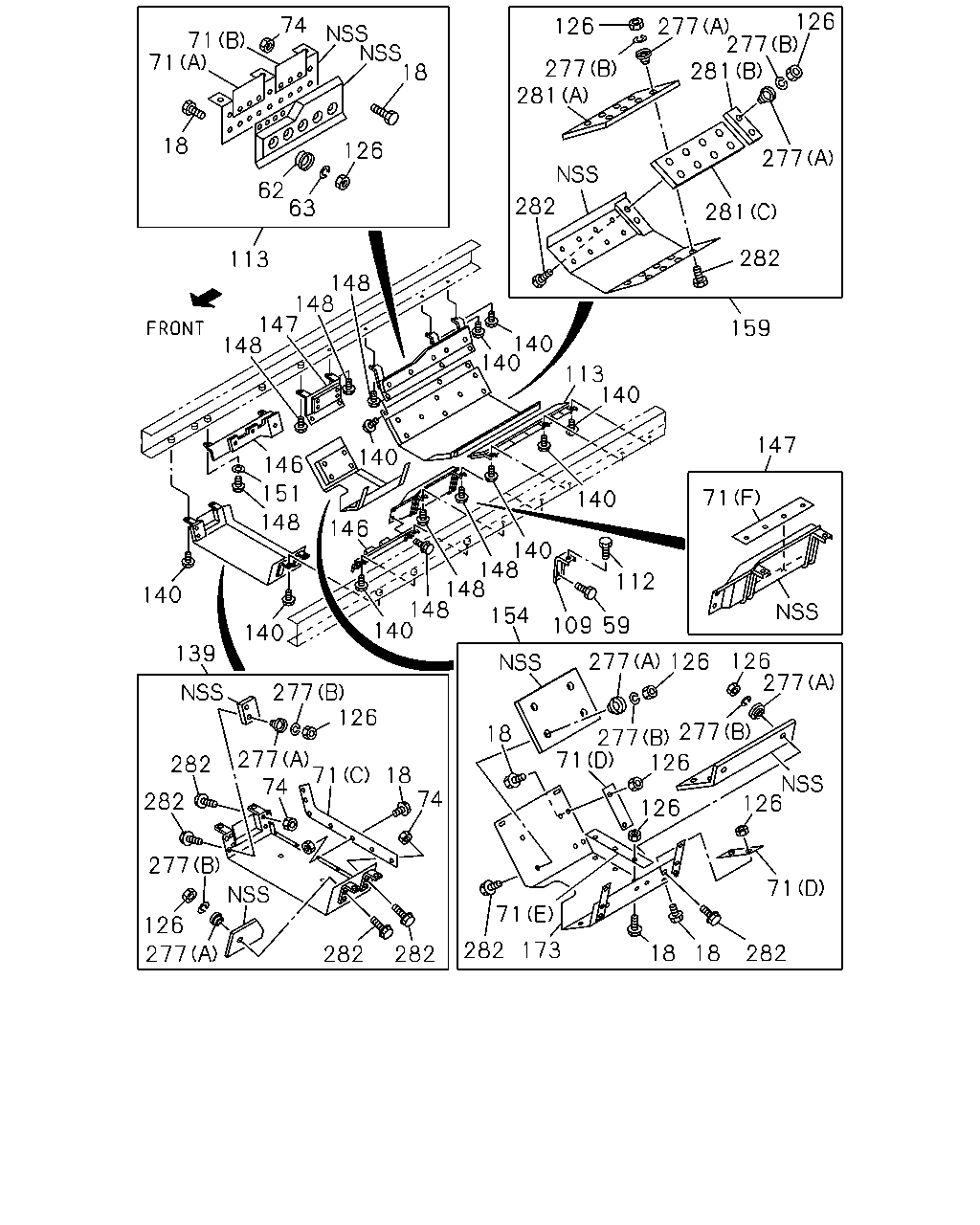

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	BOLT; SEAL RUBBER 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> M6X16	0-28010-616-0	29	1	9202-9204	●	●
18	BOLT; SEAL RUBBER 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> M6X16 FLANGE	0-28080-616-0	29	1	9205-	●	●
59	BOLT; BRKT TO PANEL 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> M8X20 W/LK&PL WASHER	8-94243-012-0	02	1	9405-	●	●
62	WASHER; COVER 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK>	1-73377-052-1	10	1	9202-	●	●
63	WASHER; LK,COVER 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> ID=6.1	9-09150-506-0	10	1	9202-	●	●
71	RUBBER; SEAL ANTI NOISE EQUIPMENT VAR E<SLK> (F)	1-53446-210-0	01	1	9206-9404	●	●
71	RUBBER; SEAL 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> (F)	1-53446-210-0	01	1	9405-	●	●
71	RUBBER; SEAL 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> (B)	1-53446-621-0	02	1	9202-	●	●
71	RUBBER; SEAL 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> (C)	1-53446-635-0	01	1	9202-	●	●
71	RUBBER; SEAL 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> (D)	1-53446-636-0	02	1	9202-	●	●
71	RUBBER; SEAL 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> (E)	1-53446-637-0	01	1	9202-	●	●
71	RUBBER; SEAL 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-53446-639-0	01	1	9202-	●	●
71	RUBBER; SEAL 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-53446-620-0	01	1	9202-	●	●
74	NUT ANTI NOISE EQUIPMENT VAR E<SLK>	9-09110-408-0	04	1	9202-9404	●	●
74	NUT 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK>	9-09110-408-0	24	1	9202-9404	●	●
74	NUT 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK>	9-09110-408-0	28	1	9405-	●	●
109	BRACKET; SIDE PANEL 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK>	1-47477-328-0	01	1	9405-	●	●
112	BOLT; BRKT 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> M8X25 FLANGE	0-28080-825-0	01	1	9405-	●	●
113	PANEL; SIDE 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-429-2	01	1	9202-	●	●
113	PANEL; SIDE 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-428-2	01	1	9202-	●	●
126	NUT; PANEL ANTI NOISE EQUIPMENT VAR E<SLK> M6	9-09110-406-0	04	1	9202-9404	●	●
126	NUT; PANEL 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> M6	9-09110-406-0	71	1	9202-9404	●	●
126	NUT; PANEL 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> M6	9-09110-406-0	75	1	9405-	●	●
139	PANEL; SIDE 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-431-1	01	1	9202-	●	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT VAR E<SLK> M8X18	1-09030-034-1	02	1	9202-	●	●
140	BOLT; SIDE PANEL 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> M8X25 FLANGE	0-28080-825-0	15	1	9202-9404	●	●
140	BOLT; SIDE PANEL 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> M8X25 FLANGE	0-28080-825-0	10	1	9405-	●	●
140	BOLT; SIDE PANEL 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> M8X35 FLANGE	0-28080-835-0	02	1	9202-	●	●
140	BOLT; SIDE PANEL 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> M8X40 FLANGE	0-28080-840-0	02	1	9202-	●	●
140	BOLT; SIDE PANEL 6SA1TC ENG(28L) ANTI NOISE EQUIPMENT VAR E<SLK> M8X25 FLANGE	0-28080-825-0	08	1	9202-9404	●	●
140	BOLT; SIDE PANEL 6HE1 STD ENG(46L) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204		●
140	BOLT; SIDE PANEL 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	02	1	9205-		●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT VAR E<SLK>	1-53191-243-5	01	1	9202-9404	●	●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT VAR E<SLK>	1-53191-443-1	01	1	9202-9404	●	●
147	PANEL; SIDE,UNDER,RR 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-426-0	01	1	9202-	●	●
147	PANEL; SIDE,UNDER,RR 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-425-0	01	1	9202-	●	●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT VAR E<SLK> M8X20 W/LK&PL WASHER	8-94243-012-0	02	1	9202-9404	●	●
148	BOLT; PANEL TO PANEL 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> M8X20 FLANGE	0-28080-820-0	12	1	9202-	●	●
151	WASHER; PL,SIDE PANEL 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4 OD=22	9-09164-708-0	06	1	9202-	●	●
154	PANEL; SIDE,UNDER ENG CTR 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-427-1	01	1	9202-	●	●
159	PANEL; SIDE,TRANS,CTR 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-396-0	01	1	9202-	●	●
173	COVER; TRANS SIDE 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-424-0	01	1	9202-	●	●
277	WASHER; NOISE INSULATOR ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-73377-052-1	04	1	9202-9404	●	●
277	WASHER; NOISE INSULATOR ANTI NOISE EQUIPMENT VAR E<SLK> (B) ID=6.1	9-09150-506-0	04	1	9202-9404	●	●
277	WASHER; NOISE INSULATOR 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-73377-052-1	32	1	9202-9404	●	●
277	WASHER; NOISE INSULATOR 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-73377-052-1	36	1	9405-	●	●
277	WASHER; NOISE INSULATOR 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> (B) ID=6.1	9-09150-506-0	32	1	9202-9404	●	●
277	WASHER; NOISE INSULATOR 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> (B) ID=6.1	9-09150-506-0	36	1	9405-	●	●
277	WASHER; NOISE INSULATOR 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> (B) ID=6.4 OD=14	9-09160-606-0	29	1	9208-	●	●
281	INSULATOR; NOISE 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-53446-632-0	01	1	9202-	●	●
281	INSULATOR; NOISE 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> (B)	1-53446-633-0	01	1	9202-	●	●
281	INSULATOR; NOISE 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> (C)	1-53446-634-0	01	1	9202-	●	●
282	BOLT; NOISE INSULATOR ANTI NOISE EQUIPMENT VAR E<SLK> M6X16	0-28010-616-0	04	1	9202-9204	●	●
282	BOLT; NOISE INSULATOR ANTI NOISE EQUIPMENT VAR E<SLK> M6X16 FLANGE	0-28080-616-0	04	1	9205-9207	●	●
282	BOLT; NOISE INSULATOR ANTI NOISE EQUIPMENT VAR E<SLK> M6X20 FLANGE	0-28080-620-0	04	1	9208-9404	●	●
282	BOLT; NOISE INSULATOR 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> M6X16	0-28010-616-0	42	1	9202-9204	●	●
282	BOLT; NOISE INSULATOR 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> M6X16 FLANGE	0-28080-616-0	42	1	9205-9207	●	●
282	BOLT; NOISE INSULATOR 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> M6X20 FLANGE	0-28080-620-0	42	1	9208-9404	●	●
282	BOLT; NOISE INSULATOR 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK> M6X20 FLANGE	0-28080-620-0	46	1	9405-	●	●

245 250 230 131 130 128 228 227 226 242 127 227 92 92 128 218 79 75 1 33 79 91 79 2 76 91 3 33 33 33 33

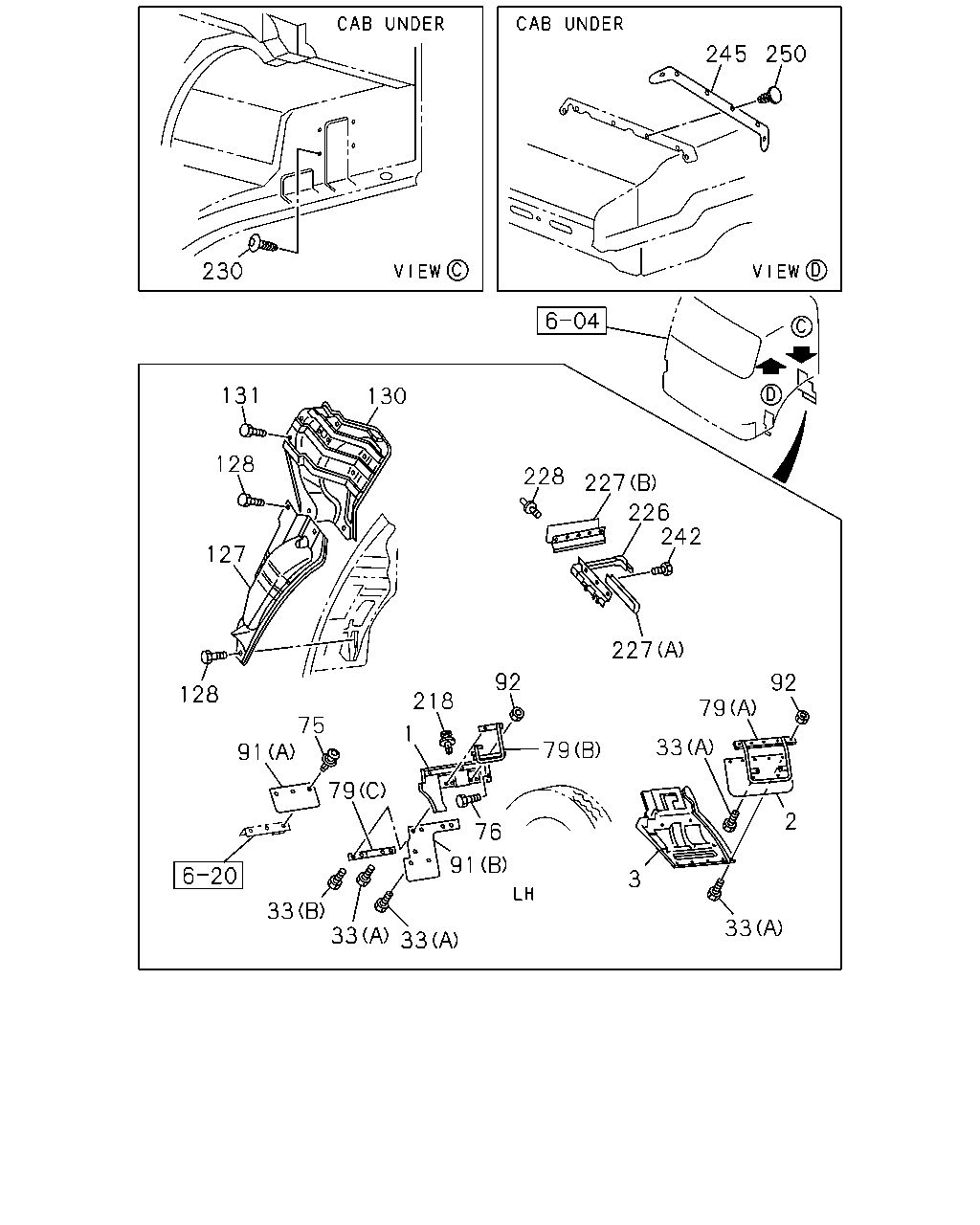

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-731-0	01	1	9202-	●	●
1	GUARD; MUD,FRT	1-79938-730-0	01	1	9202-	●	●
2	COVER; MUD,TIRE RR	1-79930-530-2	01	1	9202-	●	●
2	COVER; MUD,TIRE RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79930-584-2	01	1	9202-	●	●
2	COVER; MUD,TIRE RR 6HE1 STD ENG(46L)	1-79930-825-0	01	1	9202-9307		●
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9202-	●	●
3	GUARD; MUD,RR 6HE1 STD ENG(46L) EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9202-		●
3	GUARD; MUD,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-707-3	01	1	9202-	●	●
3	GUARD; MUD,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-714-0	01	1	9202-	●	●
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-775-0	01	1	9202-		●
33	BOLT; MUD COVER (B) M6X16 W/LK WASHER	0-50040-616-0	04	1	9202-	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	16	1	9202-9310	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9311-	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9402-	●	●
33	BOLT; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9202-9209	●	●
33	BOLT; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9210-	●	●
75	RIVET; MUD COVER D6X16 PUSH RIVET	1-09983-105-0	06	1	9202-	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9202-	●	●
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
76	BOLT; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9202-	●	●
79	RETAINER; MUD COVER (C)	1-79930-656-0	02	1	9202-	●	●
79	RETAINER; MUD COVER (B)	1-79930-654-2	01	1	9202-9310	●	●
79	RETAINER; MUD COVER (B)	1-79930-984-0	01	1	9311-	●	●
79	RETAINER; MUD COVER (A)	1-79930-521-0	01	1	9202-9307	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79930-986-0	01	1	9308-9401		●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79931-131-0	01	1	9402-		●
79	RETAINER; MUD COVER (B)	1-79930-655-2	01	1	9202-9310	●	●
79	RETAINER; MUD COVER (B)	1-79930-985-0	01	1	9311-	●	●
79	RETAINER; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-651-1	01	1	9202-	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79930-824-0	01	1	9202-9307		●
91	COVER; MUD,FRT (A)	1-79930-653-1	02	1	9202-	●	●
91	COVER; MUD,FRT (B)	1-79930-658-2	02	1	9202-	●	●
92	NUT; MUD COVER M6	9-09110-406-0	05	1	9202-	●	●
92	NUT; MUD COVER 6HE1 STD ENG(46L) M6	9-09110-406-0	05	1	9202-		●
92	NUT; MUD COVER M6	9-09110-406-0	04	1	9202-9310	●	●
127	APRON; FRT ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-417-0	01	1	9202-	●	●
127	APRON; FRT ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-104-0	01	1	9202-	●	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-623-3	01	1	9202-	●	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-621-3	01	1	9202-	●	●
128	BOLT; APRON,FRT ANTI NOISE EQUIPMENT VAR E<SLK> M8X18 W/LK&PL WASHER	1-09030-003-1	10	1	9202-9202	●	●
128	BOLT; APRON,FRT EXC. ANTI NOISE EQUIPMENT VAR E<SLK> M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-9202	●	●
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9203-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK> EXC. AUSTRALIA EQUIPMENT(RR3)	1-53192-857-0	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> EXC. AUSTRALIA EQUIPMENT(RR3)	1-53192-857-0	01	1	9411-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-418-0	01	1	9202-9410	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-418-0	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-418-0	01	1	9411-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-108-0	01	1	9202-9410	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-108-0	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-108-0	01	1	9411-		●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-627-5	01	1	9202-9410	●	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-627-5	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-627-5	01	1	9411-		●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-625-5	01	1	9202-9410	●	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-625-5	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-625-5	01	1	9411-		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-734-1	01	1	9202-9410		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-734-1	01	1	9411-		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-740-1	01	1	9202-9410		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-740-1	01	1	9411-		●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9202-	●	●
218	FASTENER; RUBBER	1-09470-001-0	10	1	9311-	●	●
226	SUPPORT; SEAL,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-772-1	01	1	9202-	●	●
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-733-1	01	1	9202-		●
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-768-1	01	1	9202-		●
227	SEAL; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) L=342	1-79938-765-0	01	1	9202-	●	●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (A) L=342	1-79938-765-0	02	1	9202-		●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-739-0	01	1	9202-		●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-675-1	01	1	9202-		●
228	FASTENER; MUD GUARD SEAL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	5-09989-002-0	04	1	9202-	●	●
228	FASTENER; MUD GUARD SEAL 6HE1 STD ENG(46L)	5-09989-002-0	14	1	9202-		●
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	04	1	9202-	●	●
230	PLUG; MUD GUARD 6HE1 STD ENG(46L) D4.7X11	1-76378-154-0	04	1	9202-		●
230	PLUG; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) D4.7X11	1-76378-154-0	05	1	9202-	●	●
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9202-	●	●
245	RUBBER; SHUTTER,RAD 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-79938-858-0	01	1	9202-	●	●
250	FASTENER; SHUTTER 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-09987-189-0	06	1	9202-	●	●

130 228 227 131 226 242 128 92 79 127 128 3 1 76 225 218 91 75 76 92 33 79 2 33 79 91 33 33

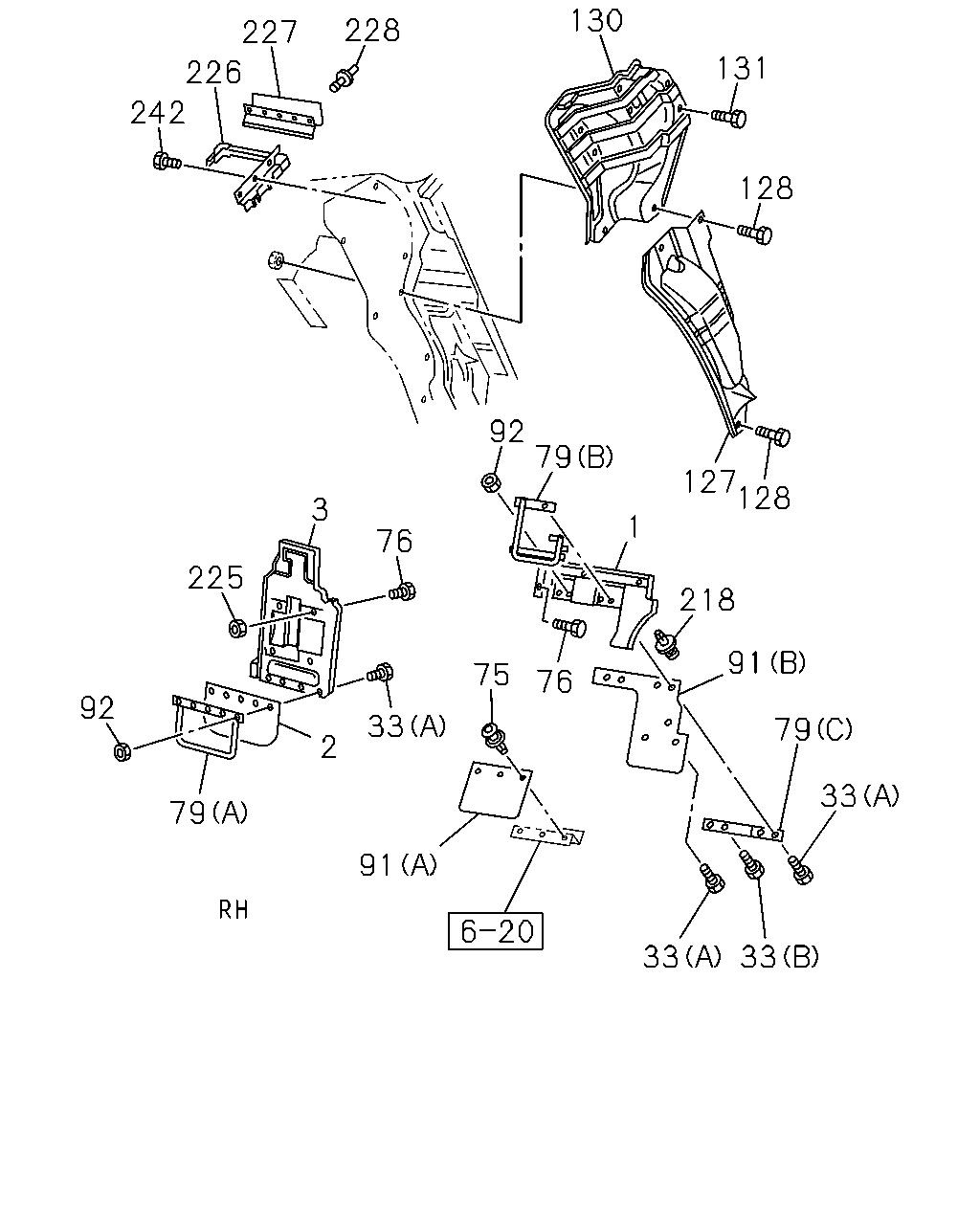

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-731-0	01	1	9202-	●	●
1	GUARD; MUD,FRT	1-79938-730-0	01	1	9202-	●	●
2	COVER; MUD,TIRE RR	1-79930-530-2	01	1	9202-	●	●
2	COVER; MUD,TIRE RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79930-584-2	01	1	9202-	●	●
2	COVER; MUD,TIRE RR 6HE1 STD ENG(46L)	1-79930-825-0	01	1	9202-9307		●
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9202-	●	●
3	GUARD; MUD,RR 6HE1 STD ENG(46L) EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9202-		●
3	GUARD; MUD,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-707-3	01	1	9202-	●	●
3	GUARD; MUD,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-714-0	01	1	9202-	●	●
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-775-0	01	1	9202-		●
33	BOLT; MUD COVER (B) M6X16 W/LK WASHER	0-50040-616-0	04	1	9202-	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	16	1	9202-9310	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9311-	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9402-	●	●
33	BOLT; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9202-9209	●	●
33	BOLT; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9210-	●	●
75	RIVET; MUD COVER D6X16 PUSH RIVET	1-09983-105-0	06	1	9202-	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9202-	●	●
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
76	BOLT; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9202-	●	●
79	RETAINER; MUD COVER (C)	1-79930-656-0	02	1	9202-	●	●
79	RETAINER; MUD COVER (B)	1-79930-654-2	01	1	9202-9310	●	●
79	RETAINER; MUD COVER (B)	1-79930-984-0	01	1	9311-	●	●
79	RETAINER; MUD COVER (A)	1-79930-521-0	01	1	9202-9307	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79930-986-0	01	1	9308-9401		●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79931-131-0	01	1	9402-		●
79	RETAINER; MUD COVER (B)	1-79930-655-2	01	1	9202-9310	●	●
79	RETAINER; MUD COVER (B)	1-79930-985-0	01	1	9311-	●	●
79	RETAINER; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-651-1	01	1	9202-	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79930-824-0	01	1	9202-9307		●
91	COVER; MUD,FRT (A)	1-79930-653-1	02	1	9202-	●	●
91	COVER; MUD,FRT (B)	1-79930-658-2	02	1	9202-	●	●
92	NUT; MUD COVER M6	9-09110-406-0	05	1	9202-	●	●
92	NUT; MUD COVER 6HE1 STD ENG(46L) M6	9-09110-406-0	05	1	9202-		●
92	NUT; MUD COVER M6	9-09110-406-0	04	1	9202-9310	●	●
127	APRON; FRT ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-417-0	01	1	9202-	●	●
127	APRON; FRT ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-104-0	01	1	9202-	●	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-623-3	01	1	9202-	●	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-621-3	01	1	9202-	●	●
128	BOLT; APRON,FRT ANTI NOISE EQUIPMENT VAR E<SLK> M8X18 W/LK&PL WASHER	1-09030-003-1	10	1	9202-9202	●	●
128	BOLT; APRON,FRT EXC. ANTI NOISE EQUIPMENT VAR E<SLK> M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-9202	●	●
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9203-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK> EXC. AUSTRALIA EQUIPMENT(RR3)	1-53192-857-0	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L) ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK> EXC. AUSTRALIA EQUIPMENT(RR3)	1-53192-857-0	01	1	9411-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-418-0	01	1	9202-9410	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-418-0	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-418-0	01	1	9411-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-108-0	01	1	9202-9410	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-108-0	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-108-0	01	1	9411-		●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-627-5	01	1	9202-9410	●	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-627-5	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-627-5	01	1	9411-		●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-625-5	01	1	9202-9410	●	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-625-5	01	1	9411-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-625-5	01	1	9411-		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-734-1	01	1	9202-9410		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-734-1	01	1	9411-		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-79938-740-1	01	1	9202-9410		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L) EXC. ANTI NOISE EQUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-740-1	01	1	9411-		●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9202-	●	●
218	FASTENER; RUBBER	1-09470-001-0	10	1	9311-	●	●
225	NUT; MUD GUARD M8	9-09110-408-0	02	1	9202-9209	●	●
225	NUT; MUD GUARD 6SA1TC ENG(28L),6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9210-9304		●
225	NUT; MUD GUARD 6SA1TC ENG(28L) M8	9-09110-408-0	02	1	9305-		●
225	NUT; MUD GUARD 6HE1 STD ENG(46L) M8	9-09110-408-0	04	1	9305-		●
226	SUPPORT; SEAL,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-772-1	01	1	9202-	●	●
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-733-1	01	1	9202-		●
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-768-1	01	1	9202-		●
227	SEAL; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) L=342	1-79938-765-0	01	1	9202-	●	●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (A) L=342	1-79938-765-0	02	1	9202-		●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-739-0	01	1	9202-		●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-675-1	01	1	9202-		●
228	FASTENER; MUD GUARD SEAL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	5-09989-002-0	04	1	9202-	●	●
228	FASTENER; MUD GUARD SEAL 6HE1 STD ENG(46L)	5-09989-002-0	14	1	9202-		●
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
