8-20 — METER CABLE (#113) — 56 parça
çizim 28117
221 132 170 35
BalonParca AdiParca NoAdetTipApplied Date A B
35 BOLT; BRKT,METER CABLE
EXC. AUTO ENG SHUTOFF<KB6> M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9202- ● ●
132 SENSOR; SPD,SPEEDOMETER
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83127-055-6 01 1 9202- ● ●
132 SENSOR; SPD,SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83127-046-3 01 1 9202-9205 ● ●
132 SENSOR; SPD,SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83127-115-0 01 1 9206- ● ●
170 BRACKET; METER CABLE
EXC. AUTO ENG SHUTOFF<KB6> 		1-71118-361-0 01 1 9202- ● ●
221 KEY; SPEED SENSOR
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83129-126-0 01 1 9202- ● ●

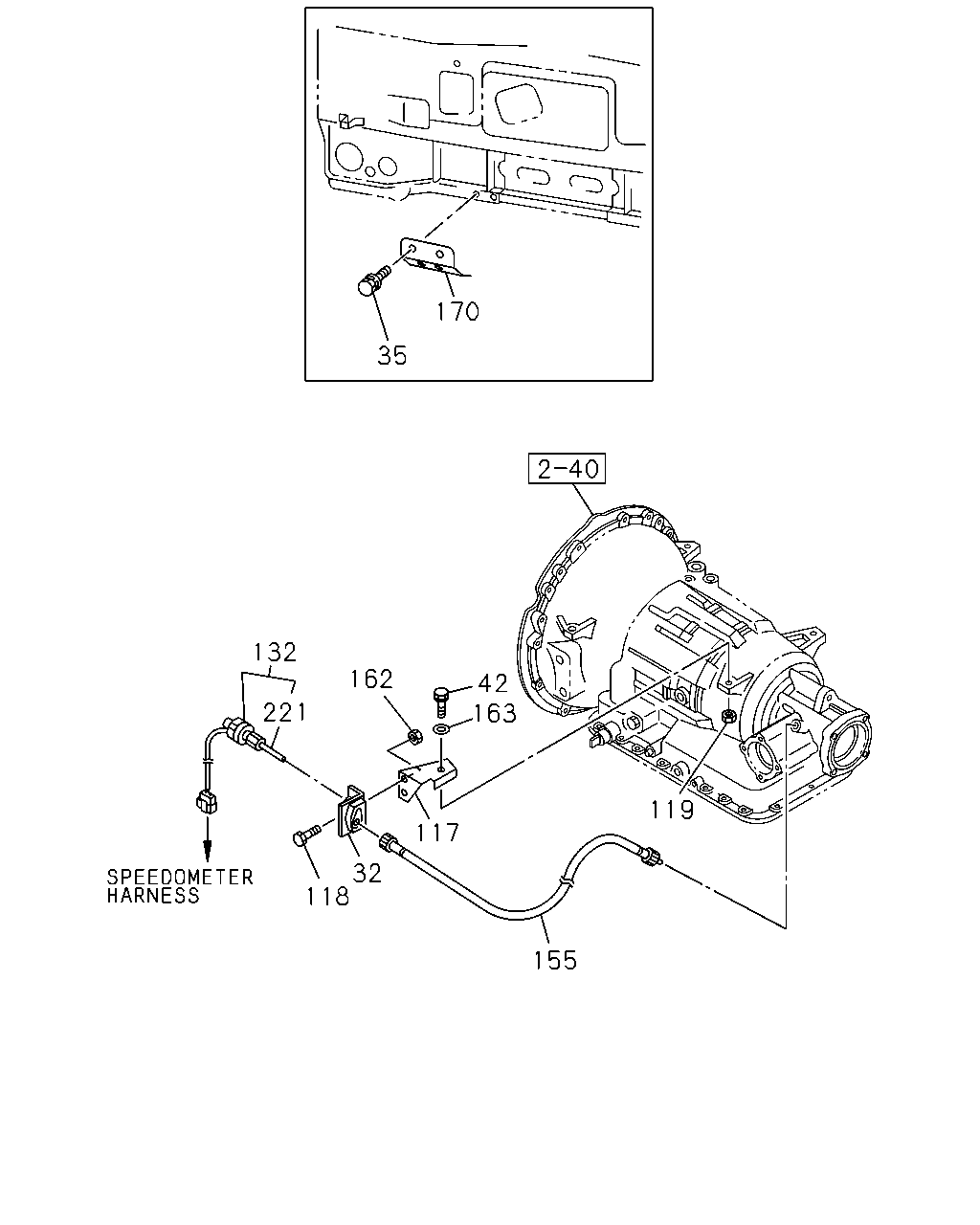

çizim 94720
170 35 132 162 42 163 221 119 117 32 118 155
BalonParca AdiParca NoAdetTipApplied Date A B
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 38/7 13.5" HYPOID(W1B) RR TIRE 7.50-20<91X> 1/1.1724 		1-83126-192-0 01 1 9202-9202 ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 39/7 14.5" HYPOID(W1H) RR TIRE 8.25-20<93X> 1/1.1724 		1-83126-192-0 01 1 9202-9202 ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 39/7 14.5" HYPOID(W1H) RR TIRE 8.25-16<92X> 1/1.259 		1-83126-258-0 01 1 9203- ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 39/7 15.5" HYPOID(W3K) RR TIRE 9.00-20<94X> 1/1.259 		1-83126-258-0 01 1 9203- ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 38/7 13.5" HYPOID(W1B) TIRE 225/90R17.5-14 LT EXP RIB(95N) 1/1.0513 		1-83126-161-1 01 1 9202-9202 ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 38/7 13.5" HYPOID(W1B) RR TIRE 8.25-16<92X> 1/1.0513 		1-83126-161-1 01 1 9202-9202 ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 39/7 14.5" HYPOID(W1H) TIRE 8.25-20-14 EXP LUG(01R),TIRE FRT 8.25-20-12 RIB RR 8.25-20-12 LUG(15X),TIRE 8.25-20-12 RIB(80S) ,TIRE 8.25-20-14 RIB(90S),TIRE 8.25-20-14 SNOW(92S),TIRE 8.25-20-14 SNOW SPIKE(93S),TIRE 8.25-20-14SPECIAL LUG(94S) 1/1.212 		1-83126-257-0 01 1 9203-9211 ●
32 BOX; GEAR,FLEX SHAFT
AT542 A/T ALLISON(MT9) FINAL GEAR 38/8 13.5" HYPOID(W1A) RR TIRE 8.25-16<92X> 1/1.212 		1-83126-257-0 01 1 9203-9211 ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 39/7 14.5" HYPOID(W1H) TIRE 8.25-20-14 EXP LUG(01R),TIRE 8.25-20-12 RIB(80S),TIRE 8.25-20-14 RIB(90S) 1/1.212 		1-83126-257-0 01 1 9212- ●
32 BOX; GEAR,FLEX SHAFT
AT542 A/T ALLISON(MT9) FINAL GEAR 38/8 13.5" HYPOID(W1A) RR TIRE 8.25-16<92X> 1/1.212 		1-83126-257-0 01 1 9212- ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 38/8 13.5" HYPOID(W1A) RR TIRE 7.50-20<91X> 1/1.3225 		1-83126-170-0 01 1 9202-9202 ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 39/8 14.5" HYPOID(W1U) RR TIRE 7.50-20<91X>,RR TIRE 8.25-20<93X> 1/1.3225 		1-83126-170-0 01 1 9202-9202 ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 39/8 14.5" HYPOID(W1U) TIRE 8.25R20-14 EXP RIB(05R),TIRE 9R22.5-14 EXP RIB(15N) 1/1.3225 		1-83126-259-0 01 1 9203-9404 ●
32 BOX; GEAR,FLEX SHAFT
AT542 A/T ALLISON(MT9) FINAL GEAR 39/9 13.5" HYPOID(W1N) RR TIRE 8.25-16<92X> 1/1.3225 		1-83126-259-0 01 1 9203-9404 ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 39/8 14.5" HYPOID(W1U) TIRE 8.25R20-14 EXP RIB(05R),TIRE 9R22.5-14 EXP RIB(15N) 1/1.3225 		1-83126-259-0 01 1 9405- ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 41/8 15.5" HYPOID(W4H) RR TIRE 9.00-20<94X> 1/1.3225 		1-83126-259-0 01 1 9405- ●
32 BOX; GEAR,FLEX SHAFT
AT542 A/T ALLISON(MT9) FINAL GEAR 39/9 13.5" HYPOID(W1N) RR TIRE 8.25-16<92X> 1/1.3225 		1-83126-259-0 01 1 9405- ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 38/8 13.5" HYPOID(W1A) RR TIRE 8.25-20<93X> 1/1.393 		1-83126-158-1 01 1 9202-9202 ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 39/7 14.5" HYPOID(W1H) TIRE 8.25R20-14 EXP RIB(05R),TIRE 9R22.5-14 EXP RIB(15N) 1/1.393 		1-83126-256-0 01 1 9203- ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 38/8 13.5" HYPOID(W1A) TIRE 225/90R17.5-14 LT EXP RIB(95N) 1/1.212 		1-83126-159-1 01 1 9202-9202 ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 38/8 13.5" HYPOID(W1A) RR TIRE 8.25-16<92X> 1/1.212 		1-83126-159-1 01 1 9202-9202 ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 38/7 13.5" HYPOID(W1B) RR TIRE 8.25-20<93X> 1/1.212 		1-83126-159-1 01 1 9202-9202 ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1),AT542 A/T ALLISON(MT9) FINAL GEAR 38/7 13.5" HYPOID(W1B) RR TIRE 8.25-16<92X> 1/1.0513 		1-83126-253-0 01 1 9203- ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 39/7 14.5" HYPOID(W1H) RR TIRE 7.50-20<91X> 1/1.1071 		1-83126-160-1 01 1 9202-9202 ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 43/7 14.5" HYPOID(W1G) TIRE 8.25-20-14 EXP LUG(01R),TIRE FRT 8.25-20-12 RIB RR 8.25-20-12 LUG(15X),TIRE 8.25-20-12 RIB(80S) ,TIRE 8.25-20-14 RIB(90S),TIRE 8.25-20-14 SNOW(92S),TIRE 8.25-20-14 SNOW SPIKE(93S),TIRE 8.25-20-14SPECIAL LUG(94S) 1/1.1071 		1-83126-254-0 01 1 9203-9211 ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 43/7 15.5" HYPOID(W1R) TIRE 9.00R-20-14 EXP RIB(25R) 1/1.1071 		1-83126-254-0 01 1 9203-9211 ●
32 BOX; GEAR,FLEX SHAFT
AT542 A/T ALLISON(MT9) FINAL GEAR 41/8 13.5" HYPOID(W4E) RR TIRE 8.25-16<92X> 1/1.1071 		1-83126-254-0 01 1 9203-9211 ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 43/7 14.5" HYPOID(W1G) TIRE 8.25-20-14 EXP LUG(01R),TIRE 8.25-20-12 RIB(80S),TIRE 8.25-20-14 RIB(90S) 1/1.1071 		1-83126-254-0 01 1 9212- ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 43/7 15.5" HYPOID(W1R) TIRE 9.00R-20-14 EXP RIB(25R) 1/1.1071 		1-83126-254-0 01 1 9212- ●
32 BOX; GEAR,FLEX SHAFT
AT542 A/T ALLISON(MT9) FINAL GEAR 41/8 13.5" HYPOID(W4E) RR TIRE 8.25-16<92X> 1/1.1071 		1-83126-254-0 01 1 9212- ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 39/7 14.5" HYPOID(W1H) TIRE 225/90R17.5-14 LT EXP RIB(95N) 1/1 		1-83126-215-0 01 1 9202-9202 ●
32 BOX; GEAR,FLEX SHAFT
AT545 A/T ALLISON(MD1) FINAL GEAR 39/7 14.5" HYPOID(W1H) RR TIRE 8.25-16<92X> 1/1 		1-83126-215-0 01 1 9202-9202 ●
32 BOX; GEAR,FLEX SHAFT
AT542 A/T ALLISON(MT9) FINAL GEAR 38/8 13.5" HYPOID(W1A) RR TIRE 8.25-20<93X> 		1-83126-260-0 01 1 9203- ●
35 BOLT; BRKT,METER CABLE
EXC. AUTO ENG SHUTOFF<KB6> M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9202- ● ●
42 BOLT; BRKT
AT545 A/T ALLISON(MD1),AT542 A/T ALLISON(MT9) M14X45 		0-20801-445-0 01 1 9203- ●
117 BRACKET; GEAR BOX
AT545 A/T ALLISON(MD1),AT542 A/T ALLISON(MT9) 		1-83129-237-3 01 1 9203- ●
118 BOLT; GEAR BOX
AT545 A/T ALLISON(MD1) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9202-9202 ●
118 BOLT; GEAR BOX
AT545 A/T ALLISON(MD1),AT542 A/T ALLISON(MT9) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204 ●
118 BOLT; GEAR BOX
AT545 A/T ALLISON(MD1) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ●
118 BOLT; GEAR BOX
AT545 A/T ALLISON(MD1),AT542 A/T ALLISON(MT9) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ●
119 NUT; BRKT
AT545 A/T ALLISON(MD1),AT542 A/T ALLISON(MT9) M14 		9-99111-414-0 01 1 9203- ●
132 SENSOR; SPD,SPEEDOMETER
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83127-055-6 01 1 9202- ● ●
132 SENSOR; SPD,SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83127-046-3 01 1 9202-9205 ● ●
132 SENSOR; SPD,SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83127-115-0 01 1 9206- ● ●
155 SHAFT; FLEX,CONN TO TRANS
AT545 A/T ALLISON(MD1) 		1-83124-011-0 01 1 9202-9202 ●
155 SHAFT; FLEX,CONN TO TRANS
AT545 A/T ALLISON(MD1),AT542 A/T ALLISON(MT9) 		1-83124-106-0 01 1 9203- ●
162 NUT; GEAR BOX
AT545 A/T ALLISON(MD1) M8 		9-09110-408-0 02 1 9202-9202 ●
163 WASHER; LK,GEAR BOX
AT545 A/T ALLISON(MD1),AT542 A/T ALLISON(MT9) ID=14.2 		9-09150-514-0 01 1 9203- ●
170 BRACKET; METER CABLE
EXC. AUTO ENG SHUTOFF<KB6> 		1-71118-361-0 01 1 9202- ● ●
221 KEY; SPEED SENSOR
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83129-126-0 01 1 9202- ● ●
