Isuzu WW
▶
TRUCKS
▶
FSR
▶
11508 - FSR(LHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#112997) — 54 parça
◀
[826A] CAB TILT SWITCH AND CONNECTOR (2 parça)
[826A] FRONT SIDE NO.1 (22 parça)
[826A] VEHICLE SPEED SENSOR (2 parça)
[826A] CONTROLLER; ABS (8 parça)
[826A] OTHER PARTS (5 parça)
[826A] FRONT SIDE NO.2 (11 parça)
[826A] FRONT SIDE NO.3 (4 parça)
▶
507
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
507
CONNECTOR
4HK1-TCS ENG(RJS) EXC. H.S.A SYSTEM<6EP>
1-82690-666-0
01
1
1302-
507
CONNECTOR
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP>
1-82690-666-0
01
1
1302-

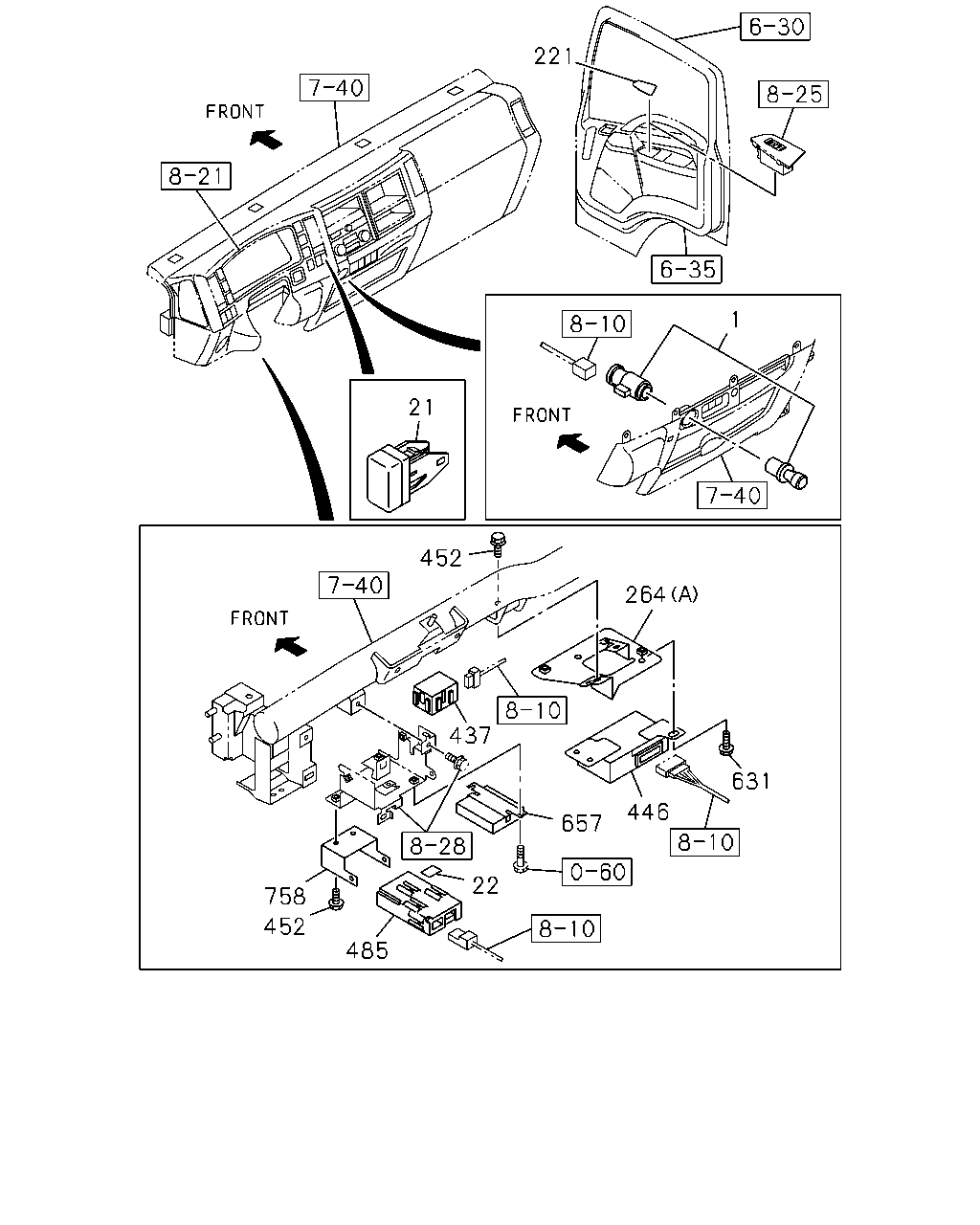

221
452
437
657
631
446
22
485
452
758
21
264
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX>
8-98142-962-0
01
1
1302-
21
COVER; HOLE
8-98025-954-1
01
1
1302-
22
SEAL; TAPE
SPEED LIMITER 85KM<EDX>
8-98166-639-0
02
1
1406-1409
22
SEAL; TAPE
SPEED LIMITER 85KM<EDX>,SPEED LIMITER 90KM<NMJ>
8-98166-639-0
02
1
1410-
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-915-2
01
1
1302-
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-916-2
01
1
1302-
264
BRACKET; CONT UNIT
(B)
8-97616-354-5
01
1
1302-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A)
8-98088-654-0
01
1
1302-
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO
8-97359-129-0
01
1
1302-
446
CONTROL UNIT; HSA
H.S.A SYSTEM<6EP>
1-80111-116-2
01
1
1302-
452
BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
1302-1405
452
BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
1406-1409
452
BOLT; BRKT
SPEED LIMITER 85KM<EDX> M6X16 FLANGE
0-28650-616-0
02
1
1406-1409
452
BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
1410-
452
BOLT; BRKT
SPEED LIMITER 85KM<EDX>,SPEED LIMITER 90KM<NMJ> M6X16 FLANGE
0-28650-616-0
02
1
1410-
485
CONTROL UNIT; SPEED SENSOR
SPEED LIMITER 85KM<EDX>
1-80190-059-1
01
1
1406-1409
485
CONTROL UNIT; SPEED SENSOR
SPEED LIMITER 85KM<EDX>,SPEED LIMITER 90KM<NMJ>
1-80190-059-1
01
1
1410-
631
BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
1302-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1302-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-1
01
1
1402-
758
BRACKET; ELEC CONT UNIT,SPEED SENSOR
SPEED LIMITER 85KM<EDX>
8-98048-743-1
01
1
1406-1409
758
BRACKET; ELEC CONT UNIT,SPEED SENSOR
SPEED LIMITER 85KM<EDX>,SPEED LIMITER 90KM<NMJ>
8-98048-743-1
01
1
1410-

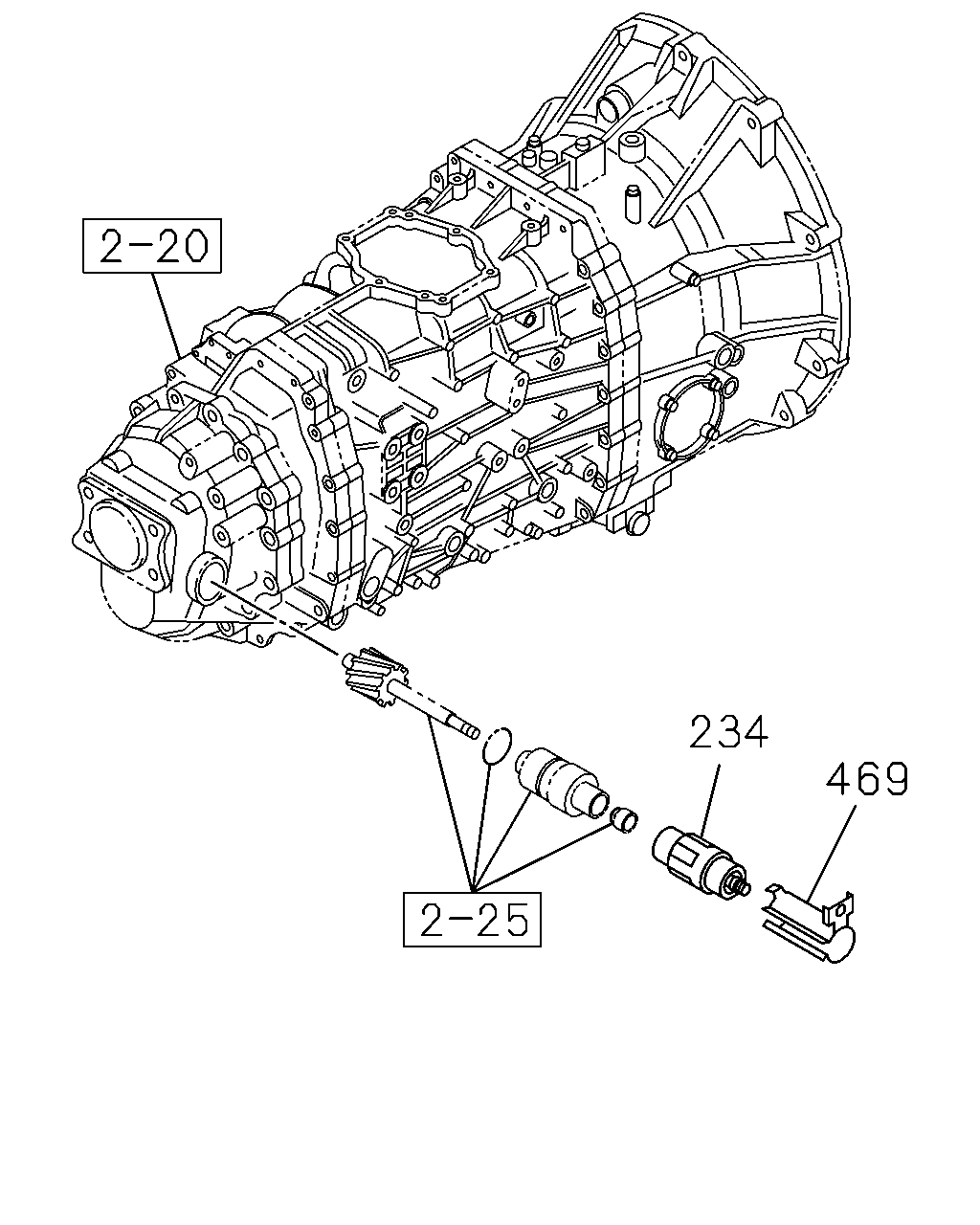

234
469
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
1302-
469
PROTECTOR; SPEED SENSOR
8-98119-901-0
01
1
1302-

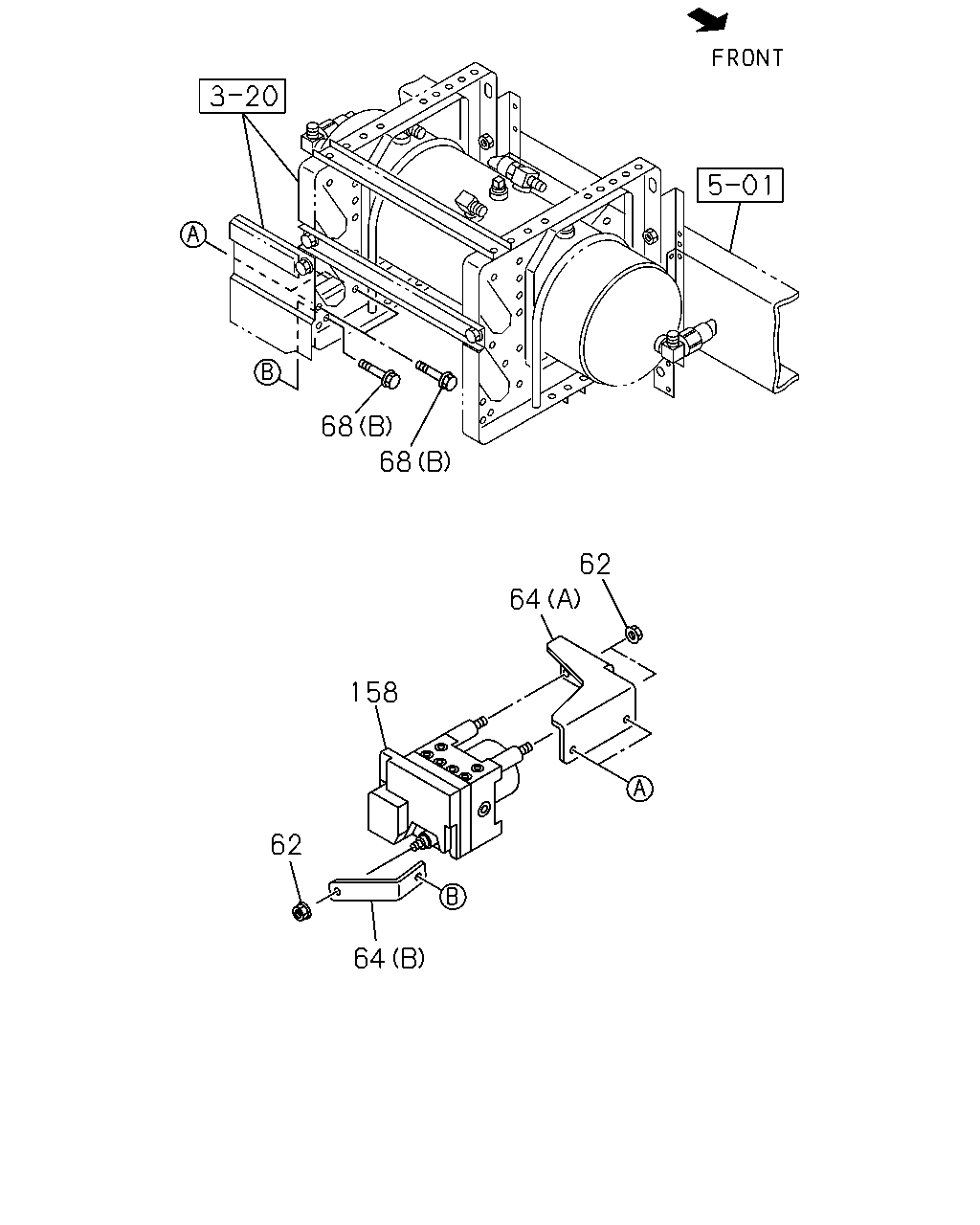

68
62
68
158
62
64
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
NUT; BRKT
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE
0-91180-108-0
03
1
1302-
64
BRACKET; CONTROLLER
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)
8-98044-238-2
01
1
1302-
64
BRACKET; CONTROLLER
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)
8-98044-239-1
01
1
1302-
68
BOLT; BRKT
(A) M6X16 FLANGE
0-28650-616-0
01
1
1302-
68
BOLT; BRKT
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 FLANGE
0-28650-825-0
03
1
1302-
158
CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 265/70R19.5-140/138M RIB(5K0),TIRE 265/70R19.5-140/138M RIB BS BRAND(5N5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98157-994-1
01
1
1302-
158
CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) 245/70R19.5-136/134M RIB EEC MICHELIN BRAND(5R0) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98157-993-1
01
1
1302-
158
CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) 245/70R19.5-136/134M RIB EEC MICHELIN BRAND(5R0) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98157-996-1
01
1
1302-

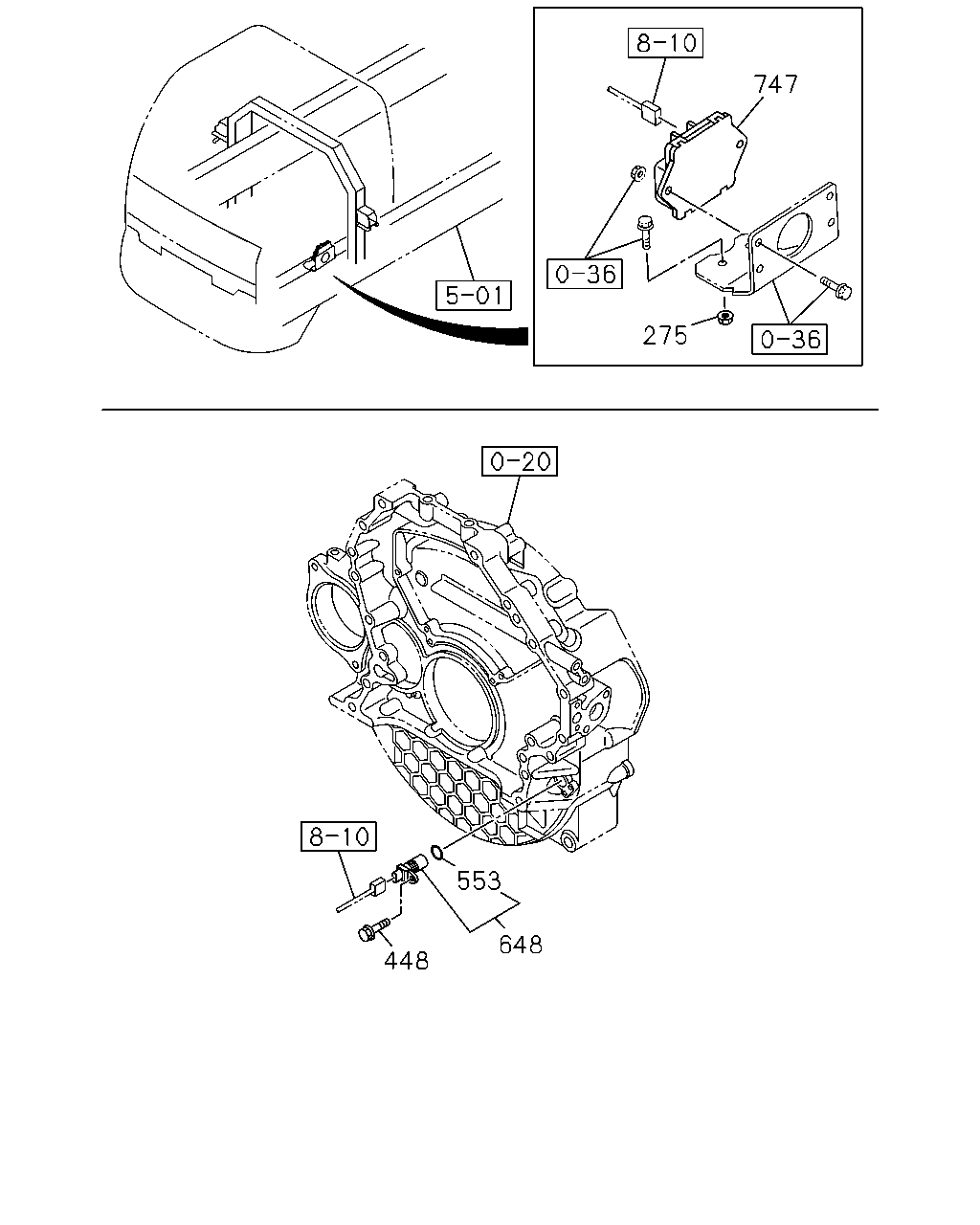

275
747
553
648
448
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
275
NUT; BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> M8 FLANGE
0-91180-108-0
02
1
1302-
448
BOLT; SENSOR
4HK1-TCS ENG(RJS) M6X16 FLANGE
0-28050-616-0
01
1
1302-
553
GASKET
4HK1-TCS ENG(RJS) ID=14.2 OD=18.8
8-97369-404-0
01
1
1302-
648
SENSOR; CRANK ANGLE
4HK1-TCS ENG(RJS)
8-97606-943-0
01
1
1302-
747
CONTROL UNIT; TURBOCHARGER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>
8-98162-807-0
01
1
1302-

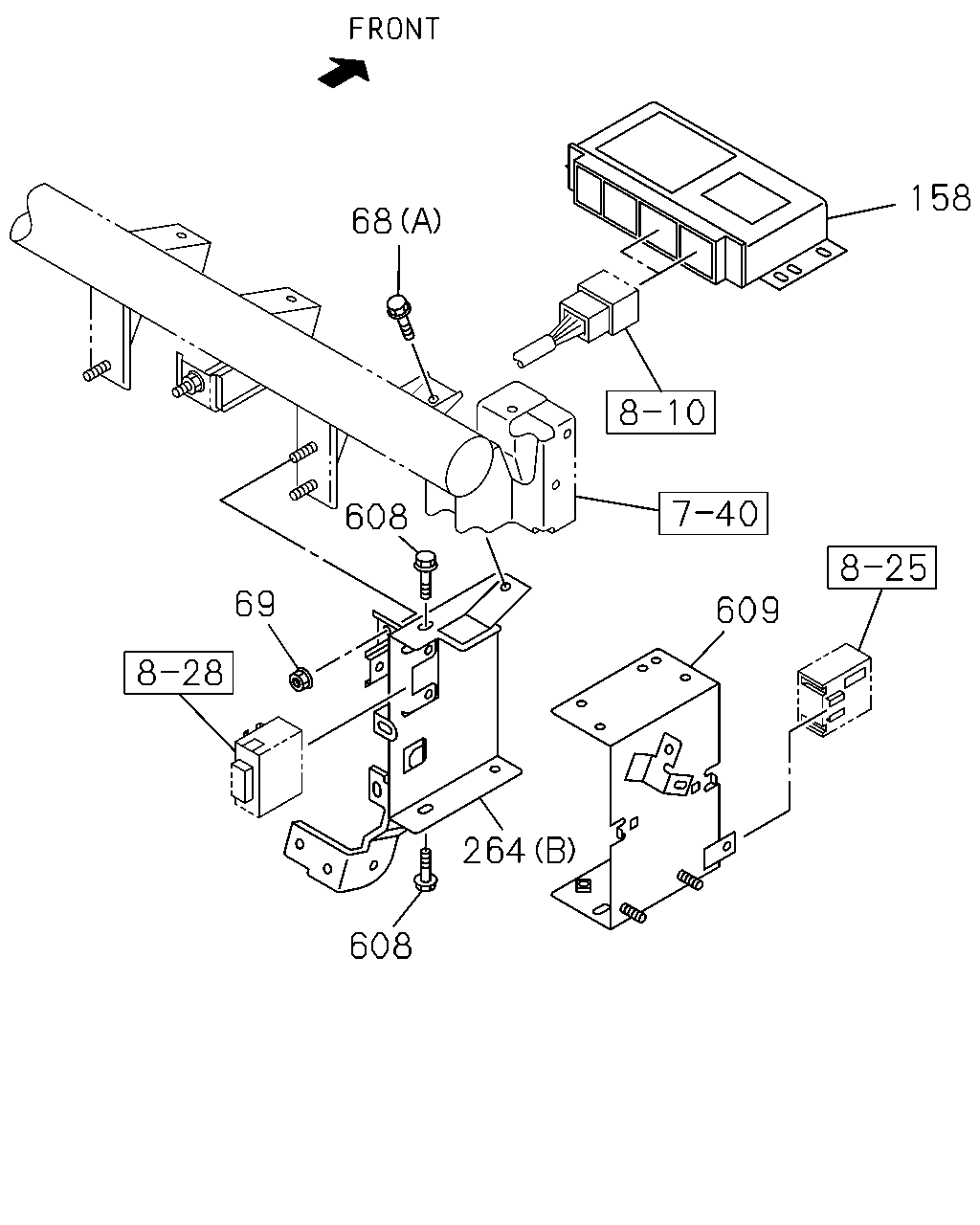

68
608
69
608
264
609
158
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
(A) M6X16 FLANGE
0-28650-616-0
01
1
1302-
68
BOLT; BRKT
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 FLANGE
0-28650-825-0
03
1
1302-
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1302-
158
CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 265/70R19.5-140/138M RIB(5K0),TIRE 265/70R19.5-140/138M RIB BS BRAND(5N5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98157-994-1
01
1
1302-
158
CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) 245/70R19.5-136/134M RIB EEC MICHELIN BRAND(5R0) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98157-993-1
01
1
1302-
158
CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) 245/70R19.5-136/134M RIB EEC MICHELIN BRAND(5R0) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98157-996-1
01
1
1302-
264
BRACKET; CONT UNIT
(B)
8-97616-354-5
01
1
1302-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A)
8-98088-654-0
01
1
1302-
608
BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> M6X16 FLANGE
0-28650-616-0
05
1
1302-
609
BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4>
8-98095-336-0
01
1
1302-1308
609
BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4>
8-98226-231-1
01
1
1309-

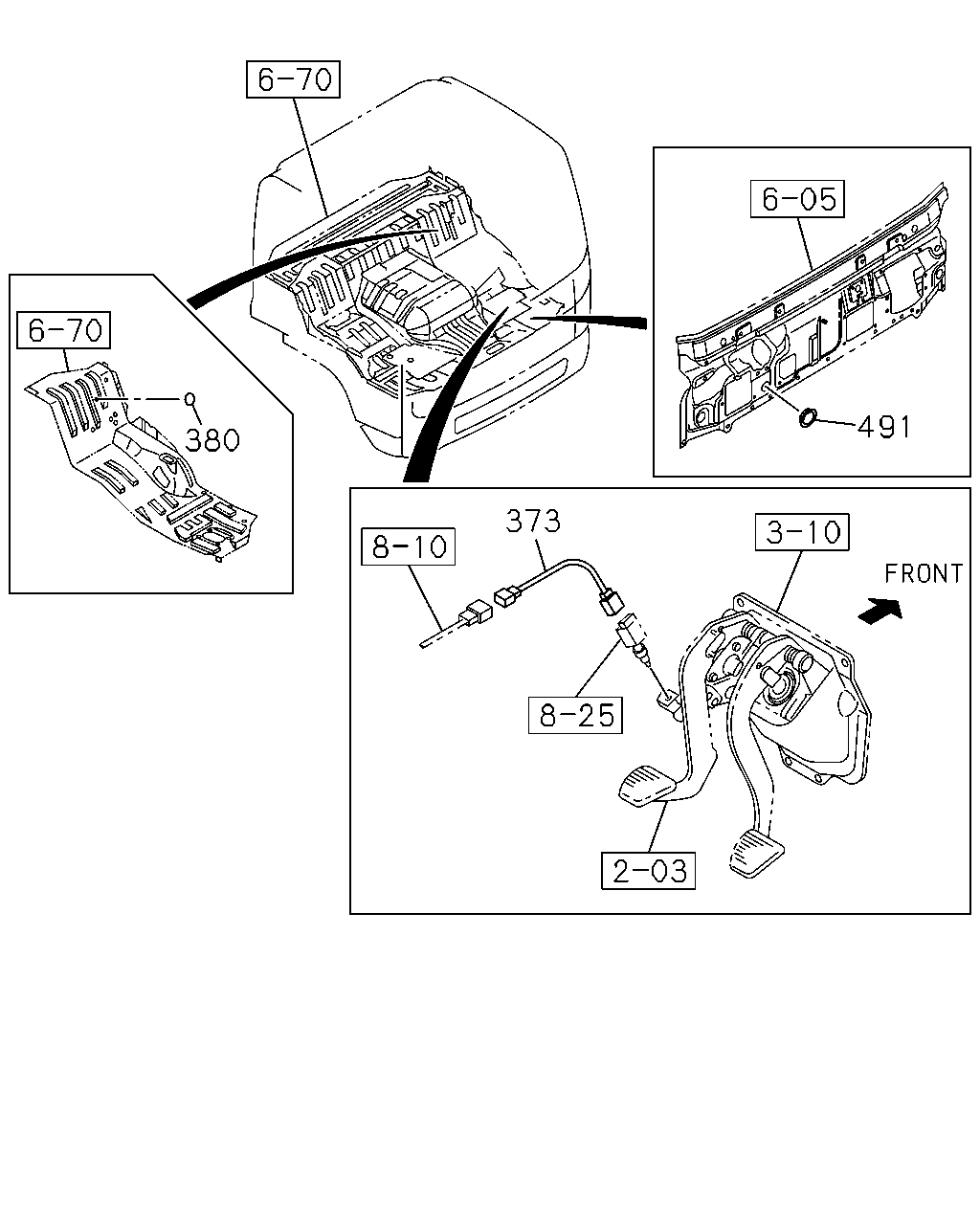

380
373
491
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
373
HARNESS; CLU SWITCH
H.S.A SYSTEM<6EP>
8-98110-719-0
01
1
1302-
373
HARNESS; CLU SWITCH
EXC. H.S.A SYSTEM<6EP>
8-98110-720-0
01
1
1302-
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
1302-
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
1302-
