8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#112992) — 117 parça

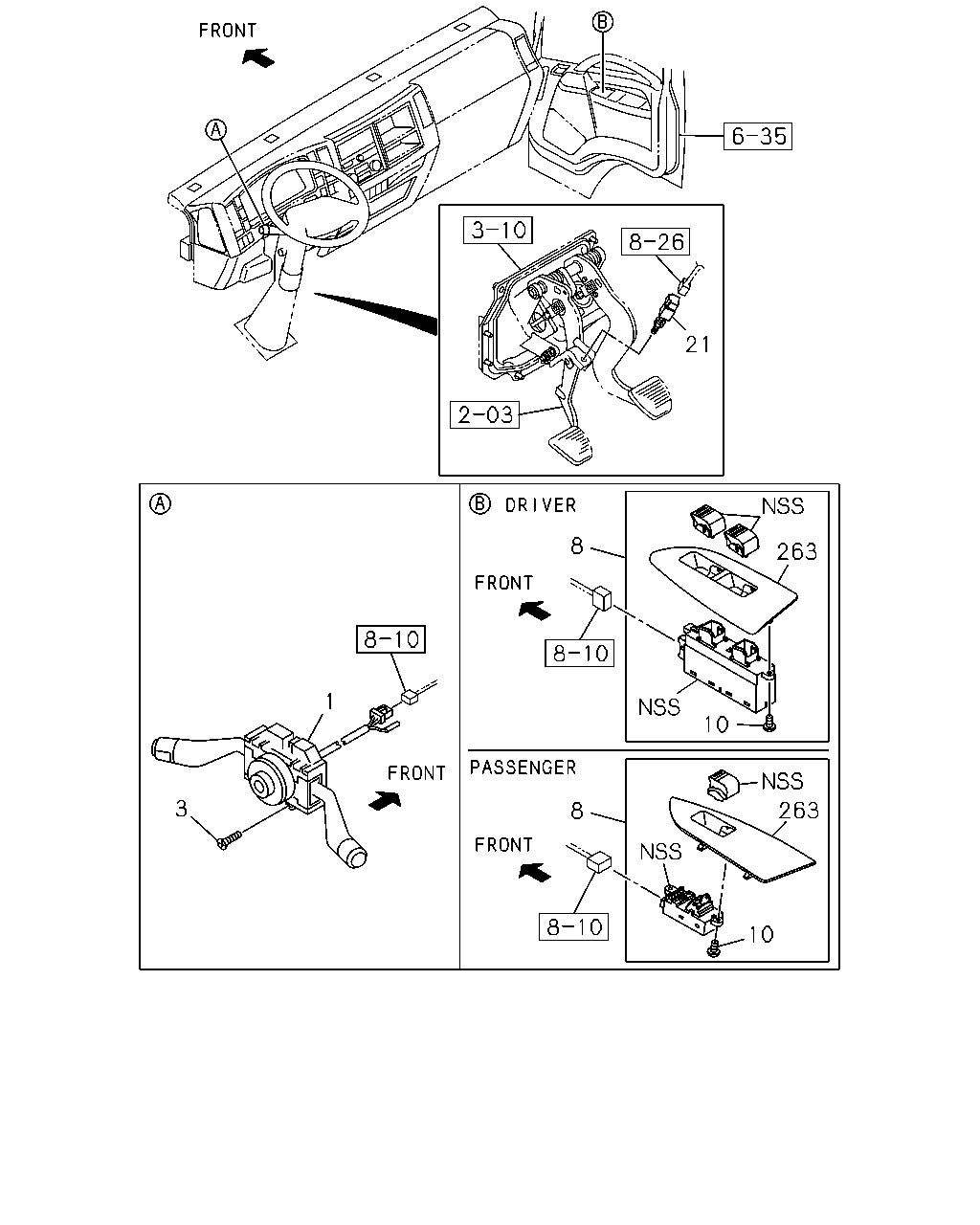

21 1 3 8 10 263 10 263 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE<K30> EXC. RR FOG LAMP<T79>	8-98250-290-0	01	1	1511-
1	SWITCH; COMB AUTO CRUISE<K30> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79>	8-98330-238-0	01	1	1511-
1	SWITCH; COMB INTERMITTENT WIPER<C13> RR FOG LAMP<T79>	8-98243-717-0	01	1	1402-1510
1	SWITCH; COMB INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AUTO CRUISE<K30>	8-98243-717-0	01	1	1511-
1	SWITCH; COMB INTERMITTENT WIPER<C13>	8-98243-718-0	01	1	1310-1401
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79>	8-98243-718-0	01	1	1402-1510
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30>,RR FOG LAMP<T79>	8-98243-718-0	01	1	1511-
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-98243-719-0	01	1	1310-1401
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79>	8-98243-719-0	01	1	1402-1510
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>,AUTO CRUISE<K30>,RR FOG LAMP<T79>	8-98243-719-0	01	1	1511-
1	SWITCH; COMB INTERMITTENT WIPER<C13>	8-98064-897-1	01	1	1302-1310
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-98064-898-2	01	1	1302-1310
3	SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	1302-
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER	8-98001-737-2	01	1	1302-1509
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER	8-98298-751-0	01	1	1510-
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER	8-98159-544-0	01	1	1302-1509
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER	8-98316-418-0	01	1	1510-
10	SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32>	8-98153-865-0	03	1	1302-
21	SWITCH; CLU TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-94337-761-0	01	1	1302-1304
21	SWITCH; CLU TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-94337-761-0	01	1	1305-
21	SWITCH; CLU EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97358-248-0	01	1	1302-1304
21	SWITCH; CLU EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97358-248-0	01	1	1305-
263	COVER; SW POWER WINDOW FRT DOOR<A32> DRIVER	8-98153-838-0	01	1	1302-
263	COVER; SW POWER WINDOW FRT DOOR<A32> PASSENGER	8-98153-843-0	01	1	1302-

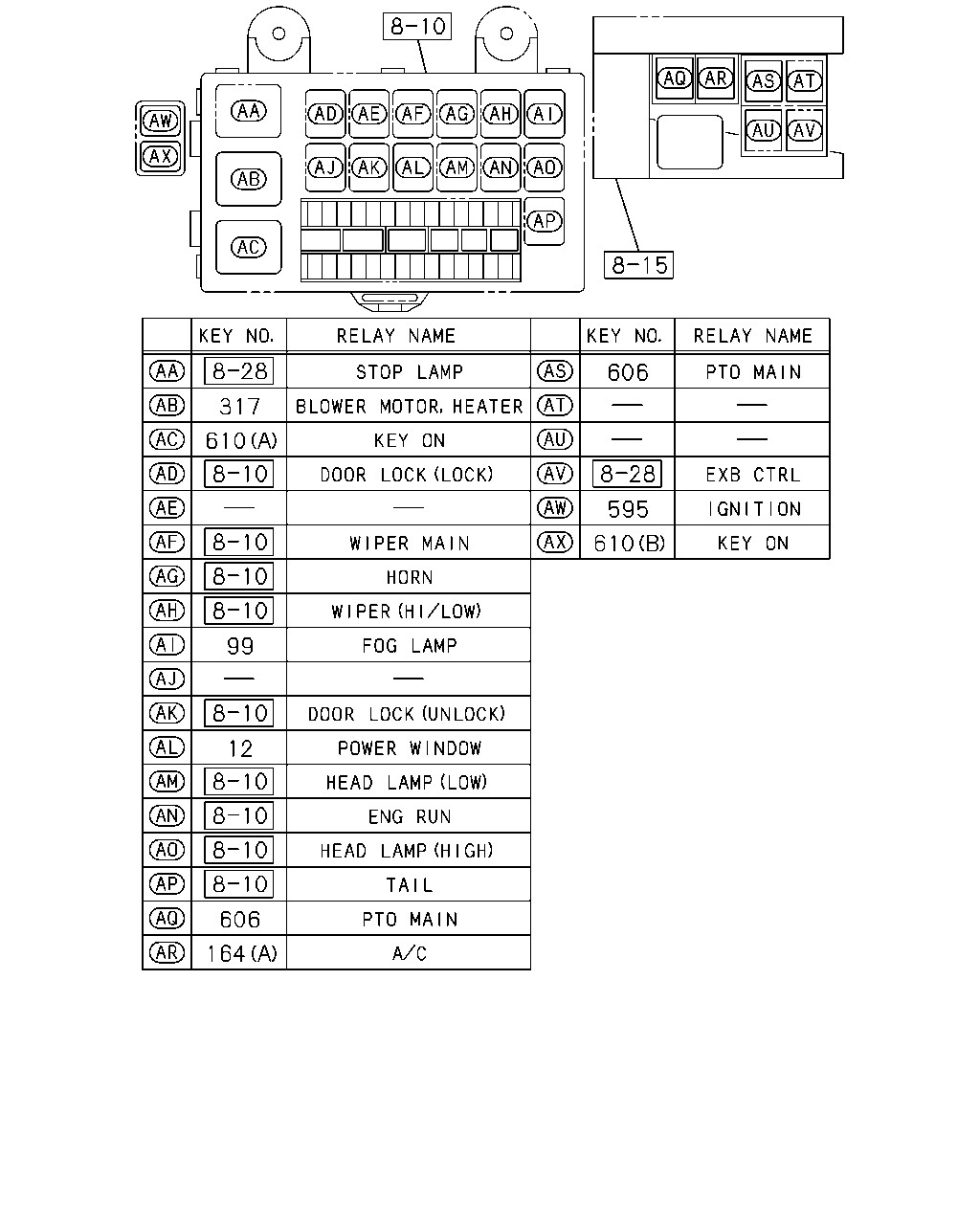

317 610 99 12 606 595 610 606 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1302-
99	RELAY; FOG LAMP FOG LAMP<T96> 24V 10A PANASONIC	8-97173-035-1	01	1	1302-1401
99	RELAY; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 24V 10A PANASONIC	8-97173-035-1	01	1	1402-
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1302-
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1302-
317	RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1302-
595	RELAY; IGNITION 24V 10A PANASONIC	8-97173-035-1	01	1	1302-
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	1302-1304
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	1302-1304
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	1305-
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	1305-
610	RELAY; KEY ON (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1302-
610	RELAY; KEY ON (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1302-

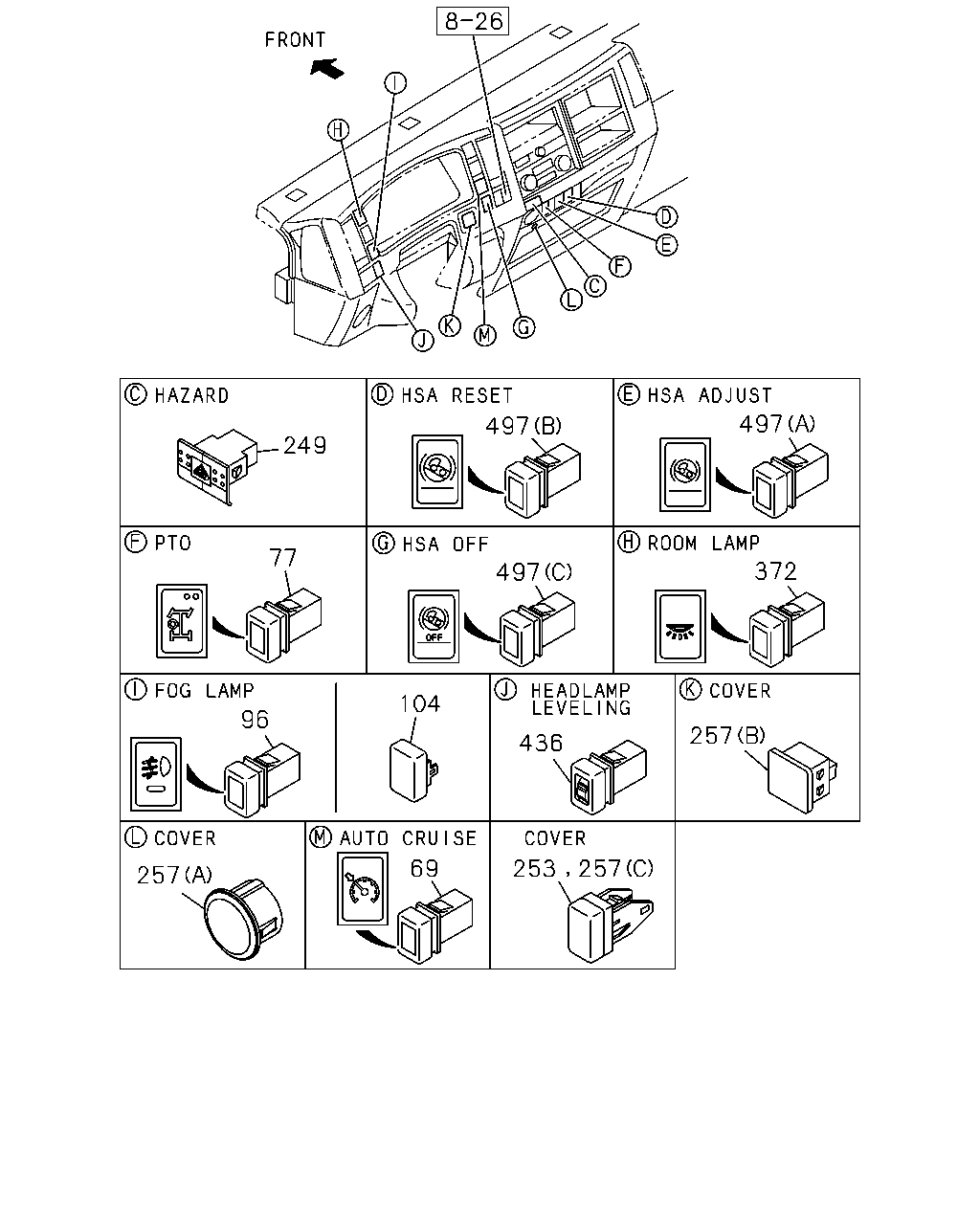

257 257 257 497 497 497 249 77 372 436 253 69 104 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
69	SWITCH; AUTO CRUISE AUTO CRUISE<K30>	8-98011-344-1	01	1	1511-
77	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97615-488-2	01	1	1302-1304
77	SWITCH; PTO TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97615-488-2	01	1	1305-
96	SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	1302-1401
96	SWITCH; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	8-97387-031-4	01	1	1402-
104	COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>	8-98025-954-1	01	1	1302-1401
104	COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	8-98025-954-1	01	1	1402-
249	SWITCH; HAZARD	8-97386-922-1	01	1	1302-
253	COVER; SW HOLE	8-98025-954-1	01	1	1302-1309
253	COVER; SW HOLE	8-98025-954-1	02	1	1310-
253	COVER; SW HOLE	8-98025-954-1	03	1	1302-1309
253	COVER; SW HOLE	8-98025-954-1	01	1	1310-1510
253	COVER; SW HOLE	8-98025-954-1	01	1	1310-1510
253	COVER; SW HOLE	8-98025-954-1	01	1	1511-
253	COVER; SW HOLE EXC. AUTO CRUISE<K30>	8-98025-954-1	01	1	1511-
257	COVER; HOLE,SW (C)	8-98025-954-1	02	1	1302-1511
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	02	1	1302-1511
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1512-
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1512-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1512-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1512-
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	1512-
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	1512-
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1512-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1512-
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1302-1304
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1302-1304
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1302-1304
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	1302-1304
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	1302-1304
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1302-1304
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1305-1511
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1305-1511
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1305-1511
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	1305-1511
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	1305-1511
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1305-1511
257	COVER; HOLE,SW (C)	8-98025-954-1	02	1	1512-
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	1302-
257	COVER; HOLE,SW (A)	8-98070-401-2	01	1	1302-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (D)	8-98029-917-0	01	1	1302-
372	SWITCH; ROOM LAMP FLUORESCENT LAMP<6UC>	8-97386-917-2	01	1	1302-
436	SWITCH; HEADLAMP LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-97386-981-2	01	1	1302-
497	SWITCH; HSA H.S.A SYSTEM<6EP> (C) OFF	8-97386-923-2	01	1	1302-
497	SWITCH; HSA H.S.A SYSTEM<6EP> (B) RESET	8-98119-946-0	01	1	1302-
497	SWITCH; HSA H.S.A SYSTEM<6EP> (A) ADJUST	8-98119-947-1	01	1	1302-

164

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1302-
	164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1302-

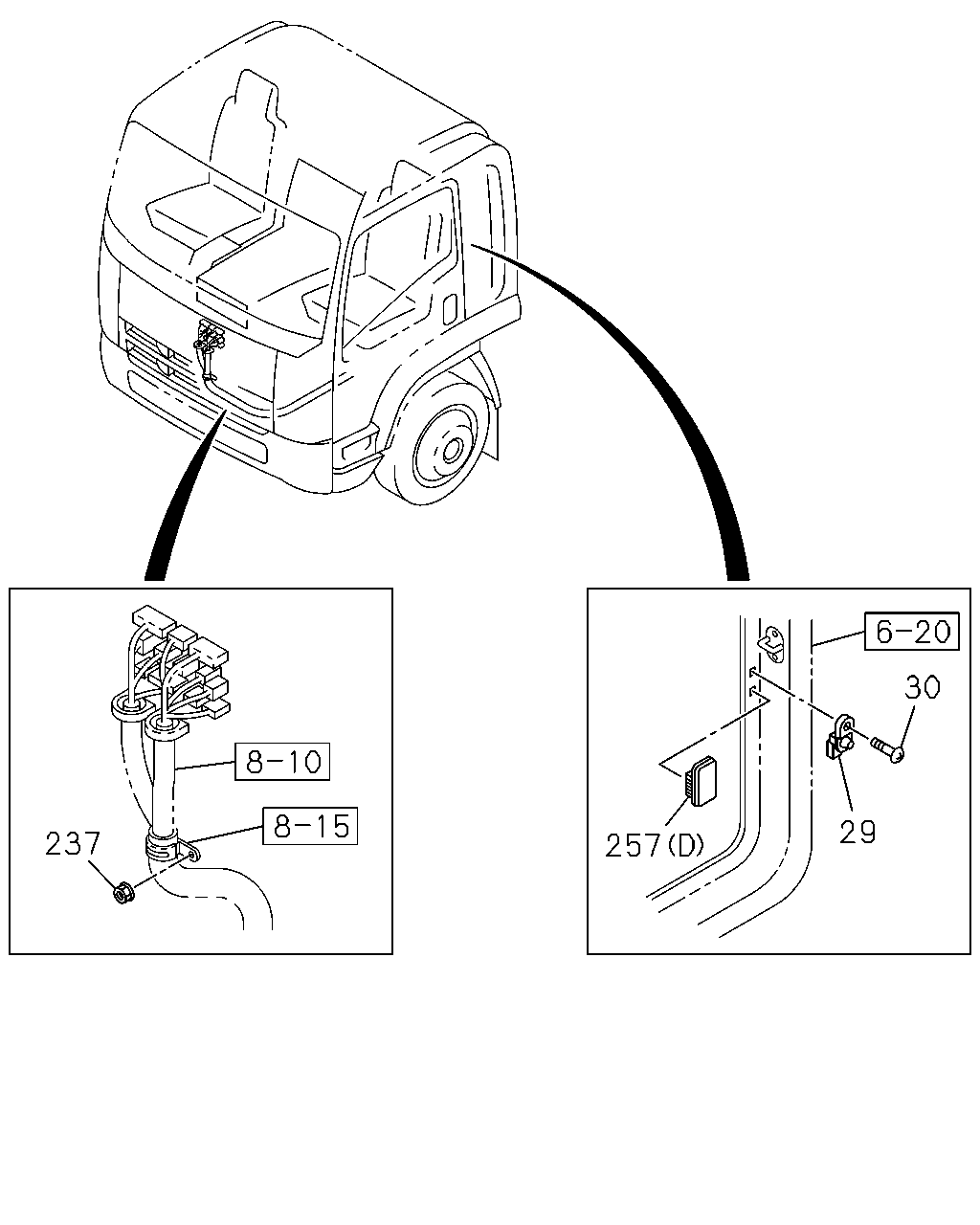

257 30 29 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	1302-
29	SWITCH; DOOR H.S.A SYSTEM<6EP> BLACK	8-98022-211-0	01	1	1302-
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	1302-
30	SCREW; DOOR SW H.S.A SYSTEM<6EP> M5X18	8-98047-201-0	01	1	1302-
237	NUT M8 FLANGE	0-91180-108-0	01	1	1302-
257	COVER; HOLE,SW (C)	8-98025-954-1	02	1	1302-1511
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	02	1	1302-1511
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1512-
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1512-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1512-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1512-
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	1512-
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	1512-
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1512-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1512-
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1302-1304
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1302-1304
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1302-1304
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	1302-1304
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	1302-1304
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1302-1304
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1305-1511
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1305-1511
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1305-1511
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	1305-1511
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	1305-1511
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1305-1511
257	COVER; HOLE,SW (C)	8-98025-954-1	02	1	1512-
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	1302-
257	COVER; HOLE,SW (A)	8-98070-401-2	01	1	1302-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (D)	8-98029-917-0	01	1	1302-

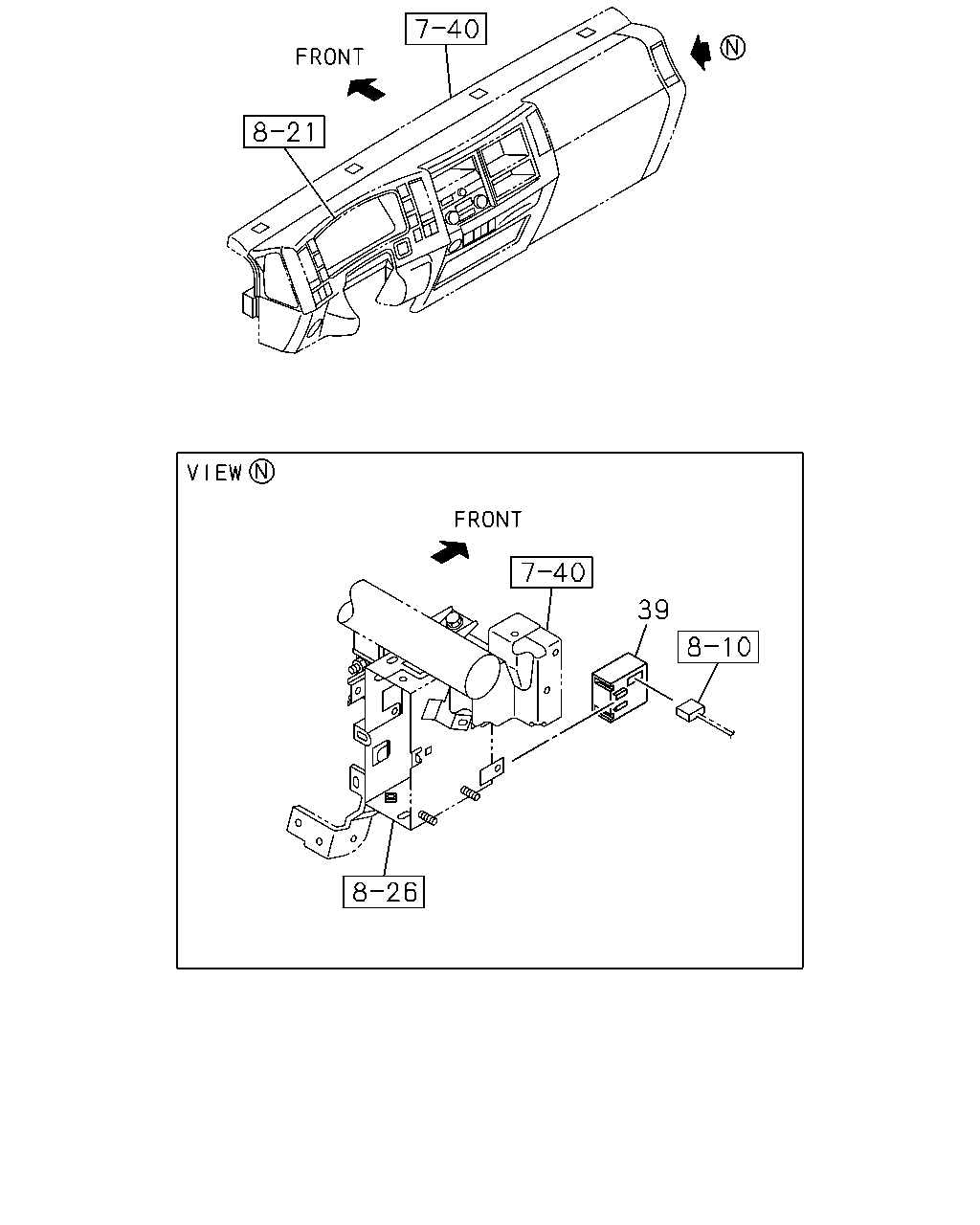

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-98060-789-0	01	1	1302-
