Isuzu WW
▶
TRUCKS
▶
FSS
▶
11510 - FSS(RHD)EURO2
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#112985) — 91 parça
Tümü
A - FCS5MS
B - FGS5MS
◀
[825A] SWITCH NO.1 (15 parça)
[825A] RELAY;DOOR LK (3 parça)
[825A] RELAY;CAB HARNESS STD CAB (10 parça)
[825A] SWITCH NO.2 (30 parça)
[825A] SWITCH NO.3 (16 parça)
[825A] RELAY;CAB HARNESS WIDE CAB (13 parça)
[825A] RELAY;FRAME HARNESS (4 parça)
▶

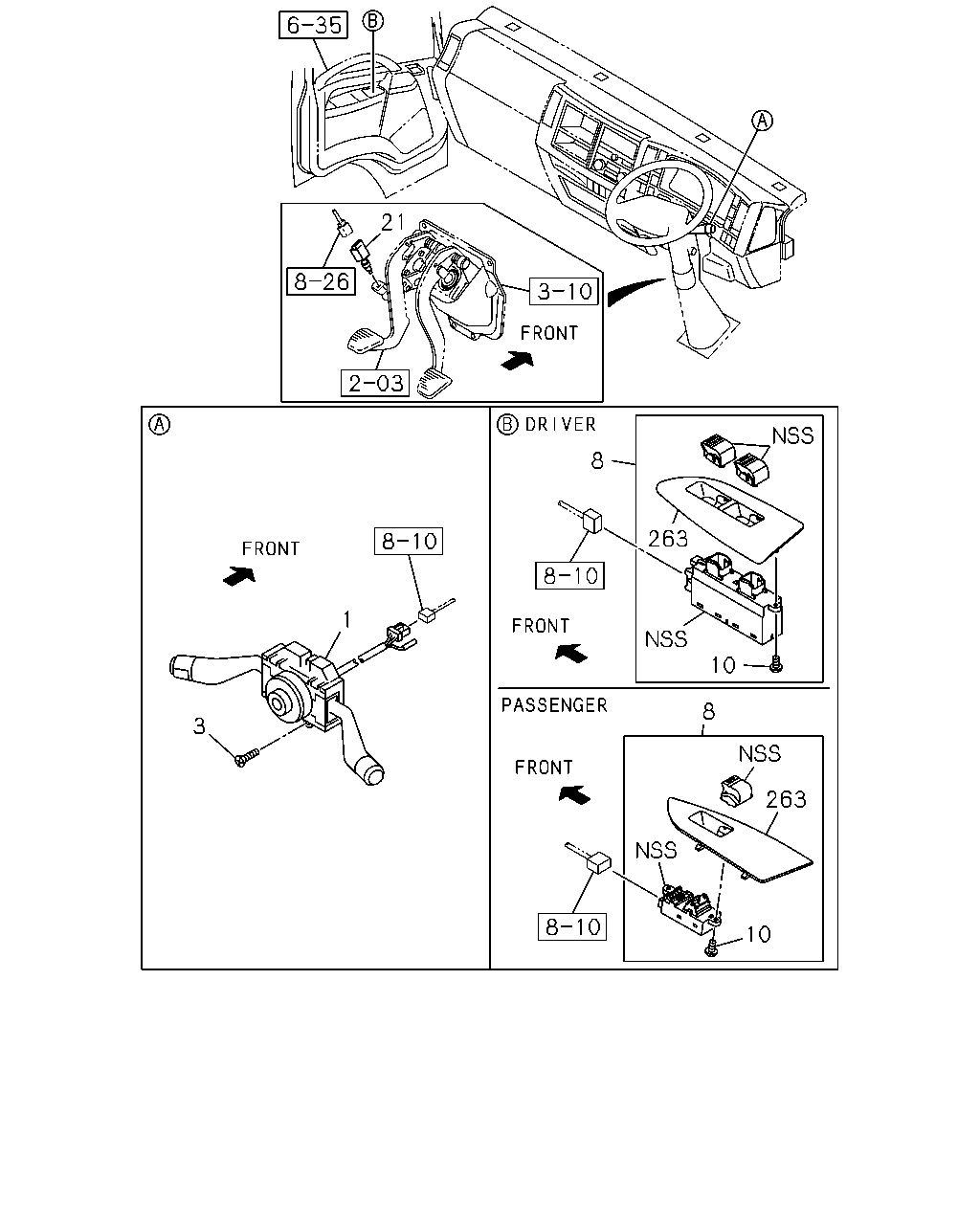

21
8
263
10
1
3
8
263
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SWITCH; COMB
INTERMITTENT WIPER<C13>
8-98060-302-1
01
1
1302-1310
●
●
1
SWITCH; COMB
INTERMITTENT WIPER<C13>
8-98243-704-0
01
1
1311-
●
●
1
SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>
8-98064-894-2
01
1
1302-1310
●
●
1
SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>
8-98243-706-0
01
1
1311-
●
●
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1302-
●
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER
8-97387-034-2
01
1
1302-1509
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER
8-98298-750-0
01
1
1510-
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER
8-98159-543-0
01
1
1302-1509
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER
8-98316-415-0
01
1
1510-
●
10
SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32>
8-98153-865-0
03
1
1302-
●
21
SWITCH; CLU
PTO CONTROL<SV6>
8-94337-761-0
01
1
1302-
●
●
21
SWITCH; CLU
EXC. PTO CONTROL<SV6>
8-97358-248-0
01
1
1302-
●
●
263
COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER
8-98153-836-0
01
1
1302-
●
263
COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER
8-98153-841-0
01
1
1302-
●
495
SWITCH; METER,ILLUMINATION
LAMPS EXP PACKAGE<WL5>
8-97614-232-1
01
1
1302-
●

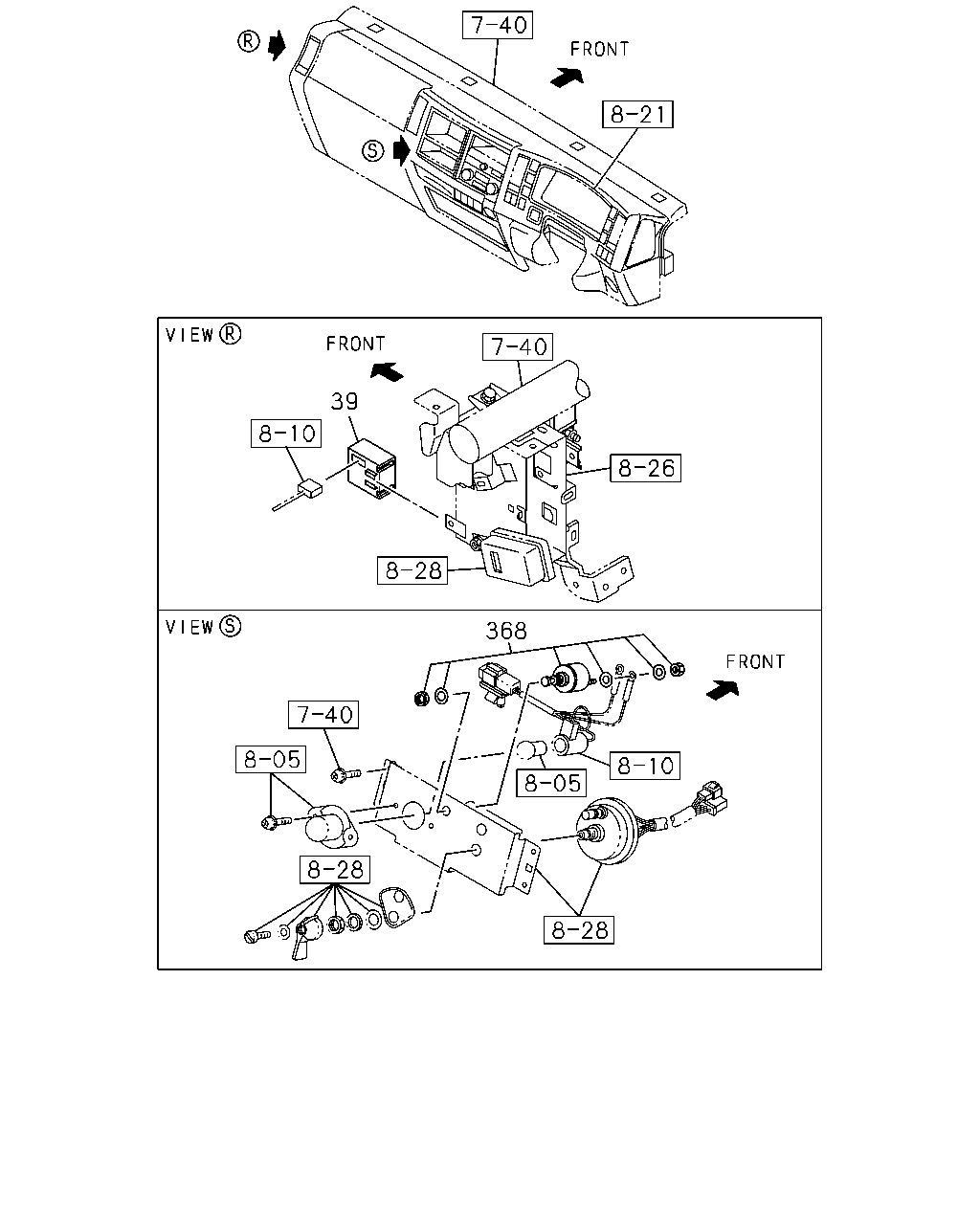

39
368
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
39
RELAY; DOOR LK
AUTO DOOR LOCK<AU4>
8-98060-789-0
01
1
1302-
●
368
SWITCH; LAMP
USER EXP GOVERNMENT<D6M>
9-82750-469-0
01
1
1302-
●
495
SWITCH; METER,ILLUMINATION
LAMPS EXP PACKAGE<WL5>
8-97614-232-1
01
1
1302-
●

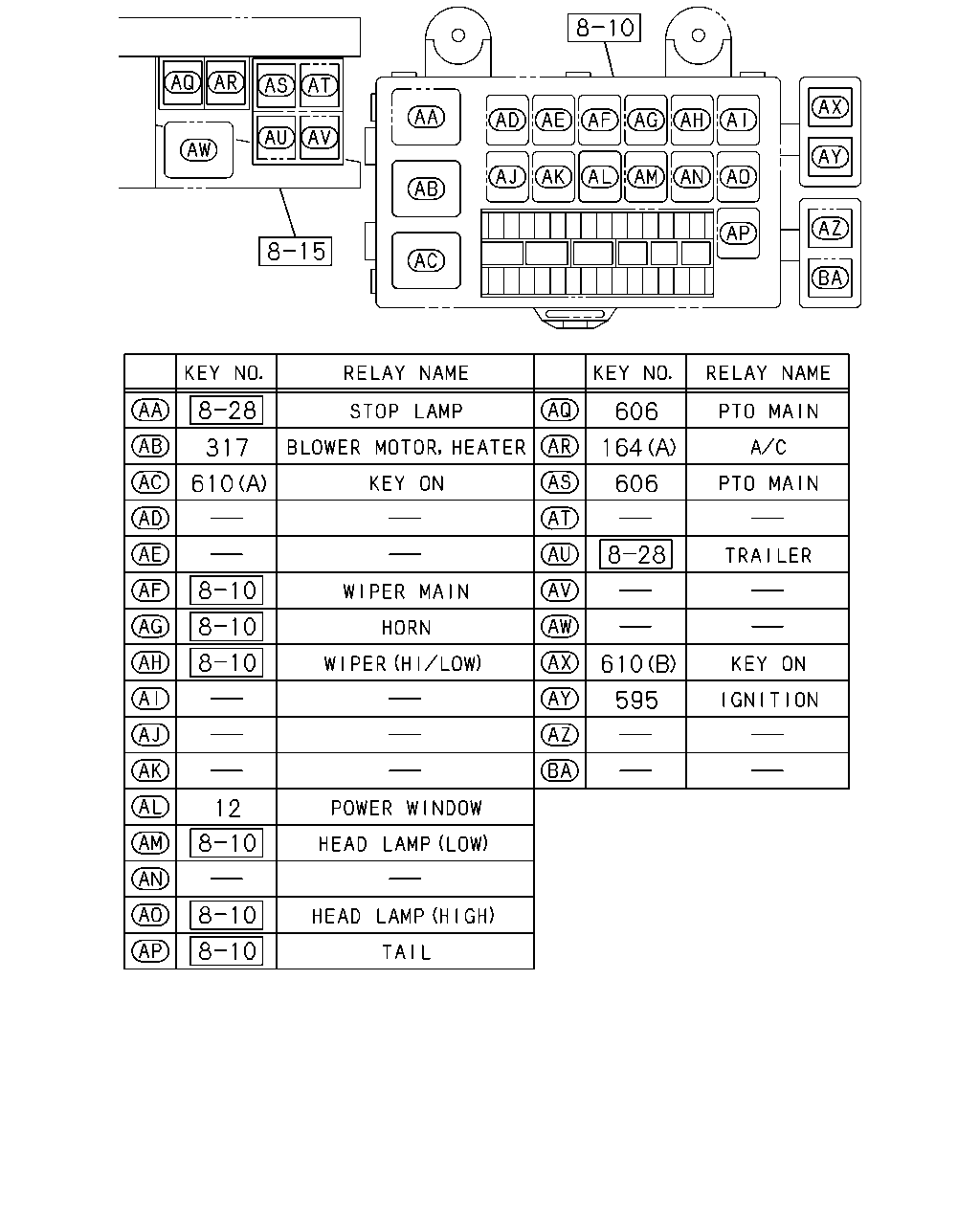

317
610
12
164
606
606
610
595
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC
8-97173-035-1
01
1
1302-
●
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
1302-
●
●
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1302-
●
●
317
RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1302-
●
●
495
SWITCH; METER,ILLUMINATION
LAMPS EXP PACKAGE<WL5>
8-97614-232-1
01
1
1302-
●
595
RELAY; IGNITION
24V 10A PANASONIC
8-97173-035-1
01
1
1302-
●
●
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
1302-
●
●
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
1302-
●
●
610
RELAY; KEY ON
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1302-
●
●
610
RELAY; KEY ON
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1302-
●
●

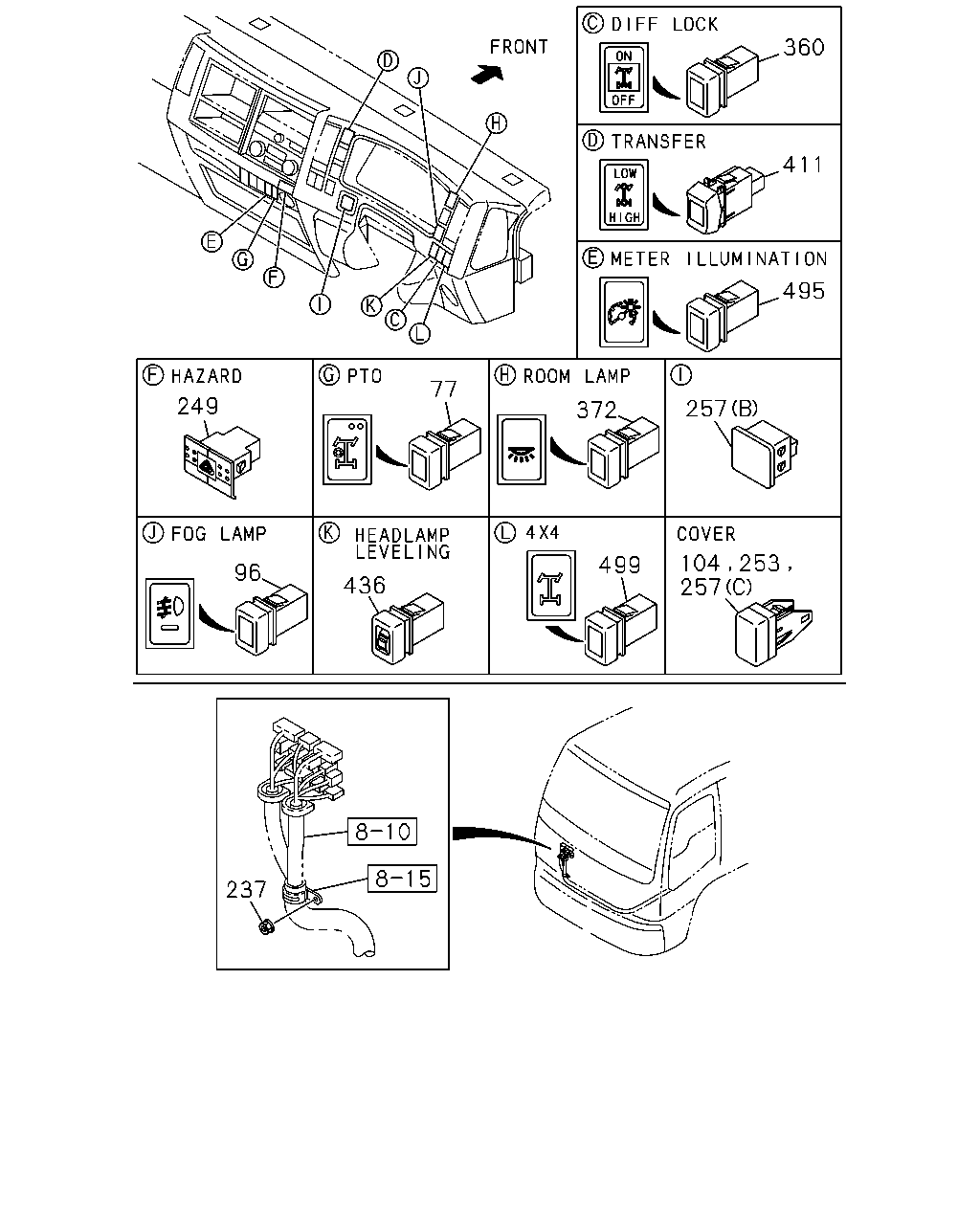

360
411
498
257
372
77
249
96
436
499
104
253
257
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
77
SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-97615-488-2
01
1
1302-
●
●
96
SWITCH; FOG LAMP
FOG LAMP<T96>
8-97387-031-4
01
1
1302-
●
104
COVER; SW HOLE,FOG LAMP
8-98025-954-1
01
1
1302-
●
104
COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>
8-98025-954-1
01
1
1302-
●
237
NUT
M8 FLANGE
0-91180-108-0
01
1
1302-
●
●
249
SWITCH; HAZARD
8-97386-922-1
01
1
1302-
●
●
253
COVER; SW HOLE
8-98025-954-1
01
1
1302-
●
●
253
COVER; SW HOLE
8-98025-954-1
01
1
1302-
●
253
COVER; SW HOLE
8-98025-954-1
01
1
1302-
●
253
COVER; SW HOLE
EXC. DIFF LOCK<C3N>
8-98025-954-1
01
1
1302-
●
253
COVER; SW HOLE
EXC. LAMPS EXP PACKAGE<WL5>
8-98025-954-1
01
1
1302-
●
257
COVER; HOLE,SW
(C)
8-98025-954-1
07
1
1302-1405
●
●
257
COVER; HOLE,SW
(C)
8-98025-954-1
06
1
1406-
●
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1302-
●
●
257
COVER; HOLE,SW
(A)
8-98029-917-0
01
1
1302-
●
●
257
COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C)
8-98025-954-1
01
1
1302-1405
●
●
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)
8-98025-954-1
01
1
1302-1405
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)
8-98025-954-1
01
1
1302-1405
●
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1302-1405
●
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1406-
●
●
257
COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C)
8-98025-954-1
01
1
1406-
●
●
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)
8-98025-954-1
01
1
1406-
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)
8-98025-954-1
01
1
1406-
●
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1406-
●
360
SWITCH ASM; DIFF LK
DIFF LOCK<C3N>
8-97613-963-2
01
1
1302-
●
372
SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC>
8-97386-917-2
01
1
1302-
●
●
411
SWITCH; TRANSFER
8-97613-967-1
01
1
1302-
●
●
436
SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-97386-981-2
01
1
1302-
●
495
SWITCH; METER,ILLUMINATION
LAMPS EXP PACKAGE<WL5>
8-97614-232-1
01
1
1302-
●
499
SWITCH; 4X4
8-97386-914-3
01
1
1302-
●
●

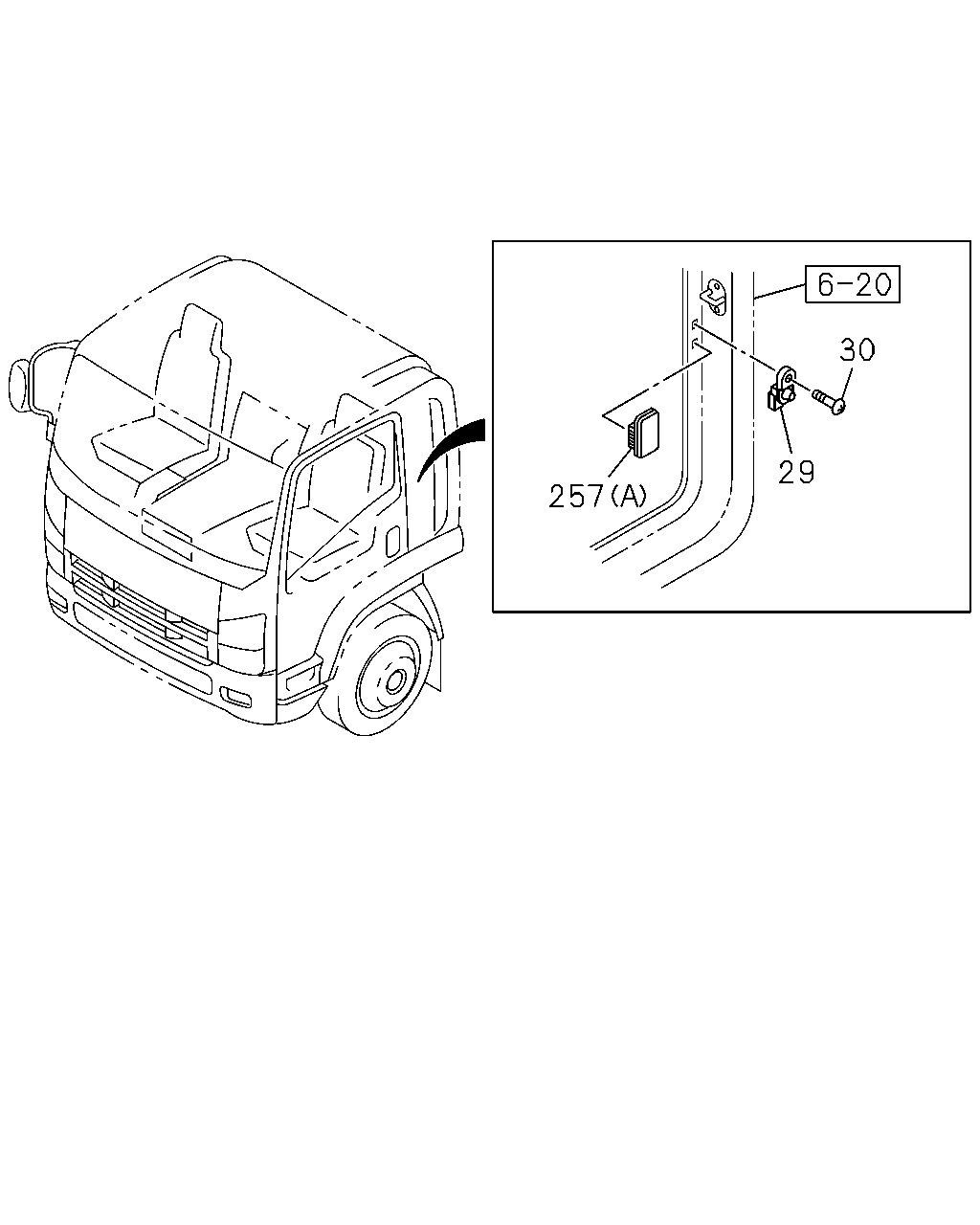

257
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
29
SWITCH; DOOR
BLACK
8-98022-211-0
01
1
1302-
●
●
30
SCREW; DOOR SW
M5X18
8-98047-201-0
01
1
1302-
●
●
257
COVER; HOLE,SW
(C)
8-98025-954-1
07
1
1302-1405
●
●
257
COVER; HOLE,SW
(C)
8-98025-954-1
06
1
1406-
●
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1302-
●
●
257
COVER; HOLE,SW
(A)
8-98029-917-0
01
1
1302-
●
●
257
COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C)
8-98025-954-1
01
1
1302-1405
●
●
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)
8-98025-954-1
01
1
1302-1405
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)
8-98025-954-1
01
1
1302-1405
●
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1302-1405
●
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1406-
●
●
257
COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C)
8-98025-954-1
01
1
1406-
●
●
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)
8-98025-954-1
01
1
1406-
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)
8-98025-954-1
01
1
1406-
●
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1406-
●
495
SWITCH; METER,ILLUMINATION
LAMPS EXP PACKAGE<WL5>
8-97614-232-1
01
1
1302-
●

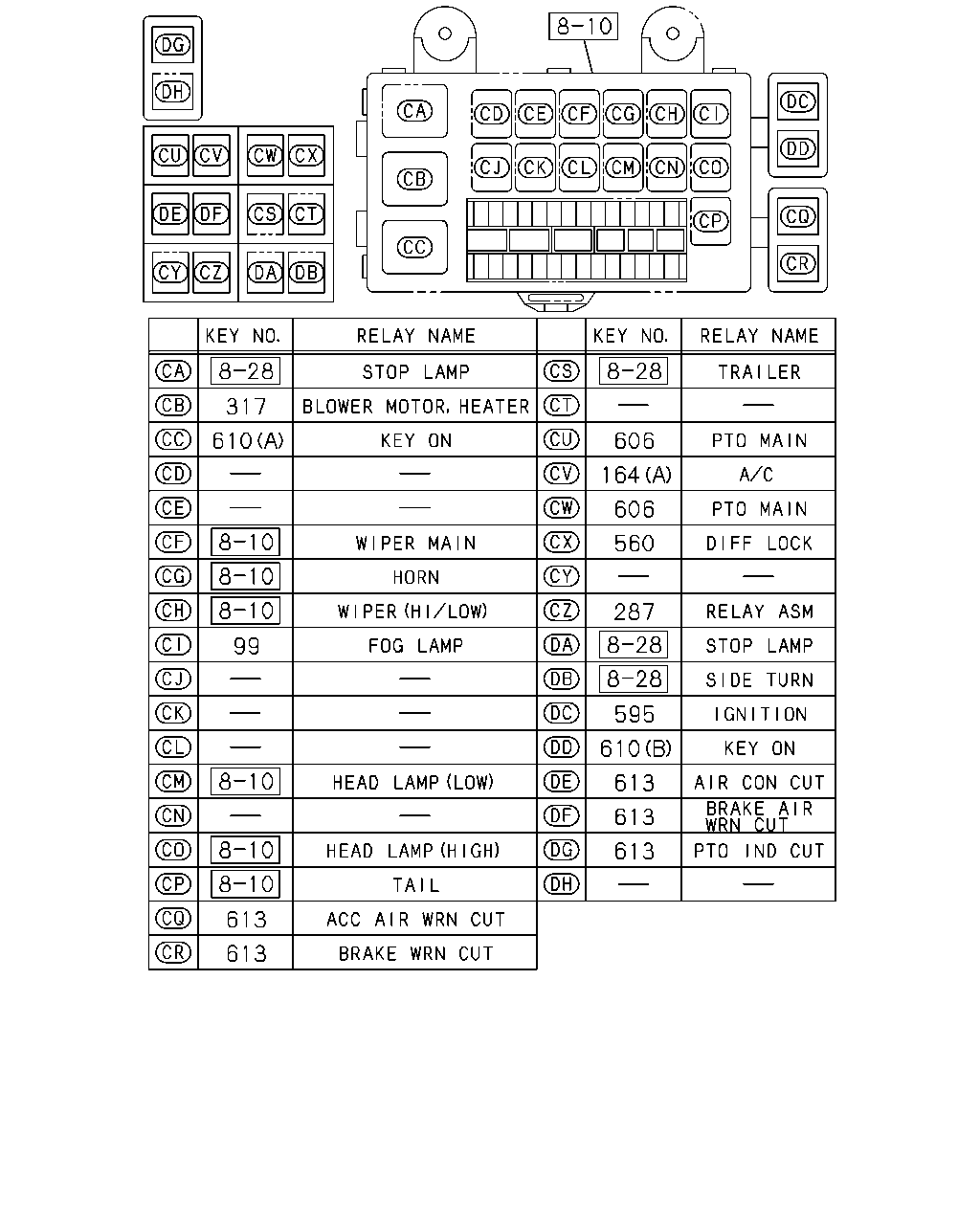

317
610
99
613
613
606
164
606
560
287
595
610
613
613
613
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC
8-97173-035-1
01
1
1302-
●
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
1302-
●
●
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1302-
●
●
287
RELAY ASM
LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC
8-97173-035-1
02
1
1302-
●
317
RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1302-
●
●
495
SWITCH; METER,ILLUMINATION
LAMPS EXP PACKAGE<WL5>
8-97614-232-1
01
1
1302-
●
560
RELAY; DIFF LOCK
DIFF LOCK<C3N> 24V 10A PANASONIC
8-97173-035-1
01
1
1302-
●
595
RELAY; IGNITION
24V 10A PANASONIC
8-97173-035-1
01
1
1302-
●
●
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
1302-
●
●
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
1302-
●
●
610
RELAY; KEY ON
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1302-
●
●
610
RELAY; KEY ON
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1302-
●
●
613
RELAY; DIMMER
LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC
8-97173-035-1
05
1
1302-
●
164
524
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
1302-
●
●
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1302-
●
●
495
SWITCH; METER,ILLUMINATION
LAMPS EXP PACKAGE<WL5>
8-97614-232-1
01
1
1302-
●
524
RELAY; LAMP
LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC
8-97173-035-1
01
1
1302-
●
