Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11521 - FVZ(LHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶

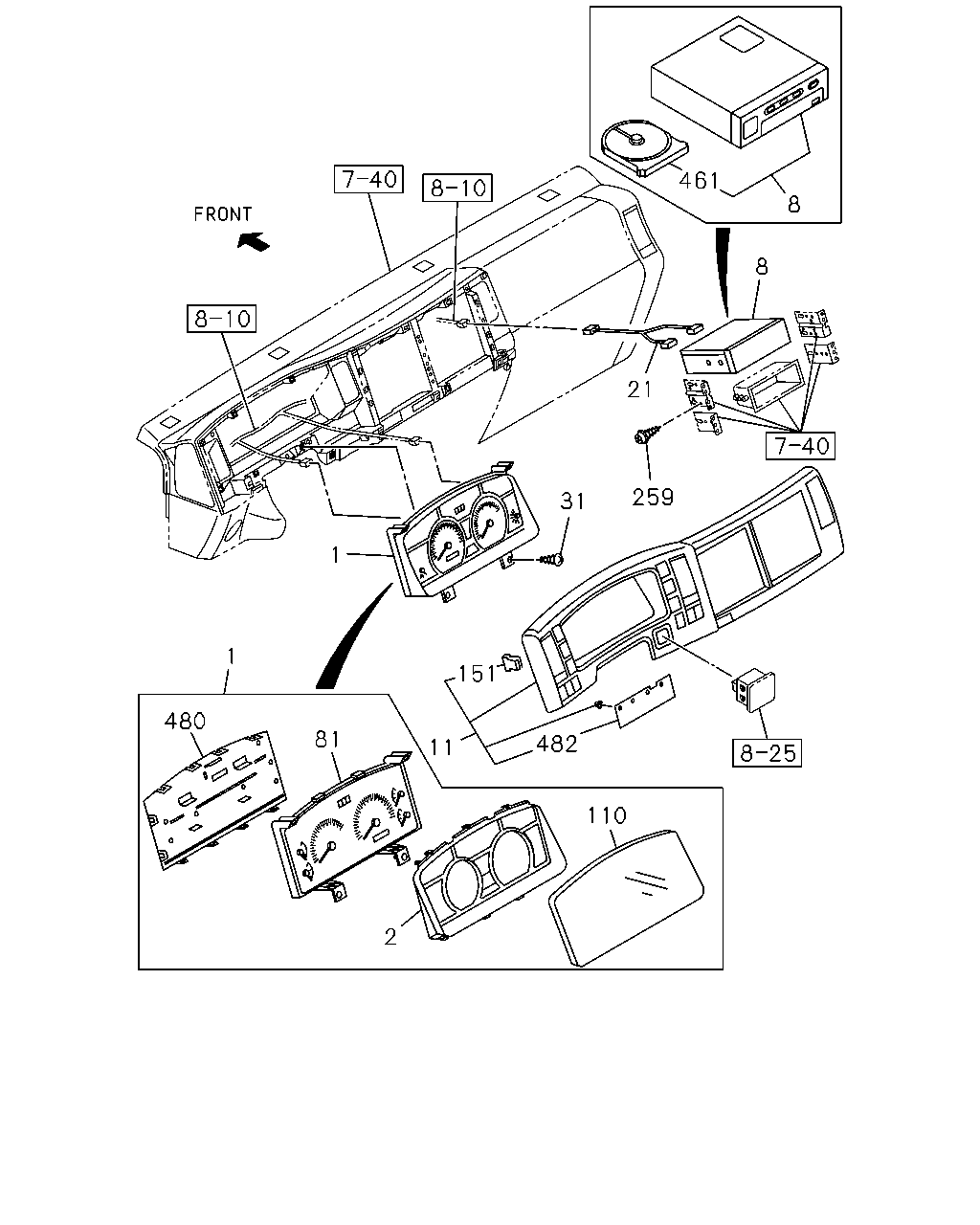

8-21 — METER ASM
(#112983) — 21 parça
461
8
8
21
31
1
1
151
11
482
110
2
81
480
259
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
BRAKE REGULATION ADR(TDU)
8-98195-719-0
01
1
1302-
1
METER COMPL; CLUSTER
EXC. BRAKE REGULATION ADR(TDU)
8-98095-682-3
01
1
1302-
2
PANEL; CLUSTER
8-98054-432-0
01
1
1302-
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7>
8-97387-082-2
01
1
1302-
11
CLUSTER ASM; METER
ECE R29<EFE> DARK GRAY
8-97418-534-1
01
1
1411-
11
CLUSTER ASM; METER
DARK GRAY
8-97406-005-6
01
1
1302-1410
11
CLUSTER ASM; METER
EXC. ECE R29<EFE> DARK GRAY
8-97406-005-6
01
1
1411-
21
HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7>
8-98074-077-0
01
1
1302-
31
SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1302-
81
METER SUB ASM
BRAKE REGULATION ADR(TDU)
8-98195-721-0
01
1
1302-
81
METER SUB ASM
EXC. BRAKE REGULATION ADR(TDU)
8-98149-098-0
01
1
1302-
110
GLASS; CLUSTER METER
8-98054-431-0
01
1
1302-
151
CLIP; METER CLUSTER
ECE R29<EFE>
8-98021-271-0
12
1
1411-
151
CLIP; METER CLUSTER
ECE R29<EFE>
8-98152-030-0
01
1
1411-
151
CLIP; METER CLUSTER
ECE R29<EFE>
8-98152-031-0
01
1
1411-
151
CLIP; METER CLUSTER
8-98021-271-0
13
1
1302-1410
151
CLIP; METER CLUSTER
EXC. ECE R29<EFE>
8-98021-271-0
13
1
1411-
259
SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET
8-98063-767-0
04
1
1302-
461
CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7>
1-83129-433-0
01
1
1302-
480
COVER; METER
BLACK
8-98054-433-0
01
1
1302-
482
SEAL; CLUSTER METER
8-98116-843-0
01
1
1302-
