Isuzu WW
▶
TRUCKS
▶
FTR
▶
11513 - FTR-RHD EURO2
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶
8-21 — METER ASM
(#112979) — 25 parça
◀

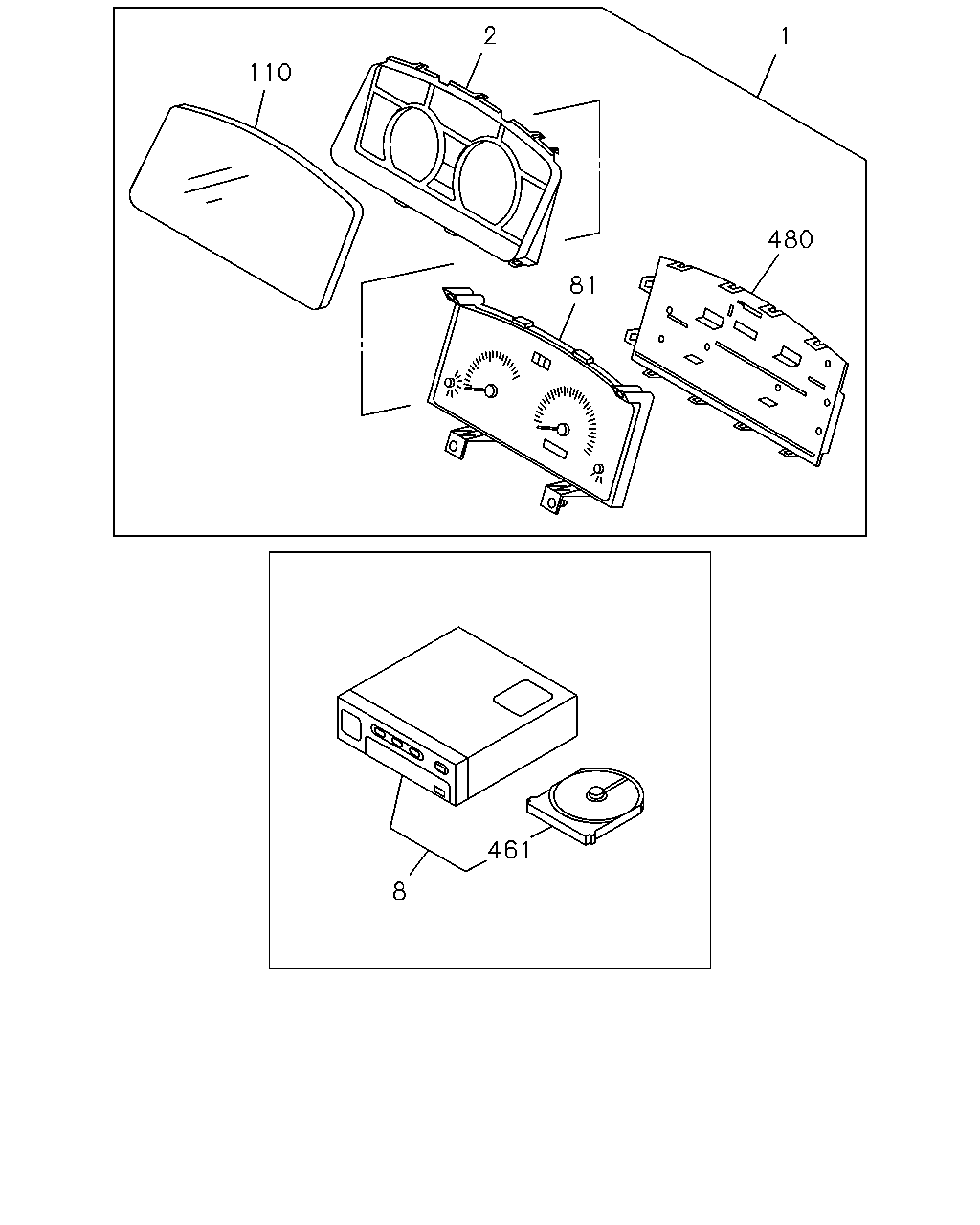

[821A] COMPONENT AND TACHOGRAPH (17 parça)

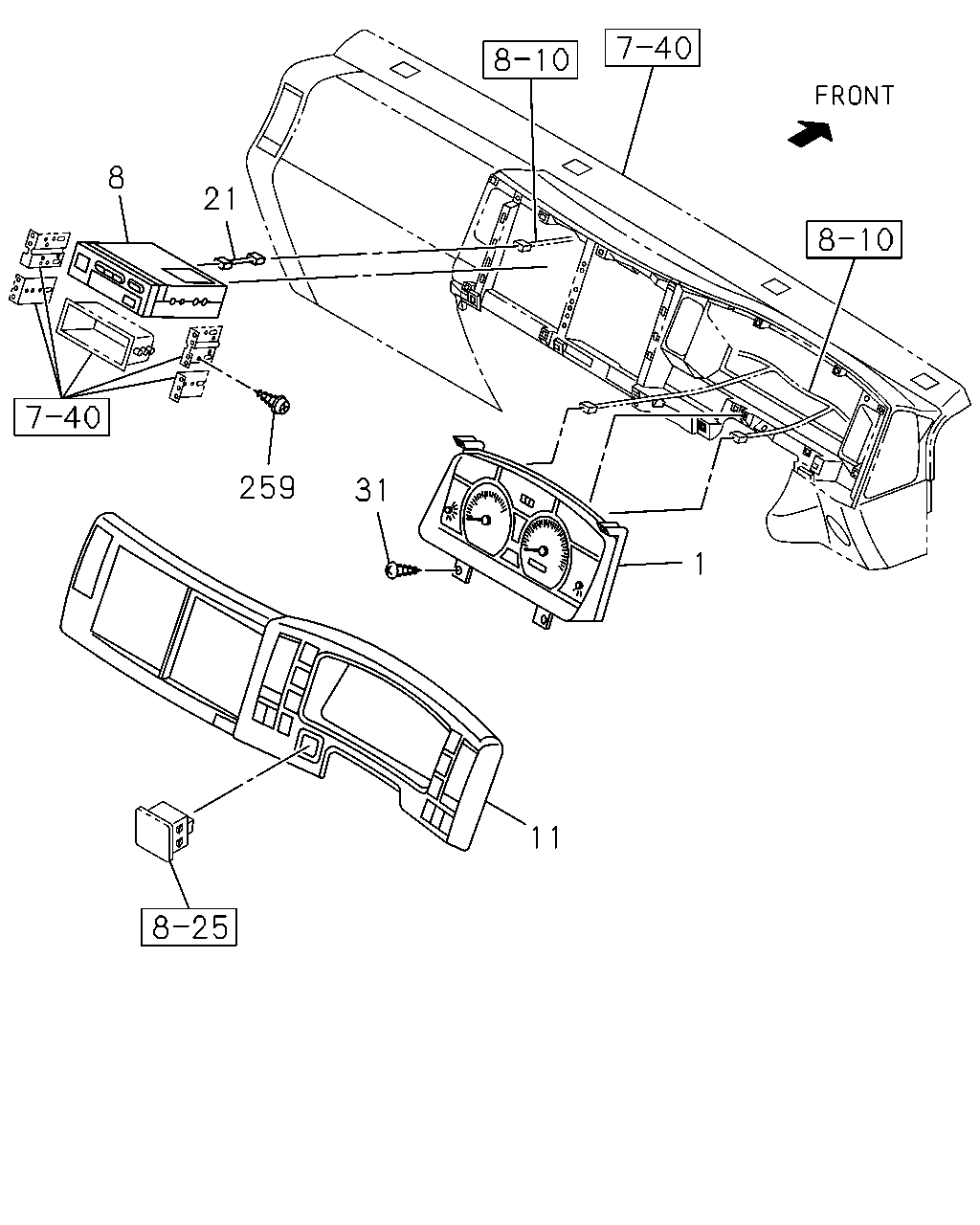

[821A] FIXING (8 parça)
▶
81
480
1
2
110
8
461
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
8-98064-903-6
01
1
1305-
1
METER COMPL; CLUSTER
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
8-98161-851-1
01
1
1302-
1
METER COMPL; CLUSTER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98095-682-3
01
1
1302-
2
PANEL; CLUSTER
6HK1-TCN ENG(82L)
8-98054-432-0
01
1
1302-1304
2
PANEL; CLUSTER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98054-432-0
01
1
1305-
2
PANEL; CLUSTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
8-98054-432-0
01
1
1305-
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7>
8-97387-082-2
01
1
1302-
81
METER SUB ASM
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
8-98079-673-0
01
1
1305-
81
METER SUB ASM
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
8-98162-024-0
01
1
1302-
81
METER SUB ASM
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98149-098-0
01
1
1302-
110
GLASS; CLUSTER METER
6HK1-TCN ENG(82L)
8-98054-431-0
01
1
1302-1304
110
GLASS; CLUSTER METER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98054-431-0
01
1
1305-
110
GLASS; CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
8-98054-431-0
01
1
1305-
461
CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7>
1-83129-433-0
01
1
1302-
480
COVER; METER
6HK1-TCN ENG(82L) BLACK
8-98054-433-0
01
1
1302-1304
480
COVER; METER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BLACK
8-98054-433-0
01
1
1305-
480
COVER; METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BLACK
8-98054-433-0
01
1
1305-
21
8
259
31
1
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
8-98064-903-6
01
1
1305-
1
METER COMPL; CLUSTER
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
8-98161-851-1
01
1
1302-
1
METER COMPL; CLUSTER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
8-98095-682-3
01
1
1302-
8
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7>
8-97387-082-2
01
1
1302-
11
CLUSTER ASM; METER
DARK GRAY
8-97405-350-6
01
1
1302-
21
HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7>
8-98074-077-0
01
1
1302-
31
SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1302-
259
SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET
8-98063-767-0
04
1
1302-
