6-31 — FRONT DOOR GLASS AND REGULATOR (#11297) — 147 parça

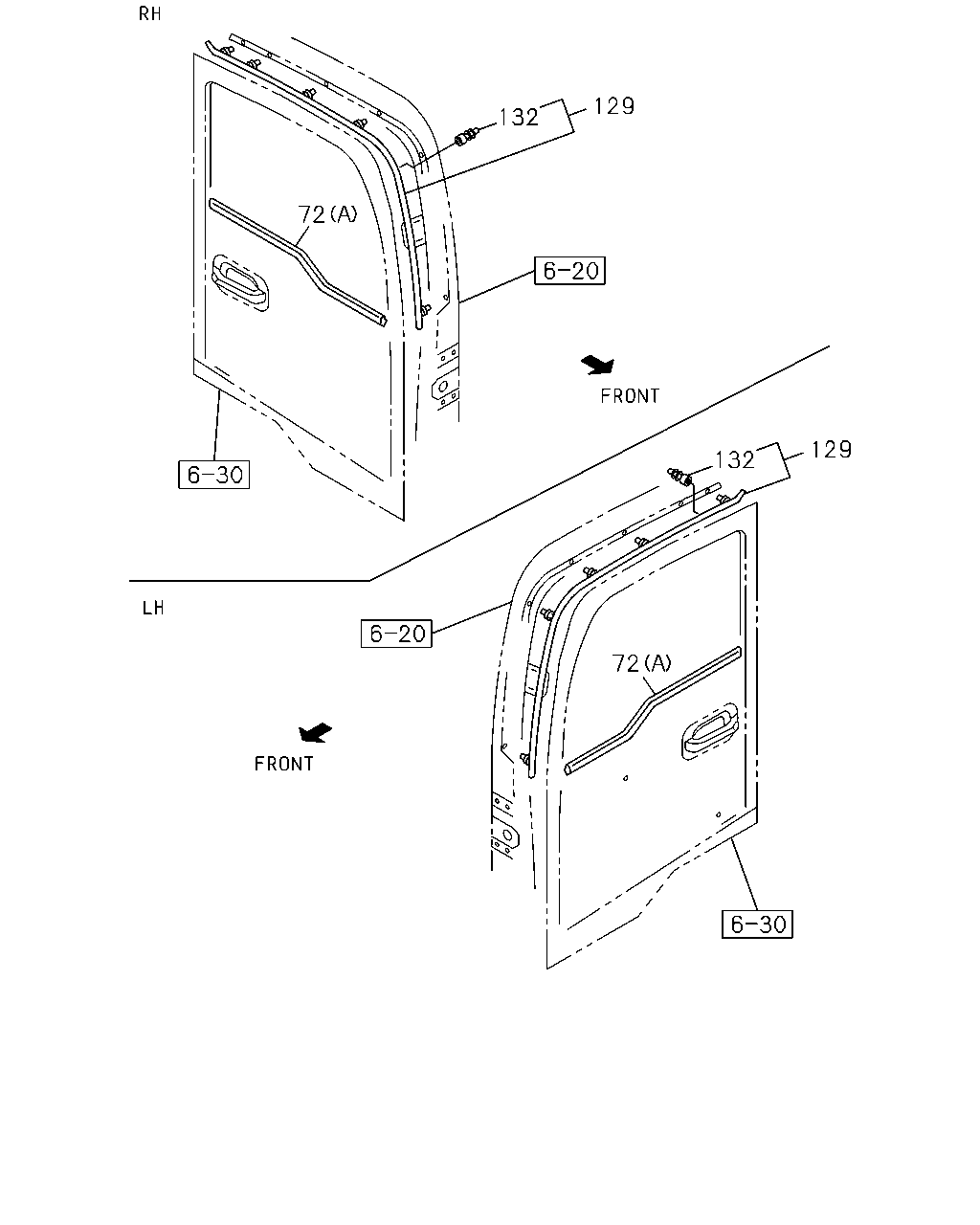

72 129 132 129 132 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0106-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0106-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0106-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0106-
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0106-
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0106-
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0106-
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0106-

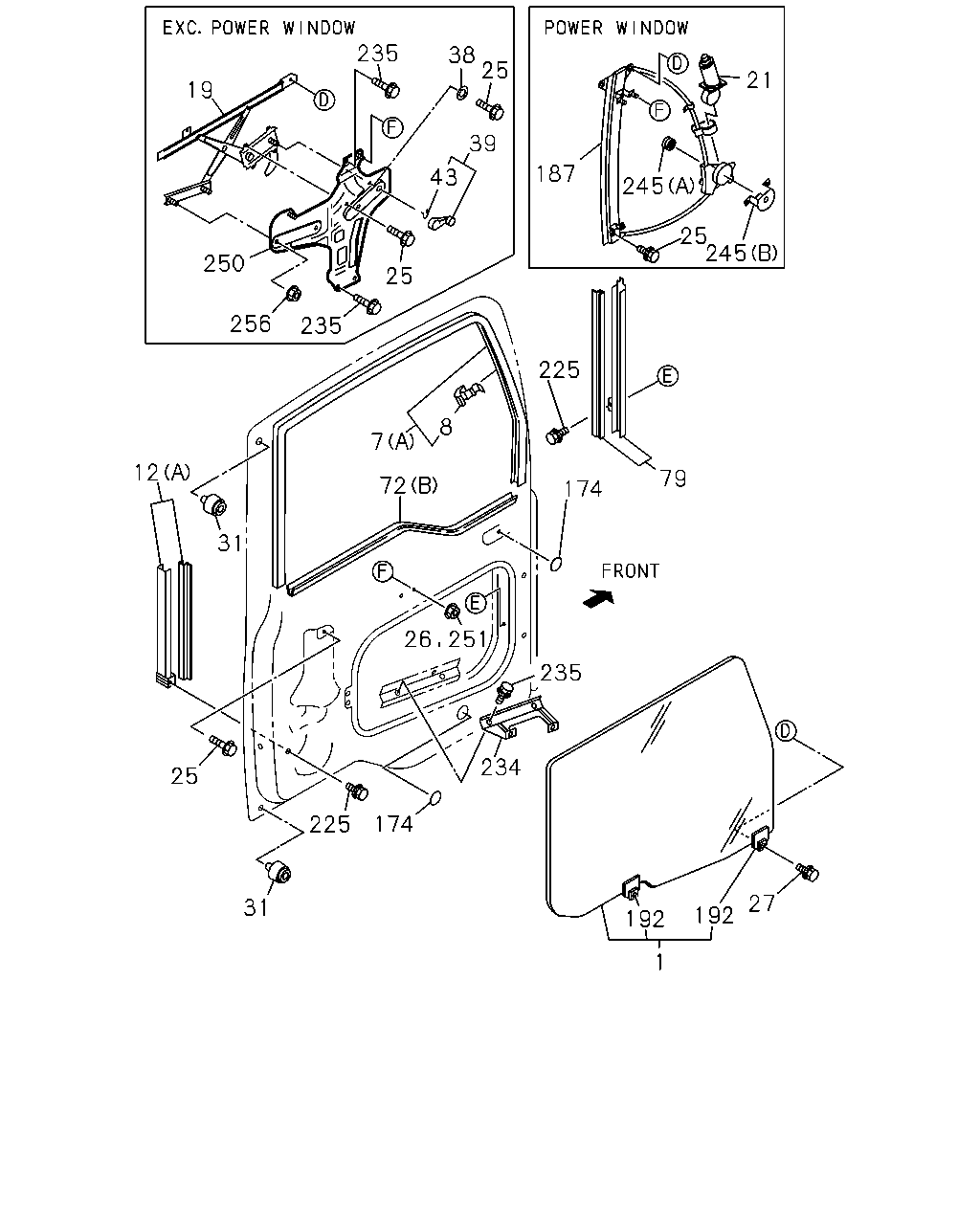

31 25 225 174 234 235 251 26 174 79 27 192 192 1 72 7 8 225 187 245 245 25 21 43 39 25 38 235 25 235 256 250 12 31 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76148-095-2	01	1	0106-
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	0106-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76148-094-2	01	1	0106-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76167-174-2	01	1	0106-
7	GLASS RUN; FRT DOOR (A)	1-74318-022-8	01	1	0106-
7	GLASS RUN; FRT DOOR (A)	1-74318-021-8	01	1	0106-
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74318-042-0	01	1	0106-
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0106-
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-071-3	01	1	0106-
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-070-3	01	1	0106-
12	CHANNEL; GLASS RUN,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74338-036-0	01	1	0106-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-134-4	01	1	0106-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-144-4	01	1	0106-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-177-0	01	1	0106-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-176-0	01	1	0106-
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0106-
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0106-0405
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	10	1	0406-0512
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	10	1	0601-
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	06	1	0106-
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0106-
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0106-
38	WASHER; PL,WINDOW REG EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0106-
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30> BLACK	8-94371-427-0	02	1	0106-
43	CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW<A30>	8-94220-591-0	02	1	0106-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0106-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0106-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0106-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0106-
79	CHANNEL; DOOR GLASS,FRT	1-74338-069-3	01	1	0106-
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-068-3	01	1	0106-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	12	1	0106-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	14	1	0301-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	14	1	0106-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	16	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	20	1	0106-0212
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	22	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=52 BLACK	1-76798-041-0	02	1	0106-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-179-3	01	1	0106-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-178-3	01	1	0106-
192	HOLDER; DOOR GLASS	1-74427-170-0	04	1	0106-
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0106-0512
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28050-610-0	04	1	0601-
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0106-
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0106-
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	08	1	0406-0512
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	08	1	0601-
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-0405
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-0405
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0406-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74417-074-0	02	1	0106-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74418-181-0	01	1	0106-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74418-180-0	01	1	0106-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-148-0	01	1	0106-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-149-0	01	1	0106-
251	NUT; BRKT EXC. POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	04	1	0106-
256	NUT EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0106-

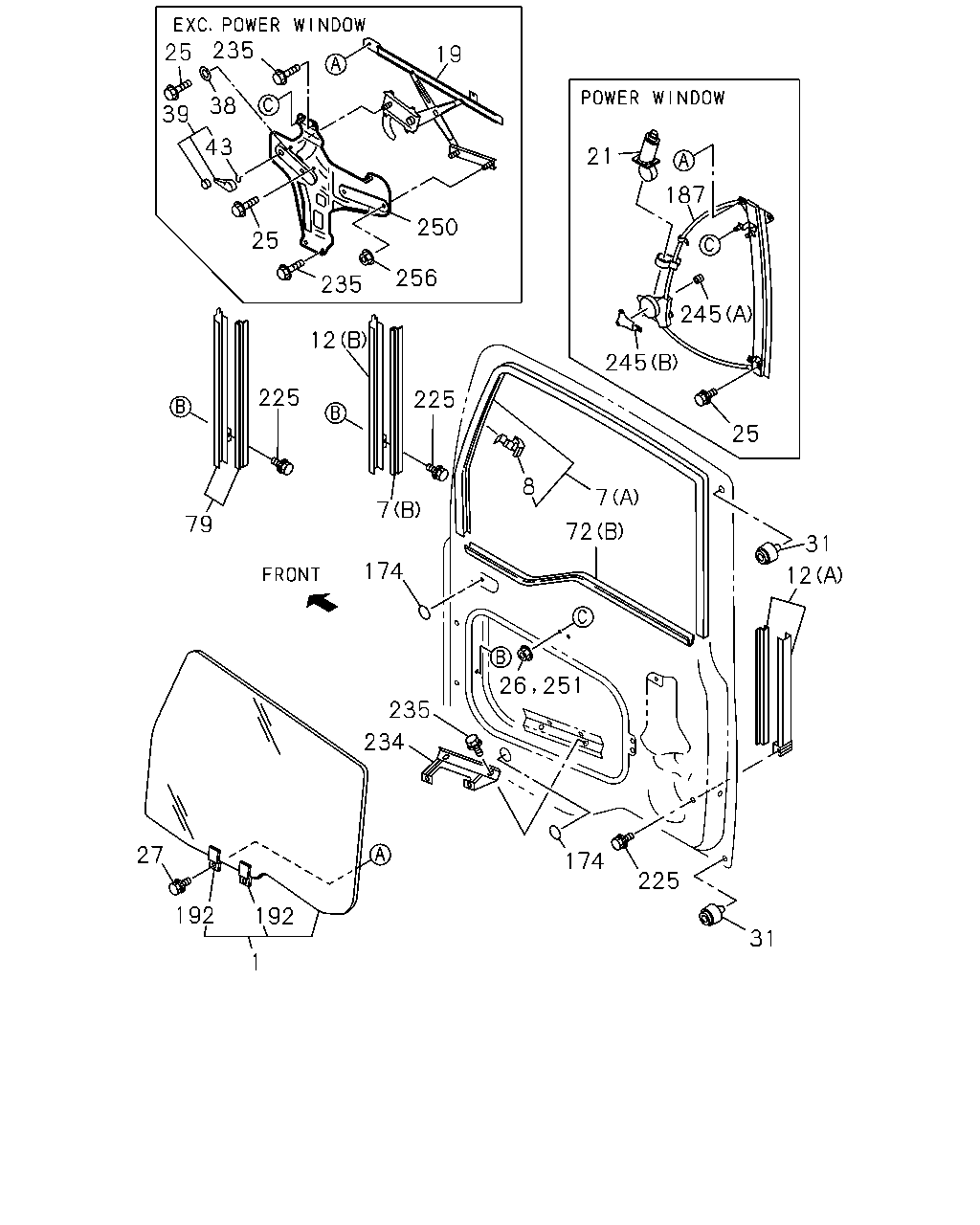

31 225 174 234 235 192 1 192 27 251 26 174 7 72 7 8 12 31 79 225 12 225 256 250 235 25 43 38 25 39 19 21 187 245 245 25 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76148-095-2	01	1	0106-
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	0106-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76148-094-2	01	1	0106-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76167-174-2	01	1	0106-
7	GLASS RUN; FRT DOOR (A)	1-74318-022-8	01	1	0106-
7	GLASS RUN; FRT DOOR (A)	1-74318-021-8	01	1	0106-
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74318-042-0	01	1	0106-
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0106-
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-071-3	01	1	0106-
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-070-3	01	1	0106-
12	CHANNEL; GLASS RUN,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74338-036-0	01	1	0106-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-134-4	01	1	0106-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-144-4	01	1	0106-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-177-0	01	1	0106-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-176-0	01	1	0106-
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0106-
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0106-0405
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	10	1	0406-0512
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	10	1	0601-
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	06	1	0106-
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0106-
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0106-
38	WASHER; PL,WINDOW REG EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0106-
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30> BLACK	8-94371-427-0	02	1	0106-
43	CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW<A30>	8-94220-591-0	02	1	0106-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0106-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0106-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0106-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0106-
79	CHANNEL; DOOR GLASS,FRT	1-74338-069-3	01	1	0106-
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-068-3	01	1	0106-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	12	1	0106-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	14	1	0301-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	14	1	0106-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	16	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	20	1	0106-0212
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	22	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=52 BLACK	1-76798-041-0	02	1	0106-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-179-3	01	1	0106-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-178-3	01	1	0106-
192	HOLDER; DOOR GLASS	1-74427-170-0	04	1	0106-
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0106-0512
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28050-610-0	04	1	0601-
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0106-
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0106-
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	08	1	0406-0512
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	08	1	0601-
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-0405
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-0405
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0406-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74417-074-0	02	1	0106-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74418-181-0	01	1	0106-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74418-180-0	01	1	0106-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-148-0	01	1	0106-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-149-0	01	1	0106-
251	NUT; BRKT EXC. POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	04	1	0106-
256	NUT EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0106-

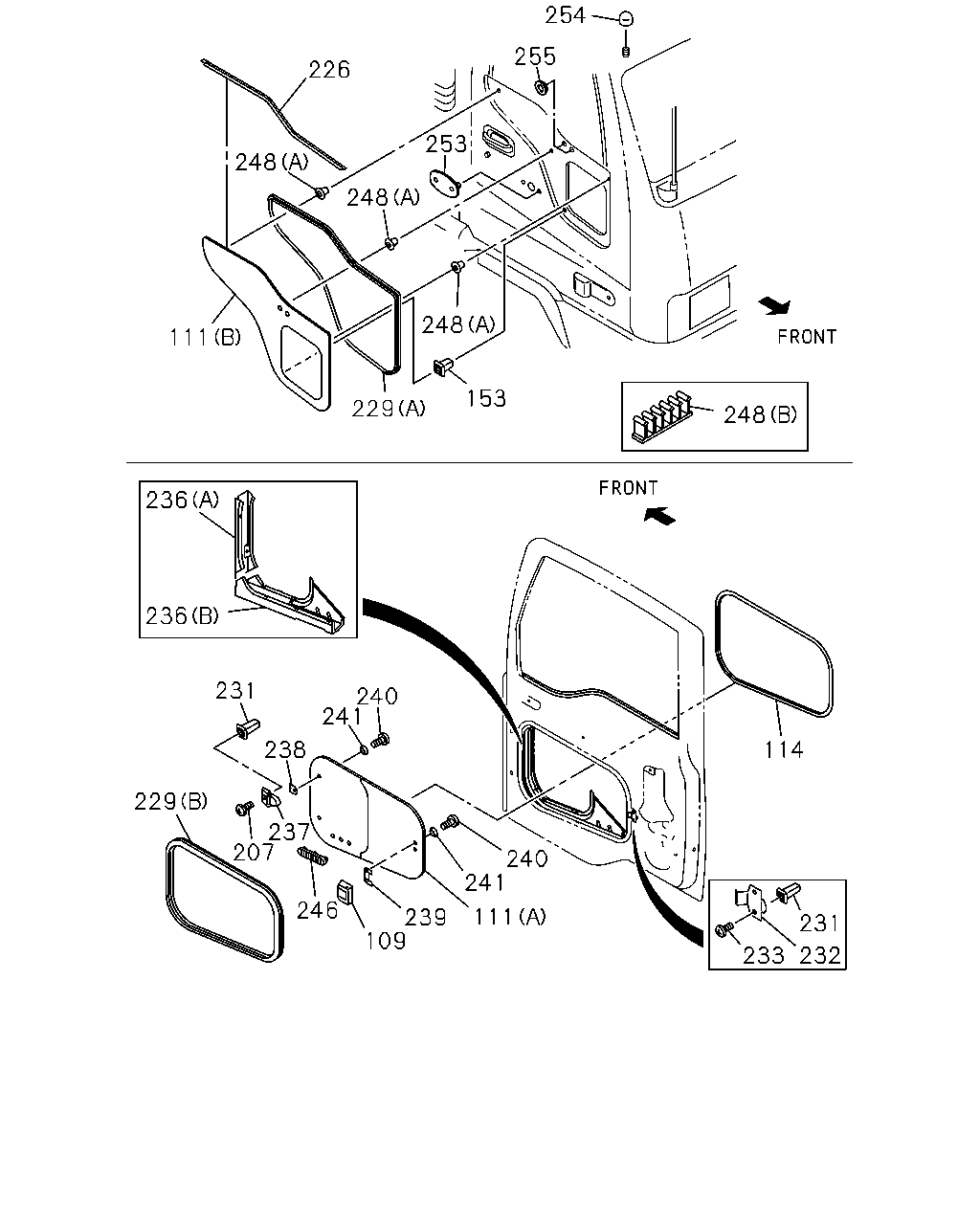

114 231 232 233 111 241 240 239 109 246 207 237 229 231 238 241 240 236 236 229 153 248 248 248 253 255 254 226 248 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
109	LOCK ASM; DOOR WINDOW GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-052-0	01	1	0106-
111	GLASS; FRT DOOR,LWR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76148-081-3	01	1	0106-
111	GLASS; FRT DOOR,LWR DOOR WITH UNDER VIEW WINDOW<YD8> (A)	8-97893-167-1	01	1	0106-
114	MOLDING; OK WINDOW,LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-71538-037-2	01	1	0106-
153	GROMMET; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	01	1	0106-
207	SCREW; DOOR GLASS DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0106-
226	FINISHER; OK WINDOW,LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76738-156-1	01	1	0106-
229	SEAL; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (A) OUTER	1-76738-160-4	01	1	0106-
229	SEAL; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (B) INNER	1-76738-161-1	01	1	0106-
231	GROMMET; SCREW DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	0106-
232	STRIKER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-055-1	01	1	0106-
233	SCREW; STRIKER DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0106-
236	COVER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-73338-461-2	01	1	0106-
236	COVER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73338-462-0	01	1	0106-
237	HINGE; DOOR WINDOW GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-050-1	02	1	0106-
238	SHEET; HINGE DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-051-0	02	1	0106-
239	SHEET; LOCK DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-053-0	01	1	0106-
240	SCREW; HINGE & LOCK DOOR WITH UNDER VIEW WINDOW<YD8> M6X12	8-94279-346-0	04	1	0106-
241	GASKET; HINGE & LOCK DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-054-0	04	1	0106-
246	GRILLE; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-74298-002-1	01	1	0106-
248	FASTENER DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-072-0	01	1	0106-
248	FASTENER DOOR WITH UNDER VIEW WINDOW<YD8> (A) ID=5.4 OD=6.8	1-09989-019-0	03	1	0106-
253	COVER; CONNECTOR DOOR WITH UNDER VIEW WINDOW<YD8>	8-97865-049-0	01	1	0106-
254	CAP; MIRROR STAY DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	8-94276-413-1	02	1	0106-
255	GROMMET; MIRROR DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> OD=25	8-94225-442-0	02	1	0106-
