Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#112969) — 268 parça

304 304 304 38 304 139 304 516 377 38 386 38 139 38 139 150 139 313 139 38 139 139 313 139 139 127 524 294 219 525 294 47 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1302-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1302-
38	BOLT; CLIP,HARNESS (E) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1302-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE	0-28650-820-0	03	1	1302-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (D) M8X30 FLANGE	0-28650-830-0	02	1	1302-
38	BOLT; CLIP,HARNESS FULLER ES11109 DD M/T(Y5N) (C) M8X16 FLANGE	0-28050-816-0	03	1	1302-
38	BOLT; CLIP,HARNESS ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE	0-28050-816-0	02	1	1302-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1302-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1302-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT FULLER ES11109 DD M/T(Y5N) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT (G) M8X35 FLANGE	0-28650-835-0	01	1	1302-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1302-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1302-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1302-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	04	1	1302-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
139	BOLT; BRKT FULLER ES11109 DD M/T(Y5N) (H) M10X16 FLANGE	0-28151-016-0	01	1	1302-
139	BOLT; BRKT FULLER ES11109 DD M/T(Y5N) (I) M10X20 FLANGE	0-28651-020-0	01	1	1302-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-
150	BOLT; CLIP BUMPER W/HEADLAMPS<SLB> M8X25 FLANGE	0-28650-825-0	02	1	1302-
184	WASHER; PL,STARTER EARTH EURO2 SPECIFICATION<NT2> ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1302-
184	WASHER; PL,STARTER EARTH EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1302-
184	WASHER; PL,STARTER EARTH EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1302-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1302-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	01	1	1302-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	02	1	1302-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (A) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	04	1	1302-
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	06	1	1302-
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	09	1	1302-
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	04	1	1302-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (E) M8X10 FLANGE	0-28050-810-0	01	1	1302-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (B) M8X12 FLANGE	0-28050-812-0	03	1	1302-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28050-820-0	01	1	1302-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	01	1	1302-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D) M6X12 FLANGE	0-28050-612-0	01	1	1302-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) M8X16 FLANGE	0-28050-816-0	03	1	1302-
304	BOLT; ENG HARNESS CLIP EURO4 SPECIFICATION<NT4> (B) M8X12 FLANGE	0-28050-812-0	02	1	1302-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
313	BOLT; BRKT WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (B) M8X35 FLANGE	0-28650-835-0	01	1	1302-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1302-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1302-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1302-1311
516	BOLT; HARNESS EXC. GLOW SYSTEM DELETE<7RK> M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1312-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1302-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	1302-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1302-
525	NUT; CLIP EURO4 SPECIFICATION<NT4> T=8.5 M8 FLANGE	5-09440-010-0	01	1	1302-

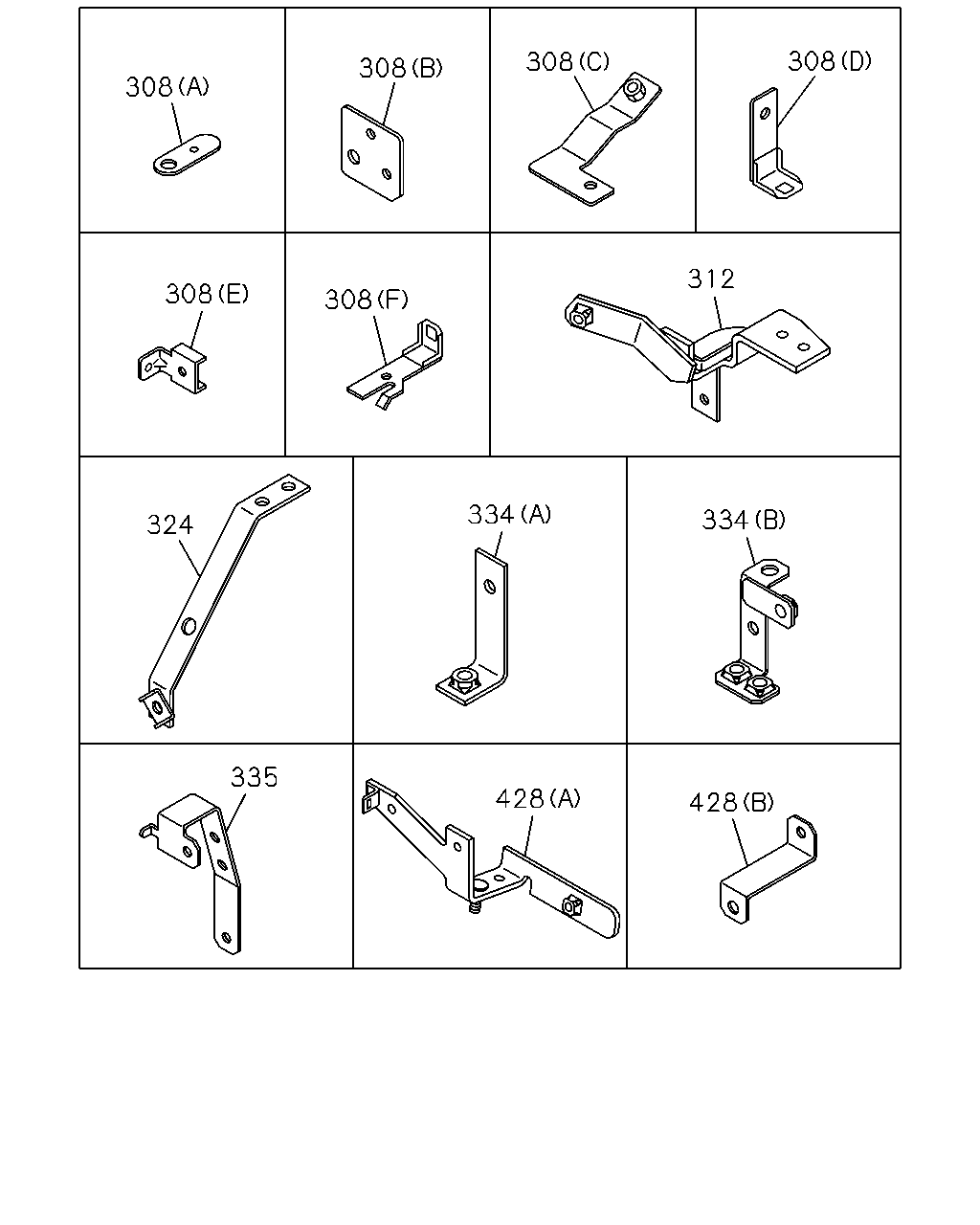

308 308 308 308 308 308 312 324 334 334 335 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
308	BRACKET; CLIP,ENG HARNESS (B)	8-98021-692-1	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (C)	8-98032-178-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (D)	8-98075-824-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-97601-310-0	02	1	1302-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (A)	8-97601-310-0	03	1	1302-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (E)	8-97614-078-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (F)	8-98021-291-2	01	1	1302-
312	BRACKET; CLIP HARNESS	8-98230-458-1	01	1	1302-
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	8-98210-921-1	01	1	1302-
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	8-98210-922-1	01	1	1302-
334	BRACKET FULLER ES11109 DD M/T(Y5N) (A)	1-82698-630-0	01	1	1302-
334	BRACKET FULLER ES11109 DD M/T(Y5N) (B)	8-98098-890-0	01	1	1302-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1302-
428	BRACKET (A)	8-98212-082-1	01	1	1302-
428	BRACKET WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> EXC. COLOMBIA EQUIPMENT(CB7) (B)	1-47476-658-0	01	1	1302-

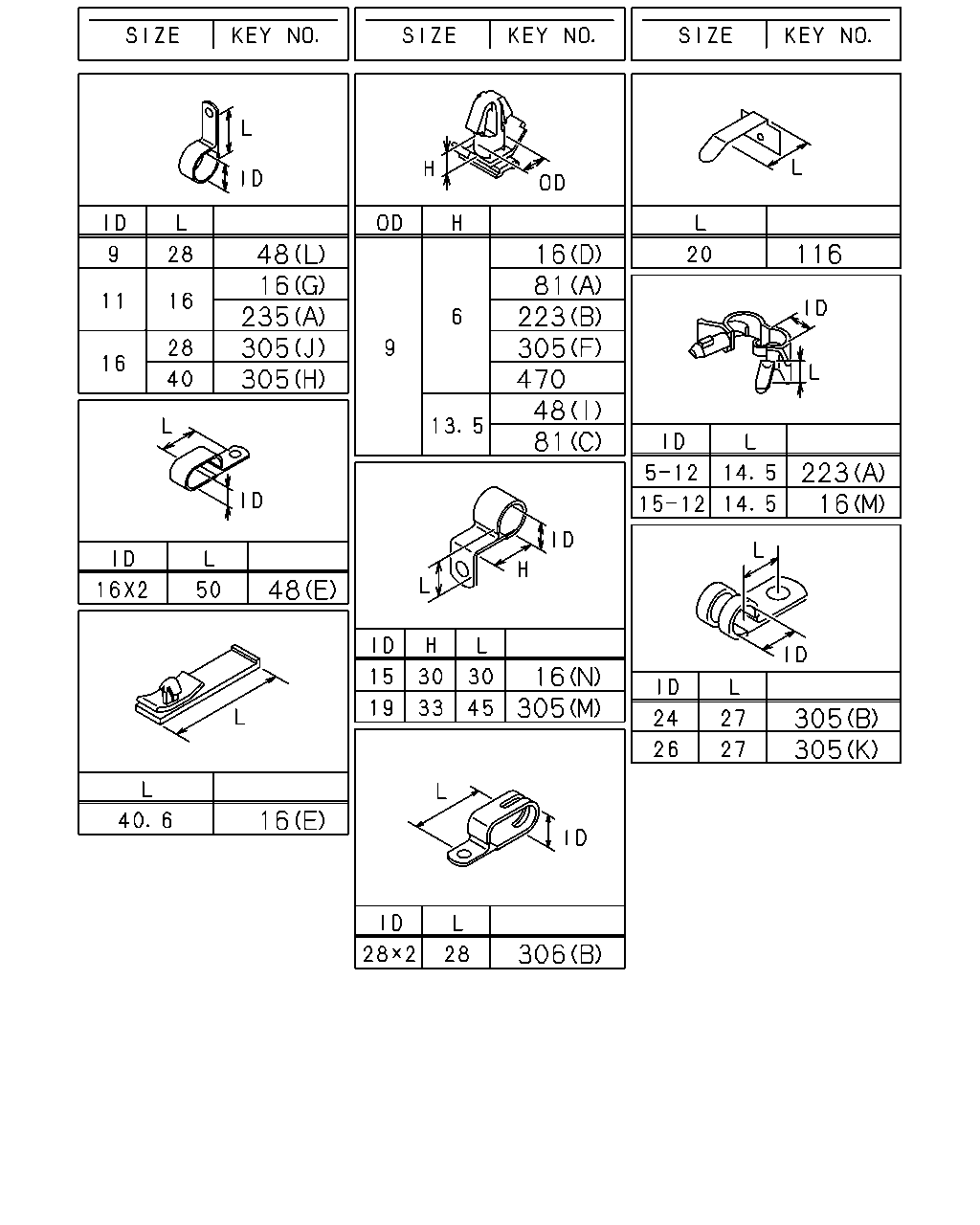

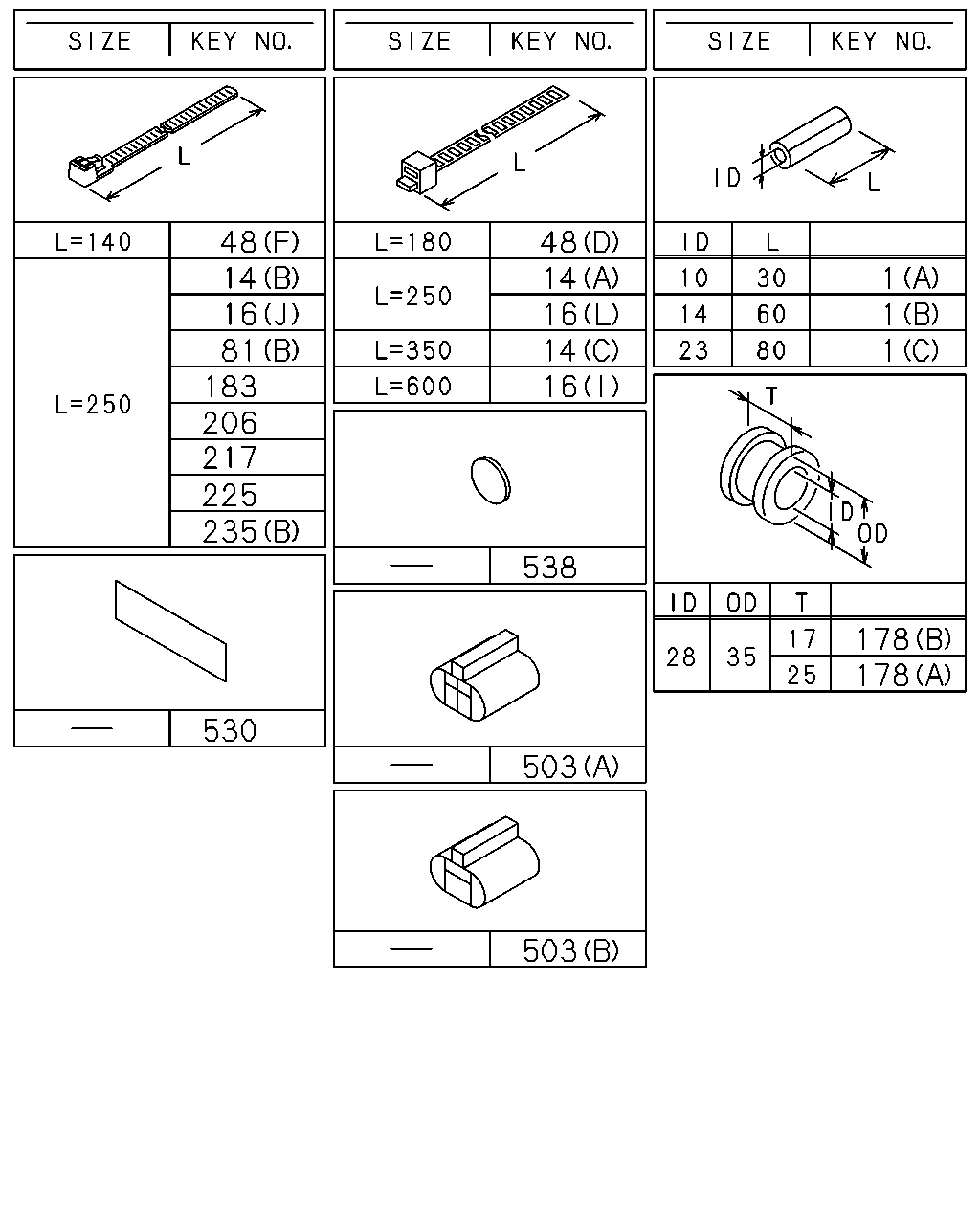

48 16 116 81 305 223 16 235 470 305 48 305 81 16 223 16 305 48 305 305 16 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1302-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS (J) L=250	5-09707-030-1	04	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (G) ID=11 L=16	0-95235-025-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11X2 L=20	1-09700-871-0	04	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) L=250	1-09707-126-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
16	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1302-
16	CLIP; HARNESS WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (I) L=600	1-09707-107-1	01	1	1302-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (I) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1302-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11 L=61	1-09700-484-0	02	1	1302-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (L) ID=9 L=28	0-95234-855-0	02	1	1302-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (M) ID=14.5 L=20	1-09701-012-0	01	1	1302-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (D) L=180	1-09707-162-1	02	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (J) ID=15 L=65	1-09700-466-0	17	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (J) ID=15 L=65	1-09700-466-0	24	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (E) ID=16X2 L=50	0-95325-586-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (A) ID=14.5 L=40	1-09701-014-0	01	1	1302-
81	CLIP; HARNESS FULLER ES11109 DD M/T(Y5N) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) OD=9 H=6	1-09709-178-0	01	1	1302-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) OD=9 H=13.5	1-09709-180-0	01	1	1302-1410
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE<JE5> (C) OD=9 H=13.5	1-09709-180-0	01	1	1302-1410
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) (C) OD=9 H=13.5	1-09709-180-0	01	1	1411-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) L=250	5-09707-030-1	01	1	1302-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE<JE5> (B) L=250	5-09707-030-1	01	1	1302-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1302-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (A) ID=11 L=16	0-95235-025-0	02	1	1302-
235	CLIP; HARNESS,SPD SENSOR,SSPS FULLER ES11109 DD M/T(Y5N) (B) L=250	5-09707-030-1	02	1	1302-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) L=100	8-94443-021-1	01	1	1302-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (K) ID=26 L=27	1-09701-006-0	01	1	1302-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (L) ID=18 L=44	8-97367-985-1	01	1	1302-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (M) ID=19 H=33 L=45	1-09701-045-0	01	1	1302-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (N) ID=11 L=45	8-94296-897-1	01	1	1302-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (O) L=140	8-97122-360-0	01	1	1302-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1302-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1302-

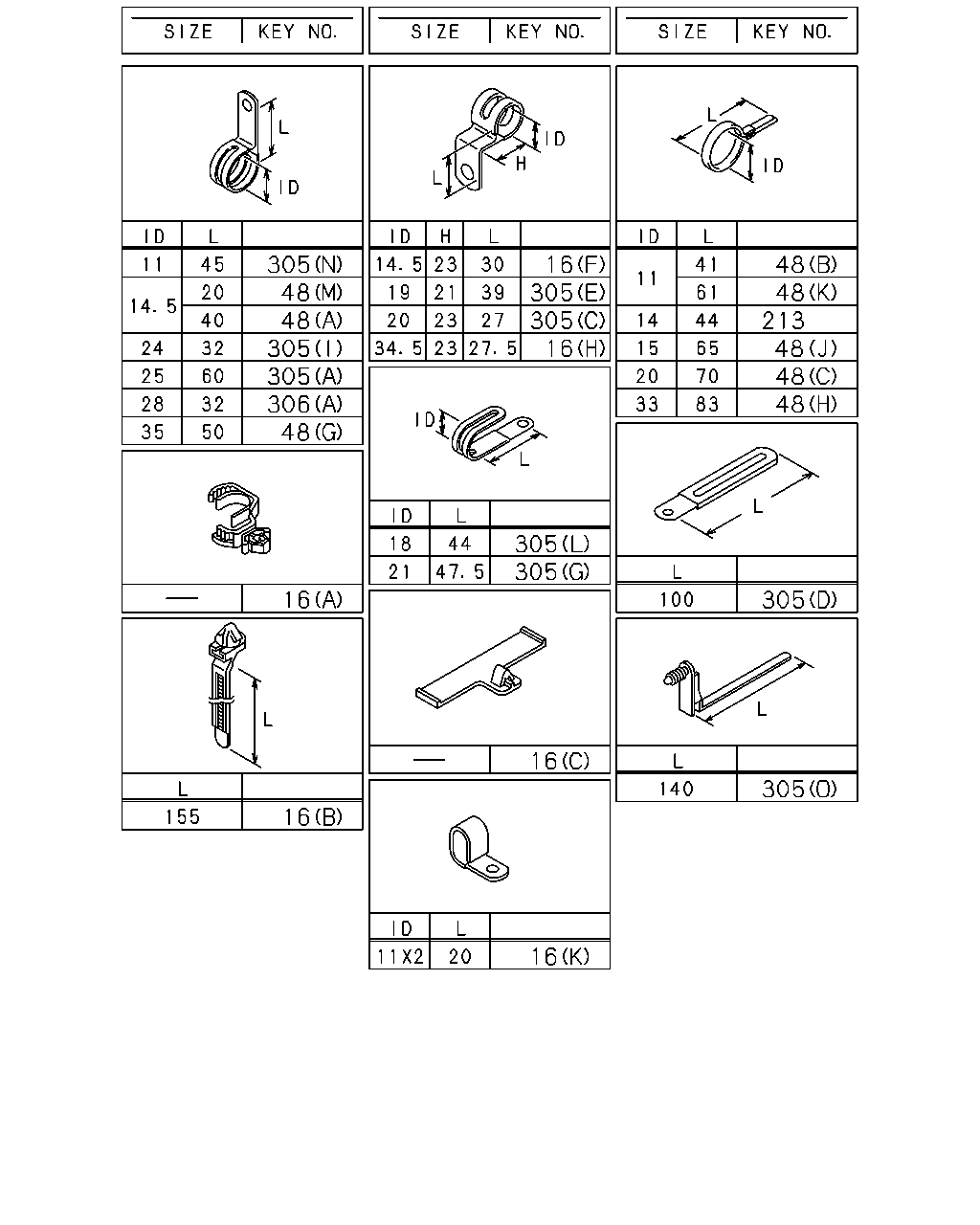

48 48 48 48 213 48 16 305 305 48 305 48 305 305 16 306 48 16 305 305 305 305 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1302-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS (J) L=250	5-09707-030-1	04	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (G) ID=11 L=16	0-95235-025-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11X2 L=20	1-09700-871-0	04	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) L=250	1-09707-126-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
16	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1302-
16	CLIP; HARNESS WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (I) L=600	1-09707-107-1	01	1	1302-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (I) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1302-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11 L=61	1-09700-484-0	02	1	1302-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (L) ID=9 L=28	0-95234-855-0	02	1	1302-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (M) ID=14.5 L=20	1-09701-012-0	01	1	1302-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (D) L=180	1-09707-162-1	02	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (J) ID=15 L=65	1-09700-466-0	17	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (J) ID=15 L=65	1-09700-466-0	24	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (E) ID=16X2 L=50	0-95325-586-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (A) ID=14.5 L=40	1-09701-014-0	01	1	1302-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1302-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) L=100	8-94443-021-1	01	1	1302-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (K) ID=26 L=27	1-09701-006-0	01	1	1302-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (L) ID=18 L=44	8-97367-985-1	01	1	1302-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (M) ID=19 H=33 L=45	1-09701-045-0	01	1	1302-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (N) ID=11 L=45	8-94296-897-1	01	1	1302-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (O) L=140	8-97122-360-0	01	1	1302-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1302-

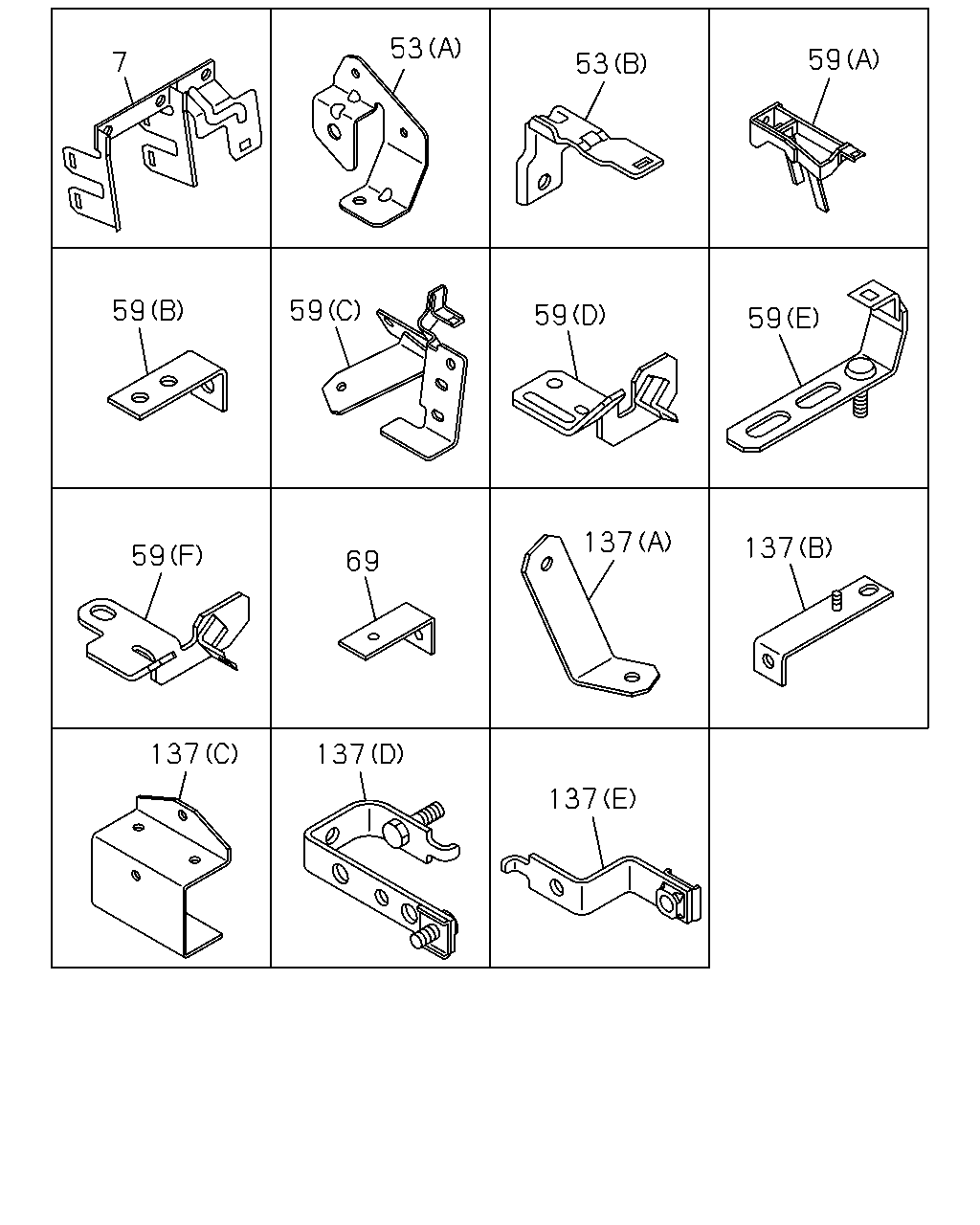

7 53 53 59 59 59 59 59 59 69 137 137 137 137 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1302-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1302-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	1302-
59	BRACKET; FRAME HARNESS (B) L=62	1-21464-170-2	01	1	1302-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1302-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1302-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	1302-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1302-
69	BRACKET; CLIP FULLER ES11109 DD M/T(Y5N) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> L=55	1-47475-304-0	01	1	1302-
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	1302-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1302-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE<JE5> (C)	8-97609-797-1	02	1	1302-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE<JE5> (D)	8-98210-870-0	01	1	1302-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE<JE5> (E)	8-98210-871-0	01	1	1302-

530 235 225 217 206 183 81 16 14 48 48 14 16 14 16 538 503 503 178 178 1 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1302-
1	SLEEVE; RUBBER EURO2 SPECIFICATION<NT2> (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1302-
1	SLEEVE; RUBBER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) ID=23 OD=27 L=80	8-97608-976-0	06	1	1302-
14	CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> (B) L=250	8-98216-430-0	01	1	1312-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	1302-
14	CLIP; BAND,HARNESS ANTI LOCK BRAKE<JE5> (A) L=250	1-09707-126-0	02	1	1302-
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (B) L=250	8-98216-430-0	08	1	1302-
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) L=250	8-98216-430-0	14	1	1302-
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1302-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS (J) L=250	5-09707-030-1	04	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (G) ID=11 L=16	0-95235-025-0	02	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11X2 L=20	1-09700-871-0	04	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) L=250	1-09707-126-0	01	1	1302-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
16	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1302-
16	CLIP; HARNESS WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (I) L=600	1-09707-107-1	01	1	1302-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (I) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1302-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11 L=61	1-09700-484-0	02	1	1302-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (L) ID=9 L=28	0-95234-855-0	02	1	1302-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (M) ID=14.5 L=20	1-09701-012-0	01	1	1302-
48	CLIP; FRAME HARNESS FULLER ES11109 DD M/T(Y5N) (D) L=180	1-09707-162-1	02	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (J) ID=15 L=65	1-09700-466-0	17	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (J) ID=15 L=65	1-09700-466-0	24	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (E) ID=16X2 L=50	0-95325-586-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (A) ID=14.5 L=40	1-09701-014-0	01	1	1302-
81	CLIP; HARNESS FULLER ES11109 DD M/T(Y5N) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) OD=9 H=6	1-09709-178-0	01	1	1302-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) OD=9 H=13.5	1-09709-180-0	01	1	1302-1410
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE<JE5> (C) OD=9 H=13.5	1-09709-180-0	01	1	1302-1410
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) (C) OD=9 H=13.5	1-09709-180-0	01	1	1411-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) L=250	5-09707-030-1	01	1	1302-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE<JE5> (B) L=250	5-09707-030-1	01	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	03	1	1302-
178	GROMMET; HARNESS ANTI LOCK BRAKE<JE5> (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-
178	GROMMET; HARNESS WHEEL BASE 5000MM(50W) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1302-
178	GROMMET; HARNESS WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1302-
178	GROMMET; HARNESS FUEL TANK 400L<SDH> (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1302-
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	1302-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1302-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1302-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	08	1	1302-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (A) ID=11 L=16	0-95235-025-0	02	1	1302-
235	CLIP; HARNESS,SPD SENSOR,SSPS FULLER ES11109 DD M/T(Y5N) (B) L=250	5-09707-030-1	02	1	1302-
503	CONNECTOR EXC. AIR DRYER<PS7> (A)	1-82690-666-0	01	1	1302-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	1302-
503	CONNECTOR EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	1-82690-668-0	01	1	1302-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1302-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
