◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11512 - FTR(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#112967) — 16 parça

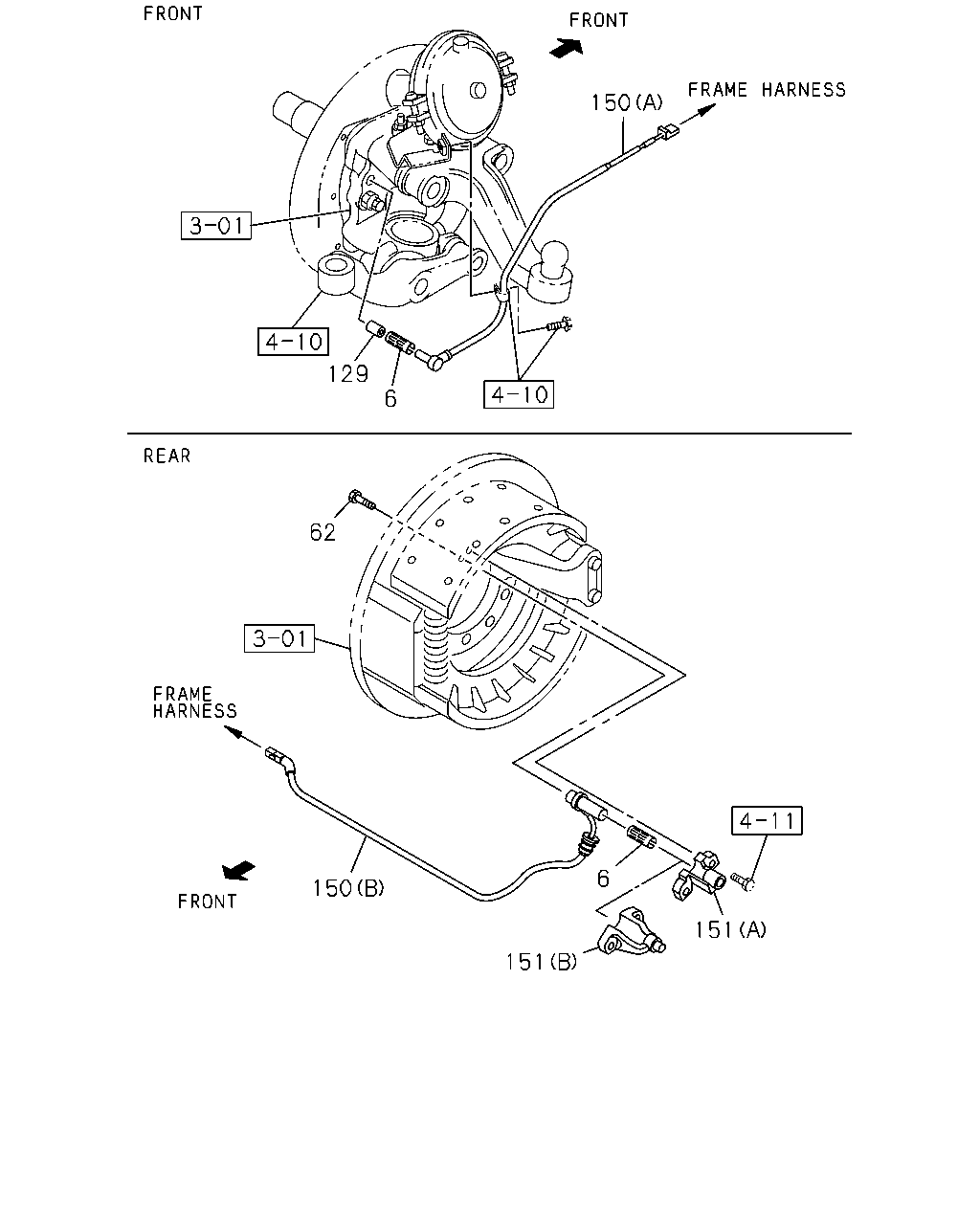

çizim 330120
129 150 151 150 62 6 6 151
BalonParca AdiParca NoAdetTipApplied Date
6 HOLDER; SPD SENSOR
ANTI LOCK BRAKE<JE5> 		1-83129-260-1 02 1 1302-
6 HOLDER; SPD SENSOR
ANTI LOCK BRAKE<JE5> 		1-83129-260-1 02 1 1302-
62 BOLT; SENSOR
VIN MODEL YEAR 2014<VZE> M8X16 HEX SOCKET 		0-58330-816-0 02 1 1406-1409
62 BOLT; SENSOR
VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M8X16 HEX SOCKET 		0-58330-816-0 02 1 1410-1506
62 BOLT; SENSOR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 HEX SOCKET 		0-58330-816-0 02 1 1507-
62 BOLT; SENSOR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 		9-05820-816-0 02 1 1302-1405
62 BOLT; SENSOR
ANTI LOCK BRAKE<JE5> EXC. VIN MODEL YEAR 2014<VZE> M8X16 		9-05820-816-0 02 1 1406-1409
62 BOLT; SENSOR
ANTI LOCK BRAKE<JE5> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> M8X16 		9-05820-816-0 02 1 1410-1506
129 COLLAR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-83129-471-0 02 1 1302-
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-83227-024-1 02 1 1302-
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98064-343-0 01 1 1302-
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98064-344-0 01 1 1302-
151 BRACKET; SPD SENSOR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-83129-403-0 01 1 1302-1504
151 BRACKET; SPD SENSOR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98299-396-0 01 1 1505-
151 BRACKET; SPD SENSOR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-83129-404-0 01 1 1302-1504
151 BRACKET; SPD SENSOR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98299-397-0 01 1 1505-
