◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11520 - FVZ(RHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#112966) — 185 parça

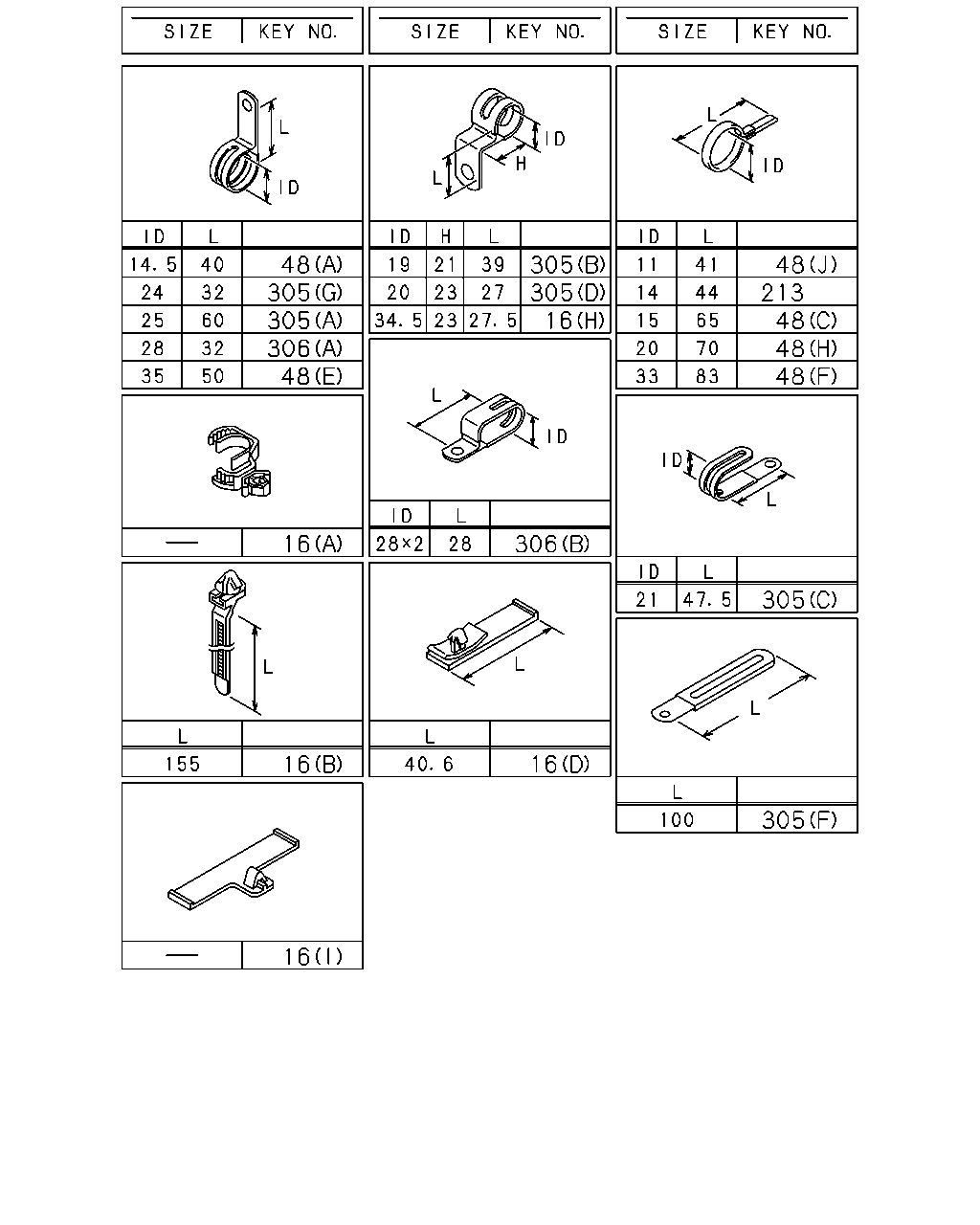

çizim 330111
305 16 48 305 305 16 305 305 306 48 48 48 213 48 48 305 306 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(C) ID=16 L=28 		0-95235-556-0 02 1 1302-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1302-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1302-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1302-
16 CLIP; HARNESS
(J) L=350 		1-09707-183-0 02 1 1302-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 1302-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1302-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1302-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1302-
16 CLIP; HARNESS
(I) 		8-98052-679-0 02 1 1302-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (E) OD=9 H=6 		1-09709-178-0 01 1 1302-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (G) L=600 		1-09707-107-1 01 1 1302-
48 CLIP; FRAME HARNESS
(D) ID=16X2 L=50 		0-95325-586-0 01 1 1302-
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 1302-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 1302-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 1302-
48 CLIP; FRAME HARNESS
(A) ID=14.5 L=40 		1-09701-014-0 01 1 1302-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1302-
48 CLIP; FRAME HARNESS
(F) ID=33 L=83 		1-09701-291-0 01 1 1302-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1302-
48 CLIP; FRAME HARNESS
(I) OD=9 H=13.5 		1-09709-180-0 01 1 1302-
48 CLIP; FRAME HARNESS
(G) L=140 		5-09707-031-1 02 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=15 L=65 		1-09700-466-0 17 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (C) ID=15 L=65 		1-09700-466-0 24 1 1302-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1302-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1302-
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1302-
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 1302-
305 CLIP; ENG HARNESS
(E) ID=24 L=27 		1-09700-809-0 03 1 1302-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1302-
305 CLIP; ENG HARNESS
(B) ID=19 L=39 H=21 		1-09700-972-1 01 1 1302-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1302-
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1302-
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1302-
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 1302-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1302-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1302-

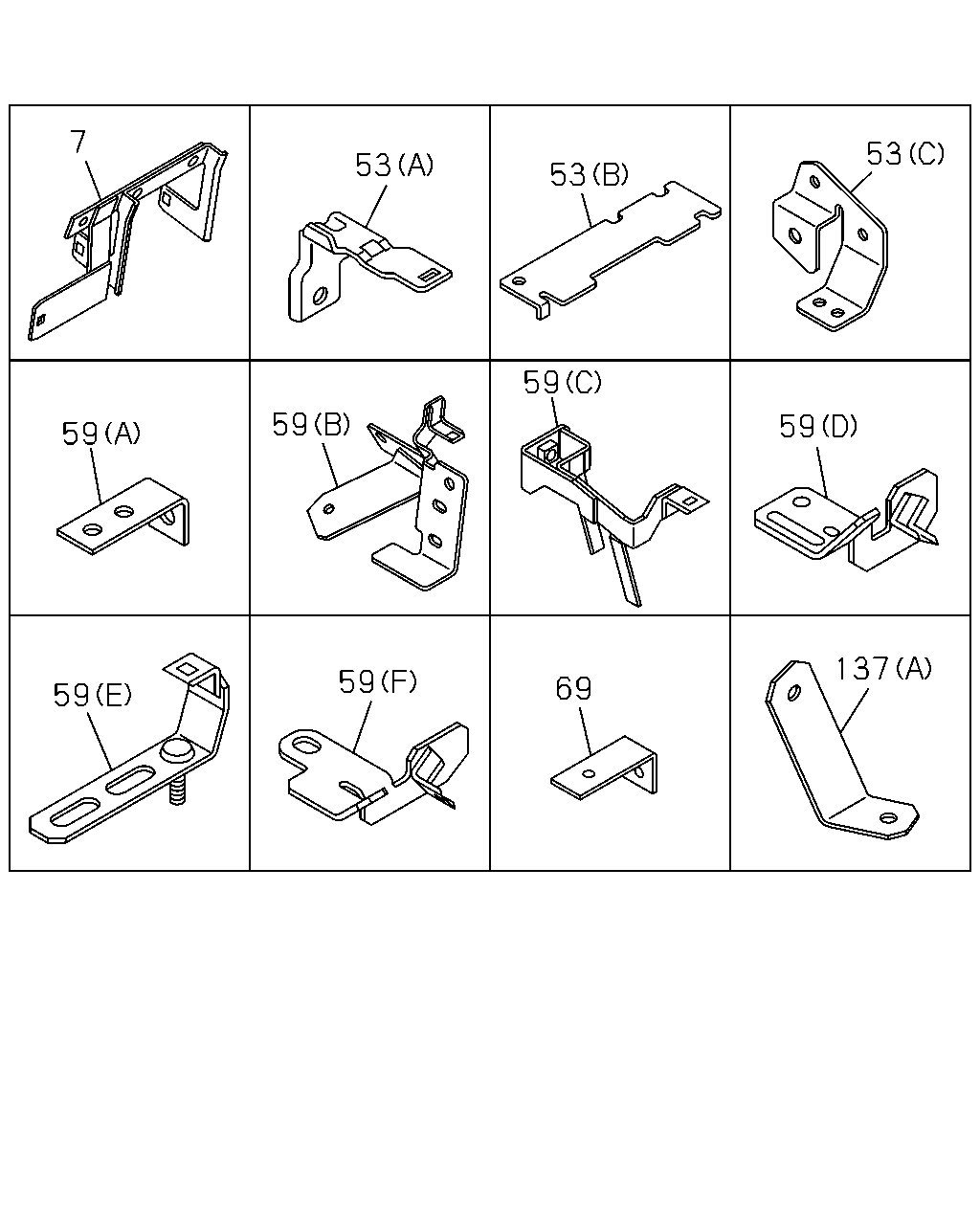

çizim 330153
7 53 53 53 59 59 59 59 59 69 137 59
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1302-
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1302-
53 BRACKET; HARNESS
(B) 		8-98127-093-0 01 1 1302-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98084-590-0 01 1 1302-
59 BRACKET; FRAME HARNESS
(A) L=62 		1-21464-170-2 01 1 1302-
59 BRACKET; FRAME HARNESS
(C) 		8-97609-264-2 01 1 1302-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1302-1502
59 BRACKET; FRAME HARNESS
(F) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(E) 		8-98047-730-0 02 1 1302-
59 BRACKET; FRAME HARNESS
(B) 		8-98107-611-0 01 1 1302-
69 BRACKET; CLIP
L=55 		1-47475-304-0 01 1 1302-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1302-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1302-

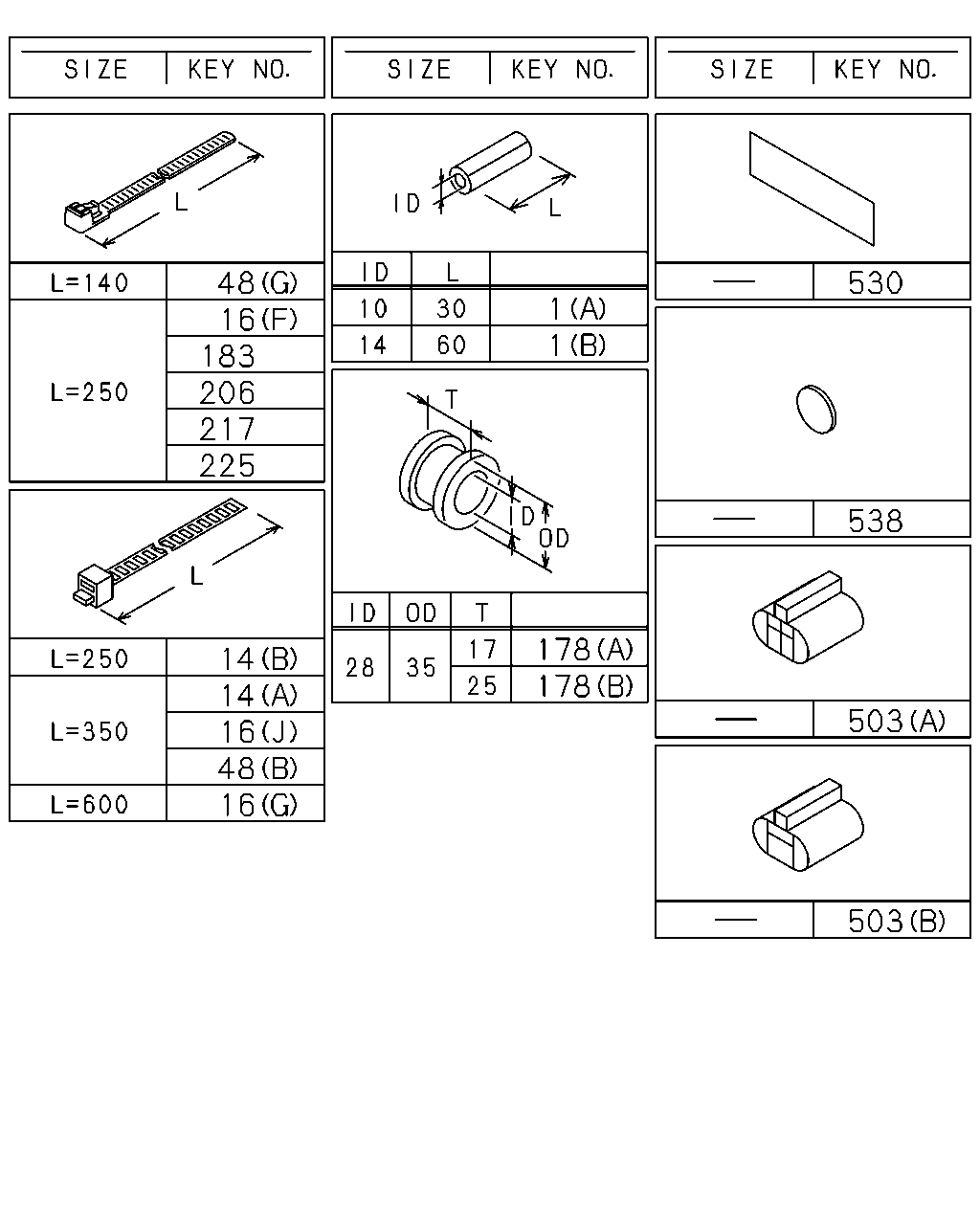

çizim 330207
16 48 16 14 14 225 217 206 183 16 48 1 1 178 178 503 503 538 530
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1302-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1302-
14 CLIP; BAND,HARNESS
GLOW SYSTEM DELETE<7RK> (B) L=250 		8-98216-430-0 01 1 1312-
14 CLIP; BAND,HARNESS
(A) L=350 		1-09707-183-0 01 1 1302-
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 08 1 1302-
16 CLIP; HARNESS
(C) ID=16 L=28 		0-95235-556-0 02 1 1302-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1302-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1302-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1302-
16 CLIP; HARNESS
(J) L=350 		1-09707-183-0 02 1 1302-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 1302-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1302-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1302-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1302-
16 CLIP; HARNESS
(I) 		8-98052-679-0 02 1 1302-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (E) OD=9 H=6 		1-09709-178-0 01 1 1302-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (G) L=600 		1-09707-107-1 01 1 1302-
48 CLIP; FRAME HARNESS
(D) ID=16X2 L=50 		0-95325-586-0 01 1 1302-
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 1302-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 1302-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 1302-
48 CLIP; FRAME HARNESS
(A) ID=14.5 L=40 		1-09701-014-0 01 1 1302-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1302-
48 CLIP; FRAME HARNESS
(F) ID=33 L=83 		1-09701-291-0 01 1 1302-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1302-
48 CLIP; FRAME HARNESS
(I) OD=9 H=13.5 		1-09709-180-0 01 1 1302-
48 CLIP; FRAME HARNESS
(G) L=140 		5-09707-031-1 02 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=15 L=65 		1-09700-466-0 17 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (C) ID=15 L=65 		1-09700-466-0 24 1 1302-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 03 1 1302-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1302-
178 GROMMET; HARNESS
WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1302-
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> L=250 		5-09707-030-1 01 1 1302-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1302-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1302-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 08 1 1302-
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 1302-
503 CONNECTOR
EXC. AIR DRYER<PS7> (A) 		1-82690-666-0 01 1 1302-
530 SEAL; HARNESS
EXC. H.S.A SYSTEM<6EP> 180X40 		1-72498-019-1 01 1 1306-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1302-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1302-
çizim 330378
184 294 525 294 219 524 377 516 38 150 242 38 139 313 38 139 313 139 313 139 38 386 47 139 127 304 304 38 304 139 139
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1302-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1302-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1302-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1302-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1302-
38 BOLT; CLIP,HARNESS
(E) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1302-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1302-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1302-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1302-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1302-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
139 BOLT; BRKT
(D) M8X35 FLANGE 		0-28650-835-0 01 1 1302-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1302-
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 1302-
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 1302-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302-
150 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1302-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 1302-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1302-
242 BOLT; BRKT,HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 1302-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1302-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1302-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1302-
294 NUT
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (A) M8 FLANGE 		0-91180-108-0 01 1 1302-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1302-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1302-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1302-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1302-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 06 1 1302-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 09 1 1302-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1302-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1302-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
313 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1302-
313 BOLT; BRKT
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (A) M8X35 FLANGE 		0-28650-835-0 01 1 1302-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1302-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1302-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1302-1311
516 BOLT; HARNESS
EXC. GLOW SYSTEM DELETE<7RK> M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1312-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1302-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1302-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1302-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1302-
çizim 332449
16 16 116 81 223 305 305 48 305 470 223 305 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(C) ID=16 L=28 		0-95235-556-0 02 1 1302-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1302-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1302-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1302-
16 CLIP; HARNESS
(J) L=350 		1-09707-183-0 02 1 1302-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 03 1 1302-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1302-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1302-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1302-
16 CLIP; HARNESS
(I) 		8-98052-679-0 02 1 1302-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (E) OD=9 H=6 		1-09709-178-0 01 1 1302-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (G) L=600 		1-09707-107-1 01 1 1302-
48 CLIP; FRAME HARNESS
(D) ID=16X2 L=50 		0-95325-586-0 01 1 1302-
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 1302-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 1302-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 1302-
48 CLIP; FRAME HARNESS
(A) ID=14.5 L=40 		1-09701-014-0 01 1 1302-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1302-
48 CLIP; FRAME HARNESS
(F) ID=33 L=83 		1-09701-291-0 01 1 1302-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1302-
48 CLIP; FRAME HARNESS
(I) OD=9 H=13.5 		1-09709-180-0 01 1 1302-
48 CLIP; FRAME HARNESS
(G) L=140 		5-09707-031-1 02 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=15 L=65 		1-09700-466-0 17 1 1302-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (C) ID=15 L=65 		1-09700-466-0 24 1 1302-
81 CLIP; HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1302-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1302-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1302-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1302-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1302-
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1302-
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 1302-
305 CLIP; ENG HARNESS
(E) ID=24 L=27 		1-09700-809-0 03 1 1302-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1302-
305 CLIP; ENG HARNESS
(B) ID=19 L=39 H=21 		1-09700-972-1 01 1 1302-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1302-
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1302-
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1302-
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 1302-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1302-

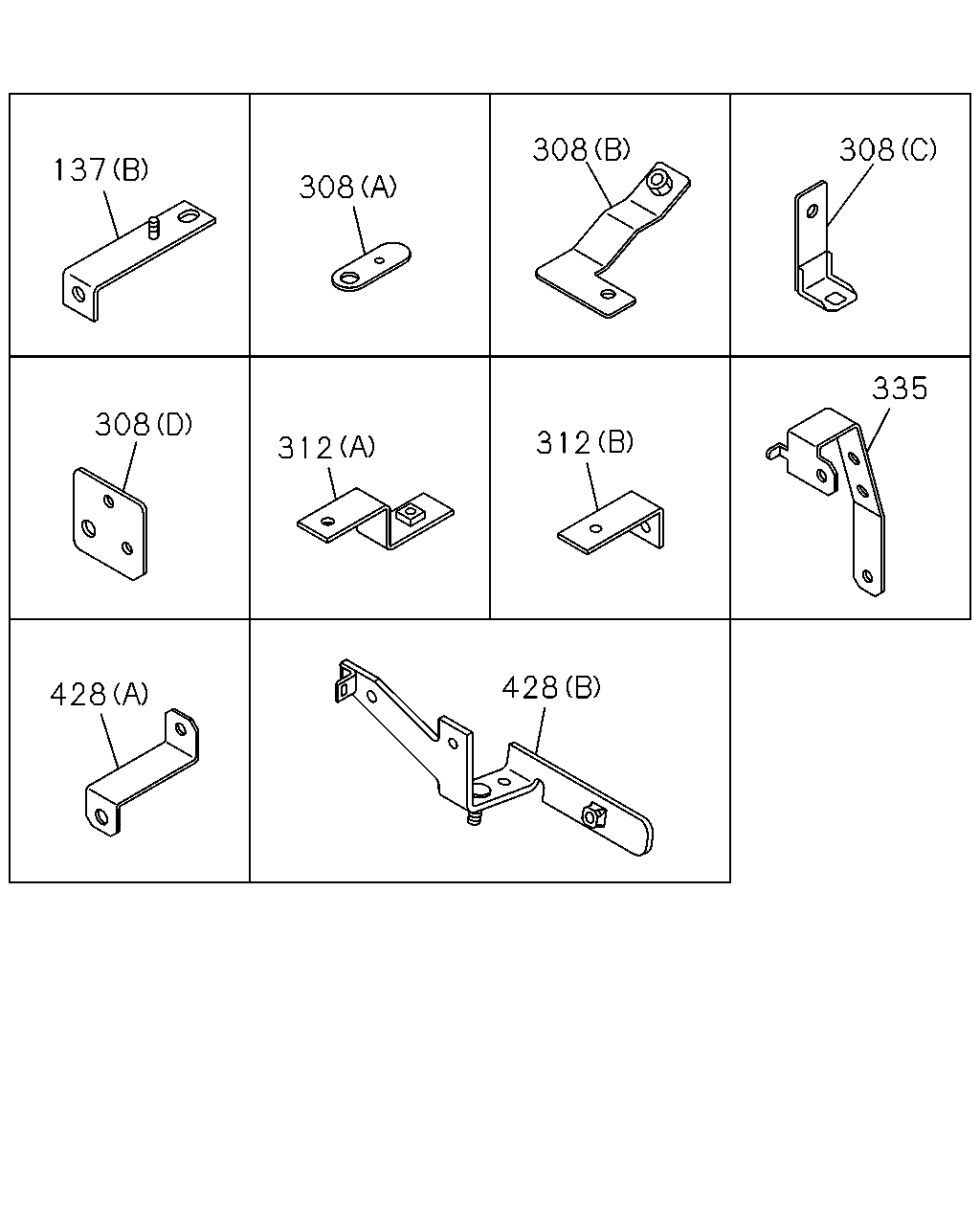

çizim 332460
137 308 308 308 308 312 312 335 428 428
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1302-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1302-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1302-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1302-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-98032-178-0 01 1 1302-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98075-824-0 01 1 1302-
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 1302-
312 BRACKET; CLIP HARNESS
(A) 		8-97609-110-1 01 1 1302-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1302-
428 BRACKET
(B) 		8-98212-082-1 01 1 1302-
428 BRACKET
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (A) 		1-47476-658-0 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
