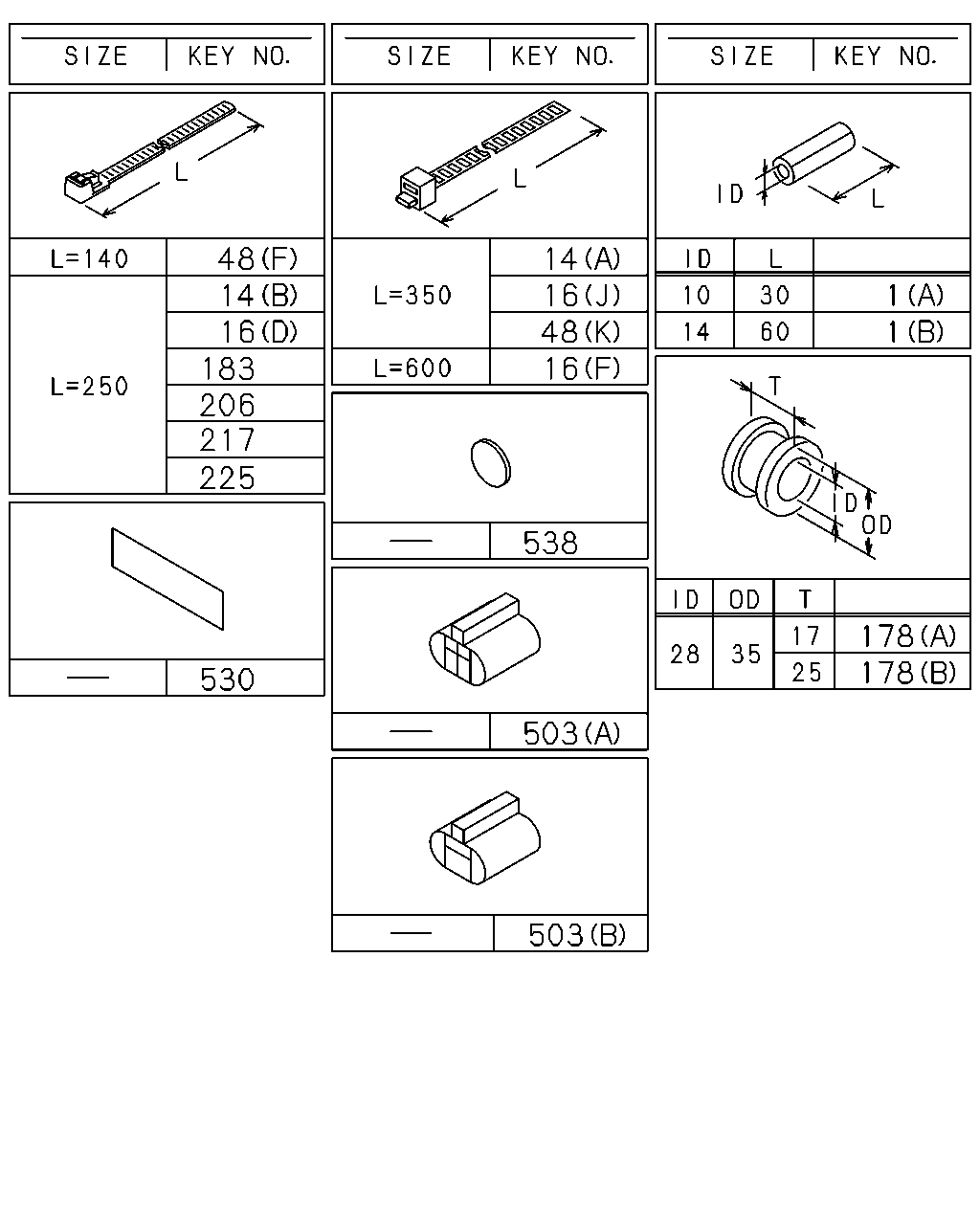

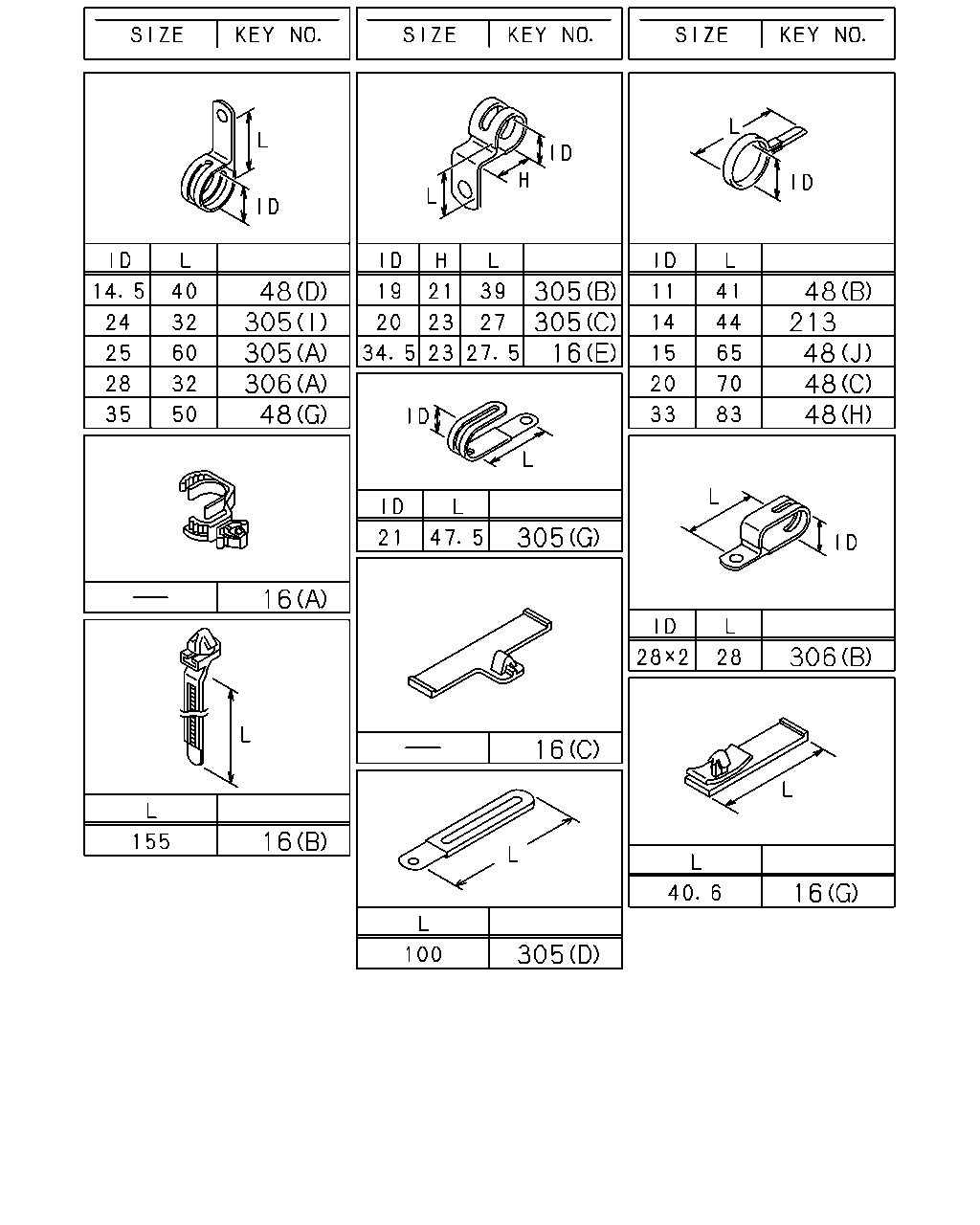

8-15 — FIXING PARTS; WIRING HARNESS (#112965) — 183 parça

48 16 116 81 223 16 305 305 305 470 48 48 223 305 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (I) ID=16 L=28	0-95235-556-0	02	1	1302-
16	CLIP; HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (F) L=600	1-09707-107-1	01	1	1302-
16	CLIP; HARNESS (J) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (D) L=250	5-09707-030-1	03	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (H) OD=9 H=6	1-09709-178-0	01	1	1302-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1302-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	24	1	1302-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS (K) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (E) ID=16 L=20	0-95235-536-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (A) ID=16 L=60	0-95235-596-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (L) ID=16X2 L=50	0-95325-586-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (D) ID=14.5 L=40	1-09701-014-0	01	1	1302-
81	CLIP; HARNESS OD=9 H=6	1-09709-178-0	01	1	1302-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1302-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS (E) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	1302-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1302-

48 305 305 305 306 48 305 16 48 48 213 48 48 306 305 16 305 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (I) ID=16 L=28	0-95235-556-0	02	1	1302-
16	CLIP; HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (F) L=600	1-09707-107-1	01	1	1302-
16	CLIP; HARNESS (J) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (D) L=250	5-09707-030-1	03	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (H) OD=9 H=6	1-09709-178-0	01	1	1302-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1302-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	24	1	1302-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS (K) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (E) ID=16 L=20	0-95235-536-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (A) ID=16 L=60	0-95235-596-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (L) ID=16X2 L=50	0-95325-586-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (D) ID=14.5 L=40	1-09701-014-0	01	1	1302-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1302-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS (E) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1302-

48 14 16 183 206 217 225 530 14 16 48 16 538 503 503 178 178 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1302-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1302-
14	CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> (B) L=250	8-98216-430-0	01	1	1312-
14	CLIP; BAND,HARNESS (A) L=350	1-09707-183-0	01	1	1302-
14	CLIP; BAND,HARNESS (B) L=250	8-98216-430-0	08	1	1302-
16	CLIP; HARNESS (I) ID=16 L=28	0-95235-556-0	02	1	1302-
16	CLIP; HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (F) L=600	1-09707-107-1	01	1	1302-
16	CLIP; HARNESS (J) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (D) L=250	5-09707-030-1	03	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (H) OD=9 H=6	1-09709-178-0	01	1	1302-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1302-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	24	1	1302-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS (K) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (E) ID=16 L=20	0-95235-536-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (A) ID=16 L=60	0-95235-596-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (L) ID=16X2 L=50	0-95325-586-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (D) ID=14.5 L=40	1-09701-014-0	01	1	1302-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1302-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	03	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	1302-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1302-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1302-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	08	1	1302-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-82690-668-0	01	1	1302-
503	CONNECTOR EXC. AIR DRYER<PS7> (B)	1-82690-666-0	01	1	1302-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1302-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1302-

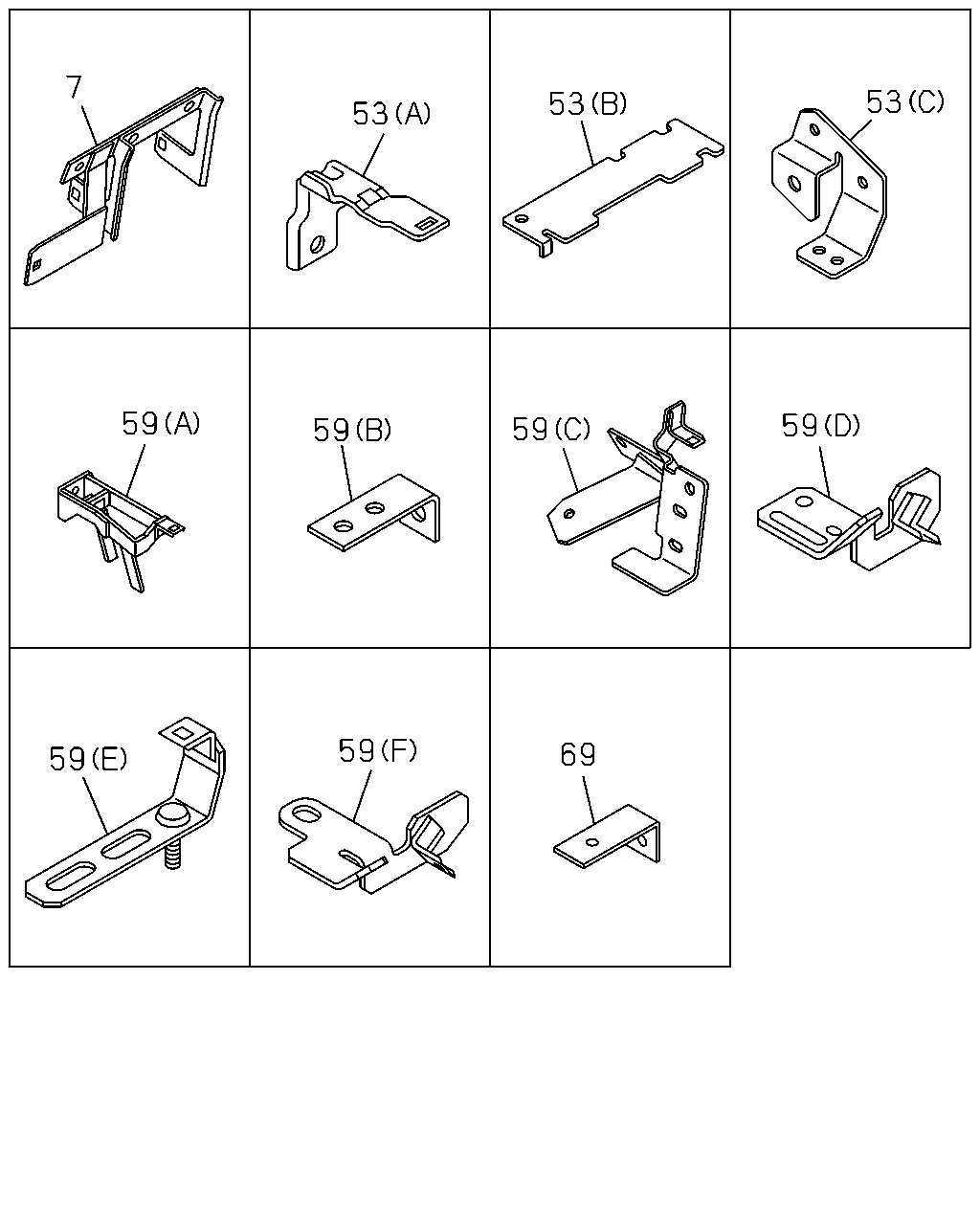

7 53 53 53 59 59 59 59 59 59 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1302-
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1302-
53	BRACKET; HARNESS (B)	8-98127-093-0	01	1	1302-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98084-590-0	01	1	1302-
59	BRACKET; FRAME HARNESS (B) L=62	1-21464-170-2	01	1	1302-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1302-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1302-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	1302-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1302-
69	BRACKET; CLIP L=55	1-47475-304-0	01	1	1302-

139 38 304 304 304 38 386 139 38 38 242 150 139 139 38 139 313 313 313 139 139 47 516 524 377 294 184 525 219 294 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	02	1	1302-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1302-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1302-
38	BOLT; CLIP,HARNESS (E) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1302-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1302-
139	BOLT; BRKT (D) M8X12 FLANGE	0-28050-812-0	01	1	1302-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
139	BOLT; BRKT (G) M8X35 FLANGE	0-28650-835-0	01	1	1302-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1302-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1302-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1302-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-
150	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1302-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1302-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1302-
242	BOLT; BRKT,HARNESS M8X20 FLANGE	0-28650-820-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	06	1	1302-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	09	1	1302-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	04	1	1302-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
313	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	02	1	1302-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1302-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1302-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1302-1311
516	BOLT; HARNESS EXC. GLOW SYSTEM DELETE<7RK> M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1312-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1302-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1302-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-

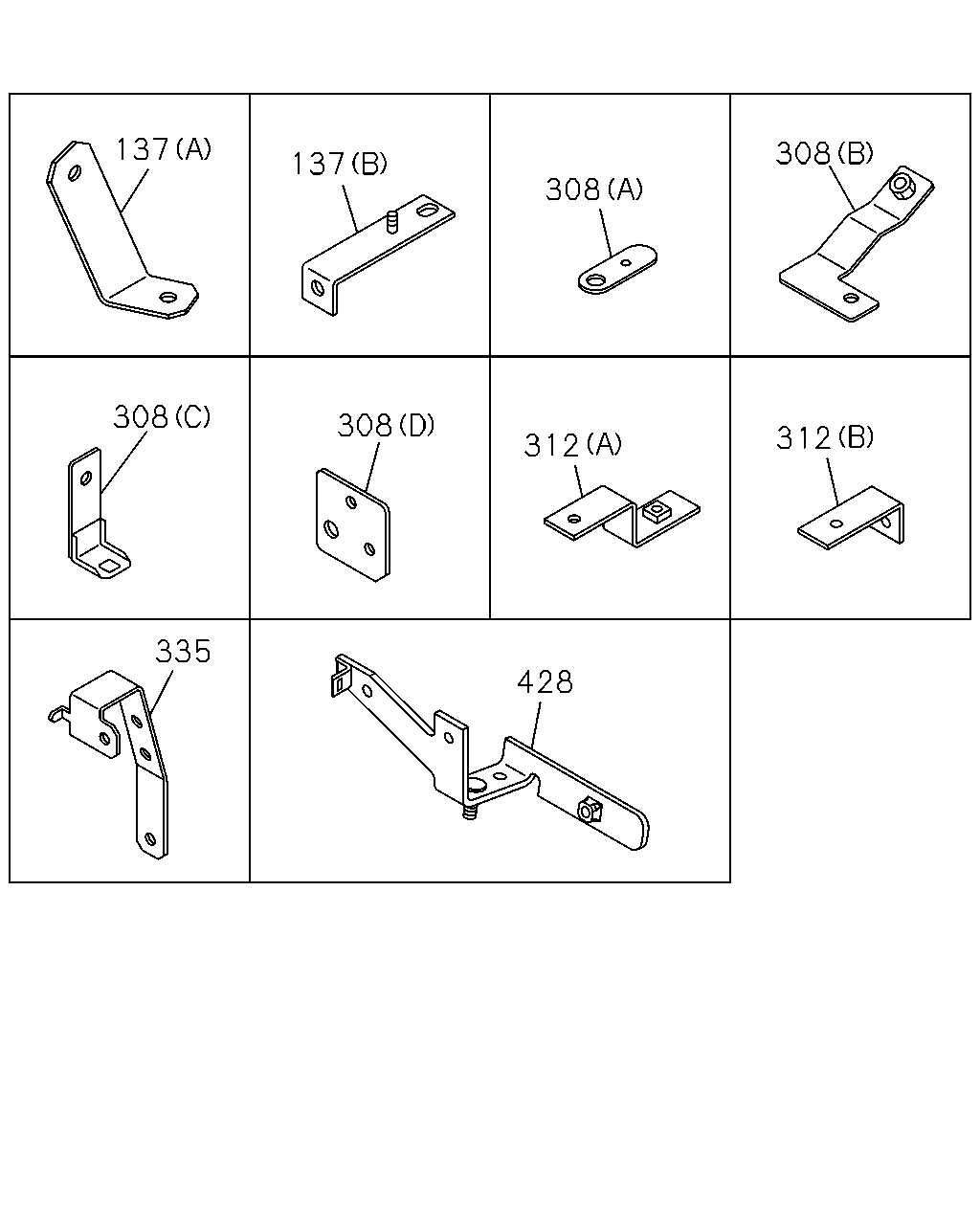

137 137 308 308 308 308 312 312 335 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	1302-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1302-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98032-178-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98075-824-0	01	1	1302-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1302-
312	BRACKET; CLIP HARNESS (A)	8-97609-110-1	01	1	1302-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1302-
428	BRACKET	8-98212-082-1	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
