Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#112964) — 437 parça

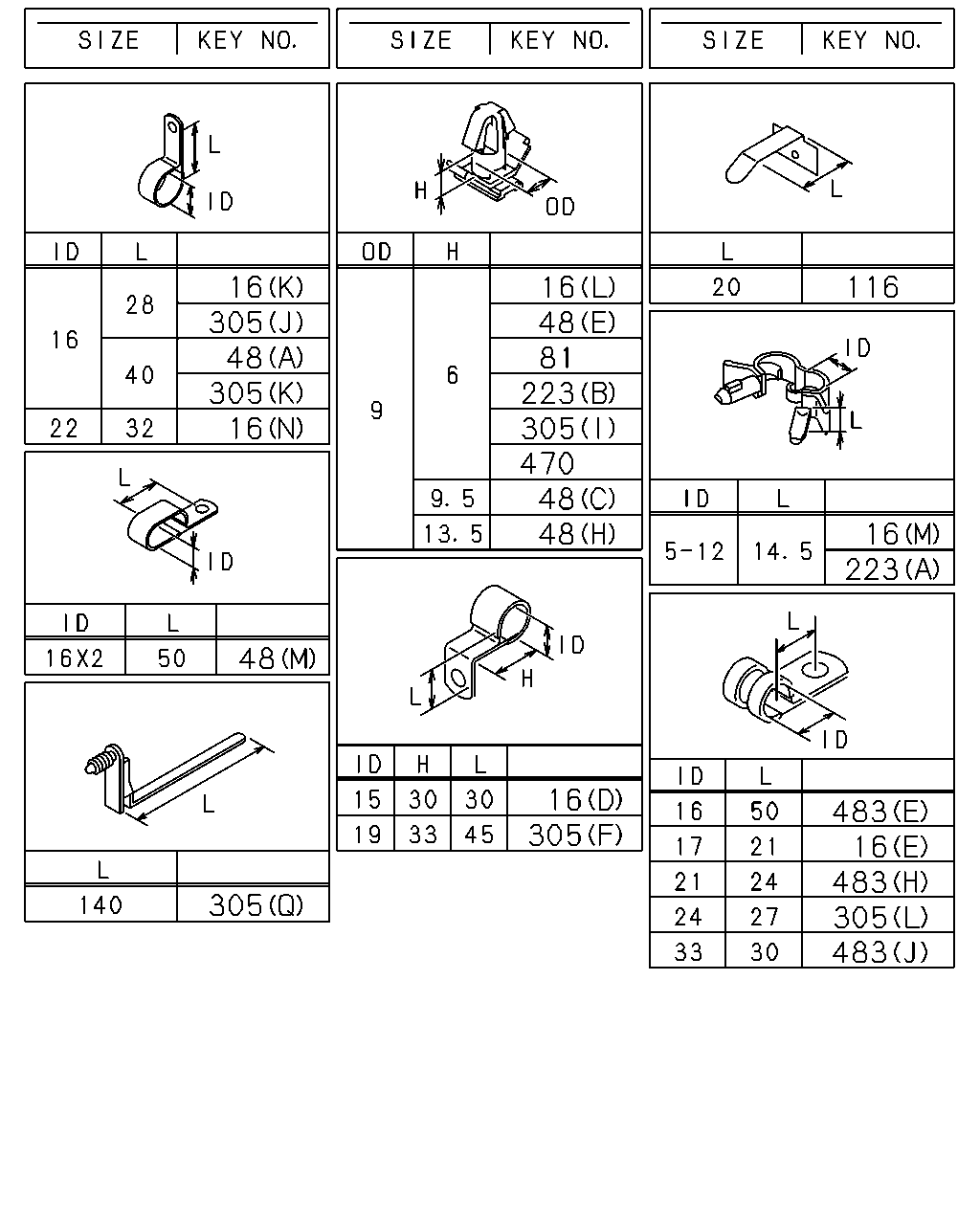

16 305 48 305 16 48 305 16 48 81 223 305 470 48 48 16 305 16 223 116 483 16 483 305 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=15 L=28	1-09701-216-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (E) ID=17 L=21	8-98082-035-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) ID=24 L=24	1-09701-001-1	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (J) ID=32 L=35	1-09701-244-0	01	1	1302-
16	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> (D) ID=15 H=30 L=30	1-09700-832-0	02	1	1302-
16	CLIP; HARNESS WHEEL BASE 3900MM(39W) (M) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) FUEL TANK 200L FRAME SIDE<N20> (H) L=600	1-09707-107-1	01	1	1302-
16	CLIP; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (K) ID=16 L=28	0-95235-556-0	02	1	1302-
16	CLIP; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (O) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (L) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS (O) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (O) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (P) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=11 L=41	1-09700-403-0	06	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (I) L=250	5-09707-030-1	02	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (O) ID=15 L=65	1-09700-466-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (O) ID=15 L=65	1-09700-466-0	01	1	1302-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (J) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5	1-09709-180-0	01	1	1302-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (O) ID=15 L=65	1-09700-466-0	04	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (K) ID=20 L=70	1-09700-485-0	05	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEELBASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (O) ID=15 L=65	1-09700-466-0	05	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	08	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (O) ID=15 L=65	1-09700-466-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (K) ID=20 L=70	1-09700-485-0	09	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (O) ID=15 L=65	1-09700-466-0	07	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	10	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (N) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (F) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (A) ID=16 L=40	0-95235-576-0	03	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (D) L=180	1-09707-162-1	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6	1-09709-178-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (M) ID=16X2 L=50	0-95325-586-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (G) ID=14.5 L=40	1-09701-014-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1302-
48	CLIP; FRAME HARNESS (O) ID=15 L=65	1-09700-466-0	02	1	1302-
81	CLIP; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=9 H=6	1-09709-178-0	01	1	1302-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1302-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
223	CLIP; AIR TANK HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
223	CLIP; AIR TANK HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=300	1-09707-001-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (O) L=140	5-09707-031-1	02	1	1302-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (O) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (R) L=121.2 & 121.2	1-09707-188-0	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (P) L=250	5-09707-030-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (H) ID=11 L=45	8-94296-897-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (Q) L=140	8-97122-360-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) ID=18 L=44	8-97367-985-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (K) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (L) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1401-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=18 H=23 L=28	1-09700-860-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=21 L=30 H=40	1-09700-991-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (I)	1-09987-281-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (F) L=36	8-94224-891-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (J) ID=33 L=30	8-97619-250-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A) ID=24 L=24	1-09701-001-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) ID=16 L=50	1-09701-158-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (F) L=36	8-94224-891-1	02	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (H) ID=21 L=24	8-98019-191-0	01	1	1302-

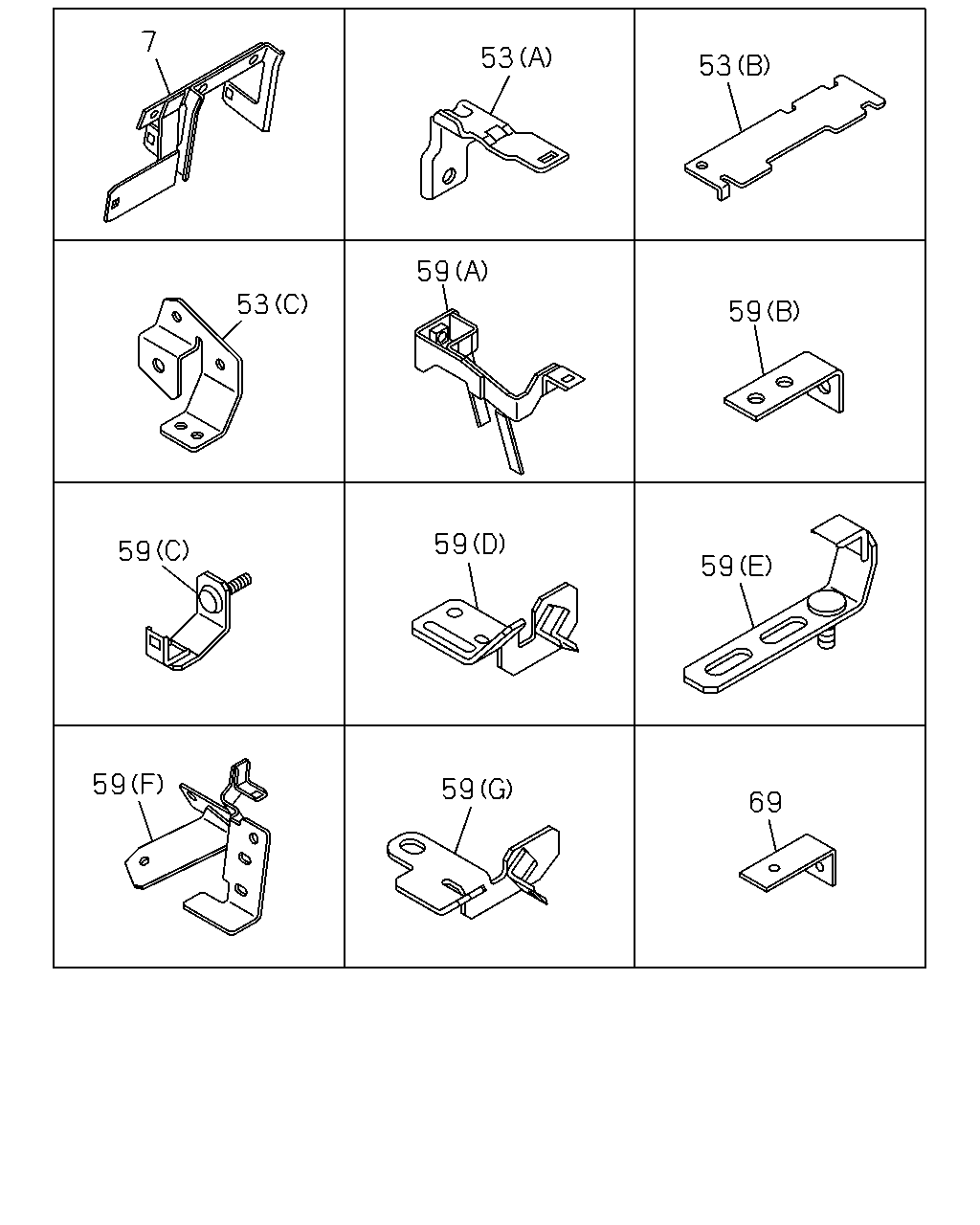

69 59 59 59 59 59 59 59 53 7 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1302-
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1302-
53	BRACKET; HARNESS (B)	8-98127-093-0	01	1	1302-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98084-590-0	01	1	1302-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (C)	8-97612-957-1	02	1	1302-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (D)	8-98211-162-0	01	1	1302-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (A)	8-98099-963-0	01	1	1302-
59	BRACKET; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E)	8-98047-730-0	02	1	1302-
59	BRACKET; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (F)	8-98107-611-0	01	1	1302-
59	BRACKET; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-97609-264-2	01	1	1302-
59	BRACKET; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=62	1-21464-170-2	01	1	1302-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1302-1502
59	BRACKET; FRAME HARNESS (G)	8-98254-592-0	01	1	1503-
69	BRACKET; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=55	1-47475-304-0	01	1	1302-

137 137 137 308 308 308 308 308 308 334

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) (A)	8-98193-417-0	01	1	1302-
137	BRACKET; HARNESS CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-97614-728-1	01	1	1302-
137	BRACKET; HARNESS CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-97624-013-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B)	8-97614-078-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (C)	8-98021-291-2	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	1302-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D)	8-98021-692-1	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (E)	8-98032-178-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (F)	8-98075-824-0	01	1	1302-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (C)	1-47475-868-0	02	1	1302-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (B)	1-47477-698-0	02	1	1302-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (A)	1-82699-639-1	01	1	1302-

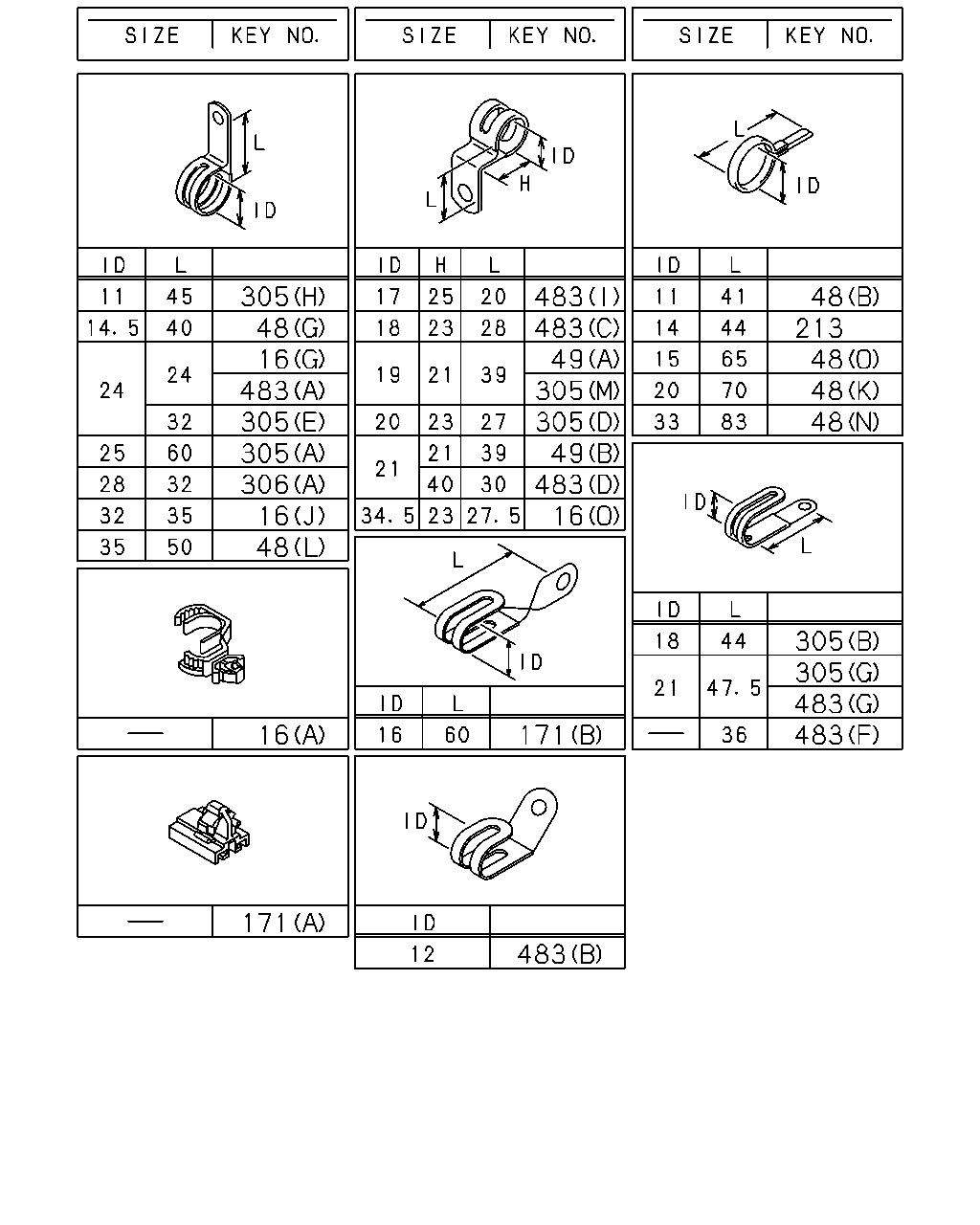

48 48 213 48 48 305 483 483 305 483 171 483 49 16 305 305 49 483 483 305 16 48 483 305 305 306 48 16 16 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=15 L=28	1-09701-216-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (E) ID=17 L=21	8-98082-035-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) ID=24 L=24	1-09701-001-1	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (J) ID=32 L=35	1-09701-244-0	01	1	1302-
16	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> (D) ID=15 H=30 L=30	1-09700-832-0	02	1	1302-
16	CLIP; HARNESS WHEEL BASE 3900MM(39W) (M) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) FUEL TANK 200L FRAME SIDE<N20> (H) L=600	1-09707-107-1	01	1	1302-
16	CLIP; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (K) ID=16 L=28	0-95235-556-0	02	1	1302-
16	CLIP; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (O) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (L) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS (O) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (O) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (P) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=11 L=41	1-09700-403-0	06	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (I) L=250	5-09707-030-1	02	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (O) ID=15 L=65	1-09700-466-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (O) ID=15 L=65	1-09700-466-0	01	1	1302-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (J) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5	1-09709-180-0	01	1	1302-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (O) ID=15 L=65	1-09700-466-0	04	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (K) ID=20 L=70	1-09700-485-0	05	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEELBASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (O) ID=15 L=65	1-09700-466-0	05	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	08	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (O) ID=15 L=65	1-09700-466-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (K) ID=20 L=70	1-09700-485-0	09	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (O) ID=15 L=65	1-09700-466-0	07	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	10	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (N) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (F) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (A) ID=16 L=40	0-95235-576-0	03	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (D) L=180	1-09707-162-1	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6	1-09709-178-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (M) ID=16X2 L=50	0-95325-586-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (G) ID=14.5 L=40	1-09701-014-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1302-
48	CLIP; FRAME HARNESS (O) ID=15 L=65	1-09700-466-0	02	1	1302-
49	CLIP; GEN HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
49	CLIP; GEN HARNESS 4HK1-TCS ENG(RJS) EXC. EURO4 SPECIFICATION<NT4> (B) ID=21 H=21 L=39	8-98230-579-0	01	1	1302-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (B)	8-97101-436-0	01	1	1302-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (A) OD=8 H=3.8	1-09709-309-0	01	1	1302-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=300	1-09707-001-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (O) L=140	5-09707-031-1	02	1	1302-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (O) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (R) L=121.2 & 121.2	1-09707-188-0	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (P) L=250	5-09707-030-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (H) ID=11 L=45	8-94296-897-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (Q) L=140	8-97122-360-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) ID=18 L=44	8-97367-985-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (K) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (L) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=28 L=32	1-09701-107-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1401-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=18 H=23 L=28	1-09700-860-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=21 L=30 H=40	1-09700-991-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (I)	1-09987-281-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (F) L=36	8-94224-891-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (J) ID=33 L=30	8-97619-250-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A) ID=24 L=24	1-09701-001-1	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) ID=16 L=50	1-09701-158-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (F) L=36	8-94224-891-1	02	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (H) ID=21 L=24	8-98019-191-0	01	1	1302-

312 312 312 334 334 335 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
312	BRACKET; CLIP HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98094-804-0	01	1	1302-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1302-
312	BRACKET; CLIP HARNESS (C)	8-97609-110-1	01	1	1302-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (C)	1-47475-868-0	02	1	1302-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (B)	1-47477-698-0	02	1	1302-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (A)	1-82699-639-1	01	1	1302-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1302-
428	BRACKET 4HK1-TCS ENG(RJS) (A)	8-98203-354-2	01	1	1302-
428	BRACKET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98212-082-1	01	1	1302-

139 127 524 219 294 525 294 524 184 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

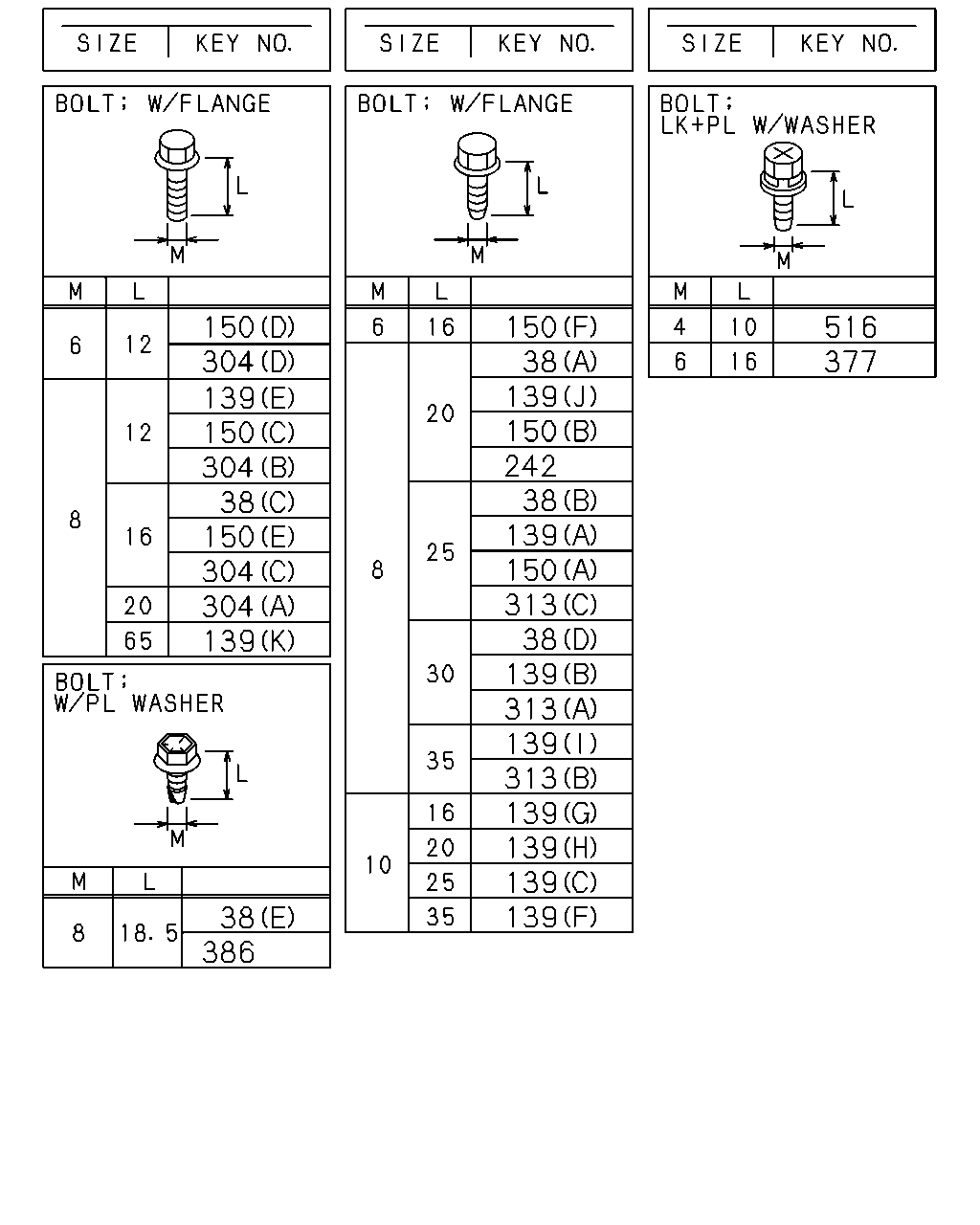

47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1302-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) (J) M8X20 FLANGE	0-28650-820-0	01	1	1302-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (K) M8X65 FLANGE	1-09044-072-1	01	1	1302-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (G) M10X16 FLANGE	0-28051-016-0	03	1	1302-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (H) M10X20 FLANGE	0-28751-020-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I) M8X35 FLANGE	0-28650-835-0	01	1	1302-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1302-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1302-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1302-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1302-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-
184	WASHER; PL,STARTER EARTH 4HK1-TCS ENG(RJS) ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1302-
184	WASHER; PL,STARTER EARTH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1302-
184	WASHER; PL,STARTER EARTH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1302-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT FULLER FSO5206B OD M/T(Y4V) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-1302
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1302-1302
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-1302
294	NUT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	01	1	1302-1302
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1302-1302
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-1302
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1303-
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1303-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1303-
294	NUT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	01	1	1303-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1303-
524	NUT; HARNESS 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-110-0	01	1	1302-
524	NUT; HARNESS (B) M6 FLANGE	0-91180-106-0	04	1	1302-
525	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> T=8.5 M8 FLANGE	5-09440-010-0	01	1	1302-
525	NUT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) T=8.0 M8 FLANGE	0-91180-108-0	02	1	1302-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	1302-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	1302-

14 305 225 217 206 183 48 16 14 305 48 22 530 305 503 503 538 16 48 16 14 305 48 1 1 1 178 178 178 14 14 305 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

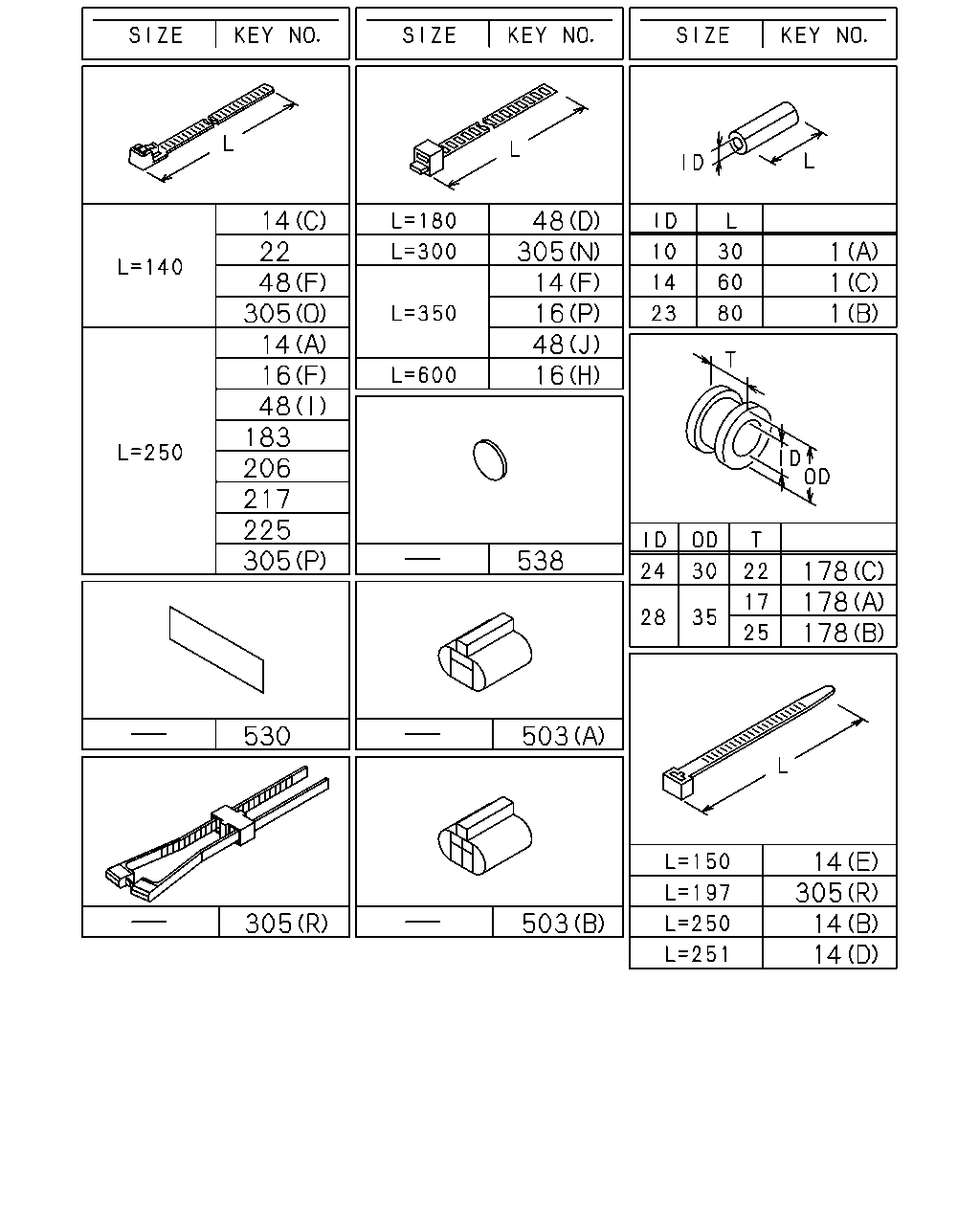

1	SLEEVE; RUBBER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1302-
1	SLEEVE; RUBBER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1302-
1	SLEEVE; RUBBER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C) ID=14 OD=18 L=60	1-09337-030-0	01	1	1302-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E) L=150	8-97355-273-0	03	1	1302-1407
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E) L=150	8-97355-273-0	02	1	1408-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (D) L=251	8-97619-917-0	01	1	1302-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C) L=140	5-09707-031-1	01	1	1302-1311
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) SINGAPORE EQUIPMENT(2G0) (C) L=140	5-09707-031-1	01	1	1302-1311
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C) L=140	5-09707-031-1	01	1	1312-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (C) L=140	5-09707-031-1	01	1	1312-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> (C) L=140	5-09707-031-1	01	1	1312-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) L=150	8-97355-273-0	01	1	1302-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (C) L=140	5-09707-031-1	02	1	1302-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EXC. EURO4 SPECIFICATION<NT4> (D) L=251	8-97619-917-0	02	1	1302-
14	CLIP; BAND,HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) L=250	8-98216-430-0	14	1	1302-
14	CLIP; BAND,HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (F) L=350	1-09707-183-0	01	1	1302-
14	CLIP; BAND,HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (A) L=250	5-09707-030-1	01	1	1302-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) SINGAPORE EQUIPMENT(2G0) (B) L=250	8-98216-430-0	01	1	1302-1311
14	CLIP; BAND,HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> SINGAPORE EQUIPMENT(2G0) (B) L=250	8-98216-430-0	01	1	1312-
14	CLIP; BAND,HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> (B) L=250	8-98216-430-0	01	1	1312-
14	CLIP; BAND,HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) L=250	8-98216-430-0	08	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=15 L=28	1-09701-216-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (E) ID=17 L=21	8-98082-035-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) ID=24 L=24	1-09701-001-1	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (J) ID=32 L=35	1-09701-244-0	01	1	1302-
16	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> (D) ID=15 H=30 L=30	1-09700-832-0	02	1	1302-
16	CLIP; HARNESS WHEEL BASE 3900MM(39W) (M) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) FUEL TANK 200L FRAME SIDE<N20> (H) L=600	1-09707-107-1	01	1	1302-
16	CLIP; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (K) ID=16 L=28	0-95235-556-0	02	1	1302-
16	CLIP; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (O) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (L) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS (O) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (O) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (P) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
22	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=11 L=41	1-09700-403-0	06	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (I) L=250	5-09707-030-1	02	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (O) ID=15 L=65	1-09700-466-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (O) ID=15 L=65	1-09700-466-0	01	1	1302-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (J) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5	1-09709-180-0	01	1	1302-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (O) ID=15 L=65	1-09700-466-0	04	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (K) ID=20 L=70	1-09700-485-0	05	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEELBASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (K) ID=20 L=70	1-09700-485-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (O) ID=15 L=65	1-09700-466-0	05	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	08	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (O) ID=15 L=65	1-09700-466-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (K) ID=20 L=70	1-09700-485-0	09	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (O) ID=15 L=65	1-09700-466-0	07	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	10	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (N) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (F) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (A) ID=16 L=40	0-95235-576-0	03	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (D) L=180	1-09707-162-1	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6	1-09709-178-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (M) ID=16X2 L=50	0-95325-586-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (G) ID=14.5 L=40	1-09701-014-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=20 L=70	1-09700-485-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1302-
48	CLIP; FRAME HARNESS (O) ID=15 L=65	1-09700-466-0	02	1	1302-
178	GROMMET; HARNESS 4HK1-TCS ENG(RJS) (C) ID=24 OD=30 T=22	1-09332-104-0	01	1	1302-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1302-
178	GROMMET; HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1302-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	03	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
183	CLIP; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	1302-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1302-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1302-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250	5-09707-030-1	02	1	1302-
225	CLIP; AIR TANK HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	5-09707-030-1	08	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=300	1-09707-001-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (O) L=140	5-09707-031-1	02	1	1302-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (O) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (R) L=121.2 & 121.2	1-09707-188-0	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (P) L=250	5-09707-030-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (H) ID=11 L=45	8-94296-897-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (Q) L=140	8-97122-360-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) ID=18 L=44	8-97367-985-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (K) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (L) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
503	CONNECTOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B)	1-82690-666-0	01	1	1302-
503	CONNECTOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A)	1-82690-668-0	01	1	1302-
503	CONNECTOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-82690-668-0	01	1	1302-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1302-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1302-

16 16 16 306 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=15 L=28	1-09701-216-0	02	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (E) ID=17 L=21	8-98082-035-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) ID=24 L=24	1-09701-001-1	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (J) ID=32 L=35	1-09701-244-0	01	1	1302-
16	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> (D) ID=15 H=30 L=30	1-09700-832-0	02	1	1302-
16	CLIP; HARNESS WHEEL BASE 3900MM(39W) (M) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W),WHEEL BASE 5500MM(55W) FUEL TANK 200L FRAME SIDE<N20> (H) L=600	1-09707-107-1	01	1	1302-
16	CLIP; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (K) ID=16 L=28	0-95235-556-0	02	1	1302-
16	CLIP; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (O) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (L) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS (O) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (O) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (P) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=300	1-09707-001-1	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (O) L=140	5-09707-031-1	02	1	1302-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (O) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (R) L=121.2 & 121.2	1-09707-188-0	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (P) L=250	5-09707-030-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (H) ID=11 L=45	8-94296-897-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (Q) L=140	8-97122-360-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) ID=18 L=44	8-97367-985-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (K) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (L) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=28 L=32	1-09701-107-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1302-

150 139 304 139 304 304 150 38 304 150 38 386 139 150 139 38 139 139 139 313 313 139 139 313 150 38 139 38 242 150 377 516

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
38	BOLT; CLIP,HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (C) M8X16 FLANGE	0-28050-816-0	03	1	1302-
38	BOLT; CLIP,HARNESS ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE	0-28050-816-0	02	1	1302-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1302-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1302-
38	BOLT; CLIP,HARNESS (E) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1302-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) (J) M8X20 FLANGE	0-28650-820-0	01	1	1302-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (K) M8X65 FLANGE	1-09044-072-1	01	1	1302-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (G) M10X16 FLANGE	0-28051-016-0	03	1	1302-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (H) M10X20 FLANGE	0-28751-020-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I) M8X35 FLANGE	0-28650-835-0	01	1	1302-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1302-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1302-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1302-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1302-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D) M6X12 FLANGE	0-28050-612-0	02	1	1401-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D) M6X12 FLANGE	0-28050-612-0	03	1	1401-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M6X12 FLANGE	0-28050-612-0	02	1	1302-1312
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (F) M6X16 FLANGE	0-28650-616-0	01	1	1401-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X12 FLANGE	0-28050-812-0	01	1	1302-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) M8X16 FLANGE	0-28050-816-0	02	1	1302-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
150	BOLT; CLIP BUMPER W/HEADLAMPS<SLB> (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
150	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1302-
242	BOLT; BRKT,HARNESS M8X20 FLANGE	0-28650-820-0	01	1	1302-
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (D) M6X12 FLANGE	0-28050-612-0	01	1	1302-
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) M8X12 FLANGE	0-28050-812-0	02	1	1302-
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (C) M8X16 FLANGE	0-28050-816-0	03	1	1302-
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28050-820-0	01	1	1302-
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	06	1	1302-
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	09	1	1302-
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	04	1	1302-
313	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M8X35 FLANGE	0-28650-835-0	01	1	1302-
313	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
313	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	1302-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1302-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1302-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1302-
516	BOLT; HARNESS 6HK1-TCS ENG(80L) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1302-1311
516	BOLT; HARNESS 6HK1-TCN ENG(82L) EXC. SINGAPORE EQUIPMENT(2G0) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1302-1311
516	BOLT; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1312-
516	BOLT; HARNESS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> EXC. GLOW SYSTEM DELETE<7RK> M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1312-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
