Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#112963) — 217 parça

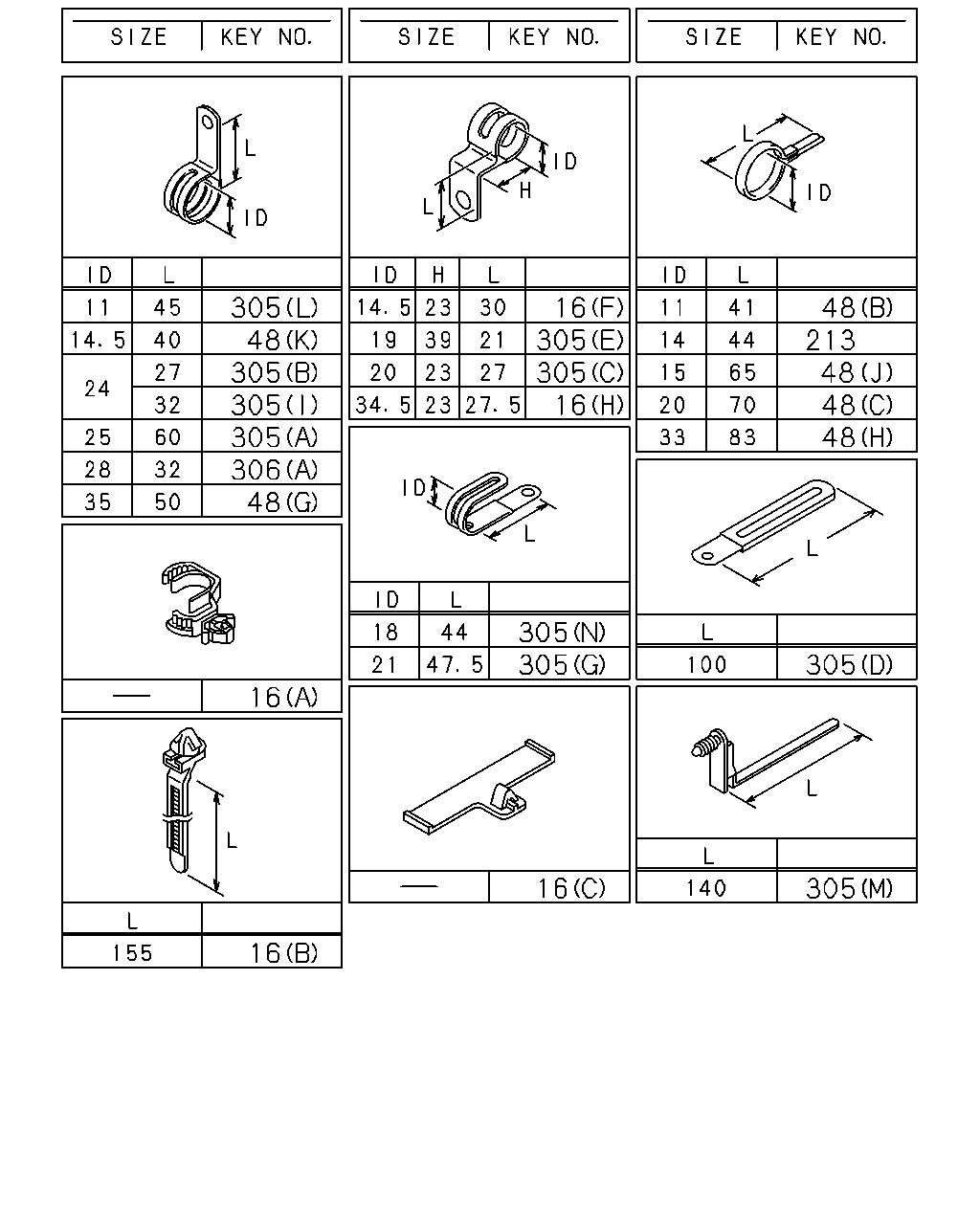

48 305 305 48 48 16 16 305 223 48 470 81 16 305 306 116 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1302-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS ZF6S1000 M/T(Y5D) (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS (I) L=600	1-09707-107-1	01	1	1302-
16	CLIP; HARNESS (J) L=250	5-09707-030-1	04	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> (G) ID=15 H=30 L=30	1-09700-832-0	02	1	1302-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1302-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (J) ID=15 L=65	1-09700-466-0	24	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (J) ID=15 L=65	1-09700-466-0	32	1	1302-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (A) ID=16 L=20	0-95235-536-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (E) ID=16 L=60	0-95235-596-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (D) ID=16X2 L=50	0-95325-586-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (K) ID=14.5 L=40	1-09701-014-0	01	1	1302-
81	CLIP; HARNESS (A) OD=9 H=13.5	1-09709-180-0	01	1	1302-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (B) L=250	5-09707-030-1	01	1	1302-1601
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> (B) L=250	5-09707-030-1	01	1	1602-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> (B) L=250	5-09707-030-1	01	1	1602-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1302-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1602-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-1601
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1602-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1602-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (L) ID=11 L=45	8-94296-897-1	01	1	1602-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (M) L=140	8-97122-360-0	01	1	1602-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (N) ID=18 L=44	8-97367-985-1	01	1	1602-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS (B) ID=24 L=27	1-09700-809-0	03	1	1302-1601
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=24 L=27	1-09700-809-0	03	1	1602-
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-
305	CLIP; ENG HARNESS (E) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-1601
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (E) ID=19 L=39 H=21	1-09700-972-1	01	1	1602-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-1601
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1602-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1602-
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1302-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1302-

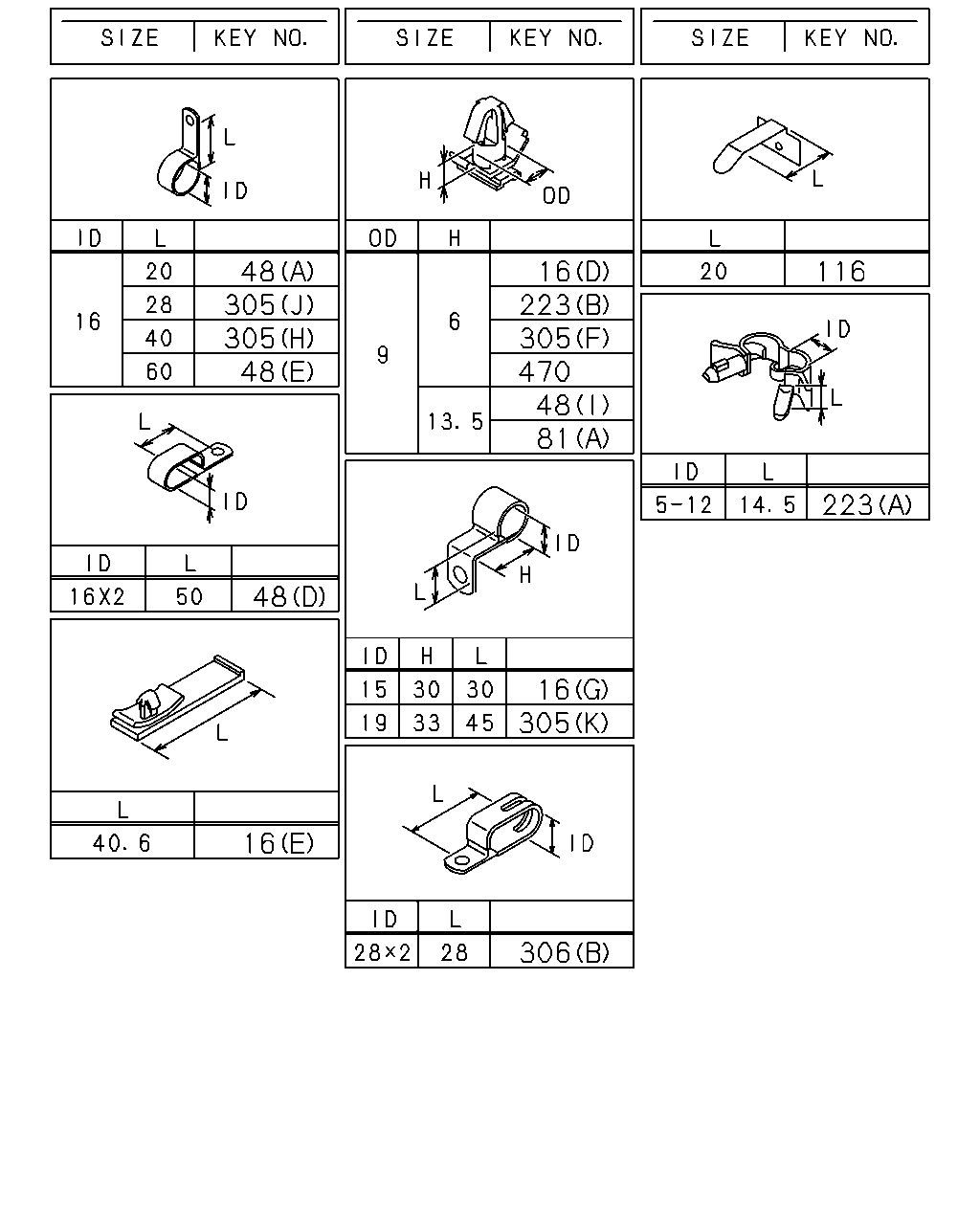

305 48 305 305 305 306 48 16 16 16 305 305 16 305 305 16 305 305 48 48 48 213 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1302-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS ZF6S1000 M/T(Y5D) (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS (I) L=600	1-09707-107-1	01	1	1302-
16	CLIP; HARNESS (J) L=250	5-09707-030-1	04	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> (G) ID=15 H=30 L=30	1-09700-832-0	02	1	1302-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1302-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (J) ID=15 L=65	1-09700-466-0	24	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (J) ID=15 L=65	1-09700-466-0	32	1	1302-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (A) ID=16 L=20	0-95235-536-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (E) ID=16 L=60	0-95235-596-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (D) ID=16X2 L=50	0-95325-586-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (K) ID=14.5 L=40	1-09701-014-0	01	1	1302-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1302-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1602-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (L) ID=11 L=45	8-94296-897-1	01	1	1602-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (M) L=140	8-97122-360-0	01	1	1602-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (N) ID=18 L=44	8-97367-985-1	01	1	1602-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS (B) ID=24 L=27	1-09700-809-0	03	1	1302-1601
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=24 L=27	1-09700-809-0	03	1	1602-
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-
305	CLIP; ENG HARNESS (E) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-1601
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (E) ID=19 L=39 H=21	1-09700-972-1	01	1	1602-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1302-1601
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1602-
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1602-
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1302-

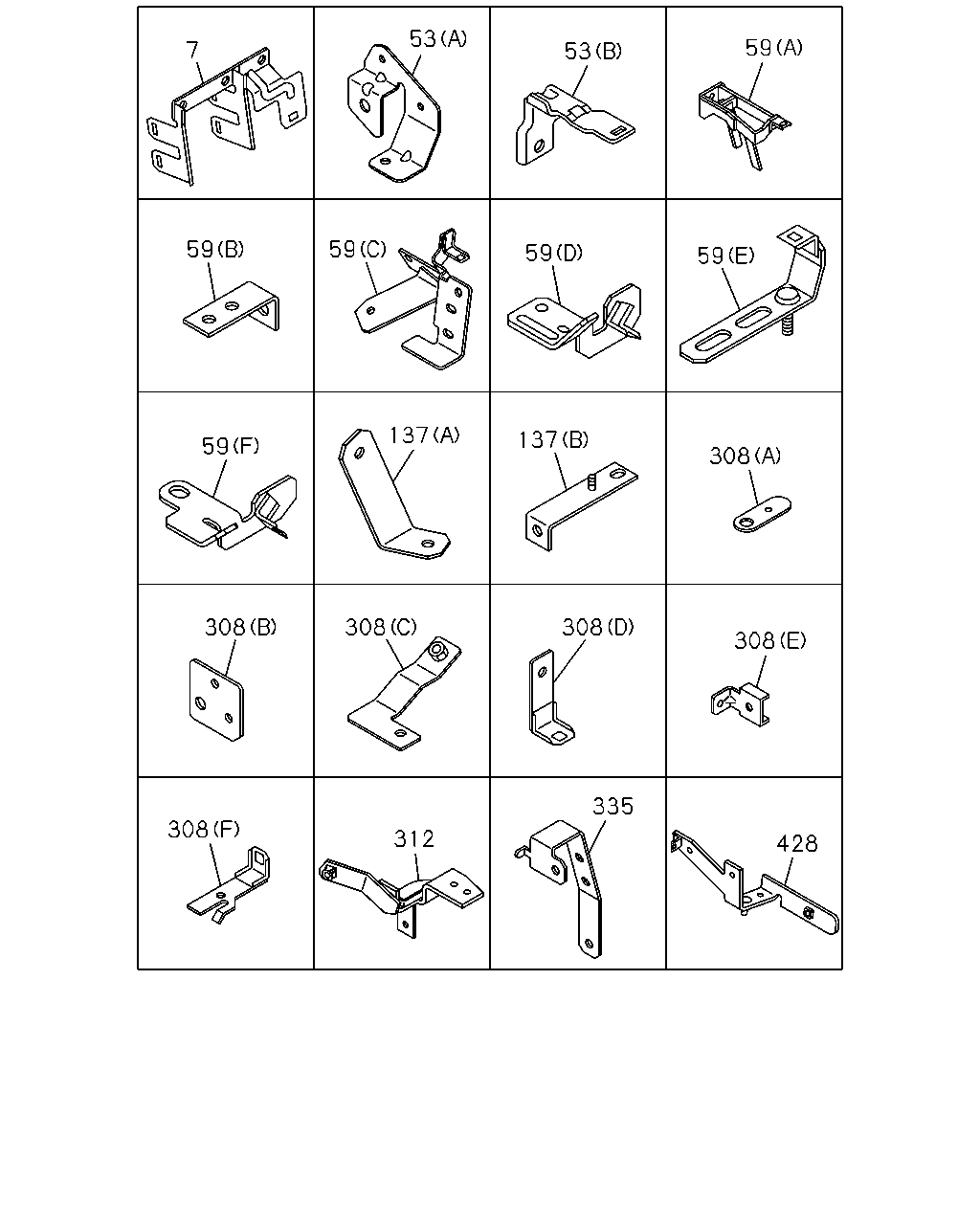

7 53 53 59 59 59 59 59 59 137 137 308 308 308 308 308 428 335 312 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1302-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1302-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	1302-
59	BRACKET; FRAME HARNESS (B) L=62	1-21464-170-2	01	1	1302-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1302-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1302-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	1302-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1302-
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	1302-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS EURO4 SPECIFICATION<NT4> (E)	8-97614-078-0	01	1	1602-
308	BRACKET; CLIP,ENG HARNESS EURO4 SPECIFICATION<NT4> (F)	8-98021-291-2	01	1	1602-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1302-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98021-692-1	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98032-178-0	01	1	1302-1601
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (C)	8-98032-178-0	01	1	1602-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98075-824-0	01	1	1302-1601
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (D)	8-98075-824-0	01	1	1602-
312	BRACKET; CLIP HARNESS	8-98230-458-1	01	1	1302-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1302-
428	BRACKET ZF6S1000 M/T(Y5D)	8-98212-082-1	01	1	1302-

48 16 14 81 206 225 217 530 503 503 538 16 14 183 1 1 1 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER EURO4 SPECIFICATION<NT4> (C) ID=23 OD=27 L=80	8-97608-976-0	06	1	1602-
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1302-1601
1	SLEEVE; RUBBER EURO2 SPECIFICATION<NT2> (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1602-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1302-
14	CLIP; BAND,HARNESS EURO4 SPECIFICATION<NT4> (B) L=250	8-98216-430-0	14	1	1602-
14	CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> (B) L=250	8-98216-430-0	01	1	1312-
14	CLIP; BAND,HARNESS (A) L=350	1-09707-183-0	01	1	1302-
14	CLIP; BAND,HARNESS (B) L=250	8-98216-430-0	08	1	1302-1601
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (B) L=250	8-98216-430-0	08	1	1602-
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1302-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS ZF6S1000 M/T(Y5D) (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS (I) L=600	1-09707-107-1	01	1	1302-
16	CLIP; HARNESS (J) L=250	5-09707-030-1	04	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> (G) ID=15 H=30 L=30	1-09700-832-0	02	1	1302-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1302-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (J) ID=15 L=65	1-09700-466-0	24	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (J) ID=15 L=65	1-09700-466-0	32	1	1302-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (A) ID=16 L=20	0-95235-536-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (E) ID=16 L=60	0-95235-596-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (D) ID=16X2 L=50	0-95325-586-0	01	1	1302-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (K) ID=14.5 L=40	1-09701-014-0	01	1	1302-
81	CLIP; HARNESS (A) OD=9 H=13.5	1-09709-180-0	01	1	1302-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (B) L=250	5-09707-030-1	01	1	1302-1601
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> (B) L=250	5-09707-030-1	01	1	1602-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> (B) L=250	5-09707-030-1	01	1	1602-
178	GROMMET; HARNESS ID=28 OD=35 T=25	1-09332-011-1	01	1	1302-
178	GROMMET; HARNESS ID=28 OD=35 T=25	1-09332-011-1	03	1	1302-
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	1302-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1302-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1302-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	08	1	1302-
503	CONNECTOR EXC. AIR DRYER<PS7> (A)	1-82690-666-0	01	1	1302-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	1302-1601
503	CONNECTOR EURO4 SPECIFICATION<NT4> (B)	1-82690-668-0	01	1	1602-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	1602-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1302-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1302-

304 304 139 38 304 304 516 377 38 386 38 139 38 313 150 38 313 139 139 139 139 139 127 524 294 294 219 47 184 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	02	1	1302-
38	BOLT; CLIP,HARNESS ZF6S1000 M/T(Y5D) (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1302-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1302-
38	BOLT; CLIP,HARNESS (E) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1302-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1302-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1302-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
139	BOLT; BRKT (G) M8X35 FLANGE	0-28650-835-0	01	1	1302-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1302-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1302-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1302-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-
150	BOLT; CLIP BUMPER W/HEADLAMPS<SLB> M8X25 FLANGE	0-28650-825-0	02	1	1302-
184	WASHER; PL,STARTER EARTH EURO4 SPECIFICATION<NT4> ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1602-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1302-1601
184	WASHER; PL,STARTER EARTH EURO2 SPECIFICATION<NT2> ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1602-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	BOLT; ENG HARNESS CLIP EURO4 SPECIFICATION<NT4> (D) M6X12 FLANGE	0-28050-612-0	01	1	1602-
304	BOLT; ENG HARNESS CLIP EURO4 SPECIFICATION<NT4> (B) M8X12 FLANGE	0-28050-812-0	02	1	1602-
304	BOLT; ENG HARNESS CLIP EURO4 SPECIFICATION<NT4> (C) M8X16 FLANGE	0-28050-816-0	03	1	1602-
304	BOLT; ENG HARNESS CLIP EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28050-820-0	01	1	1602-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	06	1	1302-1601
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	06	1	1602-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	09	1	1302-1601
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	09	1	1602-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	04	1	1302-1601
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	04	1	1602-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
313	BOLT; BRKT ZF6S1000 M/T(Y5D) (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1302-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1302-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1302-1311
516	BOLT; HARNESS EXC. GLOW SYSTEM DELETE<7RK> M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1312-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1302-
525	NUT; CLIP EURO4 SPECIFICATION<NT4> T=8.5 M8 FLANGE	5-09440-010-0	01	1	1602-
525	NUT; CLIP ZF6S1000 M/T(Y5D) T=8.0 M8 FLANGE	0-91180-108-0	01	1	1302-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
