8-15 — FIXING PARTS; WIRING HARNESS (#112962) — 1262 parça

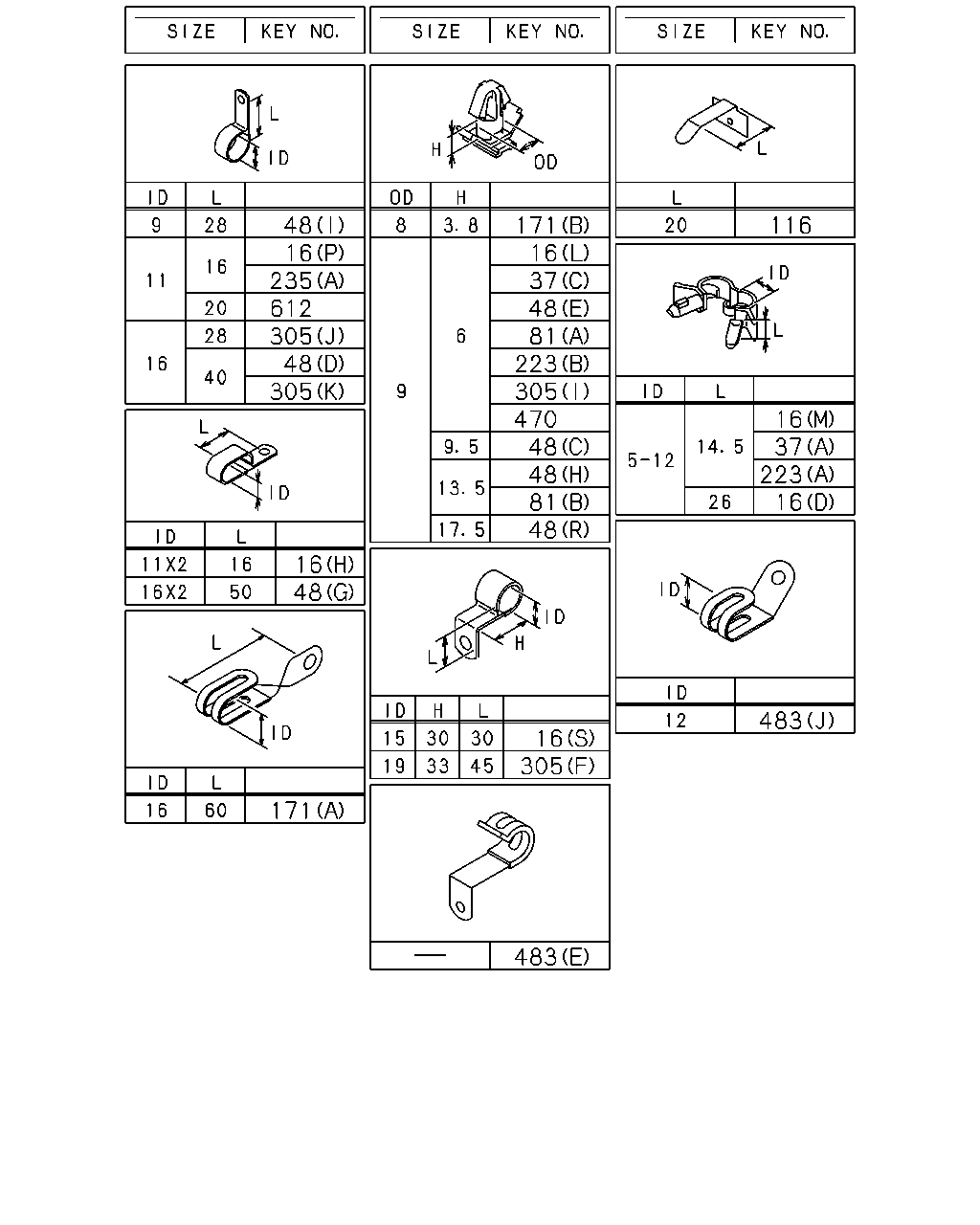

çizim 329931
48 235 16 612 48 305 305 16 48 171 171 37 16 48 223 223 305 470 48 48 16 81 305 483 116 16 223 37 16 483 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 02 1 1302- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 1302- ●
16 CLIP; HARNESS
FRIGID ZONE KIT(YL3) (D) ID=5-12 L=26 		1-09709-289-0 04 1 1302-1302 ●
16 CLIP; HARNESS
FRIGID ZONE KIT(YL3) (D) ID=5-12 L=26 		1-09709-289-0 02 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRIGID ZONE KIT(YL3) (D) ID=5-12 L=26 		1-09709-289-0 02 1 1302- ●
16 CLIP; HARNESS
WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (M) ID=5-12 L=14.5 		1-09987-221-0 01 1 1302- ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (N) L=600 		1-09707-107-1 01 1 1302-1401 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> (N) L=600 		1-09707-107-1 01 1 1302-1401 ●
16 CLIP; HARNESS
(N) L=600 		1-09707-107-1 01 1 1302-1401 ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (N) L=600 		1-09707-107-1 01 1 1402- ●
16 CLIP; HARNESS
FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (N) L=600 		1-09707-107-1 01 1 1402- ●
16 CLIP; HARNESS
(N) L=600 		1-09707-107-1 01 1 1402- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (T) ID=17 L=21 		8-98082-035-0 01 1 1305- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (U) ID=24 L=24 		1-09701-001-1 01 1 1305-1511 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (U) ID=24 L=24 		1-09701-001-1 01 1 1512- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (V) ID=32 L=35 		1-09701-244-0 01 1 1305- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (L) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) EXC. AIR DRYER<PS7> (L) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (L) OD=9 H=6 		1-09709-178-0 01 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) EXC. AIR DRYER<PS7> (L) OD=9 H=6 		1-09709-178-0 01 1 1506- ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1302- ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 04 1 1302- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1302- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1302- ● ●
16 CLIP; HARNESS
(R) L=40.6 		8-97229-357-0 02 1 1302- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1302- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 L=16 		0-95235-025-0 02 1 1302- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302- ● ●
16 CLIP; HARNESS
FRIGID ZONE KIT(YL3) (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302- ●
16 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (S) ID=15 H=30 L=30 		1-09700-832-0 02 1 1302- ● ●
16 CLIP; HARNESS
(Q) W/SPONGE RUBBER 		1-09709-150-0 01 1 1302- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (J) ID=10 & 15 		1-09709-279-1 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (F) L=250 		5-09707-030-1 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (F) L=250 		5-09707-030-1 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (E) 		8-94377-313-1 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (I) ID=21 L=24 		8-98019-191-0 01 1 1302- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (B) L=250 		5-09707-030-1 01 1 1302- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (B) L=250 		5-09707-030-1 01 1 1302- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (C) OD=9 H=6 		8-97368-793-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) OD=9 H=17.5 		1-09709-181-0 01 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) OD=9 H=17.5 		1-09709-181-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) IRAN EQUIPMENT(D8T) (R) OD=9 H=17.5 		1-09709-181-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=11 L=41 		1-09700-403-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION FULL FLOATING<W16>,CAB SUSPENSION RIGID<W71> (L) ID=35 L=50 		1-09701-214-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
EXC. RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 02 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EURO2 SPECIFICATION<NT2> (O) ID=15 L=65 		1-09700-466-0 06 1 1406-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA) (O) ID=15 L=65 		1-09700-466-0 06 1 1406-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) (O) ID=15 L=65 		1-09700-466-0 06 1 1406-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EURO2 SPECIFICATION<NT2> (O) ID=15 L=65 		1-09700-466-0 06 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA) (O) ID=15 L=65 		1-09700-466-0 06 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) RUSSIA EQUIPMENT(B12) (O) ID=15 L=65 		1-09700-466-0 06 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (O) ID=15 L=65 		1-09700-466-0 04 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 04 1 1302-1405 ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (O) ID=15 L=65 		1-09700-466-0 01 1 1406-1504 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (O) ID=15 L=65 		1-09700-466-0 01 1 1406-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 01 1 1406-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1406-1504 ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (O) ID=15 L=65 		1-09700-466-0 01 1 1505-1511 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (O) ID=15 L=65 		1-09700-466-0 01 1 1505-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 01 1 1505-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1505-1511 ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (O) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (O) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 05 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 06 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) EXC. IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 05 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 04 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) EXC. MOROCCO EQUIPMENT(CGA) (O) ID=15 L=65 		1-09700-466-0 04 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 04 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) EXC. MOROCCO EQUIPMENT(CGA),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 04 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 04 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 04 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 07 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (K) ID=20 L=70 		1-09700-485-0 07 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) EXC. RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 08 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1302-1304 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (O) ID=15 L=65 		1-09700-466-0 01 1 1302-1304 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1305-1405 ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (O) ID=15 L=65 		1-09700-466-0 01 1 1305-1405 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (O) ID=15 L=65 		1-09700-466-0 01 1 1305-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 02 1 1406-1511 ●
48 CLIP; FRAME HARNESS
MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 02 1 1406-1511 ●
48 CLIP; FRAME HARNESS
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 02 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 02 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 02 1 1512- ●
48 CLIP; FRAME HARNESS
MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 02 1 1512- ●
48 CLIP; FRAME HARNESS
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 02 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (O) ID=15 L=65 		1-09700-466-0 06 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) (O) ID=15 L=65 		1-09700-466-0 06 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) EXC. IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 05 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 05 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 10 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. RUSSIA EQUIPMENT(B12),PERU EQUIPMENT(E07), CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 10 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (K) ID=20 L=70 		1-09700-485-0 10 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 10 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. RUSSIA EQUIPMENT(B12),PERU EQUIPMENT(E07), CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 10 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 09 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 09 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 09 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (K) ID=20 L=70 		1-09700-485-0 09 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 09 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 11 1 1302-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 11 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 11 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. RUSSIA EQUIPMENT(B12) (O) ID=15 L=65 		1-09700-466-0 07 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 12 1 1302-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) EXC. RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 12 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1302-1405 ●
48 CLIP; FRAME HARNESS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1406-1511 ●
48 CLIP; FRAME HARNESS
MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. VIN MODEL YEAR 2014<VZE> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1406-1511 ●
48 CLIP; FRAME HARNESS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) (H) OD=9 H=13.5 		1-09709-180-0 01 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) IRAN EQUIPMENT(D8T) (H) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. VIN MODEL YEAR 2014<VZE> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA),IRAN EQUIPMENT(D8T) (H) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 08 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 13 1 1302- ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (B) ID=11 L=41 		1-09700-403-0 06 1 1305- ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (Q) L=250 		5-09707-030-1 02 1 1305- ●
48 CLIP; FRAME HARNESS
6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=11 L=41 		1-09700-403-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (N) ID=33 L=83 		1-09701-291-0 01 1 1302-1505 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (N) ID=33 L=83 		1-09701-291-0 01 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (F) L=140 		5-09707-031-1 02 1 1302-1505 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (F) L=140 		5-09707-031-1 02 1 1302-1505 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (F) L=140 		5-09707-031-1 02 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (F) L=140 		5-09707-031-1 02 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 01 1 1302-1401 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (K) ID=20 L=70 		1-09700-485-0 01 1 1302-1401 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 01 1 1402-1505 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) FUEL TANK 200L+200L<NF7> (K) ID=20 L=70 		1-09700-485-0 01 1 1402-1505 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (K) ID=20 L=70 		1-09700-485-0 01 1 1402-1505 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) FUEL TANK 200L+200L<NF7> (K) ID=20 L=70 		1-09700-485-0 01 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 01 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (K) ID=20 L=70 		1-09700-485-0 01 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (I) ID=9 L=28 		0-95234-855-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (I) ID=9 L=28 		0-95234-855-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (A) ID=14.5 L=20 		1-09701-012-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (J) L=180 		1-09707-162-1 02 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (J) L=180 		1-09707-162-1 02 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (D) ID=16 L=40 		0-95235-576-0 03 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (J) L=180 		1-09707-162-1 01 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6 		1-09709-178-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50 		0-95325-586-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (P) ID=14.5 L=40 		1-09701-014-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=11 L=61 		1-09700-484-0 01 1 1302- ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE<JE5> (A) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EURO2 SPECIFICATION<NT2> (A) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) OD=9 H=6 		1-09709-178-0 01 1 1506-1511 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (A) OD=9 H=6 		1-09709-178-0 01 1 1506-1511 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EURO2 SPECIFICATION<NT2> (A) OD=9 H=6 		1-09709-178-0 01 1 1506-1511 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (A) OD=9 H=6 		1-09709-178-0 01 1 1512- ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (A) OD=9 H=6 		1-09709-178-0 01 1 1512- ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EURO2 SPECIFICATION<NT2> (A) OD=9 H=6 		1-09709-178-0 01 1 1512- ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. IRAN EQUIPMENT(D8T) (B) OD=9 H=13.5 		1-09709-180-0 01 1 1302-1410 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE<JE5> (B) OD=9 H=13.5 		1-09709-180-0 01 1 1302-1410 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. IRAN EQUIPMENT(D8T) (B) OD=9 H=13.5 		1-09709-180-0 01 1 1411-1505 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> (B) OD=9 H=13.5 		1-09709-180-0 01 1 1411-1505 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) OD=9 H=13.5 		1-09709-180-0 01 1 1506-1511 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. IRAN EQUIPMENT(D8T) (B) OD=9 H=13.5 		1-09709-180-0 01 1 1506-1511 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. IRAN EQUIPMENT(D8T) (B) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. IRAN EQUIPMENT(D8T) (B) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) L=250 		5-09707-030-1 01 1 1302-1505 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE<JE5> (C) L=250 		5-09707-030-1 01 1 1302-1505 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (C) L=250 		5-09707-030-1 01 1 1506-1511 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) L=250 		5-09707-030-1 01 1 1506-1511 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (C) L=250 		5-09707-030-1 01 1 1512- ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> (C) L=250 		5-09707-030-1 01 1 1512- ●
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 04 1 1302- ●
116 CLIP; ROOF HARNESS
EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 03 1 1302- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1302- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) (A) 		8-97101-436-0 01 1 1305- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1305- ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) CATALYSIS CONTROL WITH DPD<8JM> (C) ID=11 L=61 		1-09700-484-0 01 1 1512- ●
223 CLIP; AIR TANK HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 1302-1304 ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1302-1304 ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L) AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1302-1304 ●
223 CLIP; AIR TANK HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 1305-1505 ●
223 CLIP; AIR TANK HARNESS
4HK1-TCS ENG(RJS),6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1305-1505 ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L) AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1305-1505 ●
223 CLIP; AIR TANK HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 1506- ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1506- ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L) AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1506- ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1302- ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1302- ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1302- ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302-1505 ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302-1505 ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1506- ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1506- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> (A) ID=11 L=16 		0-95235-025-0 02 1 1302- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (A) ID=11 L=16 		0-95235-025-0 02 1 1302- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (B) L=250 		5-09707-030-1 02 1 1302- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (B) L=250 		5-09707-030-1 02 1 1302- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (P) L=300 		1-09707-001-1 01 1 1305- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (Q) L=140 		5-09707-031-1 02 1 1305-1409 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (Q) L=140 		5-09707-031-1 01 1 1410- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (R) L=121.2 & 121.2 		1-09707-188-0 01 1 1305- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (S) L=250 		5-09707-030-1 01 1 1305- ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (L) ID=26 L=27 		1-09701-006-0 01 1 1302-1511 ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (J) ID=16 L=28 		0-95235-556-0 02 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (J) ID=16 L=28 		0-95235-556-0 02 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (K) ID=16 L=40 		0-95235-576-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (K) ID=16 L=40 		0-95235-576-0 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) ID=24 L=32 		1-09700-766-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (E) ID=24 L=32 		1-09700-766-1 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=25 L=60 		1-09701-041-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=25 L=60 		1-09701-041-1 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (I) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (I) OD=9 H=6 		1-09709-178-0 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (N) ID=24 L=27 		1-09700-809-0 03 1 1302- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5 		8-94178-108-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (G) ID=21 L=47.5 		8-94178-108-0 01 1 1506-1511 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1506-1511 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5 		8-94178-108-0 01 1 1512- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1512- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 1302-1511 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 1512- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) L=100 		8-94443-021-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C) L=100 		8-94443-021-1 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=18 L=44 		8-97367-985-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B) ID=18 L=44 		8-97367-985-1 01 1 1506-1511 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=18 L=44 		8-97367-985-1 01 1 1512- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (H) ID=11 L=45 		8-94296-897-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (H) ID=11 L=45 		8-94296-897-1 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (O) L=140 		8-97122-360-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (O) L=140 		8-97122-360-0 01 1 1506- ● ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) OD=9 H=6 		1-09709-178-0 01 1 1302-1405 ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1302-1405 ●
470 CLIP; HARNESS,LICENSE LAMP
MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> OD=9 H=6 		1-09709-178-0 01 1 1406- ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), IRAN EQUIPMENT(D8T) OD=9 H=6 		1-09709-178-0 01 1 1406- ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1406- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (J) ID=12 B=13 ID=6.5 		5-09700-348-0 02 1 1401- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A) ID=16 L=50 		1-09701-158-0 01 1 1305- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) L=36 		8-94224-891-1 02 1 1305- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C) ID=21 L=24 		8-98019-191-0 01 1 1305- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) ID=24 L=24 		1-09701-001-1 01 1 1305-1511 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D) ID=24 L=24 		1-09701-001-1 01 1 1512- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (E) 		1-09987-281-0 01 1 1305-1511 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E) 		1-09987-281-0 01 1 1512- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) L=36 		8-94224-891-1 01 1 1305-1511 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B) L=36 		8-94224-891-1 01 1 1512- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (F) ID=21 L=47.5 		8-94178-108-0 01 1 1305-1312 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (F) ID=21 L=47.5 		8-94178-108-0 01 1 1401-1511 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (F) ID=21 L=47.5 		8-94178-108-0 01 1 1512- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G) ID=33 L=30 		8-97619-250-0 01 1 1305- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (H) ID=18 H=23 L=28 		1-09700-860-0 01 1 1305- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (I) ID=21 L=30 H=40 		1-09700-991-1 01 1 1305- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (J) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1305- ●
612 CLIP; HARNESS DPD
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) IRAN EQUIPMENT(D8T) CATALYSIS CONTROL WITH DPD<8JM> ID=11 L=20 		0-95235-035-0 01 1 1512- ●

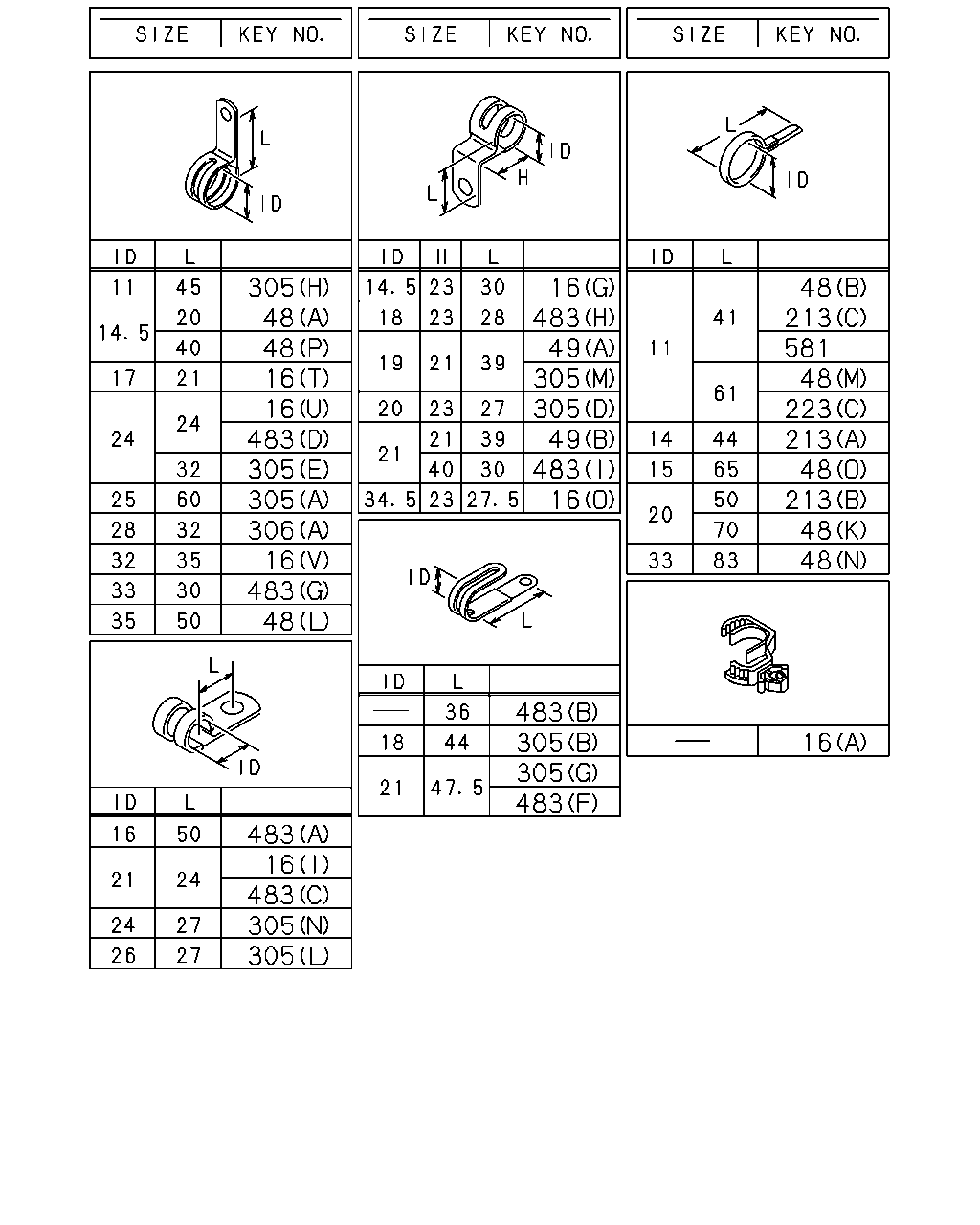

çizim 330047
305 305 483 16 483 48 483 16 306 305 305 483 16 16 48 48 305 483 305 305 483 16 483 49 305 305 49 483 16 16 48 48 213 48 213 223 48 581 213 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 02 1 1302- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 1302- ●
16 CLIP; HARNESS
FRIGID ZONE KIT(YL3) (D) ID=5-12 L=26 		1-09709-289-0 04 1 1302-1302 ●
16 CLIP; HARNESS
FRIGID ZONE KIT(YL3) (D) ID=5-12 L=26 		1-09709-289-0 02 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRIGID ZONE KIT(YL3) (D) ID=5-12 L=26 		1-09709-289-0 02 1 1302- ●
16 CLIP; HARNESS
WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (M) ID=5-12 L=14.5 		1-09987-221-0 01 1 1302- ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (N) L=600 		1-09707-107-1 01 1 1302-1401 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> (N) L=600 		1-09707-107-1 01 1 1302-1401 ●
16 CLIP; HARNESS
(N) L=600 		1-09707-107-1 01 1 1302-1401 ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (N) L=600 		1-09707-107-1 01 1 1402- ●
16 CLIP; HARNESS
FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (N) L=600 		1-09707-107-1 01 1 1402- ●
16 CLIP; HARNESS
(N) L=600 		1-09707-107-1 01 1 1402- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (T) ID=17 L=21 		8-98082-035-0 01 1 1305- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (U) ID=24 L=24 		1-09701-001-1 01 1 1305-1511 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (U) ID=24 L=24 		1-09701-001-1 01 1 1512- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (V) ID=32 L=35 		1-09701-244-0 01 1 1305- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (L) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) EXC. AIR DRYER<PS7> (L) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (L) OD=9 H=6 		1-09709-178-0 01 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) EXC. AIR DRYER<PS7> (L) OD=9 H=6 		1-09709-178-0 01 1 1506- ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1302- ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 04 1 1302- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1302- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1302- ● ●
16 CLIP; HARNESS
(R) L=40.6 		8-97229-357-0 02 1 1302- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1302- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 L=16 		0-95235-025-0 02 1 1302- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302- ● ●
16 CLIP; HARNESS
FRIGID ZONE KIT(YL3) (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302- ●
16 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (S) ID=15 H=30 L=30 		1-09700-832-0 02 1 1302- ● ●
16 CLIP; HARNESS
(Q) W/SPONGE RUBBER 		1-09709-150-0 01 1 1302- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (J) ID=10 & 15 		1-09709-279-1 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (F) L=250 		5-09707-030-1 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (F) L=250 		5-09707-030-1 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (E) 		8-94377-313-1 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (I) ID=21 L=24 		8-98019-191-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) OD=9 H=17.5 		1-09709-181-0 01 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) OD=9 H=17.5 		1-09709-181-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) IRAN EQUIPMENT(D8T) (R) OD=9 H=17.5 		1-09709-181-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=11 L=41 		1-09700-403-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION FULL FLOATING<W16>,CAB SUSPENSION RIGID<W71> (L) ID=35 L=50 		1-09701-214-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
EXC. RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 02 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EURO2 SPECIFICATION<NT2> (O) ID=15 L=65 		1-09700-466-0 06 1 1406-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA) (O) ID=15 L=65 		1-09700-466-0 06 1 1406-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) (O) ID=15 L=65 		1-09700-466-0 06 1 1406-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EURO2 SPECIFICATION<NT2> (O) ID=15 L=65 		1-09700-466-0 06 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA) (O) ID=15 L=65 		1-09700-466-0 06 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) RUSSIA EQUIPMENT(B12) (O) ID=15 L=65 		1-09700-466-0 06 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (O) ID=15 L=65 		1-09700-466-0 04 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 04 1 1302-1405 ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (O) ID=15 L=65 		1-09700-466-0 01 1 1406-1504 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (O) ID=15 L=65 		1-09700-466-0 01 1 1406-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 01 1 1406-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1406-1504 ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (O) ID=15 L=65 		1-09700-466-0 01 1 1505-1511 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (O) ID=15 L=65 		1-09700-466-0 01 1 1505-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 01 1 1505-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1505-1511 ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (O) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (O) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 05 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 06 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) EXC. IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 05 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 04 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) EXC. MOROCCO EQUIPMENT(CGA) (O) ID=15 L=65 		1-09700-466-0 04 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 04 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) EXC. MOROCCO EQUIPMENT(CGA),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 04 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 04 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 04 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 07 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (K) ID=20 L=70 		1-09700-485-0 07 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) EXC. RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 08 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1302-1304 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (O) ID=15 L=65 		1-09700-466-0 01 1 1302-1304 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1305-1405 ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (O) ID=15 L=65 		1-09700-466-0 01 1 1305-1405 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (O) ID=15 L=65 		1-09700-466-0 01 1 1305-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 02 1 1406-1511 ●
48 CLIP; FRAME HARNESS
MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 02 1 1406-1511 ●
48 CLIP; FRAME HARNESS
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 02 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 02 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 02 1 1512- ●
48 CLIP; FRAME HARNESS
MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 02 1 1512- ●
48 CLIP; FRAME HARNESS
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 02 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (O) ID=15 L=65 		1-09700-466-0 06 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) (O) ID=15 L=65 		1-09700-466-0 06 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) EXC. IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 05 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 05 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 10 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. RUSSIA EQUIPMENT(B12),PERU EQUIPMENT(E07), CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 10 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (K) ID=20 L=70 		1-09700-485-0 10 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 10 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. RUSSIA EQUIPMENT(B12),PERU EQUIPMENT(E07), CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 10 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 09 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 09 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 09 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (K) ID=20 L=70 		1-09700-485-0 09 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 09 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 11 1 1302-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 11 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 11 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. RUSSIA EQUIPMENT(B12) (O) ID=15 L=65 		1-09700-466-0 07 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 12 1 1302-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) EXC. RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 12 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1302-1405 ●
48 CLIP; FRAME HARNESS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1406-1511 ●
48 CLIP; FRAME HARNESS
MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. VIN MODEL YEAR 2014<VZE> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1406-1511 ●
48 CLIP; FRAME HARNESS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) (H) OD=9 H=13.5 		1-09709-180-0 01 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) IRAN EQUIPMENT(D8T) (H) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. VIN MODEL YEAR 2014<VZE> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA),IRAN EQUIPMENT(D8T) (H) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 08 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 13 1 1302- ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (B) ID=11 L=41 		1-09700-403-0 06 1 1305- ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (Q) L=250 		5-09707-030-1 02 1 1305- ●
48 CLIP; FRAME HARNESS
6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=11 L=41 		1-09700-403-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (N) ID=33 L=83 		1-09701-291-0 01 1 1302-1505 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (N) ID=33 L=83 		1-09701-291-0 01 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (F) L=140 		5-09707-031-1 02 1 1302-1505 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (F) L=140 		5-09707-031-1 02 1 1302-1505 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (F) L=140 		5-09707-031-1 02 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (F) L=140 		5-09707-031-1 02 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 01 1 1302-1401 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (K) ID=20 L=70 		1-09700-485-0 01 1 1302-1401 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 01 1 1402-1505 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) FUEL TANK 200L+200L<NF7> (K) ID=20 L=70 		1-09700-485-0 01 1 1402-1505 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (K) ID=20 L=70 		1-09700-485-0 01 1 1402-1505 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) FUEL TANK 200L+200L<NF7> (K) ID=20 L=70 		1-09700-485-0 01 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 01 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (K) ID=20 L=70 		1-09700-485-0 01 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (I) ID=9 L=28 		0-95234-855-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (I) ID=9 L=28 		0-95234-855-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (A) ID=14.5 L=20 		1-09701-012-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (J) L=180 		1-09707-162-1 02 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (J) L=180 		1-09707-162-1 02 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (D) ID=16 L=40 		0-95235-576-0 03 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (J) L=180 		1-09707-162-1 01 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6 		1-09709-178-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50 		0-95325-586-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (P) ID=14.5 L=40 		1-09701-014-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=11 L=61 		1-09700-484-0 01 1 1302- ●
49 CLIP; GEN HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A) ID=19 L=39 H=21 		1-09700-972-1 01 1 1305- ●
49 CLIP; GEN HARNESS
4HK1-TCS ENG(RJS) EXC. EURO4 SPECIFICATION<NT4> (B) ID=21 H=21 L=39 		8-98230-579-0 01 1 1305- ●
213 CLIP; END CROSS HARNESS
RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (C) ID=11 L=41 		1-09700-403-0 02 1 1302-1405 ●
213 CLIP; END CROSS HARNESS
RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (C) ID=11 L=41 		1-09700-403-0 02 1 1406- ●
213 CLIP; END CROSS HARNESS
MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C) ID=11 L=41 		1-09700-403-0 02 1 1406- ●
213 CLIP; END CROSS HARNESS
RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (A) ID=14 L=44 		9-09917-427-0 07 1 1302-1405 ●
213 CLIP; END CROSS HARNESS
RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (A) ID=14 L=44 		9-09917-427-0 07 1 1406- ●
213 CLIP; END CROSS HARNESS
MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (A) ID=14 L=44 		9-09917-427-0 07 1 1406- ●
213 CLIP; END CROSS HARNESS
EXC. RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (A) ID=14 L=44 		9-09917-427-0 03 1 1302-1405 ●
213 CLIP; END CROSS HARNESS
(A) ID=14 L=44 		9-09917-427-0 03 1 1302-1405 ●
213 CLIP; END CROSS HARNESS
MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A) ID=14 L=44 		9-09917-427-0 03 1 1406- ●
213 CLIP; END CROSS HARNESS
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), IRAN EQUIPMENT(D8T) (A) ID=14 L=44 		9-09917-427-0 03 1 1406- ●
213 CLIP; END CROSS HARNESS
(A) ID=14 L=44 		9-09917-427-0 03 1 1406- ●
213 CLIP; END CROSS HARNESS
(B) ID=20 L=50 		9-09917-430-0 01 1 1302- ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) CATALYSIS CONTROL WITH DPD<8JM> (C) ID=11 L=61 		1-09700-484-0 01 1 1512- ●
223 CLIP; AIR TANK HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 1302-1304 ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1302-1304 ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L) AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1302-1304 ●
223 CLIP; AIR TANK HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 1305-1505 ●
223 CLIP; AIR TANK HARNESS
4HK1-TCS ENG(RJS),6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1305-1505 ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L) AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1305-1505 ●
223 CLIP; AIR TANK HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 1506- ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1506- ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L) AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1506- ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1302- ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1302- ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1302- ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302-1505 ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302-1505 ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1506- ●
223 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1506- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (P) L=300 		1-09707-001-1 01 1 1305- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (Q) L=140 		5-09707-031-1 02 1 1305-1409 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (Q) L=140 		5-09707-031-1 01 1 1410- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (R) L=121.2 & 121.2 		1-09707-188-0 01 1 1305- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (S) L=250 		5-09707-030-1 01 1 1305- ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (L) ID=26 L=27 		1-09701-006-0 01 1 1302-1511 ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (J) ID=16 L=28 		0-95235-556-0 02 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (J) ID=16 L=28 		0-95235-556-0 02 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (K) ID=16 L=40 		0-95235-576-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (K) ID=16 L=40 		0-95235-576-0 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) ID=24 L=32 		1-09700-766-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (E) ID=24 L=32 		1-09700-766-1 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=25 L=60 		1-09701-041-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=25 L=60 		1-09701-041-1 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (I) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (I) OD=9 H=6 		1-09709-178-0 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (N) ID=24 L=27 		1-09700-809-0 03 1 1302- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5 		8-94178-108-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (G) ID=21 L=47.5 		8-94178-108-0 01 1 1506-1511 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1506-1511 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5 		8-94178-108-0 01 1 1512- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1512- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 1302-1511 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 1512- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) L=100 		8-94443-021-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C) L=100 		8-94443-021-1 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=18 L=44 		8-97367-985-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B) ID=18 L=44 		8-97367-985-1 01 1 1506-1511 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=18 L=44 		8-97367-985-1 01 1 1512- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (H) ID=11 L=45 		8-94296-897-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (H) ID=11 L=45 		8-94296-897-1 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (O) L=140 		8-97122-360-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (O) L=140 		8-97122-360-0 01 1 1506- ● ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=28 L=32 		1-09701-107-1 01 1 1302-1505 ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCS ENG(80L) (A) ID=28 L=32 		1-09701-107-1 01 1 1302-1505 ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=28 L=32 		1-09701-107-1 01 1 1506- ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCS ENG(80L) (A) ID=28 L=32 		1-09701-107-1 01 1 1506- ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=28X2 L=28 		1-09701-302-0 02 1 1302-1505 ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCS ENG(80L) (B) ID=28X2 L=28 		1-09701-302-0 02 1 1302-1505 ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=28X2 L=28 		1-09701-302-0 02 1 1506- ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCS ENG(80L) (B) ID=28X2 L=28 		1-09701-302-0 02 1 1506- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (J) ID=12 B=13 ID=6.5 		5-09700-348-0 02 1 1401- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A) ID=16 L=50 		1-09701-158-0 01 1 1305- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) L=36 		8-94224-891-1 02 1 1305- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C) ID=21 L=24 		8-98019-191-0 01 1 1305- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) ID=24 L=24 		1-09701-001-1 01 1 1305-1511 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D) ID=24 L=24 		1-09701-001-1 01 1 1512- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (E) 		1-09987-281-0 01 1 1305-1511 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E) 		1-09987-281-0 01 1 1512- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) L=36 		8-94224-891-1 01 1 1305-1511 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B) L=36 		8-94224-891-1 01 1 1512- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (F) ID=21 L=47.5 		8-94178-108-0 01 1 1305-1312 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (F) ID=21 L=47.5 		8-94178-108-0 01 1 1401-1511 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (F) ID=21 L=47.5 		8-94178-108-0 01 1 1512- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G) ID=33 L=30 		8-97619-250-0 01 1 1305- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (H) ID=18 H=23 L=28 		1-09700-860-0 01 1 1305- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (I) ID=21 L=30 H=40 		1-09700-991-1 01 1 1305- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (J) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1305- ●
581 CLIP; HARNESS,REAR SUSP
ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=11 L=41 		1-09700-403-0 01 1 1302- ●
çizim 330053
137 137 137 137 308 308 308 308 312 312 308 308 312 312 324
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (E) L=75 		1-47478-328-0 01 1 1406-1511 ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (E) L=75 		1-47478-328-0 01 1 1512- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) IRAN EQUIPMENT(D8T) (E) L=75 		1-47478-328-0 01 1 1512- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) 		8-97614-728-1 01 1 1302-1505 ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L) (C) 		8-97614-728-1 01 1 1302-1505 ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) 		8-97614-728-1 01 1 1506- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L) (C) 		8-97614-728-1 01 1 1506- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) 		8-97624-013-0 01 1 1302-1505 ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L) (A) 		8-97624-013-0 01 1 1302-1505 ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		8-97624-013-0 01 1 1506- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L) (A) 		8-97624-013-0 01 1 1506- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> (B) 		8-97609-797-1 02 1 1302- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (B) 		8-97609-797-1 02 1 1302- ●
137 BRACKET; HARNESS CLAMP
4HK1-TCS ENG(RJS) (D) 		8-98193-417-0 01 1 1305- ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (A) 		8-97601-310-0 03 1 1302-1511 ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A) 		8-97601-310-0 02 1 1512- ● ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) 		8-98021-692-1 01 1 1302-1505 ● ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) 		8-98021-692-1 01 1 1506- ● ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (E) 		8-98032-178-0 01 1 1302- ● ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (F) 		8-98075-824-0 01 1 1302- ● ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) 		8-97601-310-0 02 1 1302-1505 ● ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A) 		8-97601-310-0 02 1 1506-1511 ● ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) 		8-97614-078-0 01 1 1302-1505 ● ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B) 		8-97614-078-0 01 1 1506-1511 ● ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) 		8-97614-078-0 01 1 1512- ● ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5> (B) 		8-97614-078-0 01 1 1512- ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) 		8-98021-291-2 01 1 1302-1505 ● ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C) 		8-98021-291-2 01 1 1506-1511 ● ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) 		8-98021-291-2 01 1 1512- ● ●
312 BRACKET; CLIP HARNESS
AUTO CAB TILT<WV2> (A) 		8-97620-519-0 01 1 1302- ●
312 BRACKET; CLIP HARNESS
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D) 		8-98094-804-0 01 1 1305-1511 ●
312 BRACKET; CLIP HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D) 		8-98094-804-0 01 1 1512- ●
312 BRACKET; CLIP HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (B) 		8-97609-110-1 01 1 1302-1304 ●
312 BRACKET; CLIP HARNESS
4HK1-TCS ENG(RJS) (B) 		8-97609-110-1 01 1 1305- ●
312 BRACKET; CLIP HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (B) 		8-97609-110-1 01 1 1305- ●
312 BRACKET; CLIP HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> (C) 		8-98230-458-1 01 1 1302-1505 ●
312 BRACKET; CLIP HARNESS
6HK1-TCS ENG(80L) (C) 		8-98230-458-1 01 1 1302-1505 ●
312 BRACKET; CLIP HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> (C) 		8-98230-458-1 01 1 1506- ●
312 BRACKET; CLIP HARNESS
6HK1-TCS ENG(80L) (C) 		8-98230-458-1 01 1 1506- ●
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> 		8-98210-921-1 01 1 1302- ● ●
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> 		8-98210-922-1 01 1 1302- ● ●
çizim 330151
14 16 22 48 305 14 16 37 48 81 183 194 206 217 225 235 305 530 292 48 14 305 14 16 538 503 503 305 1 1 1 1 178 178 178 178 14 14 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
6HK1-TCS ENG(80L) FRIGID ZONE KIT(YL3) (D) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1302-1302 ●
1 SLEEVE; RUBBER
6HK1-TCS ENG(80L) FRIGID ZONE KIT(YL3) (D) ID=17 OD=21 L=40 		1-09337-012-0 03 1 1302- ●
1 SLEEVE; RUBBER
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1302-1302 ● ●
1 SLEEVE; RUBBER
6HK1-TCS ENG(80L) FRIGID ZONE KIT(YL3) (B) ID=23 OD=27 L=80 		8-97608-976-0 02 1 1302- ●
1 SLEEVE; RUBBER
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1302-1505 ● ●
1 SLEEVE; RUBBER
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1506- ● ●
1 SLEEVE; RUBBER
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1302- ● ●
1 SLEEVE; RUBBER
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1302-1505 ● ●
1 SLEEVE; RUBBER
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1506-1511 ● ●
1 SLEEVE; RUBBER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5> (B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1506-1511 ●
1 SLEEVE; RUBBER
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1512- ● ●
1 SLEEVE; RUBBER
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5> (B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1512- ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) GLOW SYSTEM DELETE<7RK> (E) L=250 		8-98216-430-0 01 1 1312- ● ●
14 CLIP; BAND,HARNESS
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> (B) L=250 		1-09707-126-0 02 1 1302- ●
14 CLIP; BAND,HARNESS
ANTI LOCK BRAKE<JE5> (B) L=250 		1-09707-126-0 02 1 1302- ●
14 CLIP; BAND,HARNESS
TACHOGRAPH ECC REGULATIONS KIENZLE<UC9> (A) L=250 		5-09707-030-1 30 1 1302- ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) (D) L=140 		5-09707-031-1 02 1 1305- ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) (F) L=251 		8-97619-917-0 01 1 1305- ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (G) L=150 		8-97355-273-0 01 1 1305-1511 ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) L=150 		8-97355-273-0 01 1 1512- ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G) L=150 		8-97355-273-0 03 1 1305-1407 ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G) L=150 		8-97355-273-0 02 1 1408- ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) EXC. EURO4 SPECIFICATION<NT4> (F) L=251 		8-97619-917-0 02 1 1305- ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L) FRIGID ZONE KIT(YL3) (E) L=250 		8-98216-430-0 01 1 1302-1302 ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) L=350 		1-09707-183-0 01 1 1302-1505 ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L) (C) L=350 		1-09707-183-0 01 1 1302-1505 ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) L=350 		1-09707-183-0 01 1 1506- ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L) (C) L=350 		1-09707-183-0 01 1 1506- ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (A) L=250 		5-09707-030-1 01 1 1302-1304 ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (A) L=250 		5-09707-030-1 01 1 1305-1511 ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), IRAN EQUIPMENT(D8T),PERU EQUIPMENT(E07),ANTI NOISEEQUIPMENT-ECE R51.02<JCA>,CHILE EQUIPMENT(KE1),FR IGID ZONE KIT(YL3),KD PREPARATORY PACK<6HF> (A) L=250 		5-09707-030-1 01 1 1305-1511 ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (A) L=250 		5-09707-030-1 01 1 1512- ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (E) L=250 		8-98216-430-0 08 1 1302- ● ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (E) L=250 		8-98216-430-0 14 1 1302-1505 ● ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (E) L=250 		8-98216-430-0 14 1 1506-1511 ● ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) L=250 		8-98216-430-0 14 1 1512- ● ●
14 CLIP; BAND,HARNESS
ANTI LOCK BRAKE<JE5> (D) L=140 		5-09707-031-1 01 1 1302-1304 ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D) L=140 		5-09707-031-1 01 1 1305-1311 ●
14 CLIP; BAND,HARNESS
ANTI LOCK BRAKE<JE5> (D) L=140 		5-09707-031-1 01 1 1305-1311 ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (D) L=140 		5-09707-031-1 01 1 1312- ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> (D) L=140 		5-09707-031-1 01 1 1312- ●
14 CLIP; BAND,HARNESS
ANTI LOCK BRAKE<JE5> (D) L=140 		5-09707-031-1 01 1 1312- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 02 1 1302- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 1302- ●
16 CLIP; HARNESS
FRIGID ZONE KIT(YL3) (D) ID=5-12 L=26 		1-09709-289-0 04 1 1302-1302 ●
16 CLIP; HARNESS
FRIGID ZONE KIT(YL3) (D) ID=5-12 L=26 		1-09709-289-0 02 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRIGID ZONE KIT(YL3) (D) ID=5-12 L=26 		1-09709-289-0 02 1 1302- ●
16 CLIP; HARNESS
WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (M) ID=5-12 L=14.5 		1-09987-221-0 01 1 1302- ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (N) L=600 		1-09707-107-1 01 1 1302-1401 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> (N) L=600 		1-09707-107-1 01 1 1302-1401 ●
16 CLIP; HARNESS
(N) L=600 		1-09707-107-1 01 1 1302-1401 ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (N) L=600 		1-09707-107-1 01 1 1402- ●
16 CLIP; HARNESS
FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (N) L=600 		1-09707-107-1 01 1 1402- ●
16 CLIP; HARNESS
(N) L=600 		1-09707-107-1 01 1 1402- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (T) ID=17 L=21 		8-98082-035-0 01 1 1305- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (U) ID=24 L=24 		1-09701-001-1 01 1 1305-1511 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (U) ID=24 L=24 		1-09701-001-1 01 1 1512- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (V) ID=32 L=35 		1-09701-244-0 01 1 1305- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (L) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) EXC. AIR DRYER<PS7> (L) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (L) OD=9 H=6 		1-09709-178-0 01 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) EXC. AIR DRYER<PS7> (L) OD=9 H=6 		1-09709-178-0 01 1 1506- ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1302- ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 04 1 1302- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1302- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1302- ● ●
16 CLIP; HARNESS
(R) L=40.6 		8-97229-357-0 02 1 1302- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1302- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 L=16 		0-95235-025-0 02 1 1302- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302- ● ●
16 CLIP; HARNESS
FRIGID ZONE KIT(YL3) (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302- ●
16 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (S) ID=15 H=30 L=30 		1-09700-832-0 02 1 1302- ● ●
16 CLIP; HARNESS
(Q) W/SPONGE RUBBER 		1-09709-150-0 01 1 1302- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (J) ID=10 & 15 		1-09709-279-1 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (F) L=250 		5-09707-030-1 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (F) L=250 		5-09707-030-1 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (E) 		8-94377-313-1 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (I) ID=21 L=24 		8-98019-191-0 01 1 1302- ●
22 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) L=140 		5-09707-031-1 02 1 1305- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (B) L=250 		5-09707-030-1 01 1 1302- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (B) L=250 		5-09707-030-1 01 1 1302- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (C) OD=9 H=6 		8-97368-793-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) OD=9 H=17.5 		1-09709-181-0 01 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) OD=9 H=17.5 		1-09709-181-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) IRAN EQUIPMENT(D8T) (R) OD=9 H=17.5 		1-09709-181-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=11 L=41 		1-09700-403-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION FULL FLOATING<W16>,CAB SUSPENSION RIGID<W71> (L) ID=35 L=50 		1-09701-214-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
EXC. RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 02 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EURO2 SPECIFICATION<NT2> (O) ID=15 L=65 		1-09700-466-0 06 1 1406-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA) (O) ID=15 L=65 		1-09700-466-0 06 1 1406-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) (O) ID=15 L=65 		1-09700-466-0 06 1 1406-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EURO2 SPECIFICATION<NT2> (O) ID=15 L=65 		1-09700-466-0 06 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA) (O) ID=15 L=65 		1-09700-466-0 06 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) RUSSIA EQUIPMENT(B12) (O) ID=15 L=65 		1-09700-466-0 06 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (O) ID=15 L=65 		1-09700-466-0 04 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 04 1 1302-1405 ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (O) ID=15 L=65 		1-09700-466-0 01 1 1406-1504 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (O) ID=15 L=65 		1-09700-466-0 01 1 1406-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 01 1 1406-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1406-1504 ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (O) ID=15 L=65 		1-09700-466-0 01 1 1505-1511 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (O) ID=15 L=65 		1-09700-466-0 01 1 1505-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 01 1 1505-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1505-1511 ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (O) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (O) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 05 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) OD=9 H=9.5 		1-09709-179-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=20 L=70 		1-09700-485-0 06 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) EXC. IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 05 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 04 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) EXC. MOROCCO EQUIPMENT(CGA) (O) ID=15 L=65 		1-09700-466-0 04 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 04 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) EXC. MOROCCO EQUIPMENT(CGA),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 04 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 04 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 04 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 07 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (K) ID=20 L=70 		1-09700-485-0 07 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) EXC. RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 08 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1302-1304 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (O) ID=15 L=65 		1-09700-466-0 01 1 1302-1304 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 01 1 1305-1405 ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (O) ID=15 L=65 		1-09700-466-0 01 1 1305-1405 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (O) ID=15 L=65 		1-09700-466-0 01 1 1305-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 02 1 1406-1511 ●
48 CLIP; FRAME HARNESS
MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 02 1 1406-1511 ●
48 CLIP; FRAME HARNESS
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 02 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 02 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 02 1 1512- ●
48 CLIP; FRAME HARNESS
MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 02 1 1512- ●
48 CLIP; FRAME HARNESS
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 02 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (O) ID=15 L=65 		1-09700-466-0 06 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) (O) ID=15 L=65 		1-09700-466-0 06 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) EXC. IRAN EQUIPMENT(D8T) (O) ID=15 L=65 		1-09700-466-0 05 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (O) ID=15 L=65 		1-09700-466-0 05 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 10 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. RUSSIA EQUIPMENT(B12),PERU EQUIPMENT(E07), CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 10 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (K) ID=20 L=70 		1-09700-485-0 10 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 10 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. RUSSIA EQUIPMENT(B12),PERU EQUIPMENT(E07), CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 10 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 09 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 09 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) EXC. MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 09 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (K) ID=20 L=70 		1-09700-485-0 09 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 09 1 1406- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 11 1 1302-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (K) ID=20 L=70 		1-09700-485-0 11 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 11 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. RUSSIA EQUIPMENT(B12) (O) ID=15 L=65 		1-09700-466-0 07 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 12 1 1302-1504 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) EXC. RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 12 1 1505- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1302-1405 ●
48 CLIP; FRAME HARNESS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1302-1405 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1406-1511 ●
48 CLIP; FRAME HARNESS
MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. VIN MODEL YEAR 2014<VZE> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1406-1511 ●
48 CLIP; FRAME HARNESS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) (H) OD=9 H=13.5 		1-09709-180-0 01 1 1406-1511 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) IRAN EQUIPMENT(D8T) (H) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. VIN MODEL YEAR 2014<VZE> (H) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA),IRAN EQUIPMENT(D8T) (H) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (O) ID=15 L=65 		1-09700-466-0 08 1 1302- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (K) ID=20 L=70 		1-09700-485-0 13 1 1302- ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (B) ID=11 L=41 		1-09700-403-0 06 1 1305- ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) (Q) L=250 		5-09707-030-1 02 1 1305- ●
48 CLIP; FRAME HARNESS
6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=11 L=41 		1-09700-403-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (N) ID=33 L=83 		1-09701-291-0 01 1 1302-1505 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (N) ID=33 L=83 		1-09701-291-0 01 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (F) L=140 		5-09707-031-1 02 1 1302-1505 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (F) L=140 		5-09707-031-1 02 1 1302-1505 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (F) L=140 		5-09707-031-1 02 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (F) L=140 		5-09707-031-1 02 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 01 1 1302-1401 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (K) ID=20 L=70 		1-09700-485-0 01 1 1302-1401 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 01 1 1402-1505 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) FUEL TANK 200L+200L<NF7> (K) ID=20 L=70 		1-09700-485-0 01 1 1402-1505 ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (K) ID=20 L=70 		1-09700-485-0 01 1 1402-1505 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) FUEL TANK 200L+200L<NF7> (K) ID=20 L=70 		1-09700-485-0 01 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 01 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) (K) ID=20 L=70 		1-09700-485-0 01 1 1506- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (I) ID=9 L=28 		0-95234-855-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (I) ID=9 L=28 		0-95234-855-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (A) ID=14.5 L=20 		1-09701-012-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (J) L=180 		1-09707-162-1 02 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (J) L=180 		1-09707-162-1 02 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (D) ID=16 L=40 		0-95235-576-0 03 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (J) L=180 		1-09707-162-1 01 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6 		1-09709-178-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) RUSSIA EQUIPMENT(B12) (K) ID=20 L=70 		1-09700-485-0 02 1 1302- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50 		0-95325-586-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (P) ID=14.5 L=40 		1-09701-014-0 01 1 1302- ●
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=11 L=61 		1-09700-484-0 01 1 1302- ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE<JE5> (A) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EURO2 SPECIFICATION<NT2> (A) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) OD=9 H=6 		1-09709-178-0 01 1 1506-1511 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (A) OD=9 H=6 		1-09709-178-0 01 1 1506-1511 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EURO2 SPECIFICATION<NT2> (A) OD=9 H=6 		1-09709-178-0 01 1 1506-1511 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (A) OD=9 H=6 		1-09709-178-0 01 1 1512- ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (A) OD=9 H=6 		1-09709-178-0 01 1 1512- ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EURO2 SPECIFICATION<NT2> (A) OD=9 H=6 		1-09709-178-0 01 1 1512- ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. IRAN EQUIPMENT(D8T) (B) OD=9 H=13.5 		1-09709-180-0 01 1 1302-1410 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE<JE5> (B) OD=9 H=13.5 		1-09709-180-0 01 1 1302-1410 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. IRAN EQUIPMENT(D8T) (B) OD=9 H=13.5 		1-09709-180-0 01 1 1411-1505 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> (B) OD=9 H=13.5 		1-09709-180-0 01 1 1411-1505 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) OD=9 H=13.5 		1-09709-180-0 01 1 1506-1511 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. IRAN EQUIPMENT(D8T) (B) OD=9 H=13.5 		1-09709-180-0 01 1 1506-1511 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. IRAN EQUIPMENT(D8T) (B) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. IRAN EQUIPMENT(D8T) (B) OD=9 H=13.5 		1-09709-180-0 01 1 1512- ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) L=250 		5-09707-030-1 01 1 1302-1505 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE<JE5> (C) L=250 		5-09707-030-1 01 1 1302-1505 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (C) L=250 		5-09707-030-1 01 1 1506-1511 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) L=250 		5-09707-030-1 01 1 1506-1511 ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (C) L=250 		5-09707-030-1 01 1 1512- ●
81 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> (C) L=250 		5-09707-030-1 01 1 1512- ●
178 GROMMET; HARNESS
6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1302- ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1302- ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 03 1 1302- ●
178 GROMMET; HARNESS
WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) (C) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1302-1504 ●
178 GROMMET; HARNESS
WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) (C) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1505-1511 ●
178 GROMMET; HARNESS
WHEEL BASE 6000MM(60W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RUSSIA EQUIPMENT(B12) (C) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1505-1511 ●
178 GROMMET; HARNESS
WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EURO2 SPECIFICATION<NT2> (C) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1512- ●
178 GROMMET; HARNESS
WHEEL BASE 6000MM(60W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RUSSIA EQUIPMENT(B12) (C) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1512- ●
178 GROMMET; HARNESS
4HK1-TCS ENG(RJS) (D) ID=24 OD=30 T=22 		1-09332-104-0 01 1 1305- ●
178 GROMMET; HARNESS
ANTI LOCK BRAKE<JE5> (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1302-1405 ● ●
178 GROMMET; HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RUSSIA EQUIPMENT(B12) (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1302-1405 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1302-1405 ●
178 GROMMET; HARNESS
ANTI LOCK BRAKE<JE5> (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1406-1511 ● ●
178 GROMMET; HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1406-1511 ●
178 GROMMET; HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RUSSIA EQUIPMENT(B12) (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1406-1511 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1406-1511 ●
178 GROMMET; HARNESS
ANTI LOCK BRAKE<JE5> (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1512- ● ●
178 GROMMET; HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) IRAN EQUIPMENT(D8T) (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1512- ●
178 GROMMET; HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1512- ●
178 GROMMET; HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RUSSIA EQUIPMENT(B12) (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1512- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1512- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1302- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1302- ●
183 CLIP; CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> L=250 		5-09707-030-1 01 1 1302- ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> L=250 		5-09707-030-1 01 1 1302- ●
194 CLIP; BAND
AUTO CAB TILT<WV2> L=250 		5-09707-030-1 02 1 1302- ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1302- ● ●
217 CLIP; RR BODY HARNESS
RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) EXC. REVERSING WARNING BUZZER<YM9> L=250 		5-09707-030-1 01 1 1302-1405 ●
217 CLIP; RR BODY HARNESS
RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) EXC. REVERSING WARNING BUZZER<YM9> L=250 		5-09707-030-1 01 1 1406- ●
217 CLIP; RR BODY HARNESS
MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> EXC. REVERSING WARNING BUZZER<YM9> L=250 		5-09707-030-1 01 1 1406- ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1302- ● ●
225 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CATALYSIS CONTROL WITH DPD<8JM> L=250 		5-09707-030-1 08 1 1512- ●
225 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L) L=250 		5-09707-030-1 08 1 1512- ●
225 CLIP; AIR TANK HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=250 		5-09707-030-1 02 1 1302- ●
225 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=250 		5-09707-030-1 08 1 1302-1505 ●
225 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L) L=250 		5-09707-030-1 08 1 1302-1505 ●
225 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=250 		5-09707-030-1 08 1 1506-1511 ●
225 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L) L=250 		5-09707-030-1 08 1 1506-1511 ●
225 CLIP; AIR TANK HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) CATALYSIS CONTROL WITH DPD<8JM> L=250 		5-09707-030-1 06 1 1512- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> (A) ID=11 L=16 		0-95235-025-0 02 1 1302- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (A) ID=11 L=16 		0-95235-025-0 02 1 1302- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER ES11109 DD M/T(Y5N) (B) L=250 		5-09707-030-1 02 1 1302- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (B) L=250 		5-09707-030-1 02 1 1302- ●
292 CAP; RUBBER
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FUEL TANK 200L+200L<NF7> 		1-82691-249-0 01 1 1402-1405 ●
292 CAP; RUBBER
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> 		1-82691-249-0 01 1 1406- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (P) L=300 		1-09707-001-1 01 1 1305- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (Q) L=140 		5-09707-031-1 02 1 1305-1409 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (Q) L=140 		5-09707-031-1 01 1 1410- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (R) L=121.2 & 121.2 		1-09707-188-0 01 1 1305- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (S) L=250 		5-09707-030-1 01 1 1305- ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (L) ID=26 L=27 		1-09701-006-0 01 1 1302-1511 ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (J) ID=16 L=28 		0-95235-556-0 02 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (J) ID=16 L=28 		0-95235-556-0 02 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (K) ID=16 L=40 		0-95235-576-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (K) ID=16 L=40 		0-95235-576-0 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) ID=24 L=32 		1-09700-766-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (E) ID=24 L=32 		1-09700-766-1 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=25 L=60 		1-09701-041-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=25 L=60 		1-09701-041-1 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (I) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (I) OD=9 H=6 		1-09709-178-0 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (N) ID=24 L=27 		1-09700-809-0 03 1 1302- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5 		8-94178-108-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (G) ID=21 L=47.5 		8-94178-108-0 01 1 1506-1511 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1506-1511 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5 		8-94178-108-0 01 1 1512- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1512- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 1302-1511 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 1512- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) L=100 		8-94443-021-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C) L=100 		8-94443-021-1 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=18 L=44 		8-97367-985-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B) ID=18 L=44 		8-97367-985-1 01 1 1506-1511 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=18 L=44 		8-97367-985-1 01 1 1512- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (H) ID=11 L=45 		8-94296-897-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (H) ID=11 L=45 		8-94296-897-1 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (O) L=140 		8-97122-360-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (O) L=140 		8-97122-360-0 01 1 1506- ● ●
503 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (A) 		1-82690-666-0 01 1 1302-1505 ●
503 CONNECTOR
6HK1-TCS ENG(80L) EXC. AIR DRYER<PS7> (A) 		1-82690-666-0 01 1 1302-1505 ●
503 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (A) 		1-82690-666-0 01 1 1506- ●
503 CONNECTOR
6HK1-TCS ENG(80L) EXC. AIR DRYER<PS7> (A) 		1-82690-666-0 01 1 1506- ●
503 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) 		1-82690-668-0 01 1 1302-1505 ● ●
503 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 1302-1505 ● ●
503 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B) 		1-82690-668-0 01 1 1506-1511 ● ●
503 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 1506-1511 ● ●
503 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) 		1-82690-668-0 01 1 1512- ● ●
503 CONNECTOR
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 1512- ● ●
530 SEAL; HARNESS
EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
EXC. H.S.A SYSTEM<6EP> 180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1302- ● ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1302- ● ●
çizim 332448
150 304 304 139 150 304 38 150 304 304 516 358 377 150 38 139 313 38 139 150 313 38 139 139 242 313 139 139 139 139 139 242 139 38 127 38 386 139
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1302-1505 ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1302-1505 ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1302-1505 ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1506- ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1506- ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1506- ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) M8X30 FLANGE 		0-28650-830-0 01 1 1302-1505 ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L) (D) M8X30 FLANGE 		0-28650-830-0 01 1 1302-1505 ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) M8X30 FLANGE 		0-28650-830-0 01 1 1506- ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L) (D) M8X30 FLANGE 		0-28650-830-0 01 1 1506- ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> (D) M8X30 FLANGE 		0-28650-830-0 02 1 1302- ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (D) M8X30 FLANGE 		0-28650-830-0 02 1 1302- ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) (C) M8X16 FLANGE 		0-28050-816-0 03 1 1302- ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (C) M8X16 FLANGE 		0-28050-816-0 03 1 1302- ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1302-1506 ●
38 BOLT; CLIP,HARNESS
ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1507- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1302- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1302-1505 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1506- ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L) (B) M8X25 FLANGE 		0-28650-825-0 03 1 1506- ●
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1302- ● ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1302- ● ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1302- ●
38 BOLT; CLIP,HARNESS
(E) M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1302- ●
38 BOLT; CLIP,HARNESS
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (C) M8X16 FLANGE 		0-28050-816-0 01 1 1302- ●
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1302- ● ●
139 BOLT; BRKT
FULLER ES11109 DD M/T(Y5N) (J) M10X16 FLANGE 		0-28151-016-0 01 1 1302- ●
139 BOLT; BRKT
FULLER FS8209HD DD M/T(Y3A) (J) M10X16 FLANGE 		0-28151-016-0 01 1 1302- ●
139 BOLT; BRKT
FULLER ES11109 DD M/T(Y5N) (H) M10X20 FLANGE 		0-28651-020-0 01 1 1302- ●
139 BOLT; BRKT
FULLER FS8209HD DD M/T(Y3A) (H) M10X20 FLANGE 		0-28651-020-0 01 1 1302- ●
139 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (J) M10X16 FLANGE 		0-28051-016-0 03 1 1302- ●
139 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (G) M10X20 FLANGE 		0-28751-020-0 01 1 1302- ●
139 BOLT; BRKT
4HK1-TCS ENG(RJS) (K) M8X20 FLANGE 		0-28650-820-0 01 1 1305-1405 ●
139 BOLT; BRKT
4HK1-TCS ENG(RJS) (K) M8X20 FLANGE 		0-28650-820-0 01 1 1406-1511 ●
139 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (K) M8X20 FLANGE 		0-28650-820-0 01 1 1406-1511 ●
139 BOLT; BRKT
4HK1-TCS ENG(RJS) (K) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ●
139 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (K) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ●
139 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) IRAN EQUIPMENT(D8T) (K) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ●
139 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (L) M8X65 FLANGE 		1-09044-072-1 01 1 1305- ●
139 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1302-1505 ●
139 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1302-1505 ●
139 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE<JE5> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1302-1505 ●
139 BOLT; BRKT
6HK1-TCS ENG(80L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1302-1505 ●
139 BOLT; BRKT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EURO2 SPECIFICATION<NT2> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1302-1505 ●
139 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506-1511 ●
139 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506-1511 ●
139 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506-1511 ●
139 BOLT; BRKT
6HK1-TCS ENG(80L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506-1511 ●
139 BOLT; BRKT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EURO2 SPECIFICATION<NT2> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506-1511 ●
139 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ●
139 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ●
139 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ●
139 BOLT; BRKT
6HK1-TCS ENG(80L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ●
139 BOLT; BRKT
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EURO2 SPECIFICATION<NT2> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ●
139 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1302-1505 ●
139 BOLT; BRKT
6HK1-TCS ENG(80L) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1302-1505 ●
139 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1506- ●
139 BOLT; BRKT
6HK1-TCS ENG(80L) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1506- ●
139 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 1302- ●
139 BOLT; BRKT
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 1302- ●
139 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (M) M8X35 FLANGE 		0-28650-835-0 01 1 1302-1505 ●
139 BOLT; BRKT
(M) M8X35 FLANGE 		0-28650-835-0 01 1 1302-1505 ●
139 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (M) M8X35 FLANGE 		0-28650-835-0 01 1 1506- ●
139 BOLT; BRKT
(M) M8X35 FLANGE 		0-28650-835-0 01 1 1506- ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1302- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1302- ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 1302- ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 1302- ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 04 1 1302- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302- ● ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) (E) M6X16 FLANGE 		0-28650-616-0 01 1 1401- ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1305- ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1305- ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) M6X12 FLANGE 		0-28050-612-0 02 1 1305-1312 ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) M6X12 FLANGE 		0-28050-612-0 02 1 1401-1511 ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C) M6X12 FLANGE 		0-28050-612-0 02 1 1512- ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (C) M6X12 FLANGE 		0-28050-612-0 01 1 1305-1312 ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C) M6X12 FLANGE 		0-28050-612-0 03 1 1401- ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) (D) M8X12 FLANGE 		0-28050-812-0 01 1 1305- ●
150 BOLT; CLIP
BUMPER W/HEADLAMPS<SLB> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1302- ● ●
242 BOLT; BRKT,HARNESS
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) IRAN EQUIPMENT(D8T) CATALYSIS CONTROL WITH DPD<8JM> (B) M8X35 FLANGE 		0-28650-835-0 01 1 1512- ●
242 BOLT; BRKT,HARNESS
4HK1-TCS ENG(RJS) (A) M10X30 FLANGE 		0-28651-030-0 01 1 1305- ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (D) M8X10 FLANGE 		0-28050-810-0 01 1 1302-1511 ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (B) M8X12 FLANGE 		0-28050-812-0 03 1 1302-1511 ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X12 FLANGE 		0-28050-812-0 02 1 1512- ● ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28050-820-0 01 1 1302-1505 ● ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE 		0-28050-820-0 01 1 1302-1505 ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE 		0-28050-820-0 01 1 1506-1511 ● ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE 		0-28050-820-0 01 1 1506-1511 ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28050-820-0 01 1 1512- ● ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE 		0-28050-820-0 01 1 1512- ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE 		0-28050-812-0 06 1 1302- ● ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE 		0-28050-816-0 09 1 1302- ● ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE 		0-28050-820-0 04 1 1302- ● ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (E) M6X12 FLANGE 		0-28050-612-0 01 1 1302-1505 ● ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (E) M6X12 FLANGE 		0-28050-612-0 01 1 1506-1511 ● ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (E) M6X12 FLANGE 		0-28050-612-0 01 1 1512- ● ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5> (E) M6X12 FLANGE 		0-28050-612-0 01 1 1512- ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) M8X16 FLANGE 		0-28050-816-0 03 1 1302-1505 ● ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C) M8X16 FLANGE 		0-28050-816-0 03 1 1506-1511 ● ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) M8X16 FLANGE 		0-28050-816-0 03 1 1512- ● ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (B) M8X12 FLANGE 		0-28050-812-0 02 1 1302-1505 ● ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X12 FLANGE 		0-28050-812-0 02 1 1506-1511 ● ●
313 BOLT; BRKT
AUTO CAB TILT<WV2> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ●
313 BOLT; BRKT
FRIGID ZONE KIT(YL3) (B) M8X35 FLANGE 		0-28650-835-0 01 1 1302-1304 ●
313 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1302-1304 ●
313 BOLT; BRKT
FRIGID ZONE KIT(YL3) (B) M8X35 FLANGE 		0-28650-835-0 01 1 1305- ●
313 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M8X35 FLANGE 		0-28650-835-0 01 1 1305- ●
313 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1305- ●
313 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X35 FLANGE 		0-28650-835-0 02 1 1302-1505 ●
313 BOLT; BRKT
6HK1-TCS ENG(80L) (B) M8X35 FLANGE 		0-28650-835-0 02 1 1302-1505 ●
313 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M8X35 FLANGE 		0-28650-835-0 02 1 1506- ●
313 BOLT; BRKT
6HK1-TCS ENG(80L) (B) M8X35 FLANGE 		0-28650-835-0 02 1 1506- ●
313 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1302-1304 ●
313 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1305- ●
313 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1305- ●
313 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1302-1505 ●
313 BOLT; BRKT
6HK1-TCS ENG(80L) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1302-1505 ●
313 BOLT; BRKT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1506- ●
313 BOLT; BRKT
6HK1-TCS ENG(80L) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1506- ●
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1302- ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1302- ● ●
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1302- ● ●
516 BOLT; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1302-1311 ● ●
516 BOLT; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. GLOW SYSTEM DELETE<7RK> M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1312-1505 ● ●
516 BOLT; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> EXC. GLOW SYSTEM DELETE<7RK> M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1506-1511 ● ●
516 BOLT; HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5> M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1506-1511 ● ●
516 BOLT; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. GLOW SYSTEM DELETE<7RK> M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1512- ● ●
516 BOLT; HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5> M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1512- ● ●
çizim 332455
16 16 6 16 16 305 16 306 305
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 02 1 1302- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 1302- ●
16 CLIP; HARNESS
FRIGID ZONE KIT(YL3) (D) ID=5-12 L=26 		1-09709-289-0 04 1 1302-1302 ●
16 CLIP; HARNESS
FRIGID ZONE KIT(YL3) (D) ID=5-12 L=26 		1-09709-289-0 02 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FRIGID ZONE KIT(YL3) (D) ID=5-12 L=26 		1-09709-289-0 02 1 1302- ●
16 CLIP; HARNESS
WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (M) ID=5-12 L=14.5 		1-09987-221-0 01 1 1302- ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (N) L=600 		1-09707-107-1 01 1 1302-1401 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> (N) L=600 		1-09707-107-1 01 1 1302-1401 ●
16 CLIP; HARNESS
(N) L=600 		1-09707-107-1 01 1 1302-1401 ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> (N) L=600 		1-09707-107-1 01 1 1402- ●
16 CLIP; HARNESS
FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH> (N) L=600 		1-09707-107-1 01 1 1402- ●
16 CLIP; HARNESS
(N) L=600 		1-09707-107-1 01 1 1402- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (T) ID=17 L=21 		8-98082-035-0 01 1 1305- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (U) ID=24 L=24 		1-09701-001-1 01 1 1305-1511 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (U) ID=24 L=24 		1-09701-001-1 01 1 1512- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (V) ID=32 L=35 		1-09701-244-0 01 1 1305- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (L) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) EXC. AIR DRYER<PS7> (L) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (L) OD=9 H=6 		1-09709-178-0 01 1 1506- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) EXC. AIR DRYER<PS7> (L) OD=9 H=6 		1-09709-178-0 01 1 1506- ●
16 CLIP; HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1302- ● ●
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 04 1 1302- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1302- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1302- ● ●
16 CLIP; HARNESS
(R) L=40.6 		8-97229-357-0 02 1 1302- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1302- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 L=16 		0-95235-025-0 02 1 1302- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302- ● ●
16 CLIP; HARNESS
FRIGID ZONE KIT(YL3) (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1302- ●
16 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (S) ID=15 H=30 L=30 		1-09700-832-0 02 1 1302- ● ●
16 CLIP; HARNESS
(Q) W/SPONGE RUBBER 		1-09709-150-0 01 1 1302- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11X2 L=16 		0-95325-025-0 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) (J) ID=10 & 15 		1-09709-279-1 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (F) L=250 		5-09707-030-1 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (F) L=250 		5-09707-030-1 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (E) 		8-94377-313-1 01 1 1302- ●
16 CLIP; HARNESS
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (I) ID=21 L=24 		8-98019-191-0 01 1 1302- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (P) L=300 		1-09707-001-1 01 1 1305- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (Q) L=140 		5-09707-031-1 02 1 1305-1409 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (Q) L=140 		5-09707-031-1 01 1 1410- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (R) L=121.2 & 121.2 		1-09707-188-0 01 1 1305- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (S) L=250 		5-09707-030-1 01 1 1305- ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (L) ID=26 L=27 		1-09701-006-0 01 1 1302-1511 ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (J) ID=16 L=28 		0-95235-556-0 02 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (J) ID=16 L=28 		0-95235-556-0 02 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (K) ID=16 L=40 		0-95235-576-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (K) ID=16 L=40 		0-95235-576-0 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) ID=24 L=32 		1-09700-766-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (E) ID=24 L=32 		1-09700-766-1 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=25 L=60 		1-09701-041-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=25 L=60 		1-09701-041-1 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (I) OD=9 H=6 		1-09709-178-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (I) OD=9 H=6 		1-09709-178-0 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (N) ID=24 L=27 		1-09700-809-0 03 1 1302- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5 		8-94178-108-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (G) ID=21 L=47.5 		8-94178-108-0 01 1 1506-1511 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1506-1511 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5 		8-94178-108-0 01 1 1512- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1512- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 1302-1511 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 1512- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) L=100 		8-94443-021-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C) L=100 		8-94443-021-1 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) ID=18 L=44 		8-97367-985-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B) ID=18 L=44 		8-97367-985-1 01 1 1506-1511 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=18 L=44 		8-97367-985-1 01 1 1512- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (H) ID=11 L=45 		8-94296-897-1 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (H) ID=11 L=45 		8-94296-897-1 01 1 1506- ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (O) L=140 		8-97122-360-0 01 1 1302-1505 ● ●
305 CLIP; ENG HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (O) L=140 		8-97122-360-0 01 1 1506- ● ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=28 L=32 		1-09701-107-1 01 1 1302-1505 ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCS ENG(80L) (A) ID=28 L=32 		1-09701-107-1 01 1 1302-1505 ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=28 L=32 		1-09701-107-1 01 1 1506- ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCS ENG(80L) (A) ID=28 L=32 		1-09701-107-1 01 1 1506- ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=28X2 L=28 		1-09701-302-0 02 1 1302-1505 ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCS ENG(80L) (B) ID=28X2 L=28 		1-09701-302-0 02 1 1302-1505 ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=28X2 L=28 		1-09701-302-0 02 1 1506- ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCS ENG(80L) (B) ID=28X2 L=28 		1-09701-302-0 02 1 1506- ●
çizim 332457
184 524 294 219 525 524 294 47
BalonParca AdiParca NoAdetTipApplied Date A B
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ●
184 WASHER; PL,STARTER EARTH
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 1302-1511 ●
184 WASHER; PL,STARTER EARTH
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 1302-1511 ●
184 WASHER; PL,STARTER EARTH
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 1302-1511 ●
184 WASHER; PL,STARTER EARTH
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 1512- ●
184 WASHER; PL,STARTER EARTH
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 1512- ●
184 WASHER; PL,STARTER EARTH
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1302-1304 ●
184 WASHER; PL,STARTER EARTH
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1302-1304 ●
184 WASHER; PL,STARTER EARTH
4HK1-TCS ENG(RJS) ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1305-1505 ●
184 WASHER; PL,STARTER EARTH
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1305-1505 ●
184 WASHER; PL,STARTER EARTH
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1305-1505 ●
184 WASHER; PL,STARTER EARTH
4HK1-TCS ENG(RJS) ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1506-1511 ●
184 WASHER; PL,STARTER EARTH
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1506-1511 ●
184 WASHER; PL,STARTER EARTH
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1506-1511 ●
184 WASHER; PL,STARTER EARTH
4HK1-TCS ENG(RJS) ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1512- ●
184 WASHER; PL,STARTER EARTH
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1512- ●
184 WASHER; PL,STARTER EARTH
6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1512- ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 01 1 1302-1505 ● ●
219 NUT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 1302-1505 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1302-1505 ●
219 NUT
6HK1-TCS ENG(80L) M8 FLANGE 		0-91180-108-0 01 1 1302-1505 ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 01 1 1506- ● ●
219 NUT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 1506- ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1506- ●
219 NUT
6HK1-TCS ENG(80L) M8 FLANGE 		0-91180-108-0 01 1 1506- ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 02 1 1302- ● ●
219 NUT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 02 1 1302- ●
219 NUT
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 02 1 1302- ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 1302-1304 ●
294 NUT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M8 FLANGE 		0-91180-108-0 01 1 1302-1304 ●
294 NUT
FRIGID ZONE KIT(YL3) (A) M8 FLANGE 		0-91180-108-0 01 1 1302-1304 ●
294 NUT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 01 1 1302-1304 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1302-1304 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1302-1304 ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 1305-1505 ●
294 NUT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 01 1 1305-1505 ●
294 NUT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M8 FLANGE 		0-91180-108-0 01 1 1305-1505 ●
294 NUT
FRIGID ZONE KIT(YL3) (A) M8 FLANGE 		0-91180-108-0 01 1 1305-1505 ●
294 NUT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 01 1 1305-1505 ●
294 NUT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 01 1 1305-1505 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1305-1505 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1305-1505 ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 1506- ●
294 NUT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 01 1 1506- ●
294 NUT
FRIGID ZONE KIT(YL3) (A) M8 FLANGE 		0-91180-108-0 01 1 1506- ●
294 NUT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 01 1 1506- ●
294 NUT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 01 1 1506- ●
294 NUT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M8 FLANGE 		0-91180-108-0 01 1 1506- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1506- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1506- ●
294 NUT
FULLER FSO5206B OD M/T(Y4V) (B) M10 FLANGE 		0-91180-210-0 01 1 1302- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1302-1505 ● ●
294 NUT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8 FLANGE 		0-91180-108-0 02 1 1302-1505 ●
294 NUT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 1302-1505 ●
294 NUT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 1302-1505 ●
294 NUT
6HK1-TCS ENG(80L) (A) M8 FLANGE 		0-91180-108-0 02 1 1302-1505 ●
294 NUT
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 1302-1505 ●
294 NUT
6HK1-TCS ENG(80L) (A) M8 FLANGE 		0-91180-108-0 02 1 1302-1505 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1506- ● ●
294 NUT
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 1506- ●
294 NUT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8 FLANGE 		0-91180-108-0 02 1 1506- ●
294 NUT
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 1506- ●
294 NUT
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 1506- ●
294 NUT
6HK1-TCS ENG(80L) (A) M8 FLANGE 		0-91180-108-0 02 1 1506- ●
294 NUT
6HK1-TCS ENG(80L) (A) M8 FLANGE 		0-91180-108-0 02 1 1506- ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 04 1 1302- ● ●
524 NUT; HARNESS
(A) M6 FLANGE 		0-91180-106-0 04 1 1302- ● ●
524 NUT; HARNESS
4HK1-TCS ENG(RJS) (B) M10 FLANGE 		0-91180-110-0 01 1 1305- ●
525 NUT; CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) T=8.0 M8 FLANGE 		0-91180-108-0 02 1 1302-1505 ●
525 NUT; CLIP
6HK1-TCS ENG(80L) T=8.0 M8 FLANGE 		0-91180-108-0 02 1 1302-1505 ●
525 NUT; CLIP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) T=8.0 M8 FLANGE 		0-91180-108-0 02 1 1506- ●
525 NUT; CLIP
6HK1-TCS ENG(80L) T=8.0 M8 FLANGE 		0-91180-108-0 02 1 1506- ●
525 NUT; CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) T=8.0 M8 FLANGE 		0-91180-108-0 01 1 1302-1304 ●
525 NUT; CLIP
6HK1-TCS ENG(80L) T=8.0 M8 FLANGE 		0-91180-108-0 01 1 1302-1304 ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 1305- ● ●
525 NUT; CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> T=8.5 M8 FLANGE 		5-09440-010-0 01 1 1302-1505 ● ●
525 NUT; CLIP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> T=8.5 M8 FLANGE 		5-09440-010-0 01 1 1506- ● ●
çizim 332458
69 137 59 59 59 59 59 59 53 53 59 342 53 53 7
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98090-846-0 01 1 1302- ● ●
53 BRACKET; HARNESS
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) IRAN EQUIPMENT(D8T) CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-97620-485-0 01 1 1512- ●
53 BRACKET; HARNESS
FRIGID ZONE KIT(YL3) (B) 		8-98124-778-0 01 1 1302- ●
53 BRACKET; HARNESS
(C) 		8-98052-458-0 01 1 1302- ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98084-699-0 01 1 1302- ● ●
59 BRACKET; FRAME HARNESS
4HK1-TCS ENG(RJS) (F) 		8-97612-957-1 02 1 1305- ●
59 BRACKET; FRAME HARNESS
4HK1-TCS ENG(RJS) (D) 		8-98211-162-0 01 1 1305- ●
59 BRACKET; FRAME HARNESS
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A) 		8-98099-963-0 01 1 1305- ●
59 BRACKET; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) 		8-98047-730-0 02 1 1302-1505 ●
59 BRACKET; FRAME HARNESS
6HK1-TCS ENG(80L) (E) 		8-98047-730-0 02 1 1302-1505 ●
59 BRACKET; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (E) 		8-98047-730-0 02 1 1506- ●
59 BRACKET; FRAME HARNESS
6HK1-TCS ENG(80L) (E) 		8-98047-730-0 02 1 1506- ●
59 BRACKET; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) 		8-98107-611-0 01 1 1302-1505 ●
59 BRACKET; FRAME HARNESS
6HK1-TCS ENG(80L) (C) 		8-98107-611-0 01 1 1302-1505 ●
59 BRACKET; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) 		8-98107-611-0 01 1 1506- ●
59 BRACKET; FRAME HARNESS
6HK1-TCS ENG(80L) (C) 		8-98107-611-0 01 1 1506- ●
59 BRACKET; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) L=62 		1-21464-170-2 01 1 1302-1505 ●
59 BRACKET; FRAME HARNESS
(B) L=62 		1-21464-170-2 01 1 1302-1505 ●
59 BRACKET; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) L=62 		1-21464-170-2 01 1 1506- ●
59 BRACKET; FRAME HARNESS
(B) L=62 		1-21464-170-2 01 1 1506- ●
59 BRACKET; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A) 		8-97609-264-2 01 1 1302-1505 ●
59 BRACKET; FRAME HARNESS
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (A) 		8-97609-264-2 01 1 1302-1505 ●
59 BRACKET; FRAME HARNESS
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A) 		8-97609-264-2 01 1 1506- ●
59 BRACKET; FRAME HARNESS
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) (A) 		8-97609-264-2 01 1 1506- ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1302-1502 ● ●
59 BRACKET; FRAME HARNESS
(G) 		8-98254-592-0 01 1 1503- ● ●
69 BRACKET; CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> L=55 		1-47475-304-0 01 1 1302-1505 ●
69 BRACKET; CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ANTI LOCK BRAKE<JE5> L=55 		1-47475-304-0 01 1 1302-1505 ●
69 BRACKET; CLIP
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EURO2 SPECIFICATION<NT2> L=55 		1-47475-304-0 01 1 1302-1505 ●
69 BRACKET; CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> L=55 		1-47475-304-0 01 1 1506-1511 ●
69 BRACKET; CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> L=55 		1-47475-304-0 01 1 1506-1511 ●
69 BRACKET; CLIP
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EURO2 SPECIFICATION<NT2> L=55 		1-47475-304-0 01 1 1506-1511 ●
69 BRACKET; CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> L=55 		1-47475-304-0 01 1 1512- ●
69 BRACKET; CLIP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. ANTI LOCK BRAKE<JE5> L=55 		1-47475-304-0 01 1 1512- ●
69 BRACKET; CLIP
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EURO2 SPECIFICATION<NT2> L=55 		1-47475-304-0 01 1 1512- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (E) L=75 		1-47478-328-0 01 1 1406-1511 ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (E) L=75 		1-47478-328-0 01 1 1512- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) IRAN EQUIPMENT(D8T) (E) L=75 		1-47478-328-0 01 1 1512- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C) 		8-97614-728-1 01 1 1302-1505 ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L) (C) 		8-97614-728-1 01 1 1302-1505 ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) 		8-97614-728-1 01 1 1506- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L) (C) 		8-97614-728-1 01 1 1506- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) 		8-97624-013-0 01 1 1302-1505 ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L) (A) 		8-97624-013-0 01 1 1302-1505 ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		8-97624-013-0 01 1 1506- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L) (A) 		8-97624-013-0 01 1 1506- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> (B) 		8-97609-797-1 02 1 1302- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCS ENG(80L) ANTI LOCK BRAKE<JE5> (B) 		8-97609-797-1 02 1 1302- ●
137 BRACKET; HARNESS CLAMP
4HK1-TCS ENG(RJS) (D) 		8-98193-417-0 01 1 1305- ●
342 BRACKET; HARNESS CAB MTG
4HK1-TCS ENG(RJS) 		8-98099-963-0 01 1 1305- ●
çizim 460121
334 334 334 334 428 335 334 428 428
BalonParca AdiParca NoAdetTipApplied Date A B
334 BRACKET
FULLER ES11109 DD M/T(Y5N) (E) 		1-82698-630-0 01 1 1302- ●
334 BRACKET
FULLER FS8209HD DD M/T(Y3A) (E) 		1-82698-630-0 01 1 1302- ●
334 BRACKET
FULLER ES11109 DD M/T(Y5N) (D) 		8-98098-890-0 01 1 1302- ●
334 BRACKET
FULLER FS8209HD DD M/T(Y3A) (D) 		8-98098-890-0 01 1 1302- ●
334 BRACKET
FULLER FSO5206B OD M/T(Y4V) (C) 		1-47475-868-0 02 1 1302- ●
334 BRACKET
FULLER FSO5206B OD M/T(Y4V) (B) 		1-47477-698-0 02 1 1302- ●
334 BRACKET
FULLER FSO5206B OD M/T(Y4V) (A) 		1-82699-639-1 01 1 1302- ●
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1302- ●
428 BRACKET
4HK1-TCS ENG(RJS) (C) 		8-98203-354-2 01 1 1305- ●
428 BRACKET
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) 		8-98212-082-1 01 1 1302-1505 ●
428 BRACKET
6HK1-TCS ENG(80L) (A) 		8-98212-082-1 01 1 1302-1505 ●
428 BRACKET
6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		8-98212-082-1 01 1 1506- ●
428 BRACKET
6HK1-TCS ENG(80L) (A) 		8-98212-082-1 01 1 1506- ●
428 BRACKET
(B) 		1-47476-658-0 01 1 1302- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
