Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#112961) — 332 parça

48 213 48 48 48 483 306 305 305 16 48 306 305 305 483 16 16 483 16 483 49 305 305

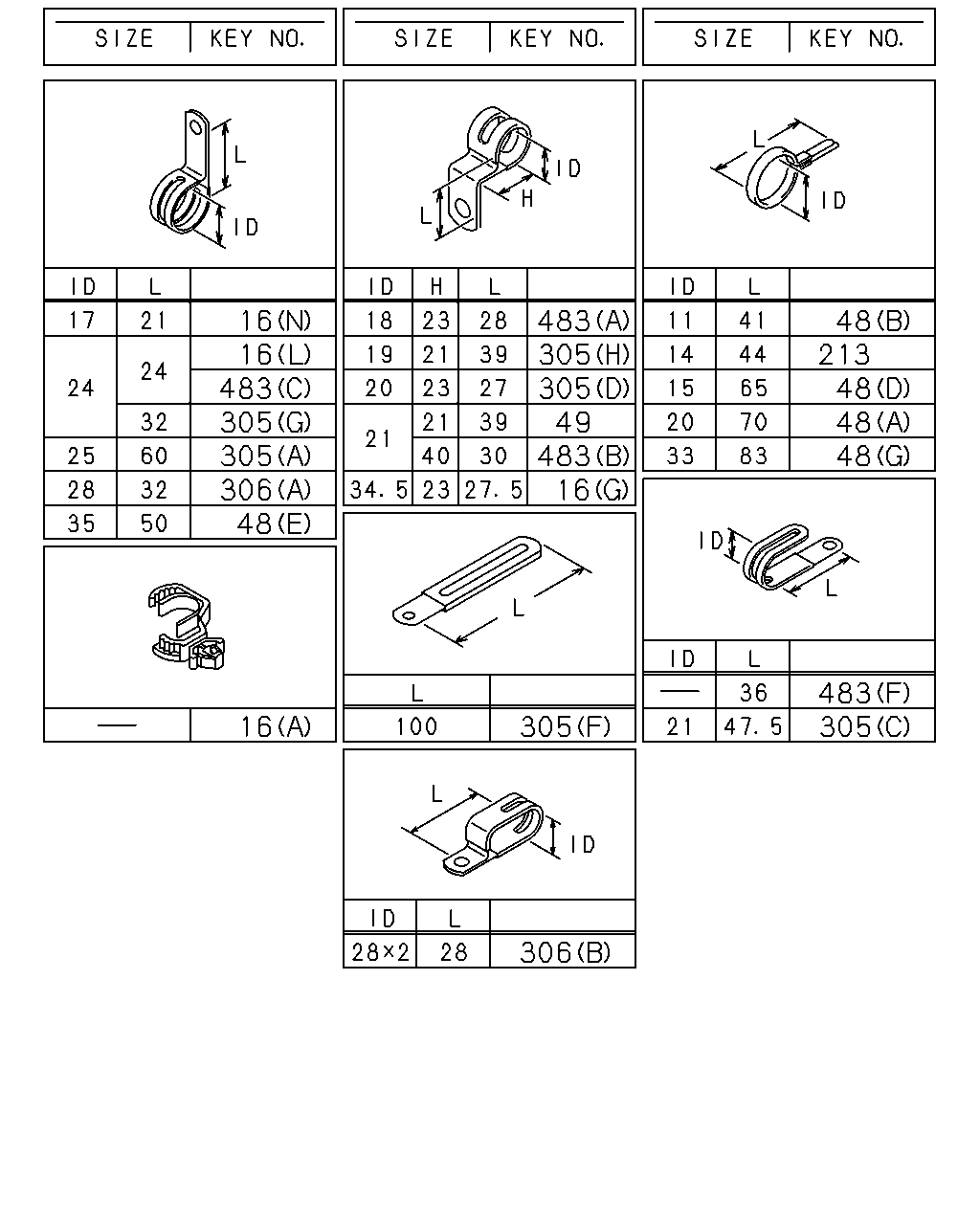

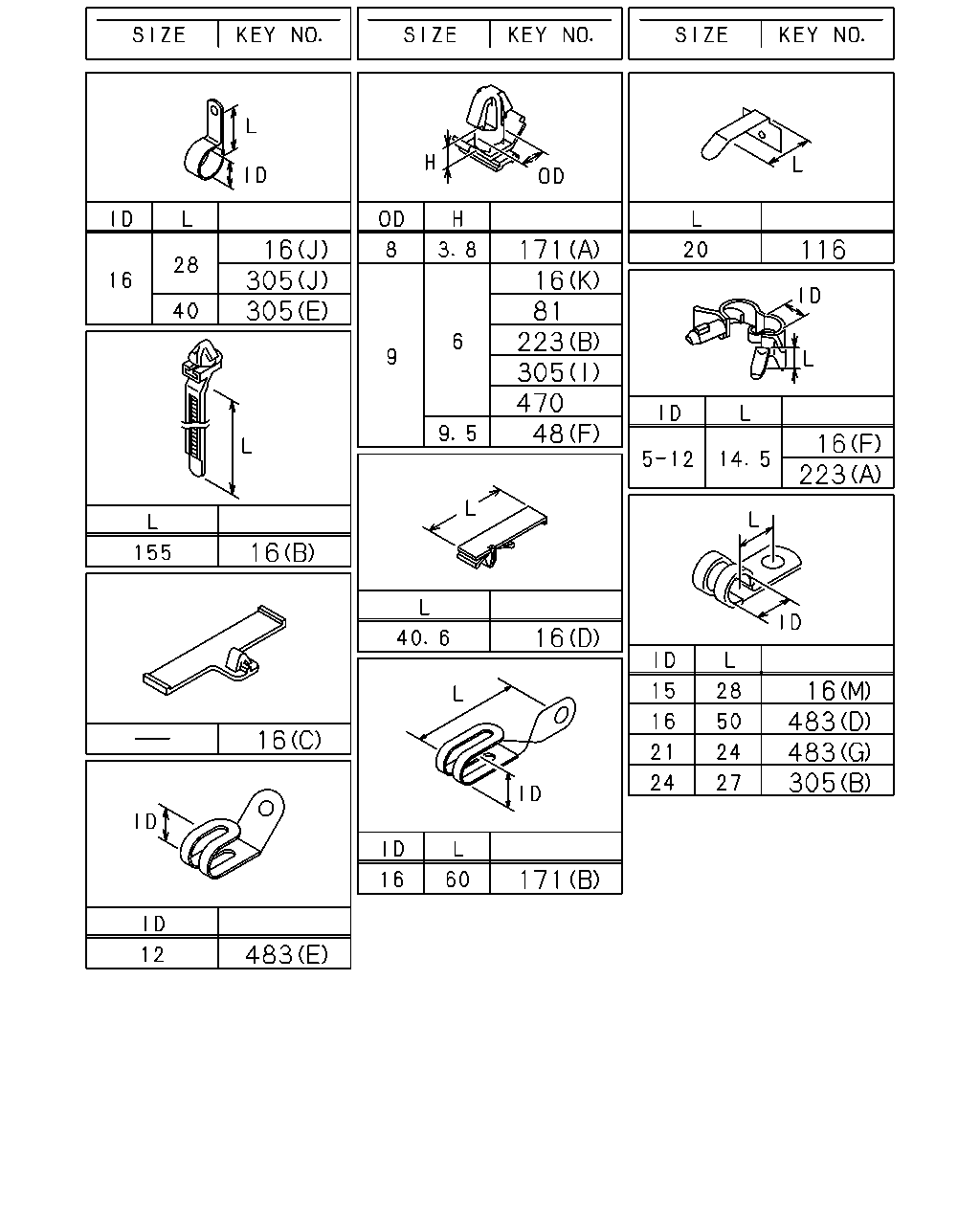

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (G) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (G) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (I) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	03	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (H) L=600	1-09707-107-1	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (L) ID=24 L=24	1-09701-001-1	01	1	1305-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (M) ID=15 L=28	1-09701-216-0	02	1	1305-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=17 L=21	8-98082-035-0	01	1	1305-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (K) OD=9 H=6	1-09709-178-0	01	1	1302-
48	CLIP; FRAME HARNESS (D) ID=15 L=65	1-09700-466-0	02	1	1302-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (D) ID=15 L=65	1-09700-466-0	05	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=20 L=70	1-09700-485-0	05	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=20 L=70	1-09700-485-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (D) ID=15 L=65	1-09700-466-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (A) ID=20 L=70	1-09700-485-0	08	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=20 L=70	1-09700-485-0	09	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (D) ID=15 L=65	1-09700-466-0	07	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=11 L=41	1-09700-403-0	06	1	1305-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (I) L=250	5-09707-030-1	02	1	1305-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (G) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (H) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=15 L=65	1-09700-466-0	01	1	1302-1304
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (D) ID=15 L=65	1-09700-466-0	01	1	1305-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=15 L=65	1-09700-466-0	01	1	1305-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=20 L=70	1-09700-485-0	01	1	1302-
49	CLIP; GEN HARNESS 4HK1-TCS ENG(RJS) ID=21 H=21 L=39	8-98230-579-0	01	1	1305-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) L=300	1-09707-001-1	01	1	1305-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (L) L=140	5-09707-031-1	02	1	1305-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (L) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1305-
305	CLIP; ENG HARNESS (E) ID=16 L=40	0-95235-576-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) ID=16 L=40	0-95235-576-0	01	1	1305-
305	CLIP; ENG HARNESS (G) ID=24 L=32	1-09700-766-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=24 L=32	1-09700-766-1	01	1	1305-
305	CLIP; ENG HARNESS (B) ID=24 L=27	1-09700-809-0	03	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=24 L=27	1-09700-809-0	03	1	1305-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-
305	CLIP; ENG HARNESS (H) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=19 L=39 H=21	1-09700-972-1	01	1	1305-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1305-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	1305-
305	CLIP; ENG HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) ID=21 L=47.5	8-94178-108-0	01	1	1305-
305	CLIP; ENG HARNESS (F) L=100	8-94443-021-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) L=100	8-94443-021-1	01	1	1305-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=28 L=32	1-09701-107-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=24 L=24	1-09701-001-1	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=16 L=50	1-09701-158-0	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1305-1312
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=12 B=13 ID=6.5	5-09700-348-0	03	1	1401-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=36	8-94224-891-1	02	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=21 L=24	8-98019-191-0	01	1	1305-

225 217 206 183 48 16 14 305 48 22 14 530 538 503 503 14 14 178 178 1 1 16 305 14 16 48

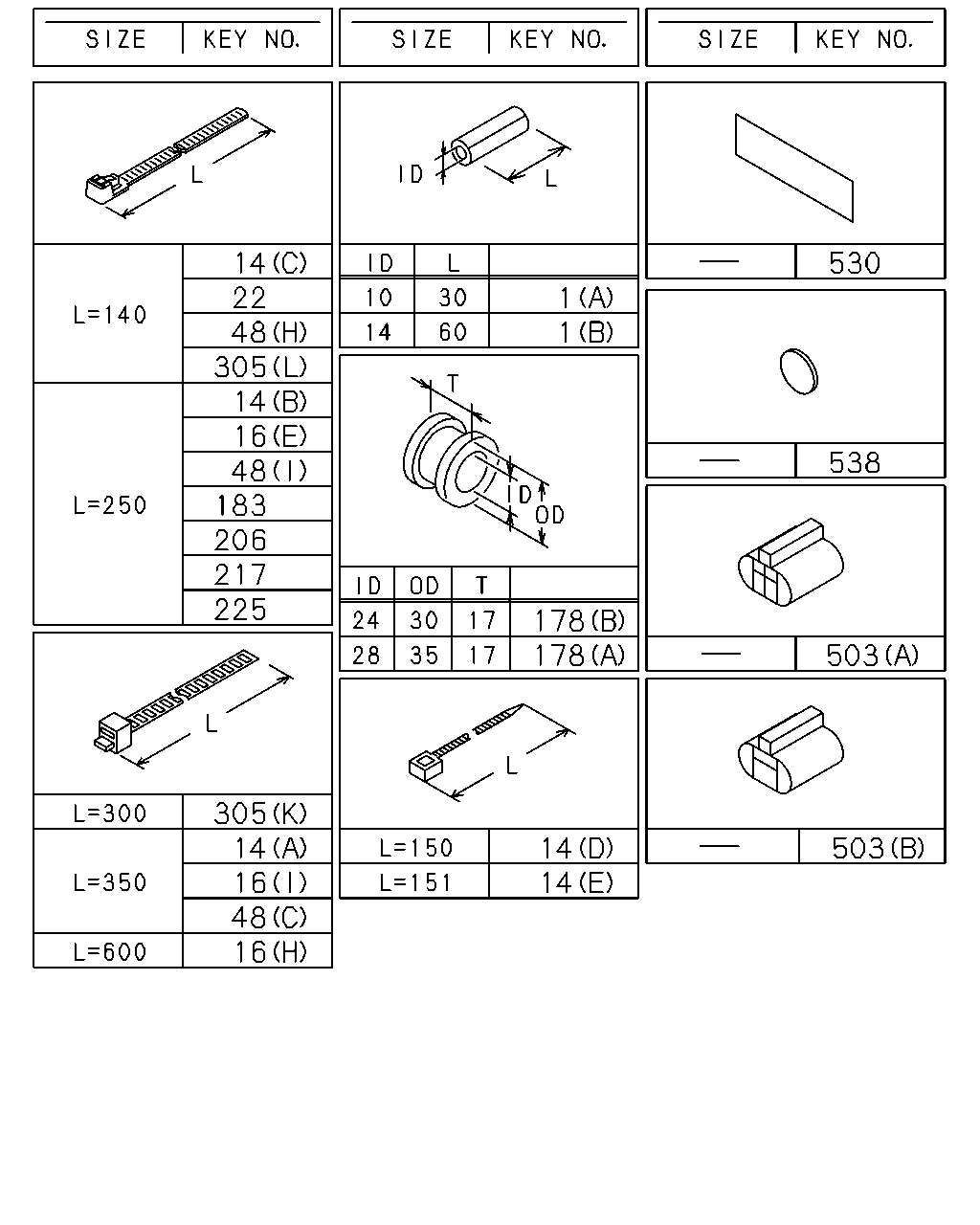

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1302-1304
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1305-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1302-1304
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1305-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) GLOW SYSTEM DELETE<7RK> (C) L=140	5-09707-031-1	01	1	1312-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) GLOW SYSTEM DELETE<7RK> (B) L=250	8-98216-430-0	01	1	1312-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (C) L=140	5-09707-031-1	02	1	1305-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (D) L=150	8-97355-273-0	01	1	1305-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (E) L=251	8-97619-917-0	01	1	1305-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (E) L=251	8-97619-917-0	02	1	1305-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (A) L=350	1-09707-183-0	01	1	1302-
14	CLIP; BAND,HARNESS (B) L=250	8-98216-430-0	08	1	1302-1304
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (B) L=250	8-98216-430-0	08	1	1305-
16	CLIP; HARNESS (G) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (G) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (I) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	03	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (H) L=600	1-09707-107-1	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (L) ID=24 L=24	1-09701-001-1	01	1	1305-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (M) ID=15 L=28	1-09701-216-0	02	1	1305-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=17 L=21	8-98082-035-0	01	1	1305-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (K) OD=9 H=6	1-09709-178-0	01	1	1302-
22	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) L=140	5-09707-031-1	02	1	1305-
48	CLIP; FRAME HARNESS (D) ID=15 L=65	1-09700-466-0	02	1	1302-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (D) ID=15 L=65	1-09700-466-0	05	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=20 L=70	1-09700-485-0	05	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=20 L=70	1-09700-485-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (D) ID=15 L=65	1-09700-466-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (A) ID=20 L=70	1-09700-485-0	08	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=20 L=70	1-09700-485-0	09	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (D) ID=15 L=65	1-09700-466-0	07	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=11 L=41	1-09700-403-0	06	1	1305-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (I) L=250	5-09707-030-1	02	1	1305-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (G) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (H) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=15 L=65	1-09700-466-0	01	1	1302-1304
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (D) ID=15 L=65	1-09700-466-0	01	1	1305-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=15 L=65	1-09700-466-0	01	1	1305-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=20 L=70	1-09700-485-0	01	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
178	GROMMET; HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-
178	GROMMET; HARNESS 4HK1-TCS ENG(RJS) (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1305-
183	CLIP; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	1302-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1302-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1302-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250	5-09707-030-1	02	1	1302-
225	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	5-09707-030-1	08	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) L=300	1-09707-001-1	01	1	1305-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (L) L=140	5-09707-031-1	02	1	1305-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (L) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1305-
305	CLIP; ENG HARNESS (E) ID=16 L=40	0-95235-576-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) ID=16 L=40	0-95235-576-0	01	1	1305-
305	CLIP; ENG HARNESS (G) ID=24 L=32	1-09700-766-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=24 L=32	1-09700-766-1	01	1	1305-
305	CLIP; ENG HARNESS (B) ID=24 L=27	1-09700-809-0	03	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=24 L=27	1-09700-809-0	03	1	1305-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-
305	CLIP; ENG HARNESS (H) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=19 L=39 H=21	1-09700-972-1	01	1	1305-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1305-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	1305-
305	CLIP; ENG HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) ID=21 L=47.5	8-94178-108-0	01	1	1305-
305	CLIP; ENG HARNESS (F) L=100	8-94443-021-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) L=100	8-94443-021-1	01	1	1305-
503	CONNECTOR 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	1302-
503	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A)	1-82690-666-0	01	1	1302-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1302-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1302-

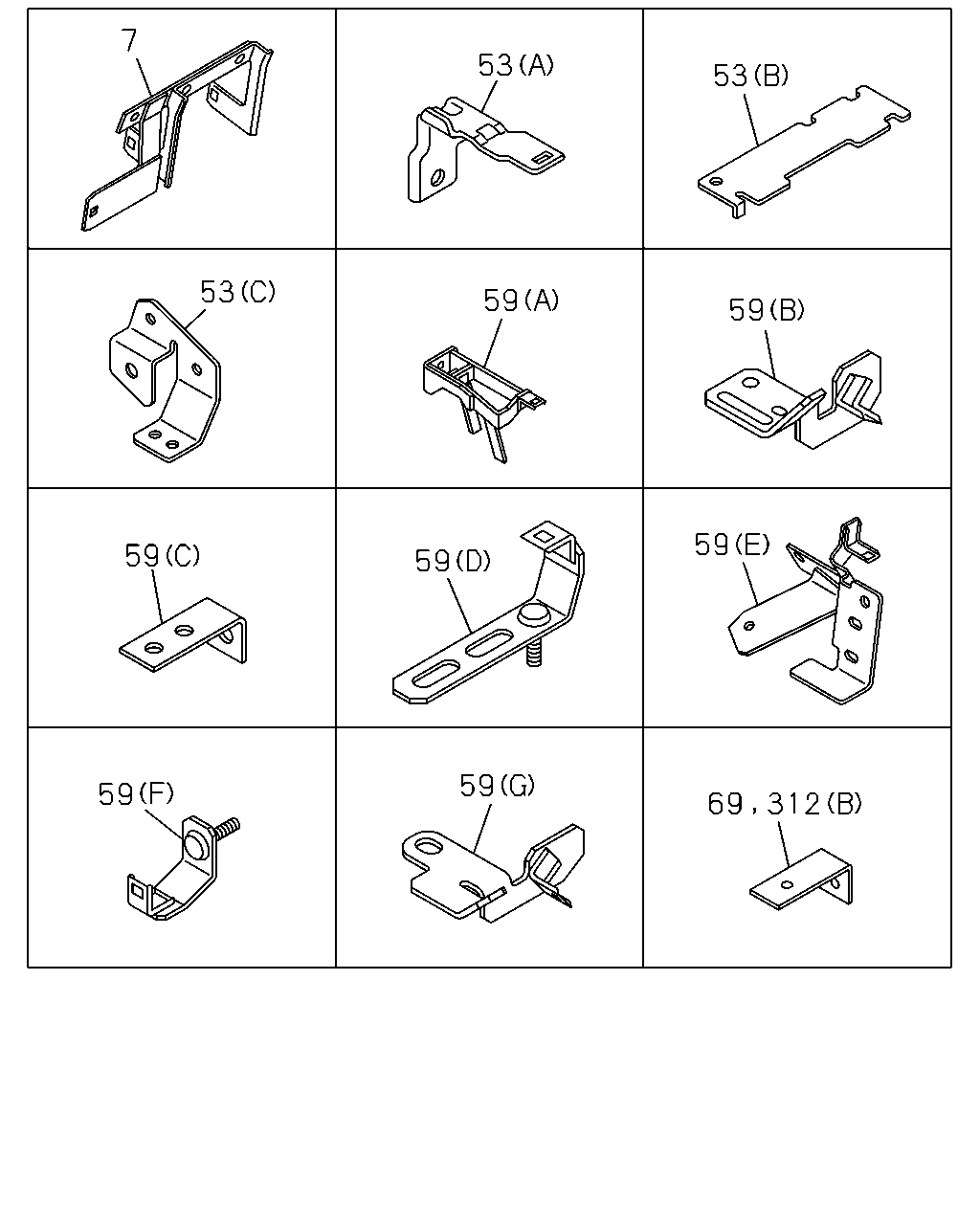

7 53 53 53 59 59 59 59 59 59 59 69 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1302-
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1302-
53	BRACKET; HARNESS (B)	8-98127-093-0	01	1	1302-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98084-590-0	01	1	1302-
59	BRACKET; FRAME HARNESS (B)	8-97616-305-0	01	1	1302-1502
59	BRACKET; FRAME HARNESS (G)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (F)	8-97612-957-1	02	1	1305-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (A)	8-98099-963-0	01	1	1305-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (B)	8-98211-162-0	01	1	1305-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (A)	8-97609-264-2	01	1	1302-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (D)	8-98047-730-0	02	1	1302-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (E)	8-98107-611-0	01	1	1302-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=62	1-21464-170-2	01	1	1302-
69	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=55	1-47475-304-0	01	1	1302-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1302-
312	BRACKET; CLIP HARNESS (A)	8-97609-110-1	01	1	1302-

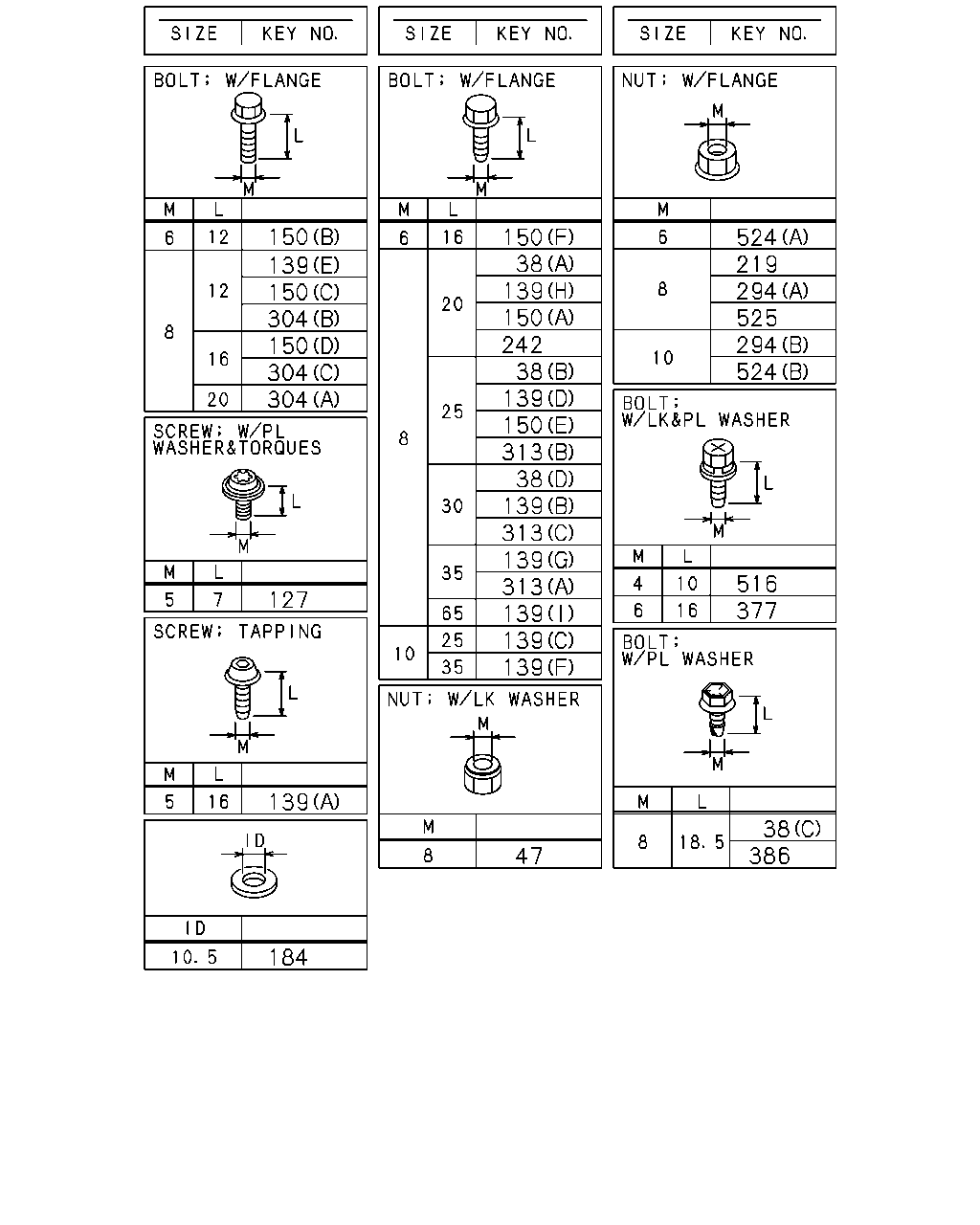

150 150 139 150 304 304 304 150 139 242 150 38 150 139 38 313 139 313 139 313 139 139 139 47 184 127 524 294 525 294 219 524 516 377 38 386 38 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1302-
38	BOLT; CLIP,HARNESS (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1302-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (B) M8X25 FLANGE	0-28650-825-0	03	1	1302-1304
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1305-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1302-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1302-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1302-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1302-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1302-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) (H) M8X20 FLANGE	0-28650-820-0	01	1	1305-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (I) M8X65 FLANGE	1-09044-072-1	01	1	1305-
139	BOLT; BRKT 6HK1-TCN ENG(82L) (D) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
139	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M8X35 FLANGE	0-28650-835-0	01	1	1302-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (F) M6X16 FLANGE	0-28650-616-0	01	1	1401-
150	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M6X12 FLANGE	0-28050-612-0	02	1	1305-1312
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M6X12 FLANGE	0-28050-612-0	03	1	1401-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X12 FLANGE	0-28050-812-0	01	1	1305-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M8X16 FLANGE	0-28050-816-0	02	1	1305-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (E) M8X25 FLANGE	0-28650-825-0	01	1	1305-
184	WASHER; PL,STARTER EARTH 4HK1-TCS ENG(RJS) ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1305-
184	WASHER; PL,STARTER EARTH 6HK1-TCN ENG(82L) ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1302-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1302-
242	BOLT; BRKT,HARNESS M8X20 FLANGE	0-28650-820-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT 6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-1304
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-1304
294	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	01	1	1302-1304
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-1304
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1305-
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1305-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1305-
294	NUT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	01	1	1305-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1305-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	06	1	1302-1304
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (B) M8X12 FLANGE	0-28050-812-0	06	1	1305-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	09	1	1302-1304
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (C) M8X16 FLANGE	0-28050-816-0	09	1	1305-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	04	1	1302-1304
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28050-820-0	04	1	1305-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1302-
313	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X35 FLANGE	0-28650-835-0	01	1	1305-
313	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X35 FLANGE	0-28650-835-0	02	1	1302-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1302-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1302-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1302-1304
516	BOLT; HARNESS 6HK1-TCN ENG(82L) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1305-1311
516	BOLT; HARNESS 6HK1-TCN ENG(82L) EXC. GLOW SYSTEM DELETE<7RK> M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1312-
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	1302-
524	NUT; HARNESS 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-110-0	01	1	1305-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-
525	NUT; CLIP 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-

16 305 305 16 16 483 171 16 48 470 305 223 81 16 171 116 16 223 16 483 483 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (G) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (G) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (I) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	03	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
16	CLIP; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (H) L=600	1-09707-107-1	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (L) ID=24 L=24	1-09701-001-1	01	1	1305-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (M) ID=15 L=28	1-09701-216-0	02	1	1305-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=17 L=21	8-98082-035-0	01	1	1305-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1302-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (K) OD=9 H=6	1-09709-178-0	01	1	1302-
48	CLIP; FRAME HARNESS (D) ID=15 L=65	1-09700-466-0	02	1	1302-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (D) ID=15 L=65	1-09700-466-0	05	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=20 L=70	1-09700-485-0	05	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=20 L=70	1-09700-485-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (D) ID=15 L=65	1-09700-466-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (A) ID=20 L=70	1-09700-485-0	08	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=20 L=70	1-09700-485-0	09	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (D) ID=15 L=65	1-09700-466-0	07	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=11 L=41	1-09700-403-0	06	1	1305-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (I) L=250	5-09707-030-1	02	1	1305-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (G) ID=33 L=83	1-09701-291-0	01	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (H) L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1302-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=15 L=65	1-09700-466-0	01	1	1302-1304
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (D) ID=15 L=65	1-09700-466-0	01	1	1305-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=15 L=65	1-09700-466-0	01	1	1305-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=20 L=70	1-09700-485-0	01	1	1302-
81	CLIP; HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=9 H=6	1-09709-178-0	01	1	1302-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1302-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (A) OD=8 H=3.8	1-09709-309-0	01	1	1305-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (B)	8-97101-436-0	01	1	1305-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) L=300	1-09707-001-1	01	1	1305-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (L) L=140	5-09707-031-1	02	1	1305-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (L) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1305-
305	CLIP; ENG HARNESS (E) ID=16 L=40	0-95235-576-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) ID=16 L=40	0-95235-576-0	01	1	1305-
305	CLIP; ENG HARNESS (G) ID=24 L=32	1-09700-766-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=24 L=32	1-09700-766-1	01	1	1305-
305	CLIP; ENG HARNESS (B) ID=24 L=27	1-09700-809-0	03	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=24 L=27	1-09700-809-0	03	1	1305-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-
305	CLIP; ENG HARNESS (H) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=19 L=39 H=21	1-09700-972-1	01	1	1305-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1305-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	1305-
305	CLIP; ENG HARNESS (C) ID=21 L=47.5	8-94178-108-0	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) ID=21 L=47.5	8-94178-108-0	01	1	1305-
305	CLIP; ENG HARNESS (F) L=100	8-94443-021-1	01	1	1302-1304
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) L=100	8-94443-021-1	01	1	1305-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1302-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=24 L=24	1-09701-001-1	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=16 L=50	1-09701-158-0	01	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1305-1312
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=12 B=13 ID=6.5	5-09700-348-0	03	1	1401-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=36	8-94224-891-1	02	1	1305-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=21 L=24	8-98019-191-0	01	1	1305-

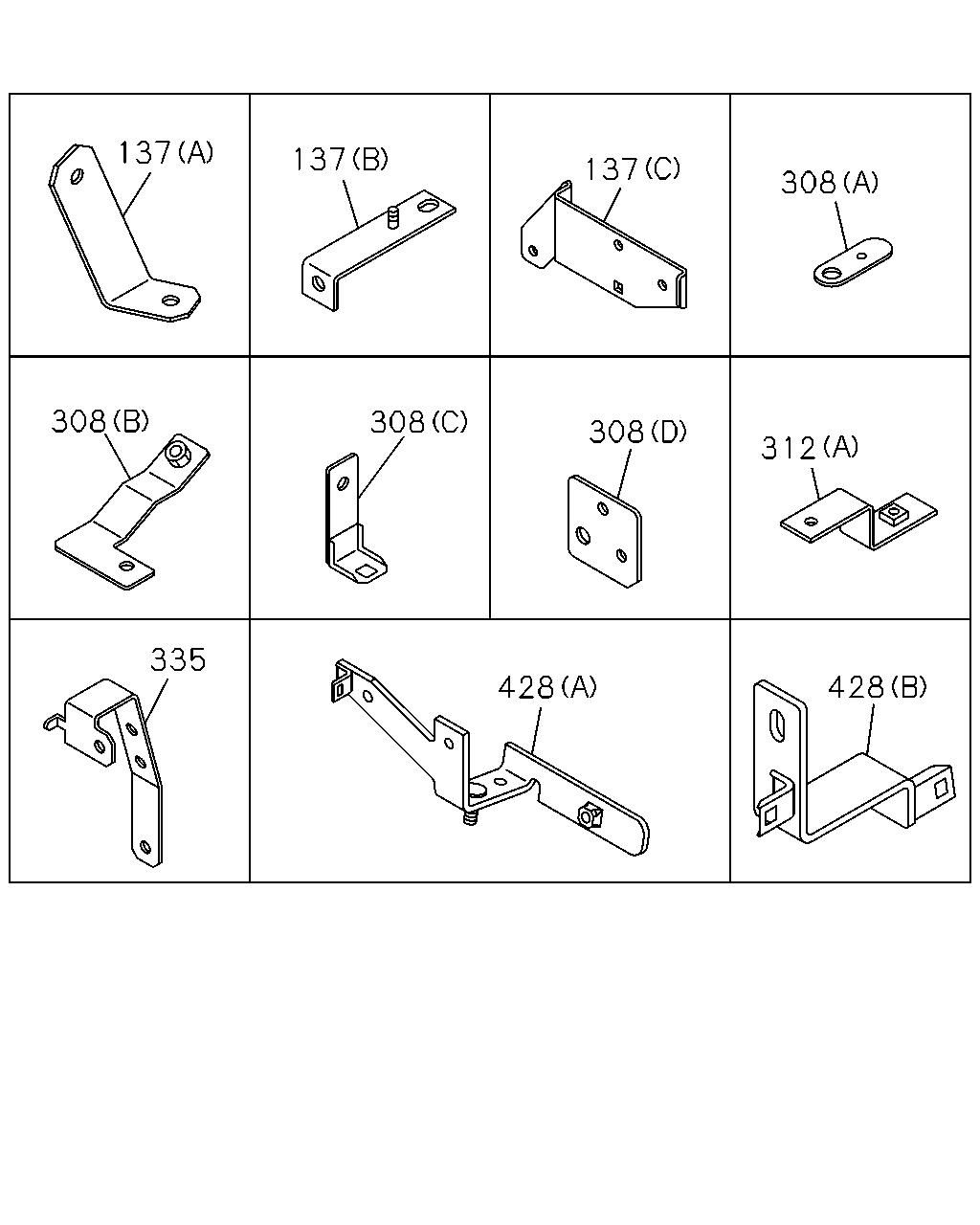

137 137 137 308 312 308 308 308 335 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) (C)	8-98193-417-0	01	1	1305-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (A)	8-97614-728-1	01	1	1302-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (B)	8-97624-013-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1302-1304
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	1305-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1302-1304
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (D)	8-98021-692-1	01	1	1305-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98032-178-0	01	1	1302-1304
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (B)	8-98032-178-0	01	1	1305-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98075-824-0	01	1	1302-1304
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (C)	8-98075-824-0	01	1	1305-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1302-
312	BRACKET; CLIP HARNESS (A)	8-97609-110-1	01	1	1302-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1302-
428	BRACKET 6HK1-TCN ENG(82L) (A)	8-98212-082-1	01	1	1302-
428	BRACKET 4HK1-TCS ENG(RJS) (B)	8-98203-354-2	01	1	1305-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
