Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#112960) — 209 parça

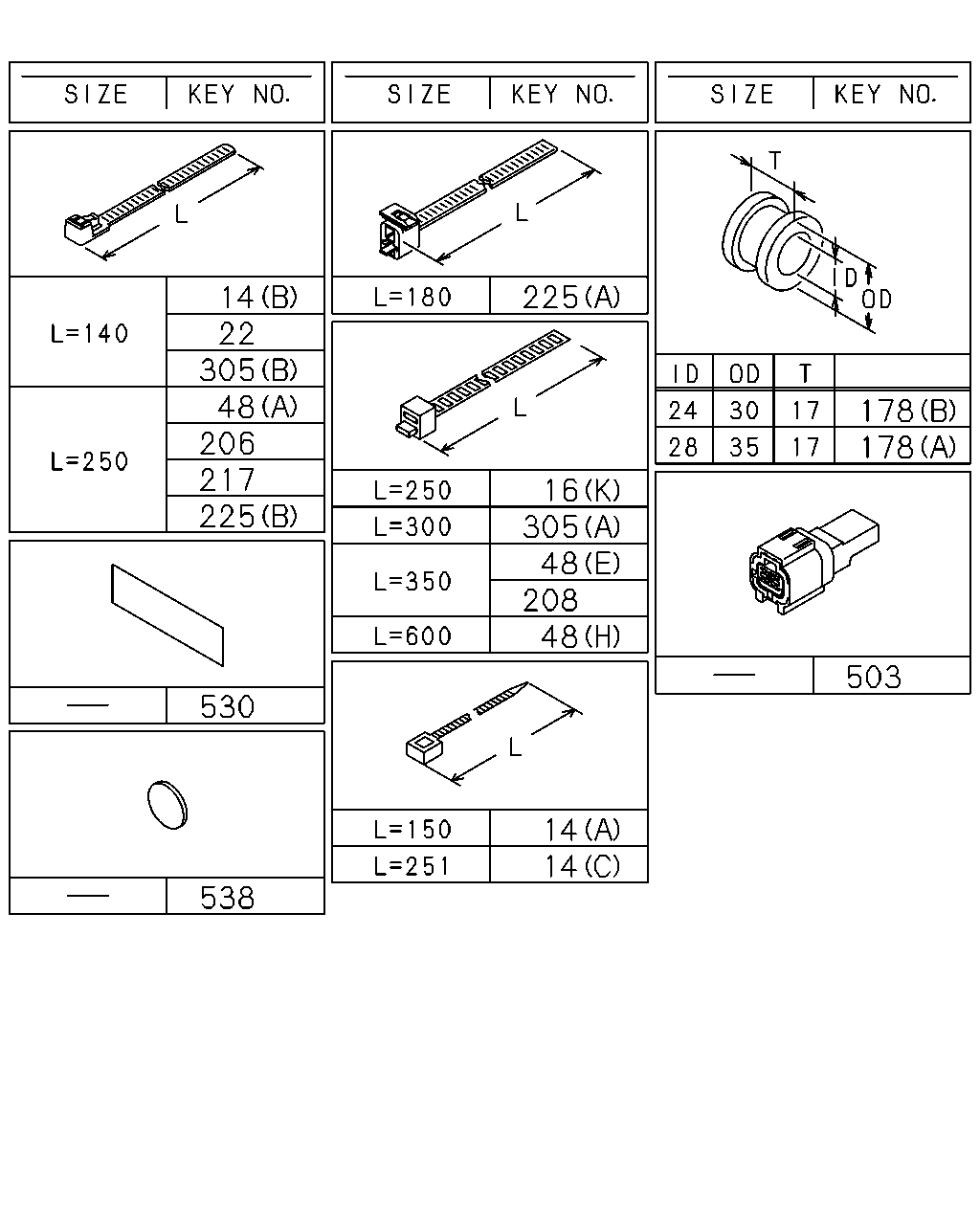

14 22 305 48 206 217 225 530 538 14 14 48 208 48 305 16 225 503 178 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS EURO4 SPECIFICATION<NT4> (B) L=140	5-09707-031-1	01	1	1312-
14	CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> (B) L=140	5-09707-031-1	01	1	1312-
14	CLIP; BAND,HARNESS EURO4 SPECIFICATION<NT4> (A) L=150	8-97355-273-0	03	1	1302-1407
14	CLIP; BAND,HARNESS EURO4 SPECIFICATION<NT4> (A) L=150	8-97355-273-0	02	1	1408-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1302-1311
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	02	1	1312-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1312-
14	CLIP; BAND,HARNESS (C) L=251	8-97619-917-0	01	1	1302-
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (A) L=150	8-97355-273-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (I) ID=5-12 L=18	1-09709-287-0	01	1	1409-
16	CLIP; HARNESS EURO4 SPECIFICATION<NT4> (M) ID=28 L=32	1-09701-107-1	02	1	1302-
16	CLIP; HARNESS EURO2 SPECIFICATION<NT2> (H) ID=24 L=24	1-09701-001-1	02	1	1302-
16	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1302-
16	CLIP; HARNESS (K) L=250	1-09707-126-0	02	1	1302-
16	CLIP; HARNESS (G) ID=10 & 10	1-09709-277-1	04	1	1302-
16	CLIP; HARNESS (L) ID=10 & 12	1-09709-278-1	01	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS EURO4 SPECIFICATION<NT4> (J) ID=19 H=21 L=24	5-09700-360-0	01	1	1302-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (I) ID=5-12 L=18	1-09709-287-0	02	1	1302-
22	CLIP; ENG HARNESS L=140	5-09707-031-1	02	1	1302-
48	CLIP; FRAME HARNESS (D) ID=5.5X2 L=35	1-09700-974-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) ID=32 L=50	1-09701-055-1	01	1	1302-
48	CLIP; FRAME HARNESS (H) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS (I) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1302-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	1302-
48	CLIP; FRAME HARNESS (B) ID=14 L=44	9-09917-427-0	04	1	1302-
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (B) ID=14 L=44	9-09917-427-0	02	1	1302-
48	CLIP; FRAME HARNESS SINGAPORE EQUIPMENT(2G0) EURO4 SPECIFICATION<NT4> (B) ID=14 L=44	9-09917-427-0	01	1	1302-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> (B) ID=14 L=44	9-09917-427-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (B) ID=14 L=44	9-09917-427-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (B) ID=14 L=44	9-09917-427-0	10	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (B) ID=14 L=44	9-09917-427-0	12	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=13-18 L=22	1-09709-292-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (B) ID=14 L=44	9-09917-427-0	13	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	01	1	1302-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	03	1	1302-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	03	1	1302-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	1302-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1302-
225	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	1302-
225	CLIP; AIR TANK HARNESS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	5-09707-030-1	01	1	1302-
305	CLIP; ENG HARNESS (A) L=300	1-09707-001-1	01	1	1302-
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	02	1	1302-1409
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	01	1	1410-
503	CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	1302-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 180X40	1-72498-019-1	15	1	1302-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1302-

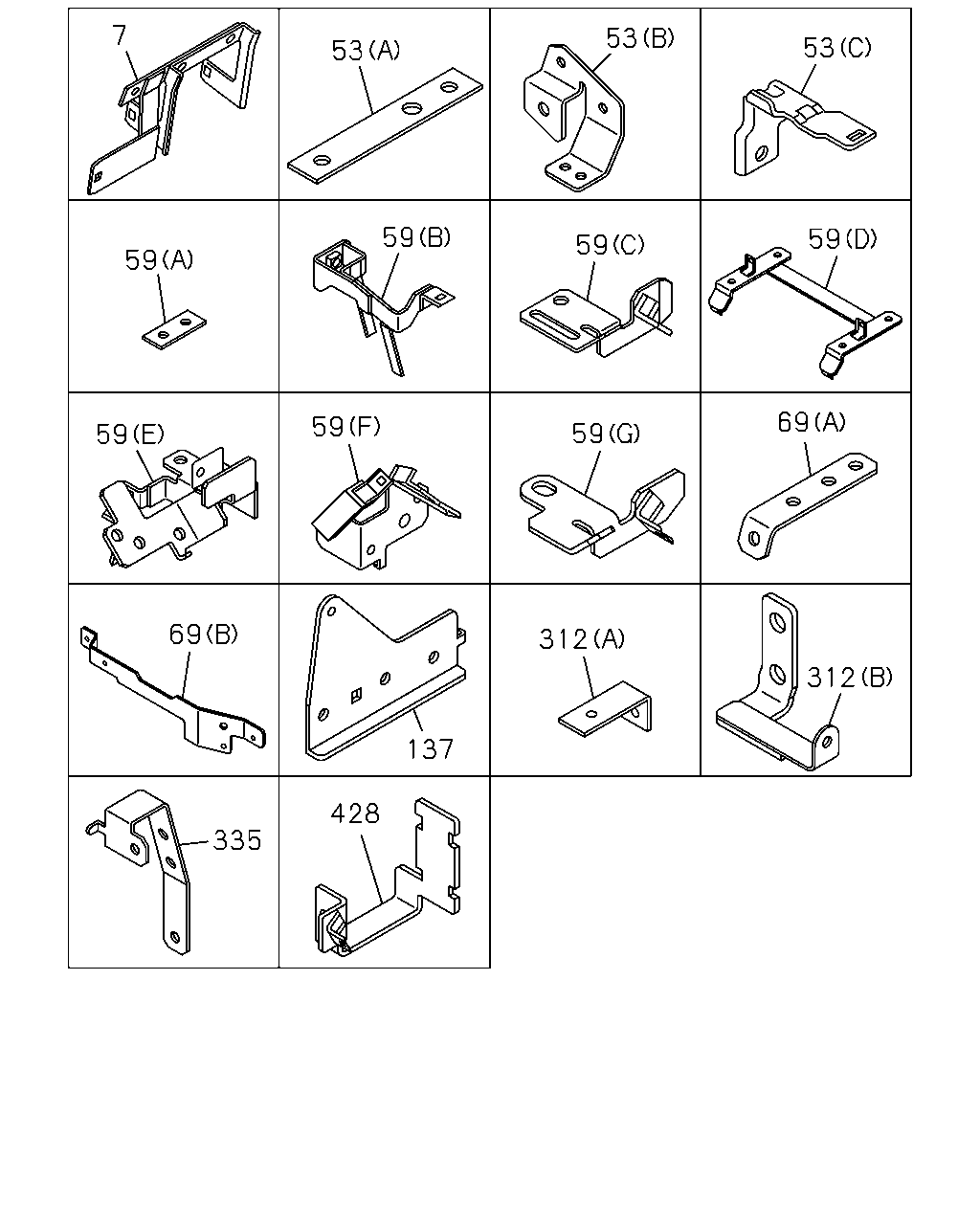

7 53 53 53 59 59 59 59 69 59 59 59 69 312 312 137 428 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1302-
53	BRACKET; HARNESS (A) L=170	1-47479-380-0	01	1	1302-
53	BRACKET; HARNESS (C)	8-98052-458-0	01	1	1302-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98084-590-0	01	1	1302-
59	BRACKET; FRAME HARNESS (C)	8-97616-305-0	01	1	1302-1502
59	BRACKET; FRAME HARNESS (G)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (D)	8-97619-533-0	01	1	1302-
59	BRACKET; FRAME HARNESS (E)	8-97619-535-0	01	1	1302-1401
59	BRACKET; FRAME HARNESS (F)	8-97622-828-0	01	1	1402-
59	BRACKET; FRAME HARNESS (A) L=85	8-98044-743-0	01	1	1302-
59	BRACKET; FRAME HARNESS (B)	8-98099-963-0	01	1	1302-
69	BRACKET; CLIP (A)	1-82698-167-0	01	1	1302-
69	BRACKET; CLIP (B)	8-97614-738-0	01	1	1302-
137	BRACKET; HARNESS CLAMP	8-97624-016-0	01	1	1302-
312	BRACKET; CLIP HARNESS (A) L=55	1-47475-304-0	01	1	1302-
312	BRACKET; CLIP HARNESS EURO4 SPECIFICATION<NT4> (B)	8-98094-804-0	01	1	1302-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1302-
428	BRACKET	8-98116-461-0	01	1	1302-

150 150 139 150 139 139 38 386 47 150 93 38 150 139 313 150 139 313 150 139 139 38 313 377 524 294 525 515 294 524 184 127 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-
38	BOLT; CLIP,HARNESS (A) M10X30 FLANGE	0-28651-030-0	01	1	1302-
38	BOLT; CLIP,HARNESS (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1302-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
93	BOLT; ECM HARNESS CLIP M8X20 FLANGE	0-28650-820-0	02	1	1302-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1302-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1302-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1302-
139	BOLT; BRKT (F) M10X30 FLANGE	0-28651-030-0	01	1	1302-
139	BOLT; BRKT (F) M10X30 FLANGE	0-28651-030-0	01	1	1302-
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D) M8X65 FLANGE	1-09044-072-1	01	1	1302-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (G) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-
150	BOLT; CLIP EURO4 SPECIFICATION<NT4> (F) M6X16 FLANGE	0-28650-616-0	01	1	1401-
150	BOLT; CLIP (F) M6X16 FLANGE	0-28650-616-0	01	1	1401-
150	BOLT; CLIP (D) M6X12 FLANGE	0-28050-612-0	02	1	1302-1312
150	BOLT; CLIP EURO2 SPECIFICATION<NT2> (D) M6X12 FLANGE	0-28050-612-0	03	1	1401-
150	BOLT; CLIP (C) M8X12 FLANGE	0-28050-812-0	01	1	1302-
150	BOLT; CLIP (G) M8X30 FLANGE	0-28650-830-0	01	1	1302-
150	BOLT; CLIP EURO2 SPECIFICATION<NT2> (E) M8X16 FLANGE	0-28050-816-0	02	1	1302-
150	BOLT; CLIP EURO2 SPECIFICATION<NT2> (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
150	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X20 FLANGE	0-28650-820-0	01	1	1302-
150	BOLT; CLIP EURO4 SPECIFICATION<NT4> (F) M6X16 FLANGE	0-28650-616-0	01	1	1302-1312
150	BOLT; CLIP EURO4 SPECIFICATION<NT4> (D) M6X12 FLANGE	0-28050-612-0	02	1	1401-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1302-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
294	NUT MZW6P M/T(RSZ) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1302-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1302-
313	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1302-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1302-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1302-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1302-
524	NUT; HARNESS (B) M6 FLANGE	0-91180-106-0	04	1	1302-
524	NUT; HARNESS (A) M10 FLANGE	0-91180-110-0	01	1	1302-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-

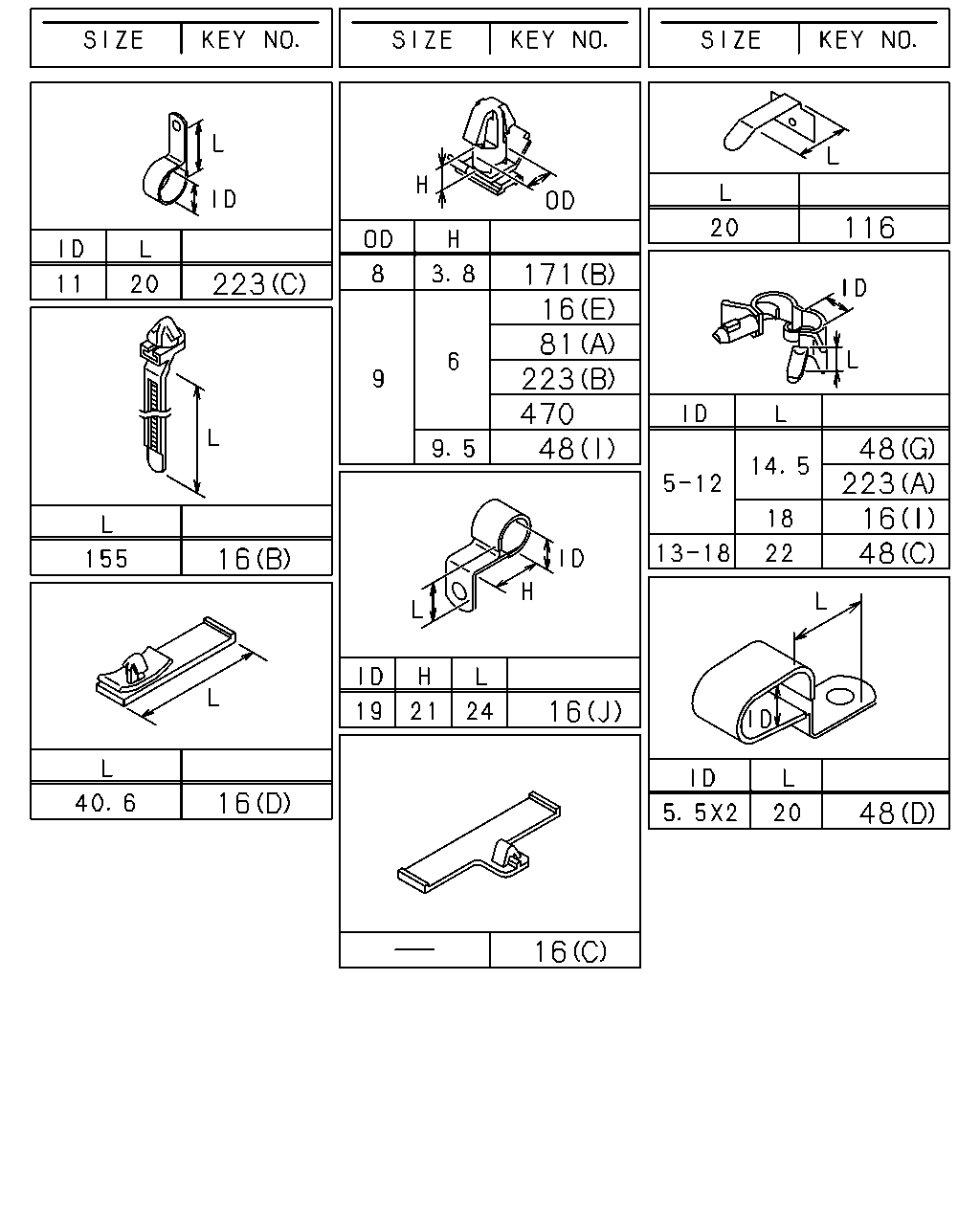

171 223 16 116 81 48 223 223 470 16 48 48 16 16 48 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (I) ID=5-12 L=18	1-09709-287-0	01	1	1409-
16	CLIP; HARNESS EURO4 SPECIFICATION<NT4> (M) ID=28 L=32	1-09701-107-1	02	1	1302-
16	CLIP; HARNESS EURO2 SPECIFICATION<NT2> (H) ID=24 L=24	1-09701-001-1	02	1	1302-
16	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1302-
16	CLIP; HARNESS (K) L=250	1-09707-126-0	02	1	1302-
16	CLIP; HARNESS (G) ID=10 & 10	1-09709-277-1	04	1	1302-
16	CLIP; HARNESS (L) ID=10 & 12	1-09709-278-1	01	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS EURO4 SPECIFICATION<NT4> (J) ID=19 H=21 L=24	5-09700-360-0	01	1	1302-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (I) ID=5-12 L=18	1-09709-287-0	02	1	1302-
48	CLIP; FRAME HARNESS (D) ID=5.5X2 L=35	1-09700-974-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) ID=32 L=50	1-09701-055-1	01	1	1302-
48	CLIP; FRAME HARNESS (H) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS (I) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1302-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	1302-
48	CLIP; FRAME HARNESS (B) ID=14 L=44	9-09917-427-0	04	1	1302-
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (B) ID=14 L=44	9-09917-427-0	02	1	1302-
48	CLIP; FRAME HARNESS SINGAPORE EQUIPMENT(2G0) EURO4 SPECIFICATION<NT4> (B) ID=14 L=44	9-09917-427-0	01	1	1302-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> (B) ID=14 L=44	9-09917-427-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (B) ID=14 L=44	9-09917-427-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (B) ID=14 L=44	9-09917-427-0	10	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (B) ID=14 L=44	9-09917-427-0	12	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=13-18 L=22	1-09709-292-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (B) ID=14 L=44	9-09917-427-0	13	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	01	1	1302-
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1302-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1302-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1302-
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	1302-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	1302-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	1302-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	04	1	1302-
223	CLIP; AIR TANK HARNESS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=11 L=20	0-95235-035-0	01	1	1302-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1302-

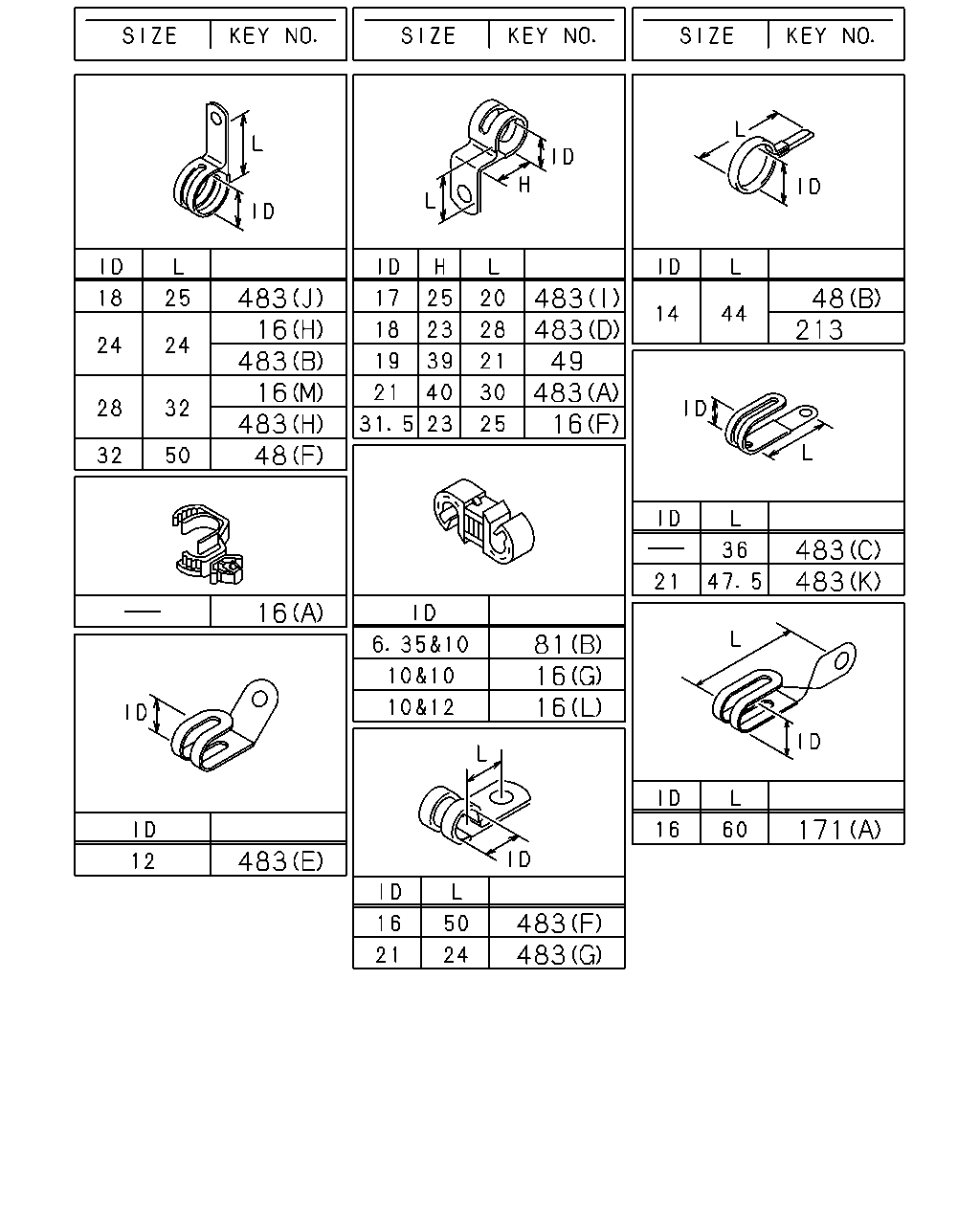

483 16 16 483 483 48 483 483 49 483 16 48 213 483 81 16 16 483 483 483 171 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS 4HK1-TCC ENG(RDV) EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (I) ID=5-12 L=18	1-09709-287-0	01	1	1409-
16	CLIP; HARNESS EURO4 SPECIFICATION<NT4> (M) ID=28 L=32	1-09701-107-1	02	1	1302-
16	CLIP; HARNESS EURO2 SPECIFICATION<NT2> (H) ID=24 L=24	1-09701-001-1	02	1	1302-
16	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1302-
16	CLIP; HARNESS (K) L=250	1-09707-126-0	02	1	1302-
16	CLIP; HARNESS (G) ID=10 & 10	1-09709-277-1	04	1	1302-
16	CLIP; HARNESS (L) ID=10 & 12	1-09709-278-1	01	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
16	CLIP; HARNESS EURO4 SPECIFICATION<NT4> (J) ID=19 H=21 L=24	5-09700-360-0	01	1	1302-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1302-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (I) ID=5-12 L=18	1-09709-287-0	02	1	1302-
48	CLIP; FRAME HARNESS (D) ID=5.5X2 L=35	1-09700-974-0	01	1	1302-
48	CLIP; FRAME HARNESS (F) ID=32 L=50	1-09701-055-1	01	1	1302-
48	CLIP; FRAME HARNESS (H) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1302-
48	CLIP; FRAME HARNESS (I) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1302-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	1302-
48	CLIP; FRAME HARNESS (B) ID=14 L=44	9-09917-427-0	04	1	1302-
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> EXC. SINGAPORE EQUIPMENT(2G0) (B) ID=14 L=44	9-09917-427-0	02	1	1302-
48	CLIP; FRAME HARNESS SINGAPORE EQUIPMENT(2G0) EURO4 SPECIFICATION<NT4> (B) ID=14 L=44	9-09917-427-0	01	1	1302-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> (B) ID=14 L=44	9-09917-427-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (B) ID=14 L=44	9-09917-427-0	06	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (B) ID=14 L=44	9-09917-427-0	10	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (B) ID=14 L=44	9-09917-427-0	12	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=13-18 L=22	1-09709-292-0	01	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (B) ID=14 L=44	9-09917-427-0	13	1	1302-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	01	1	1302-
49	CLIP; GEN HARNESS ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1302-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1302-
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	1302-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	1302-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1302-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (E) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1401-
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1302-
483	CLIP; ENG HARNESS (A) ID=21 L=30 H=40	1-09700-991-1	01	1	1302-
483	CLIP; ENG HARNESS (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1302-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=24 L=24	1-09701-001-1	01	1	1302-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (F) ID=16 L=50	1-09701-158-0	01	1	1302-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=36	8-94224-891-1	02	1	1302-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=24	8-98019-191-0	01	1	1302-
483	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (H) ID=28 L=32	1-09701-107-1	01	1	1302-
483	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (I)	1-09987-281-0	01	1	1302-
483	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (J) ID=18 L=25	8-94121-004-1	01	1	1302-
483	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (K) ID=21 L=47.5	8-94178-108-0	01	1	1302-
483	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (C) L=36	8-94224-891-1	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
