0-27 — EXHAUST MANIFOLD (#112954) — 58 parça

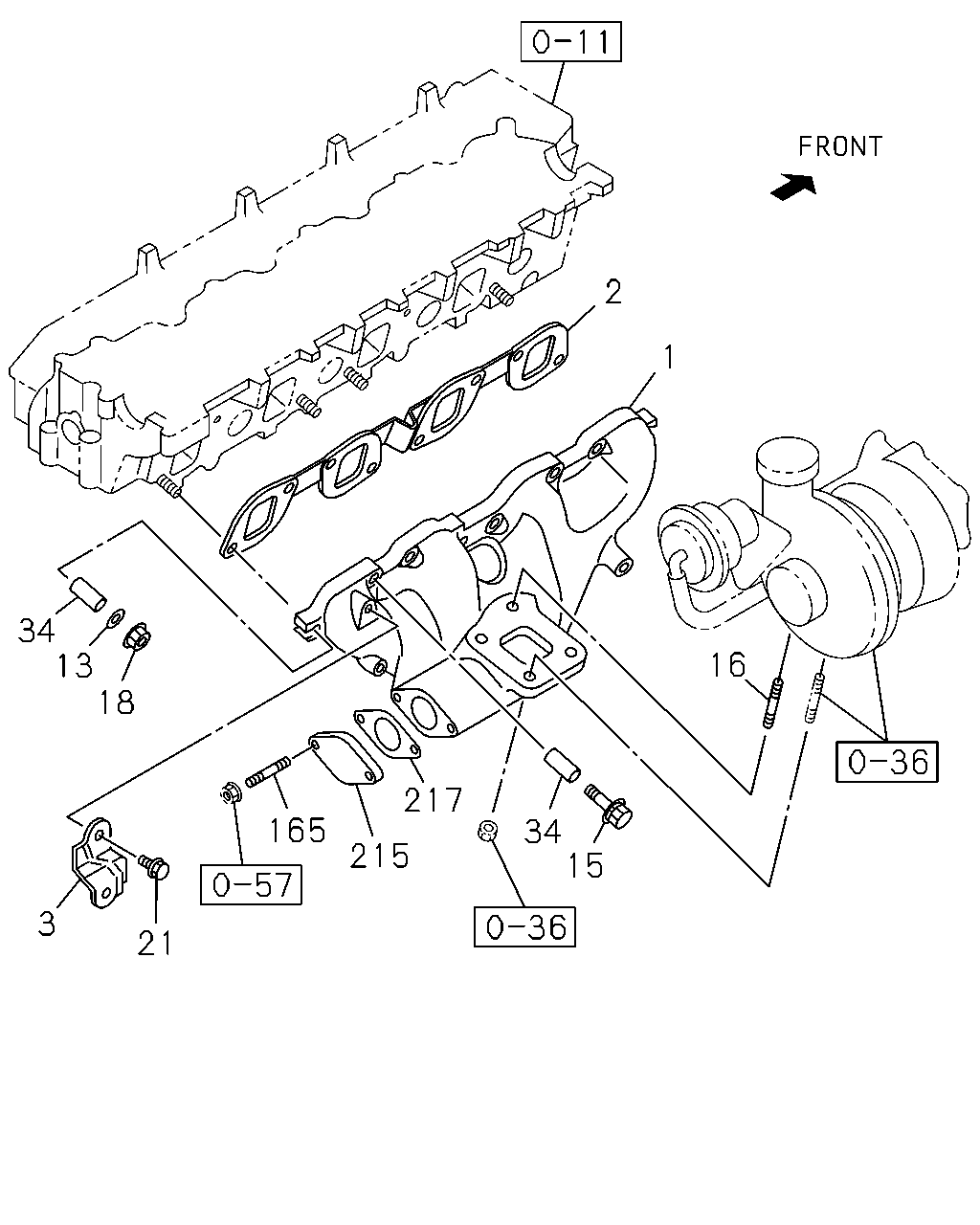

2 34 13 18 3 21 165 215 34 217 15 16 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98027-968-1	01	1	1302-1511	●
1	MANIFOLD; EXHAUST	8-98027-968-1	01	1	1302-1511		●
1	MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2>	8-98027-968-1	01	1	1512-	●
1	MANIFOLD; EXHAUST	8-98027-968-1	01	1	1512-		●
1	MANIFOLD; EXHAUST EURO4 SPECIFICATION<NT4>	8-97387-873-4	01	1	1302-1405	●
1	MANIFOLD; EXHAUST EURO4 SPECIFICATION<NT4>	8-98271-447-0	01	1	1406-1505	●
1	MANIFOLD; EXHAUST EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98271-447-0	01	1	1506-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97146-499-2	01	1	1302-	●	●
3	PROTECTOR; HEAT,EXH MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97039-753-1	01	1	1302-1511	●
3	PROTECTOR; HEAT,EXH MANIF	8-97039-753-1	01	1	1302-1511		●
3	PROTECTOR; HEAT,EXH MANIF EURO2 SPECIFICATION<NT2>	8-97039-753-1	01	1	1512-	●
3	PROTECTOR; HEAT,EXH MANIF	8-97039-753-1	01	1	1512-		●
13	WASHER; LK,EXH MANIF T=2.2	1-09556-015-0	02	1	1302-	●	●
15	BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	1302-	●	●
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X25 L=40	9-04731-025-0	02	1	1302-1511	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	1302-1511		●
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2> M10X25 L=40	9-04731-025-0	02	1	1512-	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	1512-		●
16	STUD; EXH PIPE TO MANIF EURO4 SPECIFICATION<NT4> M10X30 L=45	1-09302-106-0	02	1	1302-1505	●
16	STUD; EXH PIPE TO MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10X30 L=45	1-09302-106-0	02	1	1506-	●
18	NUT; EXH MANIF M10	0-91110-510-0	02	1	1302-	●	●
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M6X12 FLANGE	8-97108-669-0	02	1	1302-1511	●
21	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	02	1	1302-1511		●
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> M6X12 FLANGE	8-97108-669-0	02	1	1512-	●
21	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	02	1	1512-		●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	1302-	●	●
165	STUD; EGR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X45 L=57	8-94105-162-1	02	1	1302-1511	●
165	STUD; EGR PIPE M8X45 L=57	8-94105-162-1	02	1	1302-1511		●
165	STUD; EGR PIPE EURO2 SPECIFICATION<NT2> M8X45 L=57	8-94105-162-1	02	1	1512-	●
165	STUD; EGR PIPE M8X45 L=57	8-94105-162-1	02	1	1512-		●
165	STUD; EGR PIPE EURO4 SPECIFICATION<NT4> M8X25 L=36	8-94476-282-0	03	1	1302-1505	●
165	STUD; EGR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X25 L=36	8-94476-282-0	03	1	1506-	●
215	PLATE; BOSS,EXH MANIF EURO2 SPECIFICATION<NT2>	8-98170-965-0	01	1	1302-	●	●
217	GASKET; EXH MANIF TO PLATE EURO2 SPECIFICATION<NT2>	8-94340-670-0	01	1	1302-	●	●

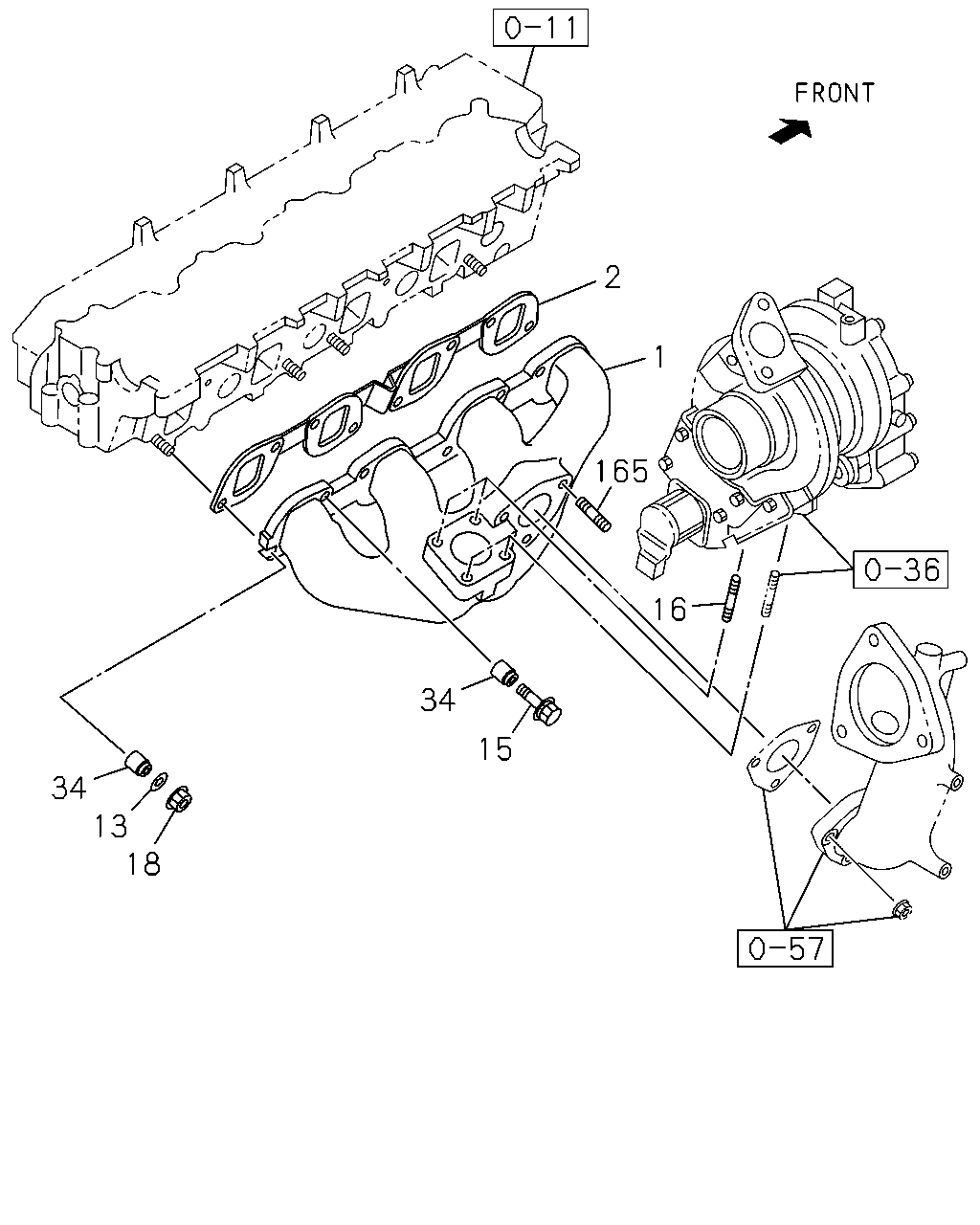

2 1 165 16 15 34 18 13 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98027-968-1	01	1	1302-1511	●
1	MANIFOLD; EXHAUST	8-98027-968-1	01	1	1302-1511		●
1	MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2>	8-98027-968-1	01	1	1512-	●
1	MANIFOLD; EXHAUST	8-98027-968-1	01	1	1512-		●
1	MANIFOLD; EXHAUST EURO4 SPECIFICATION<NT4>	8-97387-873-4	01	1	1302-1405	●
1	MANIFOLD; EXHAUST EURO4 SPECIFICATION<NT4>	8-98271-447-0	01	1	1406-1505	●
1	MANIFOLD; EXHAUST EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98271-447-0	01	1	1506-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97146-499-2	01	1	1302-	●	●
13	WASHER; LK,EXH MANIF T=2.2	1-09556-015-0	02	1	1302-	●	●
15	BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	1302-	●	●
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X25 L=40	9-04731-025-0	02	1	1302-1511	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	1302-1511		●
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2> M10X25 L=40	9-04731-025-0	02	1	1512-	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	1512-		●
16	STUD; EXH PIPE TO MANIF EURO4 SPECIFICATION<NT4> M10X30 L=45	1-09302-106-0	02	1	1302-1505	●
16	STUD; EXH PIPE TO MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10X30 L=45	1-09302-106-0	02	1	1506-	●
18	NUT; EXH MANIF M10	0-91110-510-0	02	1	1302-	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	1302-	●	●
165	STUD; EGR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X45 L=57	8-94105-162-1	02	1	1302-1511	●
165	STUD; EGR PIPE M8X45 L=57	8-94105-162-1	02	1	1302-1511		●
165	STUD; EGR PIPE EURO2 SPECIFICATION<NT2> M8X45 L=57	8-94105-162-1	02	1	1512-	●
165	STUD; EGR PIPE M8X45 L=57	8-94105-162-1	02	1	1512-		●
165	STUD; EGR PIPE EURO4 SPECIFICATION<NT4> M8X25 L=36	8-94476-282-0	03	1	1302-1505	●
165	STUD; EGR PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X25 L=36	8-94476-282-0	03	1	1506-	●
