3-05 — REAR WHEEL BRAKE (#112951) — 77 parça

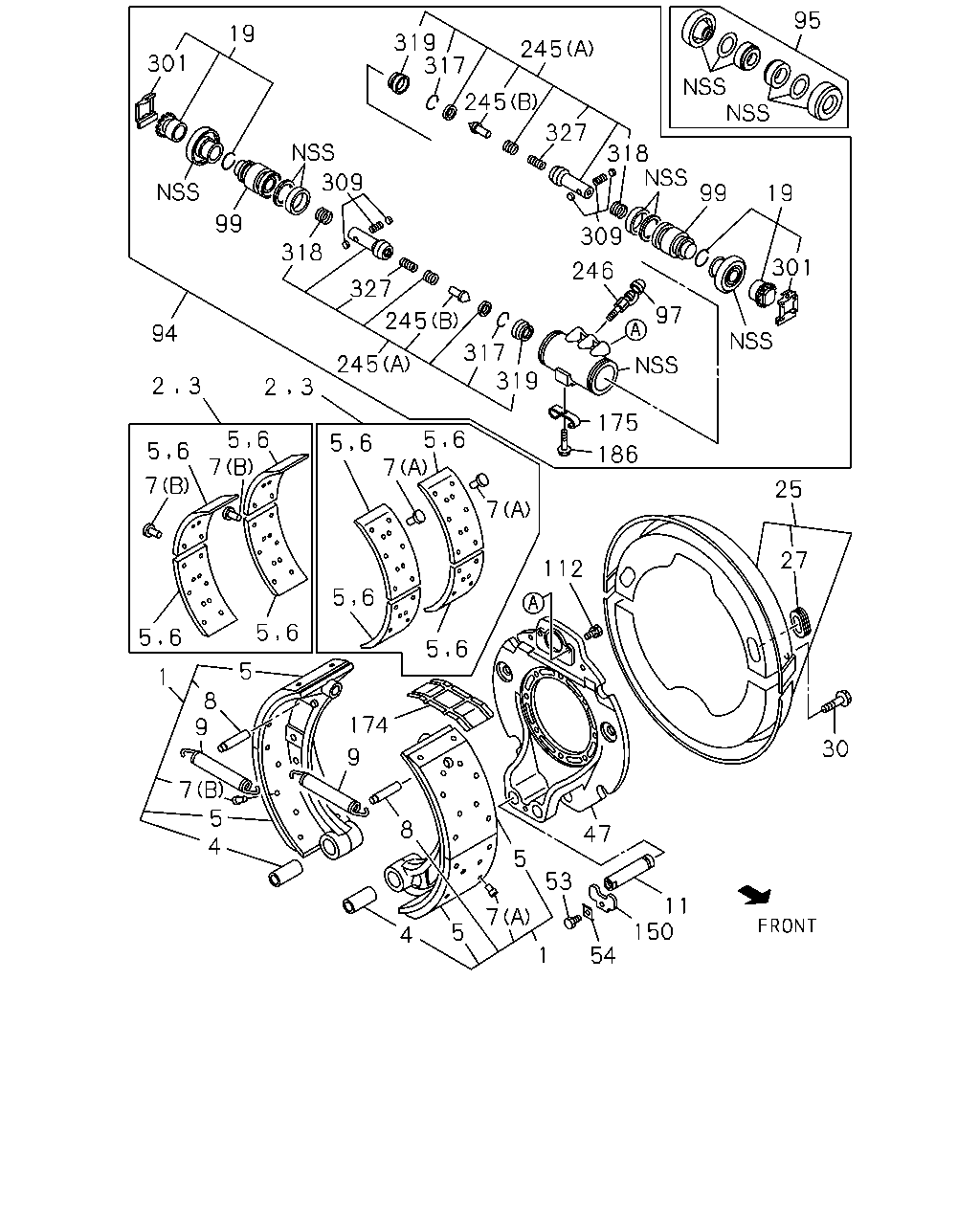

çizim 331500
95 19 99 318 327 245 245 317 319 19 301 309 318 99 327 317 245 309 246 301 97 175 319 186 25 27 30 112 7 6 245 3 2 94 3 2 5 6 5 6 5 6 5 7 7 7 6 5 6 5 6 5 6 5 174 9 5 1 8 9 7 5 4 8 47 5 53 11 150 7 5 4 54 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
LEADING 		1-47170-498-0 01 1 1302- ● ●
1 SHOE; BRK,RR
TRAILING 		1-47170-499-0 01 1 1302- ● ●
1 SHOE; BRK,RR
LEADING 		1-47170-496-0 01 1 1302- ● ●
1 SHOE; BRK,RR
TRAILING 		1-47170-497-0 01 1 1302- ● ●
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88311-390-0 01 1 1302- ● ●
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88311-394-0 01 1 1302- ● ●
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88311-391-0 01 1 1302- ● ●
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88311-395-0 01 1 1302- ● ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-011-0 04 1 1302- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-812-0 08 1 1302- ● ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-813-0 08 1 1302- ● ●
7 RIVET; LINING,RR BRK
(B) TRAILING L=18.5 		1-09732-034-0 40 1 1302- ● ●
7 RIVET; LINING,RR BRK
(A) LEADING L=15.5 		1-09732-053-0 40 1 1302- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-134-0 04 1 1302- ● ●
9 SPRING; RETURN,BRK SHOE 1-09583-359-0 04 1 1302- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=106.5 		1-47131-038-0 04 1 1302- ● ●
19 ADJUSTER; RR BRK 1-47621-015-0 04 1 1302- ● ●
25 COVER SET; RR BRK DRUM 1-47151-458-1 02 1 1302- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1302- ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1302- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-577-0 02 1 1302- ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 1302- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1302- ● ●
94 CYLINDER; WHEEL,RR BRK 8-98166-405-0 02 1 1302- ● ●
95 CUP SET; RR WHEEL CYL 1-87830-922-0 02 1 1302- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 1302- ● ●
99 PISTON; RR WHEEL CYL 1-47624-357-0 04 1 1302- ● ●
112 BOLT; WHEEL CYL SETTING
M12X32 W/LK WASHER 		0-50551-232-0 04 1 1302- ● ●
150 PLATE; LK,ANCHOR PIN 1-47133-005-0 02 1 1302- ● ●
174 COVER; CYL,RR WHEEL CYL 1-47159-197-0 02 1 1302- ● ●
175 HANGER; RR WHEEL BRK 1-47619-145-0 02 1 1302- ● ●
186 BOLT; HANGER
M8X16 W/LK WASHER 		0-50540-816-0 02 1 1302- ● ●
245 SHAFT
(A) 		1-47623-027-1 04 1 1302- ● ●
245 SHAFT
(B) 		1-47629-121-0 04 1 1302- ● ●
246 BLEEDER 1-47615-002-0 02 1 1302- ● ●
301 CLIP; ANTI LOTATION 1-47621-016-0 04 1 1302- ● ●
309 SPRING; ADJUSTER SHAFT 1-09580-544-0 04 1 1302- ● ●
317 RING; RETAINER 1-47629-119-0 04 1 1302- ● ●
318 SPRING; ADJ 1-09580-542-0 04 1 1302- ● ●
319 RING; DRIVE 1-47629-120-0 04 1 1302- ● ●
327 SPRING; ADJ 1-09580-543-0 04 1 1302- ● ●
çizim 331513

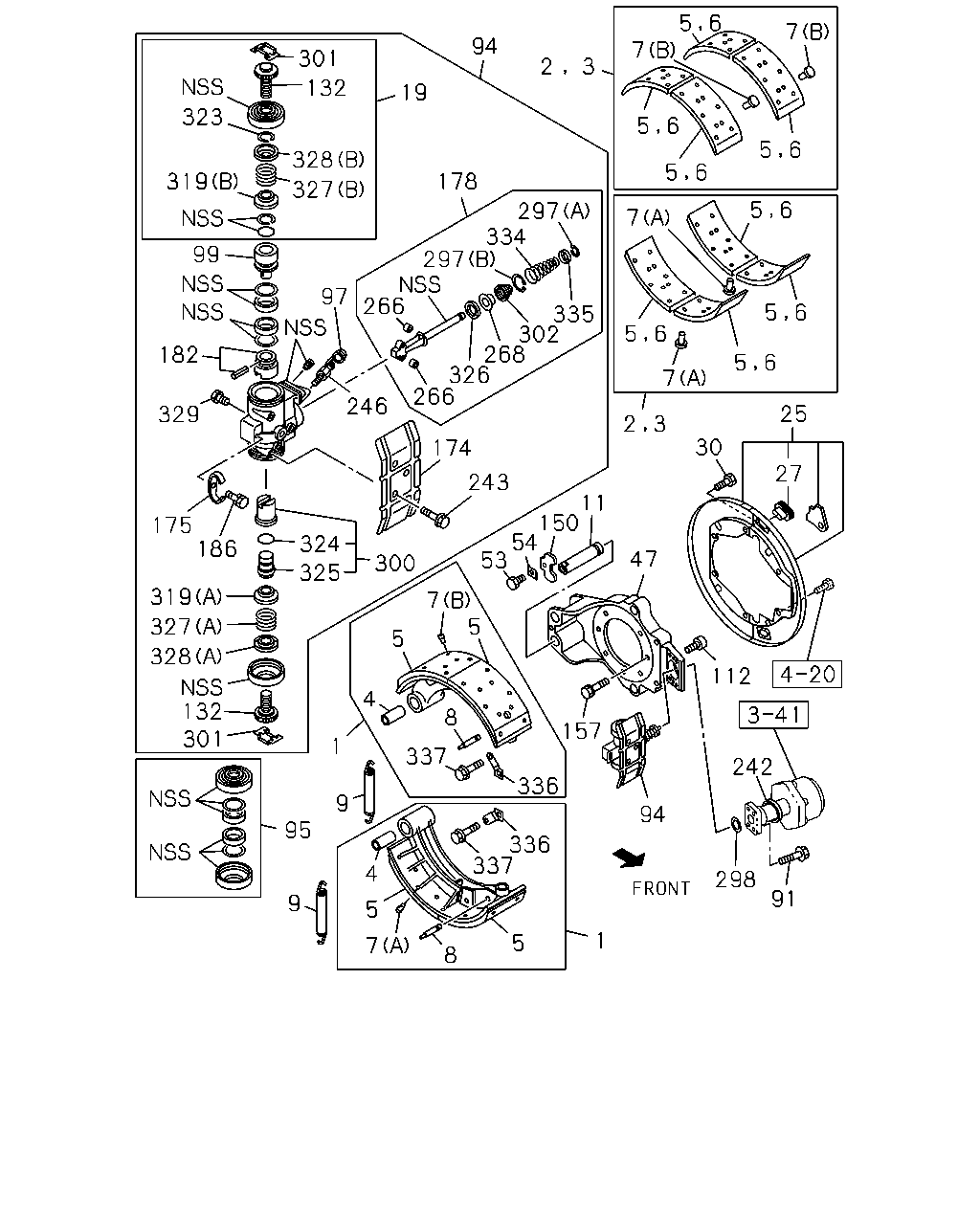

91 298 94 242 112 157 336 336 337 5 1 8 7 4 5 9 95 9 1 4 337 5 7 5 325 301 324 300 53 11 47 150 54 8 132 328 319 327 175 186 329 182 99 319 323 132 301 328 327 19 94 178 334 266 97 297 297 335 302 268 326 266 246 243 174 2 3 25 27 30 5 6 5 6 5 6 7 5 6 5 6 5 6 5 6 7 5 6 2 3 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
LEADING 		1-47170-498-0 01 1 1302- ● ●
1 SHOE; BRK,RR
TRAILING 		1-47170-499-0 01 1 1302- ● ●
1 SHOE; BRK,RR
LEADING 		1-47170-496-0 01 1 1302- ● ●
1 SHOE; BRK,RR
TRAILING 		1-47170-497-0 01 1 1302- ● ●
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88311-390-0 01 1 1302- ● ●
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88311-394-0 01 1 1302- ● ●
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88311-391-0 01 1 1302- ● ●
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88311-395-0 01 1 1302- ● ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-011-0 04 1 1302- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-812-0 08 1 1302- ● ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-813-0 08 1 1302- ● ●
7 RIVET; LINING,RR BRK
(B) TRAILING L=18.5 		1-09732-034-0 40 1 1302- ● ●
7 RIVET; LINING,RR BRK
(A) LEADING L=15.5 		1-09732-053-0 40 1 1302- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-134-0 04 1 1302- ● ●
9 SPRING; RETURN,BRK SHOE 1-09583-359-0 04 1 1302- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=106.5 		1-47131-038-0 04 1 1302- ● ●
19 ADJUSTER; RR BRK 1-47621-015-0 04 1 1302- ● ●
25 COVER SET; RR BRK DRUM 1-47151-458-1 02 1 1302- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1302- ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1302- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-577-0 02 1 1302- ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 1302- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1302- ● ●
94 CYLINDER; WHEEL,RR BRK 8-98166-405-0 02 1 1302- ● ●
95 CUP SET; RR WHEEL CYL 1-87830-922-0 02 1 1302- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 1302- ● ●
99 PISTON; RR WHEEL CYL 1-47624-357-0 04 1 1302- ● ●
112 BOLT; WHEEL CYL SETTING
M12X32 W/LK WASHER 		0-50551-232-0 04 1 1302- ● ●
150 PLATE; LK,ANCHOR PIN 1-47133-005-0 02 1 1302- ● ●
174 COVER; CYL,RR WHEEL CYL 1-47159-197-0 02 1 1302- ● ●
175 HANGER; RR WHEEL BRK 1-47619-145-0 02 1 1302- ● ●
186 BOLT; HANGER
M8X16 W/LK WASHER 		0-50540-816-0 02 1 1302- ● ●
246 BLEEDER 1-47615-002-0 02 1 1302- ● ●
301 CLIP; ANTI LOTATION 1-47621-016-0 04 1 1302- ● ●
319 RING; DRIVE 1-47629-120-0 04 1 1302- ● ●
327 SPRING; ADJ 1-09580-543-0 04 1 1302- ● ●
