2-85 — POWER TAKE OFF CONTROL (#112950) — 9 parça

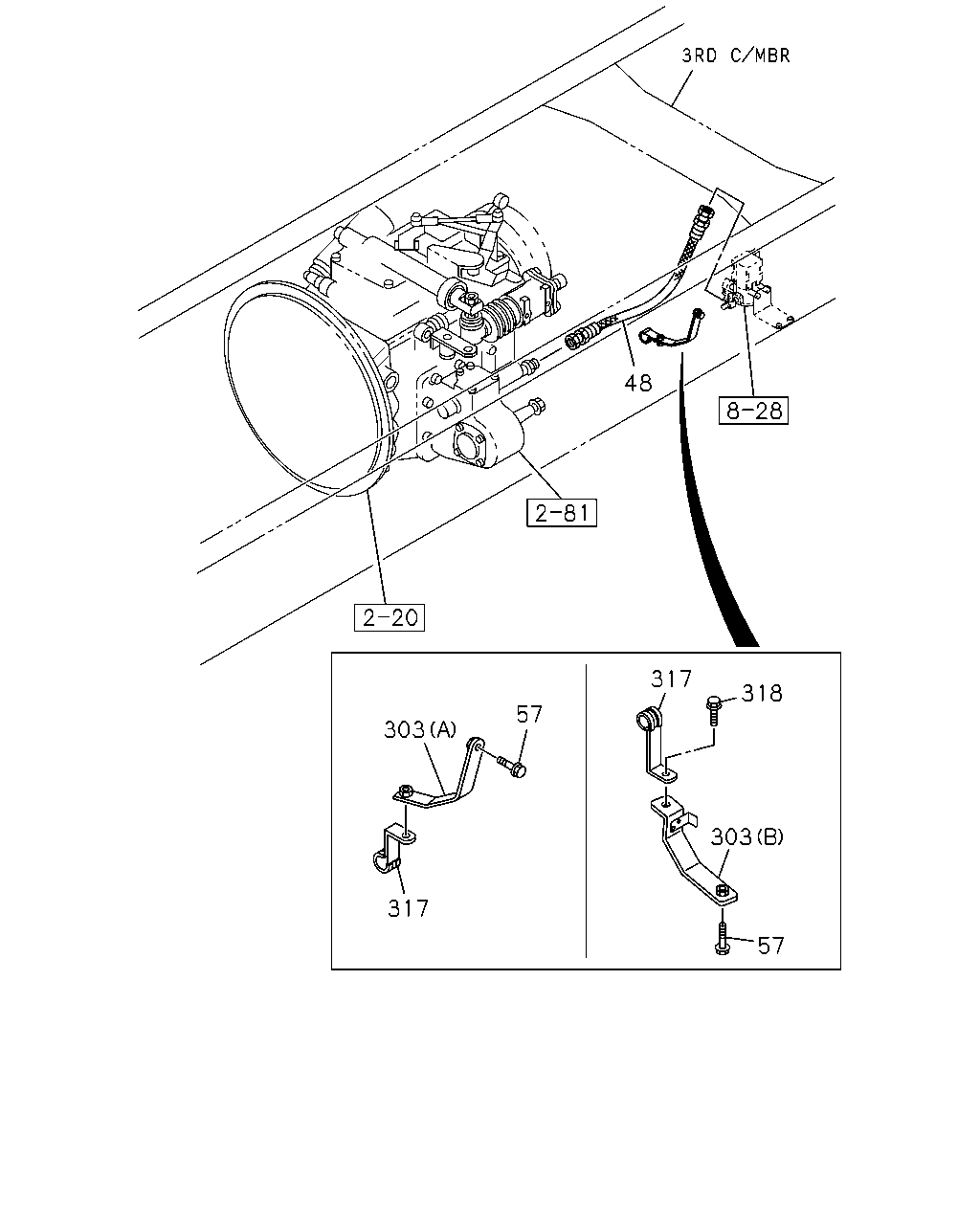

çizim 327672
48 317 318 303 57 303 57 317
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=560 		1-09363-914-0 01 1 1302-
48 HOSE; FLEX,PTO
MZZ6W M/T(RSA) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=580 		1-09363-613-1 01 1 1302-
57 BOLT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6> M10X25 FLANGE 		0-28651-025-0 01 1 1302-
303 BRACKET; CLIP
MZW6P M/T(RSZ) PTO CONTROL<SV6> (A) 		8-98136-973-0 01 1 1302-
303 BRACKET; CLIP
MZZ6W M/T(RSA) PTO CONTROL<SV6> (B) 		8-98136-975-0 01 1 1302-
317 CLIP; NYLON TUBE
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6> ID=15 L=22 H=30 		1-09701-215-1 01 1 1302-
318 BOLT; CLIP
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 01 1 1302-

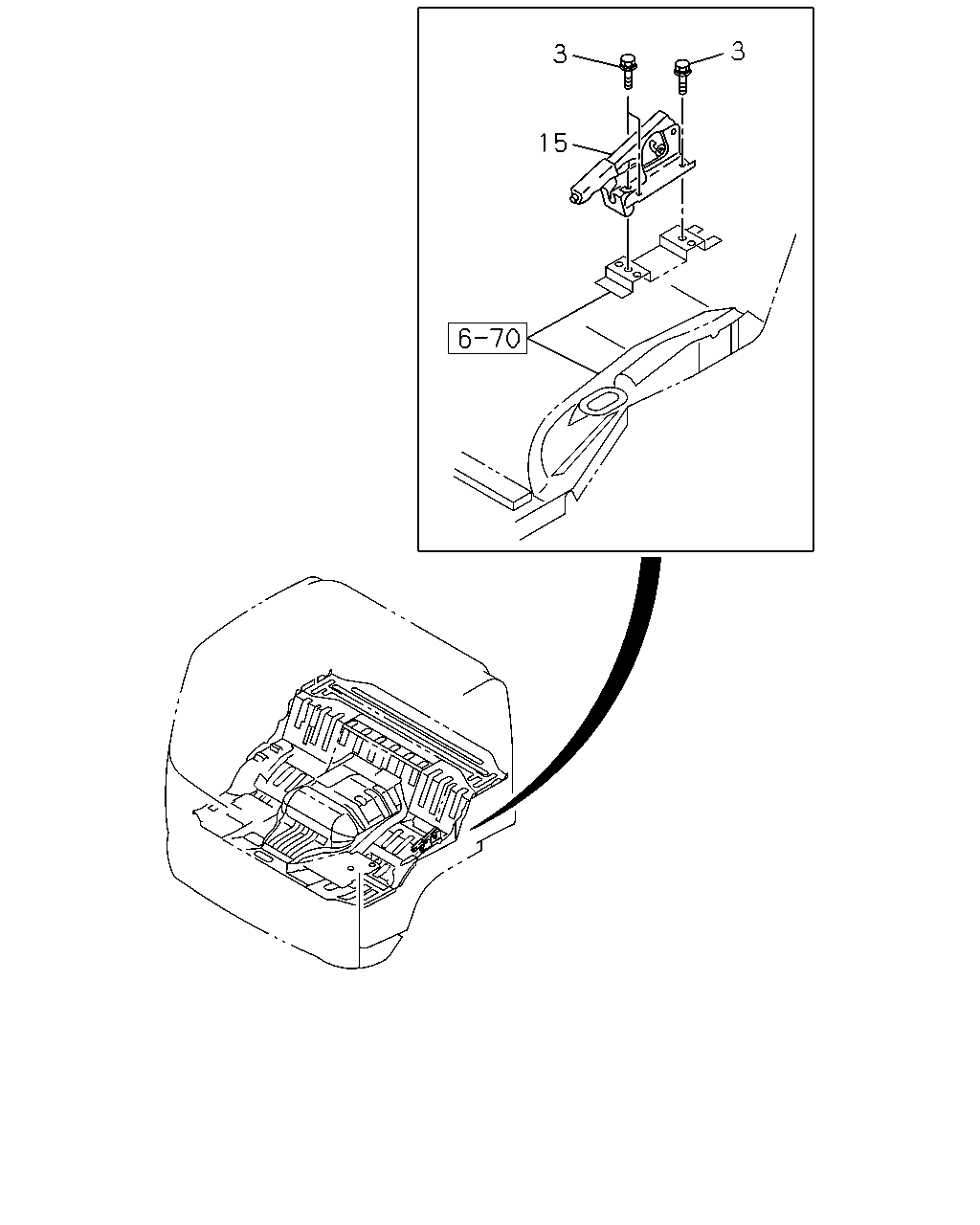

çizim 331428
15 3 3
BalonParca AdiParca NoAdetTipApplied Date
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1302-
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 1302-
